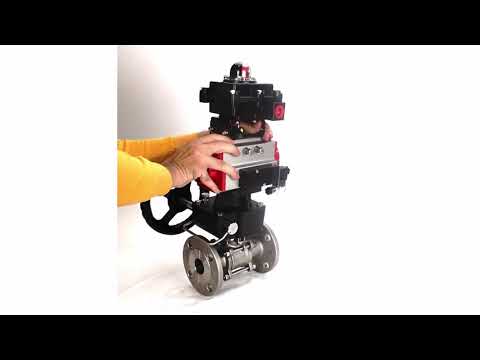

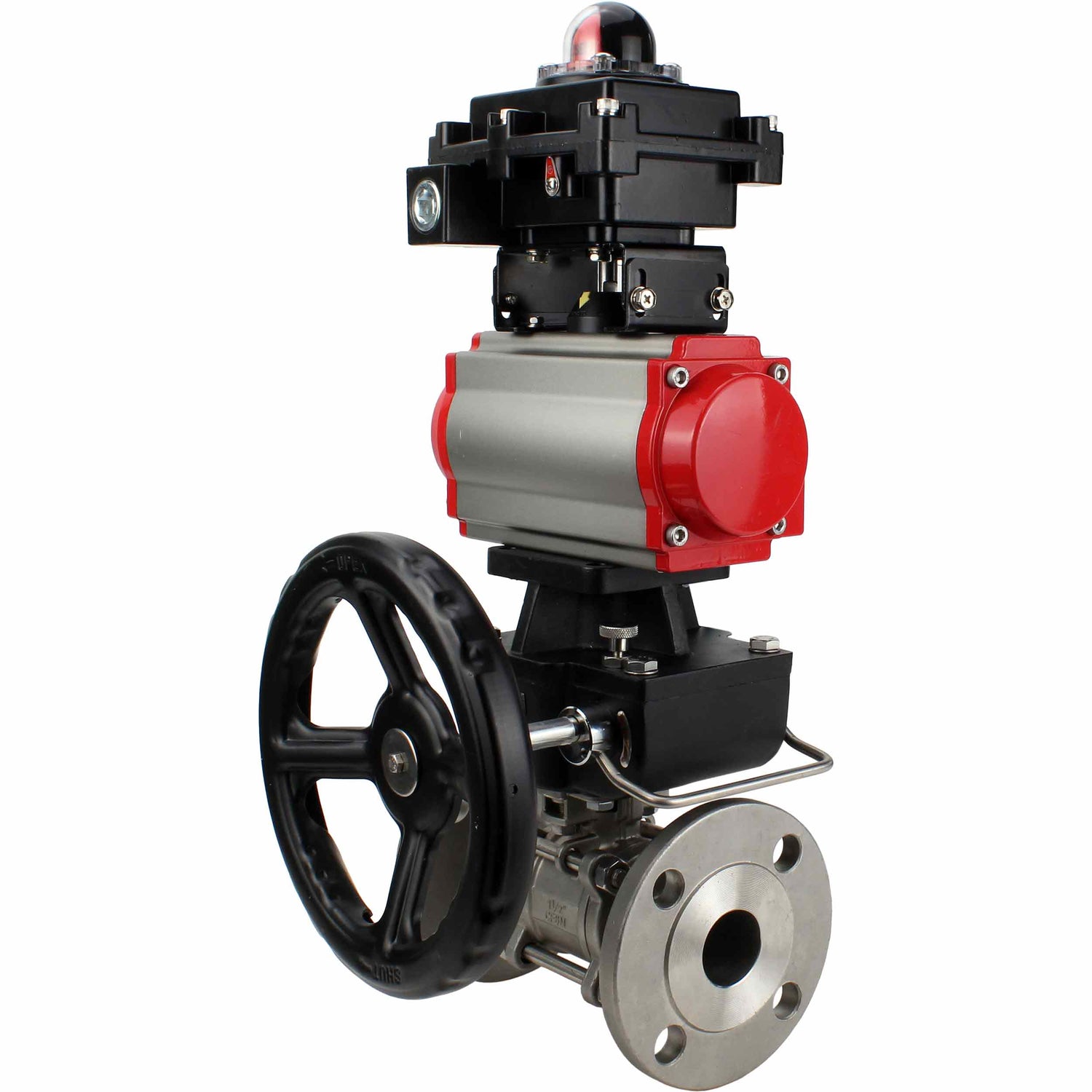

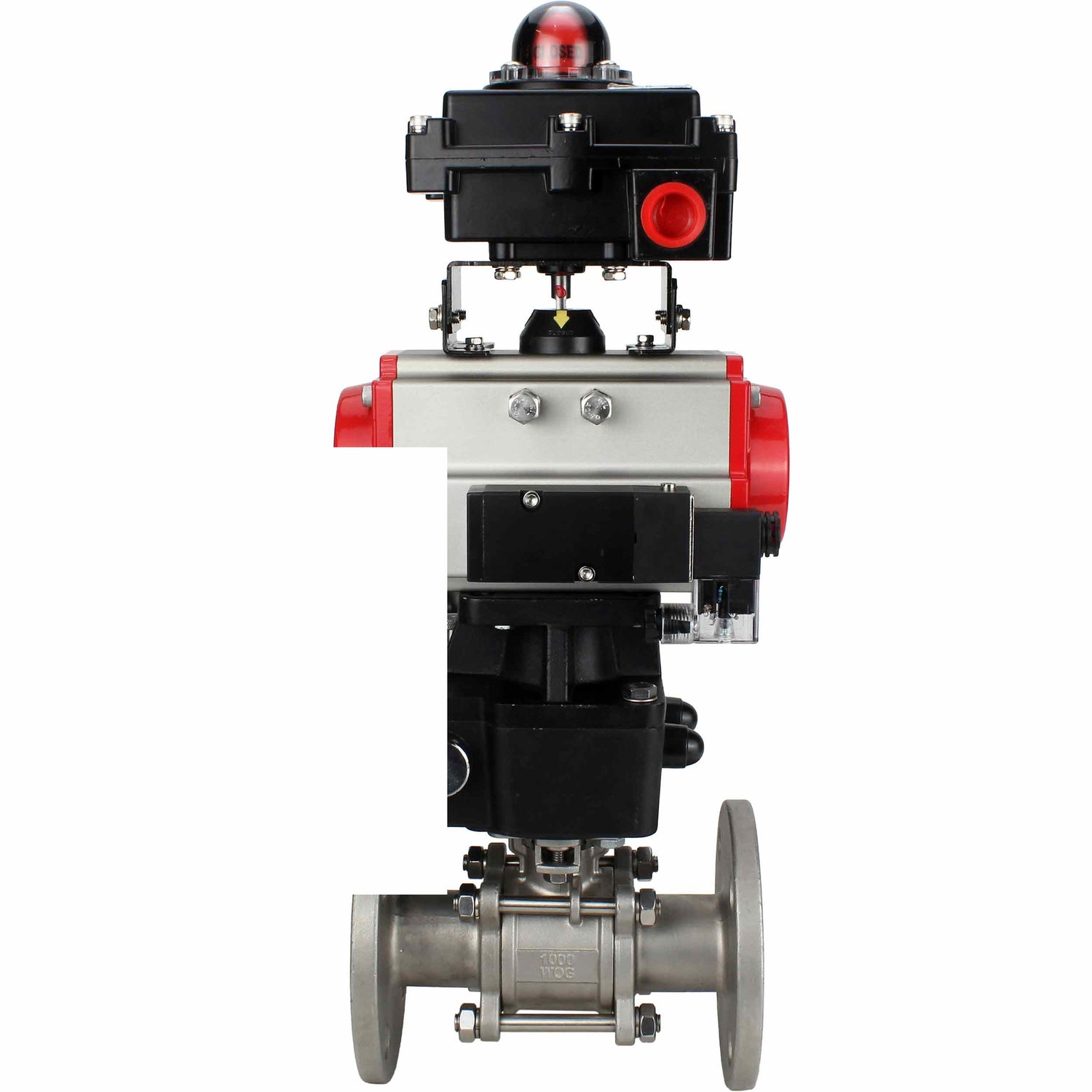

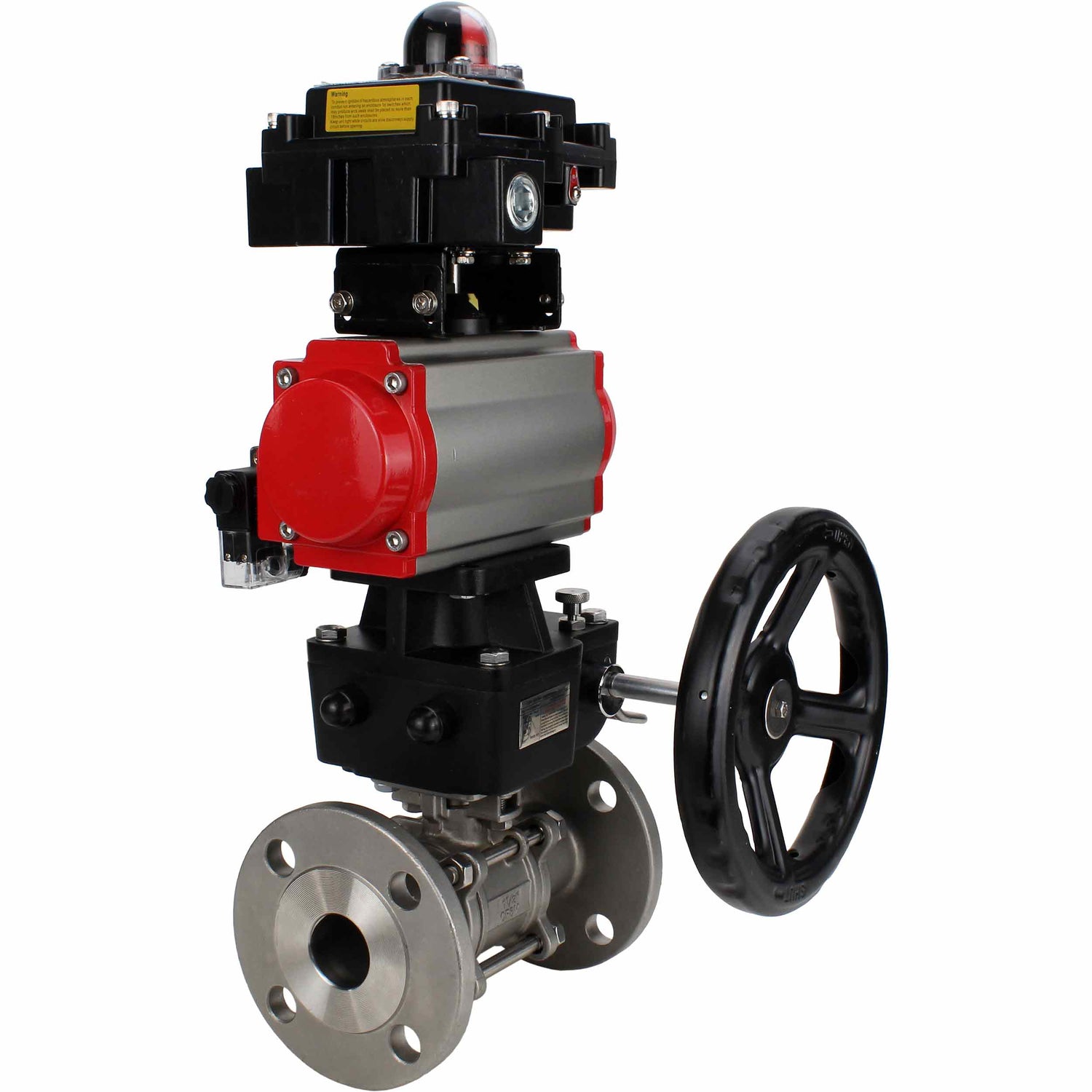

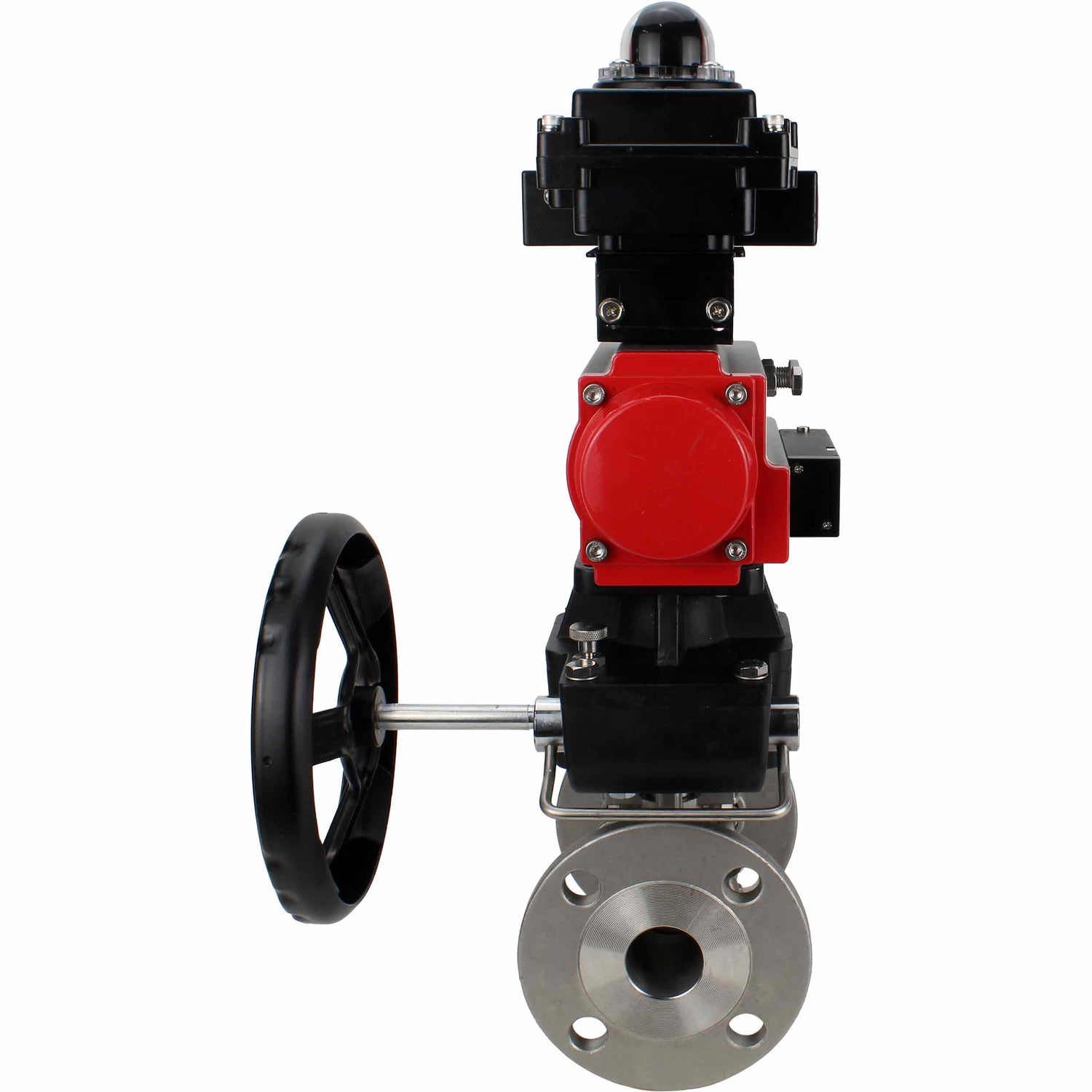

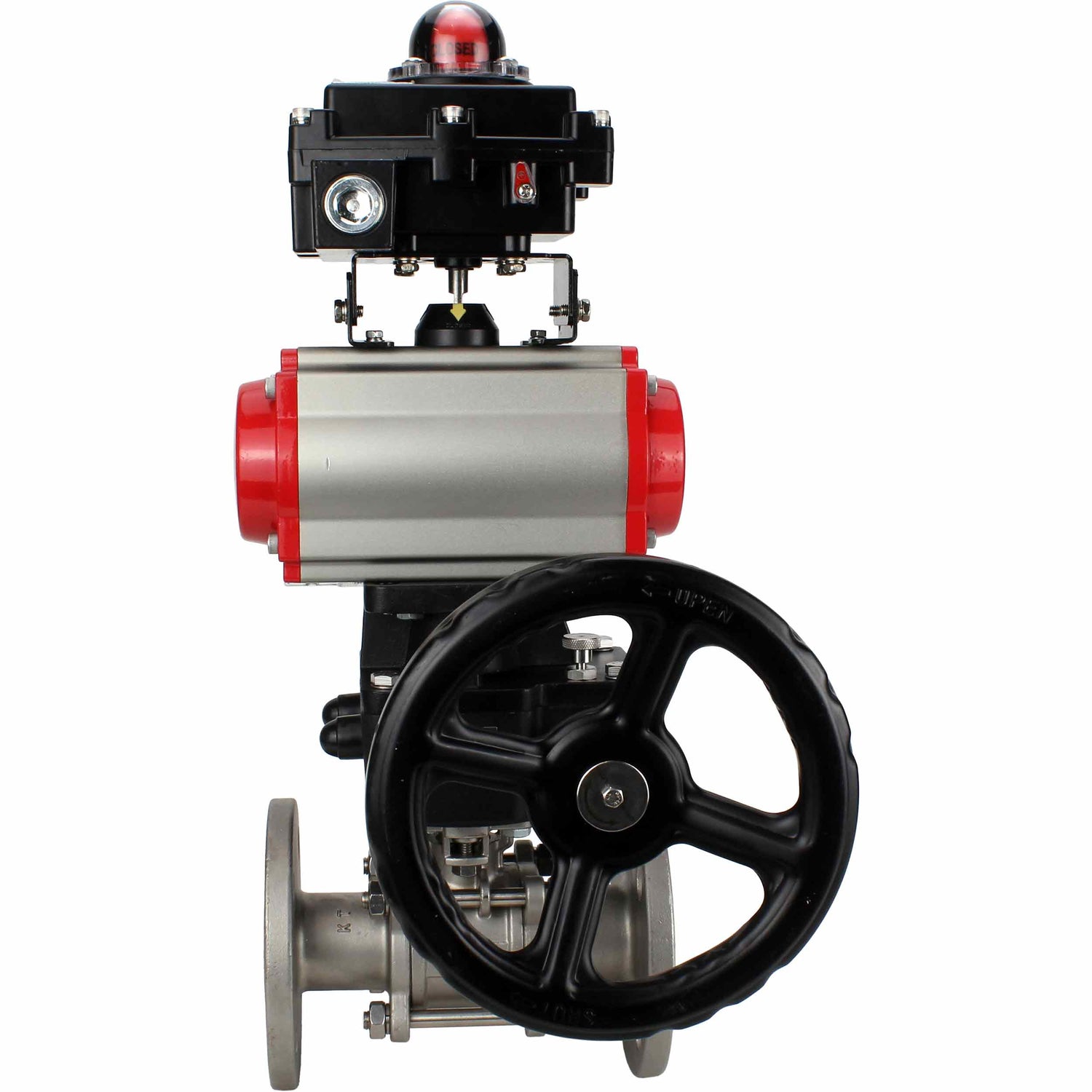

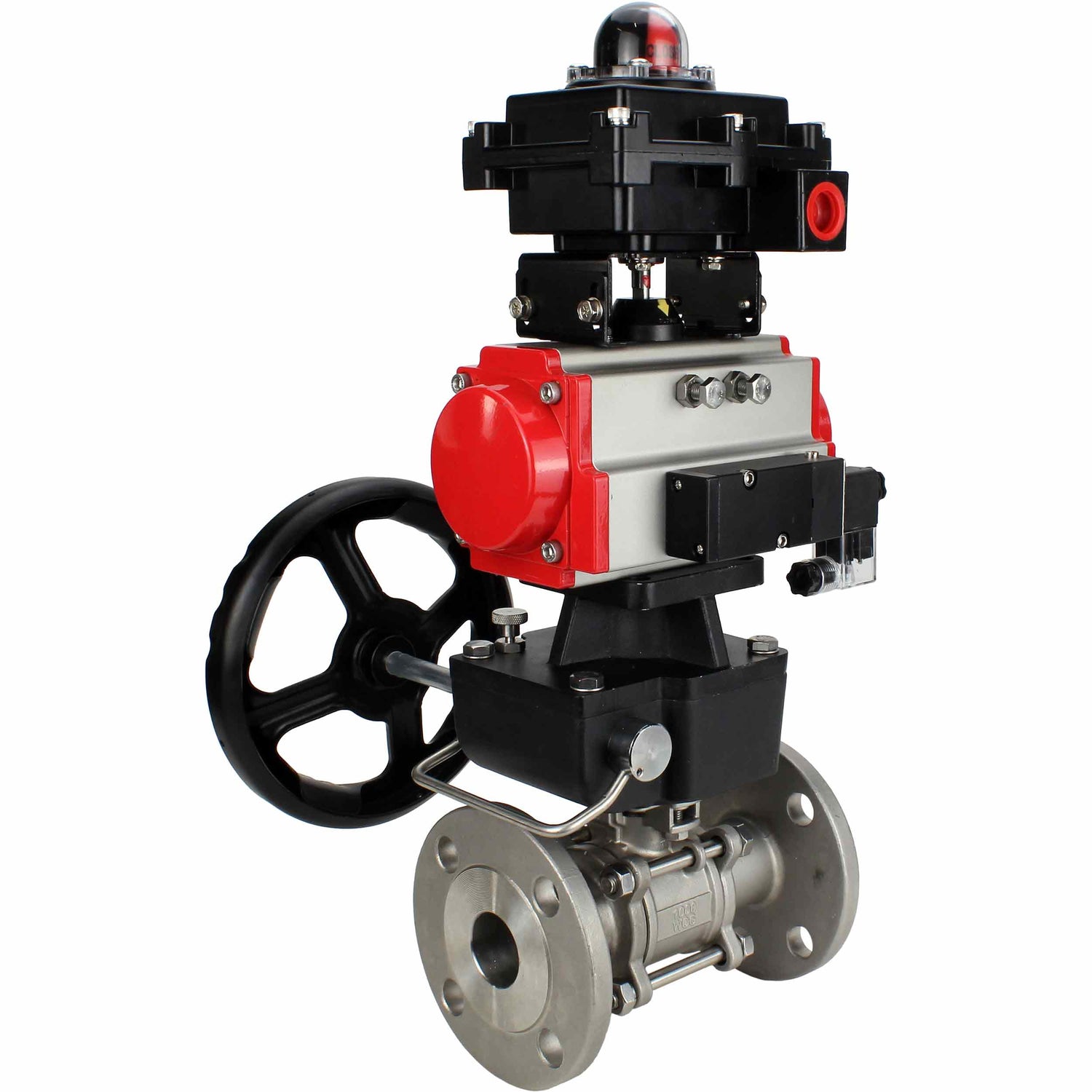

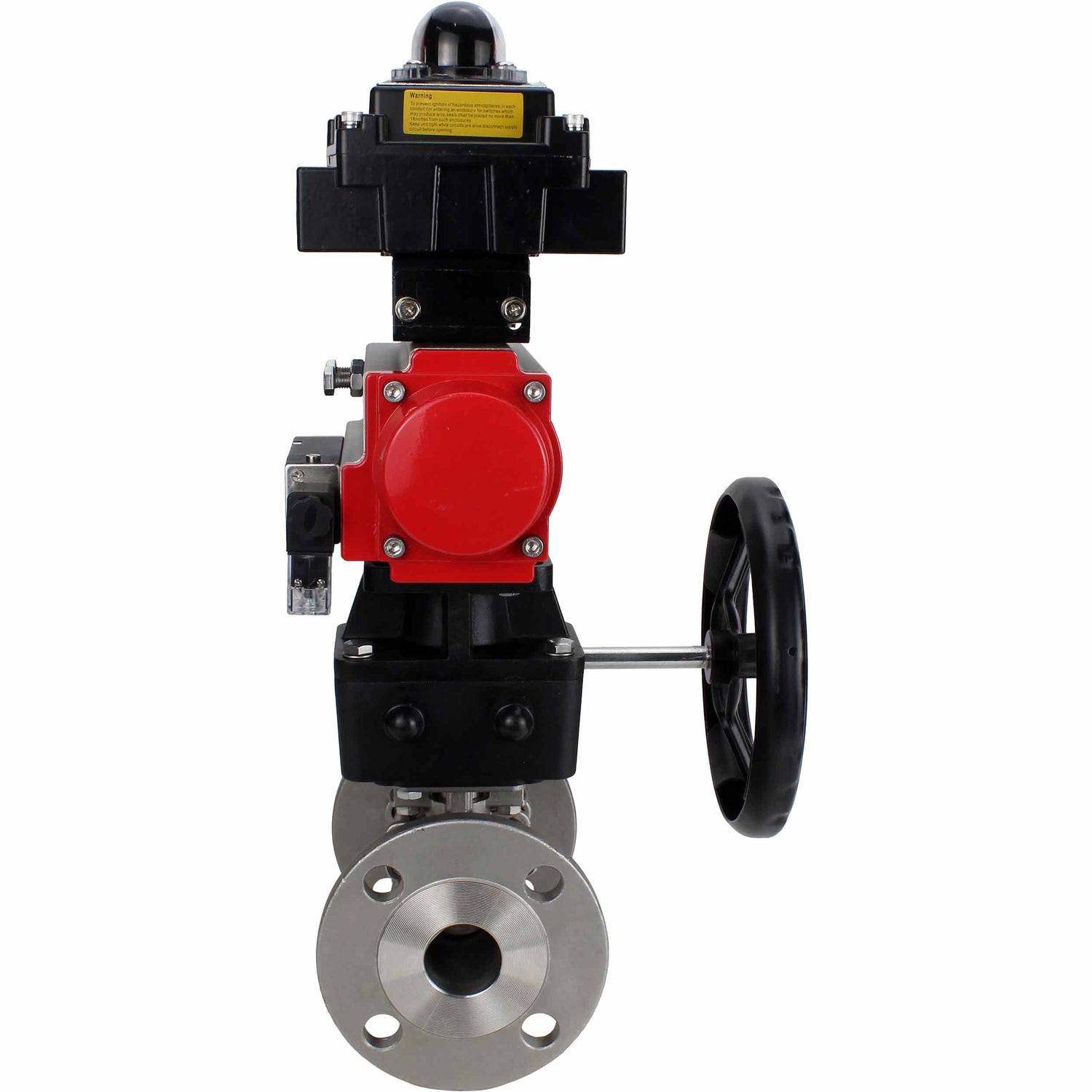

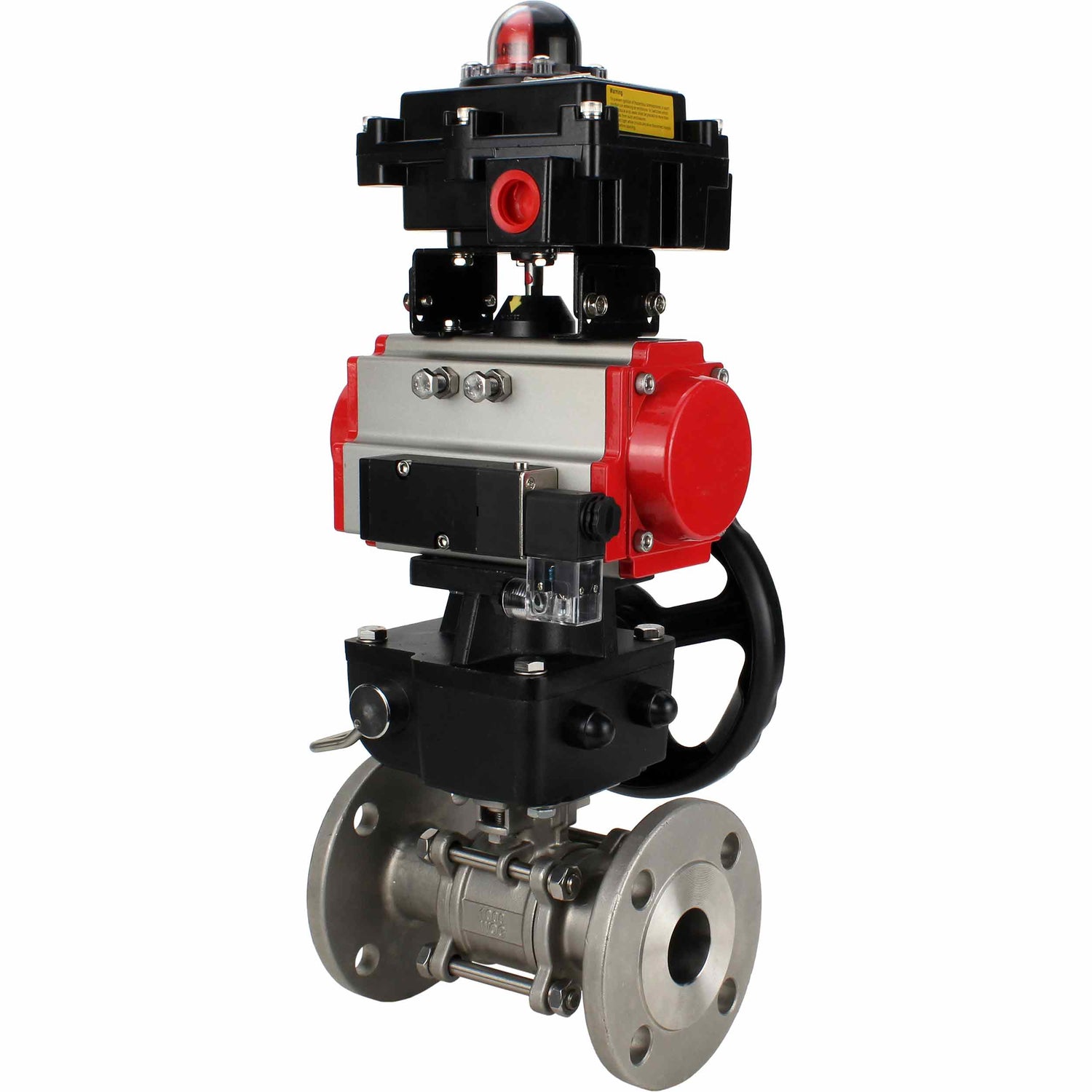

Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, pneumatic actuator Elephant DA, pneumatic distributor 4M310-08 220 V, limit switch block APL-410N EX, manual
Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, pneumatic actuator Elephant DA, pneumatic distributor 4M310-08 220 V, limit switch block APL-410N EX, manual - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Technical characteristics of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V APL-410N Ex MON Ru
| Nominal diameter DN, mm | 15-100 |
| Working pressure PN, bar | DN15-50 – 40 DN65-80 – 25 DN100 – 16 |
| Temperature of working environment t, ⁰C | from -20 to +180 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
| Control type | manual (handle) |
| Addition | installation of electric or pneumatic drive is possible (ISO 5211-2001) |
Material sketch of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V APL-410N Ex MON Ru
Materials of parts of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V APL-410N Ex MON Ru
| No. | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | SS304/SS316 | 1 |
| 3 | Bolt | SS201/SS304 | 4-6 |
| 4 | screw | SS201/SS304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201/SS304 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
| 11 | screw | SS201/SS304 | 1 |
Technical characteristics of pneumatic actuators Ball valves Elephant BV3131P(3pc)-FP-F-H DN15-100 Ru40, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic actuator PA-DA, with pn.distributor 4M310-08 220V, with BCV APL-410N EX, with manual doubler MON1-250-T26-ISO.
| Design | With return springs |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2…8 |
| Working environment | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, ⁰C | • from –20 to +80 • from –40 to +80 (low-temperature version) • from –20 to +160 (with dry air) |
| Adjustment range | ±5° for rotation at 0° and 90° |
| Manual duplication | There is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts have anti-corrosion coating) |
Sketch of pneumatic actuator materials Ball valves Elephant BV3131P(3pc)-FP-F-H DN15-100 Ru40, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic actuator PA-DA, with pn.distributor 4M310-08 220V, with BCV APL-410N EX, with handwheel MON1-250-T26-ISO.
Materials of pneumatic actuator parts Pneumatic ball valves Elephant BV3131P(3pc)-FP-F-H DN15-100 Ru40, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic actuator PA-DA, with pn.distributor 4M310-08 220V, with BCV APL-410N EX, with handwheel MON1-250-T26-ISO.
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Technical characteristics of pneumatic valve 4M310-08 220 V
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1.5…8 |
| Working environment | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | There is |
| Degree of protection | IP 65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
Technical characteristics of limit switch unit APL-410N EX
| Frame | All-weather IP65 explosion-proof Exd IIB T6 |
| Cable entries | 2 x NPT1/2” |
| Terminal blocks | 8 points (0.05 – 2.5) mm2 |
| Position indicator | 0 - 90° (free rotation 90°) CLOSED - red; OPEN - yellow |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Permissible ambient temperature, °C | from -25 to +80 |
| Service life, years | 10 |
Materials of limit switch unit APL-410N EX:
| Name | Materials |
| Case cover and body | aluminum die casting |
| Shaft | stainless steel |
| Indicator cover | polycarbonate |
| Cam | polycarbonate |
| Spring | stainless steel |
| Housing cover bolts | stainless steel |
| Sealing ring | NBR |
| Sleeve | bronze |
| Sealing ring (shaft) | stainless steel |
| Ground terminal | stainless steel |
| Indicator | ABS plastic / polycarbonate |
| bracket | stainless steel |
Passports and certificates
Data sheet for Elephant pneumatic valve 4m310-08
Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Air, Oil Products
-
ApplicationsHeat Supply
-
Voltage
-
Valve feedback
-
Explosion-proof
-
Torque
-
Pneumatic actuator
-
Manual override
-
Limit switches
Reviews (0)
Reviews (0)
Limit switch ELEPHANT APL-410N EX explosion-proof
Data sheet for limit switch unit Elephant APL-410N EX
Pneumatic valve ELEPHANT 4M310-08 spool type
Handwheel ELEPHANT MONx-x-x-ISO for pneumatic actuators and quarter-turn valves
