Check Valves

Check Valves: Essential Components for One-Way Flow Control

Check valves, also known as non-return valves, are vital components in industrial and HVAC systems. They ensure fluid flows in one direction while preventing backflow, protecting equipment, and maintaining system integrity. From domestic plumbing to complex industrial operations, check valves are indispensable for system protection and process control.

Working Principle and Design Features

Check valves rely on a straightforward yet effective mechanism. Key components include the valve body, disc, spring, and guide system. When fluid flows in the intended direction, the valve opens automatically, allowing unimpeded passage. Upon flow cessation or pressure reversal, the valve closes automatically, preventing backflow.

This simple design is both cost-effective and dependable, providing engineers and installers with a reliable solution for protecting equipment and maintaining system performance.

Types and Applications

Available Check Valve Types:

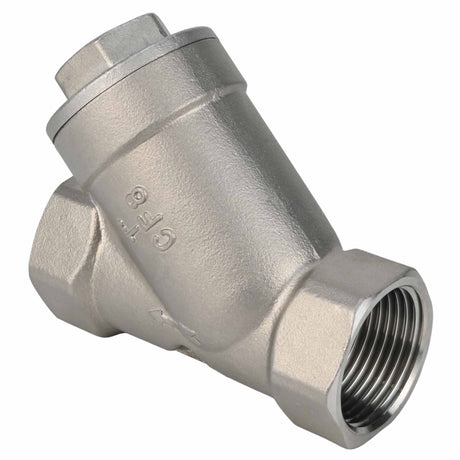

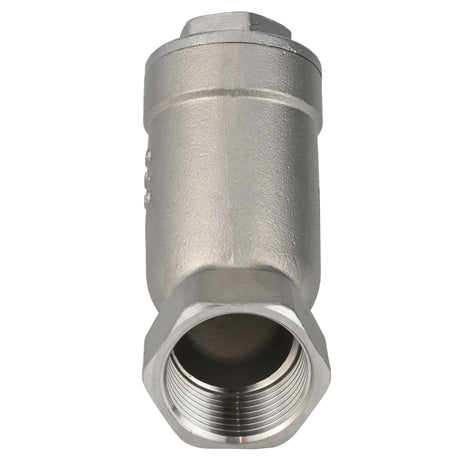

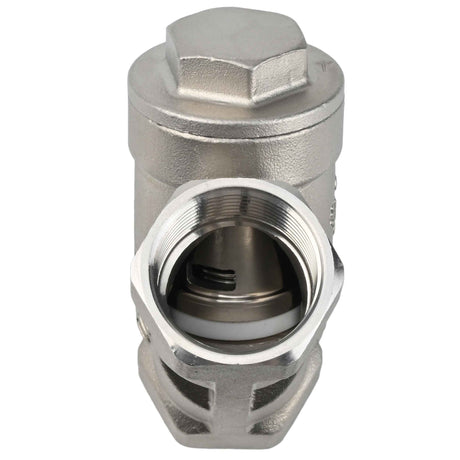

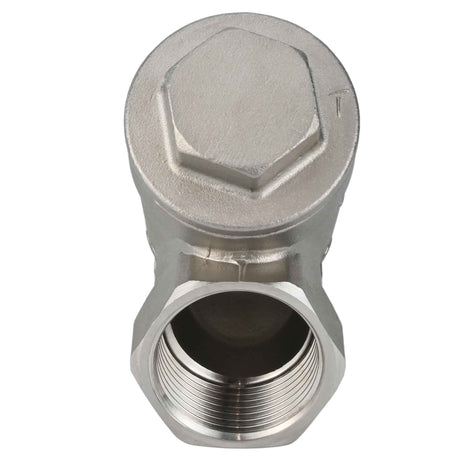

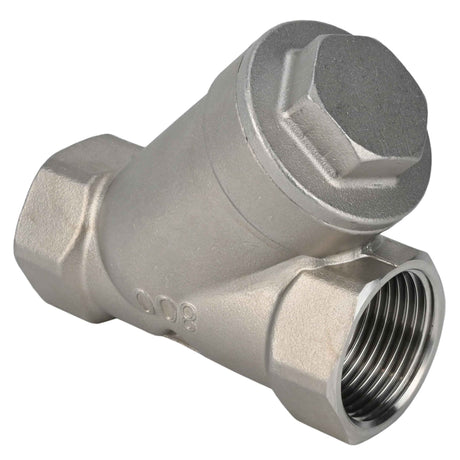

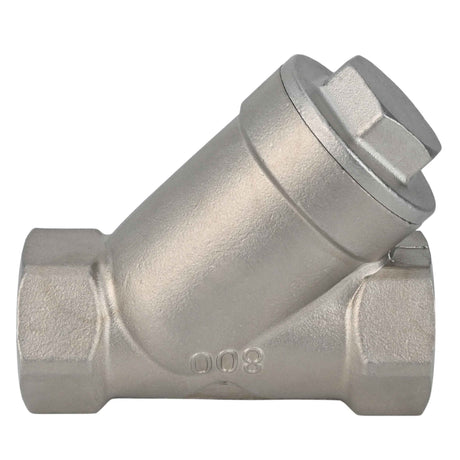

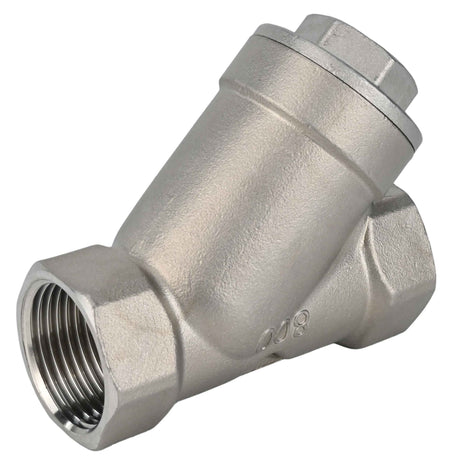

1. Spring Check Valves – Ideal for horizontal and vertical installations.
2. Swing Check Valves – Designed for low-pressure applications.
3. Piston Check Valves – Suitable for high-pressure systems.

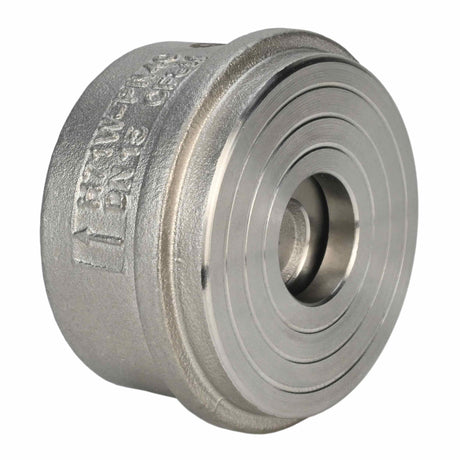

4. Wafer Pattern Check Valves – Compact design for space-saving installations.
5. Ball Check Valves – Simple and reliable operation.

Common Applications:

• HVAC systems and thermal control
• Power generation facilities
• Chemical processing plants
• Water treatment systems
• Hydraulic and pneumatic systems

Material Selection and Compatibility

Choose the right material for your system:

• Brass Check Valves – General-purpose applications.
• Carbon Steel Variants – Ideal for industrial use.
• Bronze Options – Designed for specific chemical compatibility.
• PVC Check Valves – Corrosion-resistant and lightweight.
• Stainless Steel – Excellent for demanding environments.

Installation and Operation Guidelines

For optimal performance, keep these factors in mind:

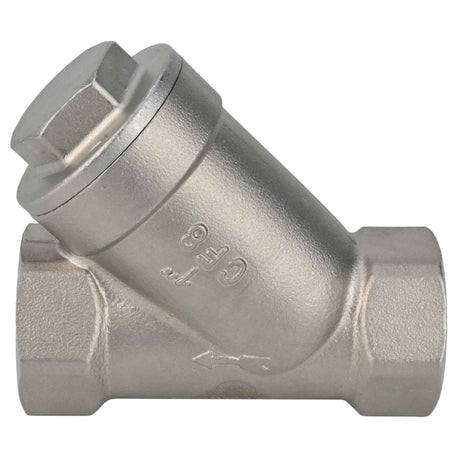

• Flow Direction: Follow the arrow on the valve housing.
• Cracking Pressure: Ensure it meets system requirements.
• Operating Temperature Range: Verify compatibility with your system.
• Installation Orientation: Suitable for horizontal or vertical setups.
• System Pressure Conditions: Confirm system parameters align with valve specifications.

Advanced Features and Options

Our check valves are equipped with advanced features to meet diverse needs:

• Silent operation for noise-sensitive environments.
• Integral spring assistance for improved performance.
• Manual override capabilities for enhanced control.
• Multiple end connection options: flanged, threaded, or wafer.
• WRAS approval for potable water systems.
