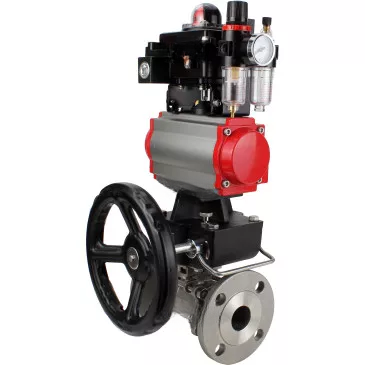

Ball valve Elephant model BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 APL-410N Ex MON AFC2000 is used as a shut-off valve in heating, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Pneumatic rotary actuators Ball valves Elephant BV3232P(3pc)-FP-F-H DN15-100 Ru40, three-piece full bore flanged, stainless steel SS316, PTFE, with pneumatic actuator PA-DA, with pan. distributor 4M310-08 24V, with APL-410N EX BCV, with MON1-250-T26-ISO handwheel, with AFC2000 ATU are designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valves 4M310-08 are used for control in pneumatic systems having NAMUR docking surface for installation of valves through through holes in the housing.
The APL-410N EX limit switch unit is designed for visual and electrical signalling of end positions of the valve shut-off body. It is mounted from above on the surface of the pneumatic actuator and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalise the end positions. The visual indication of the position can be observed on the unit's casing there is a 3D visual indicator RED-CLOSED and YELLOW-OPEN.
The AFC2000 air treatment unit is designed to clean compressed air from moisture and solid particles, remove condensate, automatically maintain the pressure at a preset level, supply lubricant from the tank into the compressed air flow to the pneumatic system elements with a large capacity range from 500 litres/minute to 10,000 litres/minute. The lubricator (oil atomiser) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic valves.
Technical characteristics of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS316, PTFE
Parameter | Value |
---|---|
Nominal diameter DN, mm | 15-100 |
Operating pressure PN, bar | DN15-50 – 40, DN65-80 – 25, DN100 – 16 |
Operating temperature t, °C | From -20 to +180 |
Operating medium | Water, steam, petroleum products, and other liquid or gaseous media neutral to the valve materials |
Pipeline connection | Flanged |
Type of passage section | Full passage |
Ball valve tightness class | "A" |
Control type | Manual (handwheel) |
Additional info | Possible installation of an electric or pneumatic actuator (ISO 5211-2001) |
Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS316, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4M310-08 24V, with LSU APL- 410N EX, with manual Doubler MON1-250-T26-ISO, with ATU AFC:
DN | d, mm | D, mm | D1, mm | D2, mm | W, mm | f, mm | L±1.5, mm | T, mm | H, mm | Z-øM pcs-mm |
15 | 15 | 95 | 65 | 46 | 17 | 2 | 130 | 131 | 71 | 4-ø14 |
20 | 20 | 105 | 75 | 58 | 18 | 2 | 150 | 131 | 74 | 4-ø14 |
25 | 25 | 115 | 85 | 68 | 18 | 2 | 160 | 167 | 97 | 4-ø14 |
32 | 32 | 140 | 100 | 78 | 19 | 2 | 180 | 167 | 110 | 4-ø18 |
40 | 40 | 150 | 110 | 88 | 19 | 2 | 200 | 193 | 117 | 4-ø18 |
50 | 50 | 165 | 125 | 102 | 19 | 3 | 230 | 193 | 125,5 | 4-ø18 |
65 | 65 | 185 | 145 | 122 | 22 | 3 | 290 | 242 | 135,5 | 8-ø18 |
80 | 80 | 200 | 160 | 140 | 24 | 3 | 310 | 272 | 157 | 8-ø18 |
100 | 100 | 234 | 190 | 161 | 24 | 3 | 350 | 295 | 181 | 8-ø22 |
100* | 100 | 220 | 180 | 158 | 20 | 3 | 350 | 330 | 169 | 8-ø18 |

Ball valve component materials Elephant BV3232P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS316, PTFE
№ | Name | Material | Quantity |
---|---|---|---|
1 | Body | SS304/SS316 | 1 |
2 | Ball valve | SS304/SS316 | 1 |
3 | Bolt | SS201/SS304 | 4-6 |
4 | Nut | SS201/SS304 | 6-12 |
5 | Seal | PTFE | 1 |
6 | Stem | SS304/SS316 | 1 |
7 | Gland | SS201/SS304 | 1 |
8 | Cap | WCB/CF8/CF8M | 2 |
9 | Seat rings | PTFE | 2 |
10 | Thrust washer | PTFE | 1 |
11 | Nut | SS201/SS304 | 1 |
Ball valve material sketch Elephant BV3232P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS316, PTFE
Technical data of DA double-acting pneumatic actuators:
Type of pneumatic actuator | DA - double-acting |
Nominal pressure PN, bar | 12 |
Working pressure, bar | 2...8 |
Working medium | filtered compressed air |
Maximum particle diameter of the working medium, µm2 | ≤30 |
Ambient temperature, ⁰C | -20 to +80 |
Swivel angle, ° | 0 - 90 |
Swivel angle adjustment, % | ±5 |
Position indicator | open/closed |
Top connection standard | NAMUR |
Air connection standard | NAMUR |
Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
№ | Part name | Material |
1 | Indicator screw | ABS plastic |
2 | Position indicator | ABS plastic |
3 | Spring clip | stainless steel 304 |
4 | Metal washer | stainless steel 304 |
5 | Pressure washer | engineering plastic |
6 | Housing | hard anodized extruded aluminum alloy |
7 | Pressure washer | engineering plastic |
8 | Limiter | alloy steel |
9 | Shaft sealing ring upper | NBR |
10 | Upper shaft sliding ring | engineering plastic |
11 | Shaft | nickel plated alloy steel |
12 | Shaft sliding ring lower | engineering plastic |
13 | Shaft O-ring lower | NBR |
14 | Plug | NBR |
15 | Seal ring of adjusting screws | NBR |
16 | Washer of adjusting screw | stainless steel 304 |
17 | Lock nut of adjusting screw | stainless steel 304 |
18 | Adjusting screw | stainless steel 304 |
19 | Piston | die-cast aluminum alloy |
20 | Piston guide plate | engineering plastic |
21 | Piston sliding ring | engineering plastic |
22 | Piston O-ring | NBR |
23 | Spring set | spring steel |
24 | Cover O-ring | NBR |
25 | End cap | cast aluminum with polyester coating |
26 | Cover screw | stainless steel 304 |
27 | Stop screw | stainless steel 304 |
28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
Design | Spool-type |
Test pressure (body strength test. Not for operation!), bar | 10 |
Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
Valve type | 5/2 five-port, two-position |
Working medium | purified air (40 µm filter fineness) |
Operating temperature, °C | 0 to +60 |
Actuation frequency | 5 cycles per second |
Manual override | yes |
Protection rating/insulation class | IP65/F |
Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
Body material | anodized aluminum |
Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
Air inlet port size (to pneumatic valve) | G1/4” |
Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
Response time, sec | 0.05 |
Supply voltage, V | 220AC/24DC |
Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
Weight, kg | 0.35 |
Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
A | C | D | E | F | G | H | I | K | L | J | N | M |
mm | ||||||||||||
40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
№ | Part Name | Material |
1 | Connector | Engineering plastic |
2 | Nut | POM + carbon steel |
3 | Coil | Copper |
4 | Control Elements | — |
5 | Plate | Carbon steel |
6 | Piston | POM |
7 | Control Valve Seat | Engineering plastic |
8 | Valve Body | Aluminum alloy |
9 | Spool | Aluminum alloy |
10 | O-Ring Seal | HNBR |
11 | Rear Cover | Engineering plastic |
12 | Filter | Synthetic material |
13 | Piston | POM |
14 | Spring | Stainless steel |
15 | Manual Override | Engineering plastic |
16 | Rear Seat | Aluminum alloy |
17 | Spring Seat | Aluminum alloy |
18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Technical data of the AFC2000 air supply unit
Parameter | Value |
---|---|
Operating pressure, bar | 8 |
Maximum pressure, bar | 10 |
Adjustable pressure range, bar | 0.5 ÷ 9 |
Burst pressure, bar | 15 |
Air connection | 1/4" |
Operating temperature, °C | From -5 to +60 |
Filtered particle size, µm | 40 |
Oil viscosity | ISO VG 32 |
Weight, kg | 0.395 |
Technical characteristics of limit switch unit APL-410N EX
Here is the translation:
Parameter | Value |
---|---|
Enclosure | All-weather IP65, explosion-proof Exd IIB T6 |
Cable entries | 2 x NPT1/2” |
Terminal block | 8 points (0.05 – 2.5) mm² |
Position indicator | 0 - 90° (free rotation 90°) CLOSED - red; OPEN - yellow |
Switches/sensors | Two mechanical switches, two proximity sensors |
Rated voltage, V | 250 |
Allowable ambient temperature, °C | From -25 to +80 |
Service life, years | 10 |
Materials of limit switch unit APL-410N EX
Name | Materials |
---|---|
Cover and body | Pressure cast aluminum |
Shaft | Stainless steel |
Indicator cover | Polycarbonate |
Cam | Polycarbonate |
Spring | Stainless steel |
Cover bolts | Stainless steel |
Sealing ring | NBR |
Bushing | Bronze |
Sealing ring (shaft) | Stainless steel |
Grounding terminal | Stainless steel |
Indicator | ABS plastic / polycarbonate |
Bracket | Stainless steel |
Materials of the handwheel Elephant HDM
№ | Name | Material |
---|---|---|
1 | Shaft for pneumatic actuator mounting | Steel 45 |
2 | Sealing ring | EPDM |
3 | Retaining spring | Spring steel |
4 | Upper end cap | Aluminum alloy |
5 | Screw | Steel 304 |
6 | Retaining bracket (main link) | Steel 304 |
7 | Body | Aluminum alloy |
8 | Sealing ring | EPDM |
9 | Gear reducer | Cast iron |
10 | Adapter coupling | Cast iron |
11 | Reducer shaft | Cast iron |
Materials of the Elephant MON handwheel
Specifications
Specifications
-
Country of origin
-
Port opening
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
-
Type of seal
-
Voltage
-
Explosion-proof
-
Torque
-
Limit switches
-
Type of pneumatic actuator
