Elephant  |  SKU: D160-48910

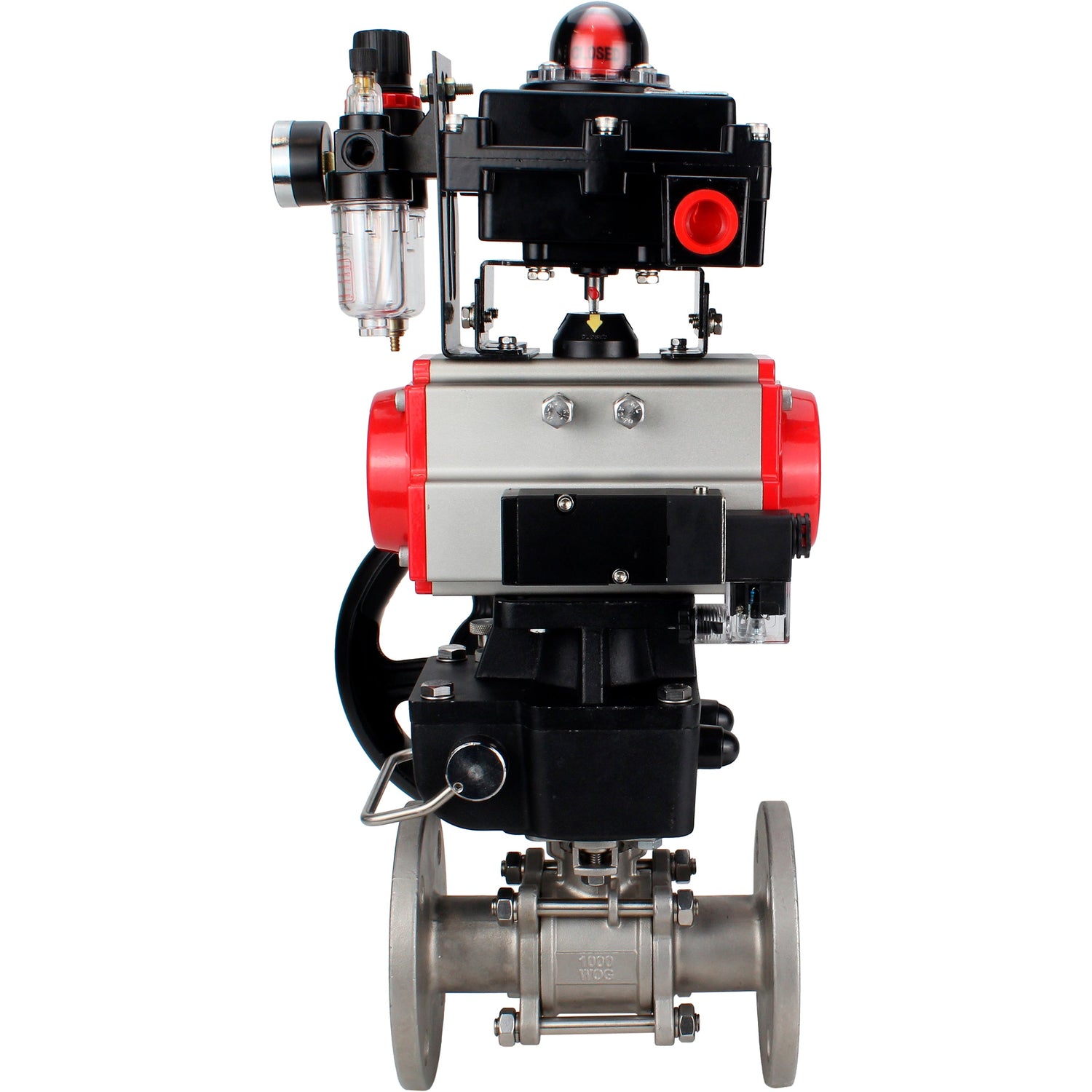

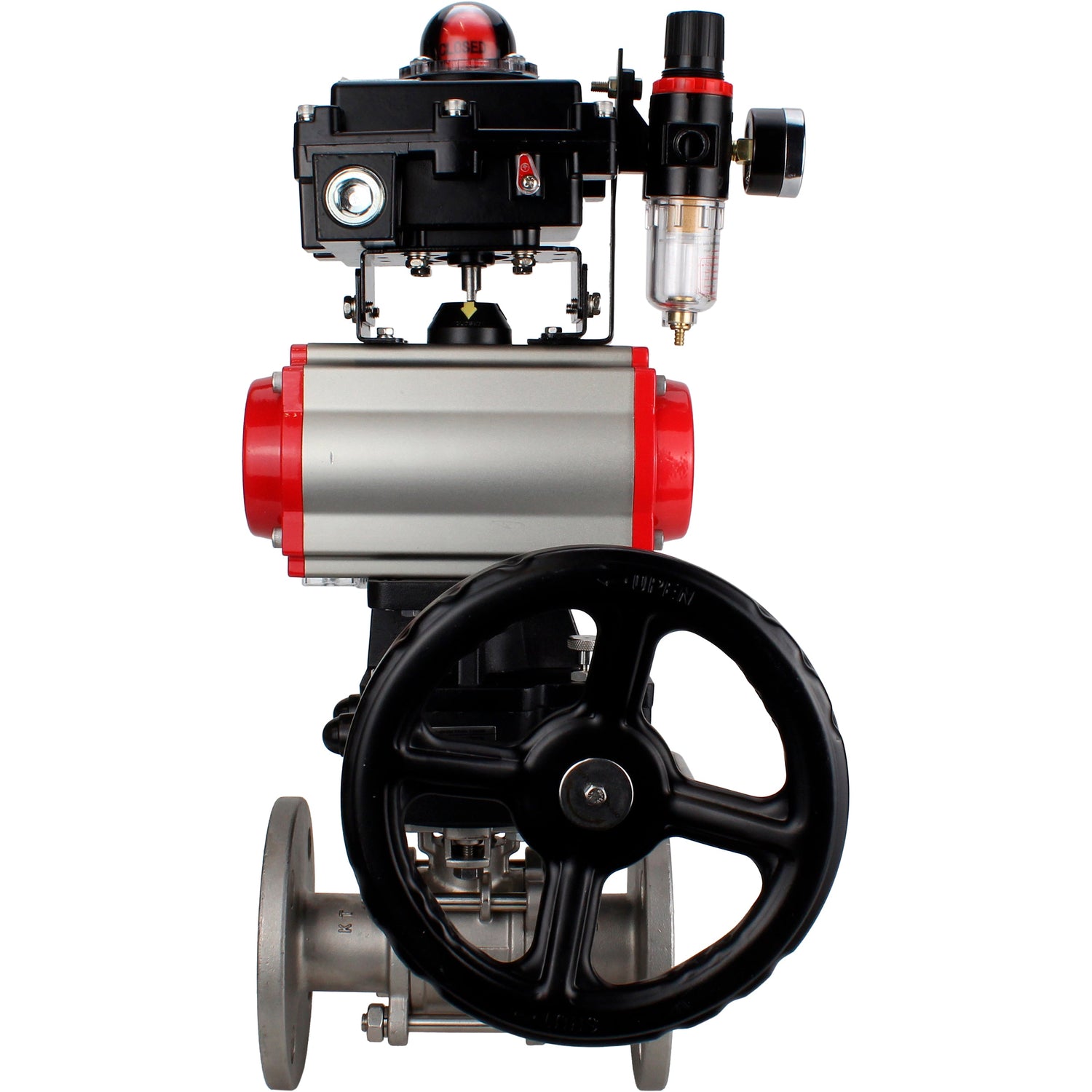

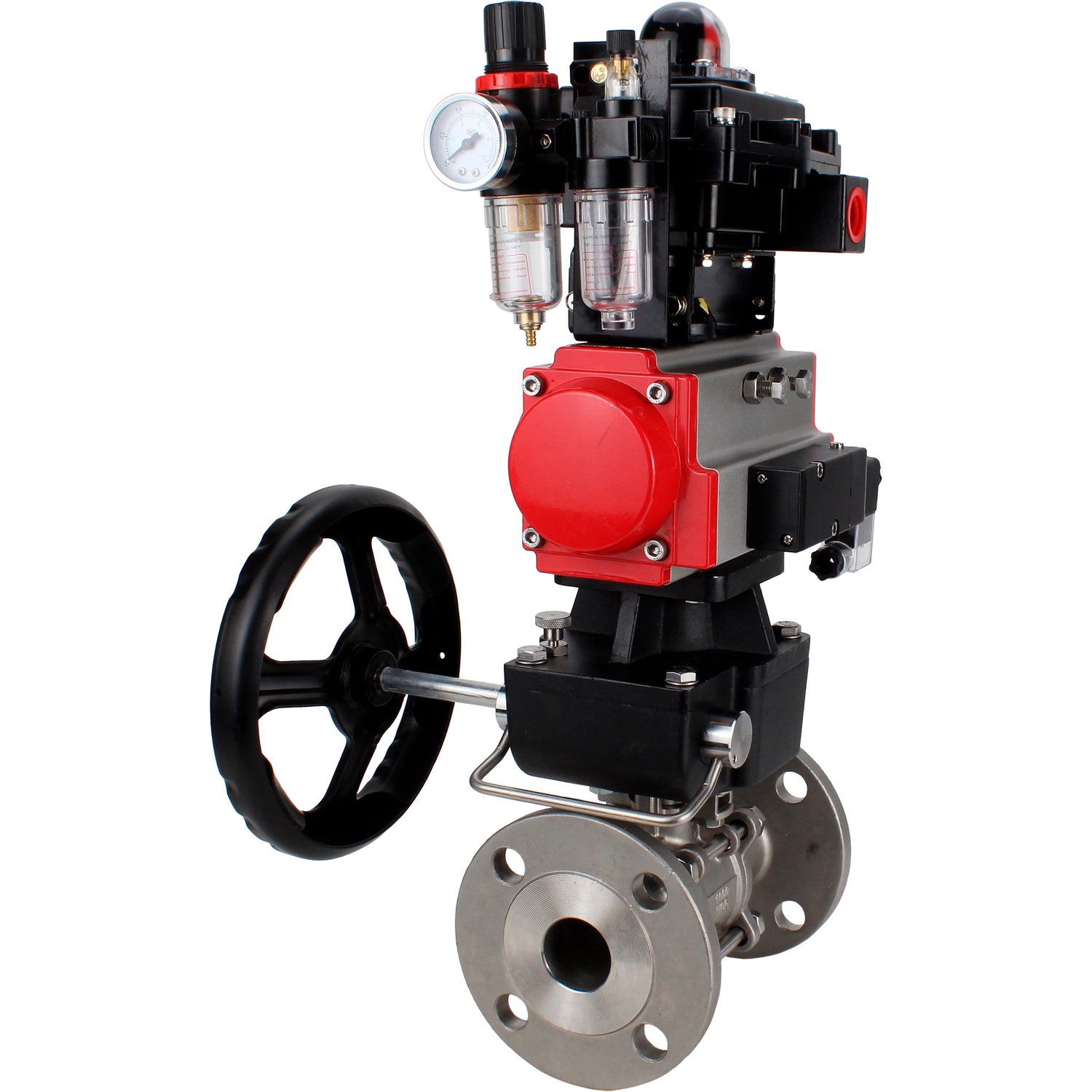

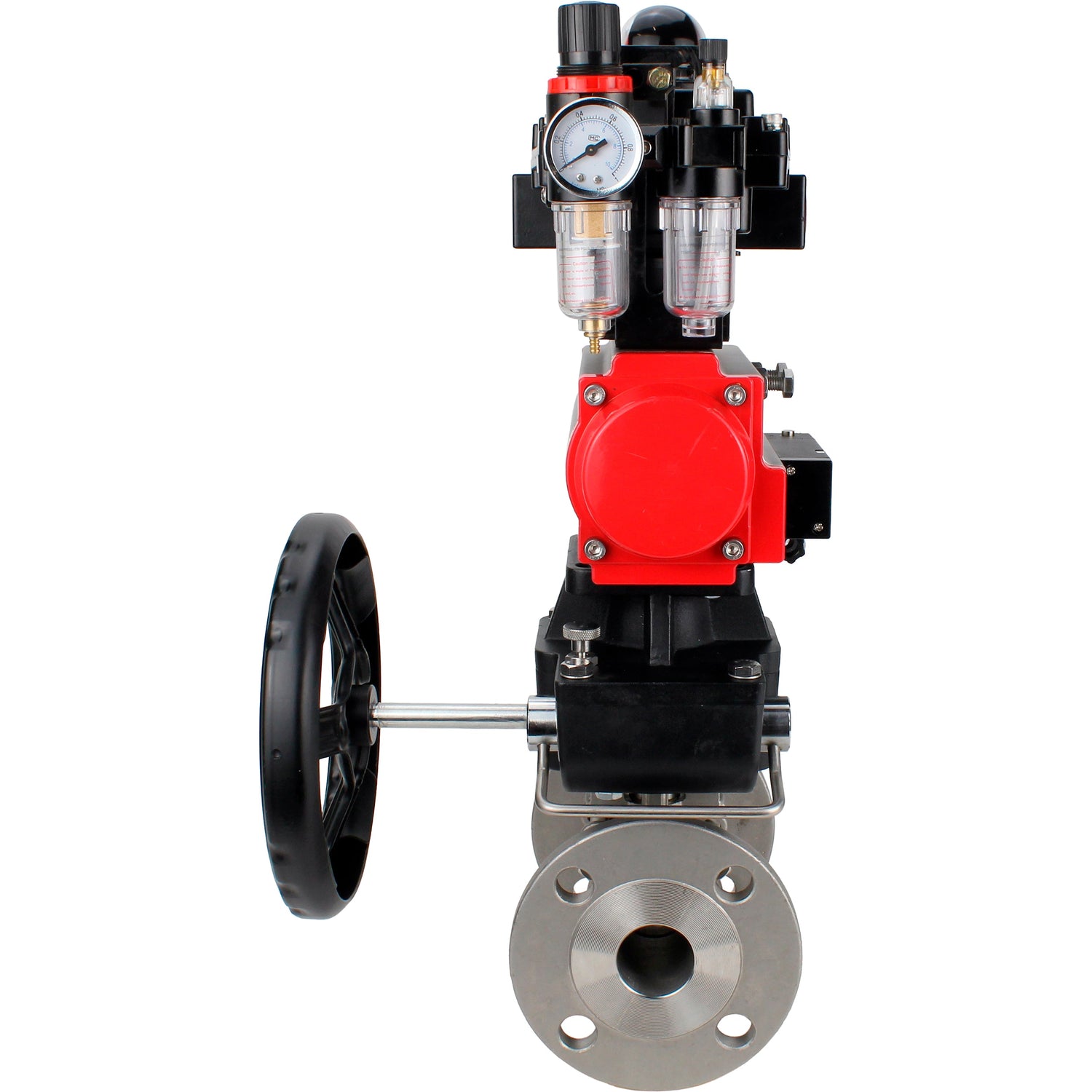

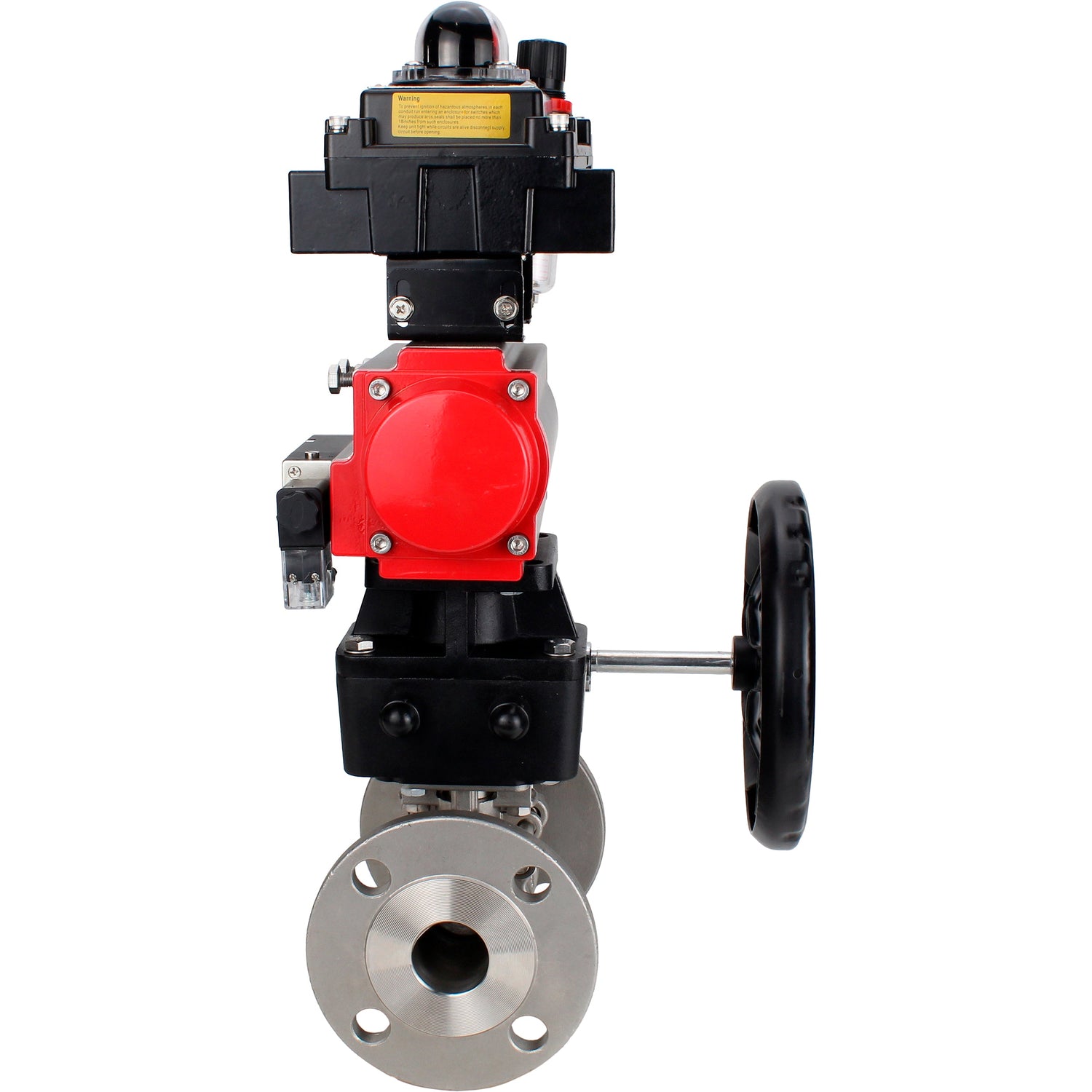

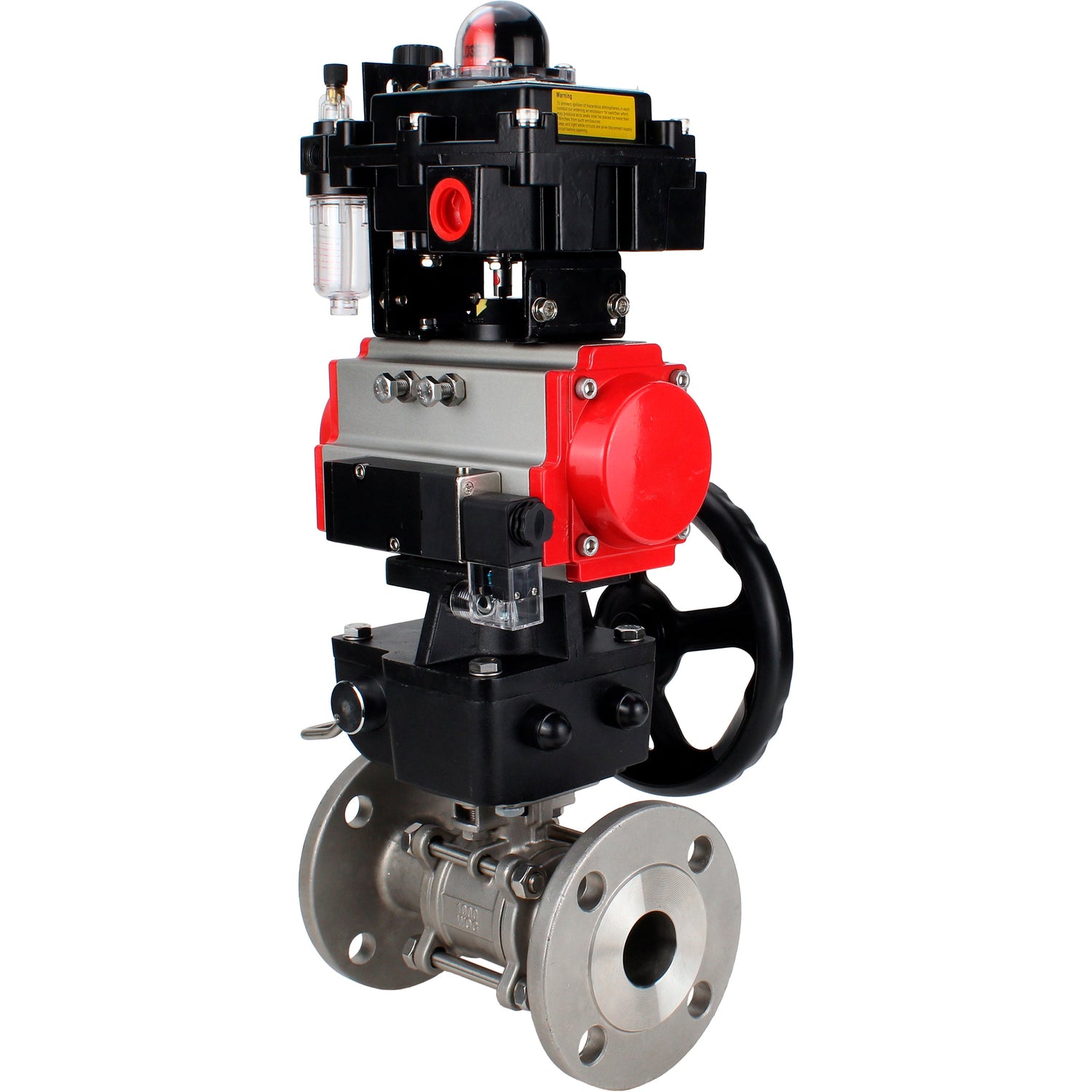

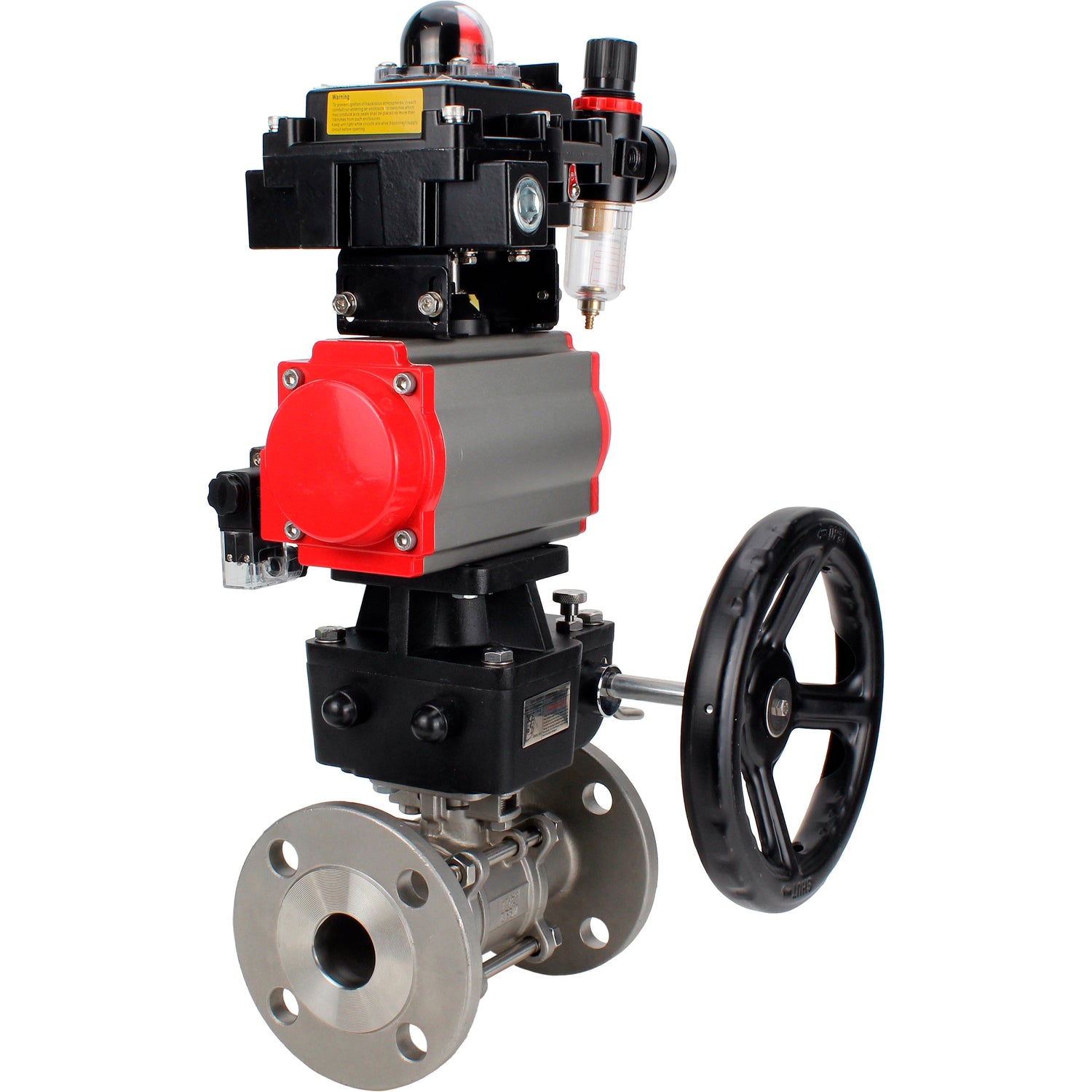

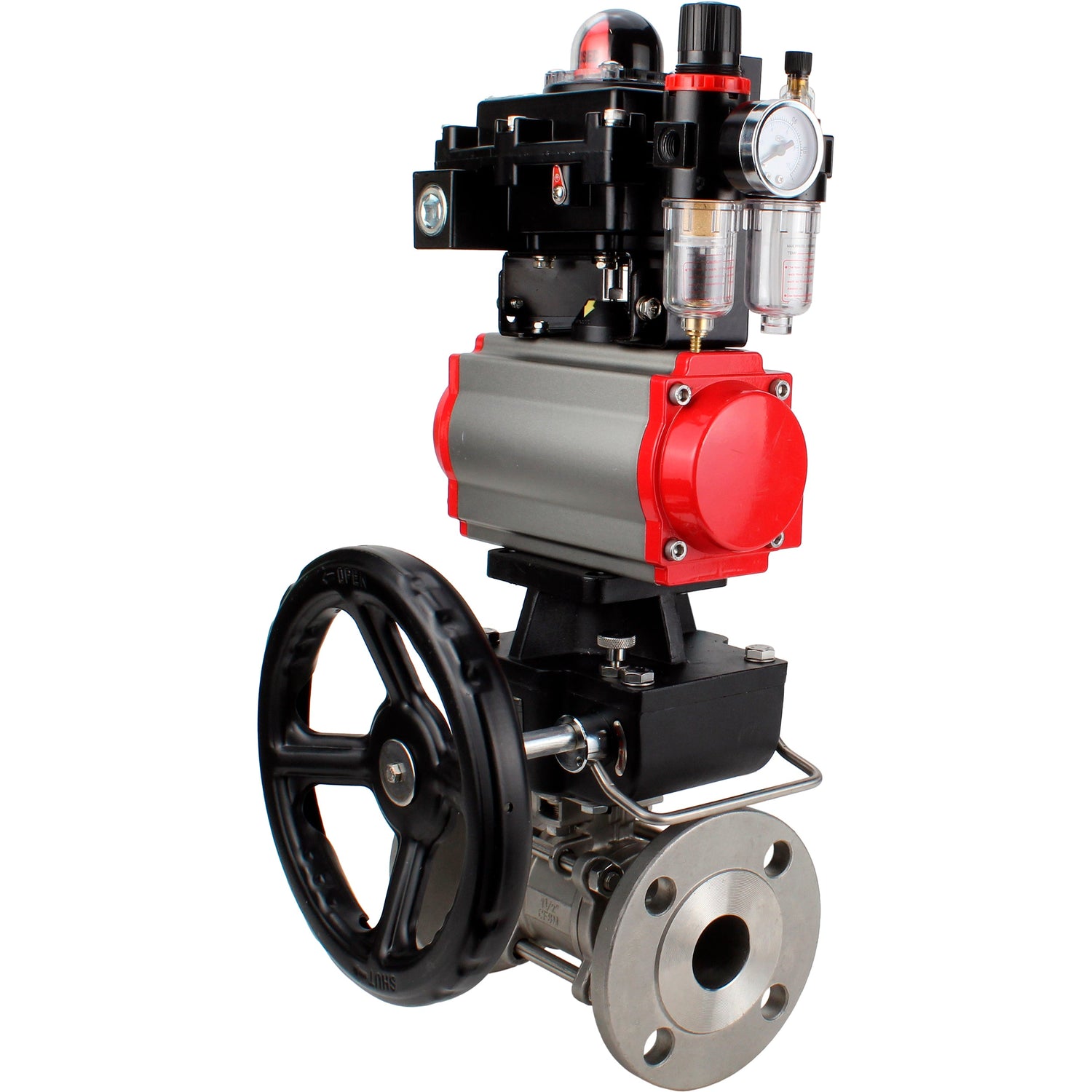

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4M310-08 220V, with LSU APL- 410N EX, with manual Doubler MON1-250-T26-ISO, with ATU AF

€1.239,86
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4M310-08 220V, with LSU APL- 410N EX, with manual Doubler MON1-250-T26-ISO, with ATU AF - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valve Elephant is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Pneumatic rotary actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators Elephant are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
Pneumatic valves 4M310-08 220V are used for control in pneumatic systems with NAMUR docking surface, to install the valves through holes in the housing.
Limit switch unit APL-410N EX is designed for visual and electrical signaling of end positions of the valve shut-off body. It is mounted from above on the surface of the pneumatic actuator and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalize the end positions. Visual indication of the position can be observed on the housing of the unit there is a 3D visual indicator RED-CLOSED and YELLOW-OPEN.
Air treatment unit AFC2000 is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure at a preset level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system with a wide range of throughput from 500 liters/minute to 10 000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.







Technical characteristics of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4M310-08 220V, with limit switch unit APL- 410N EX, with manual Doubler MON1-250-T26-ISO, with ATU AFC:

Nominal diameter DN, mm

15–100

Operating pressure PN, bar

DN15–50 – 40
DN65–80 – 25
DN100 – 16

Working medium temperature t, °C

From -20 to +180

Working medium

Water, steam, oil products, and other liquid or gaseous media neutral to the valve materials

Connection to pipeline

Flanged

Type of passage section

Full-bore

Type of control

Manual (handle)

Additional option

Electric or pneumatic actuator installation possible (ISO 5211-2001)




Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4M310-08 220V, with LSU APL- 410N EX, with manual Doubler MON1-250-T26-ISO, with ATU AF:

DN d, mm D, mm D1, mm D2, mm W, mm f, mm L±1.5, mm T, mm H, mm Z-øM pcs-mm
15 15 95 65 46 17 2 130 131 71 4-ø14
20 20 105 75 58 18 2 150 131 74 4-ø14
25 25 115 85 68 18 2 160 167 97 4-ø14
32 32 140 100 78 19 2 180 167 110 4-ø18
40 40 150 110 88 19 2 200 193 117 4-ø18
50 50 165 125 102 19 3 230 193 125,5 4-ø18
65 65 185 145 122 22 3 290 242 135,5 8-ø18
80 80 200 160 140 24 3 310 272 157 8-ø18
100 100 234 190 161 24 3 350 295 181 8-ø22
100* 100 220 180 158 20 3 350 330 169 8-ø18



Materials of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4M310-08 220V, with limit switch unit APL- 410N EX, with manual Doubler MON1-250-T26-ISO, with ATU AFC:

№

Name

Material

Quantity

1

Body

SS304/SS316

1

2

Shutter ball

SS304/SS316

1

3

Bolt

SS201/SS304

4–6

4

Nut

SS201/SS304

6–12

5

Seal

PTFE

1

6

Stem

SS304/SS316

1

7

Gland

SS201/SS304

1

8

Cover

WCB/CF8/CF8M

2

9

Seat rings

PTFE

2

10

Thrust washer

PTFE

1

11

Locking nut

SS201/SS304

1




Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical characteristics of pneumatic valve 4M310-08 220V:

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1,5…8
Operating medium filtered compressed air
Ambient temperature t, ⁰C from +5 to +50
Response frequency 5 cycles/second
Manual duplication yes
Degree of protection IP 65
Fastening through holes in the housing
Body material anodized aluminum
Response time 0.05 sec.


Technical characteristics of the air supply unit AFC2000:

Operating pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0,5 ÷ 9
Fracture pressure, bar 15
Air connection 1/4"
Operating temperature, ⁰C from -5 to +60
Size of filtered particles, µm 40
Oil viscosity ISO VG 32
Weight, kg 0,395


Technical characteristics of limit switch unit APL-410N EX:

Body all-weather IP65 explosion-proof Exd IIB T6
Cable glands 2 x NPT1/2”
Terminal strips 8 points (0.05 - 2.5) mm2
Position indicator 0 - 90° (90° free rotation) CLOSED - red; OPEN - yellow
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Permissible ambient temperature, °C from -25 to +80
Service life, years 10



Materials of limit switch unit APL-410N EX:

Name Materials
Enclosure cover and body die-cast aluminum
Shaft stainless steel
Indicator cover polycarbonate
Cam polycarbonate
Spring stainless steel
Enclosure cover bolts stainless steel
O-ring NBR
Bushing bronze
Sealing ring (shaft) stainless steel
Ground terminal stainless steel
Indicator ABS plastic / polycarbonate
Bracket stainless steel



Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    235 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullAir treatment unit AFC2000 ELEPHANT
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4M310-08 spool type
nullHandwheel ELEPHANT MONx-x-x-ISO for pneumatic actuators and quarter-turn valves
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
