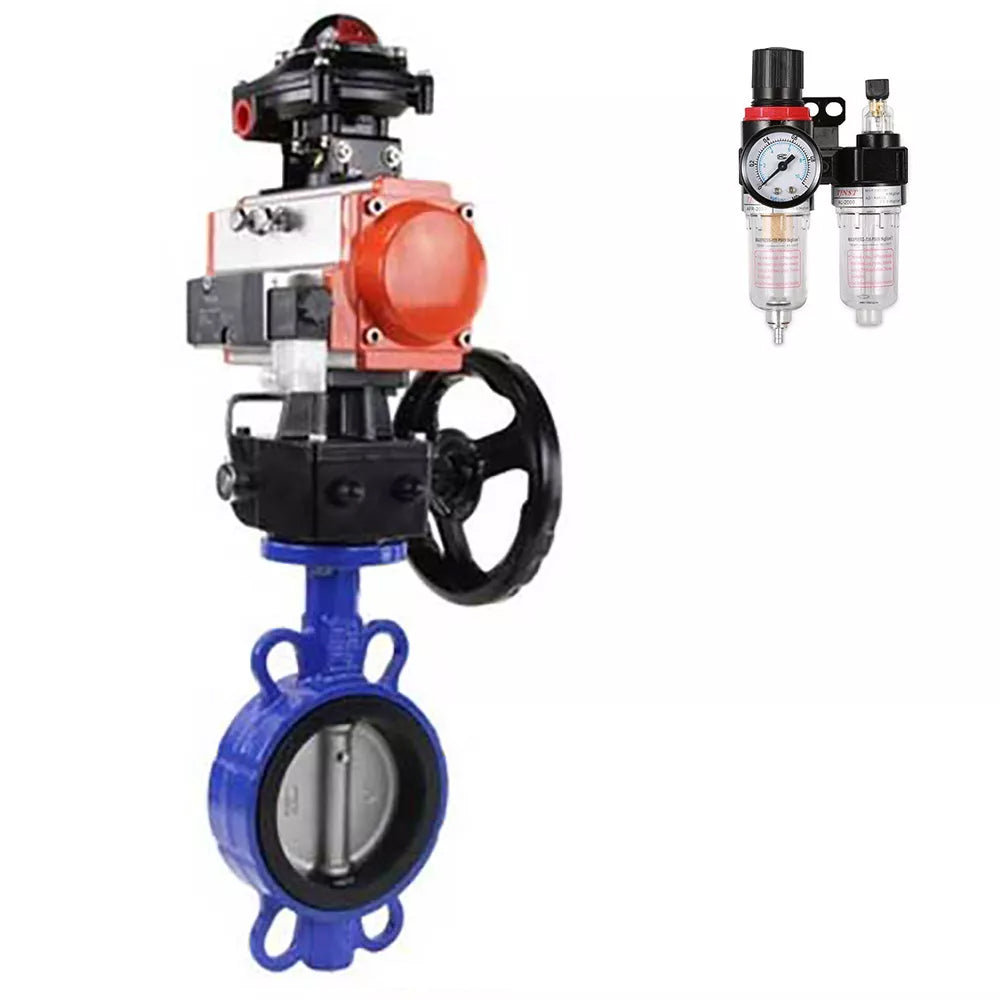

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast
Elephant  |  SKU: D050-34758

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON, LSU APL-410N EX, ATU AFC2000

€628,81
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON, LSU APL-410N EX, ATU AFC2000 - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The butterfly valve is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The HDM worm gear manual doubleturn actuator with reduction gearbox allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of the pipeline valve.

Air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure value at the set level, supply lubricant from the tank in the compressed air flow to the elements of the pneumatic system.





Technical parameters of Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON, LSU APL-410N EX, ATU AFC2000:

№ Name Material
1 Body Cast iron GGG50
2 Disk 316L steel
3 Seat seal EPDM
4 Upper stem 316L steel
5 Lower stem 316L steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic



Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON, LSU APL-410N EX, ATU AFC2000





Dimensions and dimensions of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON, LSU APL-410N EX, ATU AFC2000:

DN A B C ØD d G CH (rod)
mm
40 105 55 33 75 10 30 9x9
50 161 80 43 84.5 10 30 9x9
65 175 89 45 104.5 10 30 9x9
80 181 95 45 123.5 10 30 9x9
100 200 114 52 139.5 10 30 11x11
125 213 127 55 169.5 10 30 14x14
150 226 139 55 196 10 30 14x14
200 260 175 60 247 12 30 17х17
250 292 203 68 304 12 40 22х22
300 337 242 78 358 12 40 22х22

Sketch Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON, LSU APL-410N EX, ATU AFC2000





Materials of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON, LSU APL-410N EX, ATU AFC2000:

№ Name Material
1 Body Cast iron GGG50
2 Disk High-strength cast iron GGG40
3 Seat seal EPDM
4 Upper stem AISI 420 steel
5 Lower stem AISI 420 steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic

Sketch of parts and materials Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4V320-08 220V, handwheel MON, LSU APL-410N EX, ATU AFC2000





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of the handwheel MON:

Name Value
Climatic version U,UHL,T,OM
Degree of protection, IP 67
Connection type ISO 5211
Manual doubler MON





Dimensions and dimensions of the handwheel MON:

Model MON1-250-T26-ISO MON2-450-T28-ISO MON3-700-T38-ISO MON4-1200-T54-ISO
b1, mm 14 17 22 27
N, mm 22 22 28 32
b2, mm 14 17 22 27
M, mm 16 18 22 30
D1, mm Ø50 Ø70 Ø102 Ø102
4-M1, mm 4-M6 4-M8 4-M10 4-M10
D2, mm Ø70 Ø102 Ø125 Ø125
4-M2, mm 4-M8 4-M10 4-M12 4-M12
E, mm 70x70 95x95 114x114 129x129
D3, mm Ø50 Ø70 Ø102 Ø125
4-Ø1, mm 4-Ø6.5 4-Ø8.5 4-Ø10.5 4-Ø12.5
D4, mm Ø70 Ø102 Ø125 Ø140
4-Ø2, mm 4-Ø8.5 4-Ø10.5 4-Ø12.5 4-Ø16.5
A, mm 90 125 140 188.5
B, mm 55 64 71 93
ØC, mm Ø88 Ø110 Ø129 Ø174
F, mm 115 135 166 202
T, mm 44 62.5 70 94
Y, mm 145 178 212 280
H, mm 120 133 180 195
S, mm 53 56.5 68.7 84
K, mm 10 13 12.5 15
Ø hand wheel, mm 180 200 280 320
Sketch of dimensions and dimensions of the MON handwheel MON





MON handwheel materials:

№ Name Material
1 Stem for mounting the pneumatic actuator Steel 45
2 Sealing ring EPDM
3 Fixing spring Spring steel
4 Upper end cover Aluminum alloy
5 Screw Steel 304
6 Locking bracket (main rod) Steel 304
7 Housing Aluminum alloy
8 Sealing ring EPDM
9 Gear unit Cast iron BCh50
10 Transition coupling Cast iron BCh40
11 Gear stem Cast iron BCh40

Materials of the handwheel







Technical parameters of limit switch unit APL-410N EX:

Name Value
Model of limit switch unit APL-410N EX
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-410N EX





Dimensions and dimensions of limit switch unit APL-410N EX:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8


Sketch of dimensions and dimensions of limit switch unit APL-410N EX





Main parameters of the AFC2000 air treatment unit:

Operating pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0,5 ÷ 9
Breaking pressure, bar 15
Air connection 1/4”
Operating temperature, C -5 to +60
Filter particle size, µm 40
Oil viscosity ISO VG 32
Weight, kg 0,395
Set composition filter-moisture separator, pressure regulator, lubricator, bracket

Specifications
  • Country of origin
    China
  • Body material
    cast iron GGG50
  • Maximum allowable temperature
    120 °C
  • Connection type
    compact flanged
  • Control type
    Pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Coating type
    uncoated
  • Disc material
    stainless steel AISI 316L
  • Explosion-proof
    Yes
  • Torque
    59 Nm
  • Manual override
    handwheel
  • Limit switches
    Yes
  • Feedback sensor
    Limit switches
  • Supply voltage
    220 V
  • Type of pneumatic actuator
    double action
  • Angle of rotation
    90°
