Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, pneumatic actuator Elephant SA, pneumatic distributor 4M310-08 220 V, limit switch block APL-410N EX

€284,68
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, pneumatic actuator Elephant SA, pneumatic distributor 4M310-08 220 V, limit switch block APL-410N EX - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

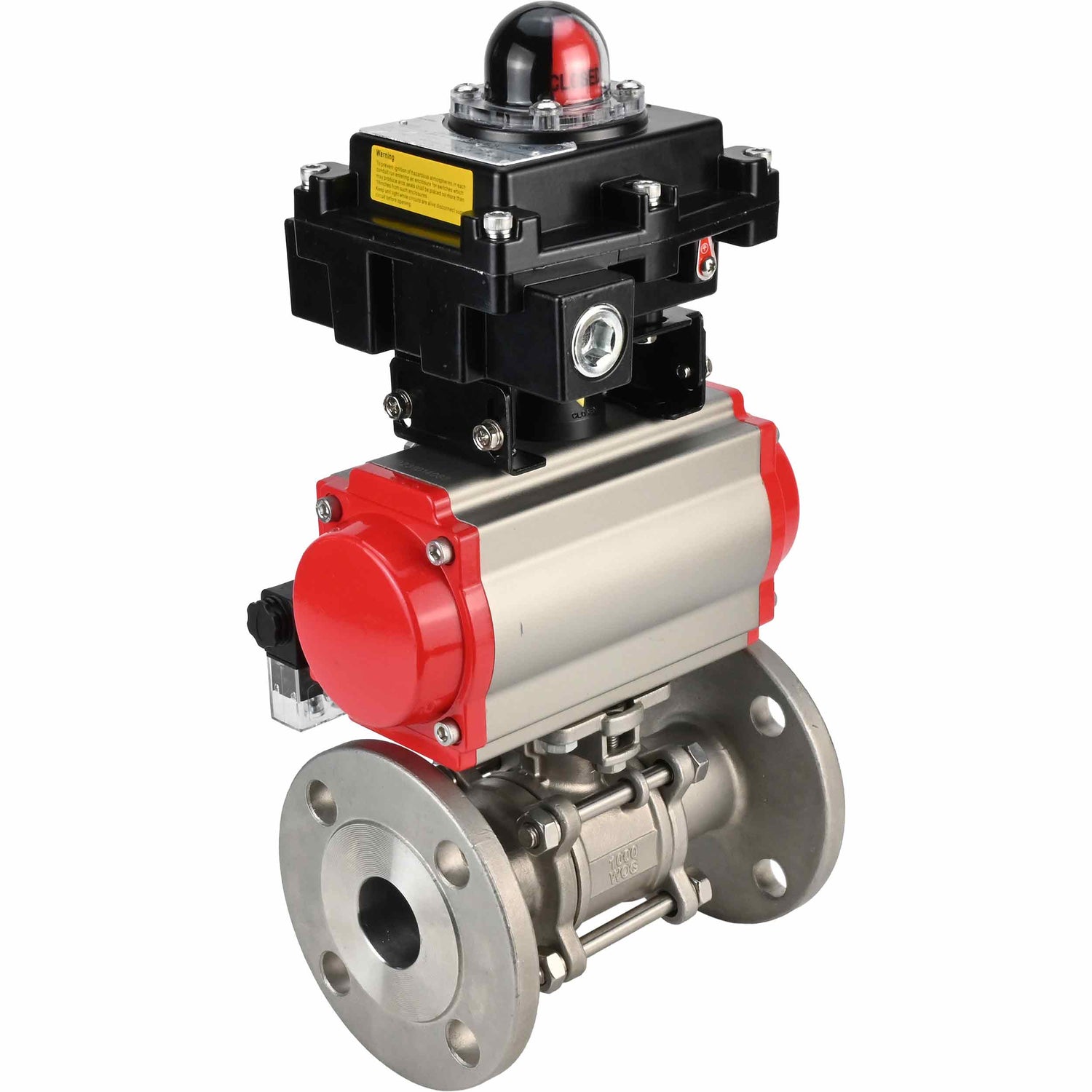

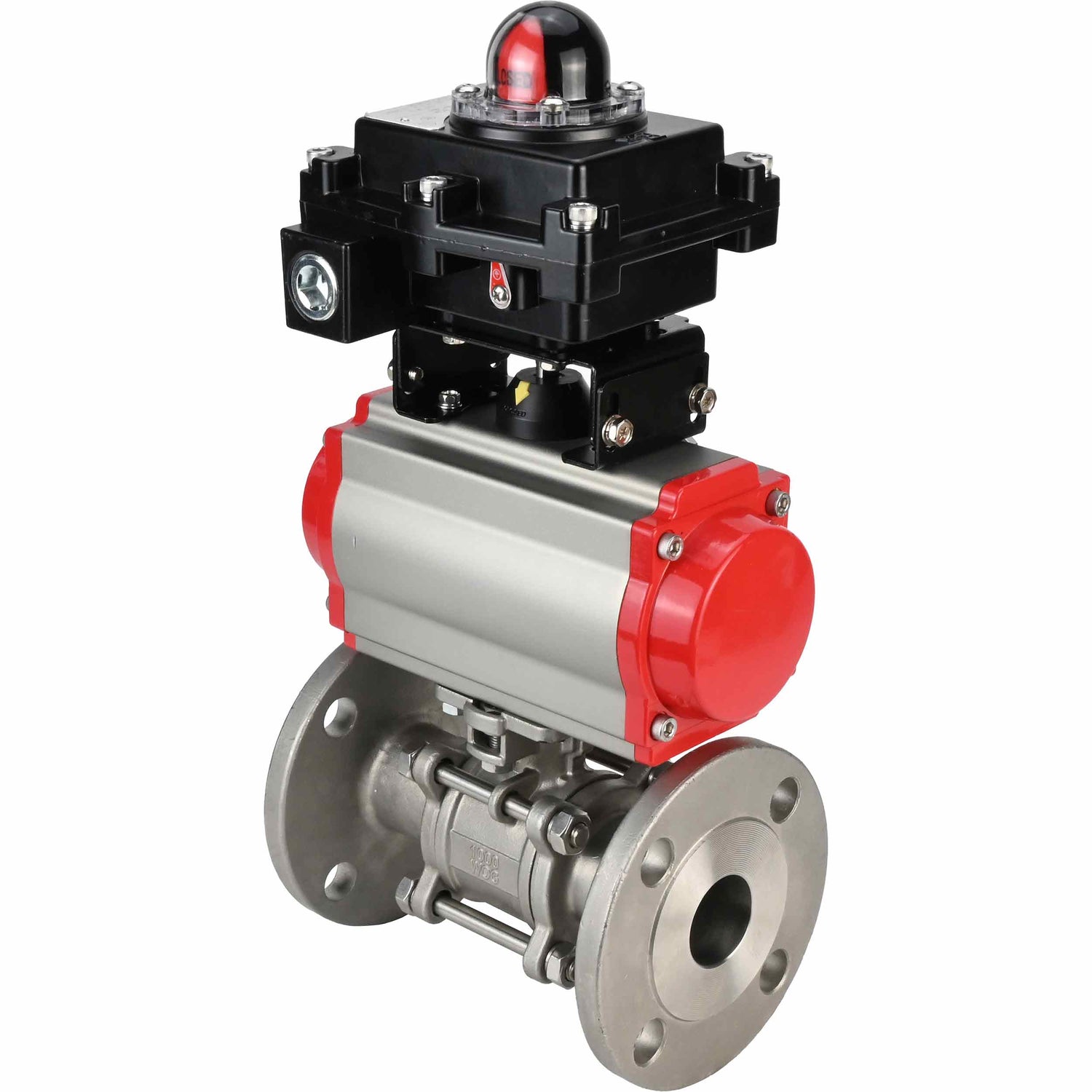

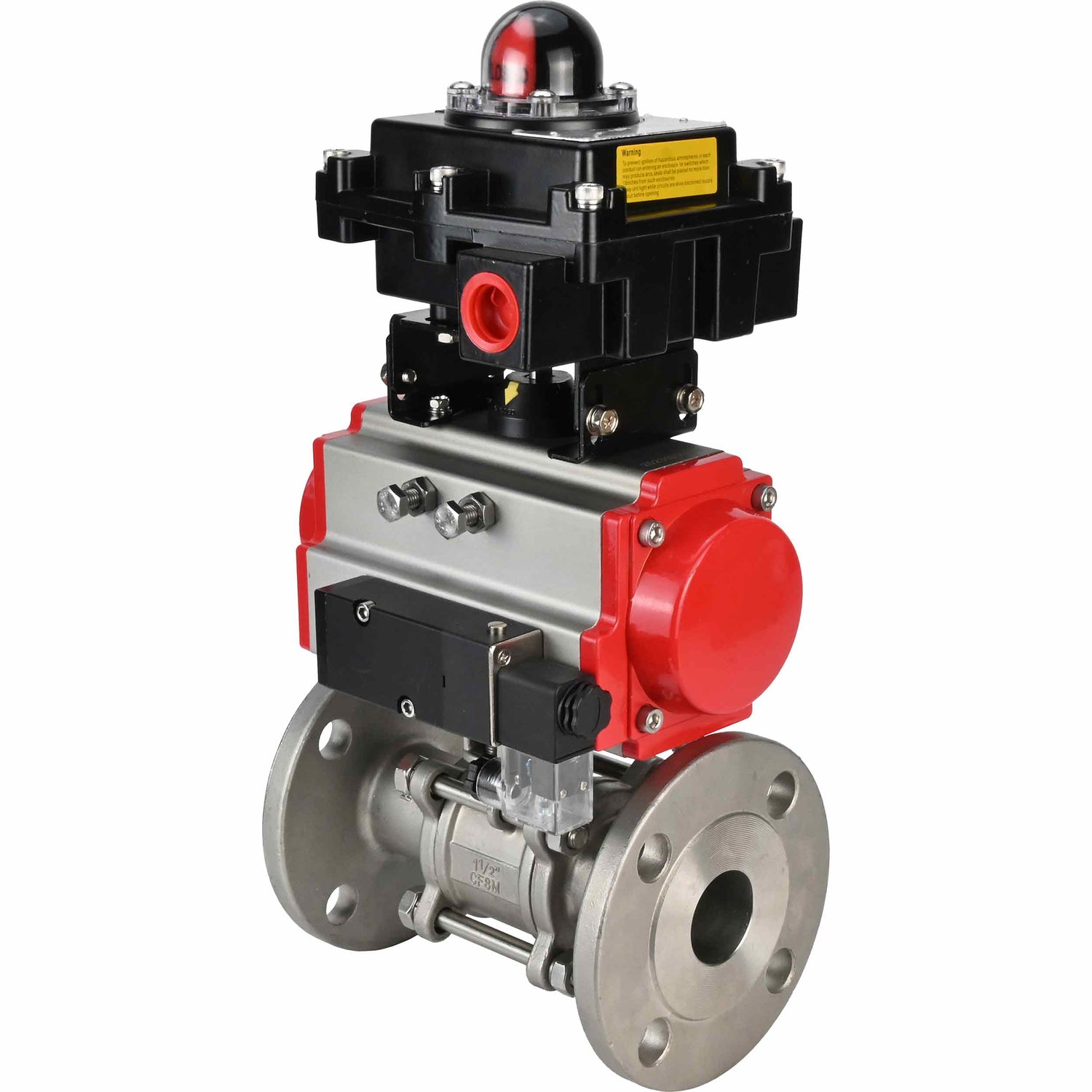

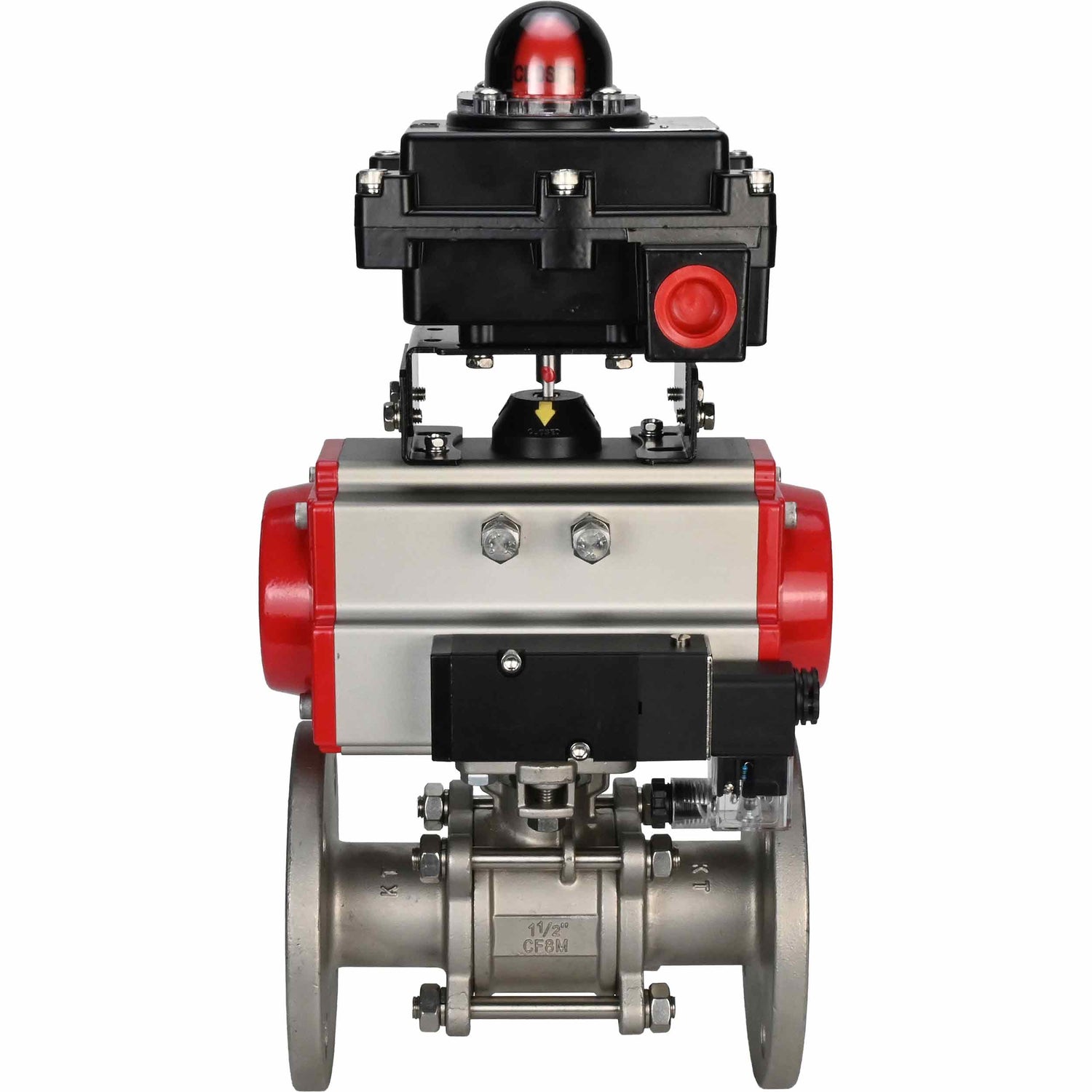

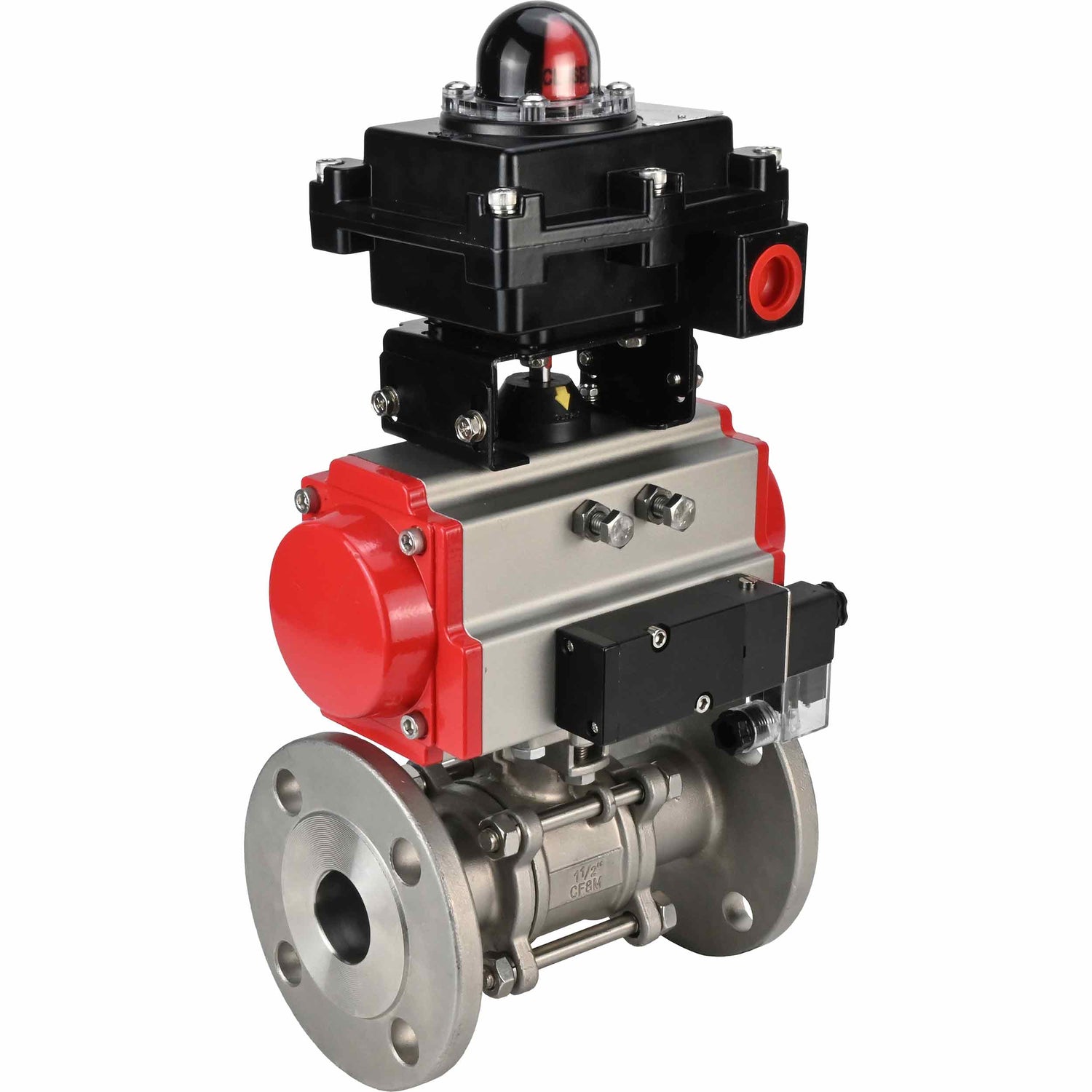

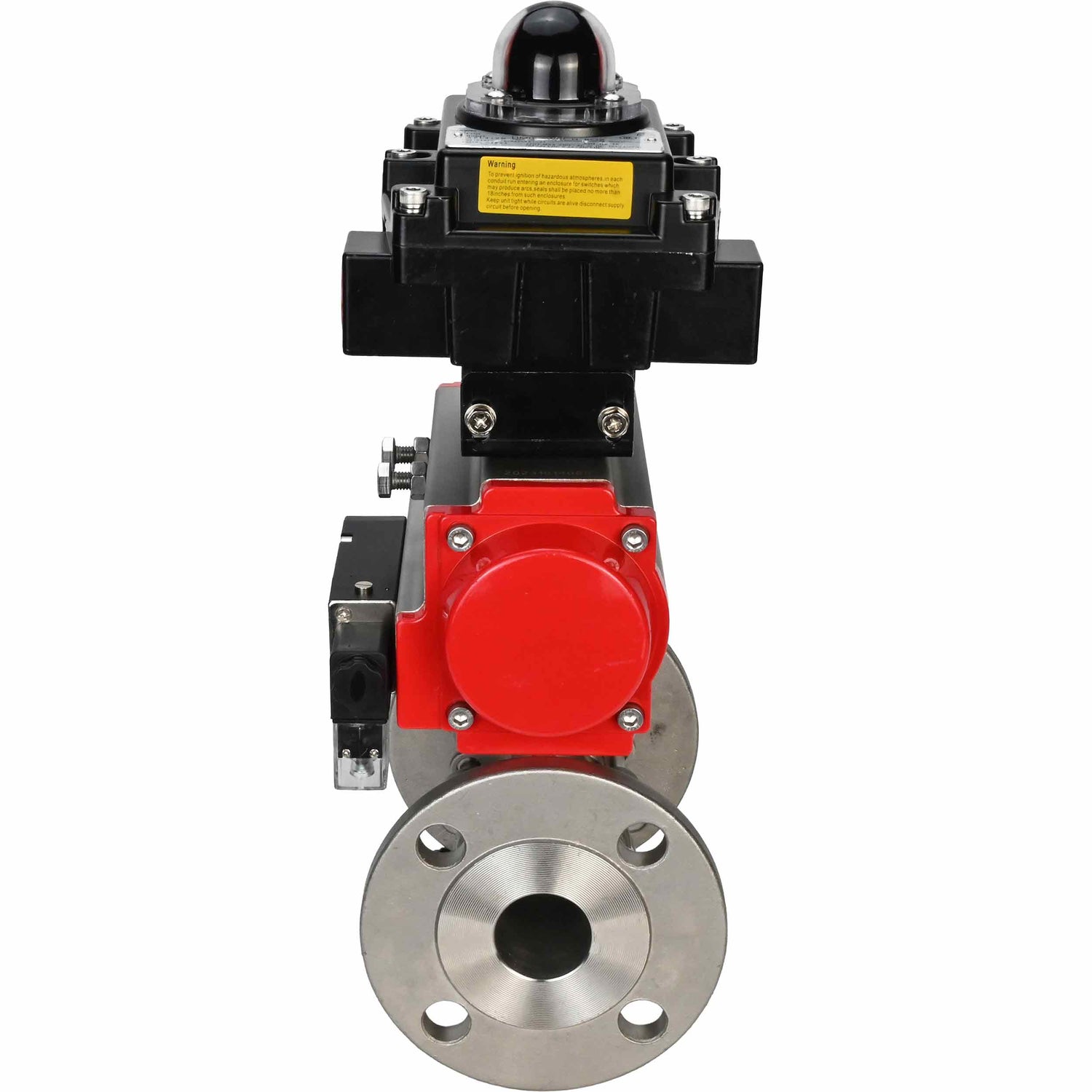

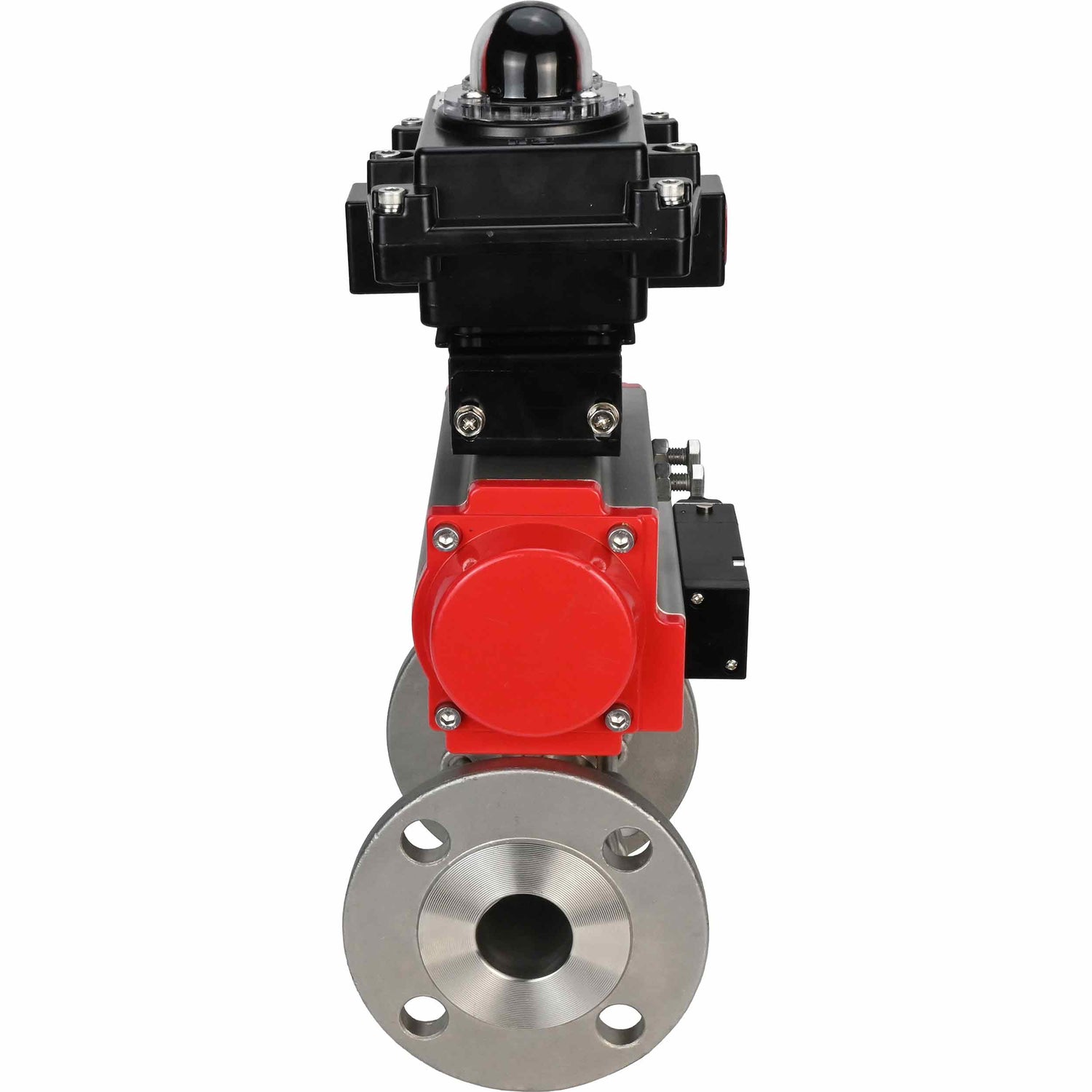

Pneumatic rotary actuators Elephant BV3131P(3pc)-FP-F-H DN15-100 RU40, three-piece full bore flanged, stainless steel SS304, sealing - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic valve 4M310-08 220V, with ball valve APL-410N EX are designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4M310-08 220 V are used for control in pneumatic systems having NAMUR docking surface for installation of actuators through through holes in the housing.

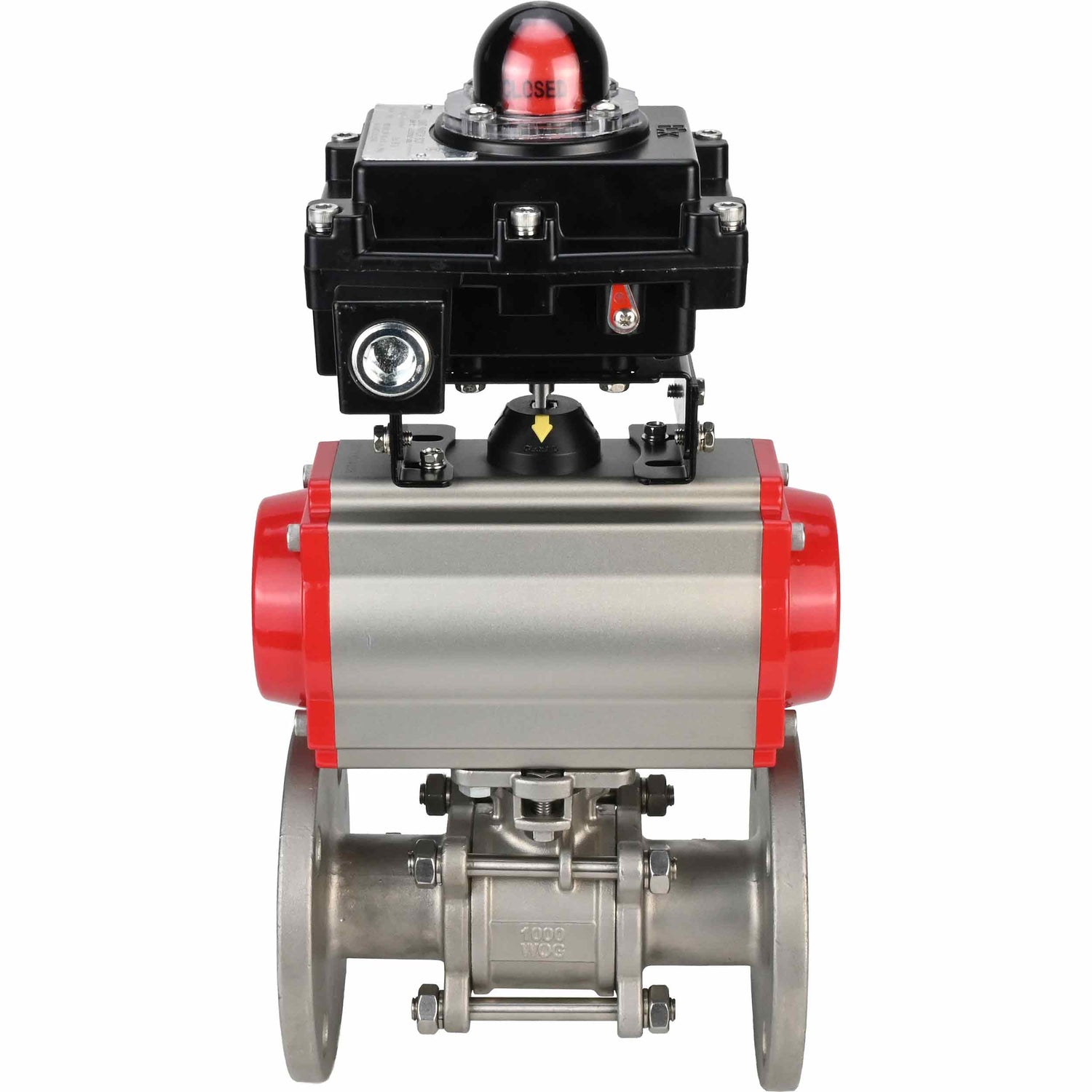

The APL-410N EX limit switch unit is designed for visual and electrical signalling of end positions of the valve shut-off body. It is mounted from above on the surface of the pneumatic actuator and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalise the end positions. The visual indication of the position can be observed on the unit body there is a 3D visual indicator RED-CLOSED and YELLOW-OPEN.





Technical characteristics of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA 4M310-08 220V APL-410N Ex Ru

Nominal diameter DN, mm 15-100
Working pressure PN, bar DN15-50 – 40 DN65-80 – 25 DN100 – 16
Temperature of working environment t, ⁰C from -20 to +180
Working environment Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline flanged
Type of flow section full bore
Control type manual (handle)
Addition installation of electric or pneumatic drive is possible (ISO 5211-2001)





Material sketch of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA 4M310-08 220V APL-410N Ex Ru



Materials of parts of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA 4M310-08 220V APL-410N Ex Ruu

No. Name Material Quantity
1 Frame SS304/SS316 1
2 Ball valve SS304/SS316 1
3 Bolt SS201/SS304 4-6
4 screw SS201/SS304 6-12
5 Sealing PTFE 1
6 Stock SS304/SS316 1
7 Seal SS201/SS304 1
8 Lid WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 Thrust washer PTFE 1
11 screw SS201/SS304 1





Technical characteristics of pneumatic actuators Ball valves Elephant BV3131P(3pc)-FP-F-H DN15-100 Ru40, three-piece full bore flanged, stainless steel SS304, sealing - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic valve 4M310-08 220V, with BCV APL-410N E

Design With return springs
Nominal pressure PN, bar 12
Working pressure, bar 2…8
Working environment Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C • from –20 to +80 • from –40 to +80 (low-temperature version) • from –20 to +160 (with dry air)
Adjustment range ±5° for rotation at 0° and 90°
Manual duplication There is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts have anti-corrosion coating)





Sketch of pneumatic actuator materials Ball valves Elephant BV3131P(3pc)-FP-F-H DN15-100 Ru40, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4M310-08 220V, with BCV APL-410N EX



Materials of pneumatic actuator parts Pneumatic ball valves Elephant BV3131P(3pc)-FP-F-H DN15-100 Ru40, three-piece full bore flanged, stainless steel SS304, sealing - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic valve 4M310-08 220V, with BCV APL-410N EX

No. Name Material
1 Frame extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clamp stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjusting nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum





Technical characteristics of pneumatic valve 4M310-08 220 V

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1.5…8
Working environment filtered compressed air
Ambient temperature t, ⁰C from +5 to +50
Response frequency 5 cycles/s
Manual duplication There is
Degree of protection IP 65
Fastening through through holes in the body
Body material anodized aluminum
Response time 0.05 sec.







Technical characteristics of limit switch unit APL-410N EX

Frame All-weather IP65 explosion-proof Exd IIB T6
Cable entries 2 x NPT1/2”
Terminal blocks 8 points (0.05 – 2.5) mm2
Position indicator 0 - 90° (free rotation 90°) CLOSED - red; OPEN - yellow
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Permissible ambient temperature, °C from -25 to +80
Service life, years 10





Materials of limit switch unit APL-410N EX:

Name Materials
Case cover and body aluminum die casting
Shaft stainless steel
Indicator cover polycarbonate
Cam polycarbonate
Spring stainless steel
Housing cover bolts stainless steel
Sealing ring NBR
Sleeve bronze
Sealing ring (shaft) stainless steel
Ground terminal stainless steel
Indicator ABS plastic / polycarbonate
bracket stainless steel

Specifications

  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 304/1.4301
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, air, oil products
  • Applications
    Heat supply
  • Voltage
    220 V
  • Valve feedback
    Limit switches
  • Explosion-proof
    Yes
  • Torque
    14 Nm
  • Pneumatic actuator
    Yes
  • Manual override
    No
  • Limit switches
    Yes
