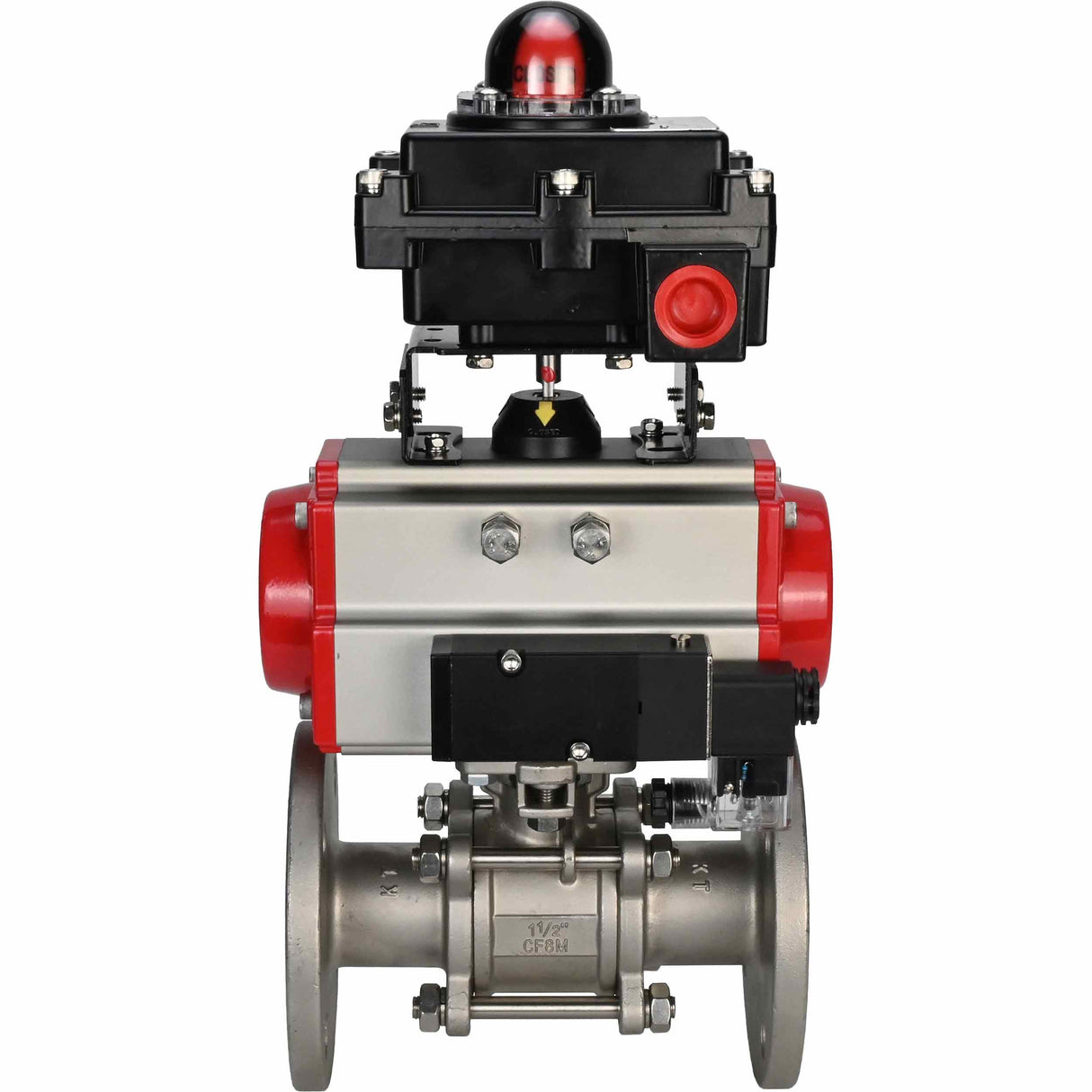

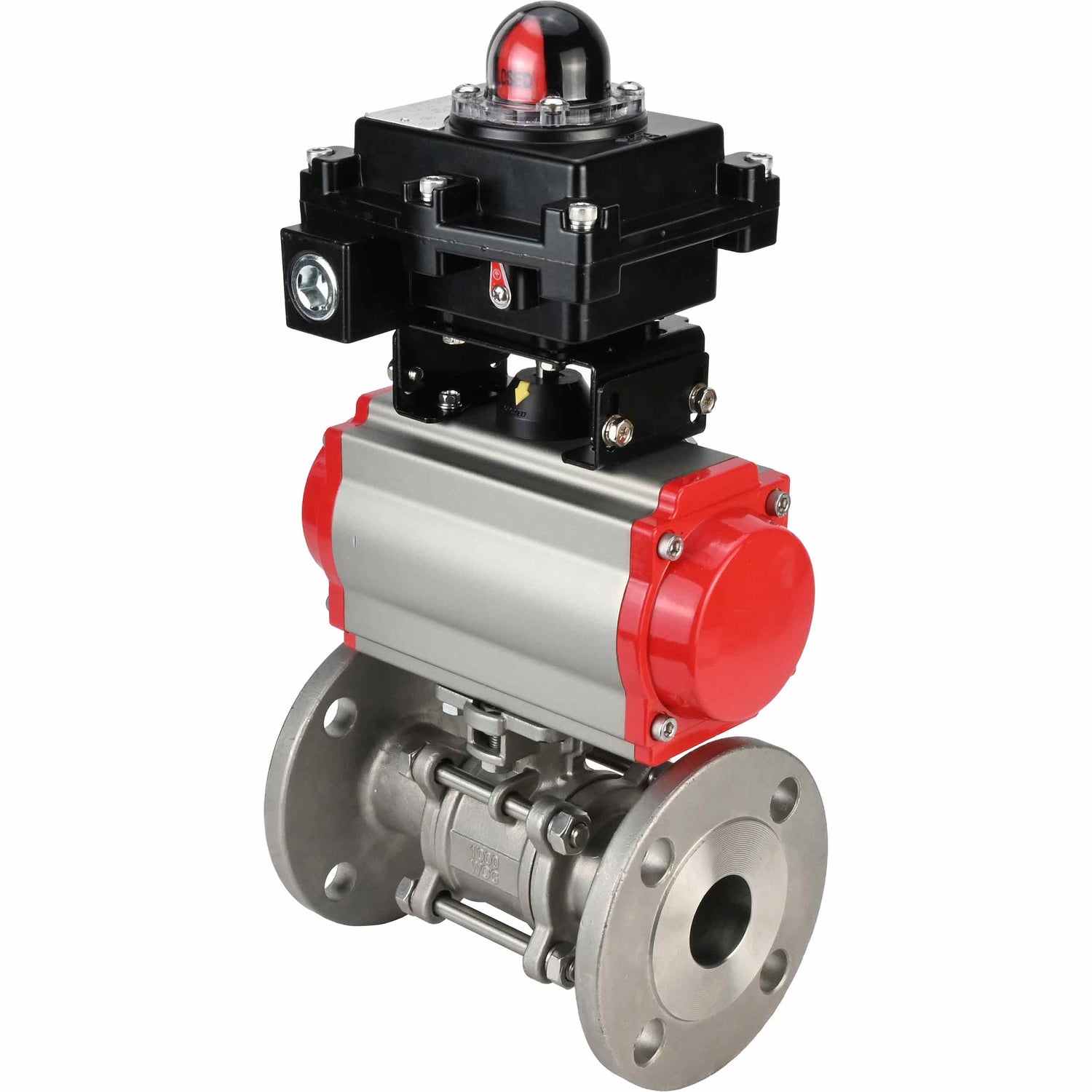

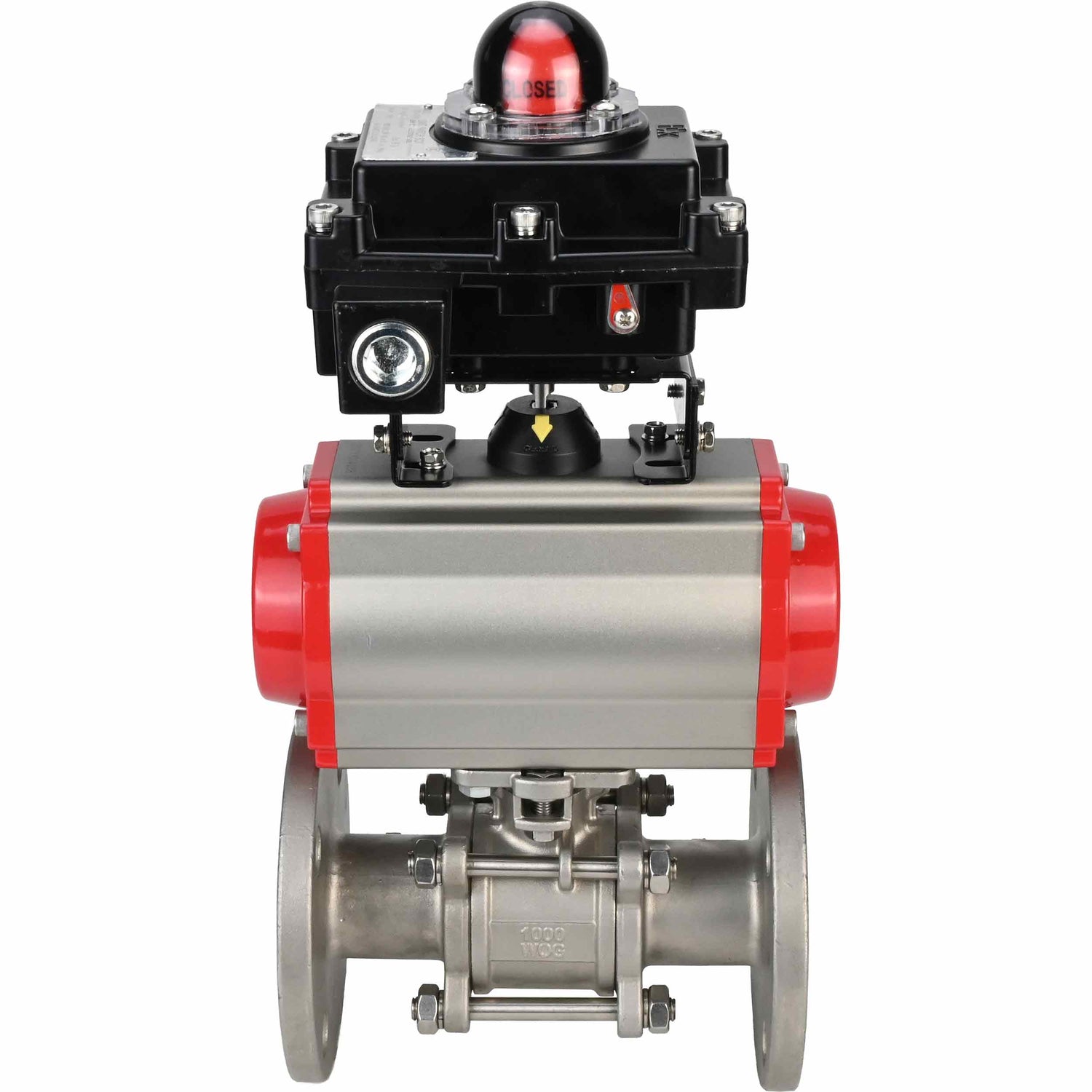

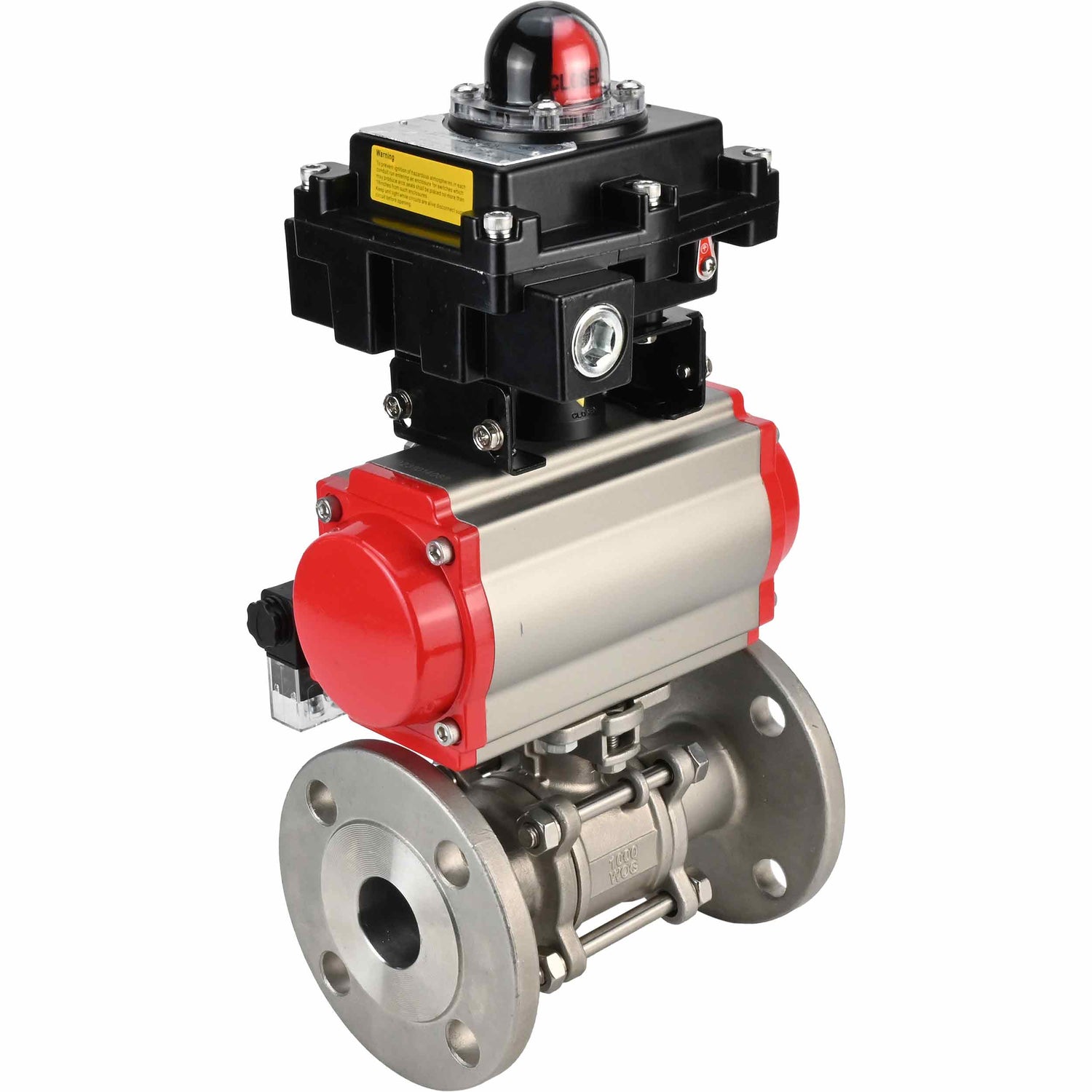

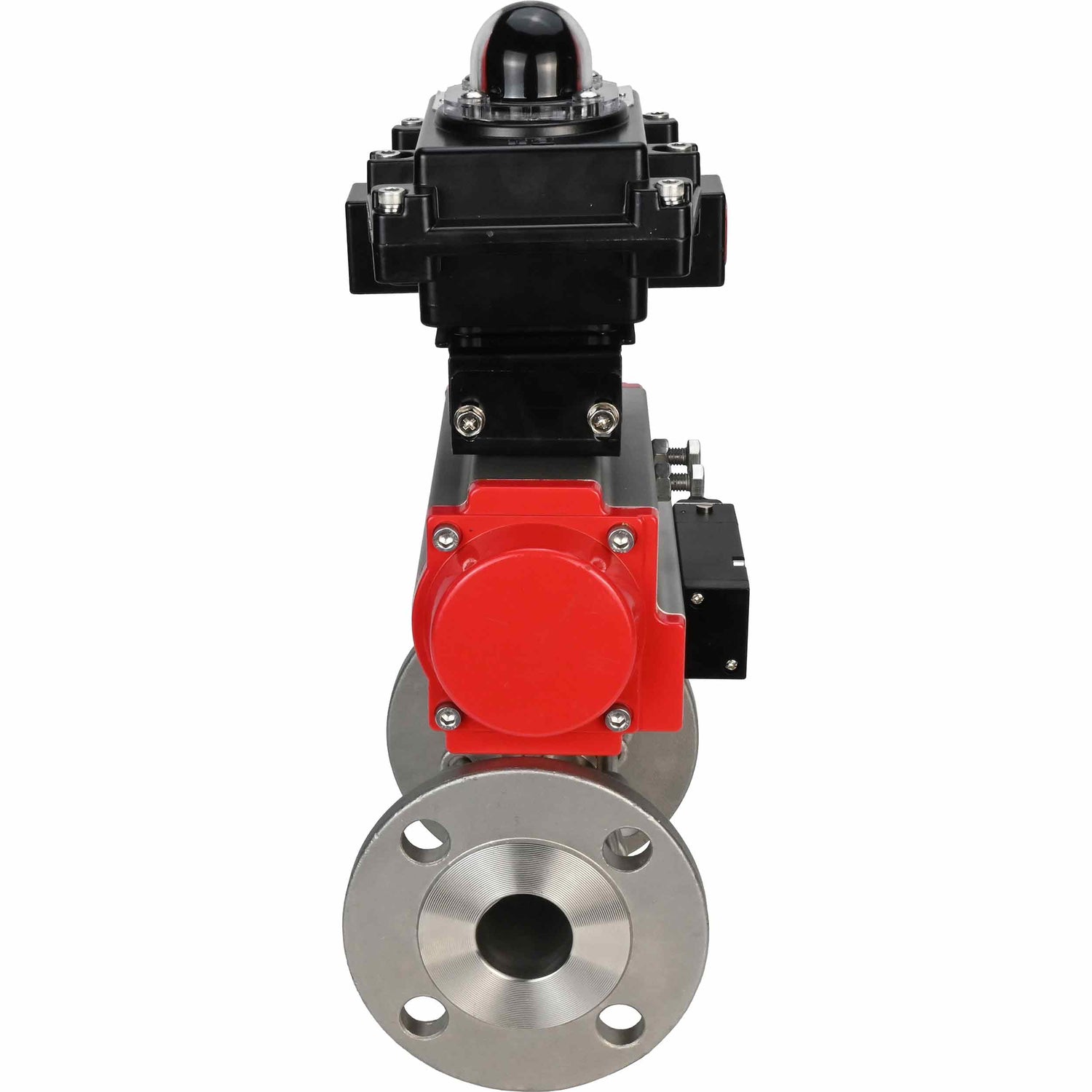

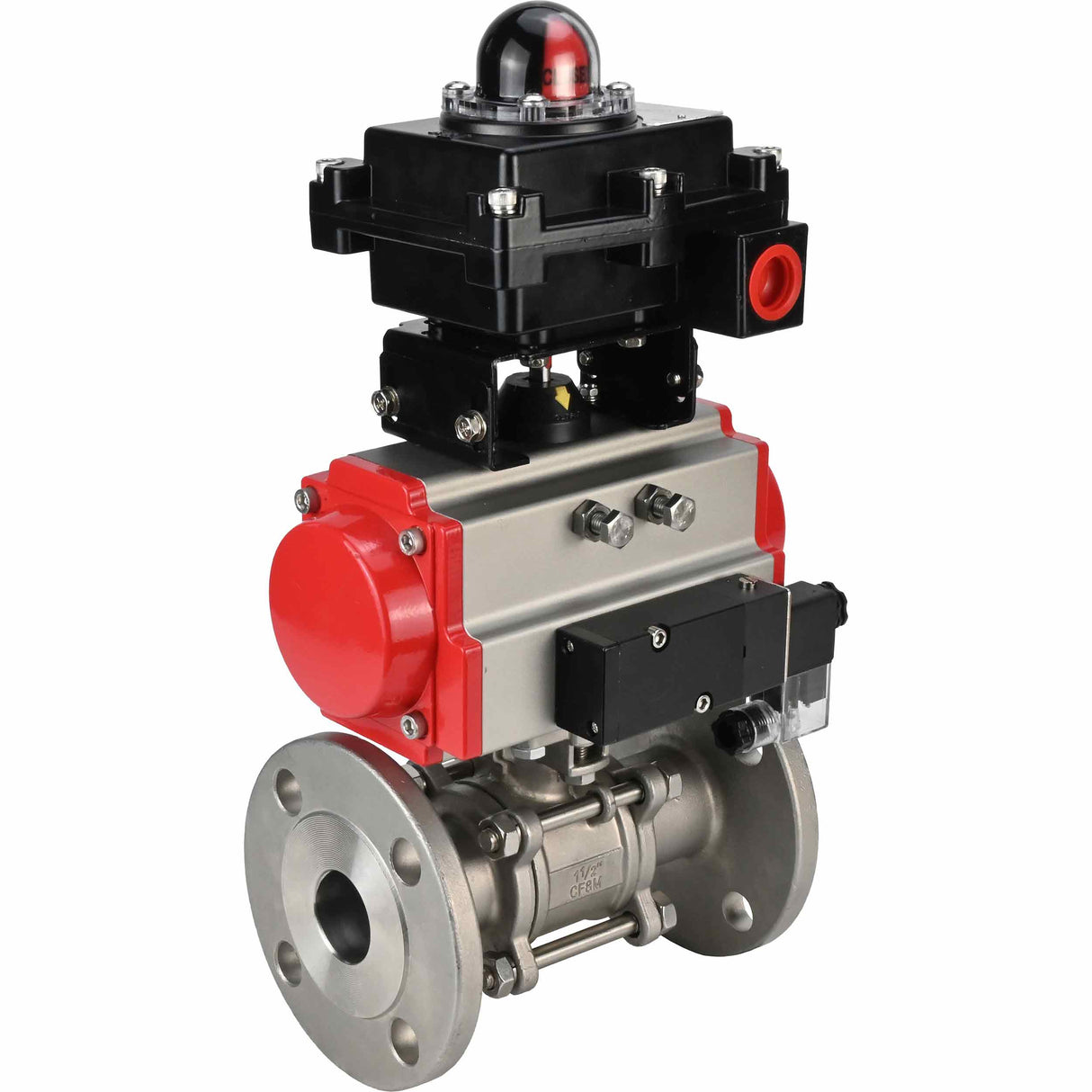

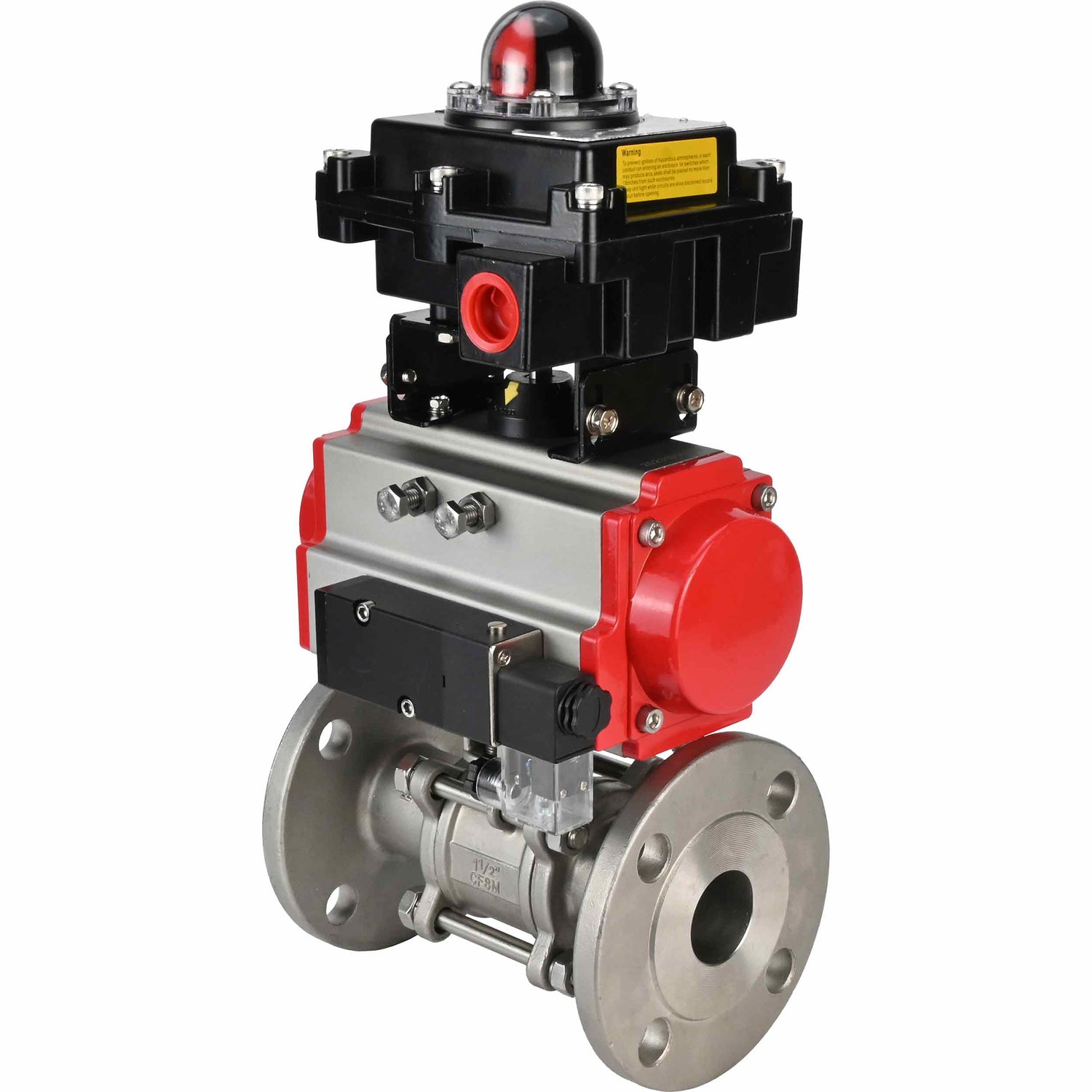

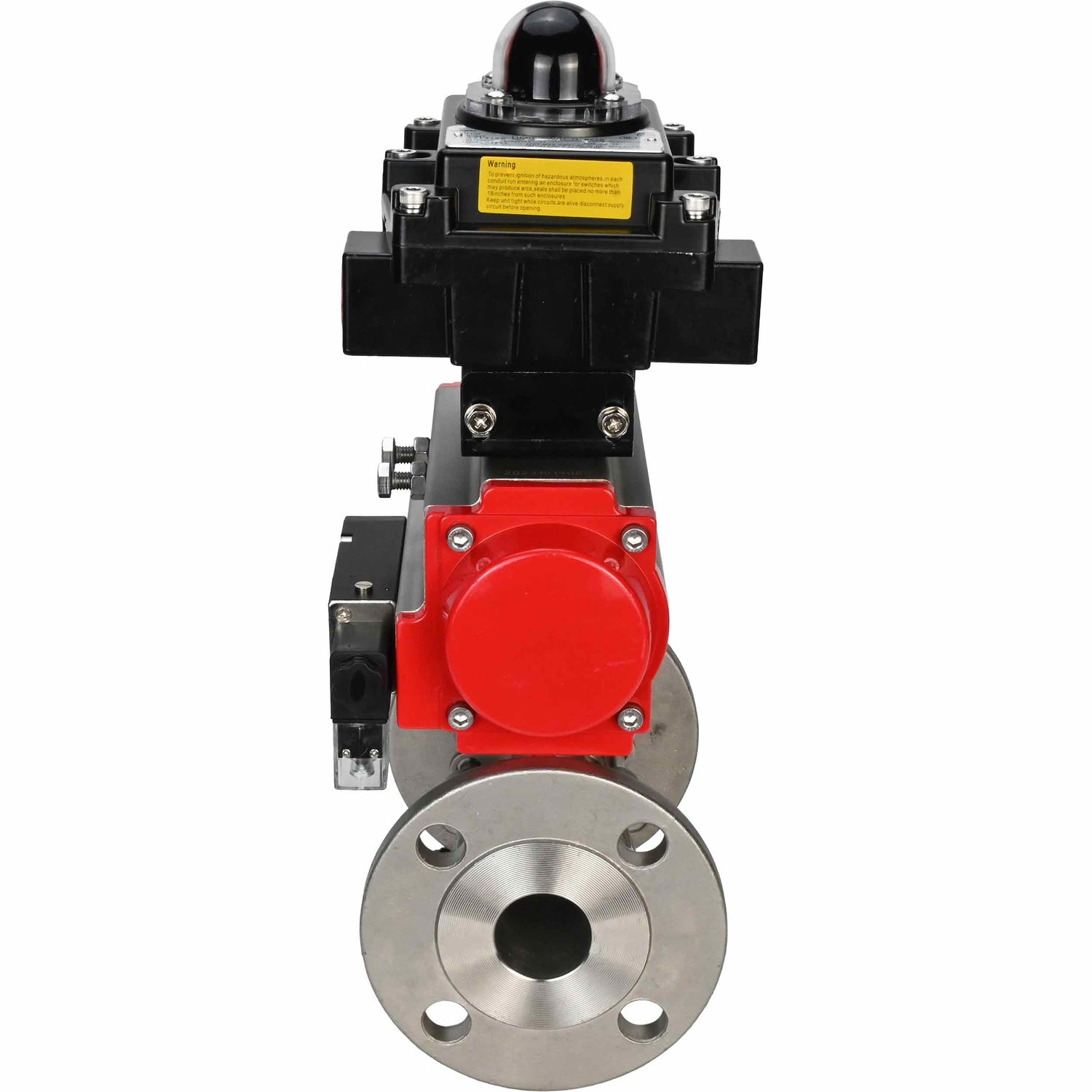

Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, pneumatic actuator Elephant DA, pneumatic distributor 4M310-08 24 V, limit switch block APL-410N EX
Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, pneumatic actuator Elephant DA, pneumatic distributor 4M310-08 24 V, limit switch block APL-410N EX - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Pneumatic rotary actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.
The APL-410N EX limit switch unit is designed for visual and electrical signalling of valve end positions. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft - DIN standard. The sealed box usually contains two sensors which monitor the position of the actuator shaft and signalise the end positions. The visual indication of the position can be observed on the unit body there is a 3D visual indicator RED-CLOSED and YELLOW-OPEN.
Technical characteristics of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-410N Ex Ru
| Nominal diameter DN, mm | 15-100 |
| Working pressure PN, bar | DN15-50 – 40 DN65-80 – 25 DN100 – 16 |
| Temperature of working environment t, ⁰C | from -20 to +180 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
| Control type | manual (handle) |
| Addition | installation of electric or pneumatic drive is possible (ISO 5211-2001) |
Material sketch of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-410N Ex Ru
Materials of parts for ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-410N Ex Roux
| No. | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | SS304/SS316 | 1 |
| 3 | Bolt | SS201/SS304 | 4-6 |
| 4 | screw | SS201/SS304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201/SS304 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
| 11 | screw | SS201/SS304 | 1 |
Technical data of pneumatic actuators
| Design | With return springs |
| Nominal pressure PN, bar | 12 |
| Working pressure, bar | 2…8 |
| Working environment | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | less than 30 µm2 |
| Operating temperature t, ⁰C | • from –20 to +80 • from –40 to +80 (low-temperature version) • from –20 to +160 (with dry air) |
| Adjustment range | ±5° for rotation at 0° and 90° |
| Manual duplication | There is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors. (All internal and external parts have anti-corrosion coating) |
Material sketch of the pneumatic actuator
Materials of pneumatic actuator parts
| No. | Name | Material |
| 1 | Frame | extruded aluminum |
| 2 | Side plugs | cast aluminum |
| 3 | Gear | stainless steel |
| 4 | Piston | steel/aluminum |
| 5 | Plugs | stainless steel |
| 6 | Piston ring | NBR |
| 7 | Springs | spring steel |
| 8 | Piston bearing | engineering plastic |
| 9 | Piston ring | NBR |
| 10 | Plug | NBR |
| 11 | Thrust ring | engineering plastic |
| 12 | Ring | engineering plastic |
| 13 | Washer | stainless steel |
| 14 | Spring clamp | stainless steel |
| 15 | Indicator | plastic |
| 16 | Indicator housing | plastic |
| 17 | Bearing | engineering plastic |
| 18 | Cam | steel |
| 19 | Bearing | NBR |
| 20 | Bearing | engineering plastic |
| 21 | Bearing | engineering plastic |
| 22 | Sealing ring | NBR |
| 23 | Sealing ring | NBR |
| 24 | Bearing | stainless steel |
| 25 | Adjusting nut | stainless steel |
| 26 | Adjustment screw | stainless steel |
| 27 | Sleeve | aluminum |
Technical data of pneumatic valve 4M310-08 24 V
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1.5…8 |
| Working environment | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | There is |
| Degree of protection | IP 65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
Technical characteristics of limit switch unit APL-410N EX
| Frame | All-weather IP65 explosion-proof Exd IIB T6 |
| Cable entries | 2 x NPT1/2” |
| Terminal blocks | 8 points (0.05 – 2.5) mm2 |
| Position indicator | 0 - 90° (free rotation 90°) CLOSED - red; OPEN - yellow |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Permissible ambient temperature, °C | from -25 to +80 |
| Service life, years | 10 |
Materials of limit switch unit APL-410N EX:
| Name | Materials |
| Case cover and body | aluminum die casting |
| Shaft | stainless steel |
| Indicator cover | polycarbonate |
| Cam | polycarbonate |
| Spring | stainless steel |
| Housing cover bolts | stainless steel |
| Sealing ring | NBR |
| Sleeve | bronze |
| Sealing ring (shaft) | stainless steel |
| Ground terminal | stainless steel |
| Indicator | ABS plastic / polycarbonate |
| bracket | stainless steel |
