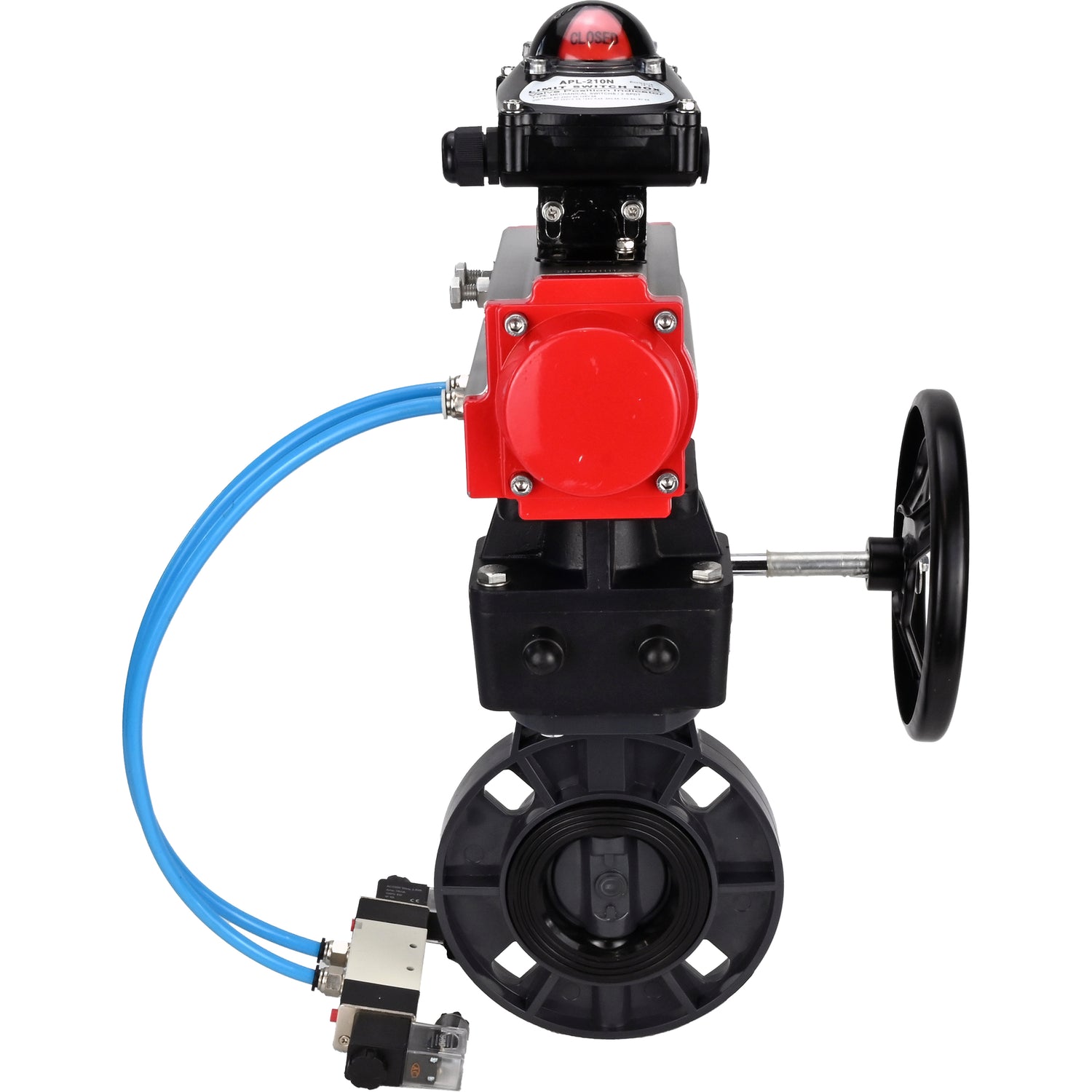

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA, pneumatic distributor 4V320-10 220V, LSU APL-210N and handwheel MON

€0,00

Tax included Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.

PA-DA-x double-acting pneumatic actuators use two ports to supply the control medium and create movement in both directions, both to open and close the valve. One port is used to move the piston in one direction and the other port is used to move the piston in the opposite direction.

The MON worm gear manual quarter-turn doubleturn actuator with reduction gearbox allows manual adjustment of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators.

The limit switch unit is designed for visual and electrical signalling of the end positions of the shut-off valve, valve, tap or disc gate. It is mounted on top of the pneumatic actuator surface and is connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors that monitor the position of the actuator shaft and signalise in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.

Pneumatic distributor is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic	Meaning
Gate type	rotary disk
Diameter	50-200 mm
Nominal pressure	10 bar
Working medium temperature	0 to +45 °C
Application	Water Supply
Operating environment	Liquids, Air and Gases
Connection type	Compact flanged
Control type	Manual (handle, gearbox)
Sealing class	A
Manufacturer's country	China
Warranty	12 months

Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem

Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model	DN50	DN65	DN80	DN100	DN125	DN150	DN200
D, mm	158	179	195	226.5	253.5	280	340
D1, mm	120.5	130.5	154	181	208	234	291.5
L, mm	45	45	48	54	63	69	89
H1, mm	98	110	131	155	169	185	231
n–Ød, pcs-mm	4–Ø19.3*24.5	4–Ø19.3*24.5	8–Ø20*24	8–Ø20*27	4–Ø23*27.5	4–Ø23*28	4–Ø23*28.5
ØD, mm	65	65	65	90	90	90	125
ØD1, mm	50	50	50	70	70	70	102
ØD2, mm	35.5	35.5	35.5	55.5	55.5	55.5	70.5
h, mm	3.5	3.5	3.5	3.5	3.5	3.5	3.5
H, mm	32	32	32	32	32	32	45
BxB, mm	9х9	9х9	9х9	11х11	14х14	14х14	17х17
N–Ød, pcs-mm	4–8	4–8	4–8	4–10	4–10	4–10	4–12

Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem

Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№	Part Name	Material
1	Body	UPVC
2	Disc	UPVC
3	Seat seal	EPDM
4	Rod	Steel 45
5	Rod seal	EPDM

Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem

Technical parameters of Elephant pneumatic drives PA-DA:

Characteristic	Meaning
Pneumatic drive type	double acting
Nominal pressure	12 bar
Working pressure	2-8 bar
Ambient temperature	from -20 to +80 °C
Swivel angle	0-90°
Position indicator	open / closed
Working environment	filtered compressed air
Swivel angle adjustment	±5%
Top and air connection standard	NAMUR

Pneumatic drives Elephant PA-DA

Dimensions of Elephant pneumatic drives PA-DA:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
DA-052	30	41,5	65,5	72	92	65	30	80
DA-065	36	47	81	88	108	72	30	80
DA-083	46	57	98,5	108,7	128,7	92	30	80
DA-105	57,5	64	122,5	133	153	109,5	30	80
DA-130	67,5	74,5	145,5	155	185	127,5	30	130
DA-140	75	77	161	172	202	137,5	30	130
DA-160	87	87	184	197	227	159	30	130
DA-210	113	113	235,5	255	285	210	30	130
DA-270	147	147	299	326	356	273	30	130
DA-300	162	174	330	350	380	312	30	130
DA-350	190	195	483	410	440	365	30	130

Model	I, mm	J, mm	M, mm	N, mm	Z, mm	d, mm	K	L
DA-052	36	50	11x11	14	147	40	M5x8	M6x10
DA-065	50	70	14x14	18	168	40	M6x10	M8x13
DA-083	50	70	17x17	21	204	40	M6x10	M8x13
DA-105	70	102	22x22	26	268	40	M8x13	M10x16
DA-130	70	102	22x22	26	301	55	M8x13	M10x16
DA-140	102	125	27x27	31	390	55	M10x16	M12x20
DA-160	102	125	27x27	31	458	55	M10x16	M12x20
DA-210	-	140	36x36	40	532	80	-	M16x25
DA-270	-	165	46x46	50	718	80	-	M20x25
DA-300	-	165	46x46	50	760	80	-	M20x25
DA-350	165	254	46x46	50	920	80	M20x25	8xM16x25

Sketch Pneumatic drives Elephant PA-DA

Technical parameters of Elephant limit switch APL-210N:

Characteristic	Meaning
Terminal Block	8 cells 0.08-2.6mm2
Voltage	12V, 24V, 38V, 48V, 110V, 220V, 250V
Indicator Position	CLOSED: red, OPEN: green
Ambient temperature	from -40 to +80 °C
Cable Entry Thread	2 x NPT1/2"
Sensor	2 SPDT electromechanical microswitches OMRON V151-1C25
External Coating	polyester coating (black)
Shaft	Standard (17mm)
Protection class	IP65

Limit switch Elephant APL-210N

Dimensions of Elephant limit switch APL-210N:

Depth, mm	112
Height, mm	77
Width, mm	88

Sketch Limit switch Elephant APL-210N

Technical parameters of Elephant pneumatic distributor 4V320 AC220V:

Characteristic	Meaning
Type of pneumatic valve	slide valve
Body material	aluminum alloy and technopolymer
Control	two-way electromagnetic
Operating temperature	-5 to +60 °C
Operating scheme	5/2
Working pressure	1.5-8 bar
Maximum pressure	12 bar
Supply voltage	220V
Degree of protection	IP65
Insulation class	F

Pneumatic distributor Elephant 4V320 AC220V

Dimensions of Elephant pneumatic distributor 4V320-10 AC220V:

A, mm	71.9
B, mm	45
C, mm	94.4
D, mm	27
E, mm	69
F, mm	40
H, mm	82.4
I, mm	24
K, mm	40
L, mm	188.8
M, mm	69.4
N, mm	50
O, mm	83.4
P, mm	24
S, mm	20
T, mm	6.5
U, mm	2.4
V, mm	4

Sketch Pneumatic distributor Elephant 4V320-10 AC220V

Technical parameters of Elephant handwheel MON:

Characteristic	Meaning
Operating mode	repetitive-short-term, reversible
Application	water supply, heating, fire extinguishing, heating stations
Place of installation	between pneumatic actuator and ball valve or gate valve
Operating temperature	from -20 to +80 °C
Shaft angle	90±5°
Mounting	horizontal/vertical
Working environment	filtered compressed air or non-aggressive gases, oils
Protection class	IP67

Handwheel Elephant MON

Dimensions of Elephant handwheel MON:

Model	MON1- 250- T26-ISO	MON2- 450- T28-ISO	MON3- 700- T38-ISO	MON4- 1200- T54-ISO
Model	mm
b1	14	17	22	27
N	22	22	28	32
b2	14	17	22	27
M	16	18	22	30
D1	50	70	102	102
4-M1	4-M6	4-M8	4-M10	4-M10
D2	70	102	125	125
4-M2	4-M8	4-M10	4-M12	4-M12
E	70*70	95*95	114*114	129*129
D3	50	70	102	125
4-Ø1	4-6.5	4-8.5	4-10.5	4-12.5
D4	70	102	125	140
4-Ø2	4-8.5	4-10.5	4-12.5	4-16.5
A	90	125	140	188.5
B	55	64	71	93
ØC	88	110	129	174
F	115	135	166	202
T	44	62.5	70	94
Y	145	178	212	280
H	120	133	180	195
S	53	56.5	68.7	84
K	10	13	12.5	15
Ø helm	180	200	280	320

Sketch Handwheel Elephant MON

Specifications

Country of origin

China
Body material

UPVC
Maximum allowable temperature

45 °C
Connection type

Compact flanged
Control type

Pneumatic actuator
Operating environment

Liquids, Air and Gases
Applications

Water Supply
Nominal pressure

10 bar
Type of seal

EPDM
Disc material

UPVC
Voltage

220V
Electropneumatic positioner

No
Pneumatic actuator

Yes
Limit switches

Yes
Manual understudy

Yes
Type of pneumatic actuator

Double acting
Angle of rotation

90°
Drive adjustment range

5%
