Elephant | SKU: D160-46483

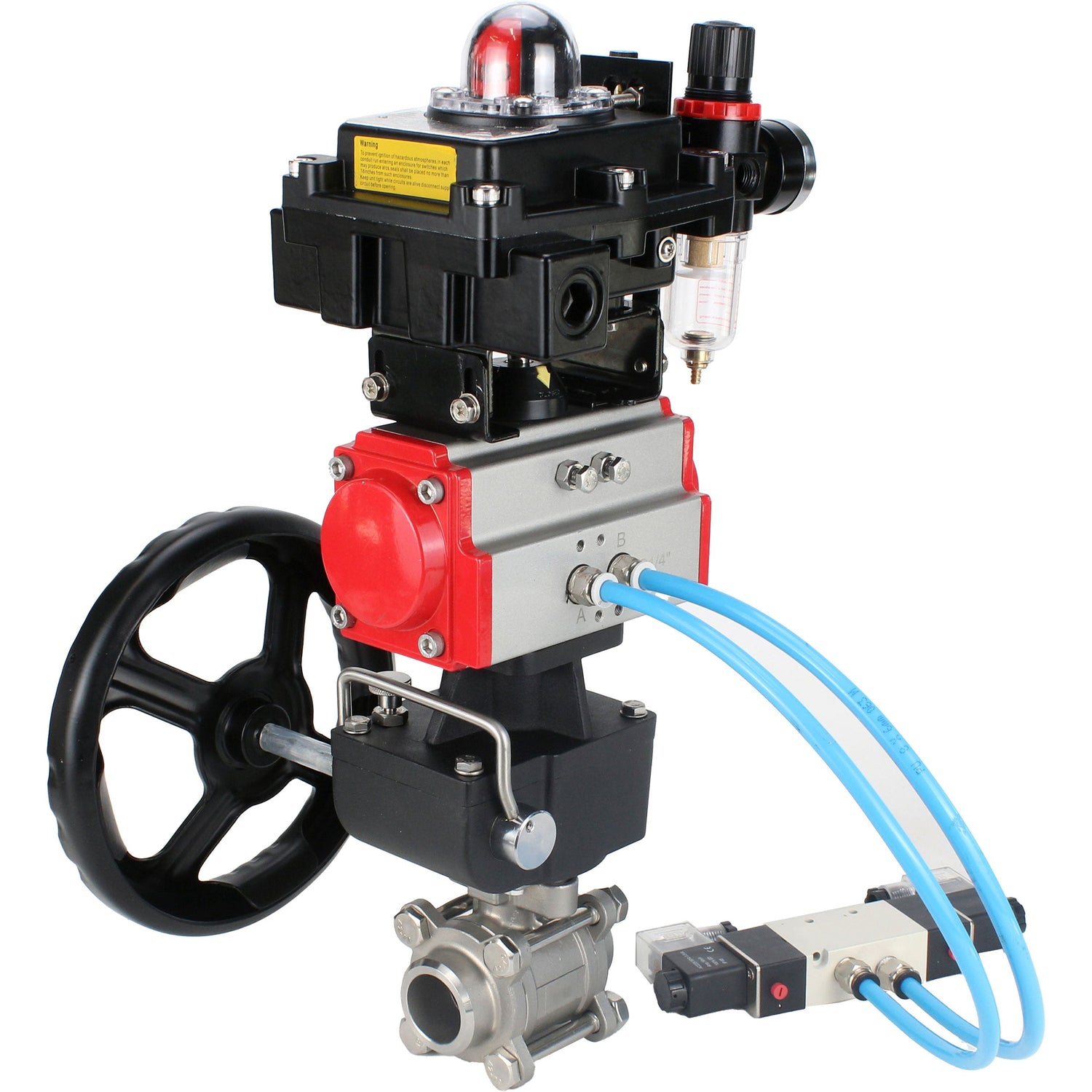

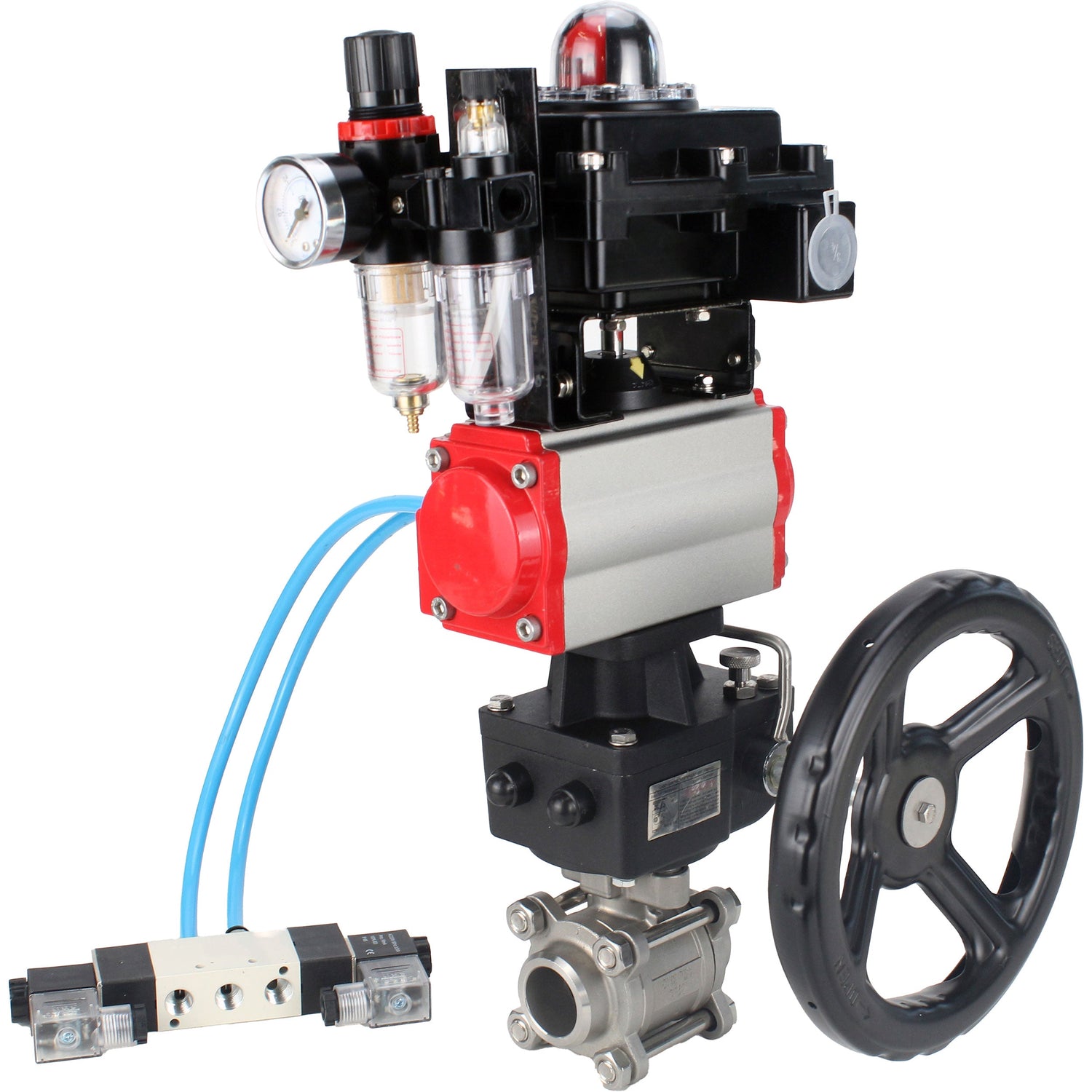

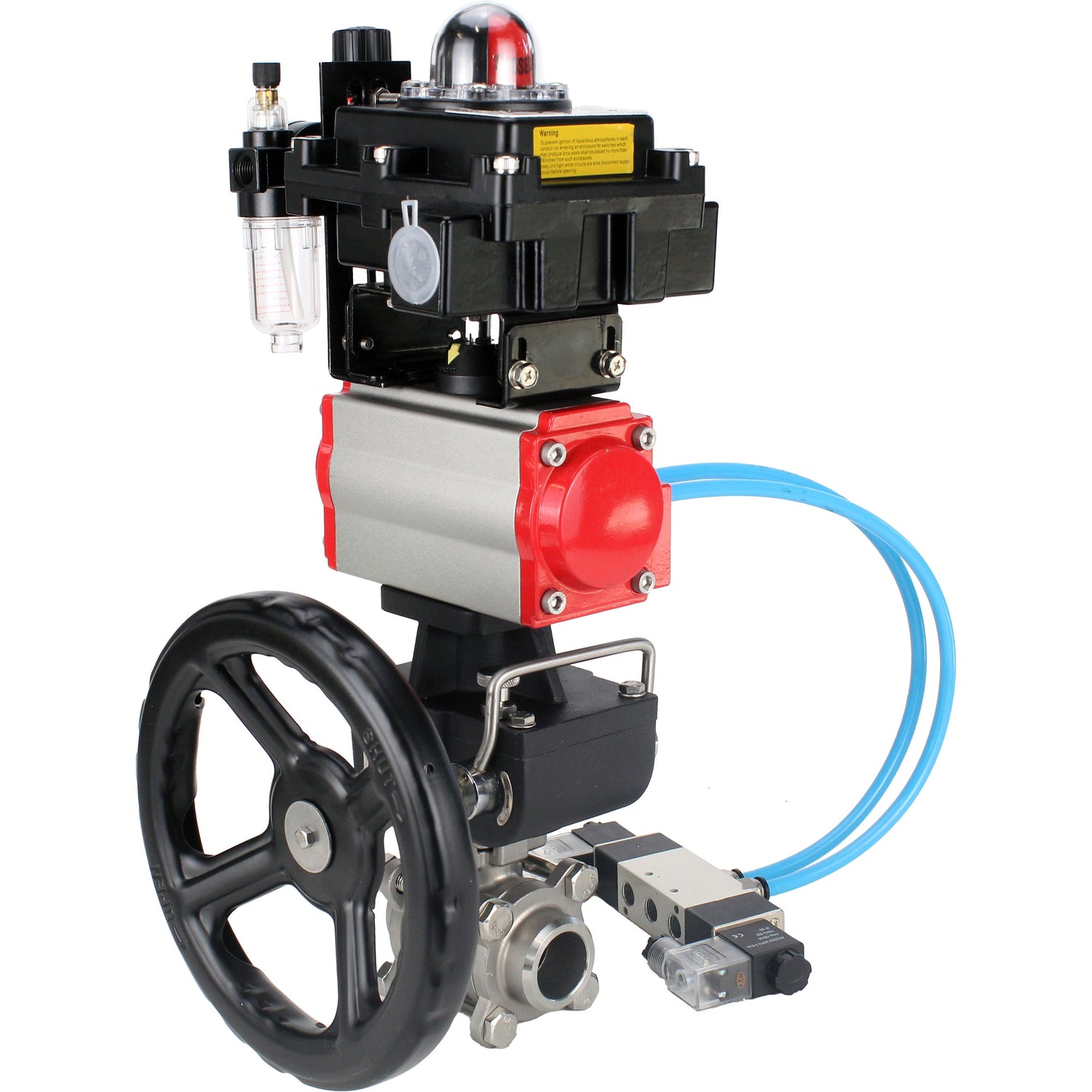

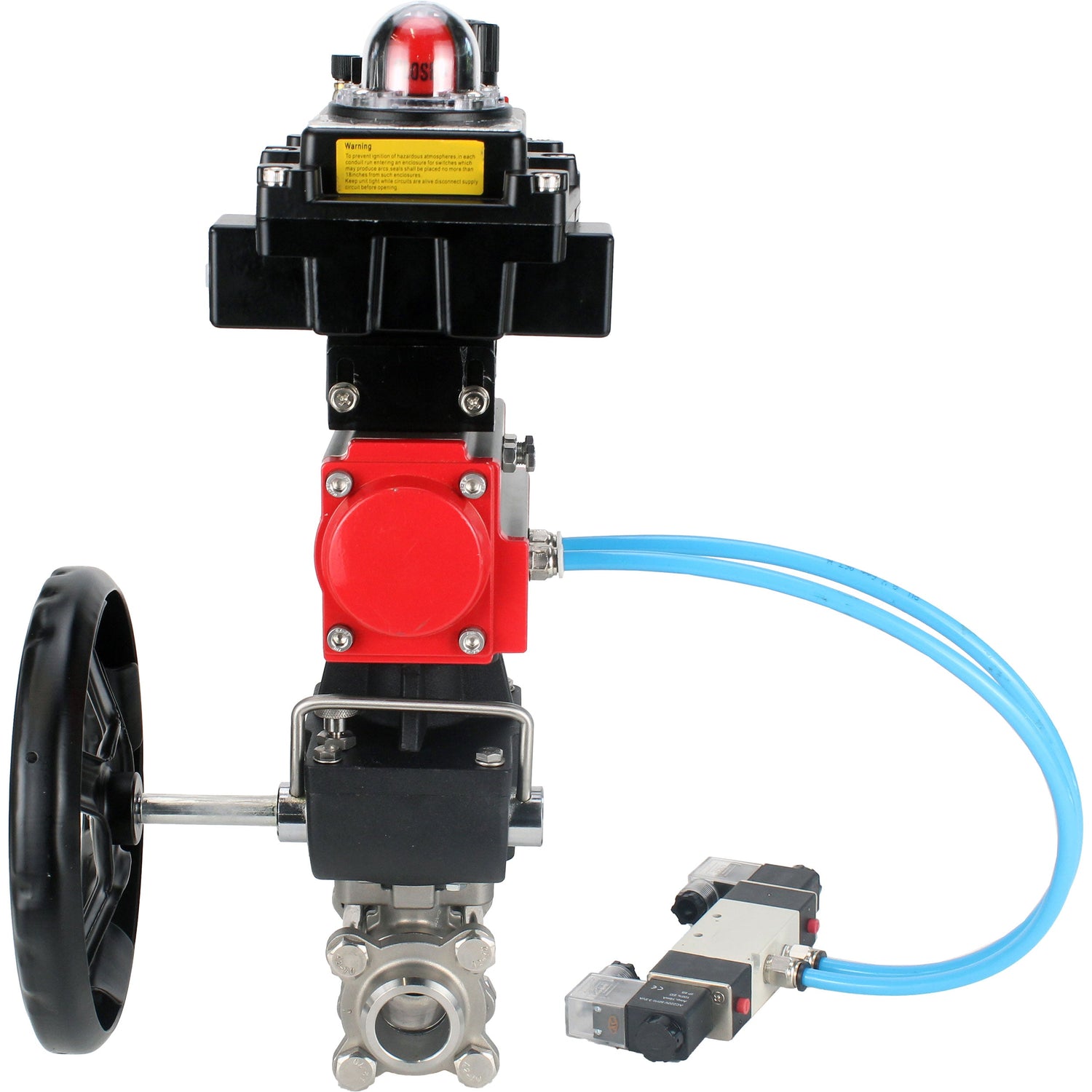

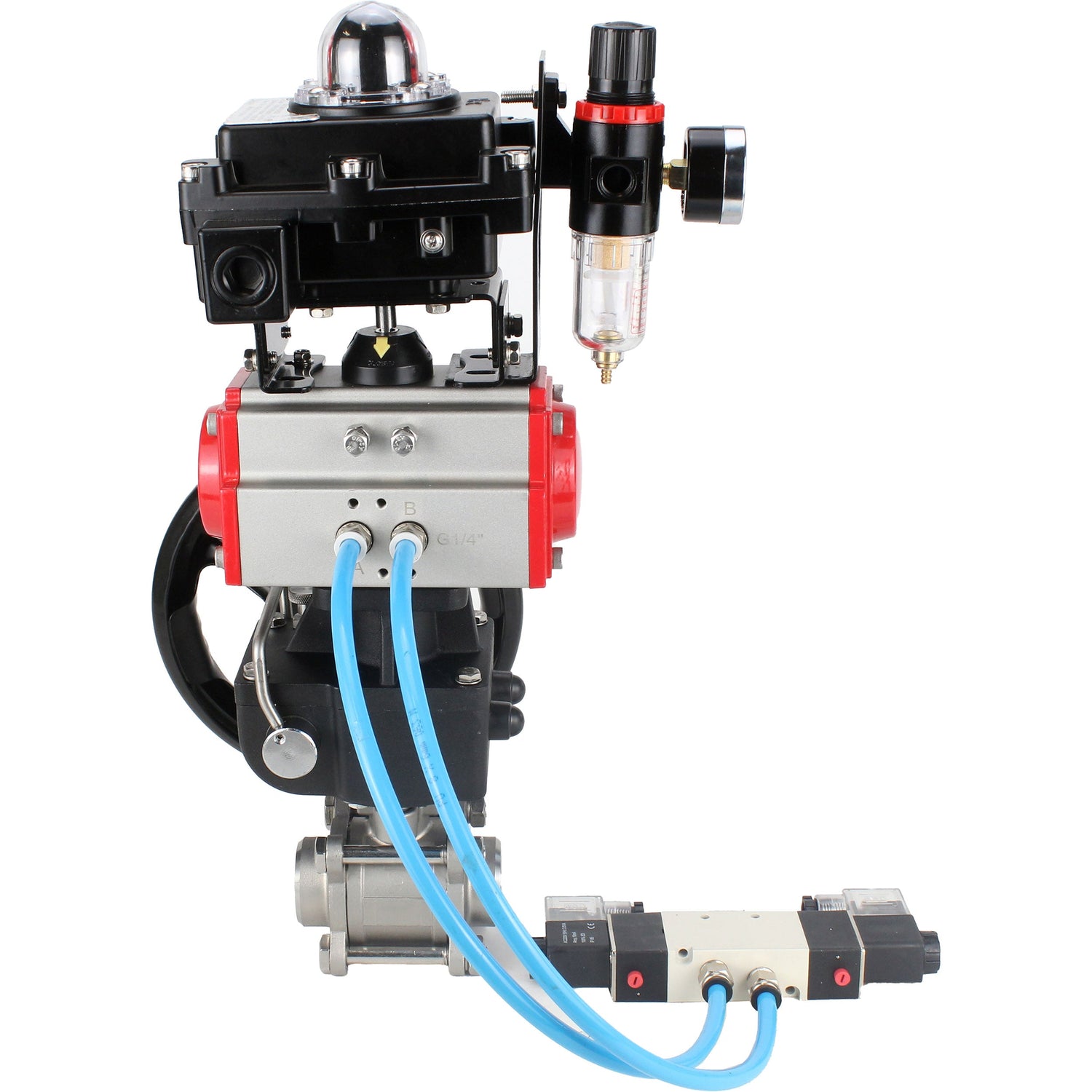

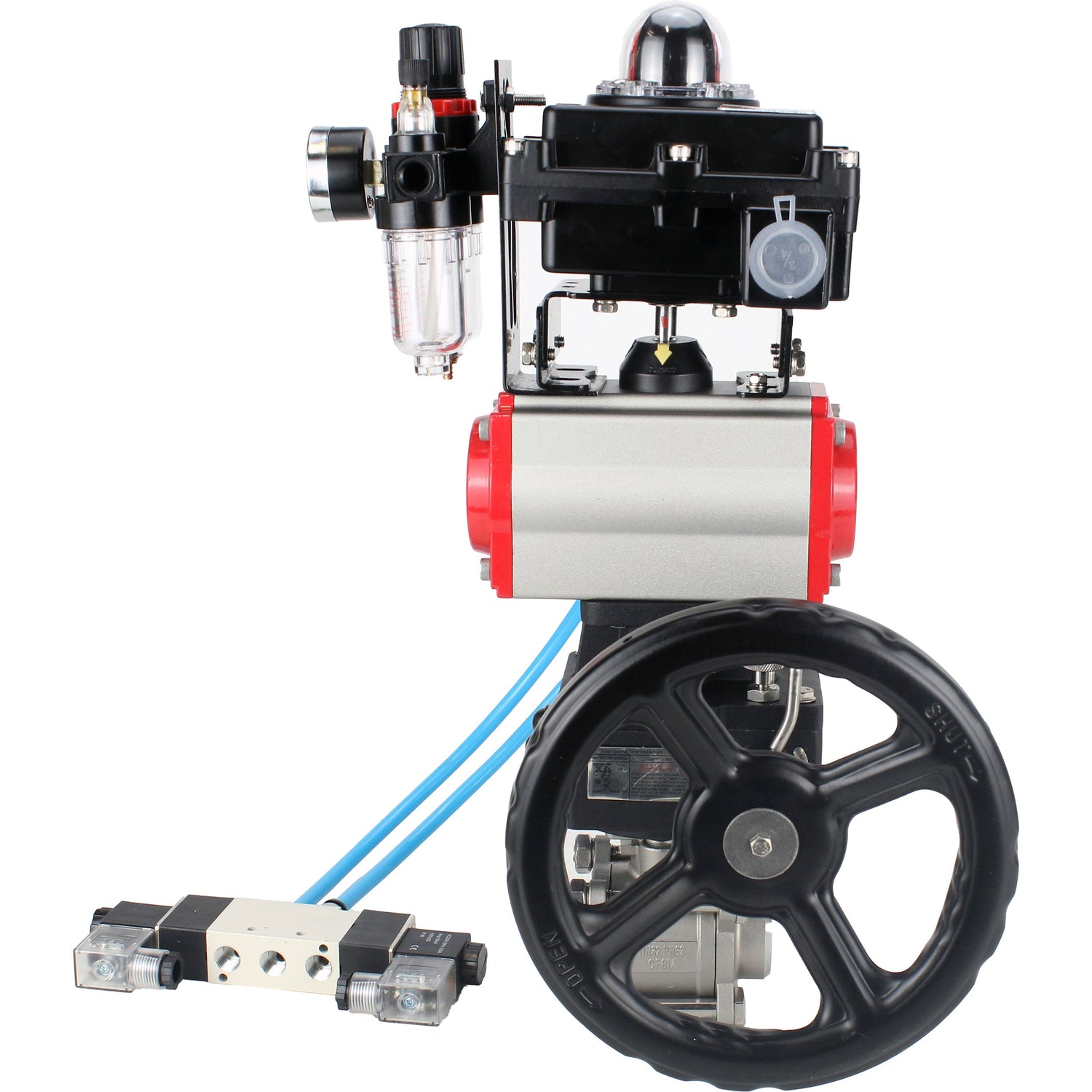

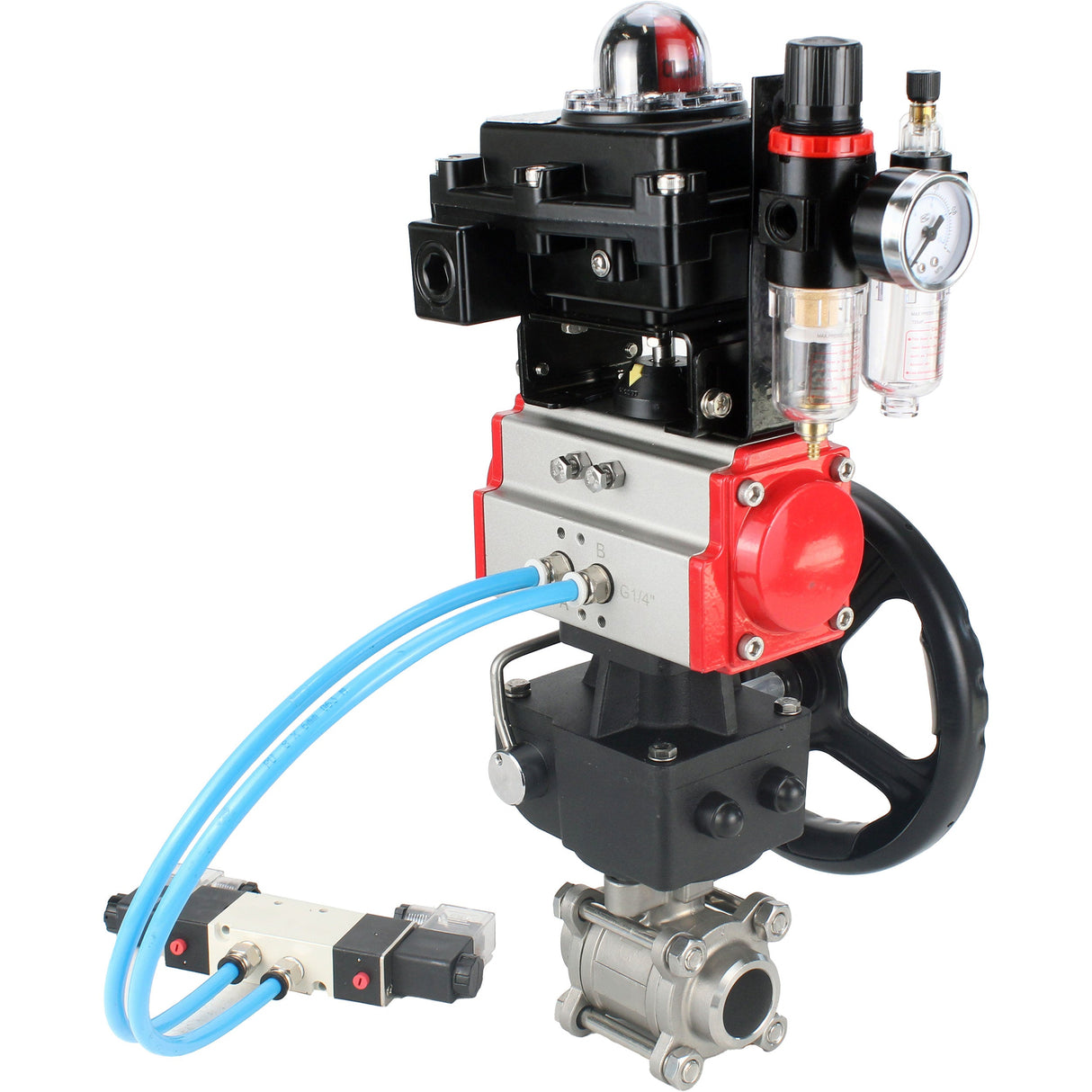

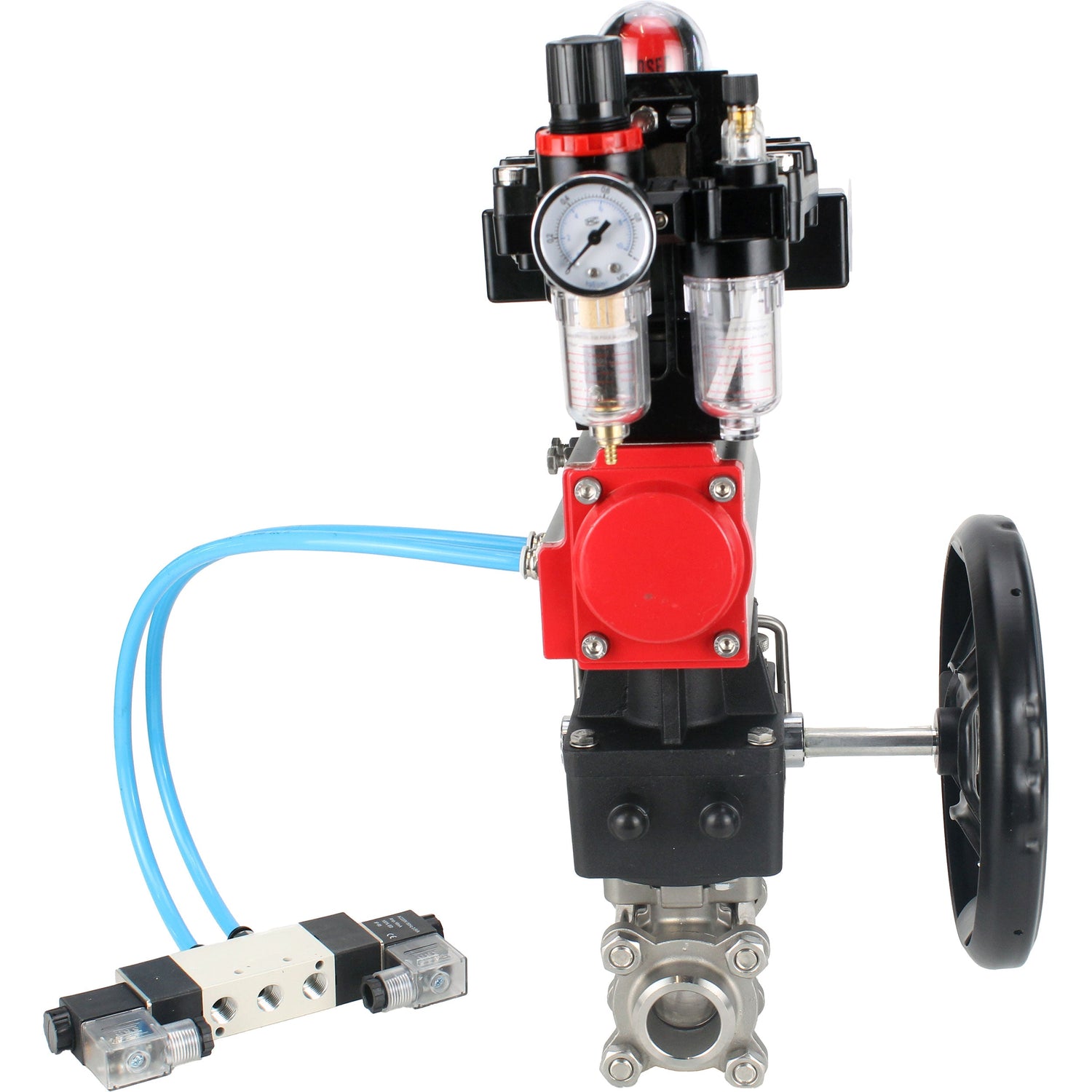

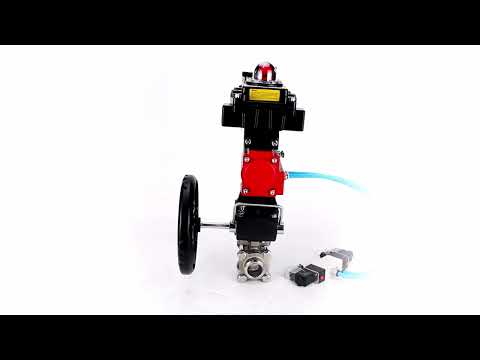

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-50 16 bar/40, full bore for welding, stainless steel SS316, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL- 410N EX, manual Doubler MON1-250-T26-ISO, with ATU AFC2

€632,93

Tax included Shipping calculated at checkout.

Connection size

Pressure

Product variants

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-50 16 bar/40, full bore for welding, stainless steel SS316, PTFE, with pneumatic drive PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL- 410N EX, manual Doubler MON1-250-T26-ISO, with ATU AFC2 - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Elephant double-acting rotary pneumatic actuators PA-DA and PA-SA rotary pneumatic actuators with return spring are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

The pneumatic distributor is used to change the direction, start, and stop the flow of compressed air in a pneumatic system depending on the external control action.

The manual override with worm gear and HDM reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution for the entire range of manual override tasks.

The limit switch block is designed for visual and electrical signaling of the end positions of the shut-off element of pipeline valves.

The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain pressure at a given level, and supply lubricant from the reservoir to the compressed air flow to the elements of the pneumatic system.

Technical parameters of the Elephant BV3232P(3pc)-FP-W-ISO-H ball valves DN10-50 PN63/40, full bore for welding, stainless steel SS316, PTFE, with PA-DA pneumatic actuator, with 4V320-08 220V pneumatic distributor, with APL-410N EX LSU, MON1-250-T26-ISO manual override, with AFC2000 ATU:

Name	Meaning
Working environment temperature, °C	from -20 to 200
Application	heat supply
Working environment	water, steam, petroleum products, neutral media
Connection to the pipeline	for welding
Water intake	No
Type of flow section	full bore
Control type	With pneumatic drive
Joining	for welding
Control	double acting pneumatic actuator
Availability of limit switches	There is
Availability of pneumatic distributor	There is
Warranty, g.	1

Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-50 PN63/40, full bore for welding, stainless steel SS316, PTFE, with pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, manual backup MON1-250-T26-ISO, with ATU AFC2000:

DN	L	D	H	W
DN	mm
10	66	10	50	100
15	65	19	52	100
20	74	22	60	100
25	82	27	78	160
32	99	35	88	160
40	108	40	95	190
50	132	53	100	190
65	161	64	120	210
80	196	79	130	215
100	245	103	160	253

Sketch Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-50 PN63/40, full bore for welding, stainless steel SS316, PTFE, with pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, manual override MON1-250-T26-ISO, with ATU AFC2000

Table of parts and materials Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-50 PN63/40, full bore for welding, stainless steel SS316, PTFE, with pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, manual backup MON1-250-T26-ISO, with ATU AFC2000:

No.	Part Name	Material
1	Cover	Stainless Steel AISI 316
2	Seat Seal	PTFE
3	Ball	Stainless Steel AISI 316
4	Stem	Stainless Steel AISI 316
5	O-Ring	PTFE
6	Body	Stainless Steel AISI 316
7	Seal	PTFE
8	Gland	Stainless Steel AISI 304
9	Handle	Stainless Steel SS 201
10	Nut	Stainless Steel AISI 304
11	Screw	Stainless Steel AISI 304
12	Nut	Stainless Steel AISI 304

Sketch of parts and materials Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-50 PN63/40, full bore for welding, stainless steel SS316, PTFE, with pneumatic actuator PA-DA, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX, manual backup MON1-250-T26-ISO, with ATU AFC2000

Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator	DA - double-acting
Nominal pressure PN, bar	12
Working pressure, bar	2...8
Working medium	filtered compressed air
Maximum particle diameter of the working medium, µm2	≤30
Ambient temperature, ⁰C	-20 to +80
Swivel angle, °	0 - 90
Swivel angle adjustment, %	±5
Position indicator	open/closed
Top connection standard	NAMUR
Air connection standard	NAMUR
Average life, cycles closed/open	70 000 (for non-aggressive media and medium pressure and temperature values)

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
DA-052	30	41,5	65,5	72	92	65	30	80
DA-065	36	47	81	88	108	72	30	80
DA-083	46	57	98,5	108,7	128,7	92	30	80
DA-105	57,5	64	122,5	133	153	109,5	30	80
DA-130	67,5	74,5	145,5	155	185	127,5	30	130
DA-140	75	77	161	172	202	137,5	30	130
DA-160	87	87	184	197	227	159	30	130
DA-210	113	113	235,5	255	285	210	30	130
DA-270	147	147	299	326	356	273	30	130
DA-300	162	174	330	350	380	312	30	130
DA-350	190	195	483	410	440	365	30	130

Model	I, mm	J, mm	M, mm	N, mm	Z, mm	d, mm	K	L
DA-052	36	50	11x11	14	147	40	M5x8	M6x10
DA-065	50	70	14x14	18	168	40	M6x10	M8x13
DA-083	50	70	17x17	21	204	40	M6x10	M8x13
DA-105	70	102	22x22	26	268	40	M8x13	M10x16
DA-130	70	102	22x22	26	301	55	M8x13	M10x16
DA-140	102	125	27x27	31	390	55	M10x16	M12x20
DA-160	102	125	27x27	31	458	55	M10x16	M12x20
DA-210	-	140	36x36	40	532	80	-	M16x25
DA-270	-	165	46x46	50	718	80	-	M20x25
DA-300	-	165	46x46	50	760	80	-	M20x25
DA-350	165	254	46x46	50	920	80	M20x25	8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

№	Part name	Material
1	Indicator screw	ABS plastic
2	Position indicator	ABS plastic
3	Spring clip	stainless steel 304
4	Metal washer	stainless steel 304
5	Pressure washer	engineering plastic
6	Housing	hard anodized extruded aluminum alloy
7	Pressure washer	engineering plastic
8	Limiter	alloy steel
9	Shaft sealing ring upper	NBR
10	Upper shaft sliding ring	engineering plastic
11	Shaft	nickel plated alloy steel
12	Shaft sliding ring lower	engineering plastic
13	Shaft O-ring lower	NBR
14	Plug	NBR
15	Seal ring of adjusting screws	NBR
16	Washer of adjusting screw	stainless steel 304
17	Lock nut of adjusting screw	stainless steel 304
18	Adjusting screw	stainless steel 304
19	Piston	die-cast aluminum alloy
20	Piston guide plate	engineering plastic
21	Piston sliding ring	engineering plastic
22	Piston O-ring	NBR
23	Spring set	spring steel
24	Cover O-ring	NBR
25	End cap	cast aluminum with polyester coating
26	Cover screw	stainless steel 304
27	Stop screw	stainless steel 304
28	Adapter	carbon steel

Material sketch of DA double-acting pneumatic actuators

Pneumatic distributor Elephant

Technical parameters of the pneumatic distributor Elephant

Name	Meaning
Type of pneumatic distributor	spool valve
Working pressure, bar	1.5 ÷ 8
Supply voltage, V	220V
Full power, Va	4.5
Control	two-way electromagnetic
Response frequency, cycles/sec	5

Sketch of the dimensions and sizes of the pneumatic distributor Elephant

Dimensions and sizes of the pneumatic distributor Elephant:

Model of pneumatic distributor	4V320-08
A, mm	71.9
B, mm	45
C, mm	94.4
D, mm	27
E, mm	69
F, mm	40
I, mm	24
K, mm	40
L, mm	188.8
M, mm	69.4
N, mm	50
O, mm	82.4
P, mm	24
S, mm	20
T, mm	6.5
U, mm	2.4
V, mm	4
H, mm	82.4

Manual backup Elephant

Technical parameters of the manual backup Elephant

Name	Meaning
Climate performance	U, UHL, T, OM
Installation method	horizontal/vertical
Degree of protection, IP	67
Connection type	ISO 5211

Sketch of dimensions and sizes of manual backup Elephant

Dimensions and sizes of the manual backup Elephant:

Manual backup model	HDM-1
b1, mm	14
N, mm	22
b2, mm	14
M, mm	16
D1, mm	50
D2, mm	70
D3, mm	50
D4, mm	70
ØC, mm	88
C, mm	120
A, mm	90
F, mm	115
Y, mm	145
4-M1	4-M6
4-M2	4-M8
4-Ø1	4-Ø6.5
4-Ø2	4-Ø8.5
E, mm	70x70
B, mm	55
S, mm	53
K, mm	10
T, mm	145

Sketch of parts and materials of manual backup Elephant

Table of parts and materials of the manual backup Elephant:

Item No.	Details	Material
1	Rod for mounting a pneumatic actuator	steel 45
2, 8	Sealing ring	EPDM
3	Locking spring	spring steel
4	Top end cap	aluminum alloy
5	Screw	steel 304
6	Fixing bracket (main rod)	steel 304
7	Frame	aluminum alloy
9	Reducer	cast iron VCh50
10	Transition coupling	cast iron VCh40
11	Gearbox rod	cast iron VCh40

Limit Switch Block Elephant

Technical parameters of the limit switch block Elephant

Name	Meaning
Maximum limit switch voltage, V	250
Enclosure protection rating, IP	67
Working environment temperature, °C	from -40 to +80
Service life, years	10

Sketch of the dimensions and sizes of the limit switch block Elephant

Dimensions and sizes of the Elephant limit switch block:

Model	D, mm	D1, mm	H, mm	L, mm	B, mm	M, mm
APL-410N EX	9.5	5	174	177	178	8

Air preparation unit Elephant AFC2000

Technical parameters of the air preparation unit Elephant AFC2000

Name	Meaning
Working pressure, bar	8
Adjustable pressure range, bar	0.5 ÷ 9
Size of filtered particles, µm	40 microns
Weight, kg	0.395

Sketch of the dimensions and sizes of the air preparation unit Elephant AFC2000

Dimensions and sizes of the air preparation unit Elephant AFC2000:

Model ATU	AFC2000
A, mm	162
B, mm	88
C, mm	139
D, mm	31
E, mm	53.5
F, mm	12
G, mm	8
H, mm	7
I, mm	13.3
J, mm	39
K, mm	5
L, mm	40
M, mm	32
N, mm	53
O, mm	29
P, mm	6
R, mm	41.5

Specifications

Country of origin

China
Port opening

full bore
Body material

Stainless steel AISI 316
Maximum allowable temperature

200 °C
Connection type

For welding
Control type

Pneumatically actuated
Operating environment

Water, Steam, Oil Products, Neutral Media
Type of seal

PTFE
Voltage

220V
Explosion-proof

have
Torque

3 Nm
Limit switches

have
Type of pneumatic actuator

double action
