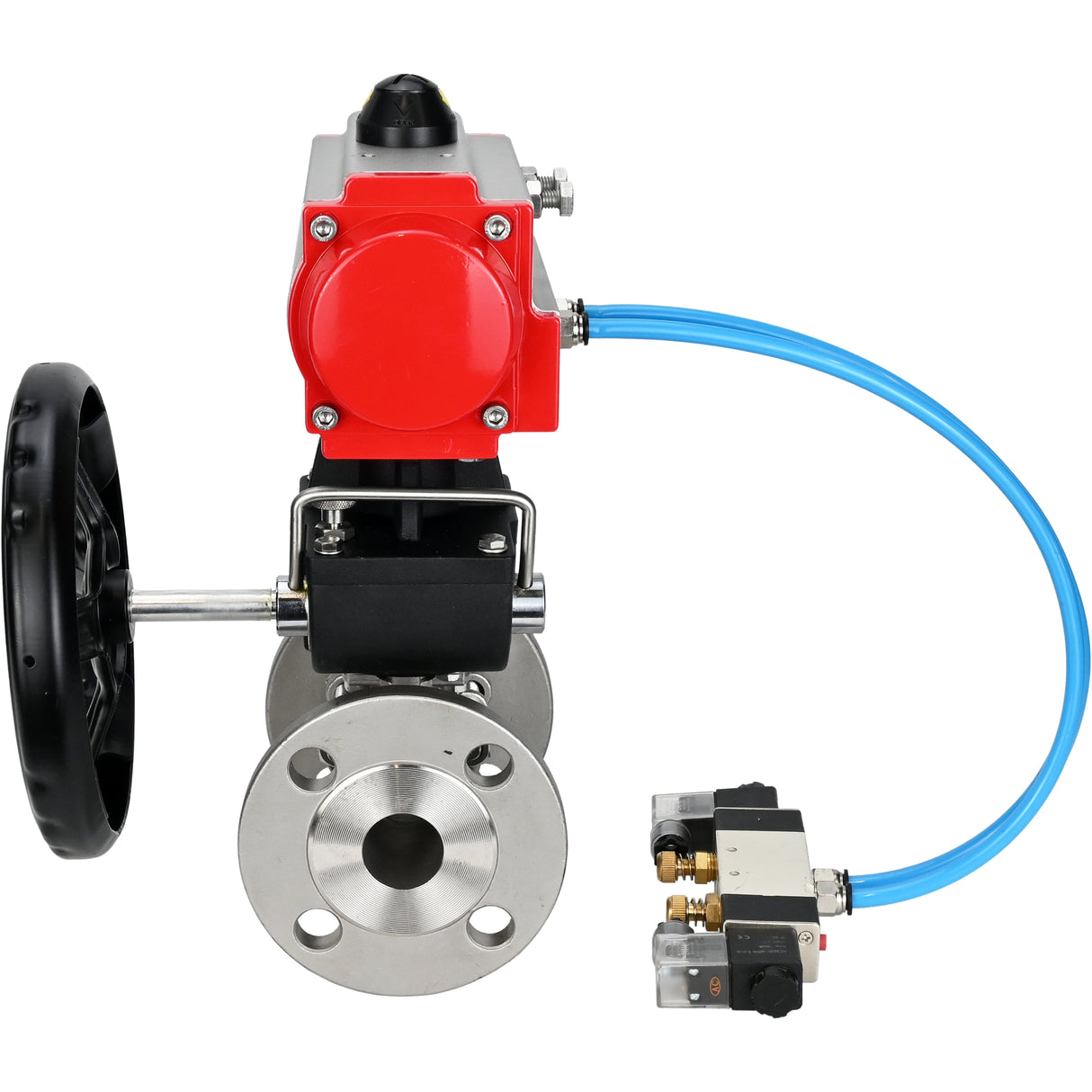

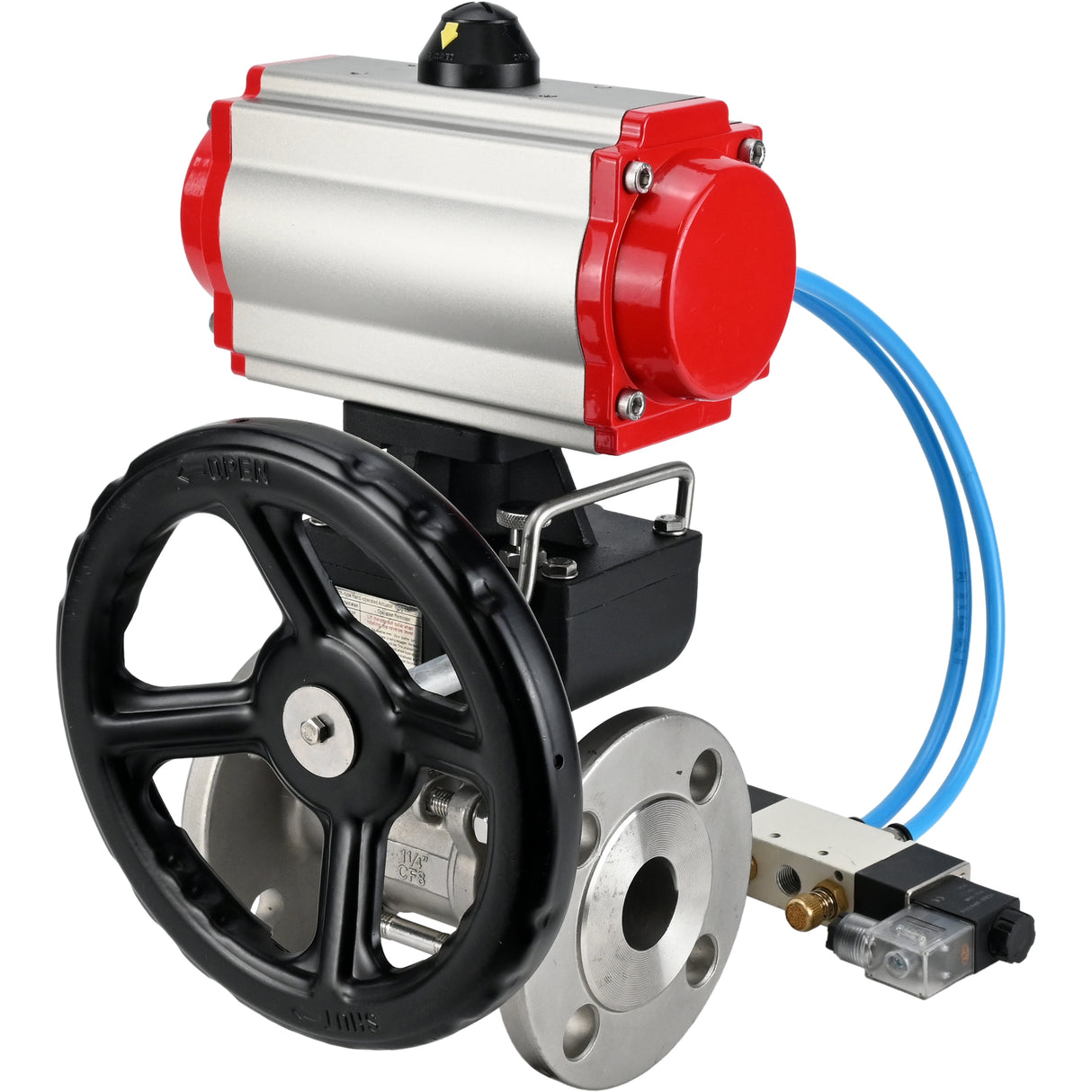

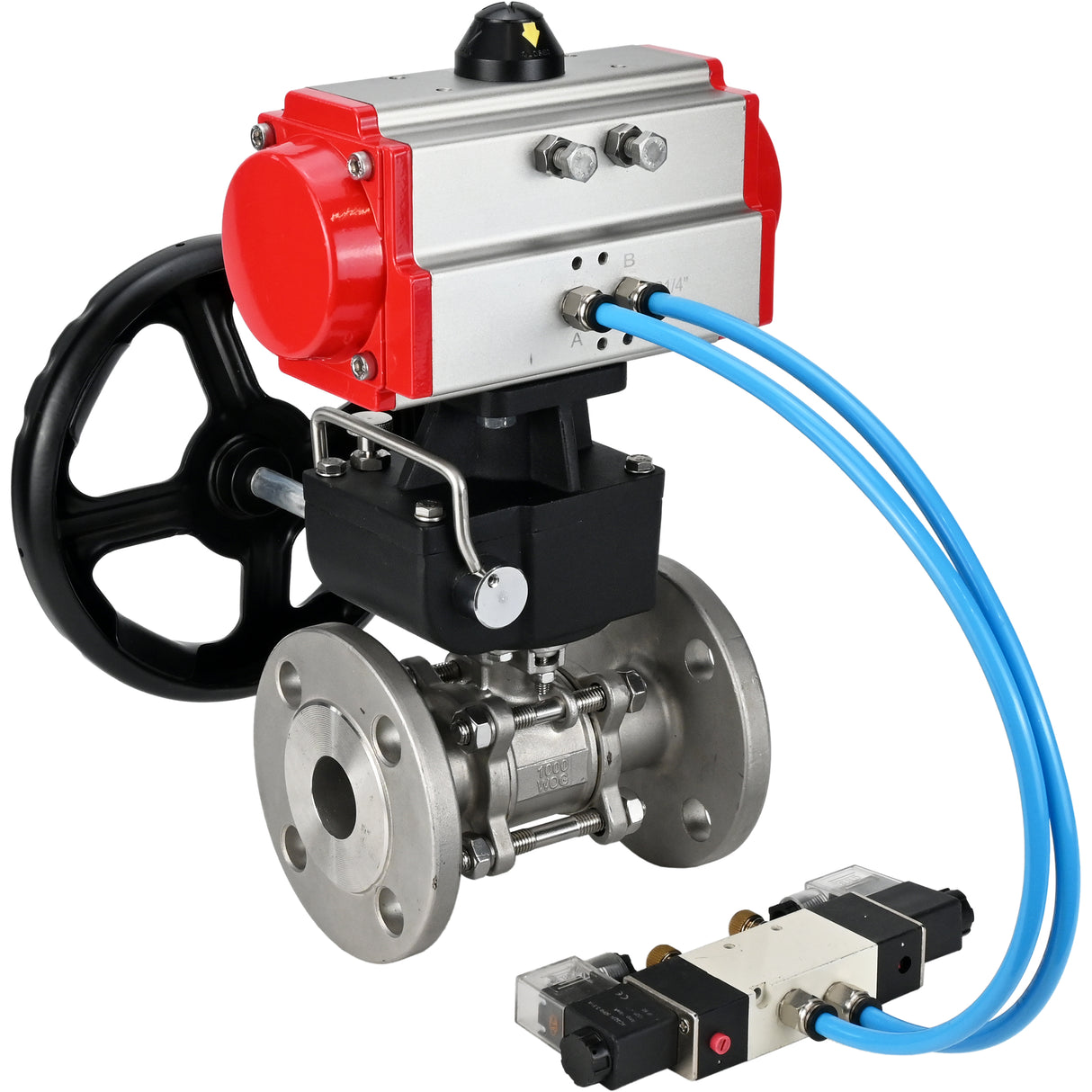

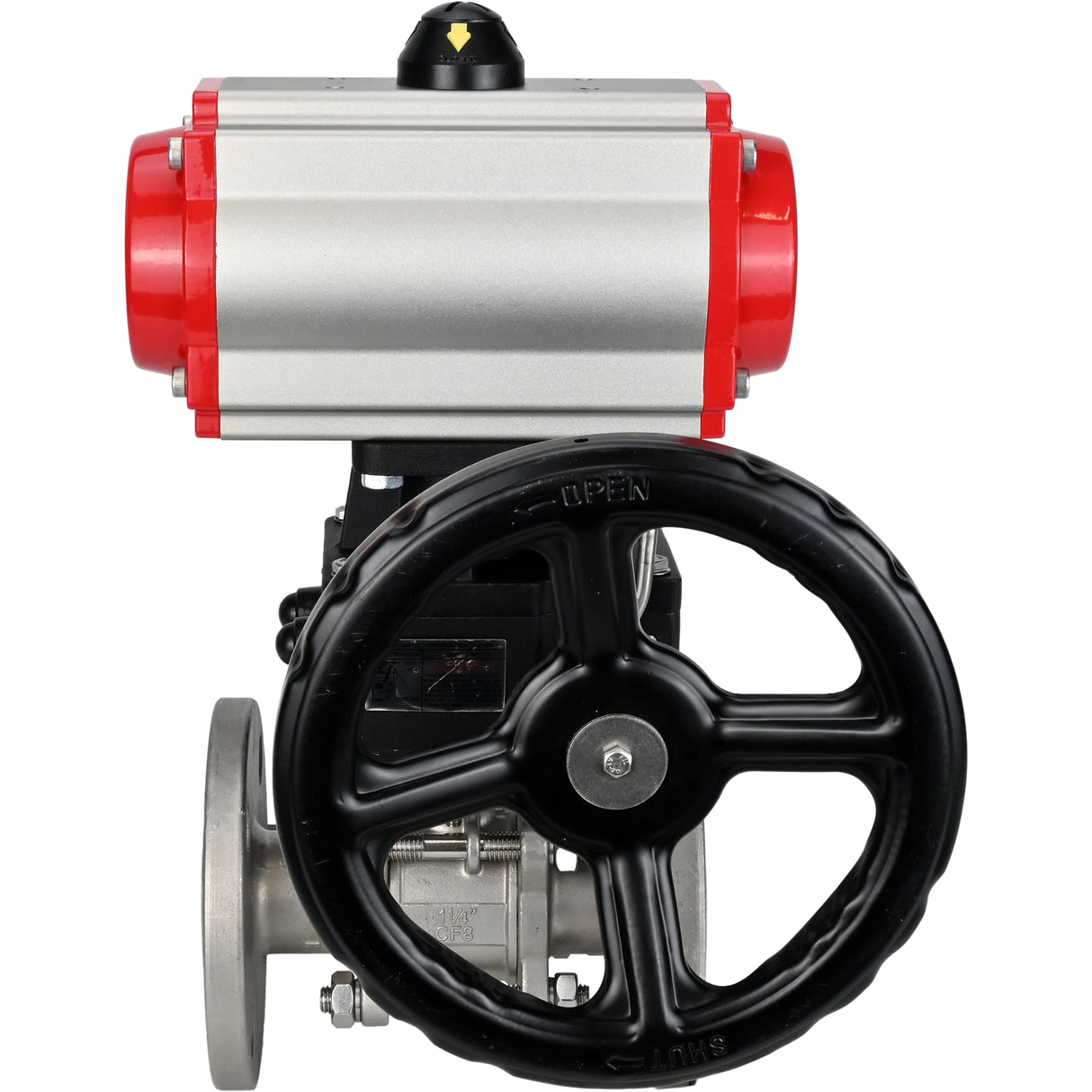

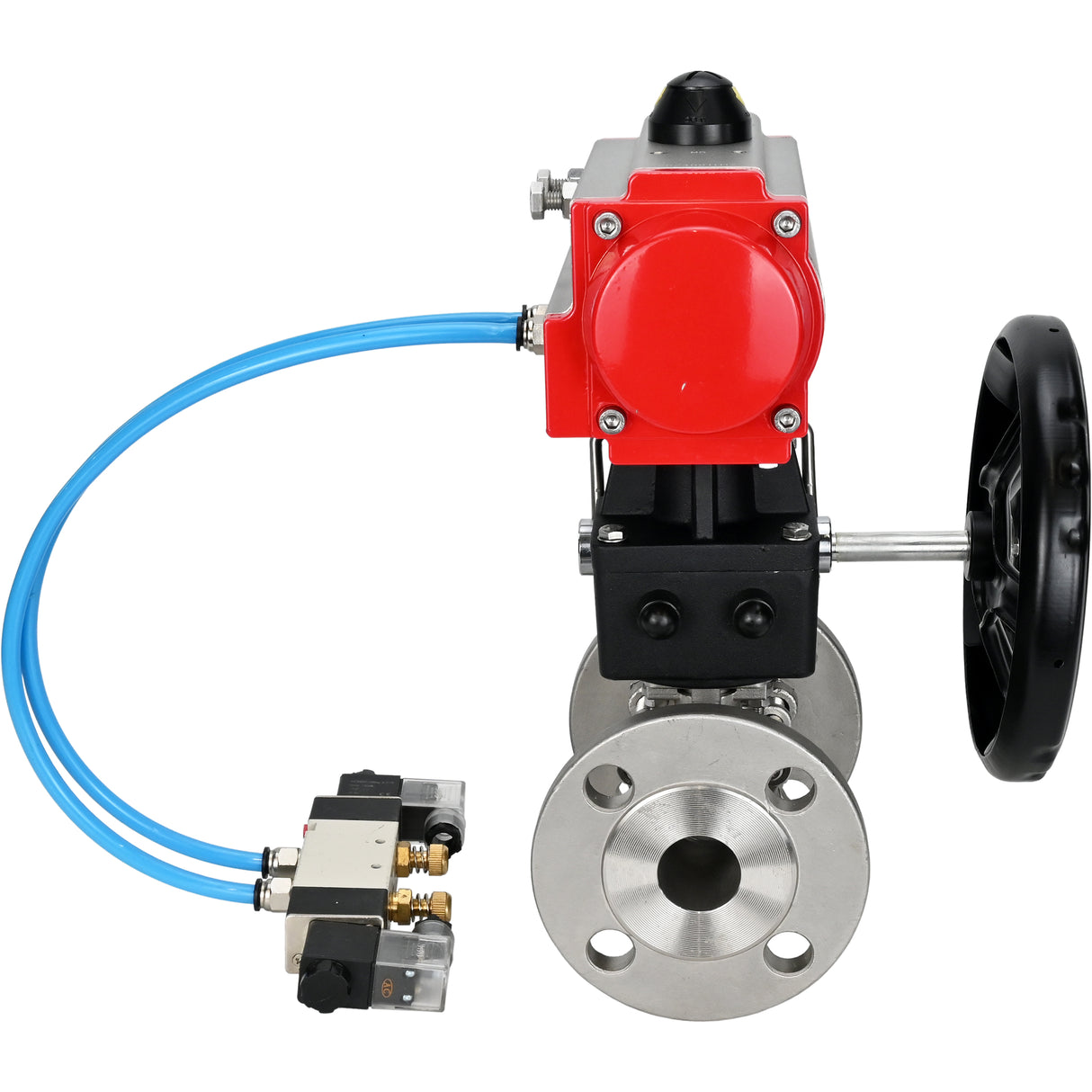

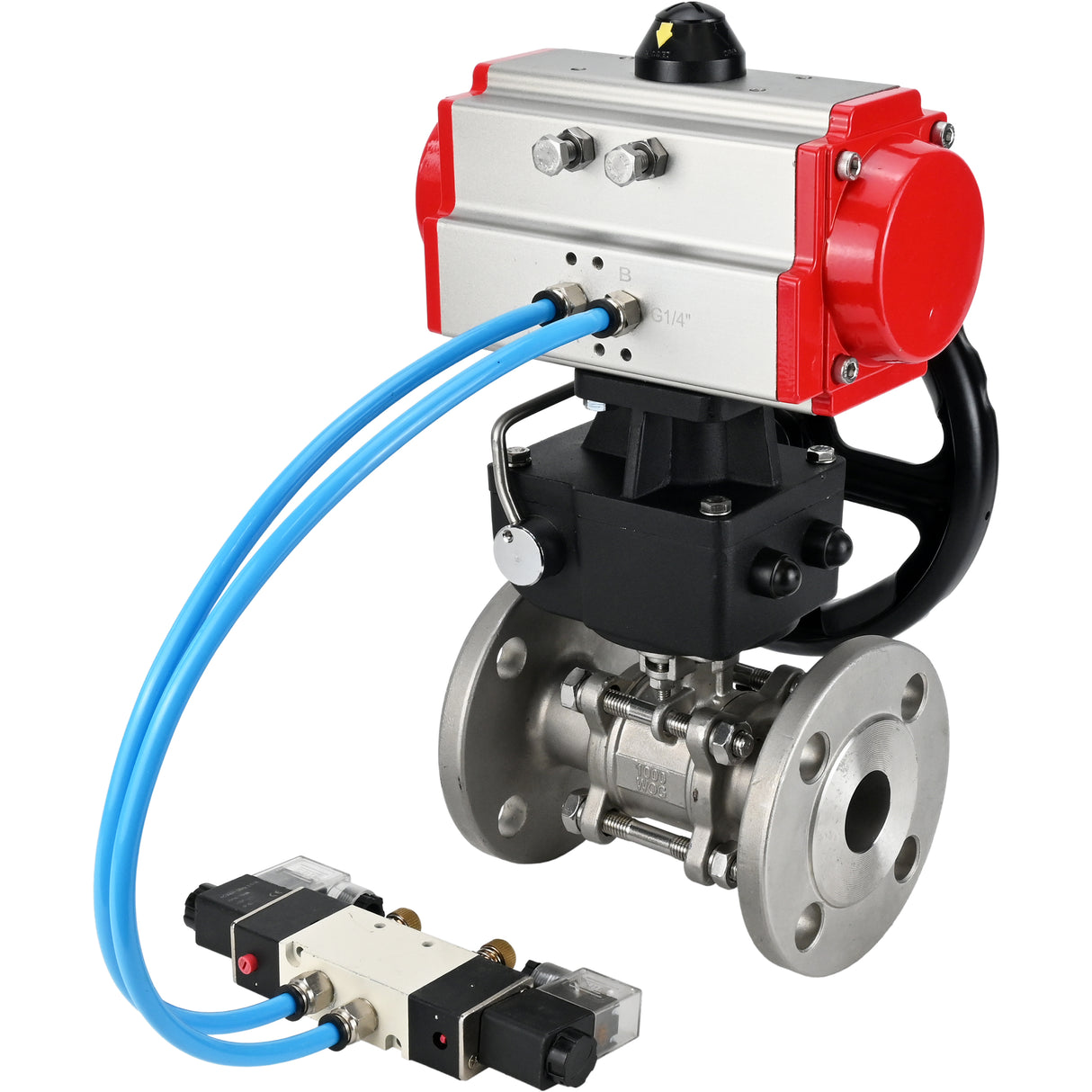

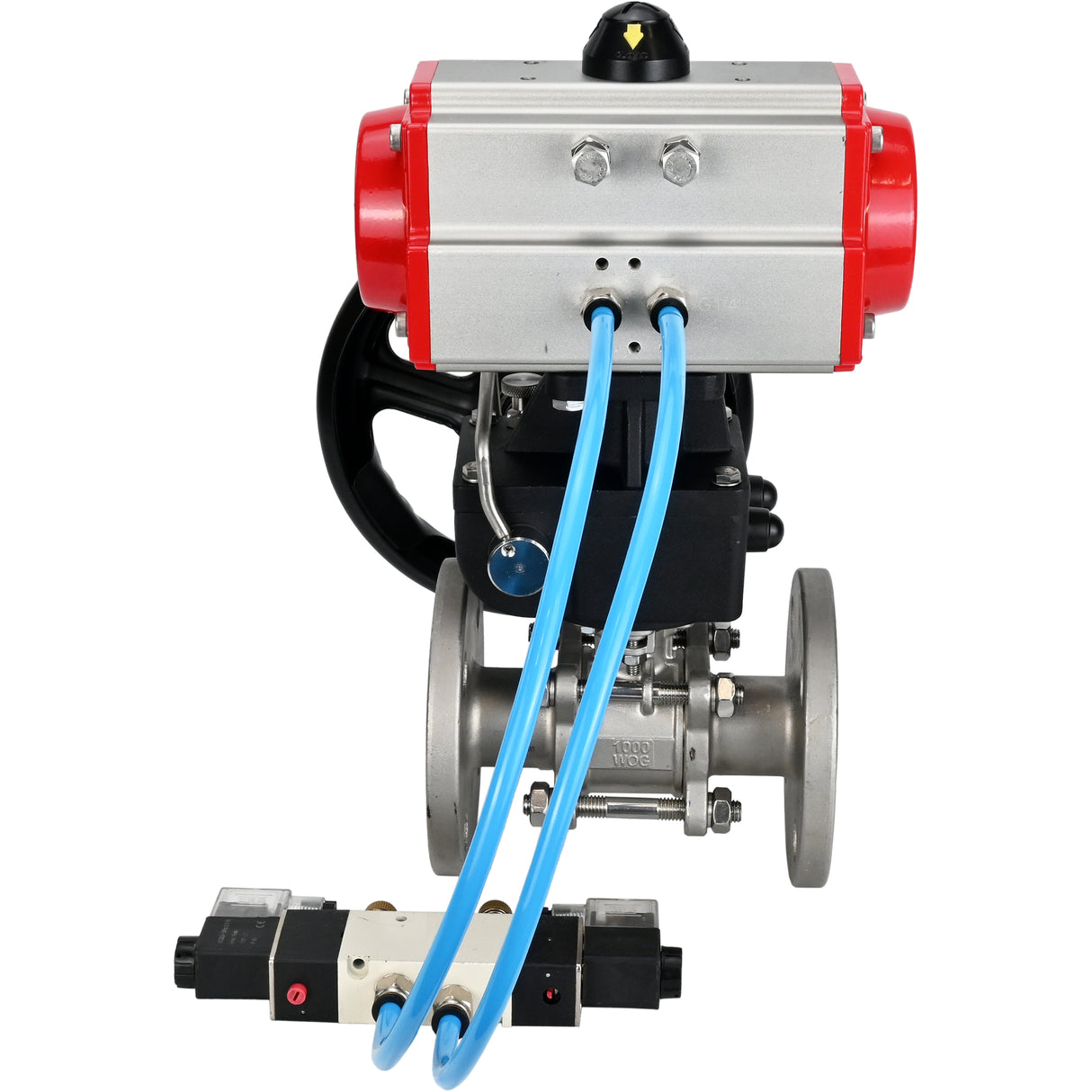

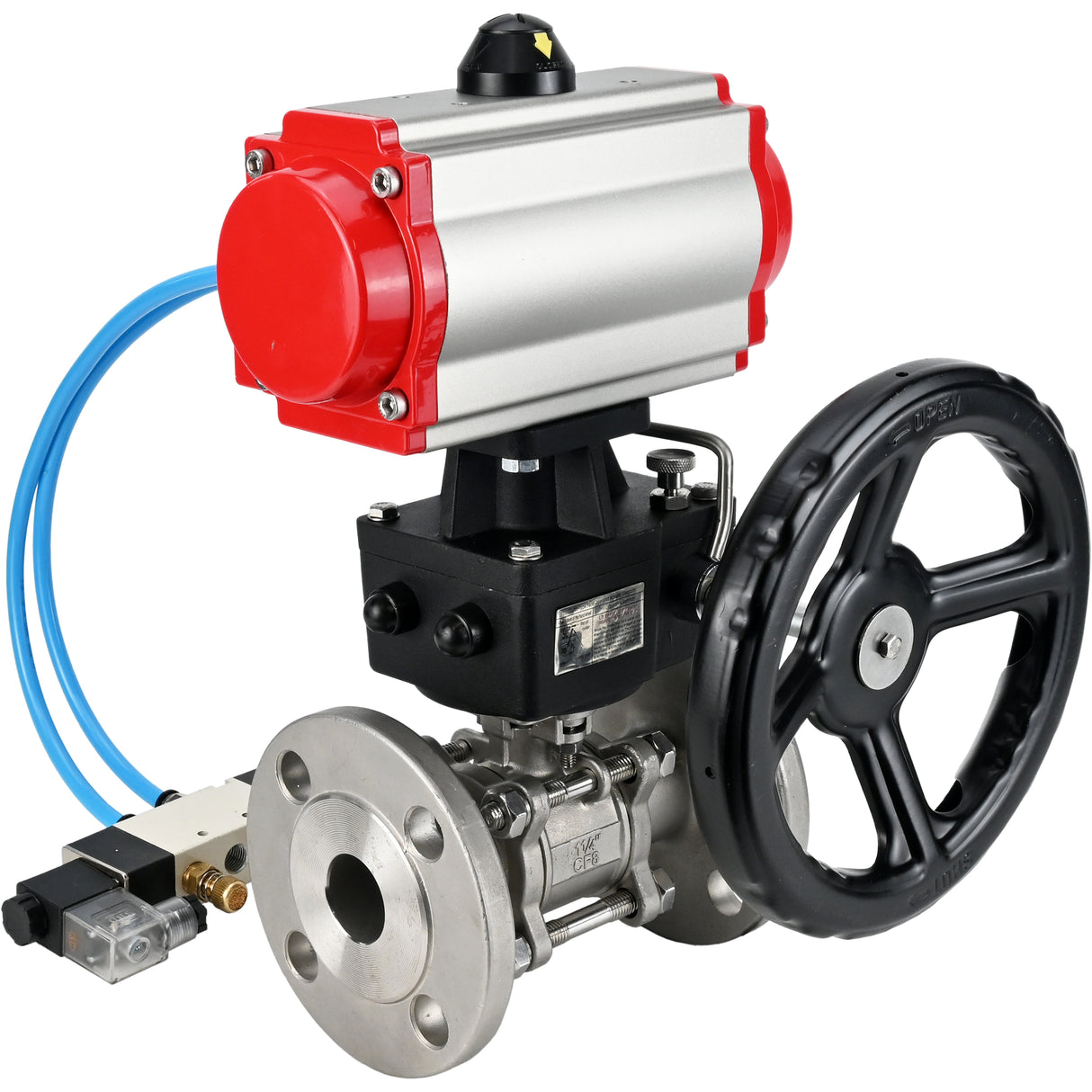

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with manual DNbler MON1-250-T26-I

€811,48
Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with manual DNbler MON1-250-T26-I - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to valve materials.
Pneumatic actuators Elephant pneumatic double-acting rotary actuators PA-DAXXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Pneumatic valves are used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The HDM manual doubler with worm gear and reduction gearbox allows manual quarter-turn positioning of the shut-off valve as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is intended to provide the most effective and efficient solution to the full range of manual override applications.






Technical parameters of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with manual DNbler MON1-250-T26-I:

Parameter

Value

Operating pressure, bar

40

Working medium temperature, °C

From -20 to 180

Application

Water supply, heat supply, Pneumatic systems

Working medium

Water, steam, oil products, liquid media, neutral media, gaseous media

Connection to pipeline

Flanged

Type of passage section

Full-bore

Tightness class of ball valve

A

Type of control

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

No

Presence of a pneumatic distributor

Yes

Warranty, years

1

Country of manufacture

China


Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with manual DNbler MON1-250-T26-I:

Model D, mm L, mm B1, mm E, mm ØD, mm ØD1, mm ØG, mm f, mm T, mm C, mm
DN15 15 130 153 72 95 65 45 2 16 120
DN20 20 150 153 72 105 75 58 2 18 120
DN25 25 160 153 72 115 85 68 2 18 120
DN32 32 180 153 72 140 100 78 2 18 120
DN40 40 200 174 89 150 110 88 3 18 120




Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with manual DNbler MON1-250-T26-I:

№

Part name

Material

Quantity

1

Body

Steel SS304 / SS316

1

2

Ball

Steel S304 / S316

1

3

Bolt

Steel S201 / S304

4~6

4

Nut

Steel S201 / S304

6~12

5

Seal

PTFE

1

6

Stem

Steel SS304 / SS316

1

7

Gland

Steel S201 / S304

1

8

Cover

Steel WCB/CF8/CF8M

2

9

Seat rings

PTFE

2

10

Thrust washer

PTFE

1




Technical parameters of pneumatic actuator Elephant

Parameter

Value

Construction

Double-acting

Working pressure, bar

6

Working medium

Filtered compressed air or non-aggressive gases, oils

Availability of manual doubler

Handwheel




Dimensions and sizes of pneumatic actuator Elephant:

Actuator model DA-052 DA-065
G, mm 15 15
M, mm 80 80
N, mm 30 30
F0, mm 34 34
P, mm 20 20
B1, mm 153 174
C, mm 30 36
E, mm 72 89
J 4-M5x8 4-M6x10
K 4-M6x10 4-M8x12
F, mm 26 26
A1, mm 108 125
D, mm 41 46
L 11x11 14x14
H F03 F05
I F05 F07





Parts and materials table for the pneumatic actuator Elephant:

№

Name

Quantity

Material

Coating

1

Body

1

Extruded aluminum

Hard anodized

2

Side plugs

2

Cast aluminum

-

3

Gear

1

Stainless steel

Nickel-plated

4

Piston

2

Steel/Aluminum

Oxidation/galvanized

5

Plugs

8

Stainless steel

-

6

Piston ring

2

NBR

-

7

Springs

0–12

Spring steel

Epoxy coating

8

Piston bearing

2

Engineering plastic

-

9

Piston ring

2

NBR

-

10

Plug

2

NBR

-

11

Thrust ring

2

Engineering plastic

-

12

Ring

1

Engineering plastic

-

13

Washer

1

Stainless steel

-

14

Spring clip

2

Stainless steel

-

15

Indicator

1

Plastic

-

16

Indicator body

1

Plastic

-

17

Bearing

1

Engineering plastic

-

18

Cam

1

Steel

Oxidation/ galvanized steel

19

Bearing

1

NBR

-

20

Bearing

1

Engineering plastic

-

21

Bearing

1

Engineering plastic

-

22

Sealing ring

2

NBR

-

23

Sealing ring

2

NBR

-

24

Bearing

2

Stainless steel

-

25

Adjustment nut

2

Stainless steel

-

26

Adjustment screw

2

Stainless steel

-

27

Bushing

2

Aluminum

-




Technical parameters of pneumatic valve Elephant

Name

Value

Type of pneumatic valve

Spool valve

Working pressure, bar

1.5 ÷ 1.8

Supply voltage, V

220 V

Full power, Va

4.5

Control

Two-way electromagnetic

Response frequency, cycle/sec

5




Dimensions and sizes of the pneumatic valve Elephant 4V320-08

Model of pneumatic valve 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4




Technical parameters of the manual doubler Elephant

Parameter

Value

Mounting method

Horizontal/Vertical

Protection rating, IP

67

Type of connection

ISO 5211


Dimensions and sizes of the manual doubler Elephant:

Manual doubler model HDM-1
b1, mm 14
N, mm 22
b2, mm 14
M, mm 16
D1, mm 50
D2, mm 70
D3, mm 50
D4, mm 70
ØC, mm 88
C, mm 120
A, mm 90
F, mm 115
Y, mm 145
4-M1 4-M6
4-M2 4-M8
4-Ø1 4-Ø6.5
4-Ø2 4-Ø8.5
E, mm 70x70
B, mm 55
S, mm 53
K, mm 10
T, mm 145




Parts and materials table for manual doubler Elephant:

№

Part name

Material

1

Stem for pneumatic actuator mounting

Steel

2, 8

Sealing ring

EPDM

3

Locking spring

Spring steel

4

Upper end cover

Aluminum alloy

5

Screw

Steel 304

6

Locking bracket (main rod)

Steel 304

7

Body

Aluminum alloy

9

Gearbox

Cast iron BCh50

10

Transition coupling

Cast iron BCh40

11

Gearbox stem

Cast iron BCh40


Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    235 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-47307DN10016 bar €811,48 0 in stock
    D160-47308DN1540 bar €233,93 Out of stock
    D160-47309DN2040 bar €245,38 Out of stock
    D160-47310DN2540 bar €214,99 Out of stock
    D160-47311DN3240 bar €239,37 Out of stock
    D160-47312DN4040 bar €244,36 Out of stock
    D160-47313DN5040 bar €310,33 Out of stock
    D160-47314DN6525 bar €416,68 Out of stock
    D160-47315DN8025 bar €452,43 Out of stock
