Elephant | SKU: D160-47317

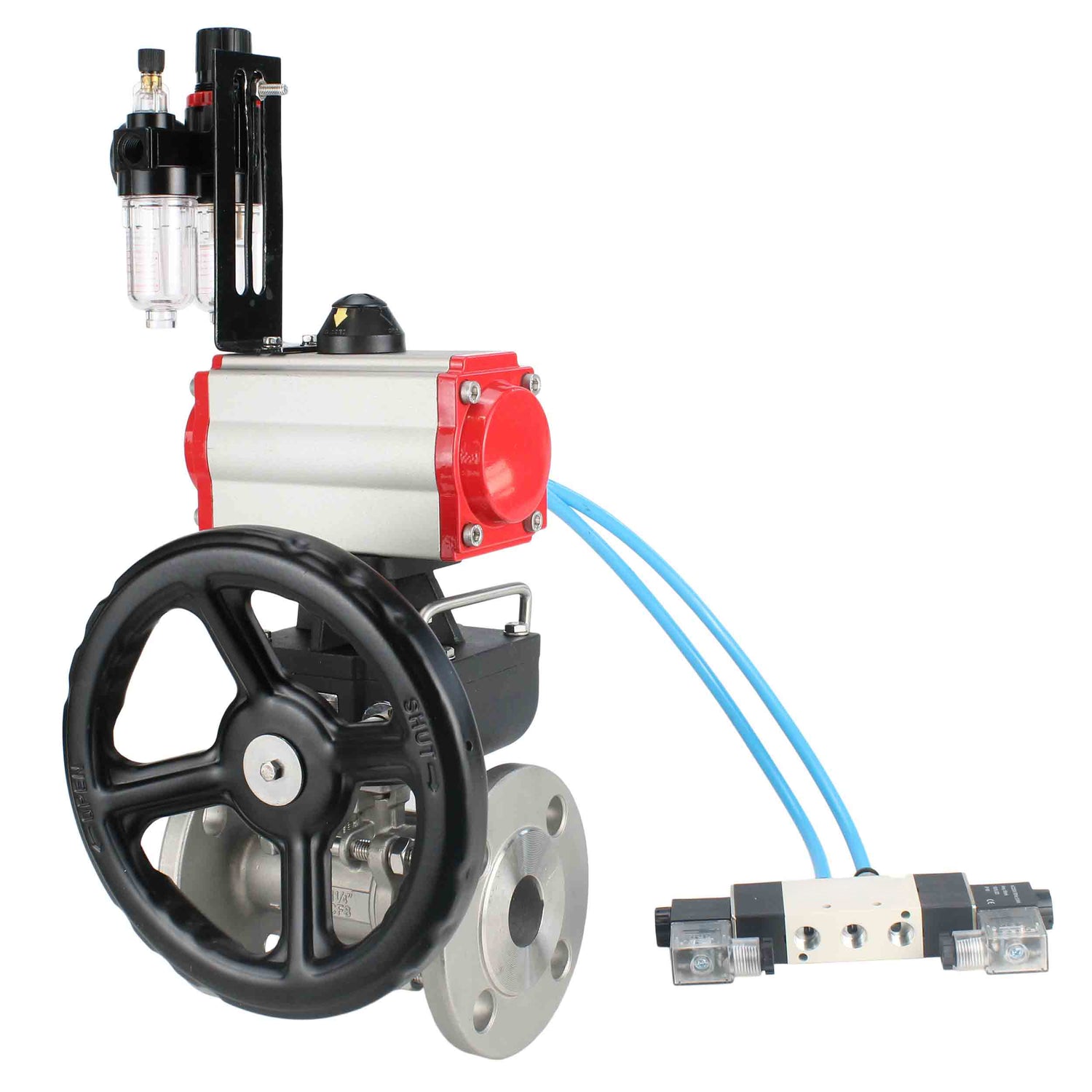

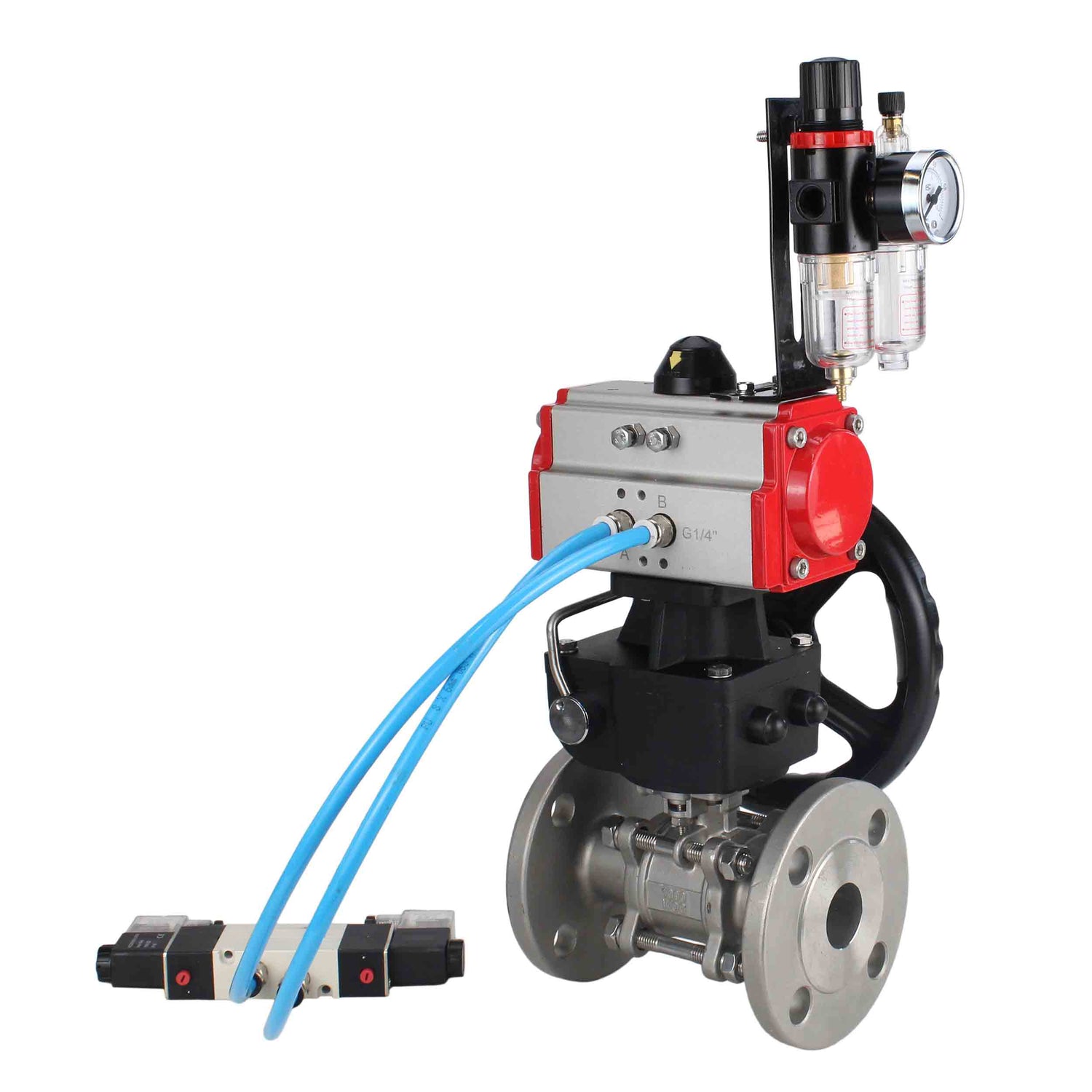

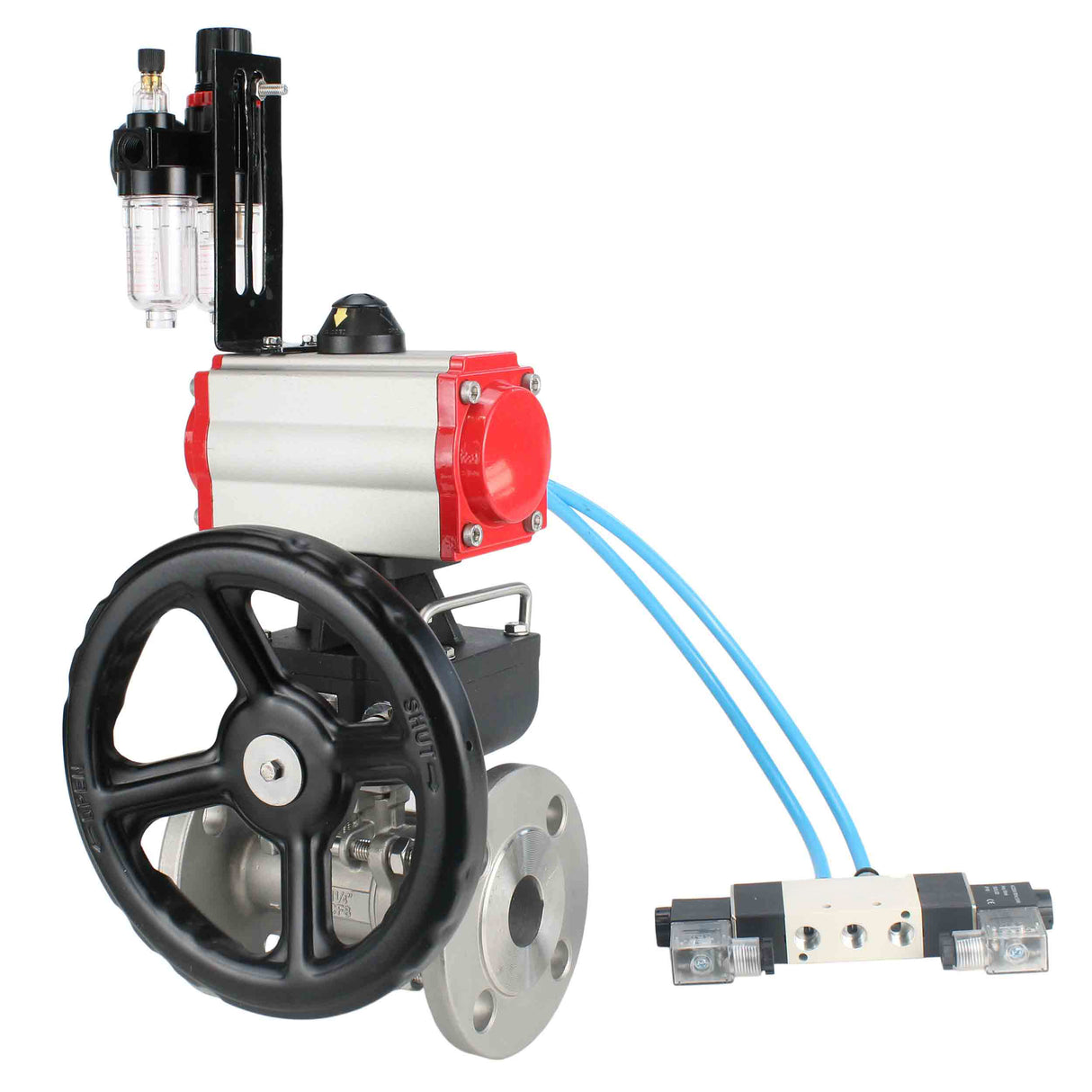

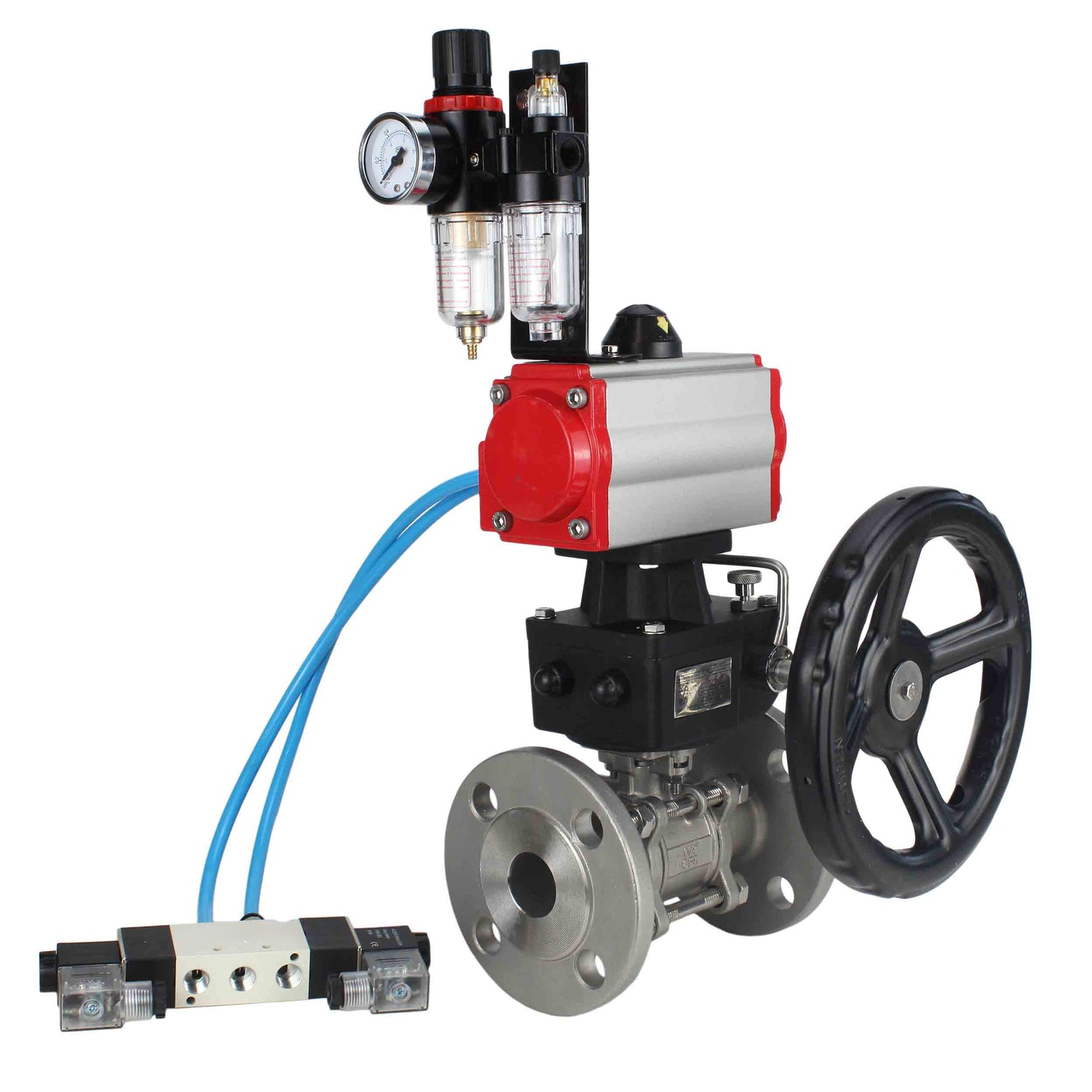

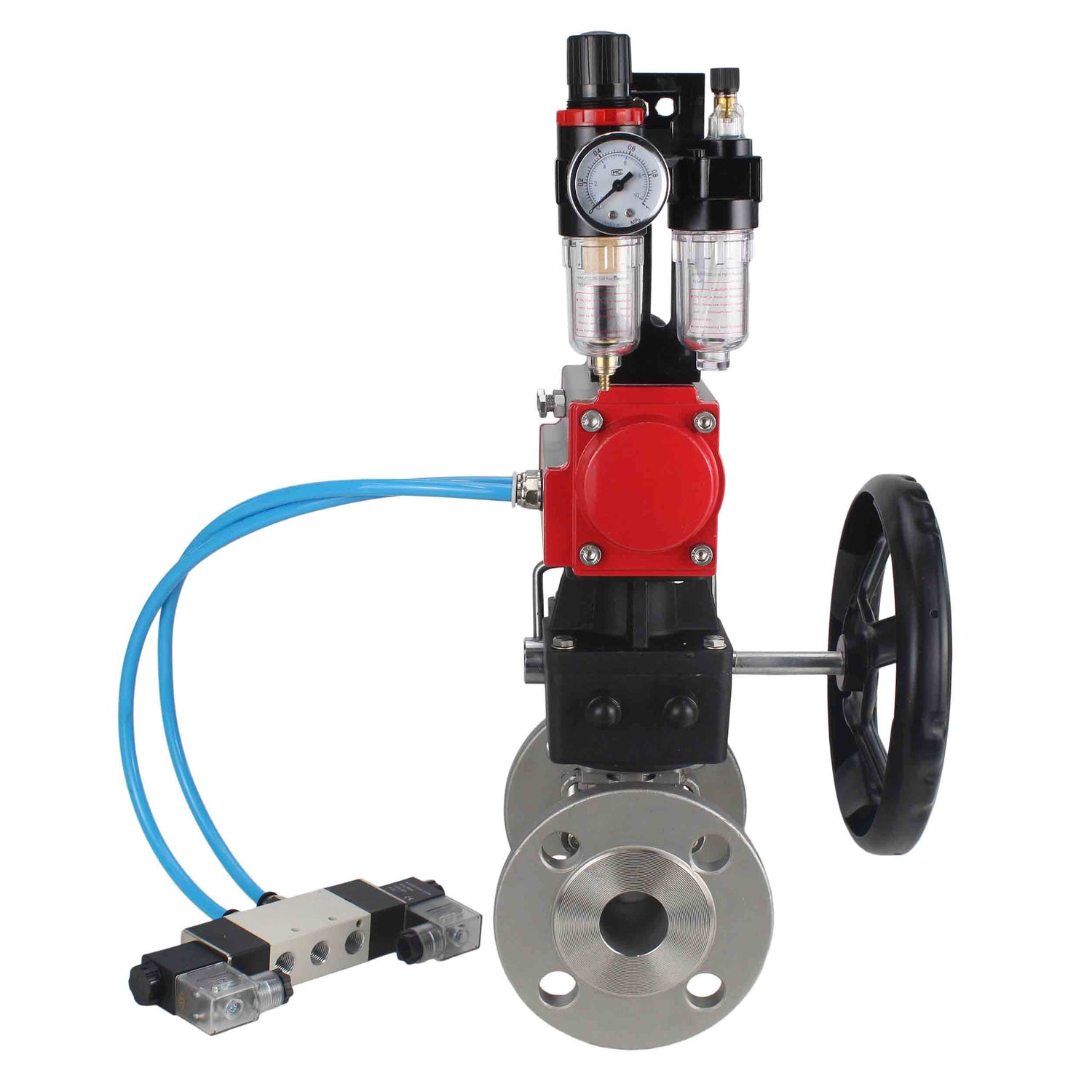

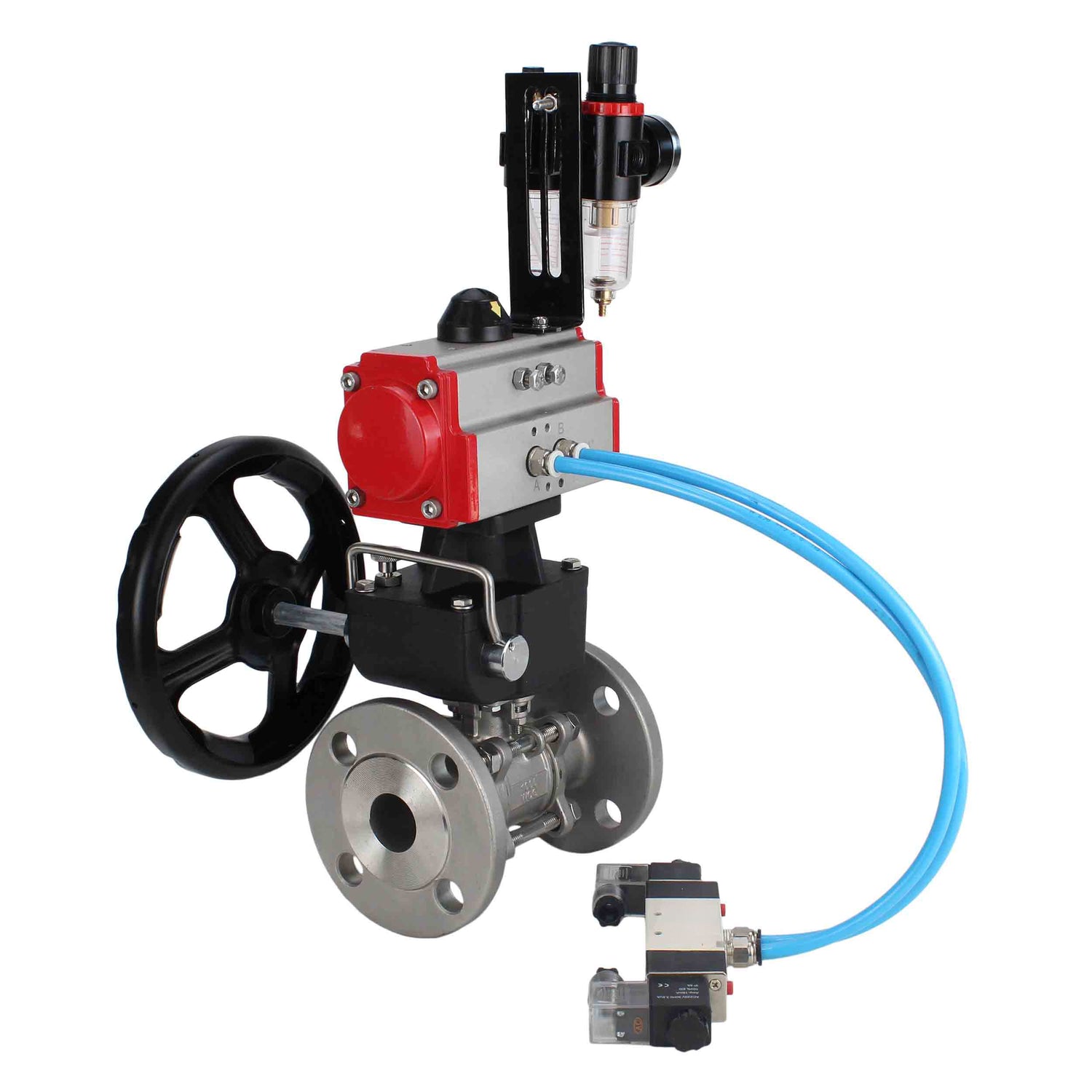

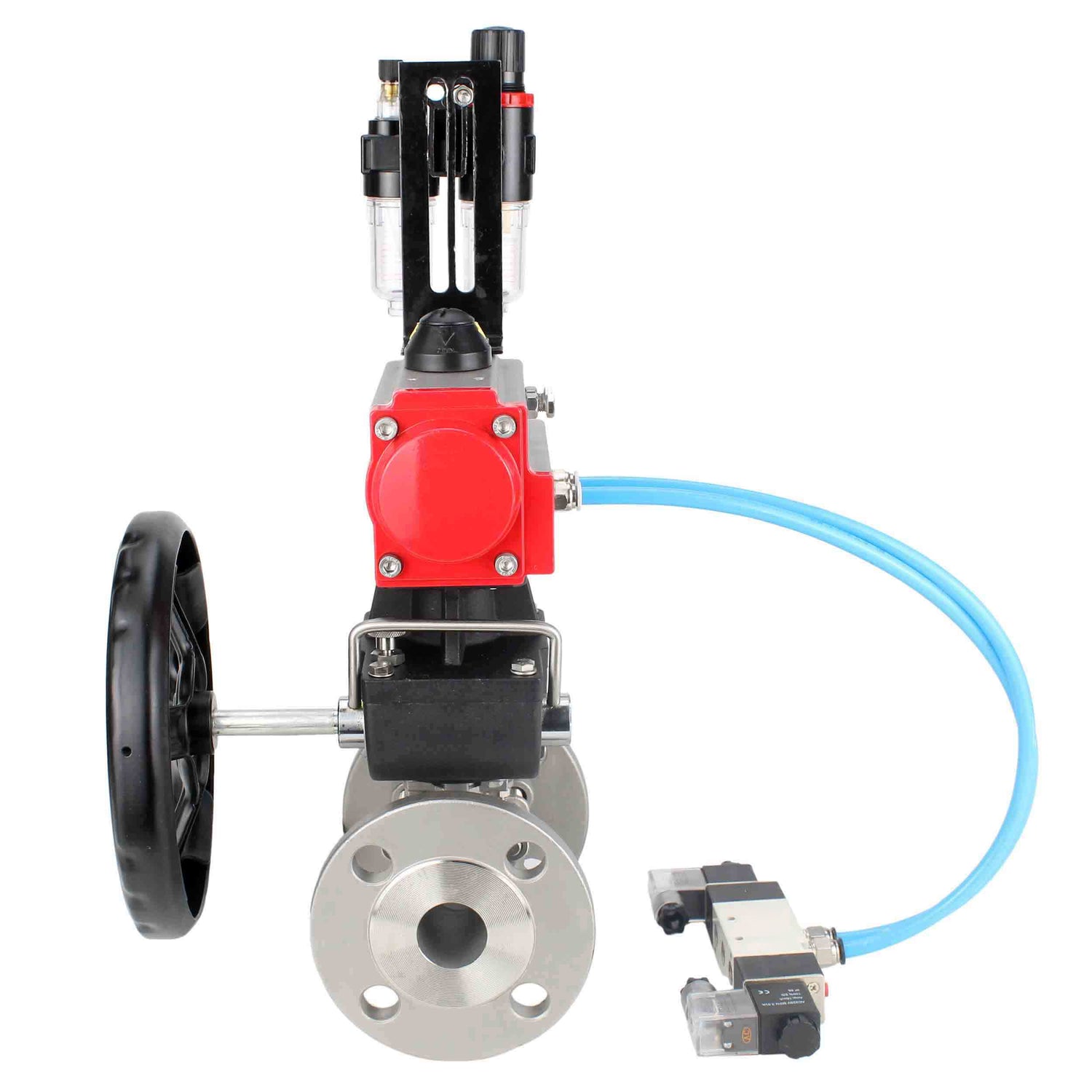

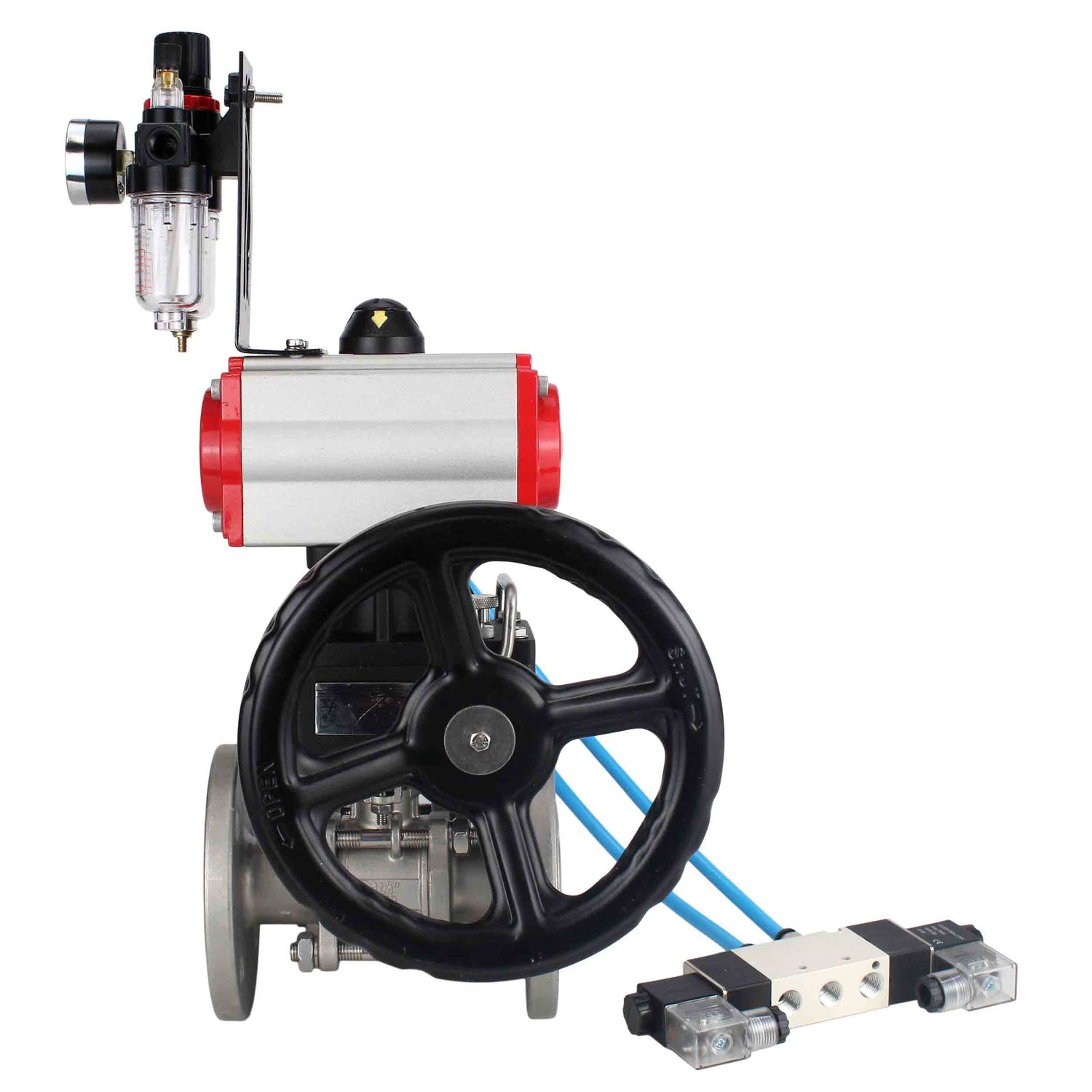

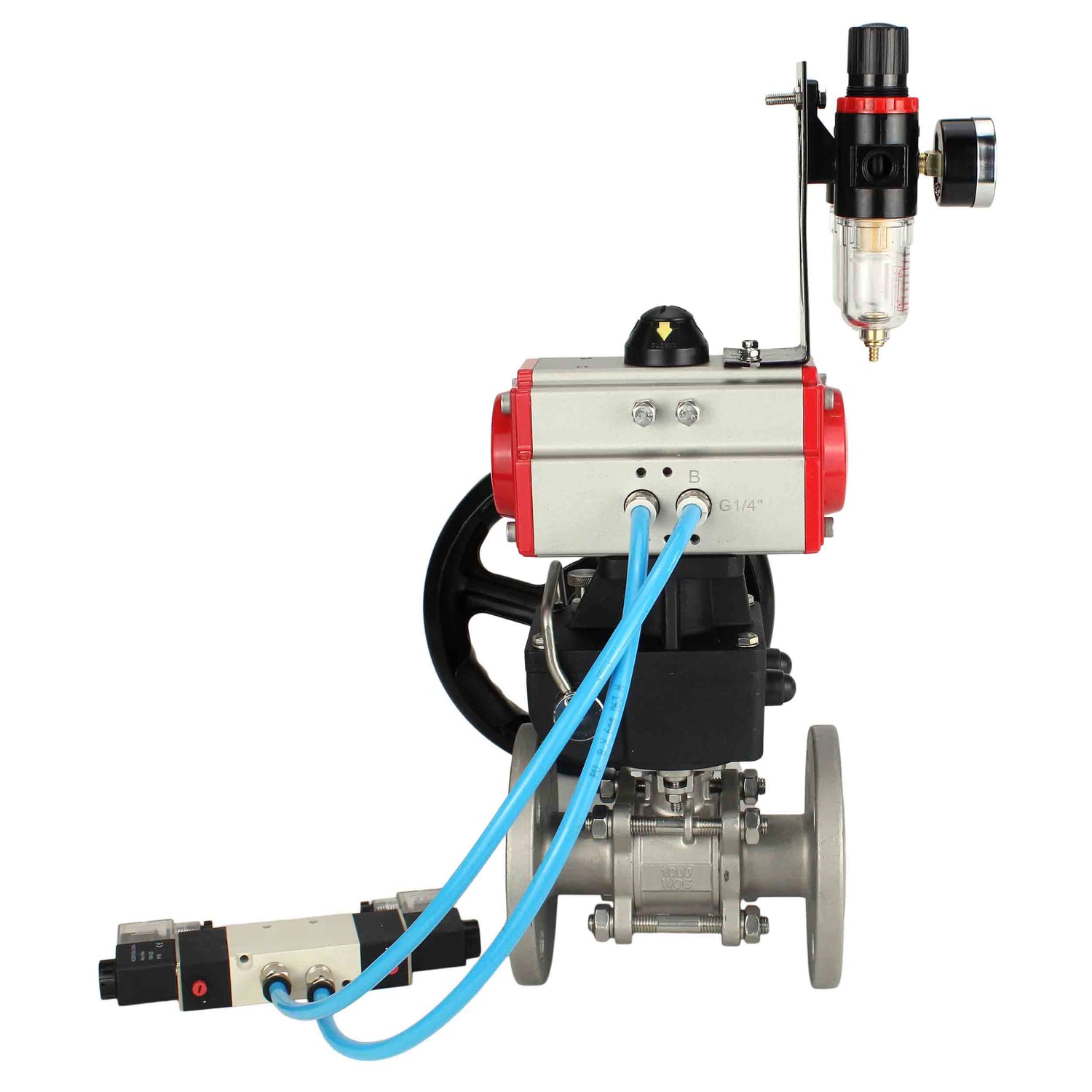

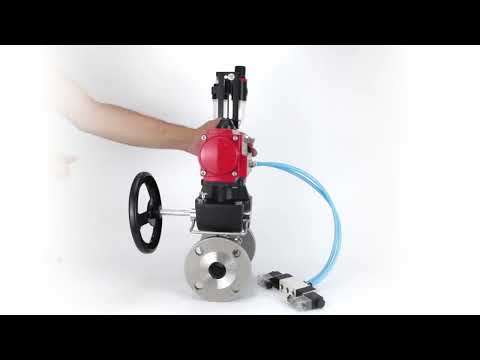

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, manual DNbler MON1-250-T26-ISO, with ATU AFC20

€1.115,01

Tax included Shipping calculated at checkout.

Connection size

Pressure

Product variants

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, manual DNbler MON1-250-T26-ISO, with ATU AFC20 - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to valve materials.
Pneumatic actuators Elephant pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Pneumatic valves are used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
The HDM manual doubler with worm gear and reduction gearbox allows manual quarter-turn positioning of the shut-off valve as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual doubler is intended to provide the most effective and efficient solution to the full range of manual override applications.
The air treatment unit is designed to clean compressed air from moisture droplets and solid particles, remove condensate, automatically maintain the pressure value at a preset level, supply lubricant from the reservoir in the compressed air flow to the pneumatic system elements.

Technical parameters of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, manual DNbler MON1-250-T26-ISO, with ATU AFC20:

Parameter	Value
Operating pressure, bar	40
Working medium temperature, °C	From -20 to 180
Application	Water supply, heat supply, Pneumatic systems
Working medium	Water, steam, oil products, liquid media, neutral media, gaseous media
Connection to pipeline	Flanged
Type of passage section	Full-bore
Tightness class of ball valve	A
Type of control	With pneumatic actuator
Connection	Flanged
Control	Double-acting pneumatic actuator
Presence of limit switches	No
Presence of a pneumatic distributor	Yes
Warranty, years	1
Country of manufacture	China

Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, manual DNbler MON1-250-T26-ISO, with ATU AFC20:

DN	d, mm	D, mm	D1, mm	D2, mm	W, mm	f, mm	L±1.5, mm	T, mm	H, mm	Z-øM pcs-mm
15	15	95	65	46	17	2	130	131	71	4-ø14
20	20	105	75	58	18	2	150	131	74	4-ø14
25	25	115	85	68	18	2	160	167	97	4-ø14
32	32	140	100	78	19	2	180	167	110	4-ø18
40	40	150	110	88	19	2	200	193	117	4-ø18
50	50	165	125	102	19	3	230	193	125,5	4-ø18
65	65	185	145	122	22	3	290	242	135,5	8-ø18
80	80	200	160	140	24	3	310	272	157	8-ø18
100	100	234	190	161	24	3	350	295	181	8-ø22
100*	100	220	180	158	20	3	350	330	169	8-ø18

Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN15-40 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, manual DNbler MON1-250-T26-ISO, with ATU AFC20:

№	Part name	Material	Quantity
1	Body	Steel SS304 / SS316	1
2	Ball	Steel S304 / S316	1
3	Bolt	Steel S201 / S304	4~6
4	Nut	Steel S201 / S304	6~12
5	Seal	PTFE	1
6	Stem	Steel SS304 / SS316	1
7	Gland	Steel S201 / S304	1
8	Cover	Steel WCB/CF8/CF8M	2
9	Seat rings	PTFE	2
10	Thrust washer	PTFE	1

Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator	DA - double-acting
Nominal pressure PN, bar	12
Working pressure, bar	2...8
Working medium	filtered compressed air
Maximum particle diameter of the working medium, µm2	≤30
Ambient temperature, ⁰C	-20 to +80
Swivel angle, °	0 - 90
Swivel angle adjustment, %	±5
Position indicator	open/closed
Top connection standard	NAMUR
Air connection standard	NAMUR
Average life, cycles closed/open	70 000 (for non-aggressive media and medium pressure and temperature values)

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
DA-052	30	41,5	65,5	72	92	65	30	80
DA-065	36	47	81	88	108	72	30	80
DA-083	46	57	98,5	108,7	128,7	92	30	80
DA-105	57,5	64	122,5	133	153	109,5	30	80
DA-130	67,5	74,5	145,5	155	185	127,5	30	130
DA-140	75	77	161	172	202	137,5	30	130
DA-160	87	87	184	197	227	159	30	130
DA-210	113	113	235,5	255	285	210	30	130
DA-270	147	147	299	326	356	273	30	130
DA-300	162	174	330	350	380	312	30	130
DA-350	190	195	483	410	440	365	30	130

Model	I, mm	J, mm	M, mm	N, mm	Z, mm	d, mm	K	L
DA-052	36	50	11x11	14	147	40	M5x8	M6x10
DA-065	50	70	14x14	18	168	40	M6x10	M8x13
DA-083	50	70	17x17	21	204	40	M6x10	M8x13
DA-105	70	102	22x22	26	268	40	M8x13	M10x16
DA-130	70	102	22x22	26	301	55	M8x13	M10x16
DA-140	102	125	27x27	31	390	55	M10x16	M12x20
DA-160	102	125	27x27	31	458	55	M10x16	M12x20
DA-210	-	140	36x36	40	532	80	-	M16x25
DA-270	-	165	46x46	50	718	80	-	M20x25
DA-300	-	165	46x46	50	760	80	-	M20x25
DA-350	165	254	46x46	50	920	80	M20x25	8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

№	Part name	Material
1	Indicator screw	ABS plastic
2	Position indicator	ABS plastic
3	Spring clip	stainless steel 304
4	Metal washer	stainless steel 304
5	Pressure washer	engineering plastic
6	Housing	hard anodized extruded aluminum alloy
7	Pressure washer	engineering plastic
8	Limiter	alloy steel
9	Shaft sealing ring upper	NBR
10	Upper shaft sliding ring	engineering plastic
11	Shaft	nickel plated alloy steel
12	Shaft sliding ring lower	engineering plastic
13	Shaft O-ring lower	NBR
14	Plug	NBR
15	Seal ring of adjusting screws	NBR
16	Washer of adjusting screw	stainless steel 304
17	Lock nut of adjusting screw	stainless steel 304
18	Adjusting screw	stainless steel 304
19	Piston	die-cast aluminum alloy
20	Piston guide plate	engineering plastic
21	Piston sliding ring	engineering plastic
22	Piston O-ring	NBR
23	Spring set	spring steel
24	Cover O-ring	NBR
25	End cap	cast aluminum with polyester coating
26	Cover screw	stainless steel 304
27	Stop screw	stainless steel 304
28	Adapter	carbon steel

Material sketch of DA double-acting pneumatic actuators

Technical parameters of pneumatic valve Elephant

Name	Value
Type of pneumatic valve	Spool valve
Working pressure, bar	1.5 ÷ 8
Supply voltage, V	220 V
Full power, Va	4.5
Control	Two-way electromagnetic
Response frequency, cycle/sec	5

Dimensions and sizes of the pneumatic valve Elephant 4V320-08

Model of pneumatic valve	4V320-08
A, mm	71.9
B, mm	45
C, mm	94.4
D, mm	27
E, mm	69
F, mm	40
I, mm	24
K, mm	40
L, mm	188.8
M, mm	69.4
N, mm	50
O, mm	82.4
P, mm	24
S, mm	20
T, mm	6.5
U, mm	2.4
V, mm	4
H, mm	82.4

Technical parameters of the manual doubler Elephant

Parameter	Value
Mounting method	Horizontal/Vertical
Protection rating, IP	67
Type of connection	ISO 5211

Dimensions and sizes of the manual doubler Elephant:

Manual doubler model	HDM-1
b1, mm	14
N, mm	22
b2, mm	14
M, mm	16
D1, mm	50
D2, mm	70
D3, mm	50
D4, mm	70
ØC, mm	88
C, mm	120
A, mm	90
F, mm	115
Y, mm	145
4-M1	4-M6
4-M2	4-M8
4-Ø1	4-Ø6.5
4-Ø2	4-Ø8.5
E, mm	70x70
B, mm	55
S, mm	53
K, mm	10
T, mm	145

Parts and materials table for manual doubler Elephant:

№	Part name	Material
1	Stem for pneumatic actuator mounting	Steel
2, 8	Sealing ring	EPDM
3	Locking spring	Spring steel
4	Upper end cover	Aluminum alloy
5	Screw	Steel 304
6	Locking bracket (main rod)	Steel 304
7	Body	Aluminum alloy
9	Gearbox	Cast iron BCh50
10	Transition coupling	Cast iron BCh40
11	Gearbox stem	Cast iron BCh40

Technical parameters of air preparation unit Elephant AFC2000

Name	Value
Working pressure, bar	8
Adjustable pressure range, bar	0.5 ÷ 9
Filterable particle size, µm	40 µm
Weight, kg	0.395

Dimensions and sizes of air treatment unit Elephant AFC2000:

Model	AFC2000
A, mm	162
B, mm	88
C, mm	139
D, mm	31
E, mm	53.5
F, mm	12
G, mm	8
H, mm	7
I, mm	13.3
J, mm	39
K, mm	5
L, mm	40
M, mm	32
N, mm	53
O, mm	29
P, mm	6
R, mm	41.5

Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Specifications

Country of origin

China
Port opening

full bore
Body material

Stainless steel AISI 304
Maximum allowable temperature

180 °C
Connection type

Flanged
Control type

Pneumatically actuated
Operating environment

Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
Type of seal

PTFE
Voltage

220V
Explosion-proof

no
Torque

235 Nm
Limit switches

no
Type of pneumatic actuator

double action

Reviews (0)

Documentation

Air treatment unit AFC2000 ELEPHANT

Pneumatic valve ELEPHANT 4V320-8 or 10 AC220V

Handwheel ELEPHANT MONx-x-x-ISO for pneumatic actuators and quarter-turn valves

Ball valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100

Pneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
