Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full – Valve Elephant
1 9
Elephant  |  SKU: D160-47242

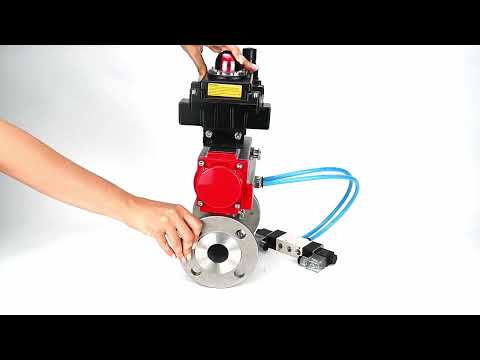

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-10 220V, with LSU APL -410N EX, with ATU AFC2000

€1.489,37
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-10 220V, with LSU APL -410N EX, with ATU AFC2000 - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Elephant pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control with maximum torque up to 2128 Nm.





Technical parameters Ball valves BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Parameter Value
Operating Medium Temperature, °C -20 to 180
Application Water supply, heating, pneumatic systems
Working Medium Water, steam, petroleum products, liquid media, neutral media, gaseous media
Pipeline Connection Flanged
Water-drawing No
Passage Type Full bore
Ball Valve Tightness Class A
Control Type With pneumatic actuator
Connection Flanged
Actuation Pneumatic actuator with return springs
Presence of Limit Switches Yes
Presence of Pneumatic Distributor Yes
Warranty, years 1
Country of Manufacture China





Dimensions and dimensions Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

DN d, mm D, mm D1, mm D2, mm W, mm f, mm L±1.5, mm T, mm H, mm Z-øM pcs-mm
15 15 95 65 46 17 2 130 131 71 4-ø14
20 20 105 75 58 18 2 150 131 74 4-ø14
25 25 115 85 68 18 2 160 167 97 4-ø14
32 32 140 100 78 19 2 180 167 110 4-ø18
40 40 150 110 88 19 2 200 193 117 4-ø18
50 50 165 125 102 19 3 230 193 125,5 4-ø18
65 65 185 145 122 22 3 290 242 135,5 8-ø18
80 80 200 160 140 24 3 310 272 157 8-ø18
100 100 234 190 161 24 3 350 295 181 8-ø22
100* 100 220 180 158 20 3 350 330 169 8-ø18


Sketch Ball Valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE





Parts and materials table Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

№ Part Name Material Quantity
1 Body Stainless steel SS304 / SS316 1
2 Ball Valve Stainless steel S304 / S316 1
3 Bolt Stainless steel S201 / S304 4~6
4 Nut Stainless steel S201 / S304 6~12
5 Seal PTFE 1
6 Stem Stainless steel SS304 / SS316 1
7 Gland Stainless steel S201 / S304 1
8 Cover Steel WCB/CF8/CF8M 2
9 Seat Rings PTFE 2
10 Thrust Washer PTFE 1

Sketch Ball Valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE





Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs




Technical parameters of pneumatic valve Elephant 4V320-10 220V

Name Value
Type of pneumatic distributor Spool type
Model of pneumatic distributor 4V320-10 220V
Operating pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Switching frequency, cycle/sec 5





Technical parameters of limit switch unit Elephant APL-410N EX

Name Value
Model of limit switch module APL-410N EX
Service life, years 10





Parts and materials table for Elephant APL-410N EX limit switch unit

№ Part Name Material
1 Visual indicator ABS plastic / polycarbonate
2 Visual indicator cover Polycarbonate
3 Label
4 Cover screws Stainless steel
5 BKV housing cover Die-cast aluminum
6 Shaft Stainless steel
7 Limit switches
8 Cam (eccentric) Polycarbonate
9 BKV housing Die-cast aluminum
10 Terminal block
11 Grounding terminal Stainless steel
12 Hole (thread) for cable entry
13 Bracket Stainless steel





Main parameters of the Elephant AFC2000 air treatment unit

Parameter Value
Working pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0.5 ÷ 9
Burst pressure, bar 15
Air connection 1/4"
Working temperature, °C from -5 to +60
Filtered particle size, μm 40
Oil viscosity ISO VG 32
Weight, kg 0.395
Set contents Filter-water separator, pressure regulator, lubricator, bracket

Sketch of BPV Elephant AFC2000

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    235 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    spring loaded

Reviews (0)

Documentation
nullAir treatment unit AFC2000 ELEPHANT
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-47242DN10016 bar €1.489,37 0 In stock
    D160-47250DN1540 bar €464,30 Sold out
    D160-47258DN2040 bar €477,00 Sold out
    D160-47266DN2540 bar €496,75 Sold out
    D160-47274DN3240 bar €549,09 Sold out
    D160-47282DN4040 bar €596,29 Sold out
    D160-47290DN5040 bar €637,12 Sold out
    D160-47298DN6525 bar €865,19 Sold out
    D160-47306DN8025 bar €994,24 Sold out
    D160-62339DN100 22х22 F1016 bar €1.292,69 0 In stock
