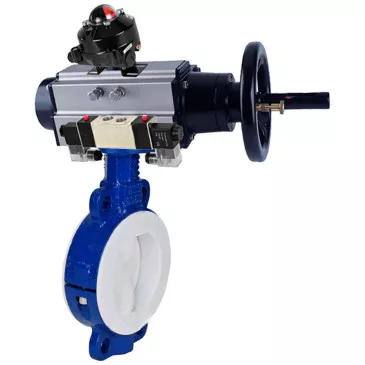

Water Butterfly Valve Elephant WBV3434Pf-2W-Fb, wafer, body - carbon s
Elephant  |  SKU: D050-62684

Water Butterfly Valve Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, seal - PTFE, with pneumatic drive PA-DA-105-1, with pneumatic distributor 4V320-10 220V, LSU APL- 210N

€579,25
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Elephant WBV3434Pf-2W-Fb butterfly valves are designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic valve Elephant 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The Elephant APL-210N limit switch unit is an electrical device designed to open and close the working circuit and to visualise the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between open and closed position reduces the probability of misinterpretation of information. The use of the AFC2000 makes it possible to transmit information on the position of the valve (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.



Technical parameters Rotary disc gate valves Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, PTFE

Name Value
Nominal pressure PN, bar 16
Operating temperature, °C From -10 to 150
Application Water supply, heating, chemical industry, oil and gas industry, food industry, pulp and paper industry
Pipe connection Flanged
Valve type Rotary disc valve
Tightness class A according to 9544
Control type Pneumatic drive
Country of origin China





Dimensions and dimensions of Butterfly valves Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, PTFE

DN L D F L1 G X Y
100 52 155 153 495 77 88 162
125 56 185 153 495 77 88 162
150 56 210 153 495 77 88 162
200 60 265 153 495 77 88 162

Sketch of rotary disc gate valves Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, PTFE





Table of parts and materials for butterfly disc gate valves Elephant WBV3434Pf-2W-Fb, wafer, body - carbon steel WCB, disk - carbon steel WCB, PTFE

No. Part Name Material
1 Body Steel WCB + PTFE
2 Disk Steel WCB + PTFE
3 Stem Steel 2Cr13
4 Saddle seal PTFE
Detail and material sketch of Butterfly valves Elephant WBV3434Pf-2W-Fb





Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1





Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1





PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator





Technical parameters of pneumatic valve Elephant 4V320-10 220V

Name Value
Type of Pneumatic Distributor Spool type
Model of Pneumatic Distributor 4V320-10 220V
Working Pressure, bar 1.5 ÷ 1.8
Supply Voltage, V 220 V
Actuation Frequency, cycles/sec 5





Technical parameters of limit switch unit Elephant APL-210N

Name Value
Model of Limit Switch Block APL-210N
Service Life, years 10





Parts and materials table for limit switch unit  Elephant  APL-210N

№ Component Name Material
1 Housing Cast Aluminum
2 Indicator Cover Polyester Plastic
3 3D Indicator ABC Plastic
4 Cam Polyester Plastic
5 Spring Stainless Steel
6 Screws Stainless Steel
7 Sealing Rings NBR
8 Bushing Bronze
9 Grounding Terminal Stainless Steel
10 Shaft Stainless Steel



Specifications
  • Country of origin
    China
  • Body material
    Carbon steel
  • Maximum allowable temperature
    180 °C
  • Connection type
    compact flanged
  • Type of seal
    PTFE
  • Disc material
    Carbon steel
  • Limit switches
    Yes

Reviews (0)

Documentation
nullAir treatment unit AFC2000 ELEPHANT
nullLimit switch unit ELEPHANT APL-210N
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullButterfly valve Elephant WBV3434Pf-2W-Fb-H
nullButterfly valve Elephant WBV3434Pf-2W-Fb-R DN150-300 16 bar
nullRotary pneumatic actuator ELEPHANT PA-DA-105-1 double-acting with handwheel
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
