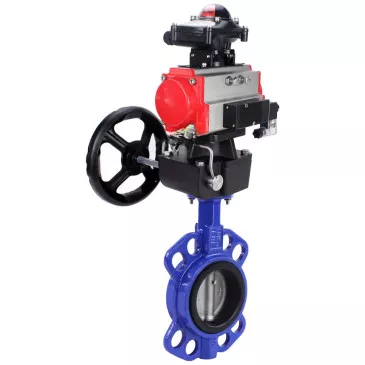

Water Butterfly Valve Elephant WBV3432V-2W-Fb-H, body - carbon steel WCB, disk - stainless steel 316L, seal - VITON, with pneumatic drive PA-DA, with pneumatic distributor 4V320-10 220V, LSU APL-410N Ex, ATU AFC2000

Butterfly valves Elephant WBV3432V-2W-Fb-H are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Pneumatic valve Elephant 4V320-10 220V is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The Elephant APL-410N EX limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

The Elephant MON manual doubleturn actuator with worm gear and HDM reduction reducer enables manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

The AFC2000 air treatment unit is designed to purify compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from a reservoir in the compressed air stream to pneumatic system elements with a large capacity range from 500 liters/minute to 10,000 liters/minute. The lubricator adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.

Technical parameters of Butterfly valves Elephant WBV3432V-2W-Fb-H, body - carbon steel WCB

Table of parts and materials for butterfly valves Elephant WBV3432V-2W-Fb-H, body - carbon steel WCB

Sketch of parts and materials of Butterfly valves Elephant WBV3432V-2W-Fb-H, body - carbon steel WCB

Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

Material sketch of DA double-acting pneumatic actuators

Technical parameters of pneumatic valve Elephant 4V320-10 220V

Technical parameters of limit switch unit Elephant APL-410N EX

Parts and materials table for Elephant APL-410N EX limit switch unit

Main parameters of air treatment unit Elephant AFC2000

Sketch of BPV Elephant AFC2000
