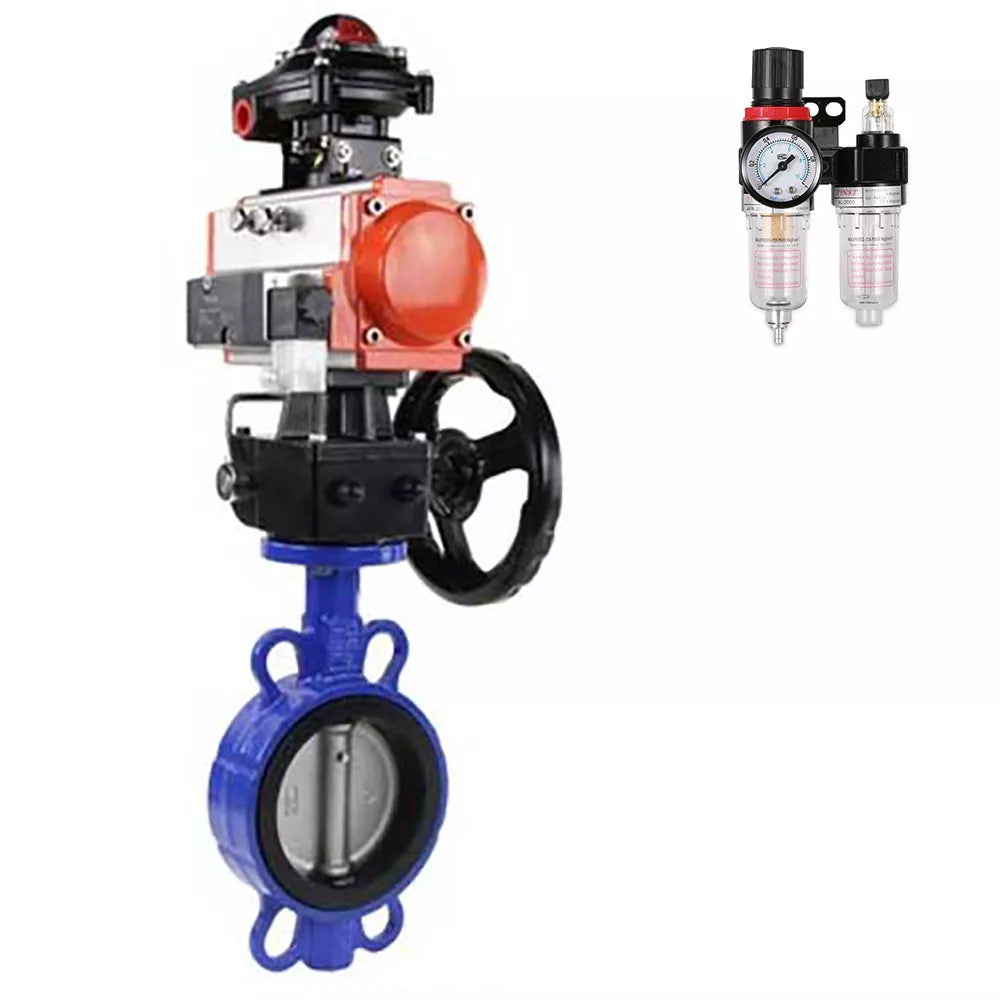

Water Butterfly Valve Elephant WBV3232N-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 24V, handwheel MON, LSU APL-510N-EX, ATU AFC2000

Butterfly valve model WBV3232N-2W-Fb PA-DA 4M310-08 APL-510N-EX MON 4M310-08 24V AFC2000 is designed for use as shut-off or regulating valves to control flows in heating, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

PA-DA pneumatic actuators are designed for automation of industrial shut-off valves control process - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4m310-08 24 V are used for control in pneumatic systems having NAMUR docking surface, for installation of actuators through through holes in the body.

The HDM worm gear reduction manual doublet allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

The AFC2000 air treatment unit is designed to purify compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from a reservoir in the compressed air stream to pneumatic system elements with a large capacity range from 500 liters/minute to 10,000 liters/minute. The lubricator (oil atomizer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.

The APL-510N-EX limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

Technical parameters of Water Butterfly Valve Elephant WBV3232N-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 24V, handwheel MON, LSU APL-510N-EX, ATU AFC2000:

Butterfly valves WBV3232N-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 24V, handwheel MON, LSU APL-510N-EX, ATU AFC2000

Dimensions and dimensions of butterfly valves Elephant WBV3232N-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 24V, handwheel MON, LSU APL-510N-EX, ATU AFC2000:

Sketch Butterfly valves WBV3232N-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 24V, handwheel MON, LSU APL-510N-EX, ATU AFC2000

Materials of butterfly valves Elephant WBV3232N-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 24V, handwheel MON, LSU APL-510N-EX, ATU AFC2000:

Sketch of parts and materials Butterfly valves WBV3232N-2W-Fb-H, body material - stainless steel AISI 316L, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator double action PA-DA, 4M310-08 24V, handwheel MON, LSU APL-510N-EX, ATU AFC2000

Technical data of DA double-acting pneumatic actuators:

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

Material sketch of DA double-acting pneumatic actuators

Technical characteristics of the pneumatic valve 4m310-08 24V:

Technical parameters of the handwheel MON:

Manual doubler MON

Dimensions and dimensions of the handwheel MON:

Sketch of dimensions and dimensions of the MON handwheel MON

MON handwheel materials:

Materials of the handwheel

Characteristics of limit switch unit APL-510N-EX:
