Elephant  |  SKU: D050-26155

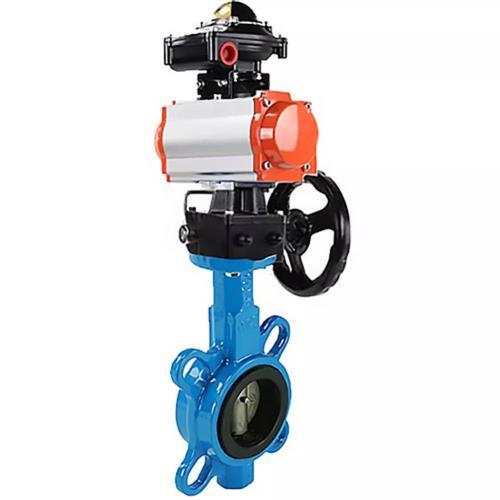

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, limit switch block APL-410N EX and manual duplicator HDM

€298,84
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, limit switch block APL-410N EX and manual duplicator HDM - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A water butterfly valve is a type of valve used to control the flow of water or other fluids through a pipeline. It gets its name from the butterfly-shaped disc inside the valve that rotates to open or close the flow. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing unobstructed passage of water. When the valve is closed, the disc is turned perpendicular to the flow, effectively blocking the flow of water. Water butterfly valves are commonly used in various industries and applications, including water treatment plants, sewage systems, irrigation systems, and industrial processes. They are known for their compact design, lightweight construction, and ease of installation. These valves are often preferred for their quick operation, as the disc can be opened or closed with a simple quarter-turn motion. Butterfly valves can be operated manually with a handle or lever, or they can be automated using electric, pneumatic, or hydraulic actuators to control the valve remotely. They are known for their low-pressure drop and relatively low cost compared to other types of valves. It's worth noting that water butterfly valves are specifically designed for use with water and compatible fluids. Different materials and designs may be required for valves intended for use with corrosive or high-pressure fluids. It's important to select the appropriate type of butterfly valve based on the specific application and fluid requirements.





Technical parameters of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, limit switch block APL-410N EX and manual duplicator HDM:

Nominal diameter DN, mm 40 - 300
Working pressure PN, bar 16
Working medium temperature t, ⁰C from -20 to +120
Operating medium water, mineral oils, hydrocarbons, oils, fats
Flow direction two-way
Control type handle
Pipeline connection interflanged
Body material cast iron GGG50
Service life, years 10


Dimensional parameters of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, limit switch block APL-410N EX and manual duplicator HDM:

DN Model
electric actuator 		Dimensions
E, mm L1, mm A, mm C, mm K, mm
40 Elephant DA-052 34 153 114 98 147
50 Elephant DA-065 43 174 131 115 147
65 Elephant DA-065 46 174 140 115 147
80 Elephant DA-083 46 216 150 135 147
100 Elephant DA-083 52 216 163 135 147
125 Elephant DA-105 56 279 178 160 147
150 Elephant DA-105 56 279 191 160 147
200 Elephant DA-130 60 308 238 193 147
250 Elephant DA-140 68 405 285 210 147
300 Elephant DA-160 78 465 315 237 147




Materials of water butterfly valve Elephant WBV1332N-2W-Fb-H body material - Cast iron GGG50, disk material - Stainless steel 316L, seal - NBR with pneumatic actuator DA, limit switch block APL-410N EX and manual duplicator HDM:

№ Name Material
1 Body cast iron GGG50
2 Seat seal NBR
3 Disk stainless steel 316L
4 Stem stainless steel AISI 416
5 Pin stainless steel AISI 420
6 Bushing PTFE
7 O-ring NBR
8 Plate carbon steel




Main technical characteristics of pneumatic actuators:

Design Double-acting
Nominal pressure PN, bar 12
Operating pressure, bar 2…8
Operating medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C • from -20 to +80
• from -40 to +80 (low-temperature version)
• from -20 to +160 (in dry air)
Adjustment range ± 5° for rotation at 0° and 90°
Manual duplication yes
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts have an anti-corrosion coating)




Pneumatic actuator component materials Elephant DA:

№ Name Quantity Material Coating
1 Body 1 extruded aluminum hard anodized
2 Side caps 2 cast aluminum
3 Gear 1 stainless steel nickel plated
4 Piston 2 steel/aluminum oxidation/ galvanized zinc plating
5 Plugs 8 stainless steel
6 Piston ring 2 NBR
7 Springs 0-12 spring steel epoxy coating
8 Piston bearing 2 engineering plastic
9 Piston ring 2 NBR
10 Plug 2 NBR
11 Thrust ring 2 engineering plastic
12 Ring 1 engineering plastic
13 Washer 1 stainless steel
14 Spring clip 2 stainless steel
15 Indicator 1 plastic
16 Indicator body 1 plastic
17 Bearing 1 engineering plastic
18 Cam 1 steel oxidation/ galvanized galvanizing
19 Bearing 1 NBR
20 Bearing 1 engineering plastic
21 Bearing 1 engineering plastic
22 O-ring 2 NBR
23 O-ring 2 NBR
24 Bearing 2 stainless steel
25 Adjustment nut 2 stainless steel
26 Adjustment screw 2 stainless steel
27 Bushing 2 aluminum




Technical characteristics of limit switch unit APL-410N EX:

Body all-weather IP65 explosion-proof Exd IIB T6
Cable glands 2 x NPT1/2”
Terminal strips 8 points (0.05 - 2.5) mm2
Position indicator 0 - 90° (90° free rotation) CLOSED - red; OPEN - yellow
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Permissible ambient temperature, °С from -25 to +80
Service life, years 10



Materials of limit switch unit APL-410N EX:

Name Materials
Enclosure cover and body aluminum die casting
Shaft stainless steel
Indicator cover polycarbonate
Cam polycarbonate
Spring stainless steel
Enclosure cover bolts stainless steel
O-ring NBR
Bushing bronze
Sealing ring (shaft) stainless steel
Ground terminal stainless steel
Indicator ABS plastic / polycarbonate
Bracket stainless steel



Main technical characteristics of the Elephant manual doubler:

Operating mode Repetitive-short-term, reversible
Operating temperature t, ⁰C from -20 to +80
from -40 to +80 (low-temperature version)
from -20 to +160 (in dry air)
Operating medium Filtered compressed air or non-aggressive gases, oils
Degree of protection IP67
Connection type ISO 5211
Application water supply, heating, fire extinguishing, heating stations
Mounting horizontal/vertical
Stroke mechanical limit 0-90°
Operating environment indoors and outdoors
Installation location between pneumatic actuator and ball valve or gate valve
Shaft rotation angle 90° ± 5°



Materials of Elephant-HDM manual doubler:

№ Name Material
1 Stem for pneumatic actuator mounting Steel
2 O-ring EPDM
3 Locking spring Spring steel
4 Upper end cover Aluminum alloy
5 Screw Steel 304
6 Locking bracket (main link) Steel 304
7 Body Aluminum alloy
8 O-ring EPDM
9 Gearbox Cast iron
10 Transition coupling Cast iron
11 Gear stem Cast iron







Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs



Data sheet for Elephant HDM manual overrides for pneumatic actuators and quarter-turn valves

Data sheet for limit switch unit Elephant APL-410N EX

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    120 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatic actuator
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Valve feedback
    Limit switches
  • Explosion-proof
    Yes
  • Torque
    67 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    Yes
