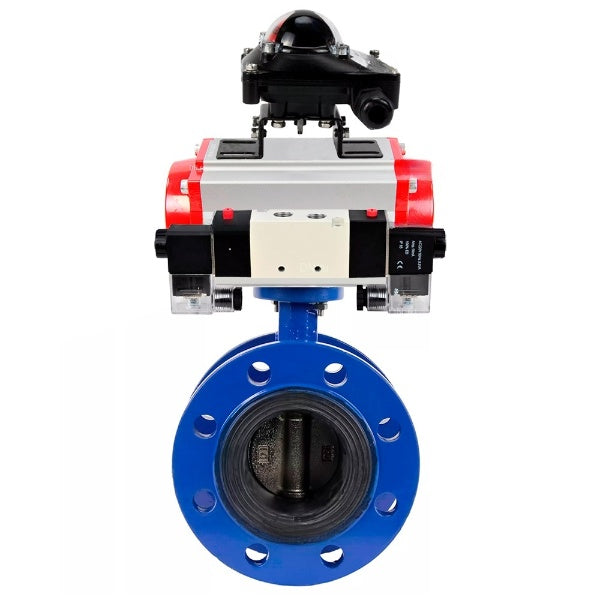

Water Butterfly Valve Elephant WBV1331E-2W-F-H, body material - Cast i
Elephant  |  SKU: D050-45089

Water Butterfly Valve Elephant WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-08 220V, LSU APL-210N

€563,79
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The WBV1331E-2W-F butterfly valve is designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

Pneumatic double-acting rotary actuators PA-DA-XXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off device: valve, crane or disk gate. It is mounted on top of the pneumatic actuator surface and connected to the actuator shaft in DIN standard. The sealed box usually contains two sensors, which monitor the position of the actuator shaft and signalize in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.





Technical parameters of Water Butterfly Valve Elephant WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-08 220V, LSU APL-210N:

Characteristic meaning
Gate type rotary disk
Diameter 50-300 mm
Nominal pressure 16 bar
Working medium temperature -25 to +130°C
Application water supply, industry, heating systems
Connection type flanged
Control type pneumatic actuator
Sealing class A
Manufacturer's country China
Service life 10 years
Warranty 12 months.

Butterfly valves WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-08 220V, LSU APL-210N





Dimensions and dimensions of butterfly valves Elephant WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-08 220V, LSU APL-210N:

Diameter L, mm D, mm D1, mm D2, mm n-d, mm
DN50 108 165 125 99 4-18
DN65 112 185 145 118 4-18
DN80 114 200 160 132 8-18
DN100 127 220 180 156 8-18
DN125 140 250 210 184 8-18
DN150 140 285 240 211 8-22
DN200 152 340 295 266 12-22
DN250 165 405 355 319 12-26
DN300 178 460 410 370 12-26

Sketch Butterfly valves WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-08 220V, LSU APL-210N





Materials of butterfly valves Elephant WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-08 220V, LSU APL-210N:

№ Part name Material
1 Body cast iron GGG40
2 Disk stainless steel 304
3 Seat seal EPDM
4 Stem stainless steel SS 420
5 Handle GGG40 cast iron

Sketch of parts and materials Butterfly valves WBV1331E-2W-F-H, body material - Cast iron GGG40/EN-GJS-400-15, disk material - Stainless steel AISI 304, seal - EPDM, pneumatic actuator PA-SA with return springs, 4V320-08 220V, LSU APL-210N





Technical data of PA-SA pneumatic actuators

Design with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium Filtered compressed air or non-aggressive gases, oils
Maximum particle diameter less than 30 µm2
Operating temperature t, ⁰C - 20 to +80 - 40 to +80 (low temperature version) - 20 to +160 (in dry air)
Adjustment range ± 5 ° for rotation at 0 ° and 90 °
Manual override is
Position indicator open/closed
Operating environment indoors and outdoors. (All internal and external parts are anti-corrosion coated)





Materials of PA-SA pneumatic actuator parts:

№ Name Material
1 Enclosure extruded aluminum
2 Side plugs cast aluminum
3 Gear stainless steel
4 Piston steel/aluminum
5 Plugs stainless steel
6 Piston ring NBR
7 Springs spring steel
8 Piston bearing engineering plastic
9 Piston ring NBR
10 Plug NBR
11 Thrust ring engineering plastic
12 Ring engineering plastic
13 Washer stainless steel
14 Spring clip stainless steel
15 Indicator plastic
16 Indicator housing plastic
17 Bearing engineering plastic
18 Cam steel
19 Bearing NBR
20 Bearing engineering plastic
21 Bearing engineering plastic
22 Sealing ring NBR
23 Sealing ring NBR
24 Bearing stainless steel
25 Adjustment nut stainless steel
26 Adjustment screw stainless steel
27 Sleeve aluminum

Material sketch of PA-SA pneumatic actuator





Technical parameters of pneumatic valve 4V320-08 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 1.8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-08 220V





Dimensions and dimensions of pneumatic valve 4V320-08 220V:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-08 220V





Technical parameters of limit switch unit APL-210N:

Name Value
Model of limit switch unit APL-210N
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-210N



Dimensions and dimensions of the APL-210N limit switch unit:

Model H, mm L, mm B, mm D, mm D1, mm M
APL-210N 77 112 88 10 5 20x1.5

Sketch of dimensions and dimensions of limit switch unit APL-210N

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG40/EN-GJS-400-15
  • Maximum allowable temperature
    130 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Air, Neutral Media
  • Applications
    Water Supply, Industry, Heating Systems
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Stainless steel AISI 304
  • Manual override
    No
  • Limit switches
    Yes
  • Supply voltage
    220 V
  • Type of pneumatic actuator
    with return springs

Reviews (0)

Documentation
nullLimit switch unit ELEPHANT APL-210N
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-45089DN10016 bar €563,79 Out of stock
    D050-45090DN12516 bar €855,81 Out of stock
    D050-45091DN15016 bar €892,13 Out of stock
    D050-45092DN20016 bar €1.133,03 Out of stock
