Elephant  |  SKU: D050-14275

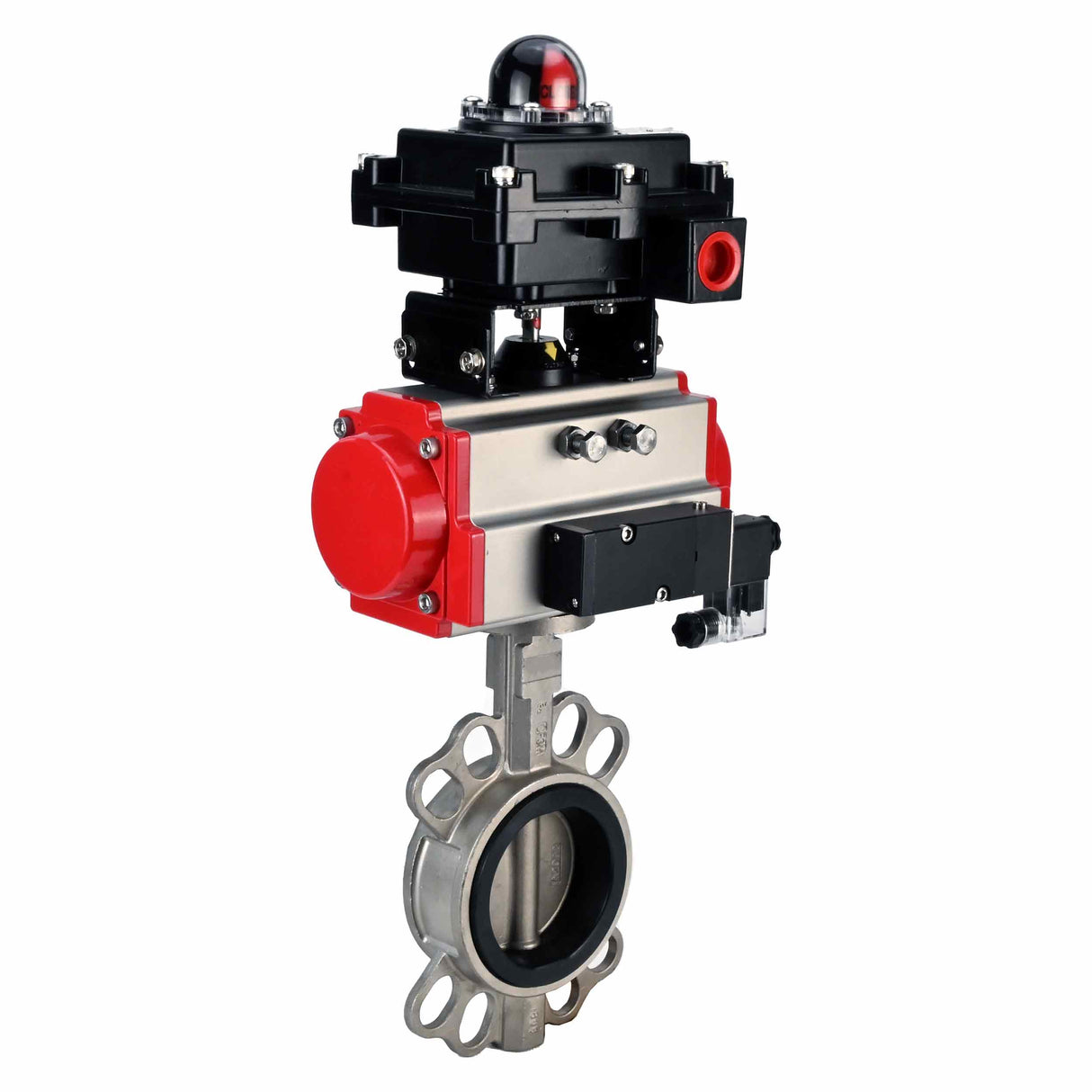

Water butterfly valve Elephant 316L-316L-VITON body material - stainless steel aisi 316l, disk material - stainless steel AISI 316L, seal - Viton with pneumatic actuator Elephant SA, pneumatic distributor 4M310-08 24V and limit switch block APL-410N EX

€366,00
Tax included Shipping calculated at checkout.

Connection size
Pressure

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

Add a stand out message for your customers

Description

A water butterfly valve is a type of valve used to control the flow of water or other fluids through a pipeline. It gets its name from the butterfly-shaped disc inside the valve that rotates to open or close the flow. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing unobstructed passage of water. When the valve is closed, the disc is turned perpendicular to the flow, effectively blocking the flow of water. Water butterfly valves are commonly used in various industries and applications, including water treatment plants, sewage systems, irrigation systems, and industrial processes. They are known for their compact design, lightweight construction, and ease of installation. These valves are often preferred for their quick operation, as the disc can be opened or closed with a simple quarter-turn motion. Butterfly valves can be operated manually with a handle or lever, or they can be automated using electric, pneumatic, or hydraulic actuators to control the valve remotely. They are known for their low-pressure drop and relatively low cost compared to other types of valves. It's worth noting that water butterfly valves are specifically designed for use with water and compatible fluids. Different materials and designs may be required for valves intended for use with corrosive or high-pressure fluids. It's important to select the appropriate type of butterfly valve based on the specific application and fluid requirements.

Specifications

  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    392 °F / 200 °C
  • Connection type
    Compact flanged
  • Nominal pressure
    16 bar
  • Type of seal
    VITON
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Voltage
    24V
  • Valve feedback
    Limit switches
  • Explosion-proof
    Yes
  • Torque
    59 Nm
  • Pneumatic actuator
    Yes
  • Manual override
    No
  • Limit switches
    Yes
