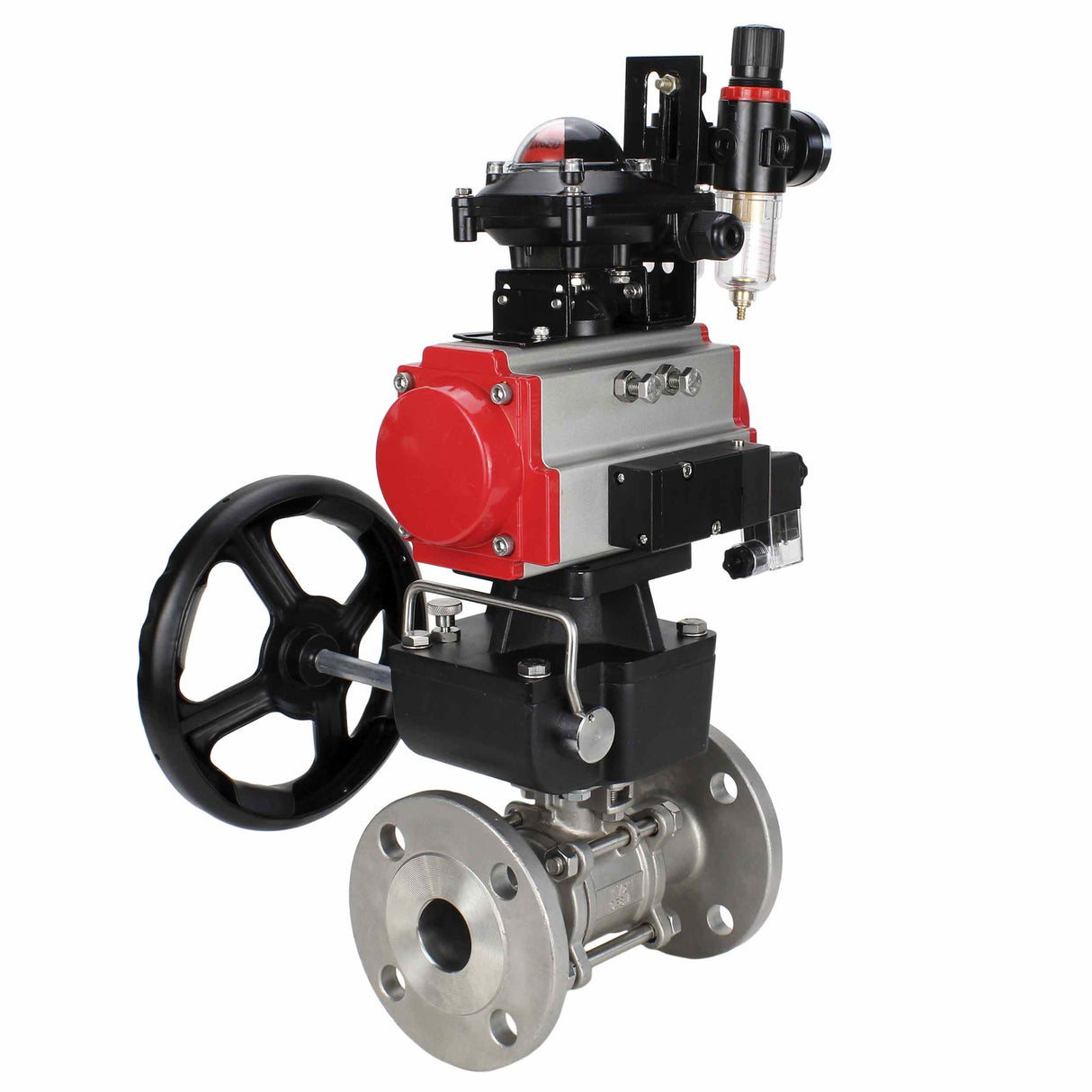

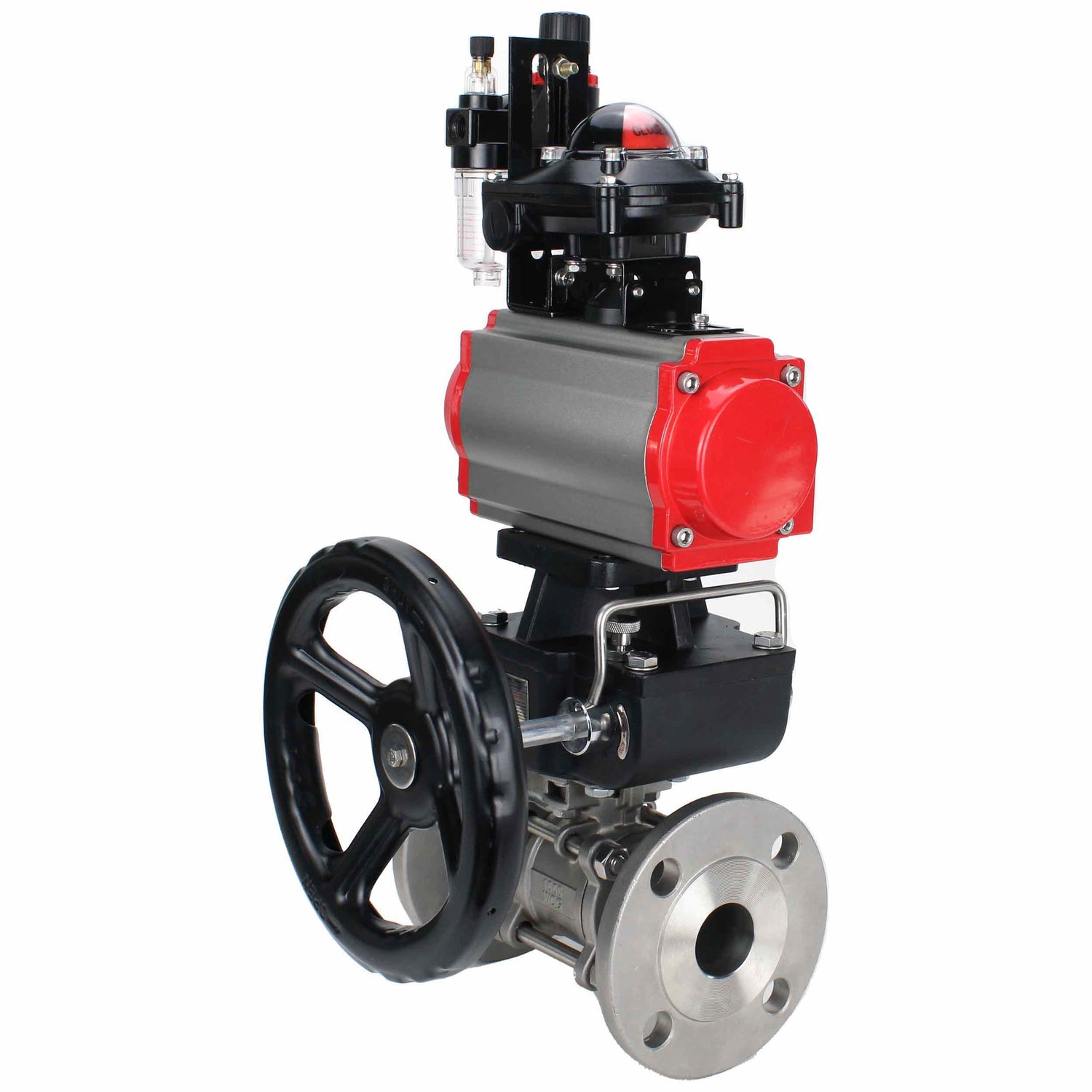

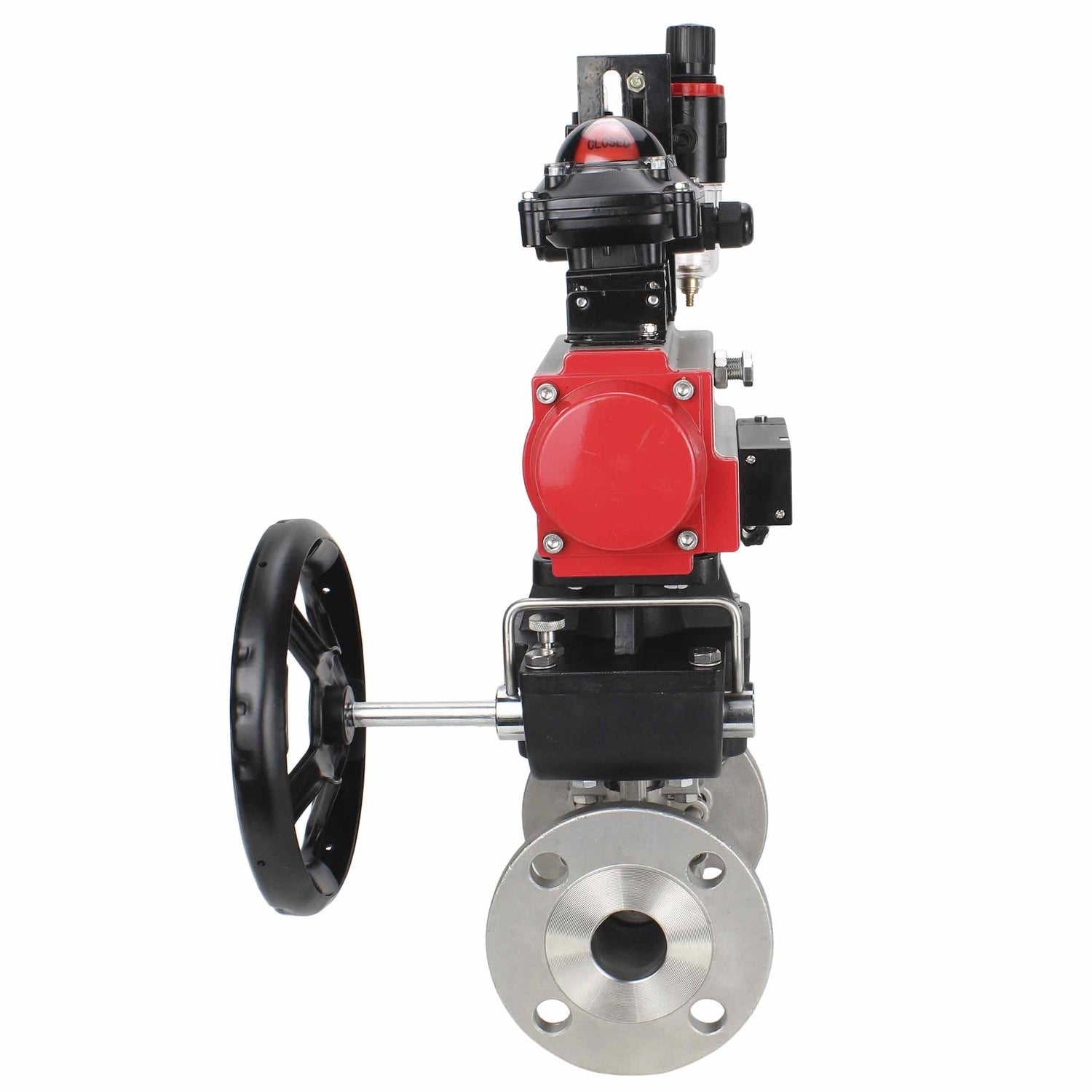

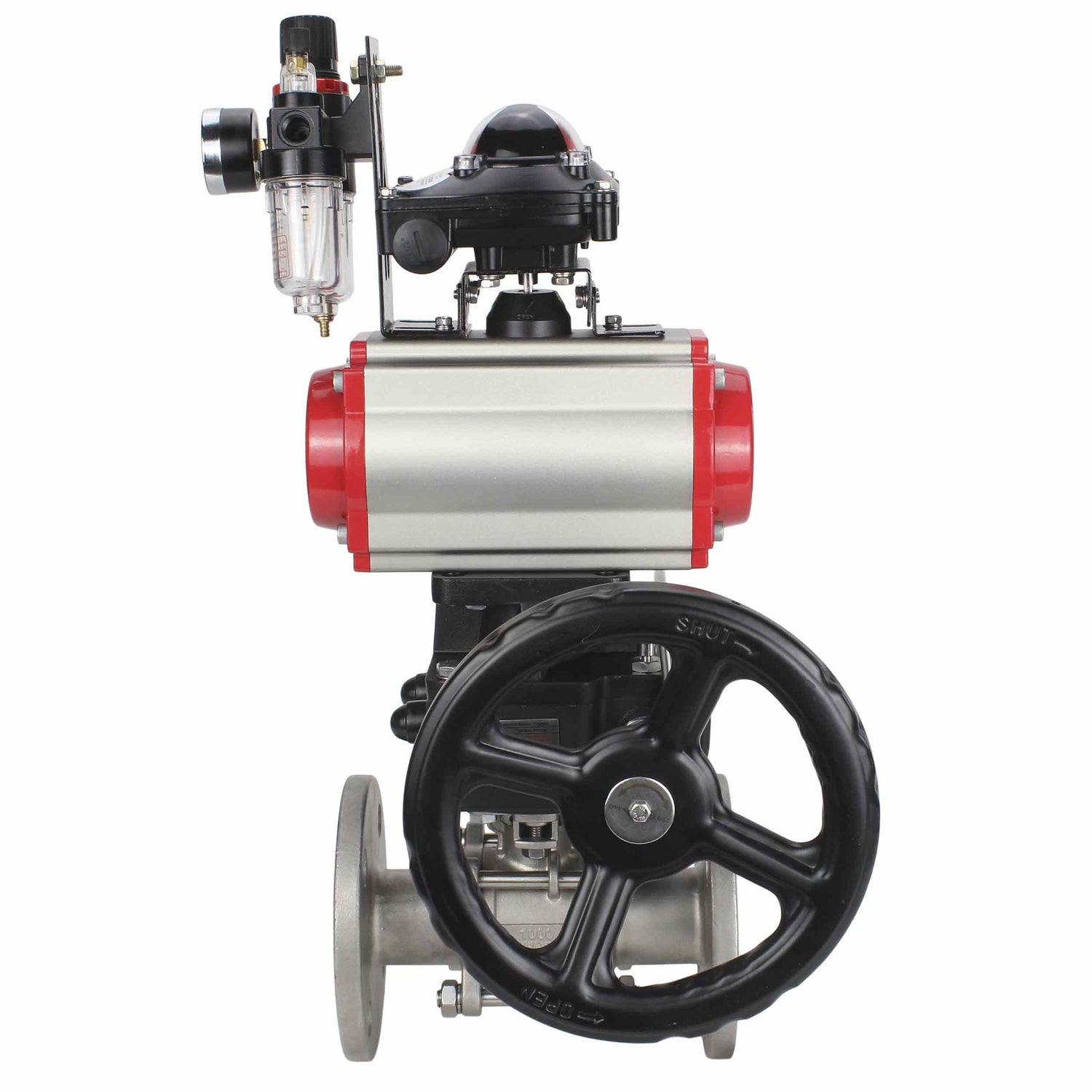

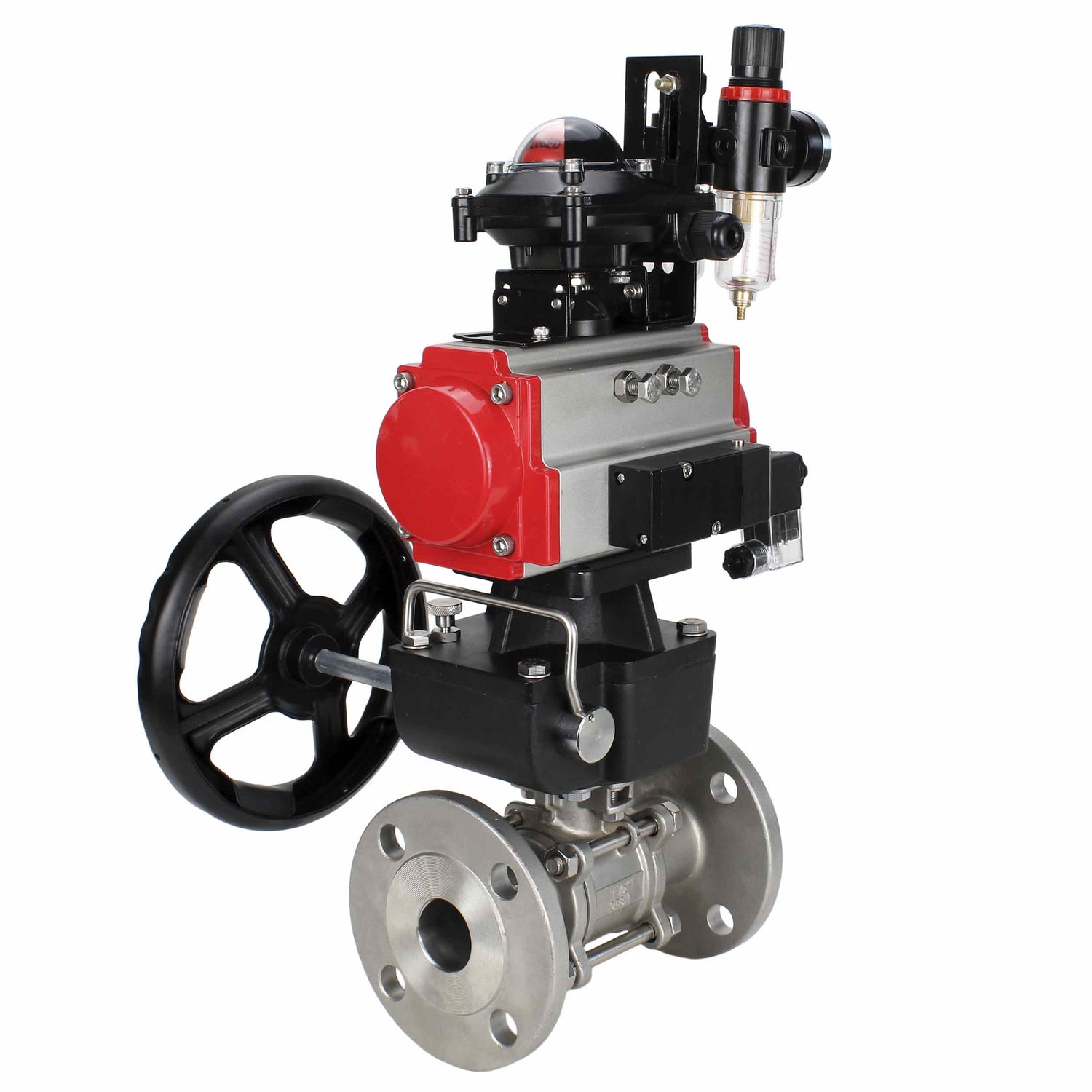

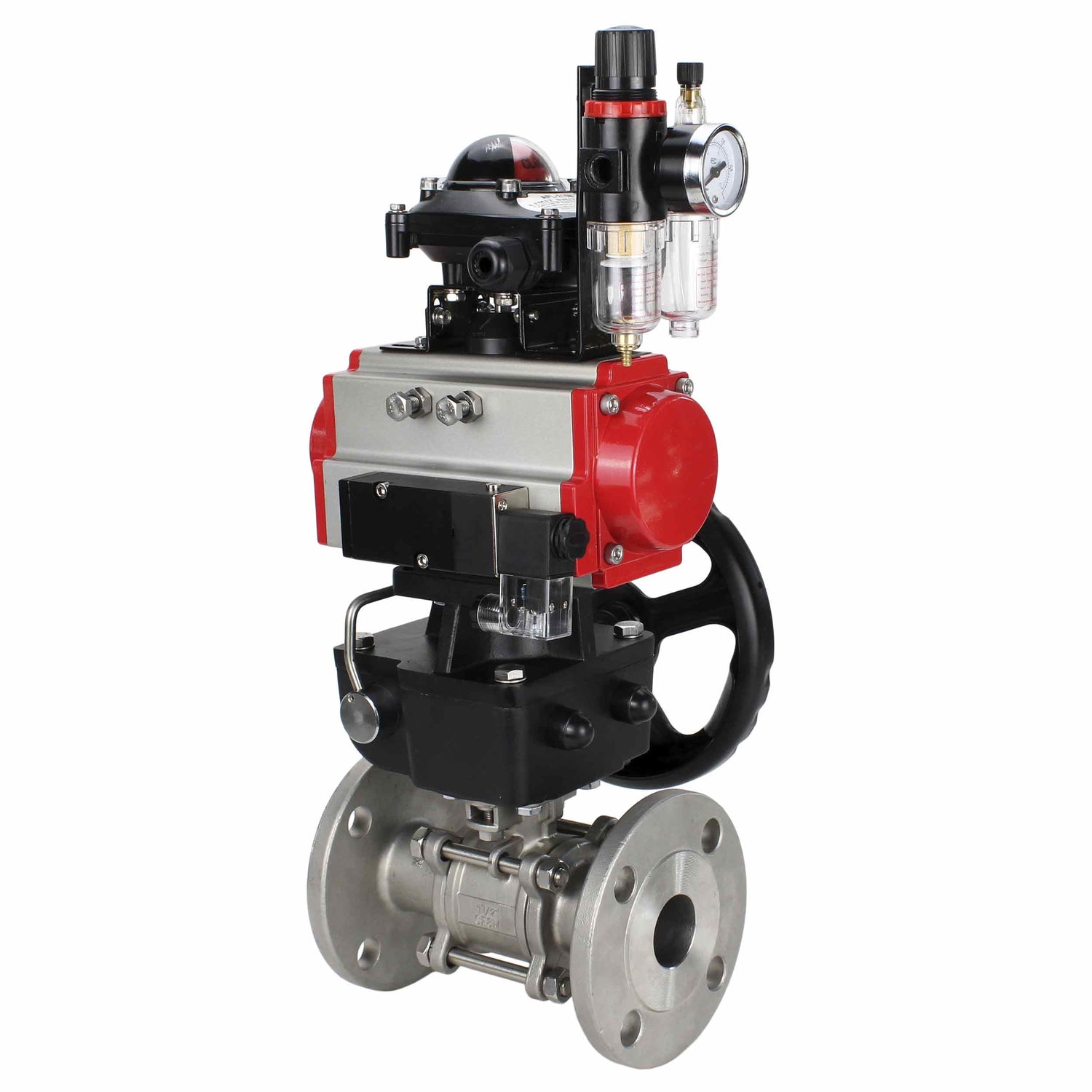

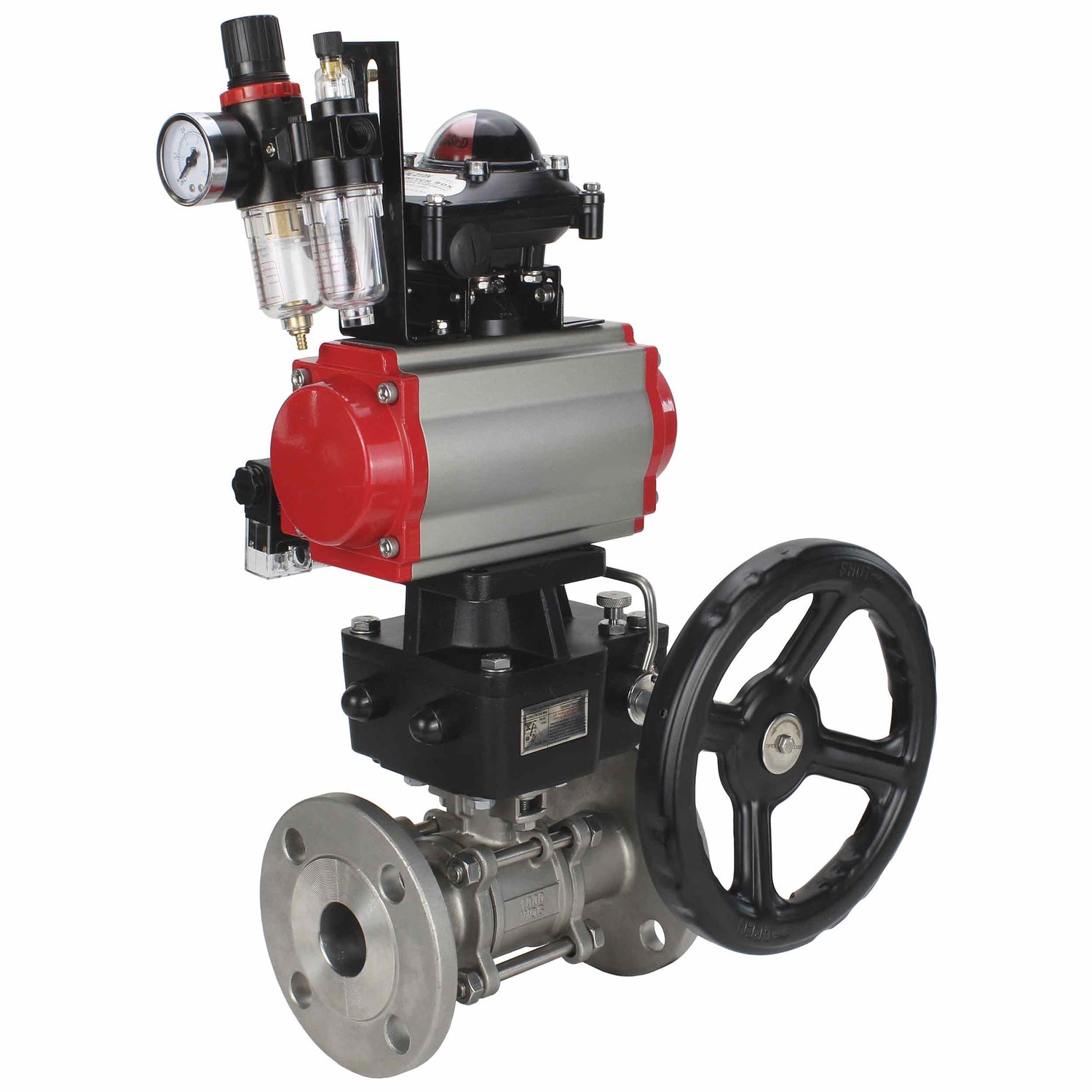

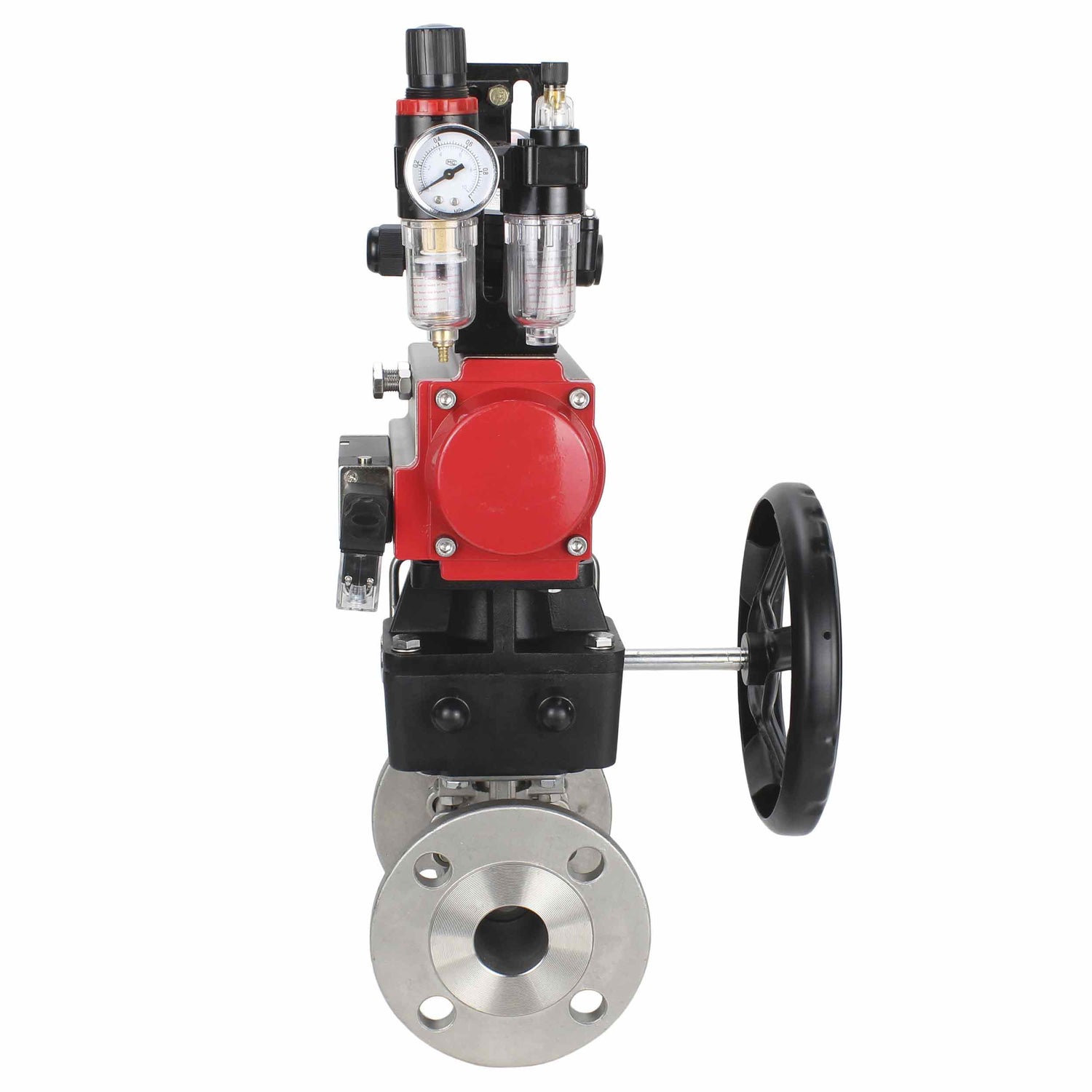

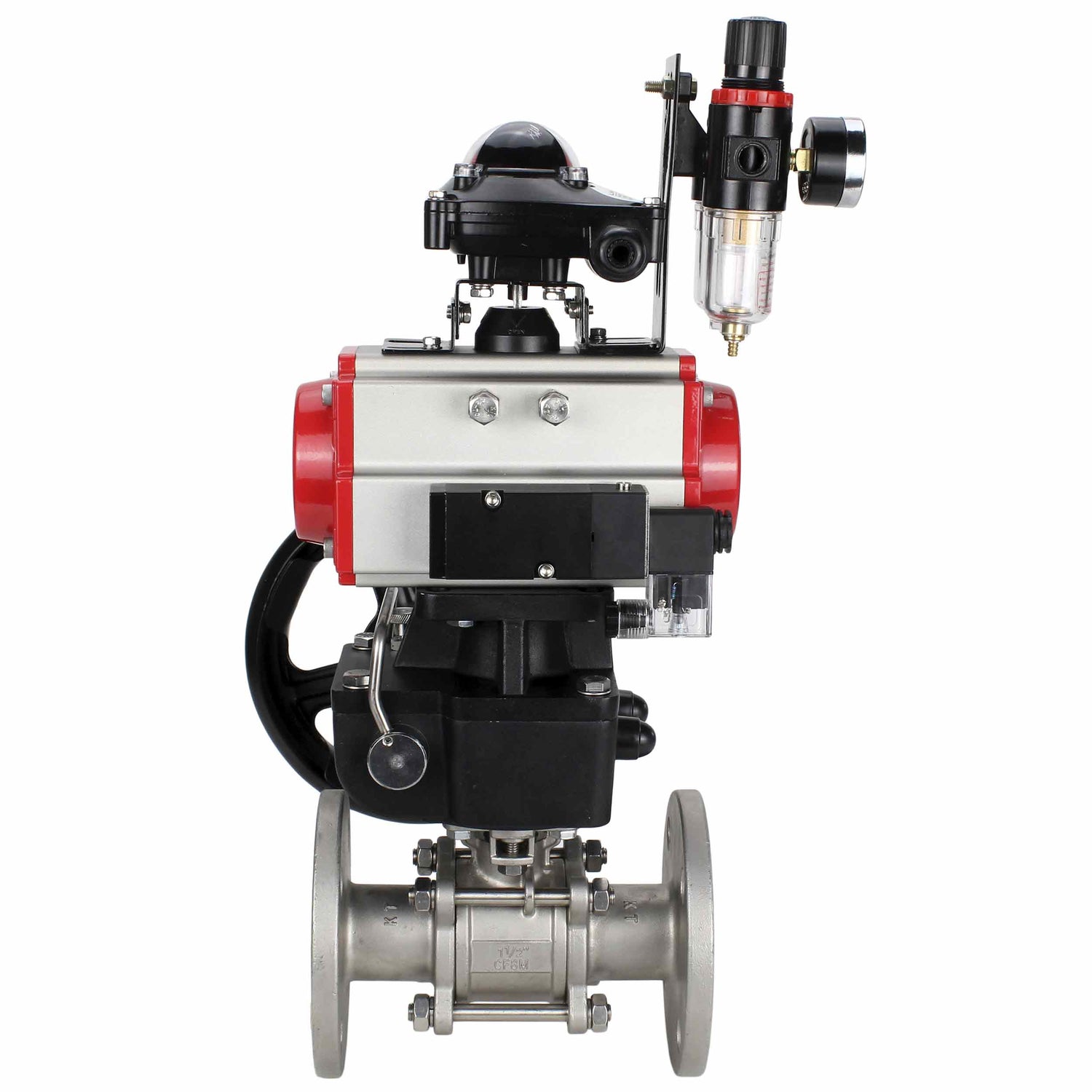

Stainless steel ball valve Elephant ksfpt-304-180-da-4m310-24v-apl210n-hdm-afc2000, body material - stainless steel AISI 304, ball material - stainless steel AISI 304, seal - PTFE, pneumatic actuator operated
Stainless steel ball valve Elephant ksfpt-304-180-da-4m310-24v-apl210n-hdm-afc2000, body material - stainless steel AISI 304, ball material - stainless steel AISI 304, seal - PTFE, pneumatic actuator operated - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both hghi temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Ball Valve Technical Data Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N MON AFC2000:
| Nominal diameter, mm | 15-100 |
| Working pressure PN, bar |
DN15-50 – 40 DN65-80 – 25 DN100 – 16 |
| Temperature of working environment t, ⁰C | from -20 to +180 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
| Control type | Double-acting pneumatic actuator Elephant-DA |
Ball Valve Detail Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N MON AFC2000
Material Specification Ball Valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N MON AFC2000:
| № | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | SS304/SS316 | 1 |
| 3 | Bolt | SS201/SS304 | 4-6 |
| 4 | screw | SS201/SS304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201/SS304 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
| 11 | screw | SS201/SS304 | 1 |
| 12 | Lever | SS201/SS304 | 1 |
| 13 | Handle shell | PVC | 1 |
| 14 | Stopper | SS201/SS304 | 1 |
Sketch of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N MON AFC2000
Overall and installation dimensions of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V APL-210N MON AFC2000:
| DN | d, mm | ØD, mm | L±1.5, mm | L1, mm | Н, mm | I, mm | B, mm | C, mm |
| 15 | 15 | 95 | 130 | 147 | 92 | 162 | 88 | 139 |
| 20 | 20 | 105 | 150 | 147 | 92 | 162 | 88 | 139 |
| 25 | 25 | 115 | 160 | 147 | 92 | 162 | 88 | 139 |
| 32 | 32 | 140 | 180 | 147 | 92 | 162 | 88 | 139 |
| 40 | 40 | 150 | 200 | 168 | 108 | 162 | 88 | 139 |
| 50 | 50 | 165 | 230 | 204 | 128.7 | 162 | 88 | 139 |
| 65 | 65 | 185 | 290 | 268 | 153 | 162 | 88 | 139 |
| 80 | 80 | 200 | 310 | 268 | 153 | 162 | 88 | 139 |
| 100 | 100 | 234 | 350 | 301 | 185 | 162 | 88 | 139 |
| 100 22х22, F10 | 100 | 220 | 350 | 268 | 153 | 162 | 88 | 139 |
Pneumatic actuator Elephant
Parameters of pneumatic actuator Elephant:
- Pneumatic actuator type - double acting
- Working pressure of pneumatic drive - 6.0 bar
- Drive rotation angle - 90°
- Drive adjustment range - 5°
- Country of origin - China
- Operating environment - indoor and outdoor
- Position indicator - open/closed
- Coating - All internal and external parts have an anti-corrosion coating
Pneumatic distributor 4M310
Main parameters of pneumatic valves
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1.5…8 |
| Working environment | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | There is |
| Degree of protection | IP 65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
