Elephant  |  SKU: D160-22311

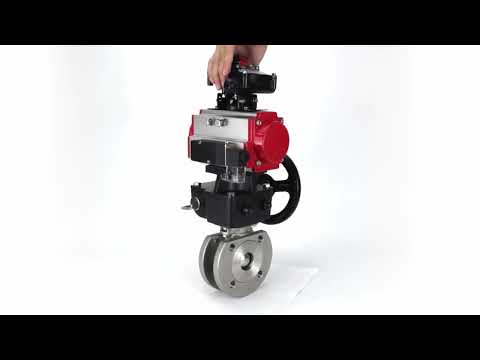

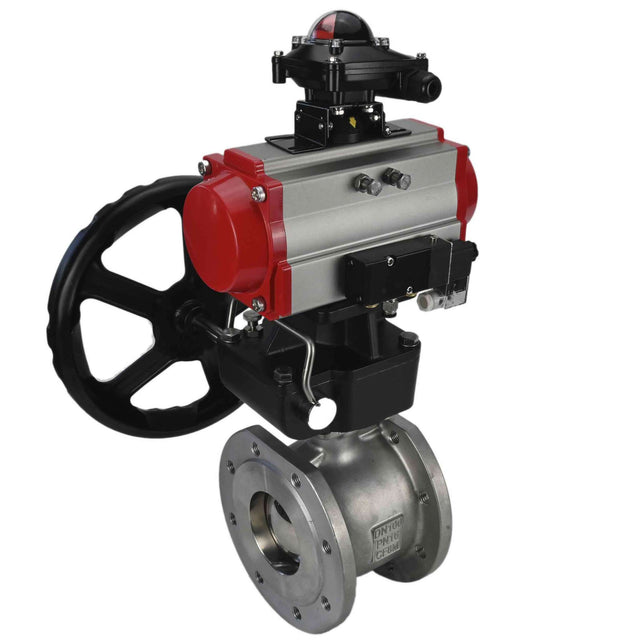

Stainless steel ball valve Elephant kchfp-elephant-da-hdm-4m310-24v-apl-210n, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated

€337,60
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.







Dimensions

DN, mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L, mm 114 120 125 130 140 150 170 180 190 325 345 400 450 500
H, mm 50 55 60 65 70 80 95 105 120 206 223 215 215 215
W, mm 112 112 136 195 195 195 265 265 265 750 750 1000 1000 1000
D, mm 89 98 108 117 127 152 178 191 229 250 285 340 405 460
f, mm 2 2 2 2 2 2 2 2 2 3 3 3 3 4
N-ØM 4- Ø 16 4- Ø 16 4- Ø 16 4- Ø 16 4- Ø 16 4- Ø 19 4- Ø 19 4- Ø 19 8- Ø 19 8- Ø 18 8- Ø 22 12- Ø22 12- Ø24 12- Ø26





Sketch of HDM gearbox (handwheel)

Reducer (manual doubler) HDM for pneumatic actuators, for 1/4 turn valve is used for controlling ball valve Elephant-KShFP.316.200 series, when it is necessary to achieve compactness of the installed equipment, as well as at high opening/closing forces of the valve.





Wiring diagram of the limit switch unit

The limit switch unit in standard version has a position indicator of the closing element (OPEN/CLOSED), IP67 weatherproof housing, standard shaft and stainless steel mounting bracket.

Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, air, oil products
  • Applications
    Water supply, Heat supply
  • Voltage
    24 V
  • Valve feedback
    Yes
  • Explosion-proof
    No
  • Torque
    3523 Nm
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    Yes
  • Manual override
    Yes
  • Limit switches
    Yes
  • Control signal
    ON/OFF

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-22309DN1540 bar €330,87 Out of stock
    D160-22310DN2040 bar €347,38 Out of stock
    D160-22311DN2540 bar €337,60 2 in stock
    D160-22312DN3240 bar €370,87 2 in stock
    D160-22313DN4040 bar €400,65 2 in stock
    D160-22314DN5040 bar €493,54 5 in stock
    D160-22315DN6516 bar €573,75 5 in stock
    D160-22316DN8016 bar €657,24 5 in stock
    D160-22317DN10016 bar €847,03 5 in stock
    D160-22318DN12516 bar €1.341,97 1 in stock
    D160-22319DN15016 bar €1.598,42 2 in stock
    D160-22320DN20016 bar €2.367,78 Out of stock
    D160-00080DN25016 bar €5.816,41 Out of stock
    D160-00082DN30016 bar €9.529,06 Out of stock
