Elephant  |  SKU: D160-37977

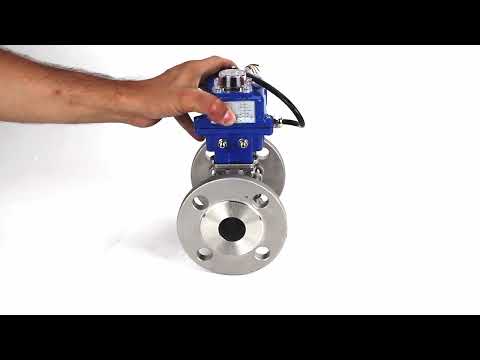

Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, electric actuator Elephant 003 blue 24 V

€186,47
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, electric actuator Elephant 003 blue 24 V - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.




Characteristics of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-24VDC-U1:

Nominal diameter, mm 15-100
Working pressure PN, bar 40
Temperature of working environment t, ⁰C from -20 to +180
Working environment Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline flanged
Type of flow section full bore
Control type Electric drive





Detail of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-24VDC-U1



Material specification of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-24VDC-U1:

No. Name Material Quantity
1 Frame SS304/SS316 1
2 Ball valve SS304/SS316 1
3 Bolt SS201/SS304 4-6
4 screw SS201/SS304 6-12
5 Sealing PTFE 1
6 Stock SS304/SS316 1
7 Seal SS201/SS304 1
8 Lid WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 Thrust washer PTFE 1
11 screw SS201/SS304 1
12 Lever SS201/SS304 1
13 Handle shell PVC 1
14 Stopper SS201/SS304 1





Overall and installation dimensions of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-24VDC-U1:

DN d D D1 D2 W f L±1.5 T H Z-øM Weight
mm pcs-mm kg
15 15 95 65 46 17 2 130 131 71 4-ø14 2,06
20 20 105 75 58 18 2 150 131 74 4-ø14 2,87
25 25 115 85 68 18 2 160 167 97 4-ø14 3,625
32 32 140 100 78 19 2 180 167 110 4-ø18 5,27
40 40 150 110 88 19 2 200 193 117 4-ø18 6,465
50 50 165 125 102 19 3 230 193 125,5 4-ø18 8,285
65 65 185 145 122 22 3 290 242 135,5 8-ø18 13
80 80 200 160 140 24 3 310 272 157 8-ø18 17,255
100 100 234 190 161 24 3 350 295 181 8-ø22 25,705

Sketch of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-24VDC-U1





Characteristics of actuators

Drive model Torque, Nm Power, W Current, A Rod size square, mm Weight, kg
Elephant-003 30 9 0.5 11x11 2.1
Elephant-005 50 10 0.5 14x14 3.6
Elephant-010 100 15 0.8 17x17 4.6
Elephant-020 200 45 2 22x22 13
Elephant-040 400 60 3 27x27 13.8
Elephant-060 600 90 3 27x27 14



Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 304/1.4301
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Electric actuator
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Water Supply, Heat Supply, Pneumatic Systems
  • Voltage
    24 V
  • Actuator cycle time
    25s
  • Valve feedback
    Limit switches
  • Explosion-proof
    No
  • Torque
    30 Nm
  • Type of electric actuator
    Quarter-turn
  • Control signal
    ON/OFF
  • Rated current consumption
    0.1 A
  • Power consumption
    25 W

Reviews (0)

Documentation
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
nullElectric quarter-turn actuator ELEPHANT QT-N-003EM-O1-x-U1 blue
