Elephant  |  SKU: D160-38494

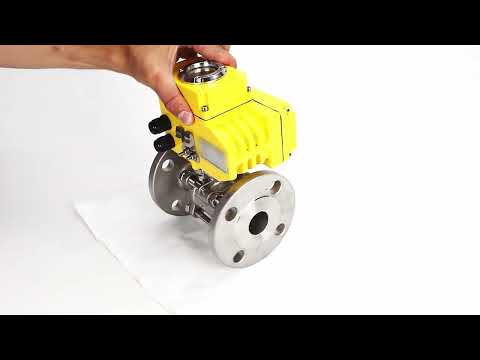

Stainless steel ball valve Elephant BVFPT-ISO.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, electric actuator Elephant-003 220 V

€151,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

The ball valve Elephant is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.





Parameters of the Elephant three-piece ball valve BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1 DN15 with actuator QT-N-EM-O1-220VAC-U1:

  • Nominal diameter DN - 15 mm
  • Nominal pressure PN - 40 bar
  • Sealing class according to GOST 54808-2011 - "A"
  • Body material - Stainless steel AISI/SS 304/08Х18Н10
  • ISO flange type of fittings - F03, F04
  • The size of the reinforcement shaft (square) is 9x9 mm
  • Ball material - Stainless steel AISI/SS 304/08Х18Н10
  • Seal type - PTFE
  • Connection - flanged
  • The type of the tap device is two-way
  • The valve ball passage is full bore
  • Water tap - no
  • Control type - Electric
  • Working environment temperature: from -20 to 180 °C
  • Environment - water, steam, petroleum products, liquid environment, neutral environment, gaseous environment
  • Country of manufacture of the drive - China
  • Application area - water supply, heat supply, pneumatic systems
  • Weight of shut-off valves - 2.08 kg
  • Drive weight - 2.1 kg
  • Total weight - 4.18 kg



Sketch of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1

Ball valve DN.ru BV3131P(3pc)-FP-F-ISO-H Du15 Ru40 three-piece made of stainless steel SS304, flanged, full bore with electric actuator DN.ru QT-N-003EM-O1-220VAC-U1

Materials of parts of the Elephant three-piece ball valve BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1 DN15 with QT-N-EM-O1-220VAC-U1 actuator:

No. Name Material Quantity
1 Frame SS304 1
2 Ball valve SS304 1
3 Bolt S201 4-6
4 screw S201 6-12
5 Sealing PTFE 1
6 Stock SS304 1
7 Seal SS201 1
8 Lid WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 Thrust washer PTFE 1
11 screw SS201 1
12 Lever SS201 1
13 Handle shell PVC 1
14 Stopper SS201 1





Sketch of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1

Ball valve DN.ru BV3131P(3pc)-FP-F-ISO-H Du15 Ru40 three-piece made of stainless steel SS304, flanged, full bore with electric actuator DN.ru QT-N-003EM-O1-220VAC-U1

Overall and installation dimensions of the three-piece ball valve Elephant BV3131P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1 DN15 with actuator QT-N-EM-O1-220VAC-U1:

  • DN - 15 mm
  • D - 95 mm
  • d - 15 mm
  • L±1.5 - 130 mm (construction length)
  • L1 - 123 mm
  • H - 113 mm





Characteristics of the electric drive QT-N-EM-O1-220VAC-U1

  • Electric drive type - Quarter-turn
  • Drive torque - 30 Nm
  • Power supply voltage - 220 V
  • Limit switches supply voltage - 220 V
  • Nominal consumption current - 0.15A
  • Opening/closing cycle time - 20 sec.
  • Housing protection rating - IP67
  • Availability of manual backup - Hexagon
  • Explosion protection of the case - no
  • Electric drive length - 123 mm
  • Electric drive width - 123 mm
  • Electric drive height - 113 mm
  • Country of origin - China
  • ISO drive flange type - F03, F05
  • Rod size, mm - 11x11

Specifications

  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 304/1.4301
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Electric actuator
  • Operating environment
    Water, air, oil products
  • Applications
    Water supply, Heat supply, Pneumatic systems
  • Voltage
    220 V
  • Actuator cycle time
    20s
  • Valve feedback
    Limit switches
  • Explosion-proof
    No
  • Torque
    30 Nm
  • Limit switches
    Yes
  • Type of electric actuator
    Quarter-turn
  • Control signal
    ON/OFF
  • Rated current consumption
    0.15 A

Reviews (0)

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-38494DN1540 bar €151,00 77 in stock
    D160-38493DN2040 bar €164,00 88 in stock
    D160-38492DN2540 bar €167,00 77 in stock
    D160-38491DN3240 bar €194,00 88 in stock
