Knife Gate Valve wafer type Elephant GVKN1331E-2W-Fb-2P 10/6 bar with – Valve Elephant
1 3
Elephant  |  SKU: D040-07518

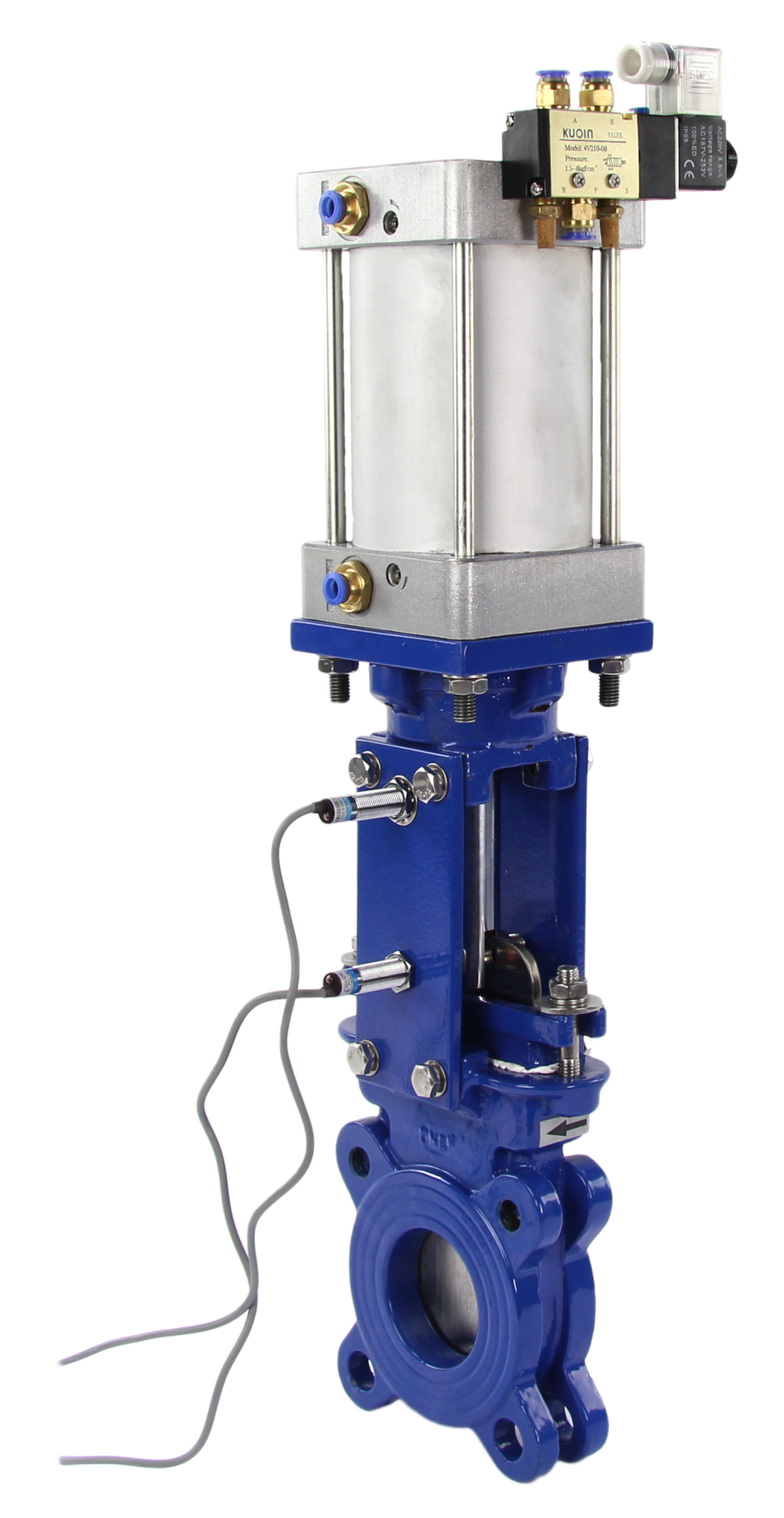

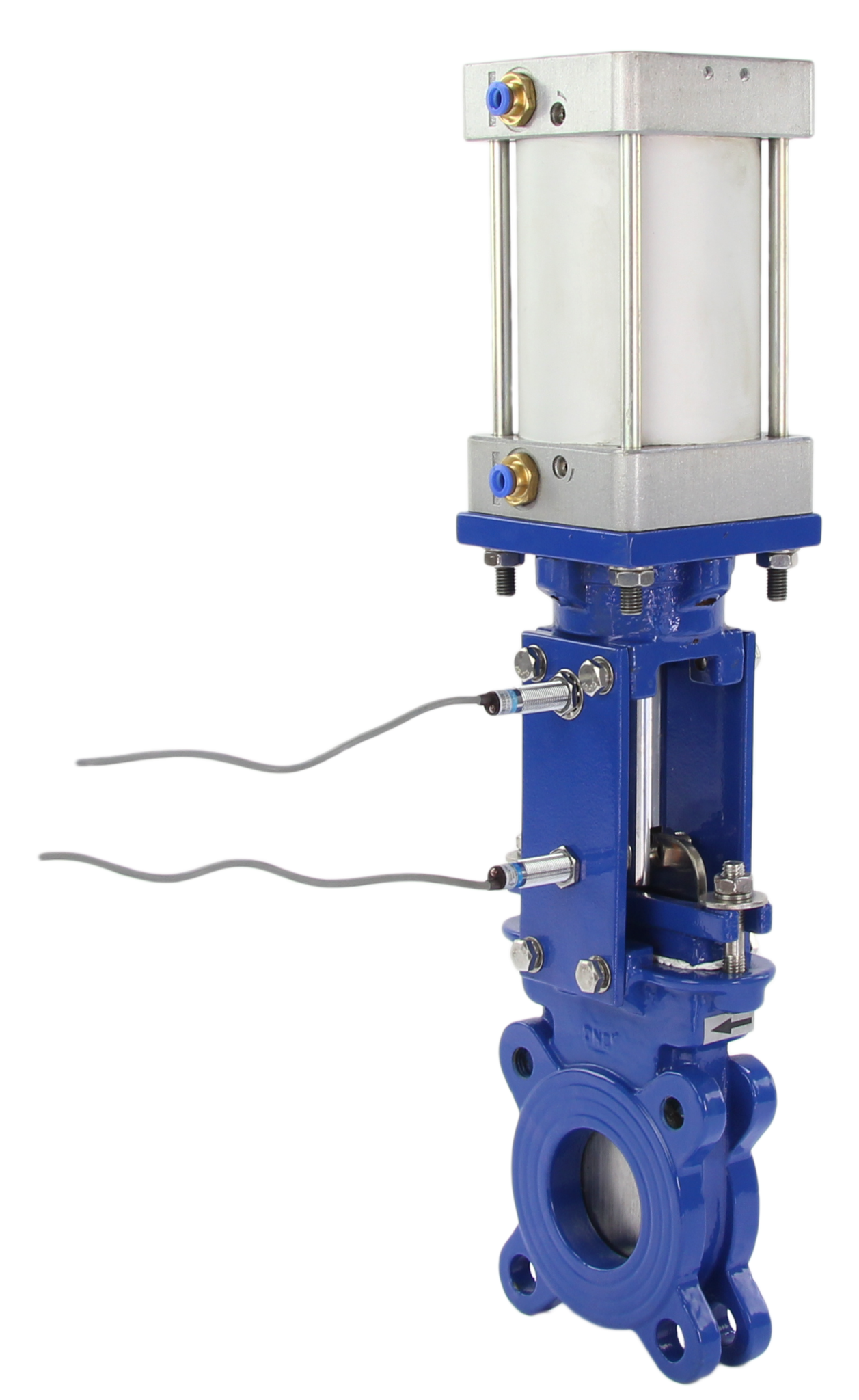

Knife Gate Valve wafer type Elephant GVKN1331E-2W-Fb-2P 10/6 bar with pneumatic actuator, 4V210-08 110/220V pneumatic solenoid valve and LJ12A3-4-J/EZ 110/220V inductive sensors

€416,27
Tax included Shipping calculated at checkout.

Knife Gate Valve wafer type Elephant GVKN1331E-2W-Fb-2P 10/6 bar with pneumatic actuator, 4V210-08 110/220V pneumatic solenoid valve and LJ12A3-4-J/EZ 110/220V inductive sensors - DN50 / 10 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

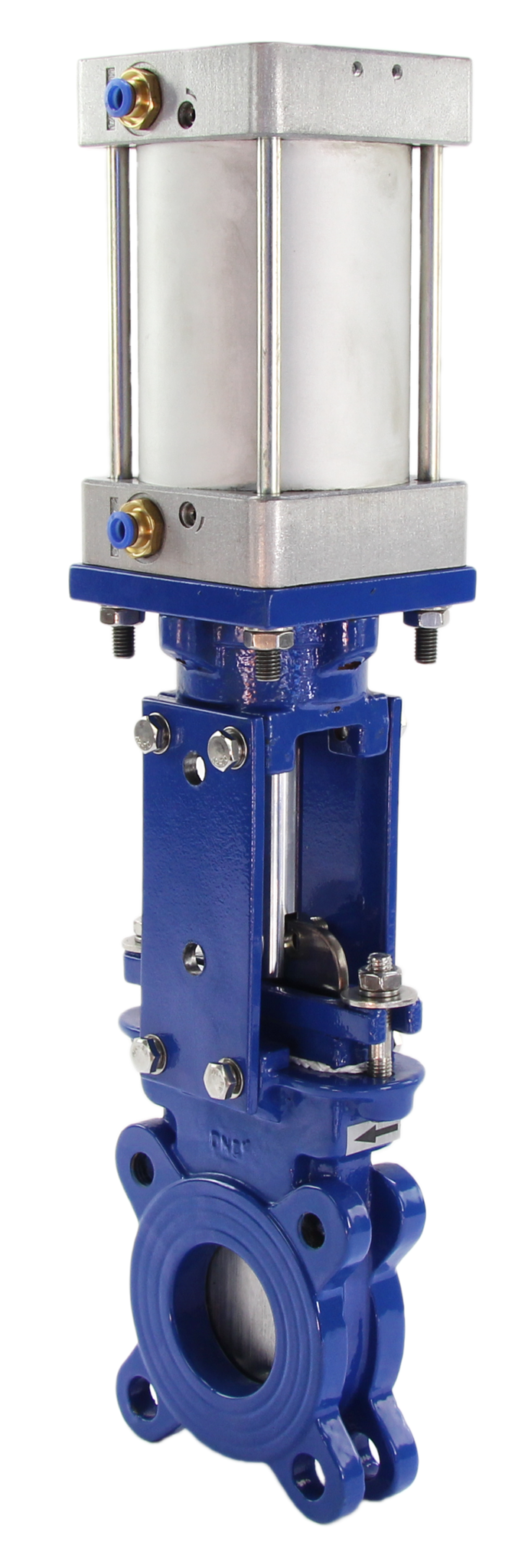

Knife Gate Valve wafer type Elephant GVKN1331E-2W-Fb-2P with pneumatic actuator and LJ12A3-4-J/EZ 220V inductive sensors designed to shut off the flow of the working medium in pipelines in sewerage systems and treatment facilities, food and mining industries. An inductive sensor is a non-contact type sensor designed to monitor the position of metal objects. They are manufactured with normally open and normally closed contacts, but there are options with both types of contacts at the same time. It works by changing the parameters of the magnetic field created by the inductor inside the sensor.





Overall and installation dimensions of the gate valve Elephant GVKN1331E-2W-Fb-2P, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator

DN L±2 ØD ØD1 ØD2 D0 Ød H N-Th, pcs-thread Weight
mm
50 48 165 125 99 80 18 455 4-М16 9
65 48 185 145 118 100 18 500 4-М16 11
80 51 200 160 132 100 18 530 8-М16 14
100 51 220 180 156 125 18 635 8-М16 17,5
125 57 250 210 184 125 18 715 8-М16 21
150 57 285 240 212 160 23 810 8-М20 29
200 70 340 295 266 160 23 955 8-М20 41
250 70 395 350 319 200 23 1090 12-М20 62
300 76 445 400 370 200 23 1225 12-М20 75

Valve sketch Elephant GVKN1331E-2W-Fb-2P, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated





Construction and materials of the gate Elephant GVKN1331E-2W-Fb-2P, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - EPDM, pneumatic actuator

№ Part name Material
1 Body Cast iron GGG40
2 Gland seal EPDM
3 Knife Steel AISI304
4 Guide PTFE
5 gland Carbon steel WCB
6, 13 Bolt Steel AISI201
7-8 Nut/Bolt Steel AISI201
9 Stem Steel AISI201
10 Split pin Steel AISI201 or WCB (DN150-300)
11 Protective plate Steel A3
12 Support plate Carbon steel WCB
14 Nut/Bolt Steel AISI201
15 Pneumatic actuator -
16 Seat seal NBR nitrile

Valve sketch Elephant GVKN1331E-2W-Fb-2P, body material - cast iron GGG40, knife material - stainless steel AISI 304, seal - NBR, handwheel operated

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG40/EN-GJS-400-15
  • Stopper Material
    Stainless steel AISI 304/1.4301
  • Maximum allowable temperature
    90 °C
  • Connection type
    Compact flanged
  • Control type
    Electric actuator
  • Operating environment
    Viscous Media, Waste Water, Water, Liquid Media, Neutral Liquids
  • Gate valve type
    Knife Gate Valve
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Coating type
    Epoxy powder
  • Explosion-proof
    No
  • Pneumatic actuator
    Yes
  • ISO - flange type
    F10
  • Supply voltage
    110/220 V
  • Telescopic rod
    No
  • Control column
    No
  • Actuator model
    Pnevmo-DA

Reviews (0)

Documentation
nullLimit switches ELEPHANT for slide gate valve induction sensors 220V or 24V
nullPneumatic valve ELEPHANT 4V210-08 spool-type
nullGate valve ELEPHANT GVKR1331E-2W-Fb-2P DN50-300 10 bar cast iron

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D040-07518DN5010 bar €416,27 0 In stock
    D040-07519DN6510 bar €363,70 Sold out
    D040-07520DN8010 bar €517,19 Sold out
    D040-07521DN10010 bar €458,09 Sold out
    D040-07522DN12510 bar €541,11 Sold out
    D040-07523DN15010 bar €563,85 Sold out
    D040-07524DN20010 bar €890,83 Sold out
    D040-07525DN25010 bar €1.252,29 Sold out
    D040-07526DN3006 bar €1.964,33 0 In stock
