Gate valves Elephant GVKR1331N-2W-Fb-2P wafer type, with rising spindl – Valve Elephant
Elephant  |  SKU: D040-09006

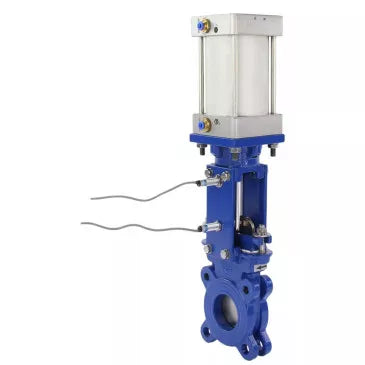

Gate valves Elephant GVKR1331N-2W-Fb-2P wafer type, with rising spindle, body - cast iron GGG40, seal - NBR, with pneumatic actuator, WENZ and induction sensors LJ12A3-4-J/EZ 220V

€487,54
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The gate valve is designed for installation on the pipeline as a shut-off device and regulation of the working medium flow in water supply systems (except drinking water supply systems) and chemical industry.

Induction sensor is a non-contact type sensor designed to control the position of objects made of metals. It is not sensitive to other materials. Induction sensors are successfully and widely used to solve many problems of process automation in production. They are manufactured with normally open and normally closed contacts, but there are variants with both types of contact simultaneously. They work by changing the parameters of the magnetic field created by the inductance coil inside the sensor.





Technical characteristics of Elephant GVKR1331N-2W-Fb-2P DN80 PN10 wafer gate valves, with a retractable spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ and inductive sensors LJ12A3-4-J/EZ 220V:

Name Meaning
Nominal pressure PN, bar 10
Connection type interflange
Wednesday water
Control type pneumatic drive
Application water supply, heat supply, industry
Gate valve type Gate valve
Working environment temperature, °C from -30 to +110





Sketch of the dimensions and sizes of the gate valves Elephant GVKR1331N-2W-Fb-2P DN80 Ru10 interflange, with a retractable spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ and inductive sensors LJ12A3-4-J / EZ 220V



Dimensions and sizes of Elephant GVKR1331N-2W-Fb-2P DN80 PN10 wafer gate valves, with retractable spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ and inductive sensors LJ12A3-4-J/EZ 220V:

Size Du80
DN, mm 80
L, mm 51
D, mm 200
D1, mm 160
D2, mm 132
D0, mm 100
H1, mm 558
G, inch 1/2″
N - Th 8 – M16
T, mm 12
Ød, mm 18
⬤, mm 2
〇, mm 6





Sketch of parts and materials of gate valves Elephant GVKR1331N-2W-Fb-2P DN80 Ru10 interflange, with a rising spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ and inductive sensors LJ12A3-4-J/EZ 220V



Table of parts and materials of gate valves Elephant GVKR1331N-2W-Fb-2P DN80 Ru10 interflange, with a rising spindle, body - cast iron GGG-40, seal - NBR, with pneumatic actuator, WENZ and inductive sensors LJ12A3-4-J/EZ 220V:

Item No. Details Material
1 Frame cast iron GGG40
2 Sealing ring NBR
3 Gate Stainless steel SS304
4 Guide seal PTFE
5 Stuffing PTFE
6 Gland packing WCB steel
7 Pin steel 45
8 Cartridge WCB steel
9 Stock steel 2Cr13
10 Rack steel Q235
11 Switch -
12 Pneumatic cylinder -
13 Solenoid valve -
14 Filter -





Technical parameters of SC pneumatic cylinders

Name Meaning
Model SC
Design double acting
Working environment compressed air
Damping adjustable
Working pressure range, bar 1-9
Operating temperature range, °C from -5 to +70





Sketch of dimensions and sizes of SC pneumatic cylinders



Dimensions and sizes of SC pneumatic cylinders

Model SC 100x100
A, mm 112
A1, mm 125
A2, mm 70
A3, mm 50
A4, mm 104
h3, mm 10
h4, mm 10
NM, mm 4-M8
nd, mm 2-Ø8.2
B, mm 112
B1, mm 75±0.5
B2, mm 32±0.5
C, mm 33
D, mm Ø100
E, mm 21
F, mm 6.2±0.1
S, mm 100±1
H, mm 126
H1, mm 34±1
H2, mm 12±0.5
H3, mm 24.5±1
d1, mm 10.2





Technical parameters of inductive sensors LJ12A3-4

Name Meaning
Design cylindrical
Sensor type induction
Current, mA 400
Operating distance, mm 4
Trigger indication There is
Degree of protection, IP 67

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG40/EN-GJS-400-15
  • Connection type
    compact flanged
  • Type of seal
    NBR
  • Disc material
    Stainless steel AISI 304
  • Limit switches
    No
