Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, di – Valve Elephant
Elephant  |  SKU: D050-82212

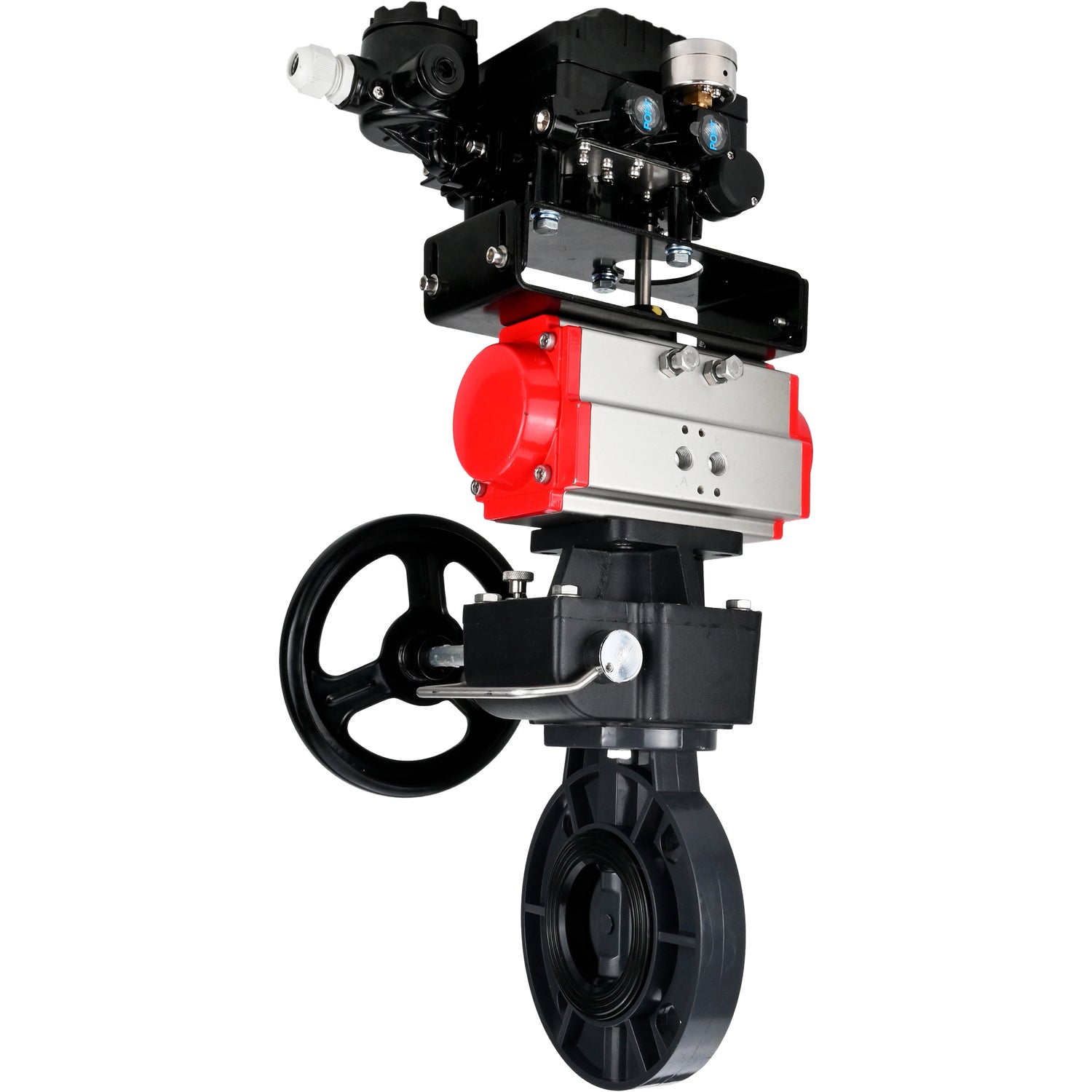

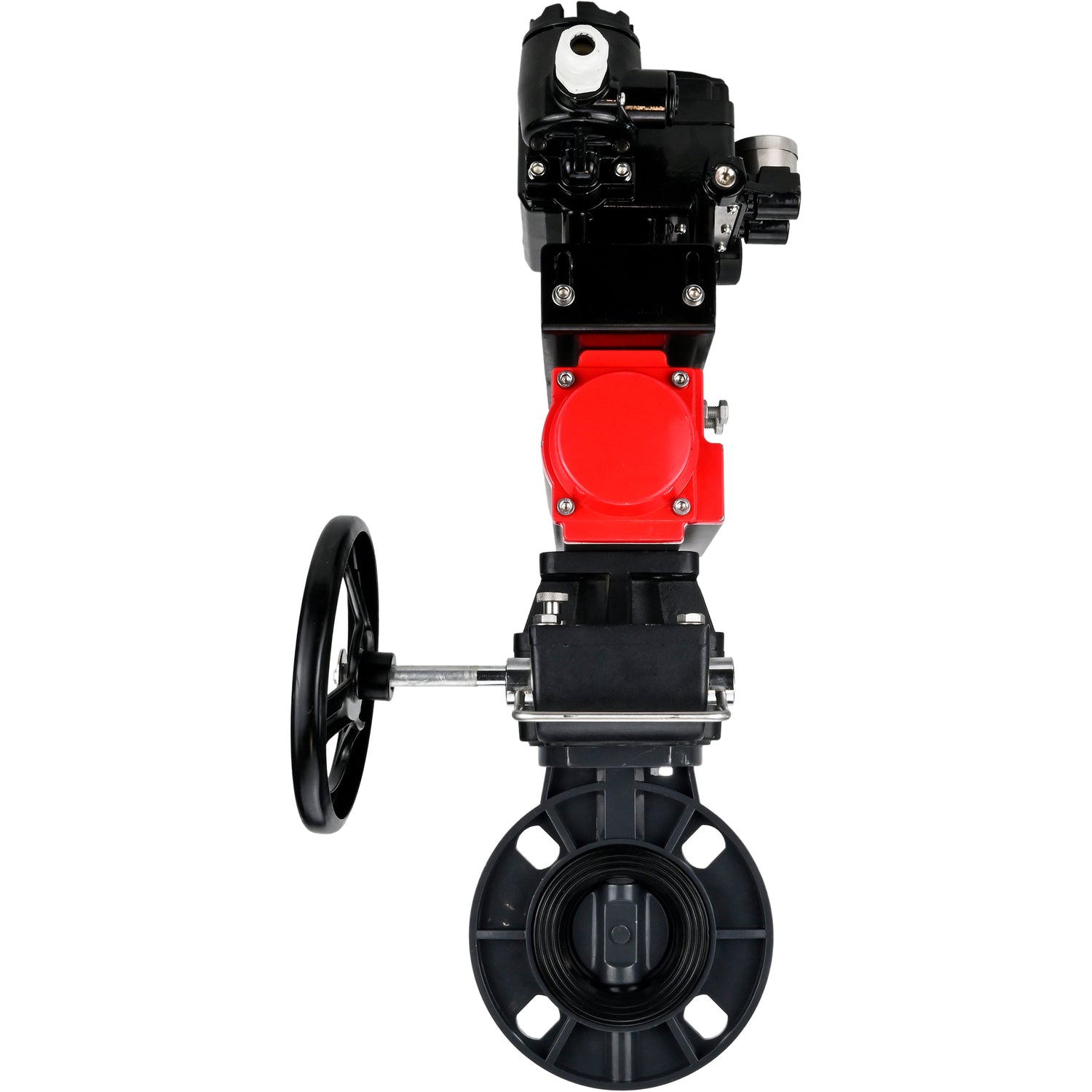

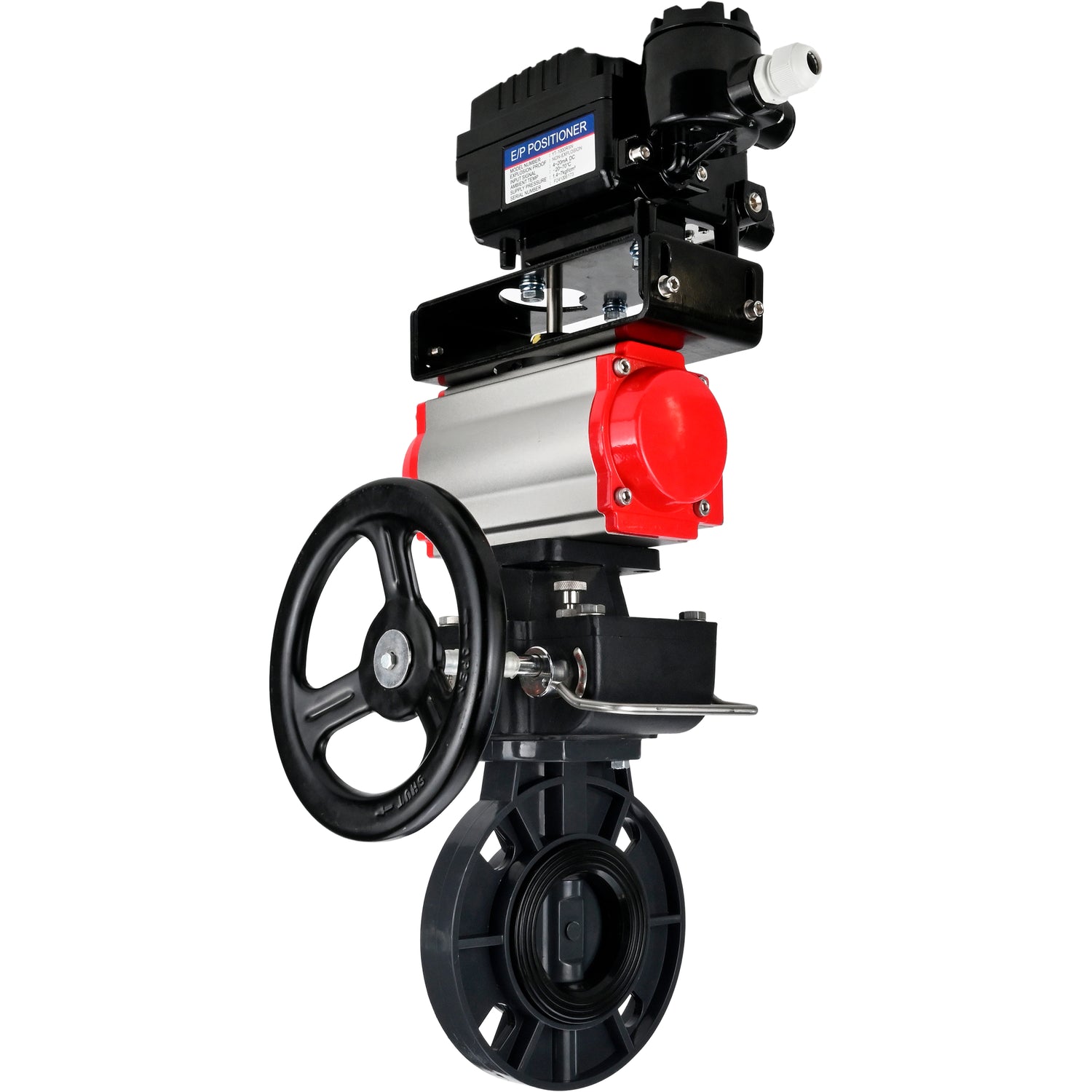

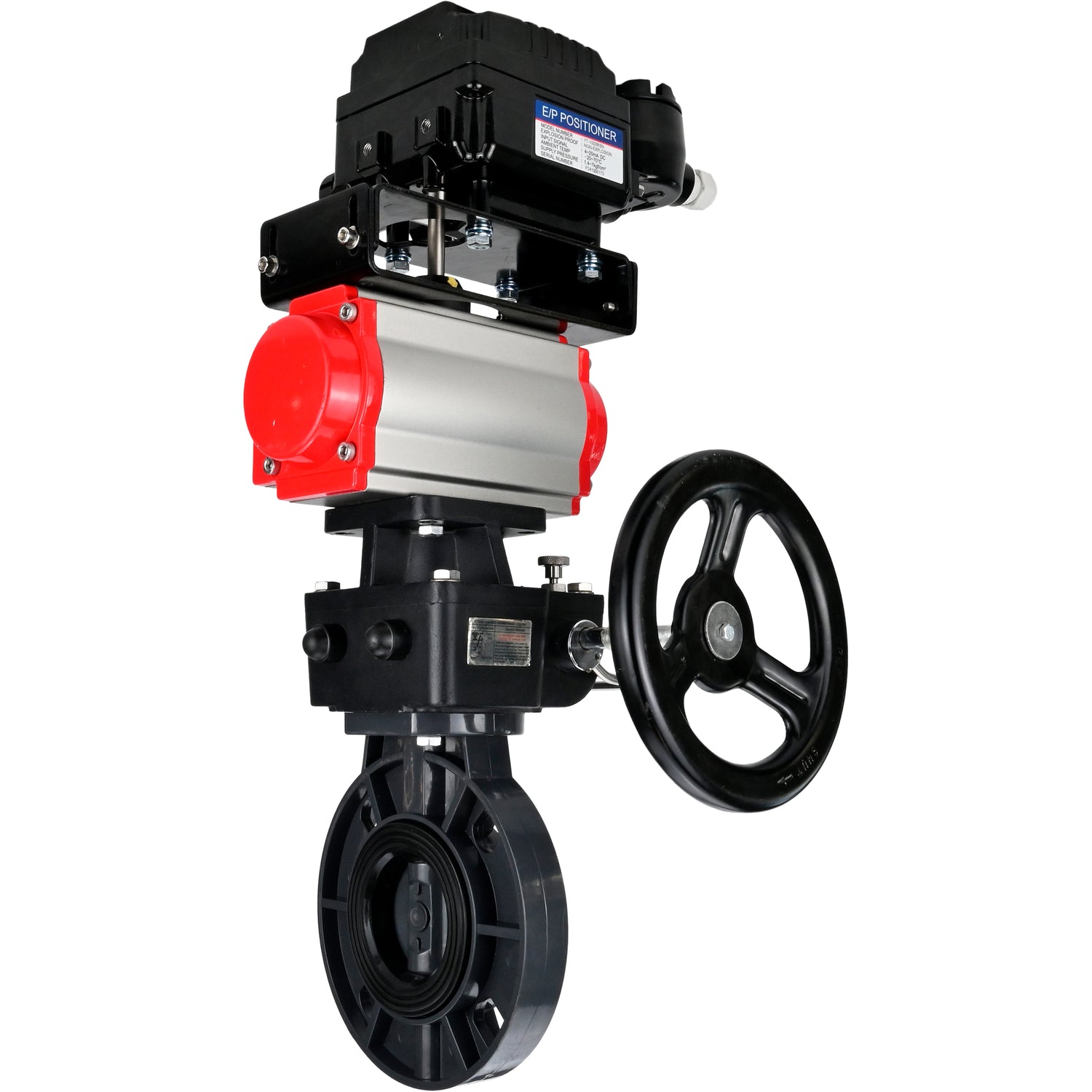

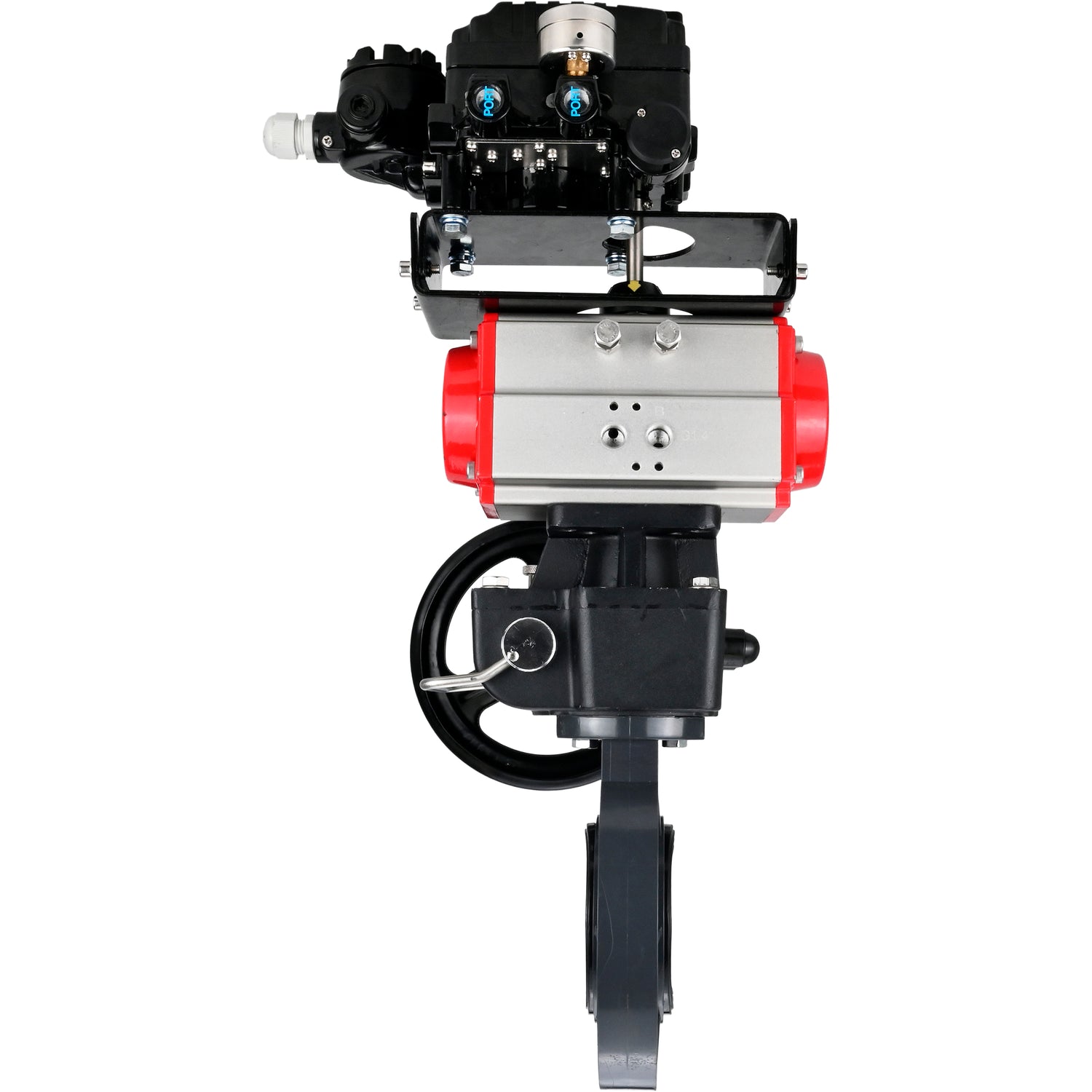

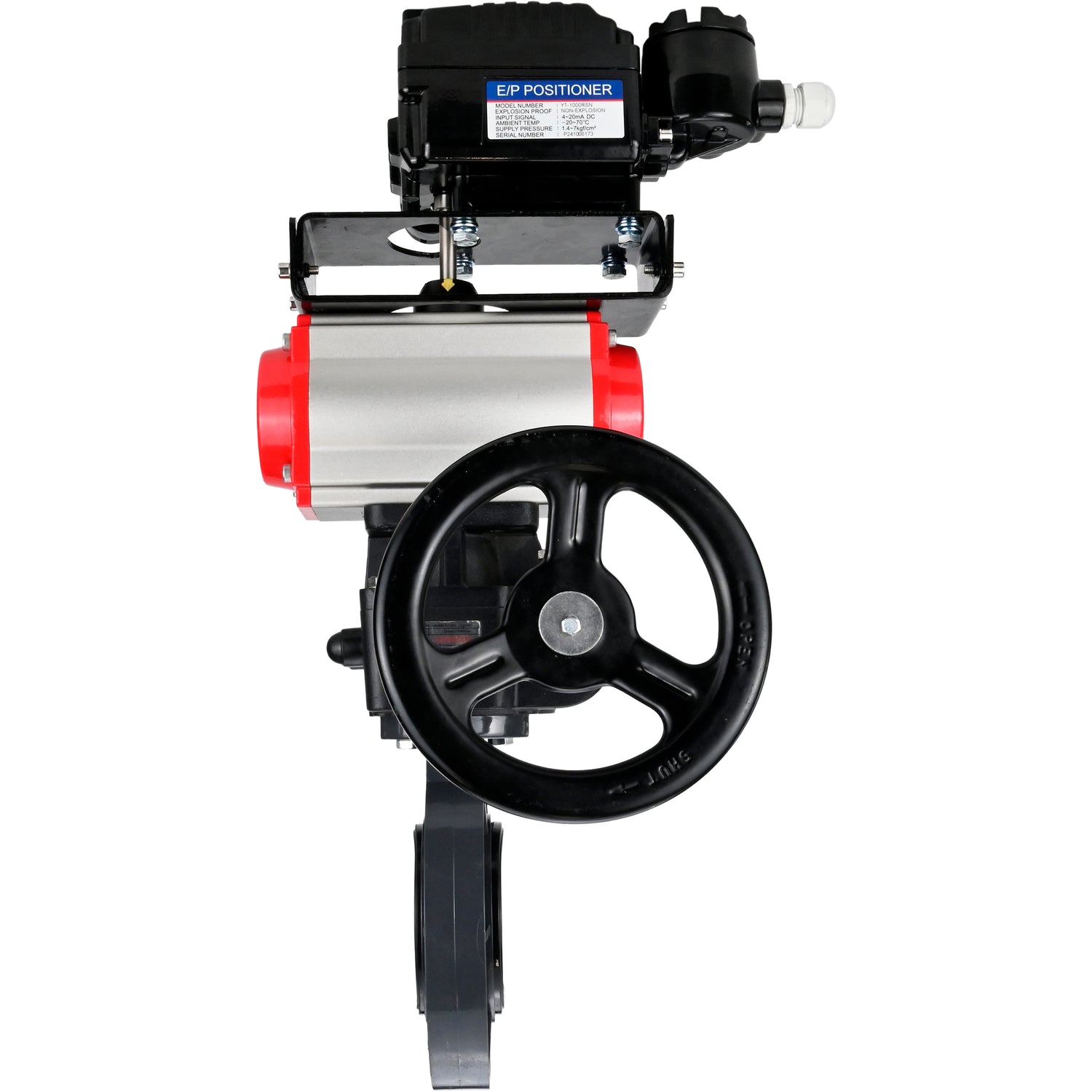

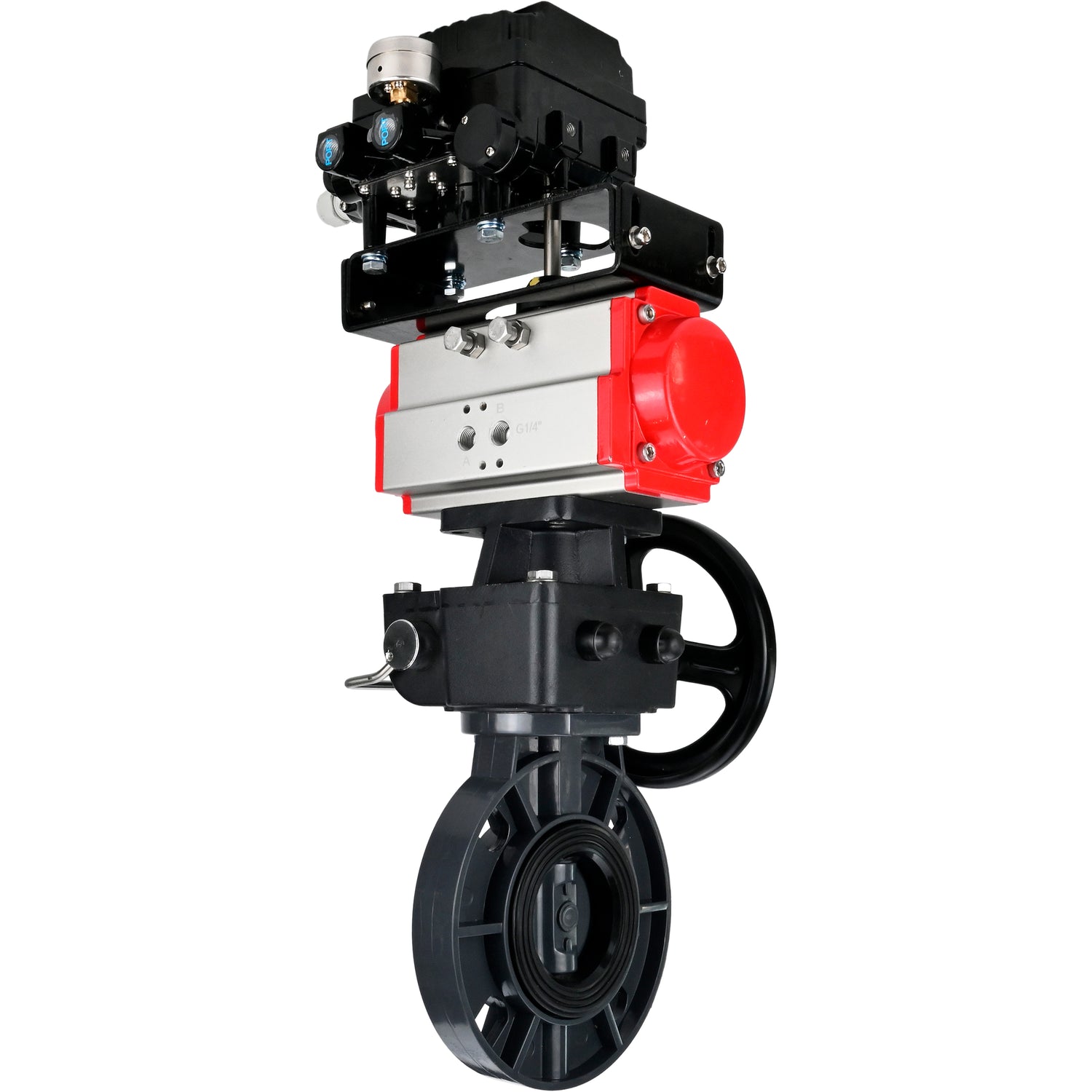

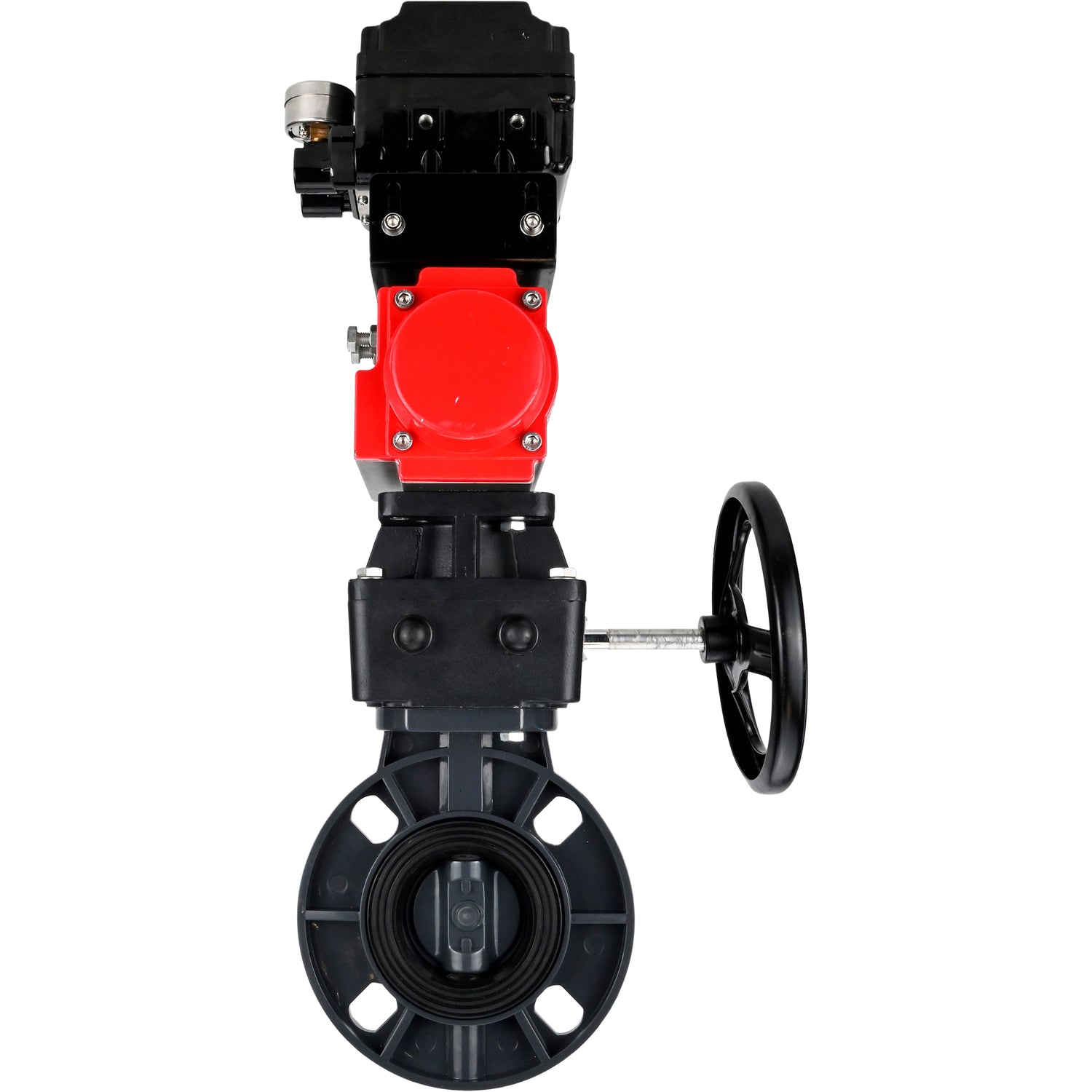

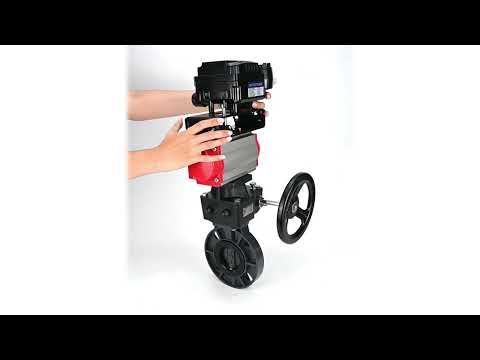

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA, electro-pneumatic rotary positioner YT-1000RSN with feedback and handwheel MON

€0,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.

PA-DA-x double-acting pneumatic actuators use two ports to supply the control medium and create movement in both directions, both to open and close the valve. One port is used to move the piston in one direction and the other port is used to move the piston in the opposite direction.

The MON worm gear manual quarter-turn doubleturn actuator with reduction gearbox allows manual adjustment of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators.

The electropneumatic rotary positioner is used for controlling pneumatic rotary actuators by means of an electric controller or a control system with an analog DC output signal with a range from 4 to 20 mA.



Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Characteristic Meaning
Gate type rotary disk
Diameter 50-200 mm
Nominal pressure 10 bar
Working medium temperature 0 to +45 °C
Application Water Supply
Operating environment Liquids, Air and Gases
Connection type Compact flanged
Control type Manual (handle, gearbox)
Sealing class A
Manufacturer's country China
Warranty 12 months

Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

Model DN50 DN65 DN80 DN100 DN125 DN150 DN200
D, mm 158 179 195 226.5 253.5 280 340
D1, mm 120.5 130.5 154 181 208 234 291.5
L, mm 45 45 48 54 63 69 89
H1, mm 98 110 131 155 169 185 231
n–Ød,
pcs-mm		 4–Ø19.3*24.5 4–Ø19.3*24.5 8–Ø20*24 8–Ø20*27 4–Ø23*27.5 4–Ø23*28 4–Ø23*28.5
ØD, mm 65 65 65 90 90 90 125
ØD1, mm 50 50 50 70 70 70 102
ØD2, mm 35.5 35.5 35.5 55.5 55.5 55.5 70.5
h, mm 3.5 3.5 3.5 3.5 3.5 3.5 3.5
H, mm 32 32 32 32 32 32 45
BxB, mm 9х9 9х9 9х9 11х11 14х14 14х14 17х17
N–Ød,
pcs-mm		 4–8 4–8 4–8 4–10 4–10 4–10 4–12

Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem





Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:

№ Part Name Material
1 Body UPVC
2 Disc UPVC
3 Seat seal EPDM
4 Rod Steel 45
5 Rod seal EPDM

Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem



Technical parameters of Elephant pneumatic drives PA-DA:

Characteristic Meaning
Pneumatic drive type double acting
Nominal pressure 12 bar
Working pressure 2-8 bar
Ambient temperature from -20 to +80 °C
Swivel angle 0-90°
Position indicator open / closed
Working environment filtered compressed air
Swivel angle adjustment ±5%
Top and air connection standard NAMUR

Pneumatic drives Elephant PA-DA



Dimensions of Elephant pneumatic drives PA-DA:

Model A,
mm		 B,
mm		 C,
mm		 D,
mm		 E,
mm		 F,
mm		 G,
mm		 H,
mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I,
mm		 J,
mm		 M,
mm		 N,
mm		 Z,
mm		 d,
mm		 K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch Pneumatic drives Elephant PA-DA



Technical parameters of Elephant electropneumatic rotary positioner YT1000RSN:

Characteristic Meaning
Control input signal 4 ~ 20 mA
Protection Class IP66
Lever travel angle 0-90°
Input pressure 1,4~7 bar / 20~100 psi
Operating temperature from -20 to +70 °C
Cable gland G1/2"
Compressed air
connection thread		 1/4"
Pressure gauge
connection thread		 1/8"
Body material aluminum casting

Electropneumatic rotary positioner Elephant YT1000RSN



Dimensions of Elephant electropneumatic rotary positioner YT1000RSN:

A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
R, mm 80.25
S, mm 62.5
Q, mm 33
T, mm 8

Sketch Electropneumatic rotary positioner Elephant YT1000RSN



Technical parameters of Elephant handwheel MON:

Characteristic Meaning
Operating mode repetitive-short-term,
reversible
Application water supply, heating,
fire extinguishing, heating stations
Place of installation between pneumatic actuator and
ball valve or gate valve
Operating temperature from -20 to +80 °C
Shaft angle 90±5°
Mounting horizontal/vertical
Working environment filtered compressed air or
non-aggressive gases, oils
Protection class IP67

Handwheel Elephant MON



Dimensions of Elephant handwheel MON:

Model MON1-
250-
T26-ISO		 MON2-
450-
T28-ISO		 MON3-
700-
T38-ISO		 MON4-
1200-
T54-ISO
mm
b1 14 17 22 27
N 22 22 28 32
b2 14 17 22 27
M 16 18 22 30
D1 50 70 102 102
4-M1 4-M6 4-M8 4-M10 4-M10
D2 70 102 125 125
4-M2 4-M8 4-M10 4-M12 4-M12
E 70*70 95*95 114*114 129*129
D3 50 70 102 125
4-Ø1 4-6.5 4-8.5 4-10.5 4-12.5
D4 70 102 125 140
4-Ø2 4-8.5 4-10.5 4-12.5 4-16.5
A 90 125 140 188.5
B 55 64 71 93
ØC 88 110 129 174
F 115 135 166 202
T 44 62.5 70 94
Y 145 178 212 280
H 120 133 180 195
S 53 56.5 68.7 84
K 10 13 12.5 15
Ø helm 180 200 280 320

Sketch Handwheel Elephant MON

Specifications
  • Country of origin
    China
  • Body material
    UPVC
  • Maximum allowable temperature
    45 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Liquids, Air and Gases
  • Applications
    Water Supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Disc material
    UPVC
  • Electropneumatic positioner
    Yes
  • Pneumatic actuator
    Yes
  • Limit switches
    No
  • Manual understudy
    Yes
  • Type of pneumatic actuator
    Double acting
  • Angle of rotation
    90°
  • Drive adjustment range
    5%

Reviews (0)

Documentation
nullButterfly valves Elephant WBV4242E-2W-Fb-ISO
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
nullHandwheel ELEPHANT MONx-x-x-ISO for pneumatic actuators and quarter-turn valves
nullElectropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback
