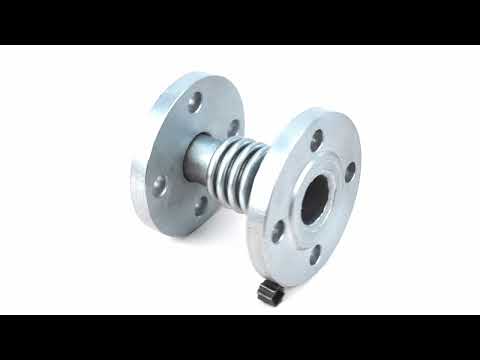

Bellows expansion joint Elephant pn16-30mm, body material - stainless steel AISI 316

€13,00
Shipping calculated at checkout.

Connection size
Pressure

Leave your email

Get notified as soon as this product is available, along with the latest updates on new collections, sales, offers, and product arrival dates.

Secure Your Preorder

Please fill out the form to submit your preorder request. Include your full name, email, phone number, shipping address, product SKU, quantity, preferred payment method, and any additional notes or questions. Thank you!

Description

Bellows expansion joints, also known as bellows expansion joints, are devices consisting of a flexible metal bellows capable of absorbing thermal expansion, compression, or angular deflection in pipelines and systems. They are used to compensate for axial, lateral, and angular movements, providing stability to the system amidst temperature and pressure fluctuations. Bellows expansion joints are typically made from specialized materials, often stainless steel, and find wide applications in various industries where compensating for thermal expansions and contractions is essential, preventing damage to pipelines and equipment.

Installation dimensions of the bellows axial compensator Elephant pn16-30mm, body material - stainless steel AISI 316

Installation dimensions of the bellows axial compensator Elephant pn16-30mm, body material - stainless steel AISI 316

Dimensional sketch of bellows axial compensator Elephant pn16-30mm, body material - stainless steel AISI 316

DN ID, mm A, mm b, mm B, mm Number and diameter of flange holes, mm L,
mm
Weight, kg
25 38 115 16 85 4-16 110 2,7
32 42 140 16 100 4-18 115 3,7
40 48 150 16 110 4-18 120 3,8
50 60 165 18 125 4-18 110 5,0
65 76 185 18 145 4-18 110 6,0
80 89 200 20 160 8-18 110 7,0
100 114 220 20 180 8-18 120 8,2
125 139 250 22 210 8-18 130 10,5
150 168 285 22 240 8-23 145 12,5
200 219 340 24 295 12-23 140 18,5
250 270 405 26 355 12-27 150 25,5
300 323 460 28 410 12-27 160 40,0

Specifications

  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    550 °C
  • Connection type
    Flanged
  • Operating environment
    Water,air,liquid medium
  • Applications
    Heating systems,irrigation systems,ventilation systems
  • Nominal pressure
    16 bar
  • Type of seal
    None
  • Compression
    15 mm

Reviews (0)

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Elephant

    Bellows expansion joint Elephant pn16-30mm, body material - stainless steel AISI 316

    From €13,00

    Bellows expansion joints, also known as bellows expansion joints, are devices consisting of a flexible metal bellows capable of absorbing thermal expansion, compression, or angular deflection in pipelines and systems. They are used to compensate for axial, lateral, and angular movements, providing stability to the system amidst temperature and pressure fluctuations. Bellows expansion joints are typically made from specialized materials, often stainless steel, and find wide applications in various industries where compensating for thermal expansions and contractions is essential, preventing damage to pipelines and equipment.
