Elephant | SKU: D160-43353

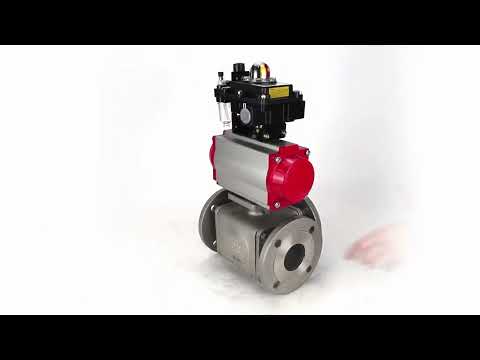

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-410N EX and ATU AF

€3.802,85

Tax included Shipping calculated at checkout.

Connection size

Pressure

Product variants

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-410N EX and ATU AF - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve, as well as for mixing and separation of medium flows in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.

Pneumatic actuators Elephant double-acting rotary actuators PA-DA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

Technical parameters of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19

Parameter	Value
Nominal Pressure PN, bar	16
Operating Medium Temperature, °C	from -25 to 180
Valve Type	Three-way
Three-Way Valve Type	L
Application	Water supply, Heating
Working Medium	Water, Steam, Petroleum products, Neutral media, Gaseous media
Pipeline Connection	Flanged
Water Draw-Off	No
Bore Type	Full bore
Tightness Class	A
Control Type	With pneumatic actuator
Connection Type	Flanged
Actuation	Double-acting pneumatic actuator
Limit Switches	Yes
Pneumatic Valve	Yes
Electropneumatic Positioner	No
Average Service Life, years	10
Warranty, years	1
Country of Manufacture	China

Dimensions and dimensions of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19

DN	d, mm	d1, mm	k, mm	D, mm	L, mm	H, mm	W, mm	T, mm
15	15	45	65	95	150	72	150	14
20	18	58	75	105	160	77	190	14
25	25	64	85	115	180	82	190	14
32	32	78	100	140	200	100	215	16
40	38	88	110	150	220	108	215	16
50	49	99	125	165	240	125	250	18
65	65	122	145	185	260	144	250	18
80	80	138	160	200	280	160	300	20
100	100	158	180	220	325	187	300	20

DN	D1, mm	D2, mm	D3, mm	D4, mm	SxS, mm	N – Z, mm	ISO 5211	Weight, kg
15	5,5	6	36	42	9х9	4 –14	F03/F04	3,5
20	6,0	7	42	50	11х11	4 –14	F04/F05	4,5
25	6,0	7	42	50	11х11	4 –14	F04/F05	5,6
32	7,0	9	50	70	14х14	4 –18	F05/F07	9,3
40	7,0	9	50	70	14х14	4 –18	F05/F07	11,65
50	9,0	11	70	102	17х17	4 –18	F07/F10	17,95
65	9,0	11	70	102	17х17	4 –18	F07/F10	26,5
80	9,0	11	70	102	19х19	8 –18	F07/F10	39,1
100	11,0	13	102	125	19х19	8 –18	F10/F12	58,5

Sketch dimensions and dimensions of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19

Table of parts and materials for ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19

№	Part Name	Material
1	Body	Stainless Steel SS316
2	Ball	Stainless Steel SS316
3	Seal	PTFE
4	Body Cover	Stainless Steel SS316
5	Bolt	Stainless Steel SS304
6	Gasket	PTFE
7	Nut	Stainless Steel SS304
8	Gasket	PTFE
9	Stem Seal	PTFE
10	Bolt	Stainless Steel SS304
11	Packing	Stainless Steel SS304

Parts and materials sketch for ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19

Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator	DA - double-acting
Nominal pressure PN, bar	12
Working pressure, bar	2...8
Working medium	filtered compressed air
Maximum particle diameter of the working medium, µm2	≤30
Ambient temperature, ⁰C	-20 to +80
Swivel angle, °	0 - 90
Swivel angle adjustment, %	±5
Position indicator	open/closed
Top connection standard	NAMUR
Air connection standard	NAMUR
Average life, cycles closed/open	70 000 (for non-aggressive media and medium pressure and temperature values)

DA pneumatic actuators double-acting rotary actuators

Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model	A, mm	B, mm	C, mm	D, mm	E, mm	F, mm	G, mm	H, mm
DA-052	30	41,5	65,5	72	92	65	30	80
DA-065	36	47	81	88	108	72	30	80
DA-083	46	57	98,5	108,7	128,7	92	30	80
DA-105	57,5	64	122,5	133	153	109,5	30	80
DA-130	67,5	74,5	145,5	155	185	127,5	30	130
DA-140	75	77	161	172	202	137,5	30	130
DA-160	87	87	184	197	227	159	30	130
DA-210	113	113	235,5	255	285	210	30	130
DA-270	147	147	299	326	356	273	30	130
DA-300	162	174	330	350	380	312	30	130
DA-350	190	195	483	410	440	365	30	130

Model	I, mm	J, mm	M, mm	N, mm	Z, mm	d, mm	K	L
DA-052	36	50	11x11	14	147	40	M5x8	M6x10
DA-065	50	70	14x14	18	168	40	M6x10	M8x13
DA-083	50	70	17x17	21	204	40	M6x10	M8x13
DA-105	70	102	22x22	26	268	40	M8x13	M10x16
DA-130	70	102	22x22	26	301	55	M8x13	M10x16
DA-140	102	125	27x27	31	390	55	M10x16	M12x20
DA-160	102	125	27x27	31	458	55	M10x16	M12x20
DA-210	-	140	36x36	40	532	80	-	M16x25
DA-270	-	165	46x46	50	718	80	-	M20x25
DA-300	-	165	46x46	50	760	80	-	M20x25
DA-350	165	254	46x46	50	920	80	M20x25	8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators

Materials of parts for DA double-acting pneumatic actuators:

№	Part name	Material
1	Indicator screw	ABS plastic
2	Position indicator	ABS plastic
3	Spring clip	stainless steel 304
4	Metal washer	stainless steel 304
5	Pressure washer	engineering plastic
6	Housing	hard anodized extruded aluminum alloy
7	Pressure washer	engineering plastic
8	Limiter	alloy steel
9	Shaft sealing ring upper	NBR
10	Upper shaft sliding ring	engineering plastic
11	Shaft	nickel plated alloy steel
12	Shaft sliding ring lower	engineering plastic
13	Shaft O-ring lower	NBR
14	Plug	NBR
15	Seal ring of adjusting screws	NBR
16	Washer of adjusting screw	stainless steel 304
17	Lock nut of adjusting screw	stainless steel 304
18	Adjusting screw	stainless steel 304
19	Piston	die-cast aluminum alloy
20	Piston guide plate	engineering plastic
21	Piston sliding ring	engineering plastic
22	Piston O-ring	NBR
23	Spring set	spring steel
24	Cover O-ring	NBR
25	End cap	cast aluminum with polyester coating
26	Cover screw	stainless steel 304
27	Stop screw	stainless steel 304
28	Adapter	carbon steel

Material sketch of DA double-acting pneumatic actuators

Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Design	Spool-type
Test pressure (body strength test. Not for operation!), bar	10
Working pressure (recommended range for normal operation), bar	1.5 ÷ 8
Valve type	5/2 five-port, two-position
Working medium	purified air (40 µm filter fineness)
Operating temperature, °C	0 to +60
Actuation frequency	5 cycles per second
Manual override	yes
Protection rating/insulation class	IP65/F
Connection to pneumatic actuator	NAMUR-compliant mounting surface (VDI/VDE3845)
Body material	anodized aluminum
Effective cross-sectional area, mm2	25 (Cv = 1.4)
Exhaust port dimensions (vent to atmosphere)	2 - PT1/4”
Air inlet port size (to pneumatic valve)	G1/4”
Air outlet port size (to pneumatic actuator)	2 x Ø19.2 mm
Response time, sec	0.05
Supply voltage, V	220AC/24DC
Coil power	220VAC – 5.5 VA/24VDC – 4.8 W
Weight, kg	0.35
Average service life, cycles	10,000,000

Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

A	C	D	E	F	G	H	I	K	L	J	N	M
mm
40	24	28	32	40	21,5	69	45	17,5	135	29,3	40	27

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

№	Part Name	Material
1	Connector	Engineering plastic
2	Nut	POM + carbon steel
3	Coil	Copper
4	Control Elements	—
5	Plate	Carbon steel
6	Piston	POM
7	Control Valve Seat	Engineering plastic
8	Valve Body	Aluminum alloy
9	Spool	Aluminum alloy
10	O-Ring Seal	HNBR
11	Rear Cover	Engineering plastic
12	Filter	Synthetic material
13	Piston	POM
14	Spring	Stainless steel
15	Manual Override	Engineering plastic
16	Rear Seat	Aluminum alloy
17	Spring Seat	Aluminum alloy
18	Type C Towing Shackle	65Mn

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Technical parameters of limit switch units Elephant APL-410N EX

Name	Value
Limit Switch Box Model	APL-410N EX
Enclosure Protection Rating, IP	65
Service Life, years	10

Dimensions and dimensions of Elephant APL-410N EX limit switch units

Model	D, mm	D1, mm	H, mm	L, mm	B, mm	M, mm
APL-410N EX	9.5	5	174	177	178	8

Sketch of dimensions and dimensions of Elephant APL-410N EX limit switch units

Technical parameters of Elephant AFC2000 air treatment units

Name	Value
Working Pressure, bar	8
Adjustable Pressure Range, bar	0.5 ÷ 9
Filtered Particle Size, μm	40 μm
Weight, kg	0.395

Dimensions and dimensions of Elephant AFC2000 air treatment units

Model	AFC2000
A, mm	162
B, mm	88
C, mm	139
D, mm	31
E, mm	53.5
F, mm	12
G, mm	8
H, mm	7
I, mm	13.3
J, mm	39
K, mm	5
L, mm	40
M, mm	32
N, mm	53
O, mm	29
P, mm	6
R, mm	41.5

Sketch of dimensions and dimensions of air treatment units Elephant AFC2000

Specifications

Country of origin

China
Port opening

full bore
Body material

Stainless steel AISI 316
Maximum allowable temperature

180 °C
Connection type

Flanged
Control type

Pneumatically actuated
Operating environment

Water, Steam, Petroleum Products, Neutral Media, Gaseous Media
Type of seal

PTFE
Voltage

220V
Explosion-proof

have
Torque

157 Nm
Limit switches

have
Type of pneumatic actuator

double action

Reviews (0)

Documentation

Air treatment unit AFC2000 ELEPHANT

Data sheet for limit switch unit Elephant APL-410N EX

Pneumatic valve ELEPHANT 4M310-08 spool type

Ball valve ELEPHANT BV32xP 4pc -SP-3x-T-ISO-H

Ball valve ELEPHANT BV3232P 4pc -FP-3x-F-ISO-H
