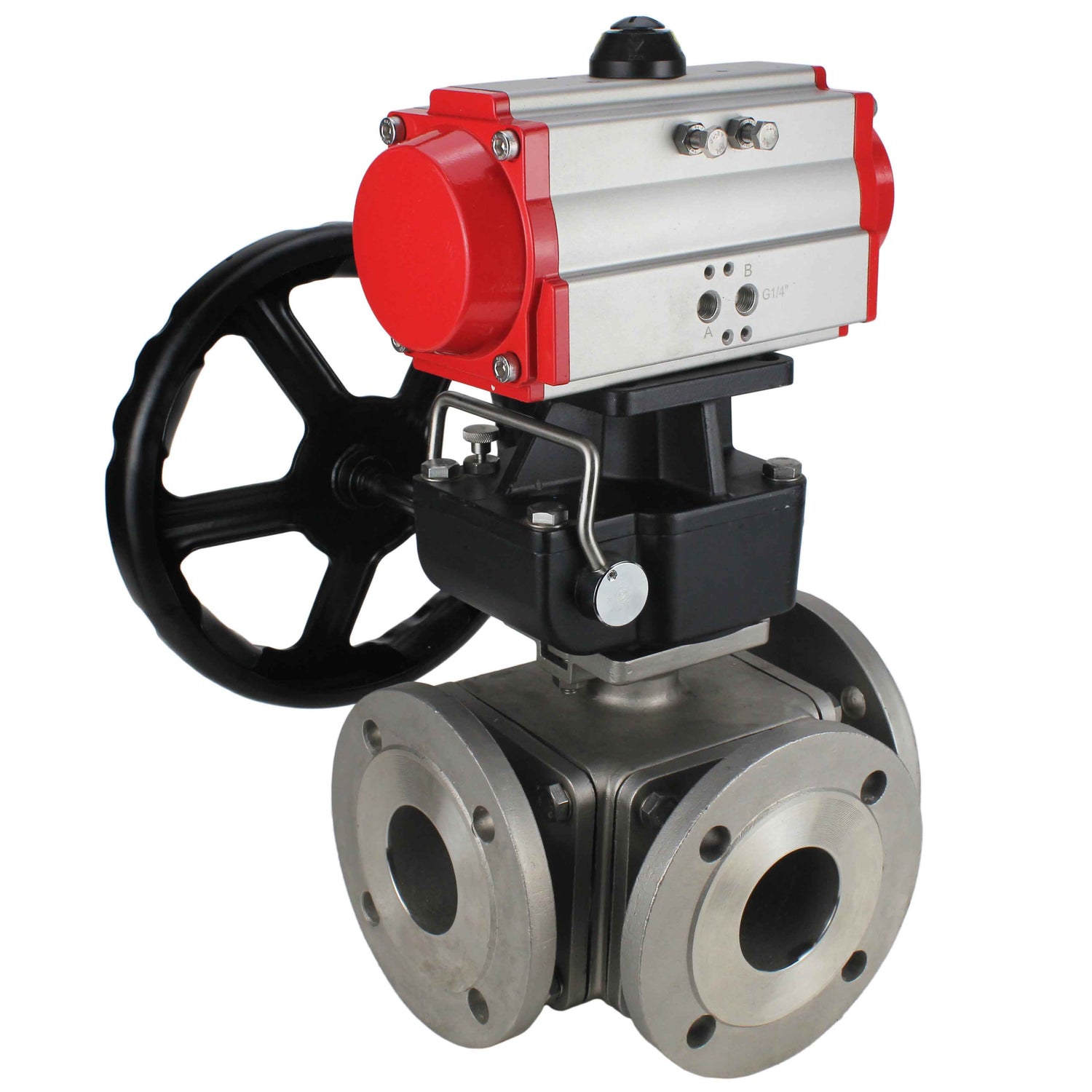

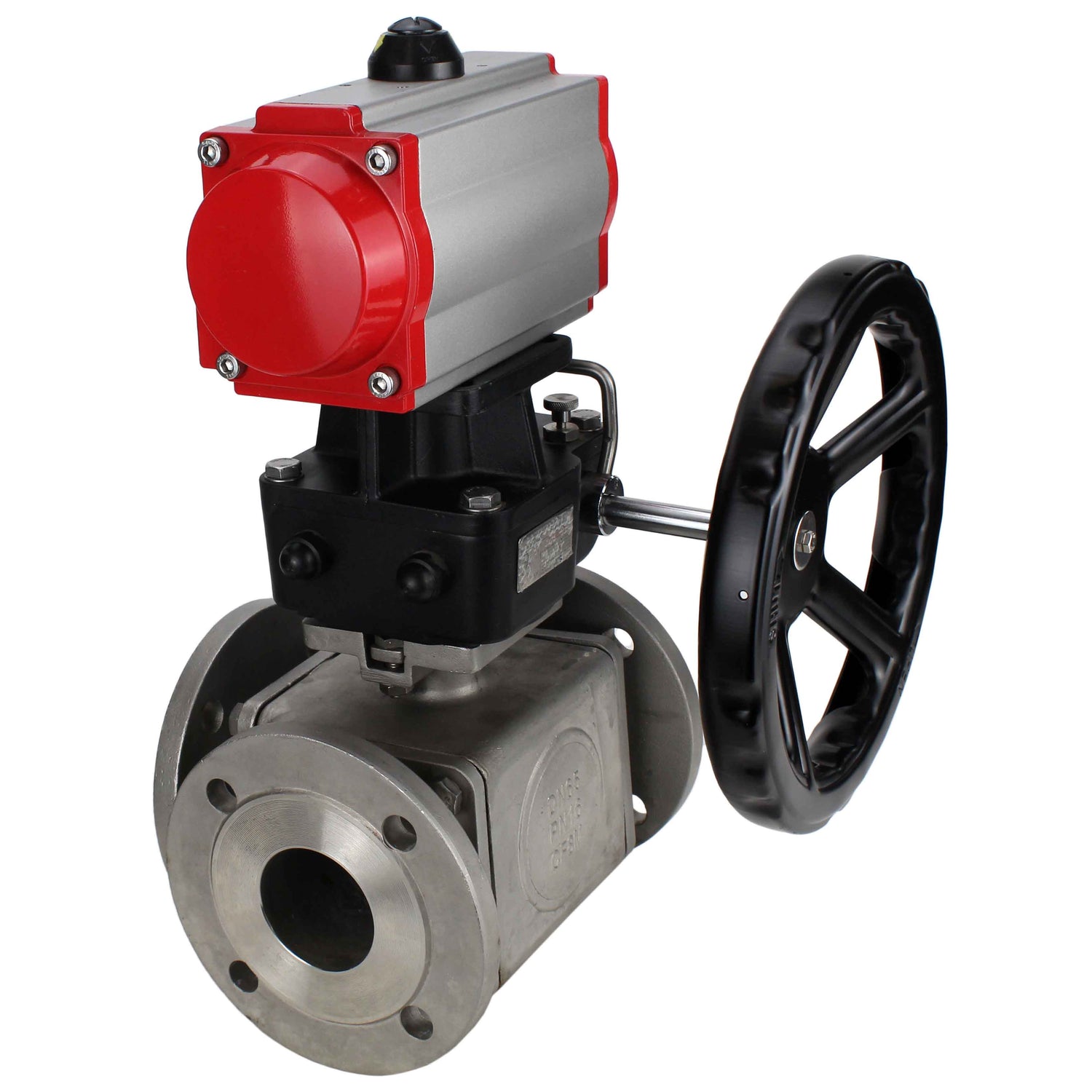

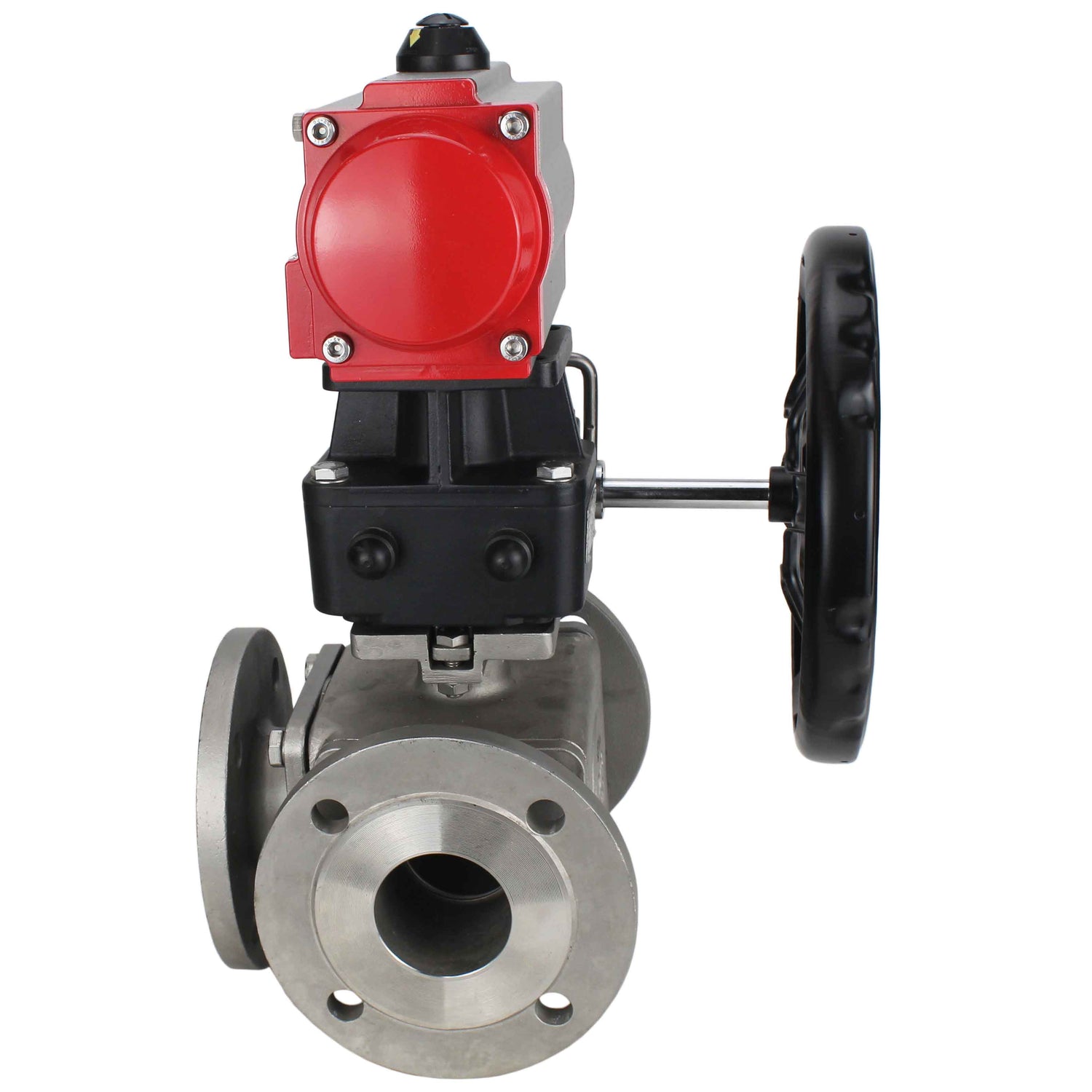

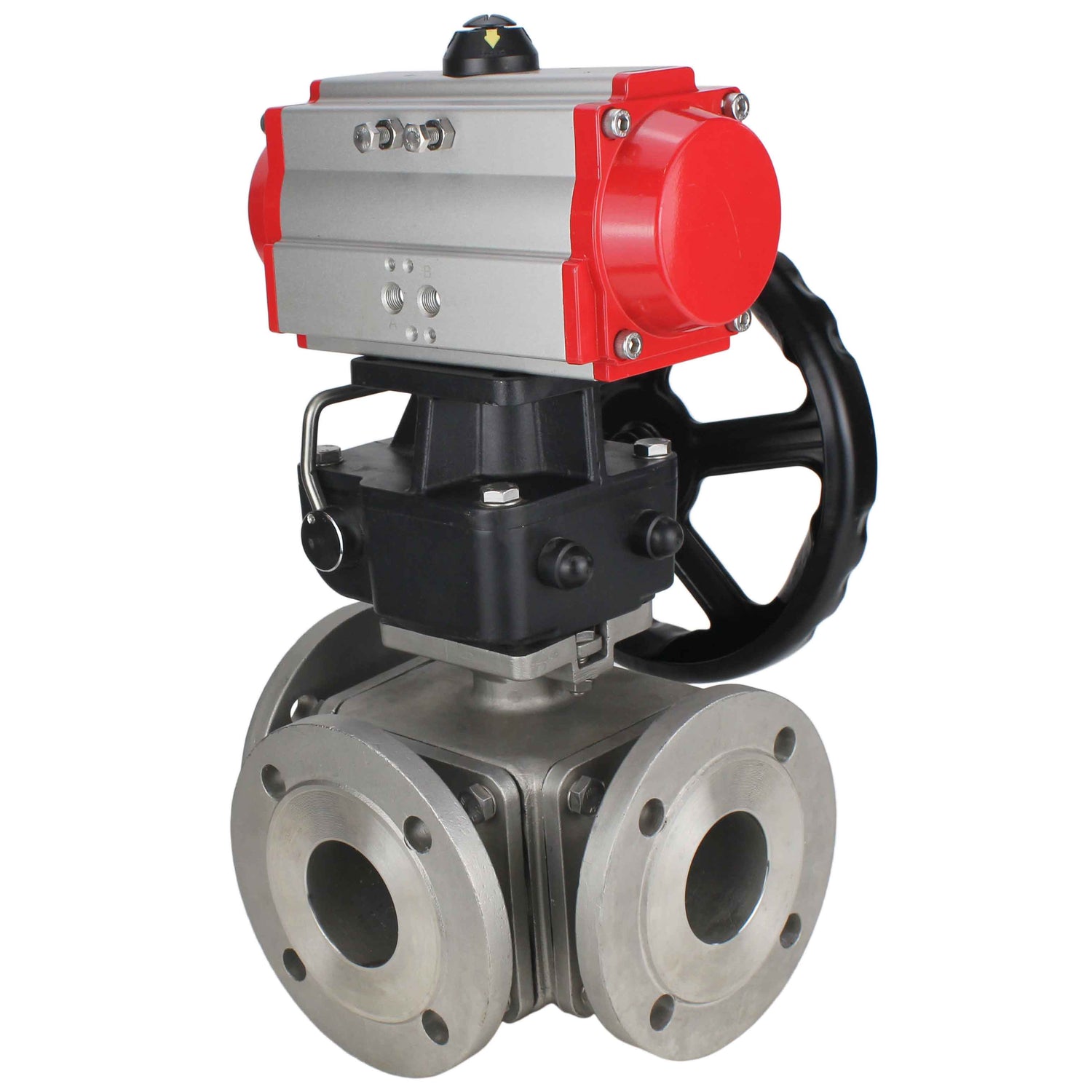

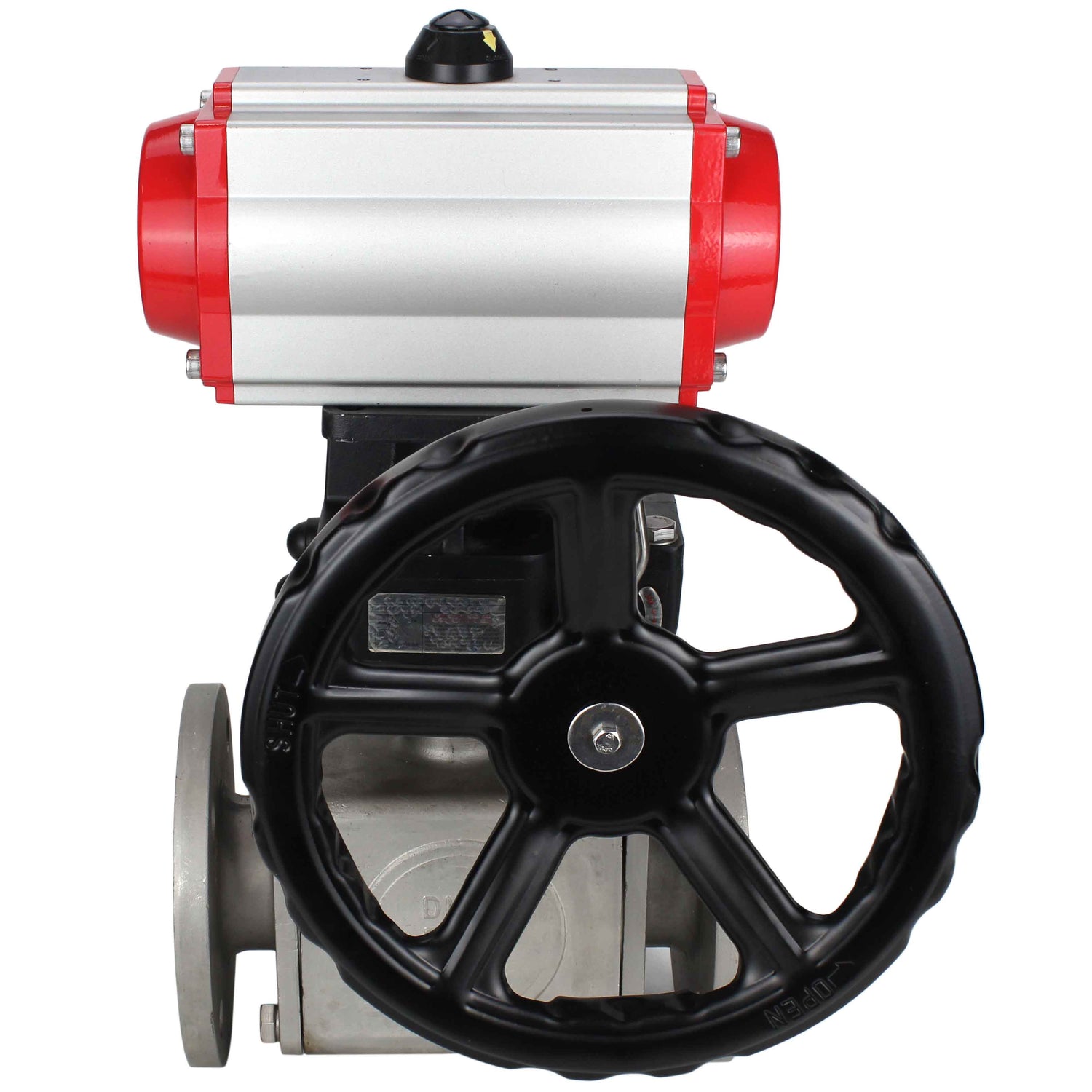

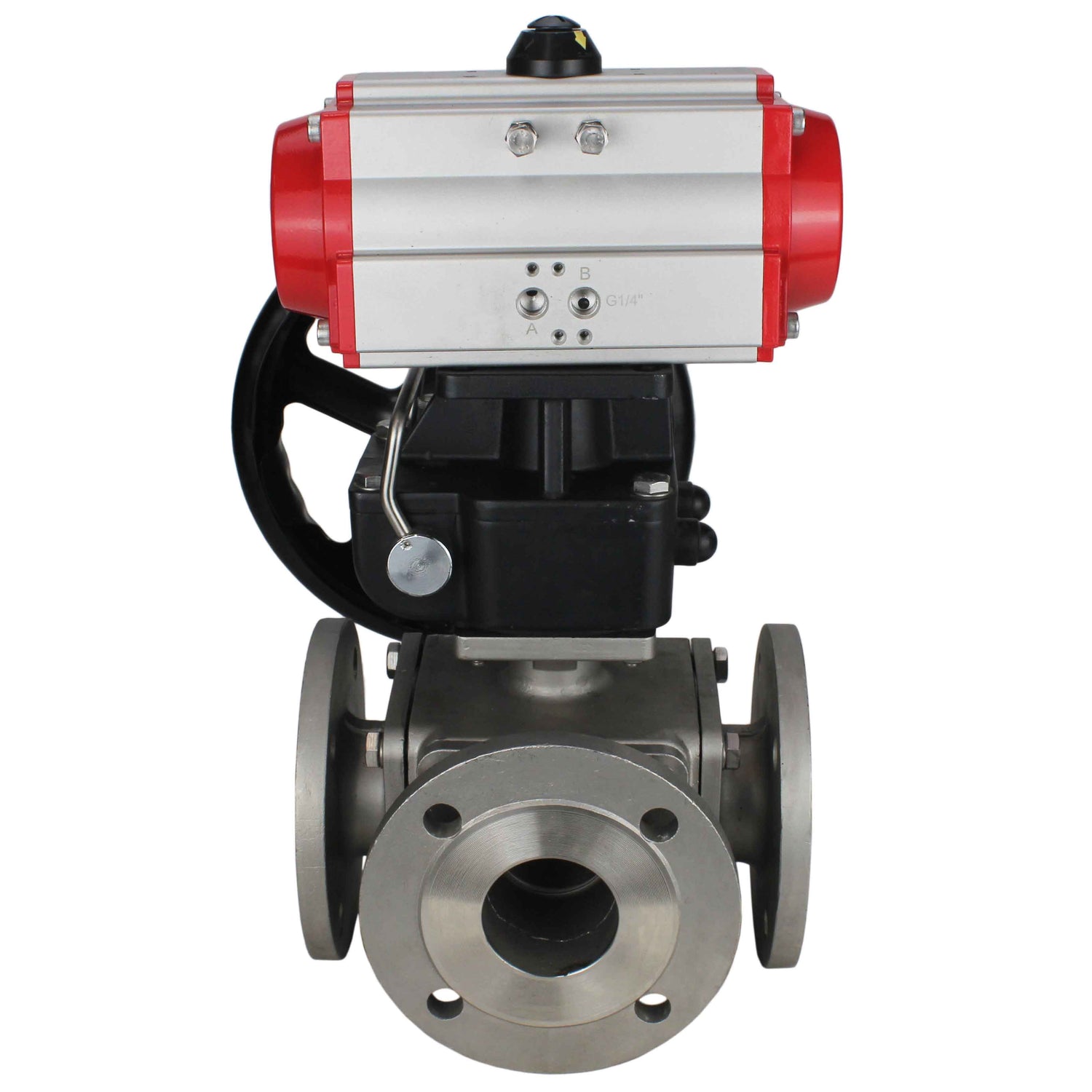

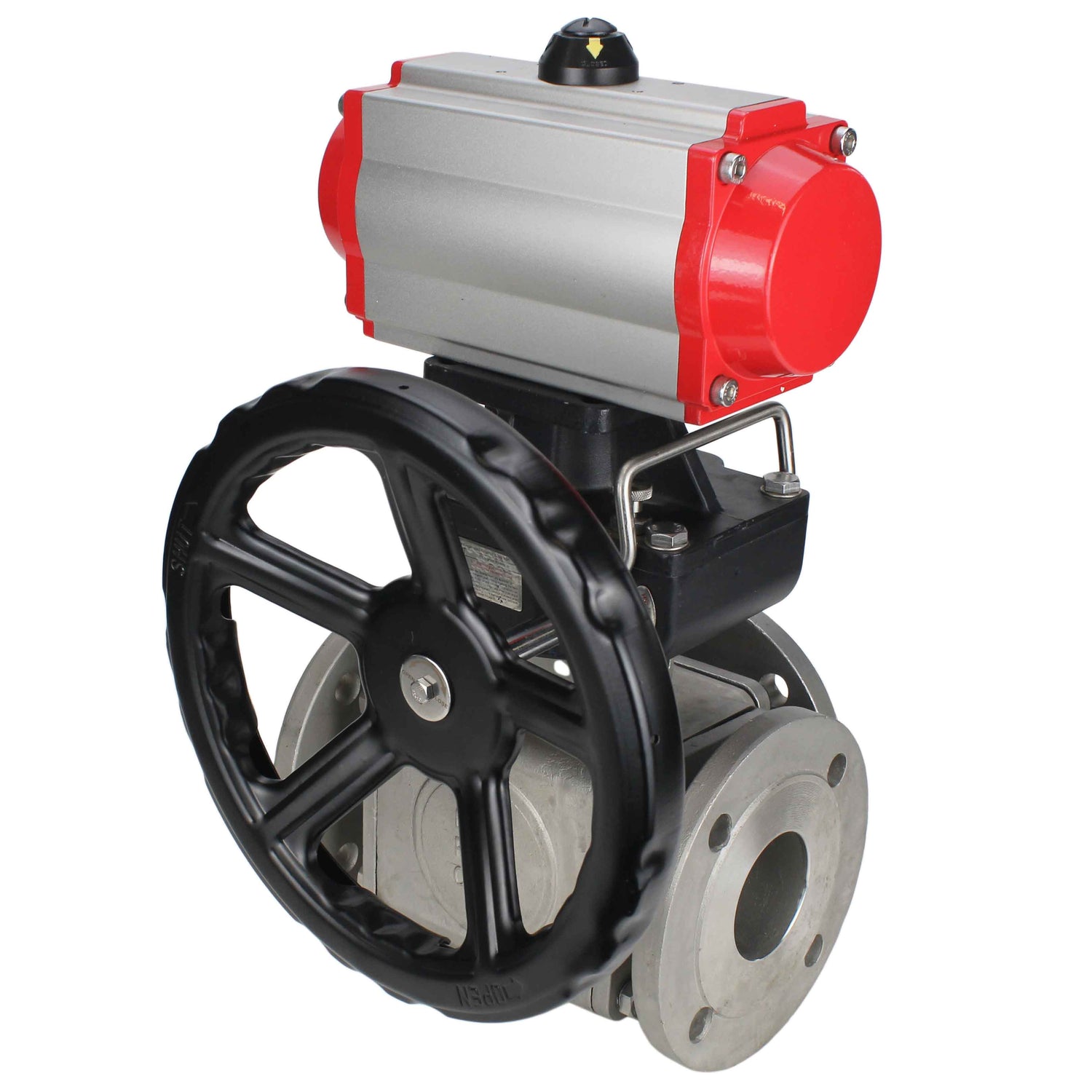

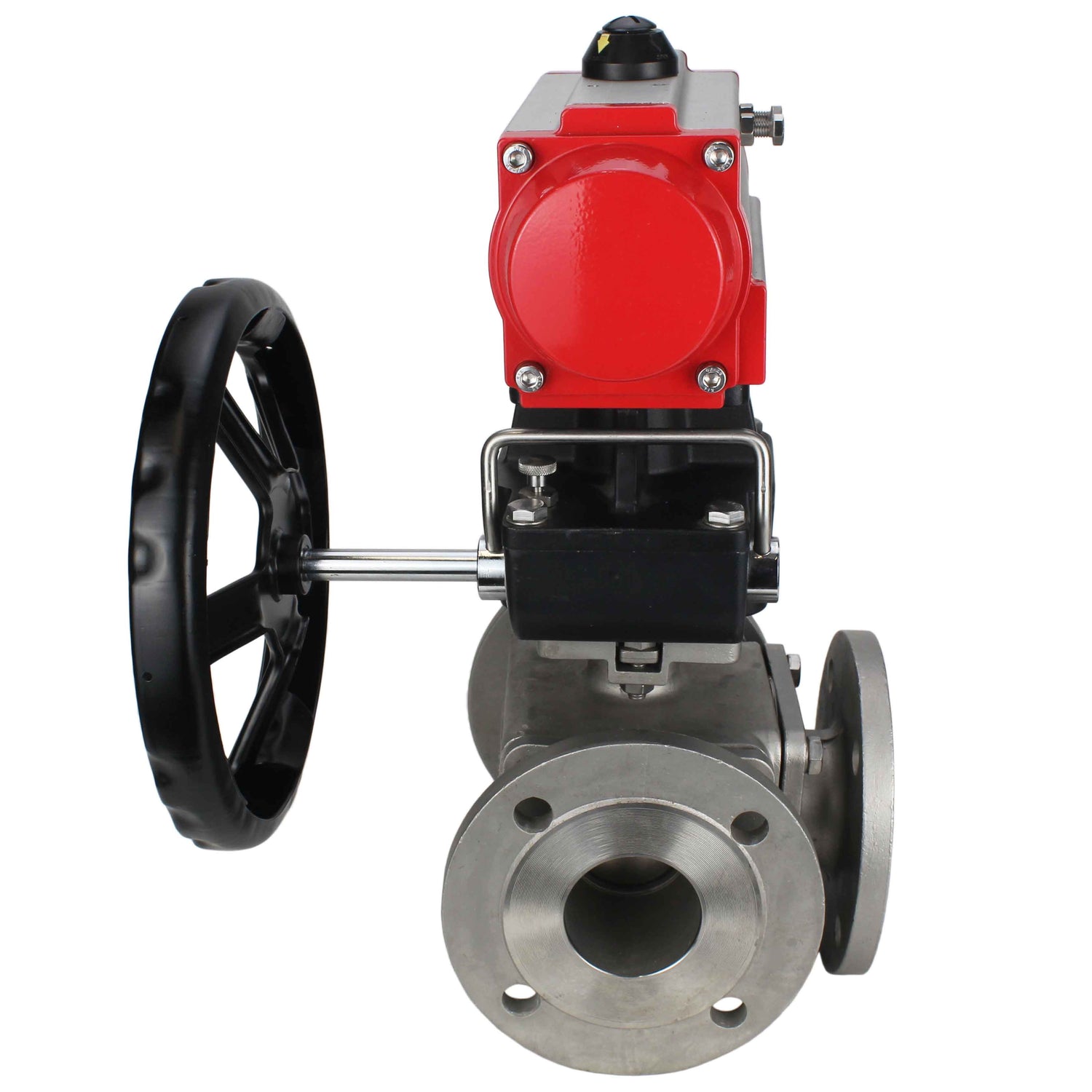

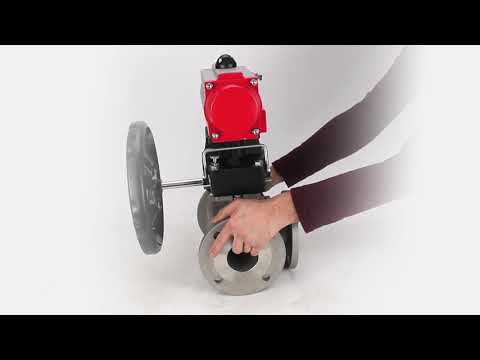

Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive Elephant PA-DA double action and manual Doubler MON3-700-T38-ISO
Ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive Elephant PA-DA double action and manual Doubler MON3-700-T38-ISO - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The ball valve is used as a shut-off valve, as well as for mixing and separating the working medium flows in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials.
Pneumatic actuators Elephant double-acting rotary PA-DAXXX are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.
The MONx-x-Tx-ISO manual override with worm gear and reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution for the entire range of manual override tasks.
Technical parameters of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive Elephant PA-DA double action and manual Doubler MON3-700-T38-ISO
| Name | Meaning |
| Nominal pressure PN, bar | 16 |
| Working environment temperature, °C | from -25 to 180 |
| Type of crane device | three-way |
| Three-way valve type | L |
| Application | water supply, heat supply |
| Working environment | water, steam, petroleum products, neutral media, gaseous media |
| Connection to the pipeline | flanged |
| Water intake | No |
| Type of flow section | full bore |
| Control type | With pneumatic drive |
| Joining | flanged |
| Control | double acting pneumatic actuator |
| Availability of limit switches | No |
| Availability of pneumatic distributor | No |
| Availability of electropneumatic positioner | No |
| Average service life, years | 10 |
| Warranty, g. | 1 |
Sketch of overall dimensions and sizes of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive Elephant PA-DA double action and manual Doubler MON3-700-T38-ISO
Dimensions and sizes of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive Elephant PA-DA double action and manual Doubler MON3-700-T38-ISO
| Size | L, mm | ØD, mm | ØD1, mm | ØD2, mm | A, mm | E, mm | H1, mm |
| DN15 | 150 | 95 | 65 | 45 | 153 | 72 | 120 |
| DN20 | 160 | 105 | 75 | 58 | 153 | 72 | 120 |
| DN25 | 180 | 115 | 85 | 64 | 153 | 72 | 120 |
| DN32 | 200 | 140 | 100 | 78 | 153 | 72 | 120 |
| DN40 | 220 | 150 | 110 | 88 | 174 | 89 | 120 |
| DN50 | 240 | 165 | 125 | 99 | 174 | 89 | 120 |
| DN65 | 260 | 185 | 145 | 122 | 216 | 109 | 133 |
| DN80 | 280 | 200 | 160 | 138 | 279 | 134 | 180 |
| DN100 | 325 | 220 | 180 | 158 | 279 | 134 | 180 |
Sketch of parts and materials of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive Elephant PA-DA double action and manual Doubler MON3-700-T38-ISO
Table of parts and materials of ball valves Elephant BV3232P(4pc)-FP-3WL-F-ISO-H 16 bar full bore, flanged, body - stainless steel SS316, ISO flange F03/F04-F10/F12, square 9x9-19x19, with pneumatic drive Elephant PA-DA double action and manual Doubler MON3-700-T38-ISO
| Item No. | Part name | Material |
| 1 | Frame | Stainless steel SS316 |
| 2 | Ball | Stainless steel SS316 |
| 3 | Sealing | PTFE |
| 4 | Case cover | Stainless steel SS316 |
| 5 | Bolt | Stainless steel SS304 |
| 6 | Pad | PTFE |
| 7 | screw | Stainless steel SS304 |
| 8 | Pad | PTFE |
| 9 | Rod seal | PTFE |
| 10 | Bolt | Stainless steel SS304 |
| 11 | Seal | Stainless steel SS304 |
Pneumatic drives Elephant
Technical parameters of pneumatic drives Elephant
| Name | Meaning |
| Design | double acting |
| Control pressure, bar | 2 ÷ 8 |
Sketch of dimensions and sizes of pneumatic actuators Elephant
Dimensions and sizes of pneumatic actuators Elephant:
| Drive model | DA-052 | DA-065 | DA-083 | DA-105 |
| G, mm | 15 | 15 | 15 | 25 |
| Mmm | 80 | 80 | 80 | 80 |
| N, mm | 30 | 30 | 30 | 30 |
| F0, mm | 34 | 34 | 34 | 41 |
| R, mm | 20 | 20 | 20 | 20 |
| B1, mm | 153 | 174 | 216 | 279 |
| C, mm | 30 | 36 | 46 | 55 |
| E, mm | 72 | 89 | 109 | 134 |
| J | 4-M5x8 | 4-M6x10 | 4-M6x10 | 4-M8x12 |
| TO | 4-M6x10 | 4-M8x12 | 4-M8x12 | 4-M10x16 |
| F, mm | 26 | 26 | 26 | 26 |
| A1, mm | 108 | 125 | 152 | 189 |
| D, mm | 41 | 46 | 55 | 64 |
| L, mm | 11x11 | 14x14 | 17x17 | 22x22 |
| H | F03 | F05 | F05 | F07 |
| I | F05 | F07 | F07 | F10 |
Table of parts and materials of pneumatic drives Elephant:
| No. | Name | Quantity | Material | Coating |
| 1 | Frame | 1 | extruded aluminum | hard anodized |
| 2 | Side plugs | 2 | cast aluminum | |
| 3 | Gear | 1 | stainless steel | nickel plated |
| 4 | Piston | 2 | steel/aluminum | oxidation/galvanic zinc plating |
| 5 | Plugs | 8 | stainless steel | |
| 6 | Piston ring | 2 | NBR | |
| 7 | Springs | 0-12 | spring steel | epoxy coating |
| 8 | Piston bearing | 2 | engineering plastic | |
| 9 | Piston ring | 2 | NBR | |
| 10 | Plug | 2 | NBR | |
| 11 | Thrust ring | 2 | engineering plastic | |
| 12 | Ring | 1 | engineering plastic | |
| 13 | Washer | 1 | stainless steel | |
| 14 | Spring clamp | 2 | stainless steel | |
| 15 | Indicator | 1 | plastic | |
| 16 | Indicator housing | 1 | plastic | |
| 17 | Bearing | 1 | engineering plastic | |
| 18 | Cam | 1 | steel | oxidation/galvanic zinc plating |
| 19 | Bearing | 1 | NBR | |
| 20 | Bearing | 1 | engineering plastic | |
| 21 | Bearing | 1 | engineering plastic | |
| 22 | Sealing ring | 2 | NBR | |
| 23 | Sealing ring | 2 | NBR | |
| 24 | Bearing | 2 | stainless steel | |
| 25 | Adjusting nut | 2 | stainless steel | |
| 26 | Adjustment screw | 2 | stainless steel | |
| 27 | Sleeve | 2 | aluminum |
Manual backups Elephant MON1-250-T26-ISO, MON2-450-T28-ISO, MON3-700-T38-ISO
Technical parameters of manual backup valves Elephant MON1-250-T26-ISO, MON2-450-T28-ISO, MON3-700-T38-ISO
| Name | Meaning |
| Manual backup model | MON1-250-T26-ISO,MON2-450-T28-ISO,MON3-700-T38-ISO |
| Climate performance | U, UHL, T, OM |
| Installation method | horizontal/vertical |
| Degree of protection, IP | 67 |
| Connection type | ISO 5211 |
Sketch of dimensions and sizes of manual backups Elephant MON1-250-T26-ISO, MON2-450-T28-ISO, MON3-700-T38-ISO
Dimensions and sizes of manual backup valves Elephant MON1-250-T26-ISO, MON2-450-T28-ISO, MON3-700-T38-ISO:
| Model | MON1-250-T26-ISO | MON2-450-T28-ISO | MON3-700-T38-ISO |
| b1, mm | 14 | 17 | 22 |
| N, mm | 22 | 22 | 28 |
| b2, mm | 14 | 17 | 22 |
| M, mm | 16 | 18 | 22 |
| D1, mm | Ø50 | Ø70 | Ø102 |
| 4-M1, mm | 4-M6 | 4-M8 | 4-M10 |
| D2, mm | Ø70 | Ø102 | Ø125 |
| 4-M2, mm | 4-M8 | 4-M10 | 4-M12 |
| E, mm | 70x70 | 95x95 | 114x114 |
| D3, mm | Ø50 | Ø70 | Ø102 |
| 4-Ø1, mm | 4-Ø6.5 | 4-Ø8.5 | 4-Ø10.5 |
| D4, mm | Ø70 | Ø102 | Ø125 |
| 4-Ø2, mm | 4-Ø8.5 | 4-Ø10.5 | 4-Ø12.5 |
| A, mm | 90 | 125 | 140 |
| B, mm | 55 | 64 | 71 |
| ØC, mm | Ø88 | Ø110 | Ø129 |
| F, mm | 115 | 135 | 166 |
| T, mm | 44 | 62.5 | 70 |
| Y, mm | 145 | 178 | 212 |
| H, mm | 120 | 133 | 180 |
| S, mm | 53 | 56.5 | 68.7 |
| K, mm | 10 | 13 | 12.5 |
| Ø steering wheel, mm | 180 | 200 | 280 |
Sketch of parts and materials of manual backups Elephant MON1-250-T26-ISO, MON2-450-T28-ISO, MON3-700-T38-ISO
Table of parts and materials of manual backup valves Elephant MON1-250-T26-ISO, MON2-450-T28-ISO, MON3-700-T38-ISO:
| Item No. | Details | Material |
| 1 | Rod for mounting pneumatic actuator | steel 45 |
| 2, 8 | Sealing ring | EPDM |
| 3 | Locking spring | spring steel |
| 4 | Top end cap | aluminum alloy |
| 5 | Screw | steel 304 |
| 6 | Fixing bracket (main rod) | steel 304 |
| 7 | Frame | aluminum alloy |
| 9 | Reducer | cast iron VCh50 |
| 10 | Transition coupling | cast iron VCh40 |
| 11 | Gearbox rod | cast iron VCh40 |
