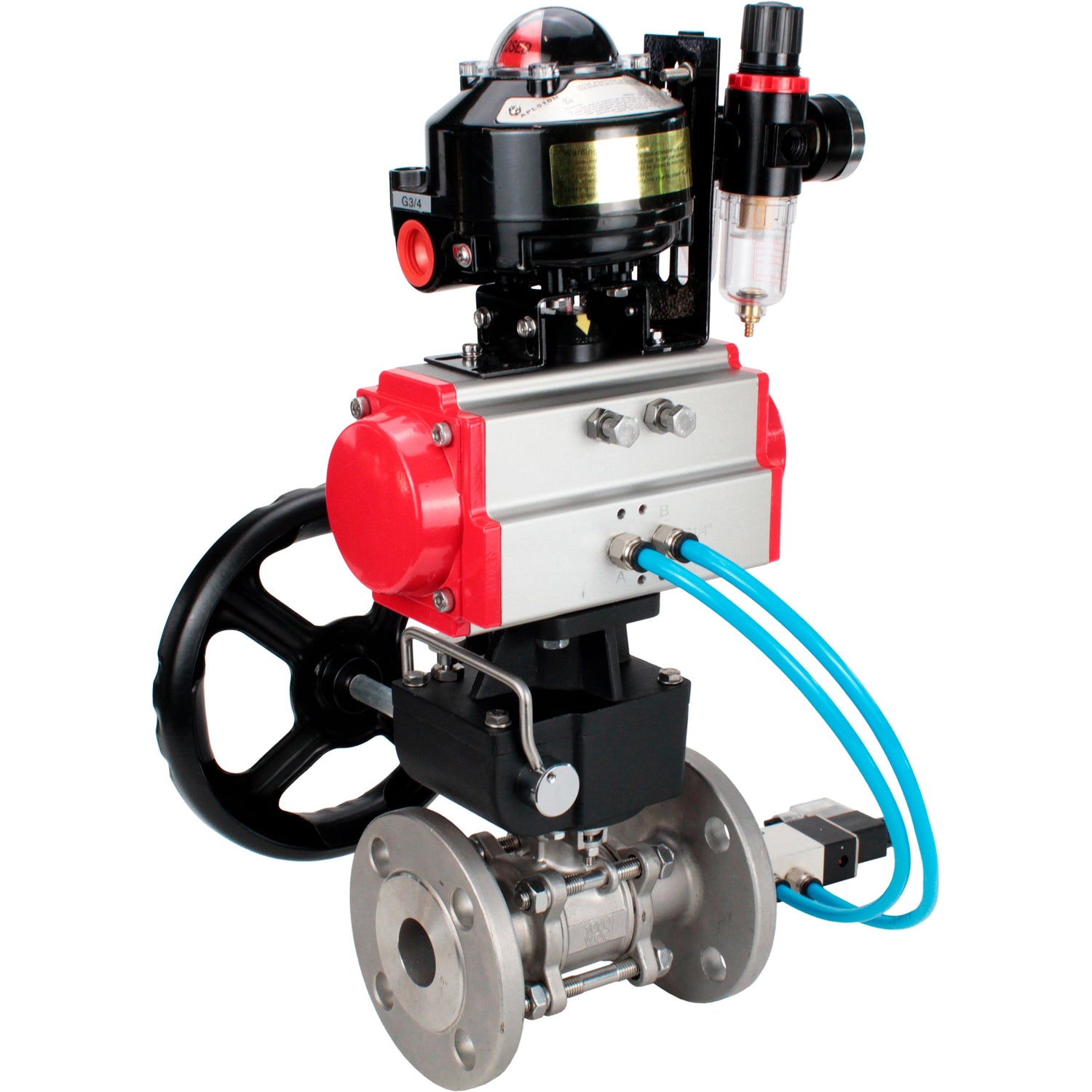

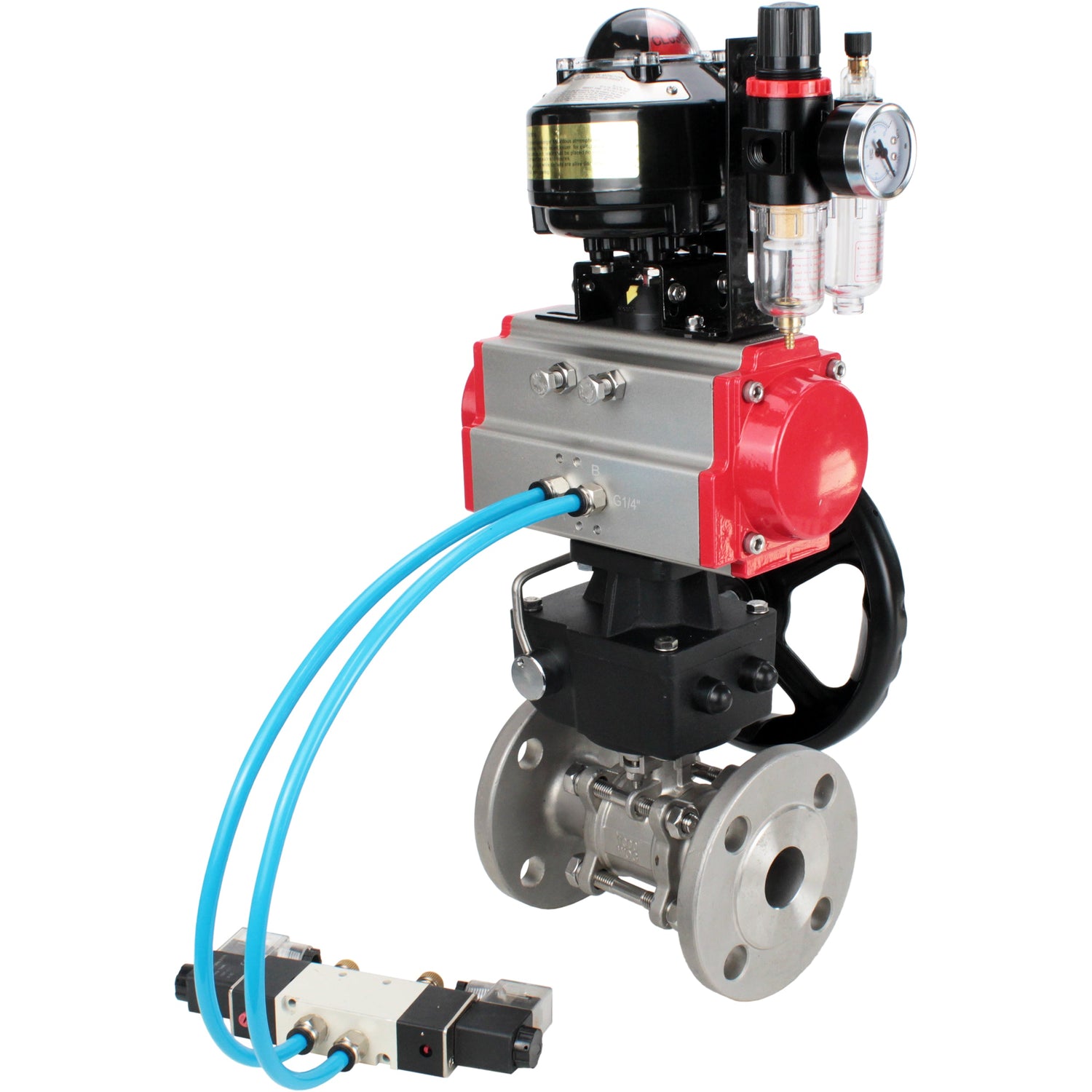

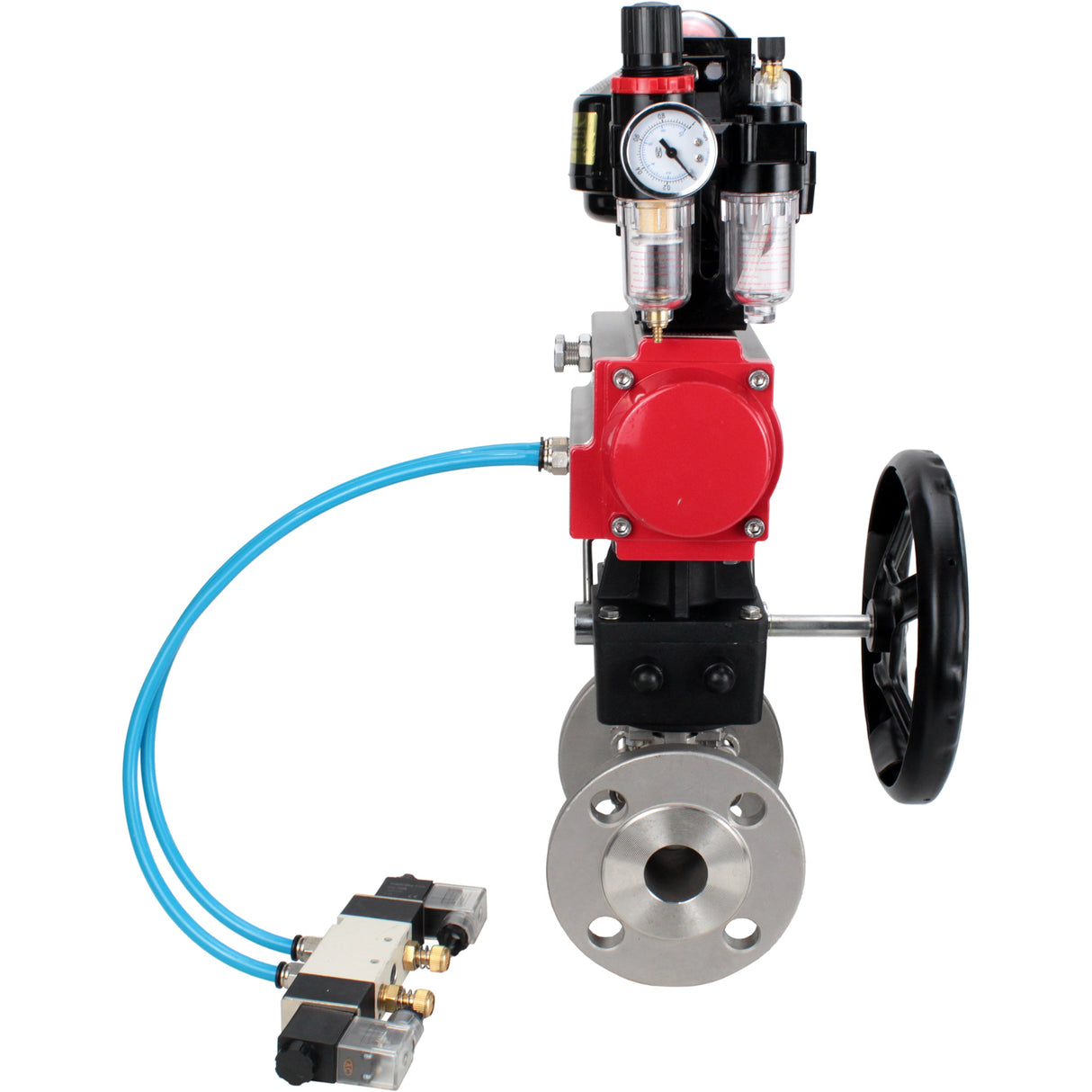

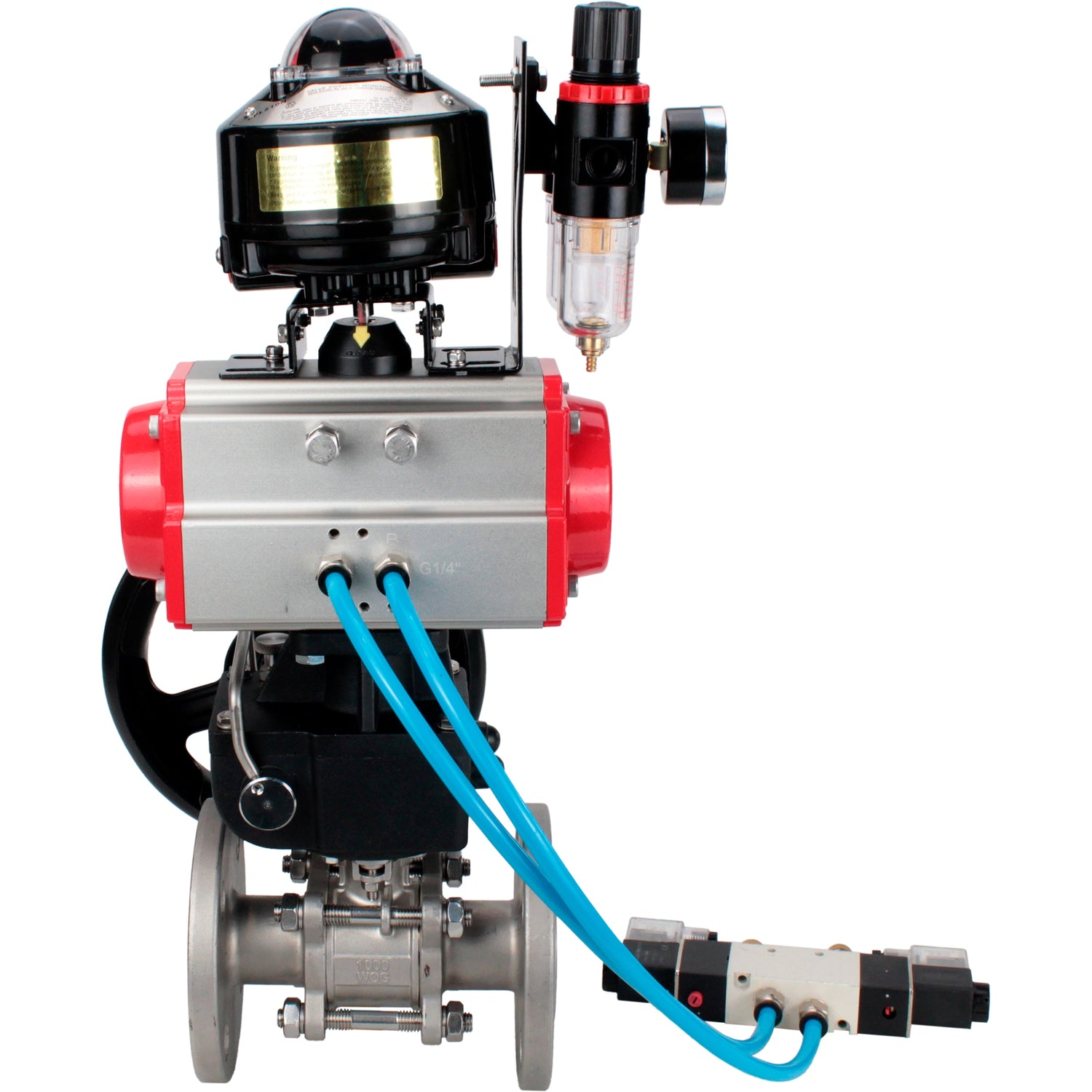

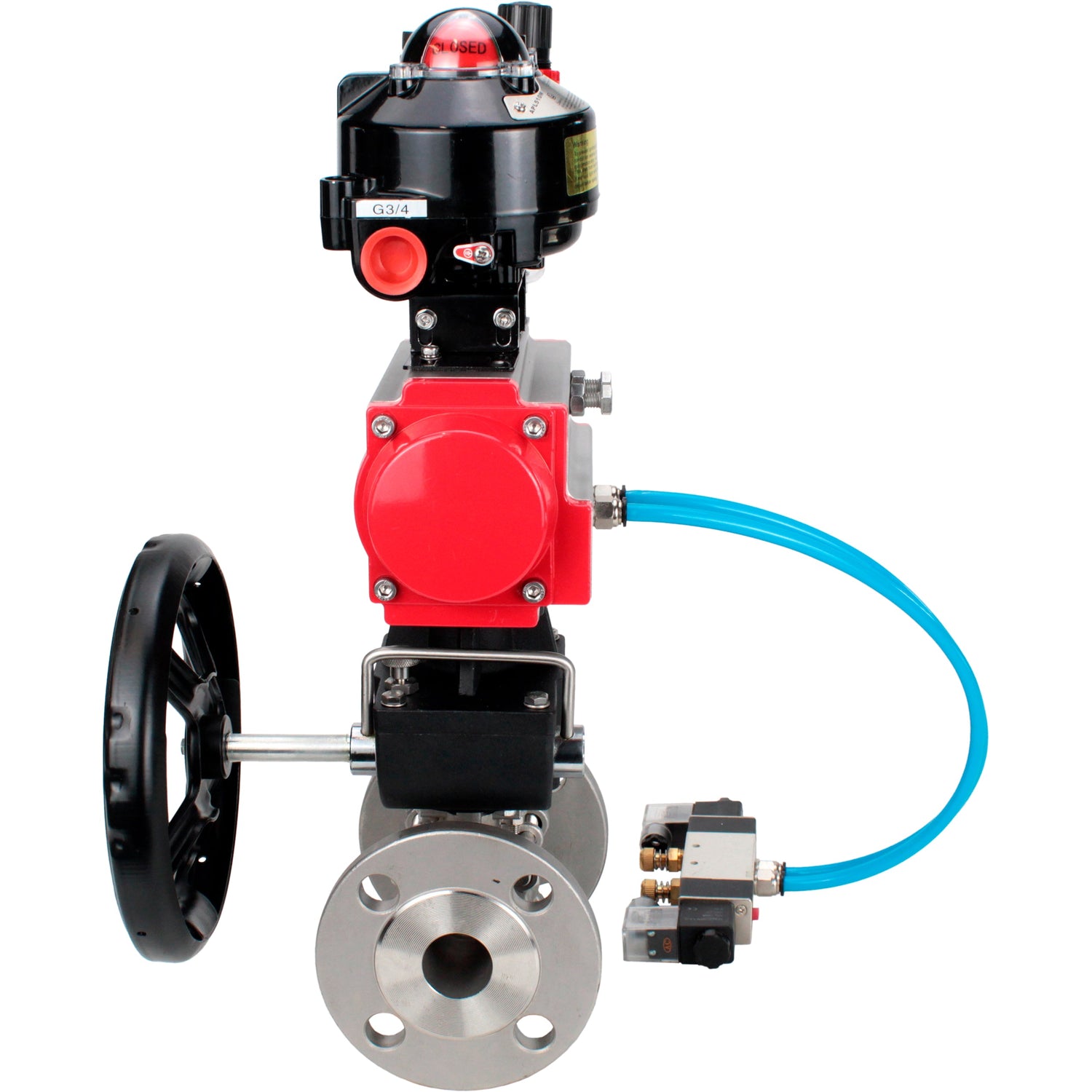

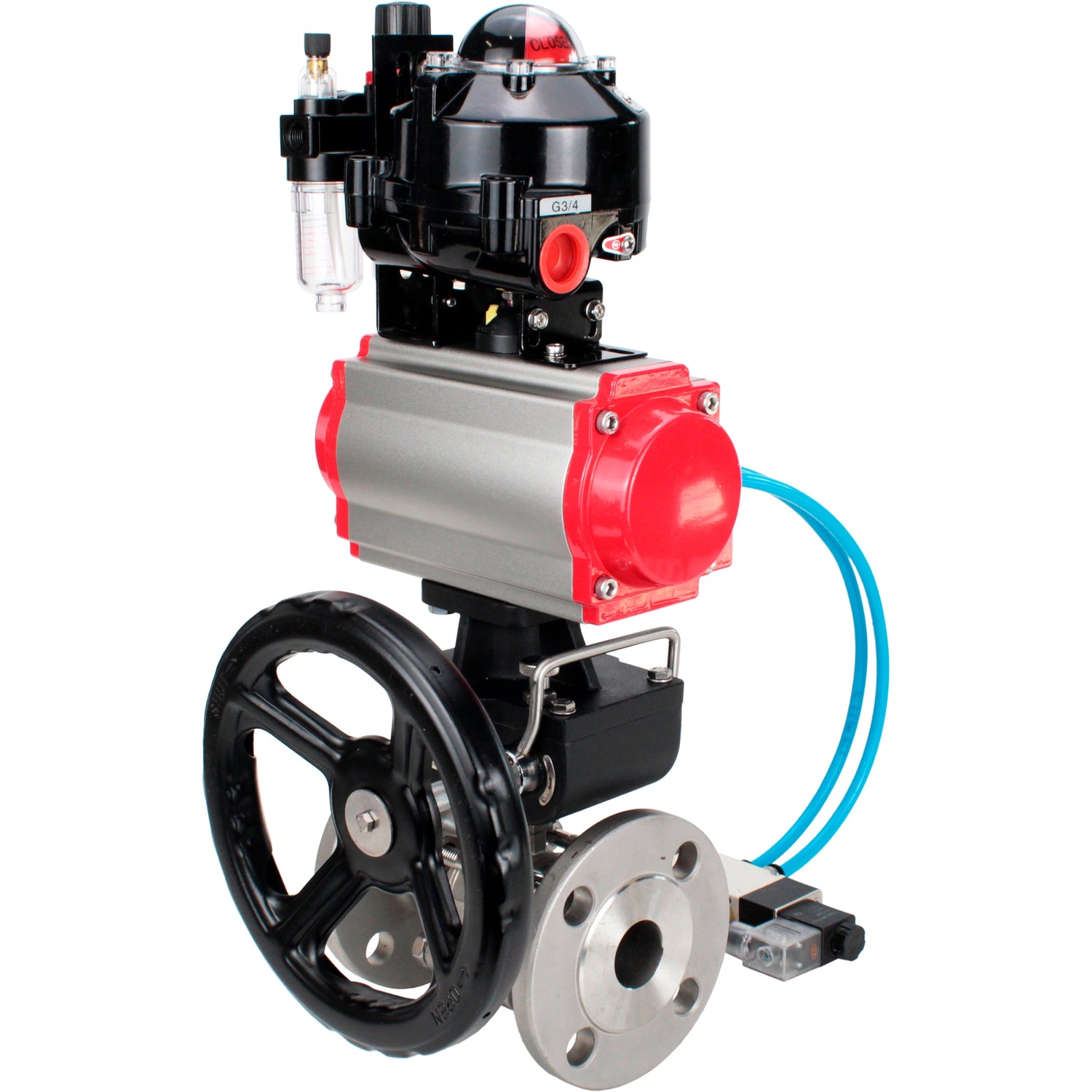

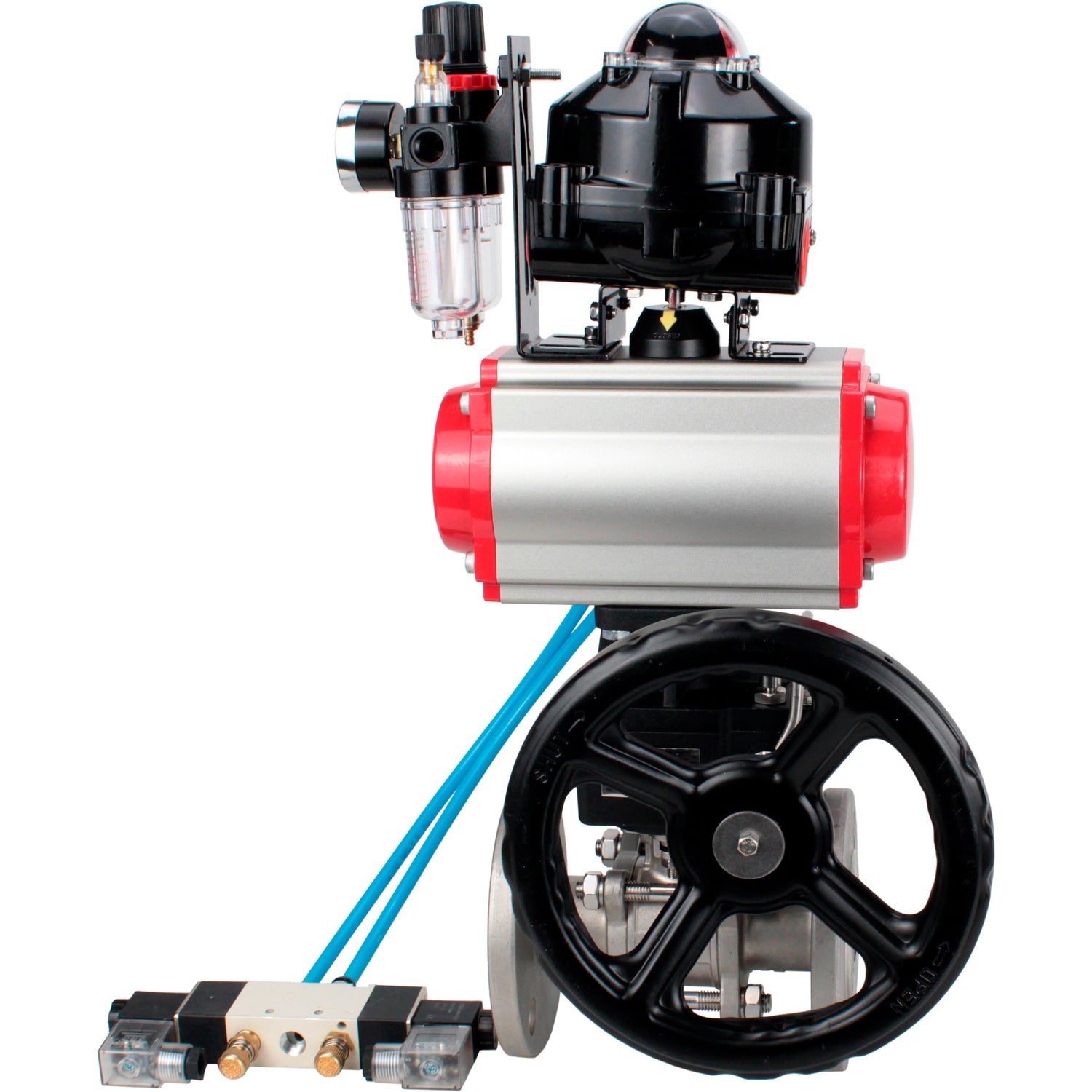

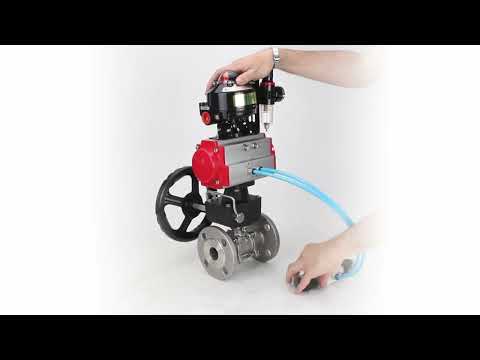

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H flanged, three-piece, bod – Valve Elephant
1 17
Elephant  |  SKU: D160-49901

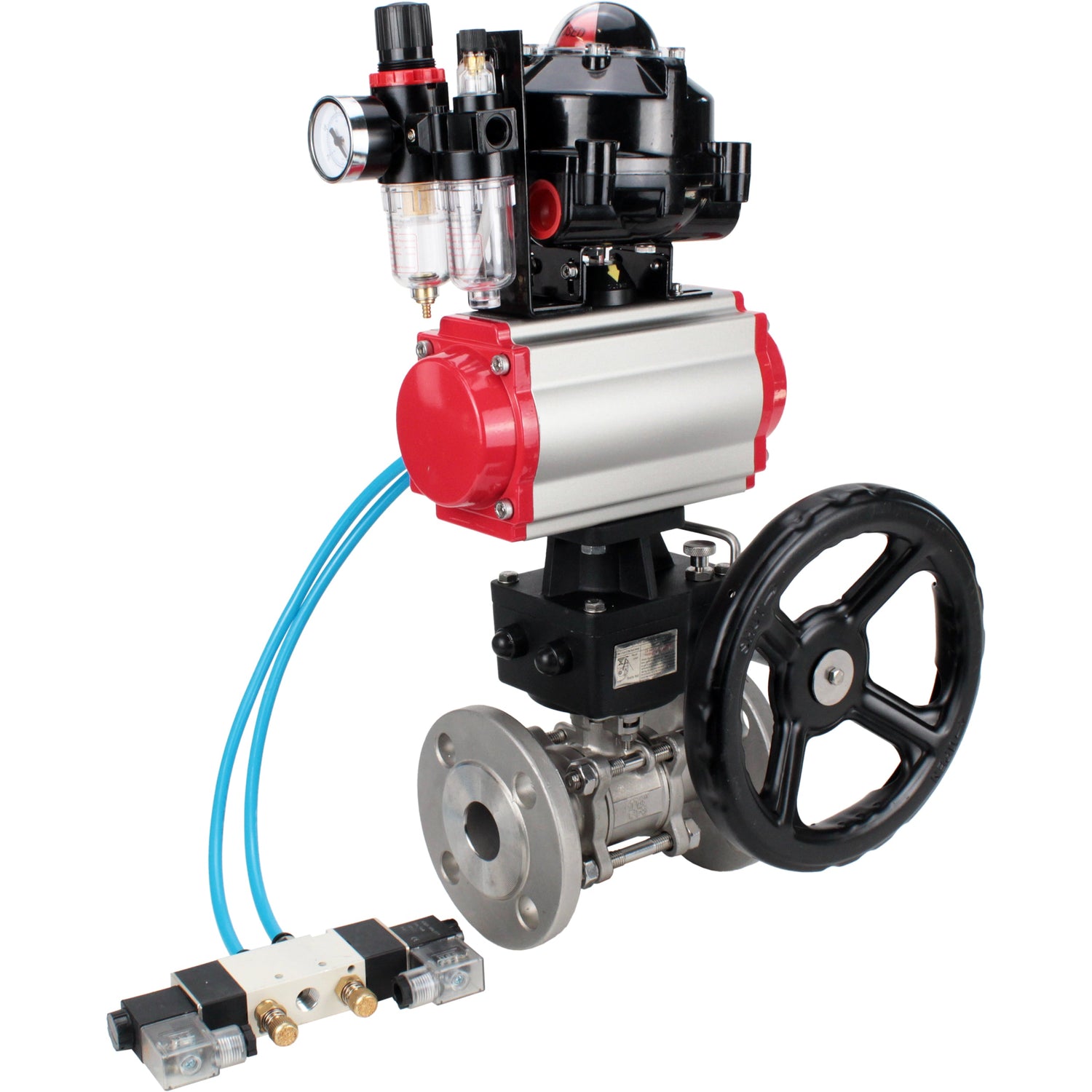

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H flanged, three-piece, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052-130 pneumatic distributor 4V320-10 gearbox MON ATU AFC2000 LSU APL-510N-EX

€1.641,76
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H flanged, three-piece, body - stainless steel SS316, seal - PTFE, with pneumatic drive PA-DA-052-130 pneumatic distributor 4V320-10 gearbox MON ATU AFC2000 LSU APL-510N-EX - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

PA-DA-1 pneumatic actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.





Technical data of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H flanged, three-piece, body - stainless steel SS316, seal - PTFE

Nominal Diameter DN, mm 40 – 300
Nominal Pressure PN, MPa (kg/cm²) 1.6 (16)
Flow Direction Bidirectional
Operating Medium Temperature t, °C -20 to +85 for NBR -20 to +120 for EPDM -10 to +180 for PTFE
Seal Tightness Class A
Operating Medium EPDM: Cold and hot water, air without oil and fat impurities, other media neutral to the material PTFE: Water, alkalis, acids, solvents, and oxidizers NBR: Water, mineral oils, hydrocarbons, oils, fats
Pipeline Connection Wafer-type







Overall and installation dimensions of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H flanged, three-piece, body - stainless steel SS316, seal - PTFE

DN d, mm D, mm D1, mm D2, mm W, mm f, mm L±1.5, mm T, mm H, mm Z-øM pcs-mm
15 15 95 65 46 17 2 130 131 71 4-ø14
20 20 105 75 58 18 2 150 131 74 4-ø14
25 25 115 85 68 18 2 160 167 97 4-ø14
32 32 140 100 78 19 2 180 167 110 4-ø18
40 40 150 110 88 19 2 200 193 117 4-ø18
50 50 165 125 102 19 3 230 193 125,5 4-ø18
65 65 185 145 122 22 3 290 242 135,5 8-ø18
80 80 200 160 140 24 3 310 272 157 8-ø18
100 100 234 190 161 24 3 350 295 181 8-ø22
100* 100 220 180 158 20 3 350 330 169 8-ø18

Sketch of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H flanged, three-piece, body - stainless steel SS316, seal - PTFE





Materials of ball valve components Elephant BV3232P(3pc)-FP-F-ISO-H flanged, three-piece, body - stainless steel SS316, seal - PTFE

№ Name Material Quantity
1 Body SS316 1
2 Ball Seal SS316 1
3 Bolt SS304 4-6
4 Nut SS304 6-12
5 Seal PTFE 1
6 Stem SS316 1
7 Packing SSS304 1
8 Cover WCB/CF8/CF8M 2
9 Seat Rings PTFE 2
10 Thrust Washer PTFE 1
11 Nut SSS304 1
12 Handle SSS304 1
13 Handle Cover PVC 1
14 Stopper SSS304 1

Detail sketch of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H flanged, three-piece, body - stainless steel SS316, seal - PTFE





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical data of pneumatic valve 4V320-10 220V

Name Value
Type of pneumatic valve Spool-type
Body material Aluminum alloy and technopolymer
Control Double-sided electromagnetic
Operation scheme 5/2 5 working lines; 2 positions
Effective cross-sectional area, mm² Model 4V320-8 – 25 (Cv = 1.4) Model 4V320-10 – 30 (Cv = 1.68)
Thread of working ports Model 4V320-8 – G 1/4" Model 4V320-10 – G 3/8"
Thread of exhaust port Model 4V320-8 – G 1/4" Model 4V320-10 – G 1/4"
Operating pressure, bar 1.5 ÷ 8
Maximum pressure, bar 12
Working medium Purified air (filtration precision 40 μm)
Supply voltage, V 220
Total power, VA 4.5
Permissible voltage variation ±10%
Protection rating / insulation class IP65 / F
Operating temperature, °C -5 to +50
Maximum switching frequency 5 cycles per second
Minimum switching time, s 0.05
Flow capacity, l/min Model 4V320-8 – 1,350 Model 4V320-10 – 2,250
Average lifespan, cycles 20,000,000
Weight, kg 1.2





Materials of the handwheel Elephant HDM

№ Name Material
1 Shaft for pneumatic actuator mounting Steel 45
2 Sealing ring EPDM
3 Retaining spring Spring steel
4 Upper end cap Aluminum alloy
5 Screw Steel 304
6 Retaining bracket (main link) Steel 304
7 Body Aluminum alloy
8 Sealing ring EPDM
9 Gear reducer Cast iron
10 Adapter coupling Cast iron
11 Reducer shaft Cast iron

Materials of the Elephant MON handwheel





Main parameters of the AFC2000 air treatment unit

Parameter Value
Operating pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0.5 ÷ 9
Burst pressure, bar 15
Air connection 1/4"
Operating temperature, °C -5 to +60
Filtered particle size, µm 40
Oil viscosity ISO VG 32
Weight, kg 0.395
Set composition Filter-moisture separator, pressure regulator, lubricator, bracket





Characteristics of limit switch unit APL-510N-EX

Parameter Value
Enclosure Weatherproof IP67 / NEMA 4 4X, 7, 9 Explosion-proof E EX d IIC T6
Compatible devices - Quarter-turn pneumatic actuators; - Any actuators with 90° shaft rotation
Full rotation angle 90°
Cable entries 2 x NPT 3/4”
Electrical connection Screw terminal block with 8 points (0.08 – 2.5 mm²)
Cable gland thread 2 x NPT 3/4”
Type of visual indicator Two-color hemisphere: OPEN - Yellow CLOSED - Red
Switches/Sensors Two mechanical switches Two proximity sensors
Rated voltage, V 250
Rated current, A 16
Permissible ambient temperature, °C -20 to +66
Average lifespan, cycles 10,000,000
Weight, kg 1.8

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    235 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullAir treatment unit AFC2000 ELEPHANT
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BV32xP 3pc -FP-W-ISO-H
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
