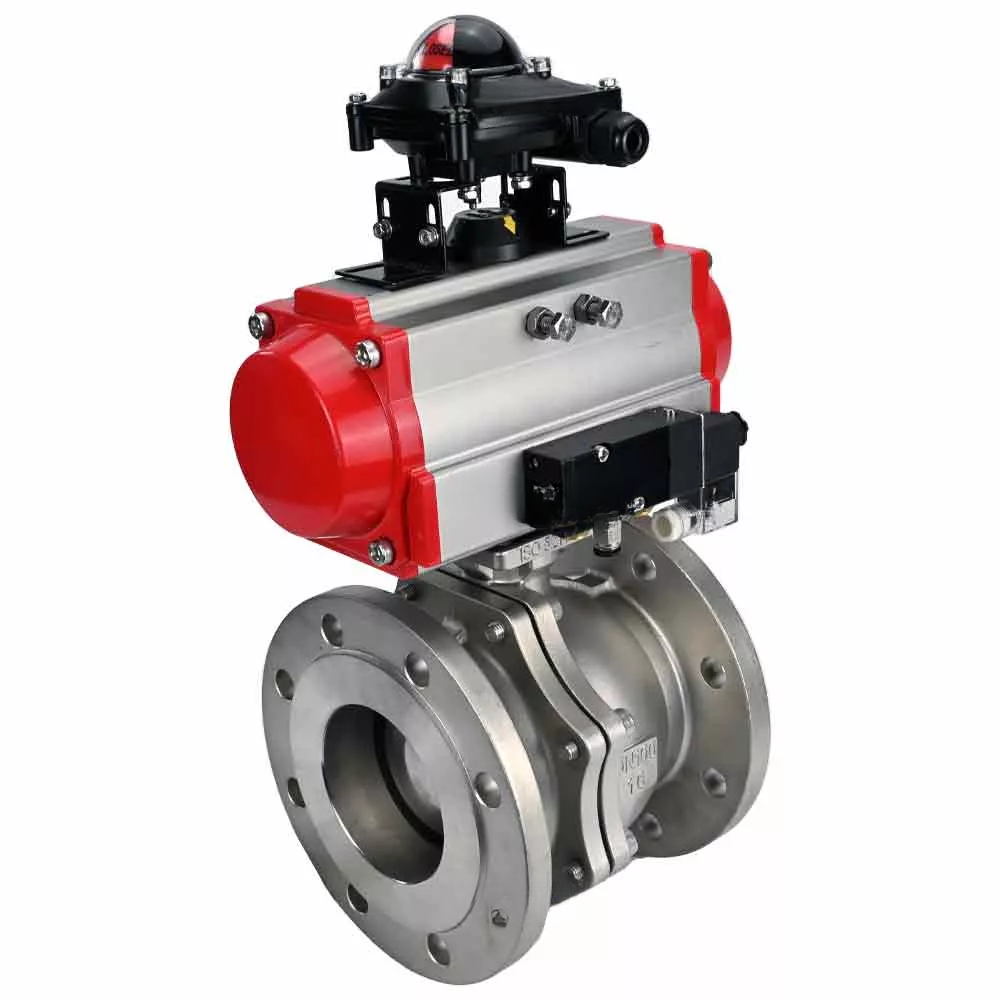

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with PA-SA pneumatic actuator with return springs, pneumatic distributor 4V320-10 220V and LSU APL-210N

€2.368,22
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-300 16 bar full bore flanged, body - stainless steel 316, with PA-SA pneumatic actuator with return springs, pneumatic distributor 4V320-10 220V and LSU APL-210N - DN200 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

Elephant pneumatic double-acting rotary actuators PADA-XXX are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.



Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

Parameter Value
Nominal Pressure PN, bar 16
Operating Temperature, °C -29 to 150
Valve Type Two-way
Application Water supply, heating, industry
Working Medium Water, air, neutral media
Pipeline Connection Flanged
Water-drawing No
Bore Type Full bore
Control Type With pneumatic actuator
Connection Type Flanged
Operation Double-acting pneumatic actuator
Limit Switches No
Pneumatic Distributor Yes
Electro-pneumatic Positioner No
Average Service Life, years 10
Warranty, years 1
Country of Manufacture China





Dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

DN L H ØD ØD1 ØD2 A E
200 400 180 340 295 268 542 257
250 450 296 405 355 320 722 333
300 610 305 460 410 378 722 333

Sketch dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316





Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

№ Part Name Material
1 Body Stainless steel 316
2 Gasket Stainless steel 316 + Graphite
3 Cover Stainless steel 316
4 Nut Stainless steel ASTM A193 Gr.B8M Cl2
5 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
6 Ball Seal PTFE
7 Ball Stainless steel 316
8 Stem Stainless steel 316
9 Support Pad PTFE
10 Stem Seal PTFE
11 Packing Seal Stainless steel 316
12 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
13 Support Frame Stainless steel 304
14 Gasket Stainless steel 304
15 Stud Stainless steel ASTM A193 Gr.B8M Cl2
16 Nut Stainless steel ASTM A193 Gr.B8M Cl2
17 Cushioning Gasket Stainless steel
18 Stud Stainless steel ASTM A193 Gr.B8M Cl2
19 Nut Stainless steel ASTM A193 Gr.B8M Cl2
20 Gear Transmission Steel 45
22 Screw Stainless steel ASTM A193 Gr.B8M Cl2

Parts and materials sketch for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316





Technical parameters of pneumatic actuator Elephant

Parameter Value
Design Double-acting
Control Pressure, bar 2 ÷ 8
Manual Override No





Dimensions and dimensions of pneumatic actuator Elephant

Model PA-SA-210 PA-SA-270
A1, mm 390 510
B1, mm 542 722
C, mm 113 146
D, mm 113 146
E, mm 257 333
F, mm 38 38
G, mm 40 52
I F14 F16
K 4-M12x20 4-M20x24
L, mm 36x36 46x46
M, mm 130 130
N, mm 30 30
f0, mm 79 79
P, mm 30 30

Sketch of dimensions and dimensions of pneumatic actuator Elephant





Parts and materials table for pneumatic actuator Elephant

№ Part Name Qty Material Coating
1 Body 1 Extruded aluminum Hard anodized
2 Side plugs 2 Cast aluminum -
3 Gear 1 Stainless steel Nickel-plated
4 Piston 2 Steel/Aluminum Oxidation / Galvanized zinc
5 Plugs 8 Stainless steel -
6 Piston ring 2 NBR -
7 Springs 0-12 Spring steel Epoxy coating
8 Piston bearing 2 Engineering plastic -
9 Piston ring 2 NBR -
10 Plug 2 NBR -
11 Stop ring 2 Engineering plastic -
12 Ring 1 Engineering plastic -
13 Washer 1 Stainless steel -
14 Spring clamp 2 Stainless steel -
15 Indicator 1 Plastic -
16 Indicator housing 1 Plastic -
17 Bearing 1 Engineering plastic -
18 Cam 1 Steel Oxidation / Galvanized zinc
19 Bearing 1 NBR -
20 Bearing 1 Engineering plastic -
21 Bearing 1 Engineering plastic -
22 O-ring 2 NBR -
23 O-ring 2 NBR -
24 Bearing 2 Stainless steel -
25 Adjustment nut 2 Stainless steel -
26 Adjustment screw 2 Stainless steel -
27 Bushing 2 Aluminum -





Technical parameters of pneumatic valve Elephant 4V320-10 220V

Parameter Value
Type of Pneumatic Valve Spool-type
Pneumatic Valve Model 4V320-10 220V
Operating Pressure, bar 1.5 ÷ 8
Supply Voltage, V 220V
Actuation Frequency, cycles/sec 5







Dimensions and dimensions of Elephant 4V320-10 220V pneumatic directional control valve

Parameter Value (mm)
A 71.9
B 45
C 94.4
D 27
E 69
F 40
I 24
K 40
L 188.8
M 69.4
N 50
O 83.4
P 22
S 20
T 6.5
U 2.4
H 82.4

Sketch of dimensions and dimensions of pneumatic valve Elephant 4V320-10 220V





Technical parameters of limit switch units Elephant APL-210N

Parameter Value
Model of limit switch block APL-210N
Ambient temperature, °C from -20 to 66
Service life, years 10







Dimensions and dimensions of Elephant APL-210N limit switch units


Model H L B D D1 M
APL-210N 77 112 88 10 5 20x1.5
Sketch of dimensions and dimensions of Elephant APL-210N limit switch units




Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs



Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    150 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Neutral Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    380 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    spring loaded
