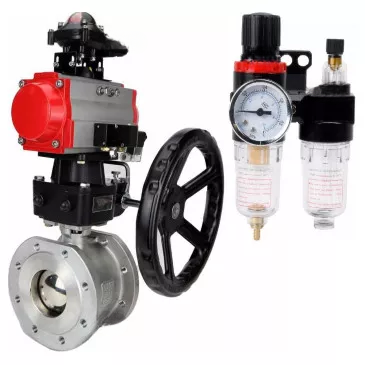

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, pneumatic distributor 4M310-08 220V, LSU APL-210N, MON gearbox -ISO and ATU AFC2000

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the valve materials. The use of ball valves as control valves is not allowed.

Pneumatic actuators Elephant double-acting rotary PADA-XXX are designed to automate the process of controlling industrial valves with a maximum torque of up to 2128 Nm.

Pneumatic distributors are used for control in pneumatic systems with a NAMUR mating surface for installing distributors through through holes in the body. Electromagnetic control is carried out using voltage coils 12-AC, 12-DC, 24-AC, 24-DC, 110-AC, 220-AC. Depending on the model, distributors have one-sided or two-sided control. Pneumatic distributors with electromagnetic control have a wide range of models and include common types of switching for three (3/2) and five (5/2 and 5/3) linear pneumatic distributors. Intended for use with quarter-turn pneumatic actuators.

The manual override with worm gear and reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution for the entire range of manual override tasks.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off element of the valve: valve, tap or butterfly valve. It is installed on top of the surface of the pneumatic drive and connected to the DIN standard drive shaft. In a sealed box, as a rule, there are two sensors that monitor the position of the drive shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors. Visual indication of the position can be seen on the body of the unit there is a 3D visual indicator RED - CLOSED and GREEN - OPEN.

The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain pressure at a given level, and supply lubricant from the reservoir to the compressed air flow to the elements of the pneumatic system.





Technical parameters of Elephant BV3232P(2pc)-FP-F-ISO-R ball valves DN200-250 PN16 full-bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, 4M310-08 220V pneumatic distributor, APL-210N LSU, MON-ISO reducer and AFC2000 ATU:

Name	Meaning
Nominal pressure PN, bar	16
Working environment temperature, °C	from -29 to 150
Type of crane device	two-way
Application	water supply, heat supply, industry
Working environment	water, air, neutral environments
Connection to the pipeline	flanged
Water intake	No
Type of flow section	full bore
Control type	With pneumatic drive
Joining	flanged
Control	double acting pneumatic actuator
Availability of limit switches	No
Availability of pneumatic distributor	There is
Availability of electropneumatic positioner	No
Average service life, years	10
Warranty, y.	1





Sketch of the dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 PN16 full-bore flanged, body - stainless steel 316, with a double-acting pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-210N, reducer MON-ISO and ATU AFC2000



Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 PN16 full-bore flanged, body - stainless steel 316, with double-acting pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-210N, reducer MON-ISO and ATU AFC2000:





Sketch of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 PN16 full-bore flanged, body - stainless steel 316, with double-acting pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-210N, reducer MON-ISO and ATU AFC2000



Table of parts and materials of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 PN16 full-bore flanged, body - stainless steel 316, with double-acting pneumatic actuator PA-DA, pneumatic distributor 4M310-08 220V, LSU APL-210N, reducer MON-ISO and ATU AFC2000:





Technical parameters of the pneumatic drive Elephant





Table of parts and materials of pneumatic drive Elephant

No.	Name	Quantity	Material	Coating
1	Frame	1	extruded aluminum	hard anodized
2	Side plugs	2	cast aluminum
3	Gear	1	stainless steel	nickel plated
4	Piston	2	steel/aluminum	oxidation/galvanic zinc plating
5	Plugs	8	stainless steel
6	Piston ring	2	NBR
7	Springs	0-12	spring steel	epoxy coating
8	Piston bearing	2	engineering plastic
9	Piston ring	2	NBR
10	Plug	2	NBR
11	Thrust ring	2	engineering plastic
12	Ring	1	engineering plastic
13	Washer	1	stainless steel
14	Spring clamp	2	stainless steel
15	Indicator	1	plastic
16	Indicator housing	1	plastic
17	Bearing	1	engineering plastic
18	Cam	1	steel	oxidation/galvanic zinc plating
19	Bearing	1	NBR
20	Bearing	1	engineering plastic
21	Bearing	1	engineering plastic
22	Sealing ring	2	NBR
23	Sealing ring	2	NBR
24	Bearing	2	stainless steel
25	Adjusting nut	2	stainless steel
26	Adjustment screw	2	stainless steel
27	Sleeve	2	aluminum





Pneumatic distributor Elephant 4m310-08 220v





Technical parameters of the pneumatic distributor Elephant 4m310-08 220v





Sketch of dimensions and sizes of pneumatic distributor Elephant 4m310-08 220v



Dimensions and sizes of pneumatic distributor Elephant 4m310-08 220v





Manual backup Elephant MON-ISO



Technical parameters of the manual backup Elephant MON-ISO





Sketch of dimensions and sizes of manual backup Elephant MON-ISO





Dimensions and sizes of the manual backup Elephant MON-ISO:





Sketch of parts and materials of manual backup Elephant MON-ISO



Table of parts and materials of the manual backup Elephant MON-ISO:





Limit Switch Blocks Elephant APL-210N



Technical parameters of limit switch units Elephant APL-210N





Sketch of dimensions and sizes of limit switch blocks Elephant APL-210N



Dimensions and sizes of limit switch blocks Elephant APL-210N

Table of parts and materials of limit switch blocks Elephant APL-210N





Air preparation unit Elephant AFC2000



Technical parameters of the air preparation unit Elephant AFC2000





Sketch of the dimensions and sizes of the air preparation unit Elephant AFC2000



Dimensions and sizes of the air preparation unit Elephant AFC2000:







Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs
