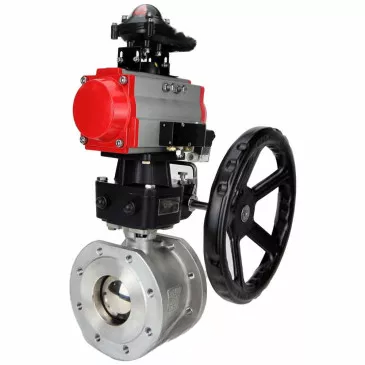

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, LSU APL-210N and MON-ISO gearbox

€2.121,08
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P(2pc)-FP-F-ISO-R DN200-250 16 bar full bore flanged, body - stainless steel 316, with double-acting PA-DA pneumatic actuator, LSU APL-210N and MON-ISO gearbox - DN200 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

Elephant pneumatic double-acting rotary actuators PADA-XXX are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.



Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

Parameter Value
Nominal Pressure PN, bar 16
Operating Temperature, °C -29 to 150
Valve Type Two-way
Application Water supply, heating, industry
Working Medium Water, air, neutral media
Pipeline Connection Flanged
Water-drawing No
Bore Type Full bore
Control Type With pneumatic actuator
Connection Type Flanged
Operation Double-acting pneumatic actuator
Limit Switches No
Pneumatic Distributor Yes
Electro-pneumatic Positioner No
Average Service Life, years 10
Warranty, years 1
Country of Manufacture China





Dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

DN, mm L, mm H, mm ØD, mm ØD1, mm ØD2, mm A, mm E, mm H1, mm
200 400 180 340 295 268 405 174 195
250 450 296 405 355 320 465 199 195

Sketch dimensions and dimensions of ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316





Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316

№ Part Name Material
1 Body Stainless steel 316
2 Gasket Stainless steel 316 + Graphite
3 Cover Stainless steel 316
4 Nut Stainless steel ASTM A193 Gr.B8M Cl2
5 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
6 Ball Seal PTFE
7 Ball Stainless steel 316
8 Stem Stainless steel 316
9 Support Pad PTFE
10 Stem Seal PTFE
11 Packing Seal Stainless steel 316
12 Bolt Stainless steel ASTM A193 Gr.B8M Cl2
13 Support Frame Stainless steel 304
14 Gasket Stainless steel 304
15 Stud Stainless steel ASTM A193 Gr.B8M Cl2
16 Nut Stainless steel ASTM A193 Gr.B8M Cl2
17 Cushioning Gasket Stainless steel
18 Stud Stainless steel ASTM A193 Gr.B8M Cl2
19 Nut Stainless steel ASTM A193 Gr.B8M Cl2
20 Gear Transmission Steel 45
22 Screw Stainless steel ASTM A193 Gr.B8M Cl2

Parts and materials sketch for ball valves Elephant BV3232P(2pc)-FP-F-ISO-R full bore flanged, body - stainless steel 316





Technical parameters of pneumatic actuator Elephant

Parameter Value
Design Double-acting
Control Pressure, bar 2 ÷ 8
Manual Override No





Dimensions and dimensions of pneumatic actuator Elephant

Model DA-140 DA-160 DA-210
G, mm 25 30 40
M, mm 80 130 130
N, mm 30 30 30
f0, mm 62 62 79
P, mm 30 30 30
B1, mm 308 465 542
C, mm 67.5 87.5 113
E, mm 157 199 257
J 4-M8x12 4-M10x16
K 4-M10x16 4-M12x20 4-M12x20
F, mm 36 38 38
A1, mm 210 310 390
D, mm 70 87.5 113
H F10 F10 -
I F12 F12 F14
L 22x22 27x27 36x36

Sketch of dimensions and dimensions of pneumatic actuator Elephant





Parts and materials table for pneumatic actuator Elephant

№ Part Name Qty Material Coating
1 Body 1 Extruded aluminum Hard anodized
2 Side plugs 2 Cast aluminum -
3 Gear 1 Stainless steel Nickel-plated
4 Piston 2 Steel/Aluminum Oxidation / Galvanized zinc
5 Plugs 8 Stainless steel -
6 Piston ring 2 NBR -
7 Springs 0-12 Spring steel Epoxy coating
8 Piston bearing 2 Engineering plastic -
9 Piston ring 2 NBR -
10 Plug 2 NBR -
11 Stop ring 2 Engineering plastic -
12 Ring 1 Engineering plastic -
13 Washer 1 Stainless steel -
14 Spring clamp 2 Stainless steel -
15 Indicator 1 Plastic -
16 Indicator housing 1 Plastic -
17 Bearing 1 Engineering plastic -
18 Cam 1 Steel Oxidation / Galvanized zinc
19 Bearing 1 NBR -
20 Bearing 1 Engineering plastic -
21 Bearing 1 Engineering plastic -
22 O-ring 2 NBR -
23 O-ring 2 NBR -
24 Bearing 2 Stainless steel -
25 Adjustment nut 2 Stainless steel -
26 Adjustment screw 2 Stainless steel -
27 Bushing 2 Aluminum -





Technical parameters of the handwheel Elephant MON-ISO

Name Value
Manual Override Model MON-ISO
Climatic Designation U, UHL, T, OM
Mounting Method Horizontal/Vertical
Protection Rating, IP 67
Connection Type ISO 5211





Dimensions and dimensions of the handwheel Elephant MON-ISO

Model MON4-1200-T54-ISO
b1, mm 27
N, mm 32
b2, mm 27
M, mm 30
D1, mm Ø102
4-M1, mm 4-M10
D2, mm Ø125
4-M2, mm 4-M12
E, mm 129x129
D3, mm Ø125
4-Ø1, mm 4-Ø12.5
D4, mm Ø140
4-Ø2, mm 4-Ø16.5
A, mm 188.5
B, mm 93
ØC, mm Ø174
F, mm 202
T, mm 94
Y, mm 280
H, mm 195
S, mm 84
K, mm 15
Ø hand wheel, mm 320

Sketch of dimensions and dimensions of handwheel Elephant MON-ISO





Parts and materials table for the handwheel Elephant MON-ISO

№ Part Name Material
1 Shaft for pneumatic actuator mounting Steel 45
2, 8 O-ring EPDM
3 Retaining spring Spring steel
4 Upper end cover Aluminum alloy
5 Screw Steel 304
6 Retaining bracket (main link) Steel 304
7 Housing Aluminum alloy
9 Gearbox Cast iron BC50
10 Adapter coupling Cast iron BC40
11 Gearbox shaft Cast iron BC40
Parts and material sketch of the handwheel Elephant MON-ISO





Technical parameters of limit switch units Elephant APL-210N

Parameter Value
Model of limit switch block APL-210N
Ambient temperature, °C from -20 to 66
Service life, years 10





Dimensions and dimensions of Elephant APL-210N limit switch units


Model H, mm L, mm B, mm D, mm D1, mm M
APL-210N 77 112 88 10 5 20x1.5
Sketch of dimensions and dimensions of Elephant APL-210N limit switch units





Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs



Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    150 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Neutral Media
  • Type of seal
    PTFE
  • Explosion-proof
    no
  • Torque
    380 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action
