Elephant  |  SKU: D160-47036

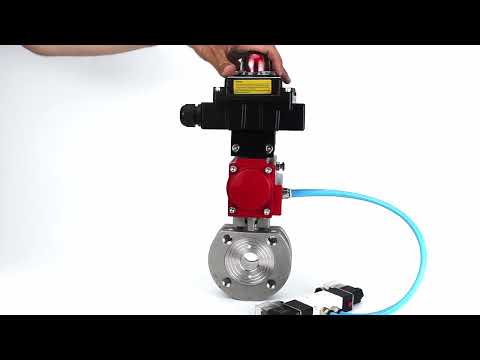

Ball valves Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore wafer, stainless steel SS316, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-10 220V, with LSU APL-410N EX

€1.074,16
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore wafer, stainless steel SS316, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-10 220V, with LSU APL-410N EX - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

Pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed to automate the process of controlling industrial valves with maximum torque up to 2128 Nm.

The pneumatic valve is used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.

The limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of the pipeline valve.





Technical parameters Elephant BV3232P-FP-Fb-ISO-H 16 bar ball valves, full bore, flanged, SS316 stainless steel, sealing - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-10 220V, with LSU APL-410N EX:

Nominal diameter DN, mm 15 - 100
Nominal pressure PN, bar 16
Ambient temperature, ⁰C from -50 to +200
Working medium water, steam, oil products and other liquid or gaseous media neutral to the materials used
Connection to pipeline interflange
Control type manual (handle)
Ball passage full bore without constriction
Complement electric or pneumatic actuator can be installed (ISO 5211-2001)

Elephant BV3232P-FP-Fb-ISO-H 16 bar ball valves, full bore, flanged, SS316 stainless steel, sealing - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-10 220V, with LSU APL-410N EX





Dimensions and dimensions Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore, flanged, SS316 stainless steel, sealing - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-10 220V, with LSU APL-410N EX:

DN d D2 D1 D T C N-MM L H W SxS А B IS05211
15 15 45 65 95 2 14 4-М12 42 70 130 9x9 50 36 F03/F05
20 20 58 75 105 2 16 4-М12 48 86 130 9x9 50 36 F03/F05
25 25 68 85 115 2 16 4-М12 50 93 165 11x11 50 42 F04/F05
32 32 78 100 140 2 16 4-М16 60 101 165 11x11 50 42 F04/F05
40 36 88 110 150 3 16 4-М16 65 121 190 14x14 70 50 F05/F07
50 46 102 125 165 3 18 4-М16 80 129 190 14x14 70 50 F05/F07
65 58 122 145 185 3 18 4-М16 110 140 255 17x17 102 70 F07/F10
80 73 138 160 200 3 20 8-М16 120 157 315 17x17 102 70 F07/F10
100 90 158 180 220 3 20 8-М16 150 180 325 17x17 102 70 F07/F10

Sketch of dimensions and dimensions Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore, flanged, SS316 stainless steel, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-10 220 V, with LSU APL-410N EX





Parts and materials table Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore, flanged, SS316 stainless steel, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-10 220V, with LSU APL-410N EX:

№ Parts Material
1 Nut Steel 304
2 Handle Steel 201+PVC
3 Washer Steel 304
4 Locking ring Steel 304
5 Thrust washer Steel 304
6 Gland washer Steel 304
7 Gland PTFE
8 Stop gasket PTFE
9 Rod Steel 316
10 Ball cover Steel 316
11 Ball Steel 316
12 Ball seal PTFE
13 Gasket PTFE
14 Body Steel 316

Parts and material sketch Elephant BV3232P-FP-Fb-ISO-H 16 bar, full bore, flanged, SS316 stainless steel, seal - PTFE, with double-acting pneumatic actuator PA-DA, with pneumatic valve 4V320-10 220V, with LSU APL-410N EX





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve 4V320-10 220V:

Name meaning
Type of pneumatic valve slide valve
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Total power, Va 4.5
Control double-sided electromagnetic
Frequency of operation, cycle/sec 5

Pneumatic valve 4V320-10 220V





Dimensions and dimensions of pneumatic valve 4V320-10 220V:

Pneumatic valve model 4V320-10
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4

Sketch of dimensions and dimensions of pneumatic valve 4V320-10 220V





Technical parameters of limit switch unit APL-410N EX:

Name Value
Model of limit switch unit APL-410N EX
Maximum voltage of limit switch, V 250
Working environment temperature, °C -40 to +80
Service life, years 10

Limit switch unit APL-410N EX





Dimensions and dimensions of limit switch unit APL-410N EX:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8


Sketch of dimensions and dimensions of limit switch unit APL-410N EX





Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    200 °C
  • Connection type
    Compact flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Air, Steam, Industrial Water, Oil, Petroleum Products
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    176 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullLimit switch ELEPHANT APL-410N EX explosion-proof
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BV3232P-FP-Fb-ISO-H DN15-100 16 bar
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
