Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H flanged, full bore, three – Valve Elephant
1 17
Elephant  |  SKU: D160-39281

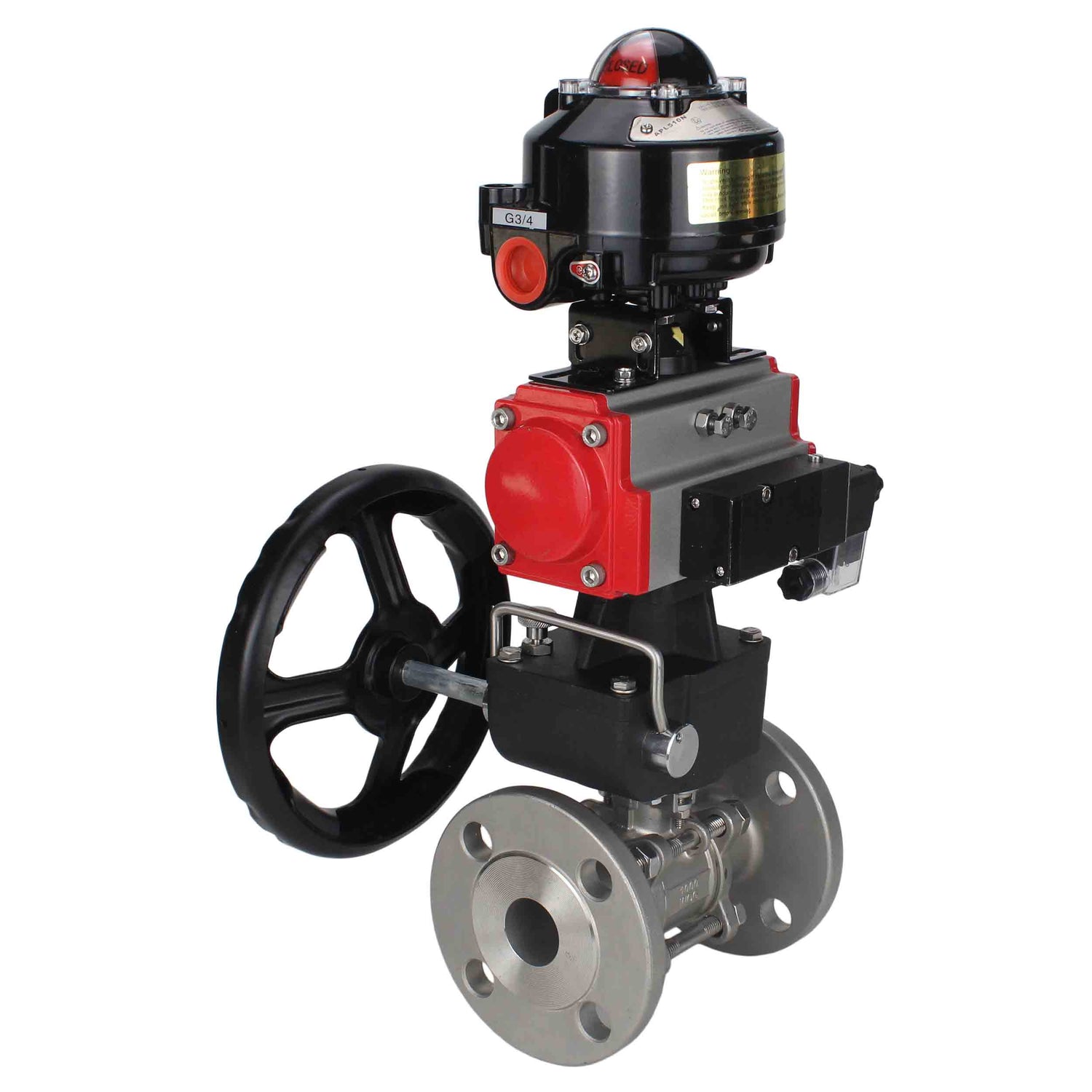

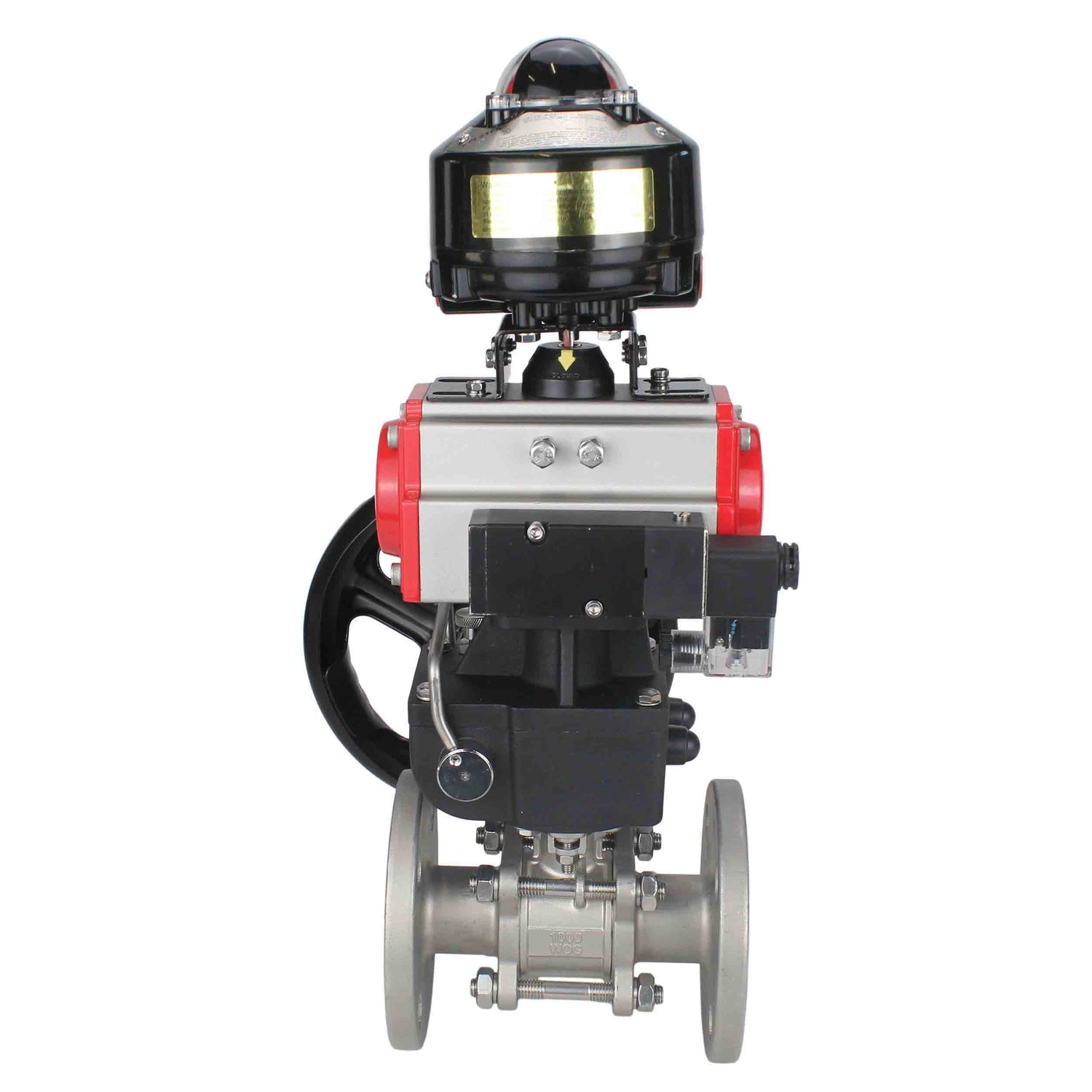

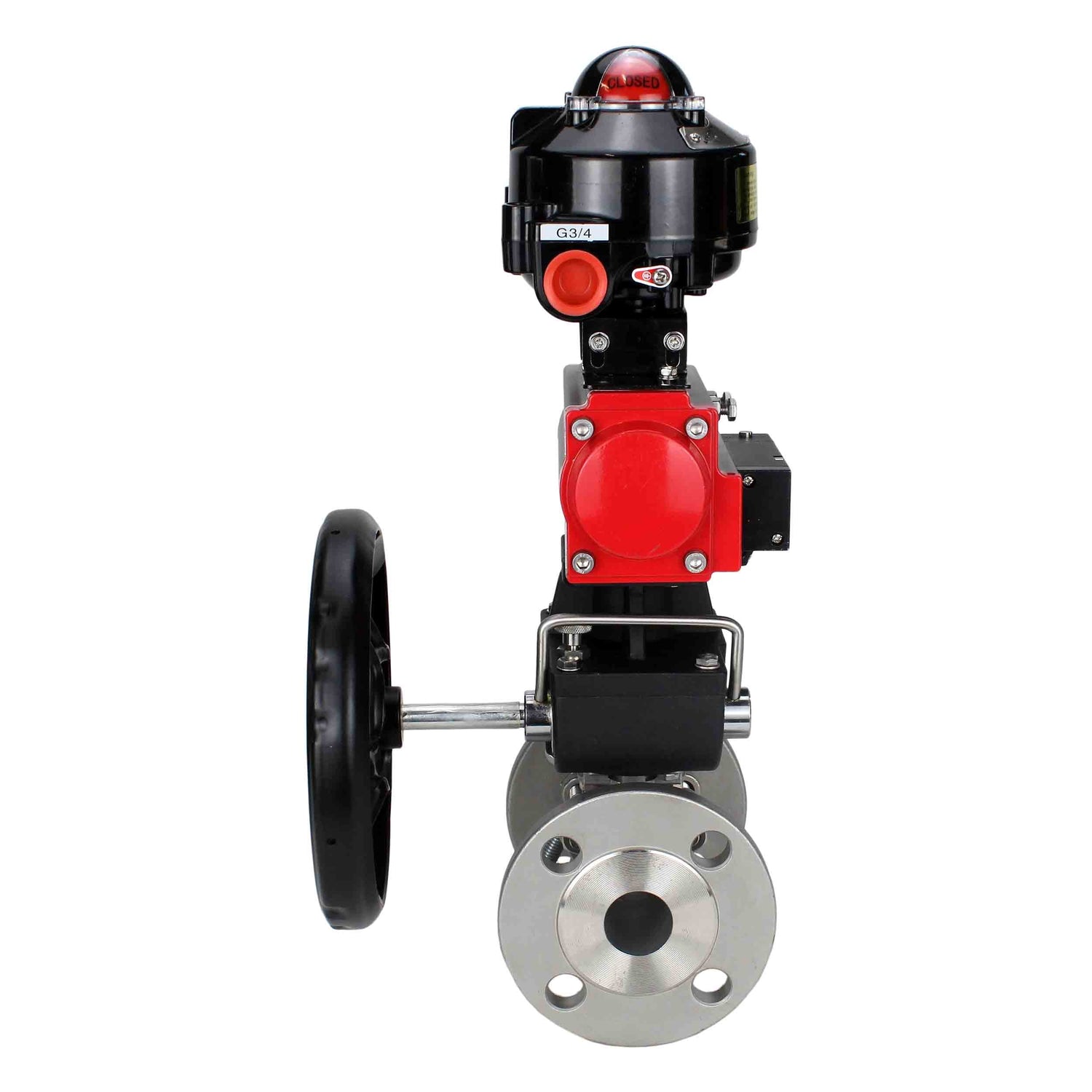

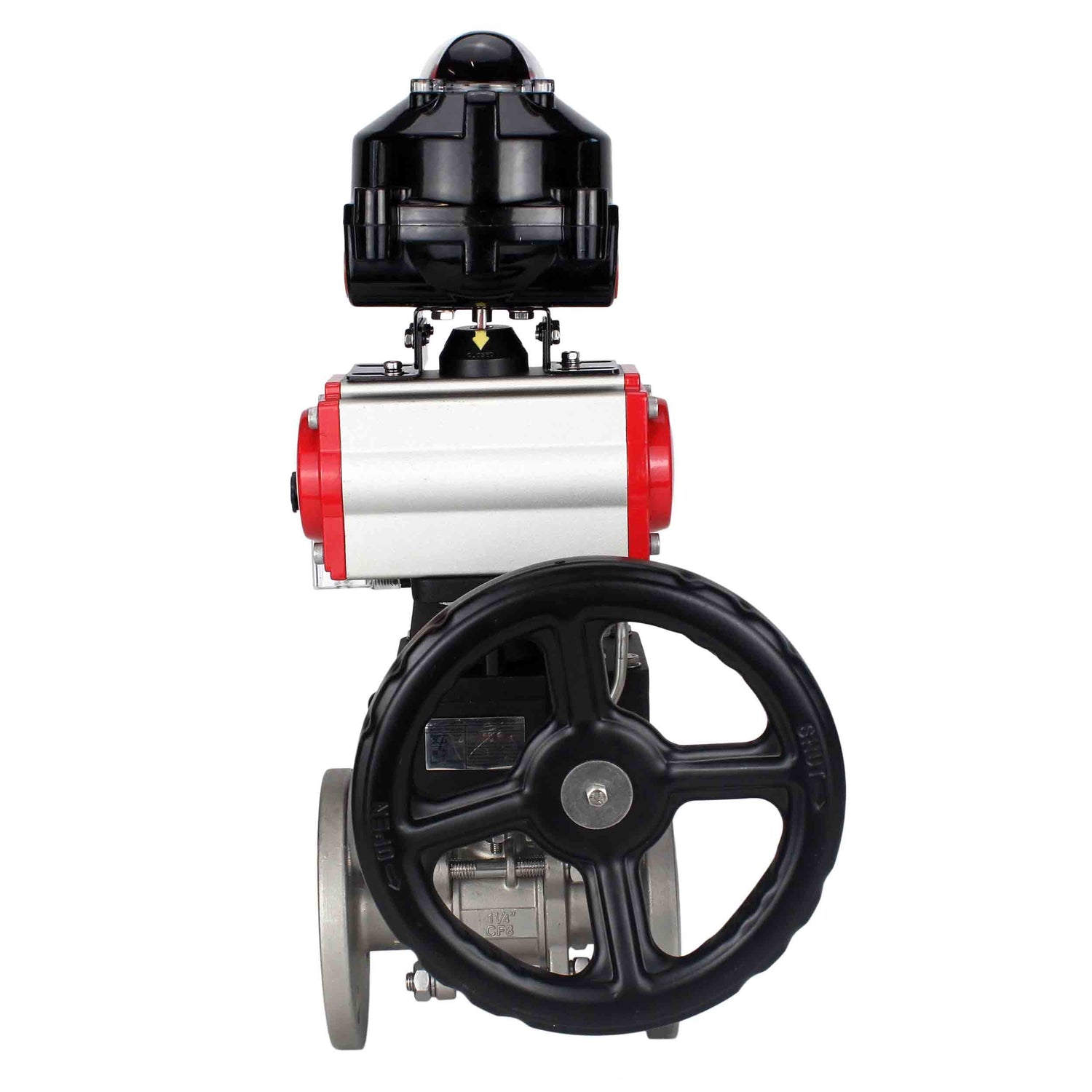

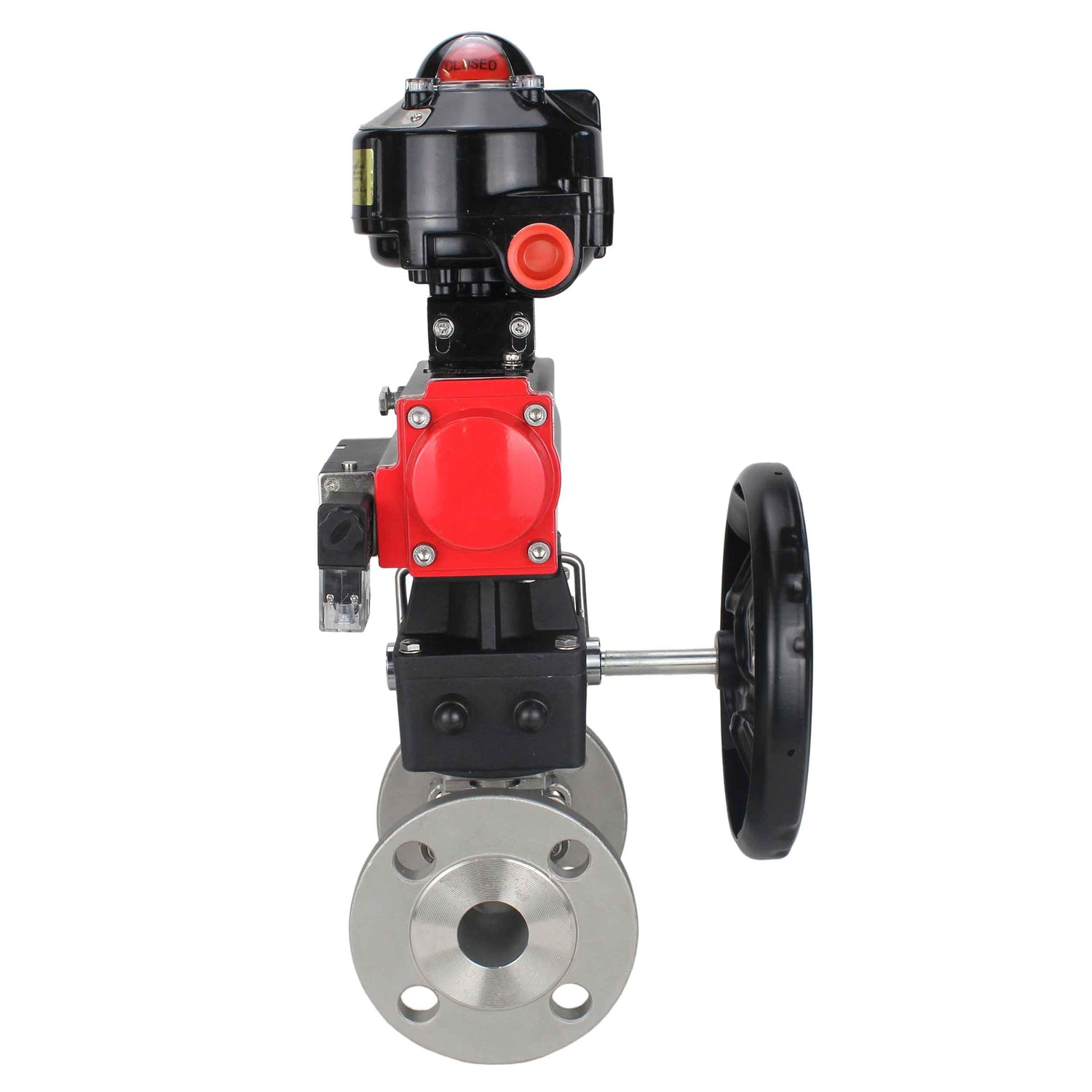

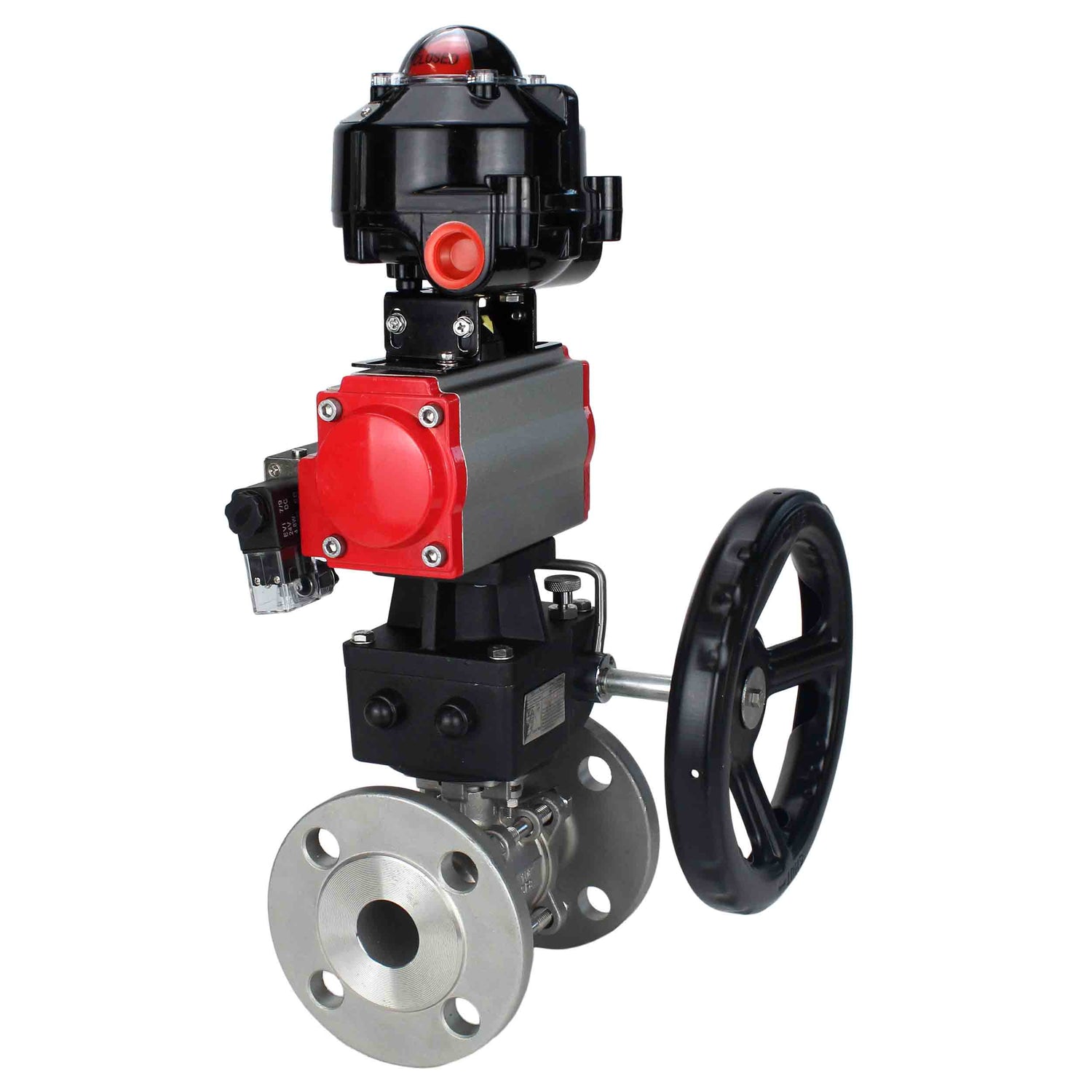

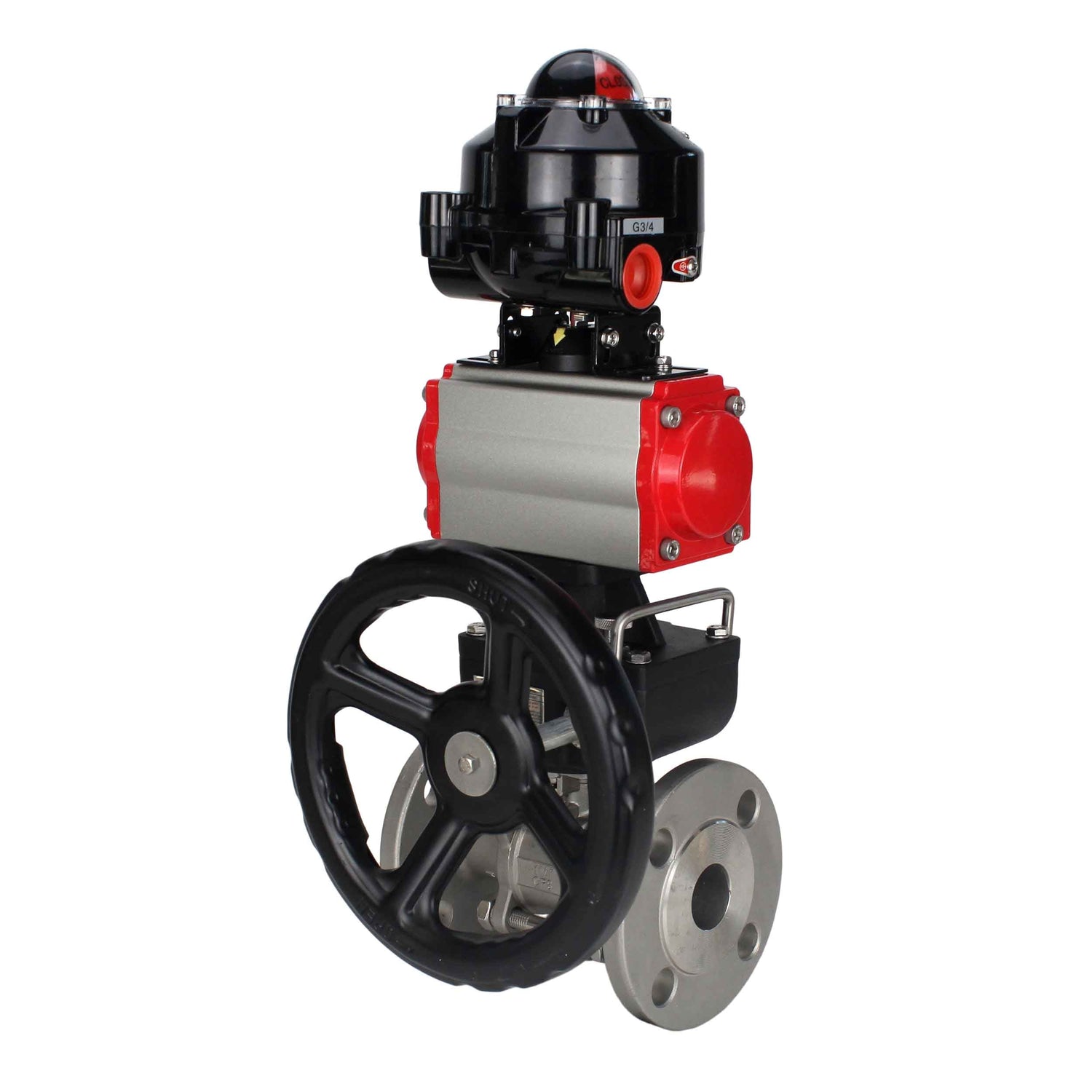

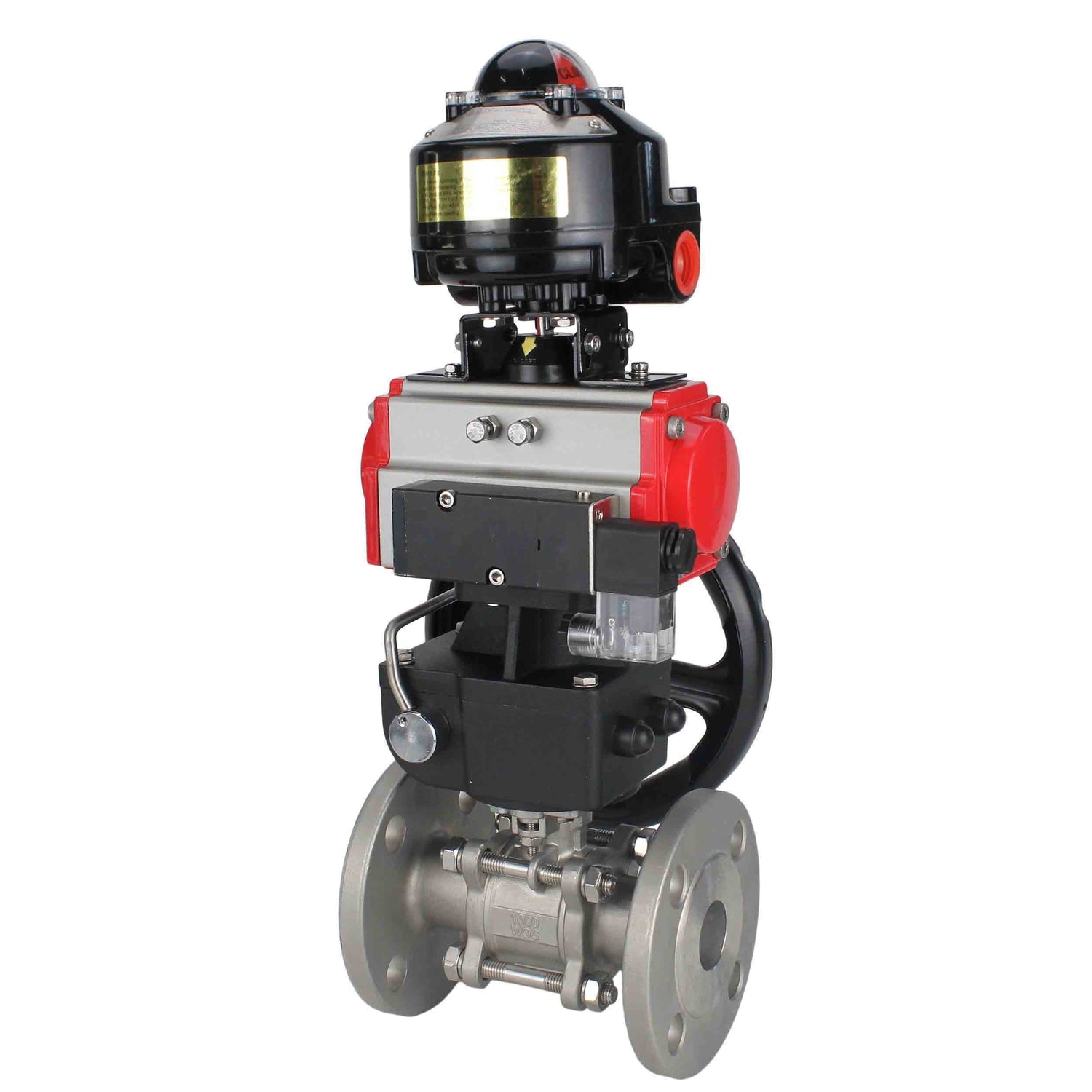

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H flanged, full bore, three-piece, stainless steel body. steel SS304, seal - PTFE, with pneumatic drive Elephant PA-DA 052-130 pneumatic distributor 4M310-08 220V gearbox MON LSU APL-510N-EX

€1.232,12
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H flanged, full bore, three-piece, stainless steel body. steel SS304, seal - PTFE, with pneumatic drive Elephant PA-DA 052-130 pneumatic distributor 4M310-08 220V gearbox MON LSU APL-510N-EX - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators PA-DA are designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Pneumatic actuators Elephant are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.

Pneumatic distributors 4M310-08 220 V are used for control in pneumatic systems with a NAMUR mating surface for installing distributors through through holes in the housing.

The Elephant MON manual override with worm gear and HDM reduction gear allows manual setting of the required positioning of the shut-off element by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most effective and efficient solution to the entire range of manual override tasks.

The Elephant APL-510N-EX limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of pipeline valves. As a rule, a sealed box contains two mechanical switches rated for up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the LSU, it becomes possible to transmit information about the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.




Technical data of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V APL-510N Ex MON

Nominal diameter DN, mm 40 – 300
Nominal pressure PN, MPa (kg/cm2) 1.6 (16)
Direction of flow bilateral
Temperature of working environment t, ⁰C -20 to +85 for NBR
-20 to +120 for EPDM
-10 to +180 for PTFE
Working environment EPDM: cold and hot water, air without impurities of oil and fat, other environments neutral to the material
PTFE: water, alkalis, acids, solvents and oxidizers
NBR: water, mineral oils, hydrocarbons,
oils, fats
Connection to the pipeline interflange





Sketch of detailing of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V APL-510N Ex MON





Materials of parts of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V APL-510N Ex MON

No. Name Material Quantity
1 Frame SS304 1
2 Ball valve SS304 1
3 Bolt S201 4-6
4 screw S201 6-12
5 Sealing PTFE 1
6 Stock SS304 1
7 Seal SS201 1
8 Lid WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 Thrust washer PTFE 1
11 screw SS201 1
12 Lever SS201 1
13 Handle shell PVC 1
14 Stopper SS201 1





Sketch of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V APL-510N Ex MON



Overall and installation dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-DA 4M310-08 220V APL-510N Ex MON

DN d, mm D, mm D1, mm D2, mm W, mm f, mm L, mm T,mm H,mm Z-øM,
шт-mm		 ISO 5211
15 15 95 65 46 17 2 130±1.5 131 71 4-ø14 F03/F04
20 20 105 75 58 18 2 150±1.5 131 74 4-ø14 F03/F04
25 25 115 85 68 18 2 160±1.5 167 97 4-ø14 F04/F05
32 32 140 100 78 19 2 180±1.5 167 110 4-ø18 F04/F05
40 40 150 110 88 19 2 200±1.5 193 117 4-ø18 F05/F07
50 50 165 125 102 19 3 230±1.5 193 125.5 4-ø18 F05/F07
65 65 185 145 122 22 3 290±1.5 242 135.5 8-ø18 F07/F10
80 80 200 160 140 24 3 310±1.5 272 157 8-ø18 F07/F10
100 100 234 190 161 24 3 350±1.5 295 181 8-ø22 F07/F10
100 100 220 180 158 20 3 350±1.5 330 169 8-ø18 F10






Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical characteristics of the pneumatic distributor 4M310-08 220 V

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1.5…8
Working environment filtered compressed air
Ambient temperature t, ⁰C from +5 to +50
Response frequency 5 cycles/s
Manual duplication There is
Degree of protection IP 65
Fastening through through holes in the body
Body material anodized aluminum
Response time 0.05 sec.





Materials of manual backup Elephant MON



Materials of manual backup Elephant-HDM

No. Name Material
1 Rod for mounting a pneumatic actuator Steel 45
2 Sealing ring EPDM
3 Locking spring Spring steel
4 Top end cap Aluminum alloy
5 Screw Steel 304
6 Fixing bracket (main rod) Steel 304
7 Frame Aluminum alloy
8 Sealing ring EPDM
9 Reducer Cast iron VCh50
10 Transition coupling Cast iron VCh40
11 Gearbox rod Cast iron VCh40





Characteristics of the APL-510N-EX limit switch unit


Parameter Meaning
Frame Weatherproof IP67/ NEMA4 4X,7,9
Explosion Proof E EX d IIC T6
Compatible devices - quarter-turn pneumatic actuators;
- any actuators with a shaft rotation of 90°
Full rotation angle 90°
Cable entries 2 x NPT 3/4”
Electrical connection screw clamp terminals 8 points (0.08 – 2.5) mm2
Cable entry thread 2 x NPT 3/4”
Visual indicator type two-color hemisphere: OPEN - yellow CLOSED - red
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Nominal current, A 16
Permissible ambient temperature, °C from -20 to +66
Average resource, cycles 10,000,000
Weight, kg 1.8

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    235 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
nullPneumatic valve ELEPHANT 4M310-08 spool type
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
