Elephant  |  SKU: D160-40191

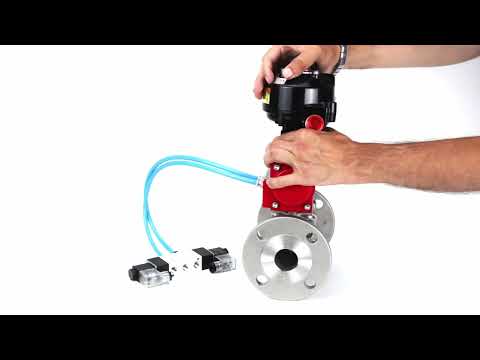

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H flanged, full bore, three-piece, body - stainless steel SS304, seal - PTFE, with pneumatic actuator Elephant PA-SA 065-160 pneumatic distributor 4V320- 10 accession DN10 LSU APL-510N

€1.490,41
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H flanged, full bore, three-piece, body - stainless steel SS304, seal - PTFE, with pneumatic actuator Elephant PA-SA 065-160 pneumatic distributor 4V320- 10 accession DN10 LSU APL-510N - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve.

Pneumatic actuators PA-SA are designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Pneumatic actuators Elephant are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.

Pneumatic distributors 4V320-10 220 V are used for control in pneumatic systems with a NAMUR mating surface for installing distributors through through holes in the housing.

The Elephant APL-510N-EX limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of pipeline valves. As a rule, a sealed box contains two mechanical switches rated for up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the LSU, it becomes possible to transmit information about the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.





Technical data of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA 4V320-10 220V APL-510N Ex

Nominal diameter DN, mm 40 – 300
Nominal pressure PN, MPa (kg/cm2) 1.6 (16)
Direction of flow bilateral
Temperature of working environment t, ⁰C -20 to +85 for NBR
-20 to +120 for EPDM
-10 to +180 for PTFE
Working environment EPDM: cold and hot water, air without impurities of oil and fat, other environments neutral to the material
PTFE: water, alkalis, acids, solvents and oxidizers
NBR: water, mineral oils, hydrocarbons,
oils, fats
Connection to the pipeline interflange





Sketch of detailing of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA 4V320-10 220V APL-510N Ex





Materials of parts of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA 4V320-10 220V APL-510N Ex

No. Name Material Quantity
1 Frame SS304 1
2 Ball valve SS304 1
3 Bolt S201 4-6
4 screw S201 6-12
5 Sealing PTFE 1
6 Stock SS304 1
7 Seal SS201 1
8 Lid WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 Thrust washer PTFE 1
11 screw SS201 1
12 Lever SS201 1
13 Handle shell PVC 1
14 Stopper SS201 1





Sketch of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA 4V320-10 220V APL-510N Ex




Overall and installation dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA 4V320-10 220V APL-510N Ex

DN d, mm D, mm D1, mm D2, mm W, mm f, mm L±1.5, mm T, mm H, mm Z-øM pcs-mm
15 15 95 65 46 17 2 130 131 71 4-ø14
20 20 105 75 58 18 2 150 131 74 4-ø14
25 25 115 85 68 18 2 160 167 97 4-ø14
32 32 140 100 78 19 2 180 167 110 4-ø18
40 40 150 110 88 19 2 200 193 117 4-ø18
50 50 165 125 102 19 3 230 193 125,5 4-ø18
65 65 185 145 122 22 3 290 242 135,5 8-ø18
80 80 200 160 140 24 3 310 272 157 8-ø18
100 100 234 190 161 24 3 350 295 181 8-ø22
100* 100 220 180 158 20 3 350 330 169 8-ø18




Technical data of SA pneumatic actuators with return springs:

Type of pneumatic actuator SA - with return springs
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


SA pneumatic actuators rotary with return springs




Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130



Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
PA-x-052 30 41,5 65,5 72 92 65 30 80
PA-x-065 36 47 81 88 108 72 30 80
PA-x-083 46 57 98,5 108,7 128,7 92 30 80
PA-x-105 57,5 64 122,5 133 153 109,5 30 80
PA-x-130 67,5 74,5 145,5 155 185 127,5 30 130
PA-x-140 75 77 161 172 202 137,5 30 130
PA-x-160 87 87 184 197 227 159 30 130
PA-x 210 113 113 235,5 255 285 210 30 130
PA-x-270 147 147 299 326 356 273 30 130
PA-x-300 162 174 330 350 380 312 30 130
PA-x-350 190 195 483 410 440 365 30 130

Sketch of dimensions of SA pneumatic actuators with return springs





Materials of parts of SA pneumatic actuators with return springs:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of SA pneumatic actuators with return springs




Technical characteristics of the pneumatic distributor 4V320-10 220 V

Name Meaning
Type of pneumatic distributor spool valve
Body material aluminum alloy and technopolymer
Control two-way electromagnetic
Scheme of work 5/2
5 working lines; 2 positions
Effective cross-sectional area, mm2 model 4V320-8 – 25 (Cv = 1.4)
model 4V320-10 – 30 (Cv = 1.68)
Thread of working ports model 4V320-8 – G 1/4"
model 4V320-10 – G 3/8"
Exhaust port thread model 4V320-8 – G 1/4"
model 4V320-10 – G 1/4"
Working pressure, bar 1.5 ÷ 8
Maximum pressure, bar 12
Working environment purified air
(filtration fineness 40 microns)
Supply voltage, V 220
Full power, V A 4.5
Permissible changes in
supply voltage 		±10%
Degree of protection/insulation class IP65/F
Operating temperature, °C from -5 to +50
Maximum response frequency 5 cycles per second
Minimum switching time, s 0.05
Flow rate, l/min model 4V320-8 – 1,350
model 4V320-10 – 2,250
Average resource, cycles 20,000,000
Weight, kg 1,2





Characteristics of the APL-510N-EX limit switch unit

Parameter Meaning
Frame Weatherproof IP67/ NEMA4 4X,7,9
Explosion Proof E EX d IIC T6
Compatible devices - quarter-turn pneumatic actuators;
- any actuators with a shaft rotation of 90°
Full rotation angle 90°
Cable entries 2 x NPT 3/4”
Electrical connection screw clamp terminals 8 points (0.08 – 2.5) mm2
Cable entry thread 2 x NPT 3/4”
Visual indicator type two-color hemisphere: OPEN - yellow CLOSED - red
Switches/sensors two mechanical switches two proximity sensors
Nominal voltage, V 250
Rated current, A 16
Permissible ambient temperature, °C from -20 to +66
Average resource, cycles 10,000,000
Weight, kg 1.8

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    235 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    spring loaded
