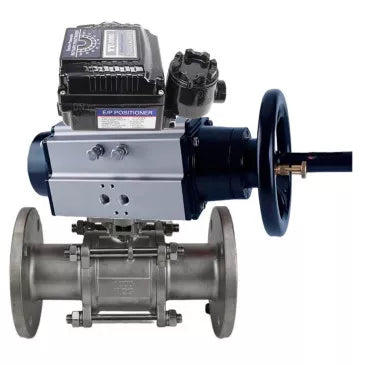

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-pie – Valve Elephant
Elephant  |  SKU: D160-48036

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN no feedback

€664,93
Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN no feedback - DN65 / 25 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. Use of ball valves as regulating valves is not allowed.
Pneumatic rotary actuator is designed to automate the process of control of industrial valves, as well as to determine the position of the valve shut-off body.
Electropneumatic rotary positioner is used to control pneumatic rotary actuators by means of electric controller or control system with analog DC output signal range from 4 to 20 mA.






Technical parameters of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN no feedback:

Parameter

Value

Nominal pressure PN, bar

25

Working medium temperature, °C

From -20 to 180

Type of valve device

Two-way

Application

Water supply, Heat supply, Pneumatic systems

Working medium

Water, steam, oil products, liquid media, neutral media, gaseous media

Connection to pipeline

Flanged

Type of passage section

Full bore

Control type

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

No

Presence of pneumatic distributor

No

Presence of electro-pneumatic positioner

Yes

Warranty, years

1


Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN no feedback:

Model ØD, mm ØD1, mm ØD2, mm L, mm A, mm E, mm
DN65 184 145 122 290 495 200
DN80 200 160 138 310 495 200




Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE, with double-acting pneumatic actuator PA-DA-105-1 and with electro-pneumatic rotary positioner YT-1000RSN no feedback:

№

Part name

Material

Quantity

1

Body

Steel SS304 / SS316

1

2

Ball

Steel S304 / S316

1

3

Bolt

Steel S201 / S304

4~6

4

Nut

Steel S201 / S304

6~12

5

Seal

PTFE

1

6

Stem

Steel SS304 / SS316

1

7

Gland

Steel S201 / S304

1

8

Cover

Steel WCB/CF8/CF8M

2

9

Seat rings

PTFE

2

10

Thrust washer

PTFE

1




Technical parameters of pneumatic actuator PA-DA-105-1:

Type of pneumatic actuator double-acting
Control pressure, bar 2 ÷ 8
Operating temperature, °C -20 to +80
Visual position indicator open / closed
Manual control handwheel
Swivel angle, ° 90 ± 5
Top connection standard NAMUR
Air connection standard NAMUR
Air supply connection thread G 1/4ʺ
ISO flange type F07/F10
Stem square, mm 22x22
Weight, kg 9
Average life, cycles closed/open 300 000

Pneumatic actuator PA-DA-105-1





Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:

A, mm 495
A1, mm 461.5
B, mm 133
C, mm 109.5
D, mm 153
E, mm 57.5
F, mm 64
G, mm 26
H, mm 80
I, mm 30
N, mm 22
W, mm 200
J, mm 102
K, mm 70
L, mm M10x16
M, mm M8x13
O, mm 4
P, mm 4
S, mm M6
T, mm 24
U, mm 32

Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1





PA-DA-105-1 air actuator parts and materials table:

№ Part name Material
1 Indicator screw ABS (plastic)
2 Position indicator ABS (plastic)
3 Spring clip Stainless steel 304
4 Washer Stainless steel 304
5 External washer Engineering plastic
6 Adjustment screw Stainless steel 304
7 Nut Stainless steel 304
8 Washer Stainless steel 304
9 Body Extruded aluminum alloy
10 Piston Die cast aluminum alloy
11 Piston O-ring NBR
12 Bearing group Engineering plastic
13 End cap O-ring NBR
14 End cap Die cast aluminum alloy coated with polyester paint
15 Fixing screw Stainless steel 304
16 Internal washer Engineering plastic
17 Sealing ring NBR
18 Bearing Engineering plastic
19 Retainer Alloy steel
20 Gear Alloy steel
21 Bearing Engineering plastic
22 Sealing ring NBR

Parts and material sketch of the PA-DA-105-1 pneumatic actuator




Technical parameters of electropneumatic rotary positioners Elephant YT-1000RSN

Parameter

Value

Model of electro-pneumatic positioner

YT-1000RSN

Control input signal, mA

4 ~ 20

Internal resistance, Ohm

250(±15)

Input pressure, bar

1.4~7

Lever travel angle

0~90°

Air connection thread

1/4″

Pressure gauge connection thread

1/8″

Cable gland

G1/2″

Protection rating

IP66

Compressed air consumption, l/min

3

Air output flow, l/min

80

Body material

Aluminum casting





Dimensions and sizes of Elephant YT-1000RSN electropneumatic rotary positioners:

Model positioner YT-1000RSN
A, mm 224.3
B, mm 166.5
C, mm 117.5
D, mm 132.3
E, mm 6
F, mm 122
G, mm 45
H, mm 45
I, mm 23
J, mm 27
K, mm 32.5
L, mm 35.5
M, mm 91.8
N, mm 37.2
O, mm 43.5
P, mm 26.5
Q, mm 33
R, mm 80.25
S, mm 62.5
T, mm 8
U1, mm 70
U2, mm 93
V1, mm 40
V2, mm 63
W, mm 26
X, mm 32
Y, mm 9
Z, mm 24




Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Explosion-proof
    no
  • Torque
    85 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    double action
