Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar three-piece full bore flanged, body - stainless steel SS304, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1
Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar three-piece full bore flanged, body - stainless steel SS304, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1 - DN65 / 25 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to valve materials.

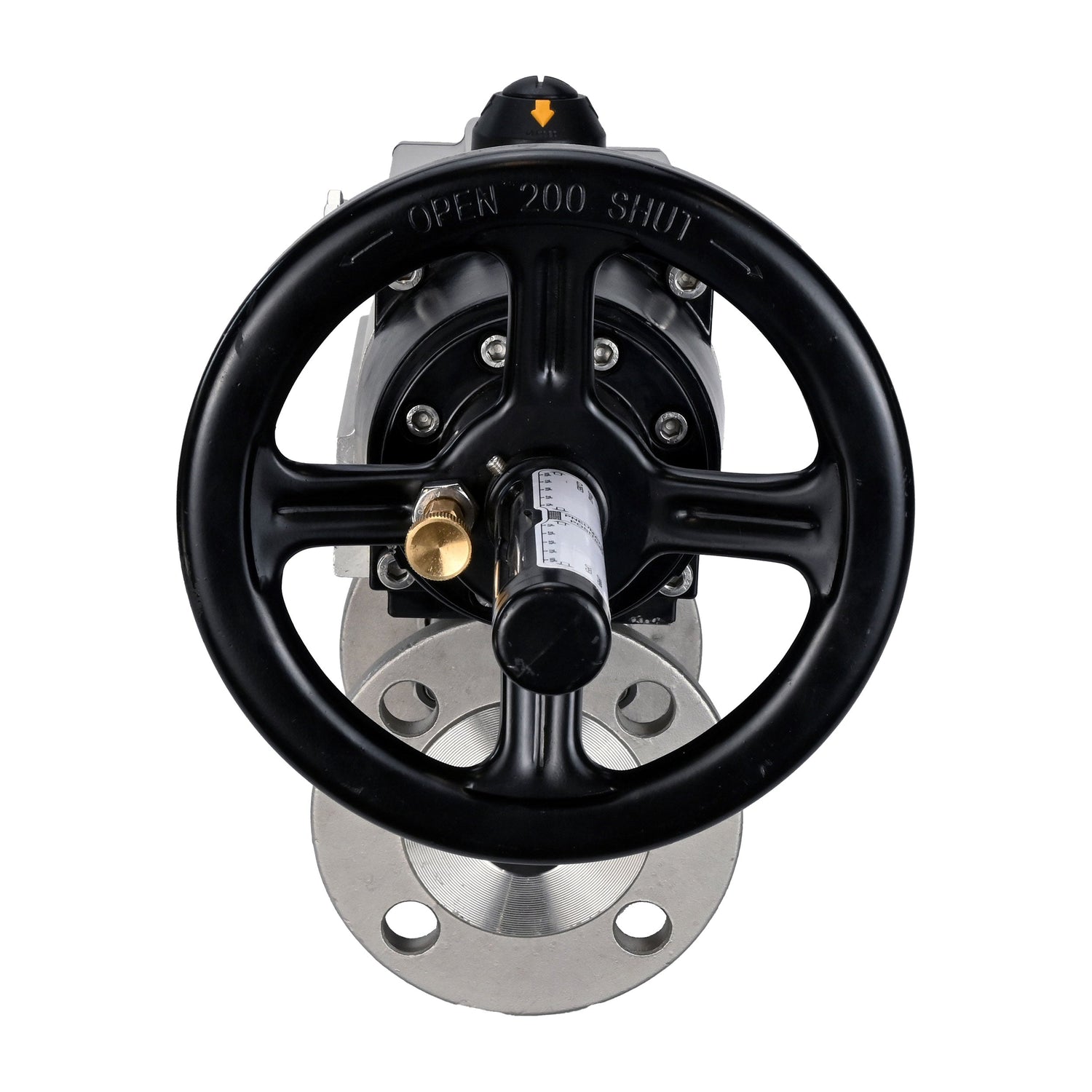

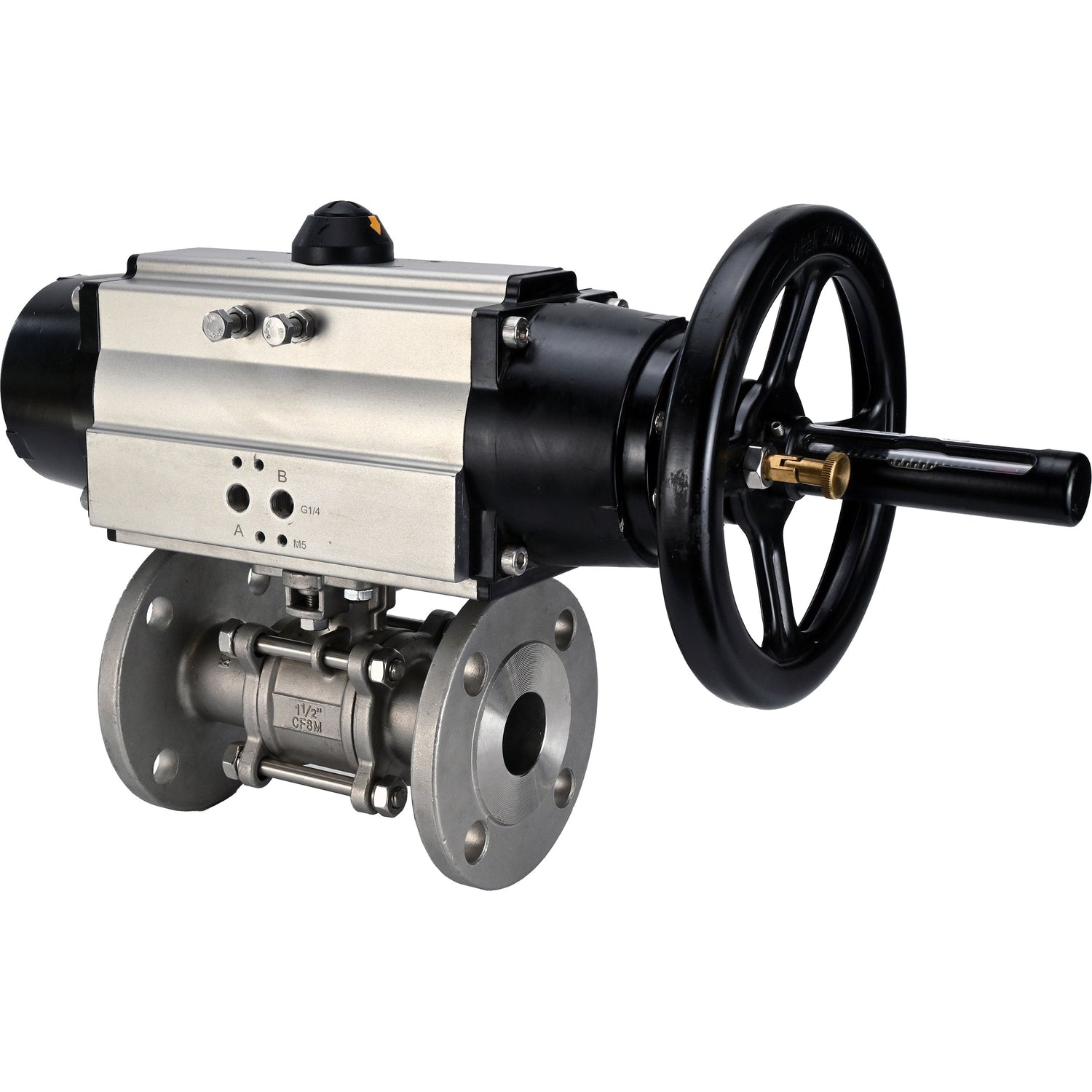

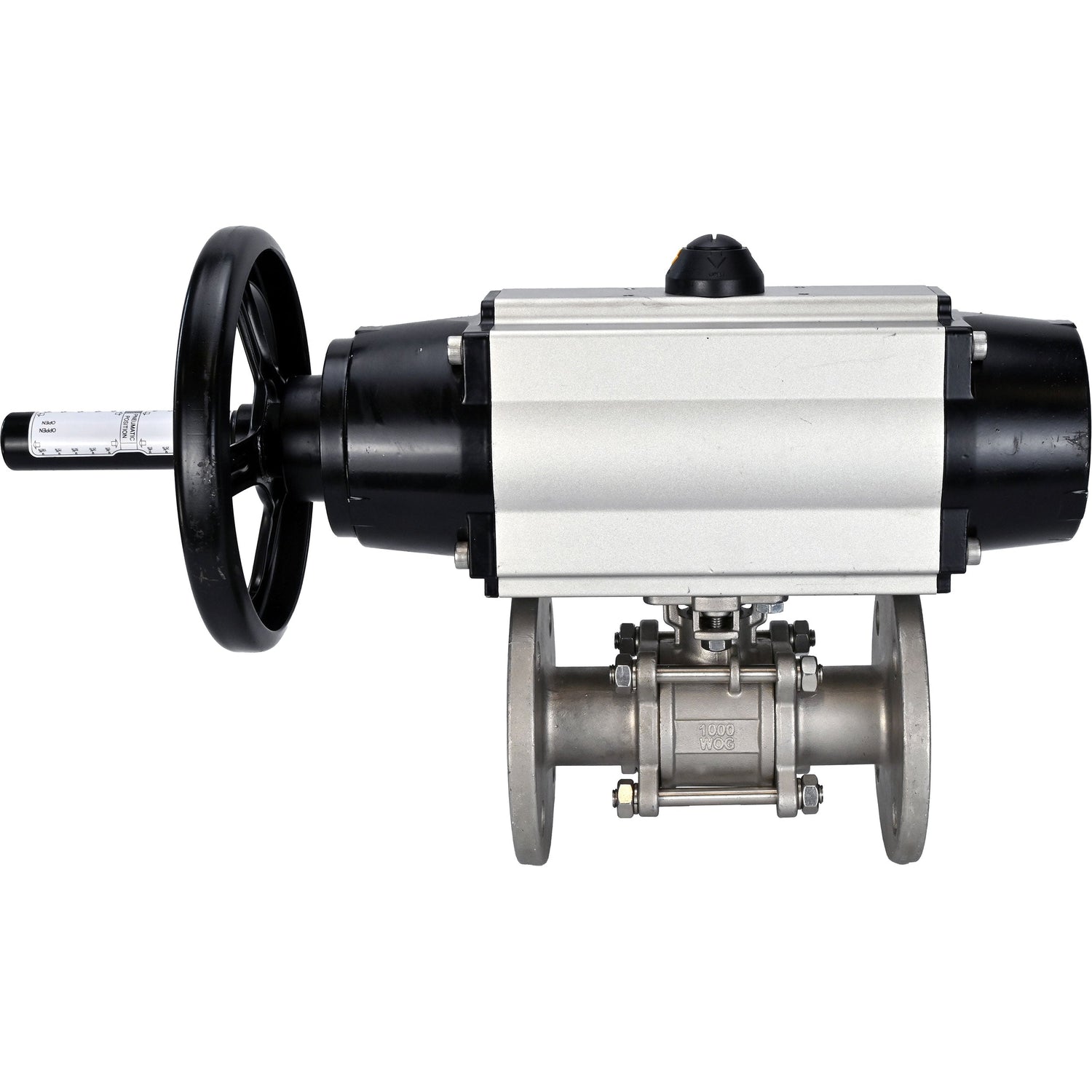

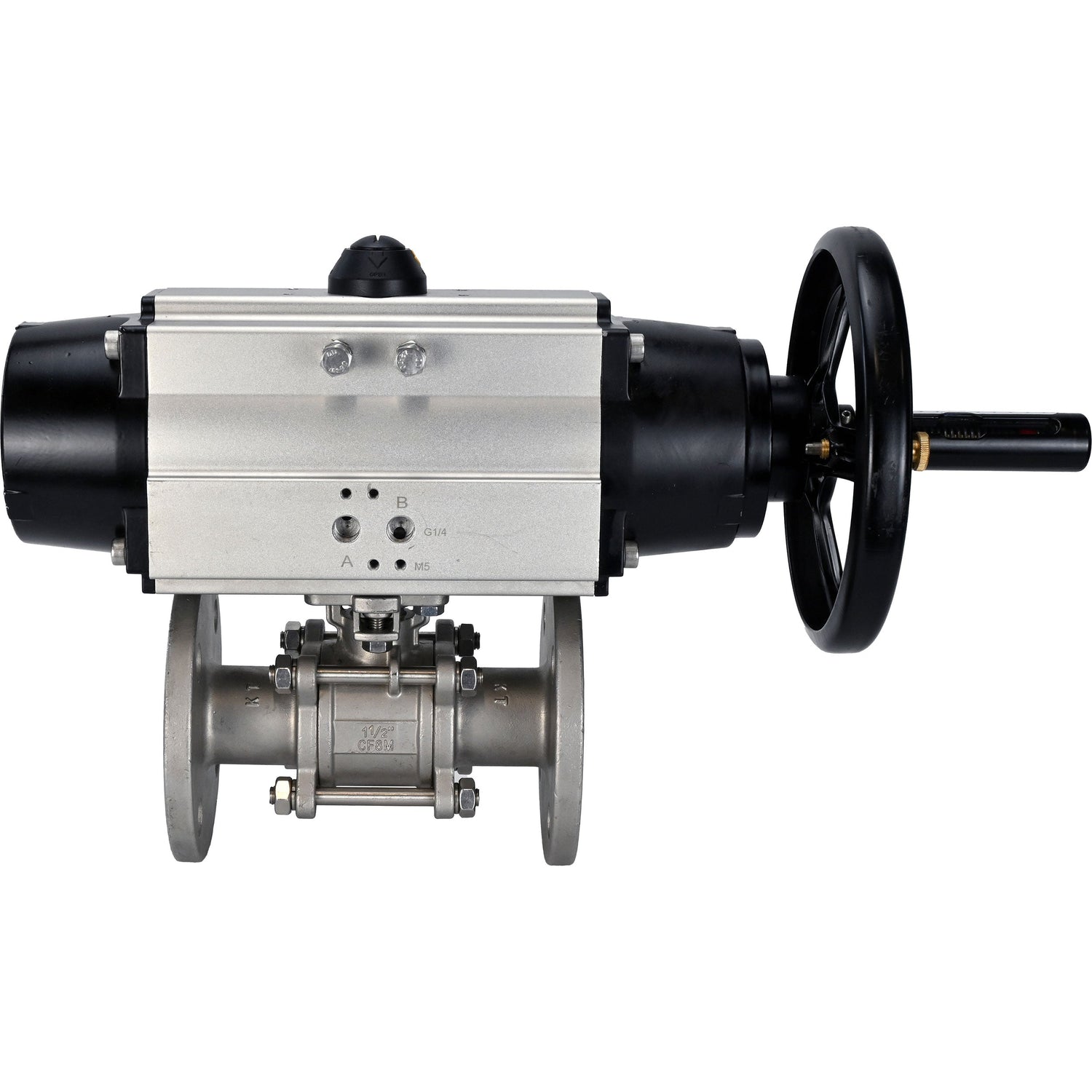

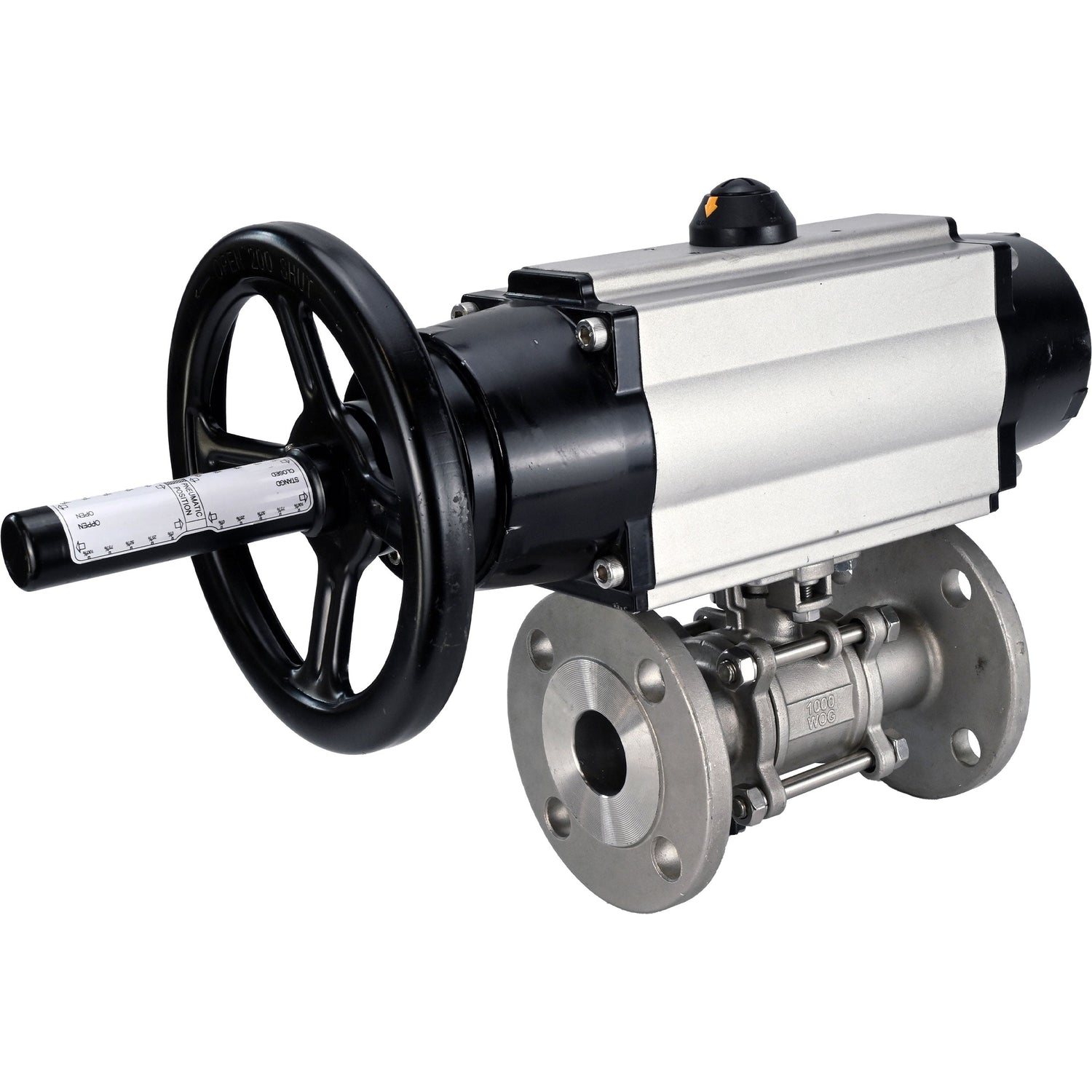

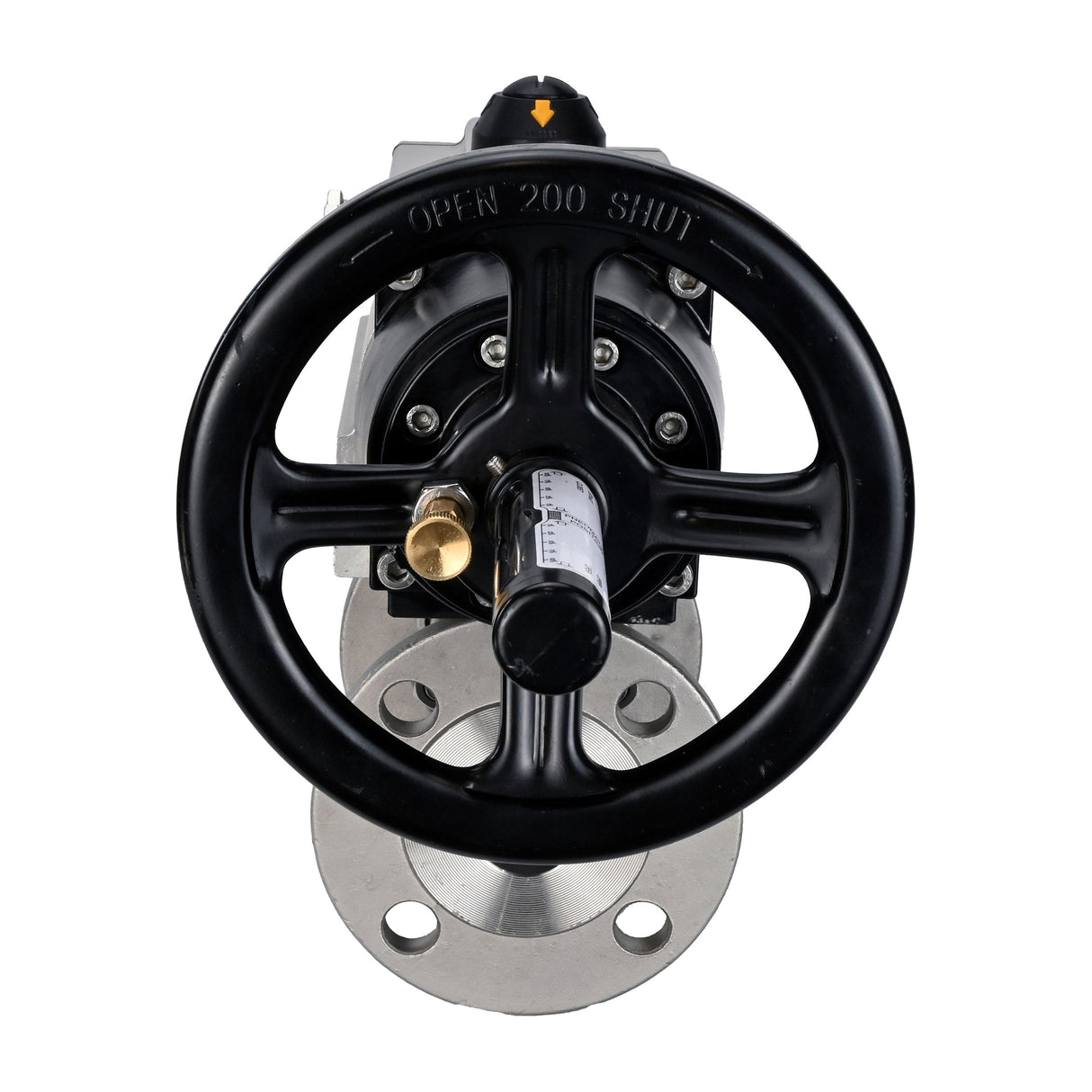

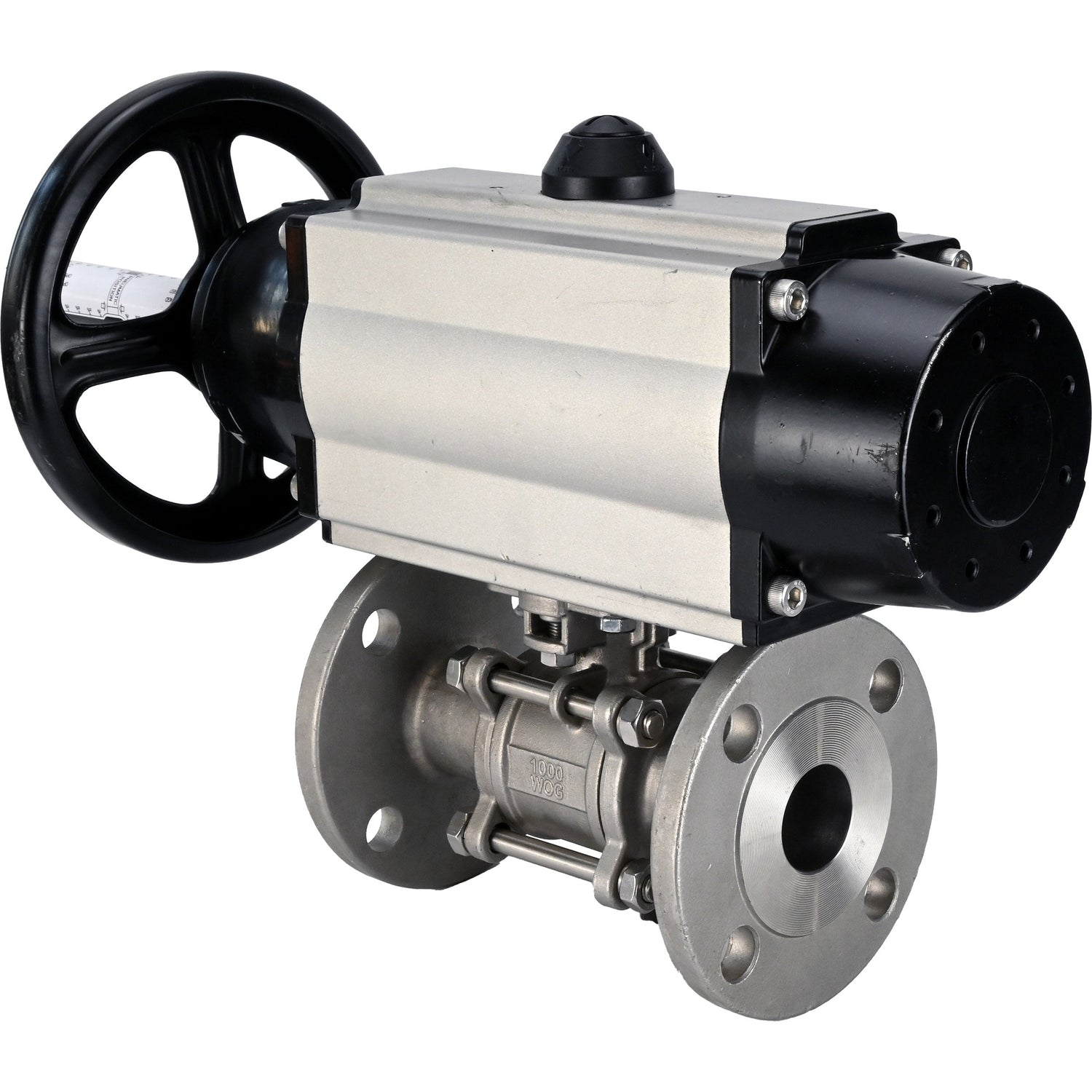

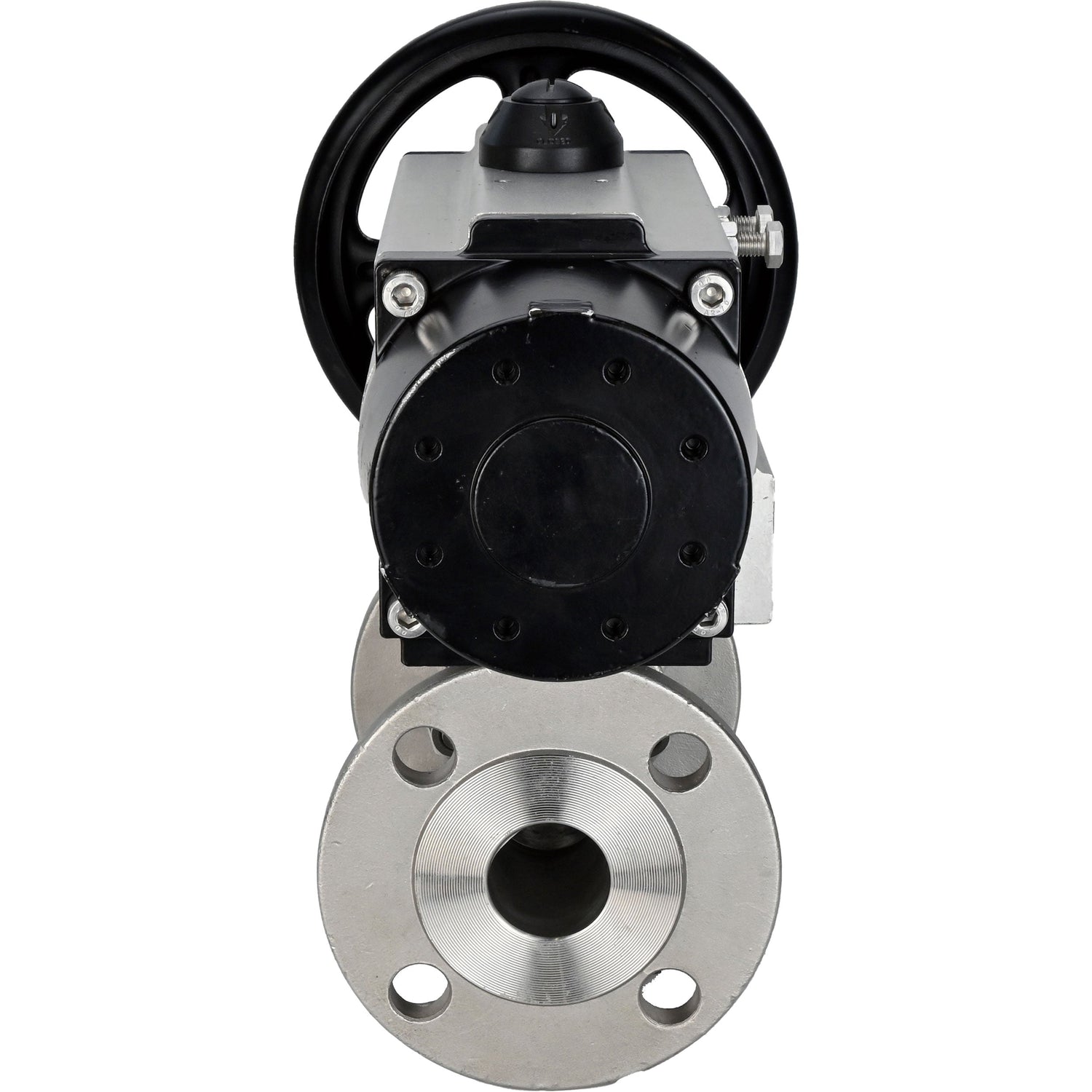

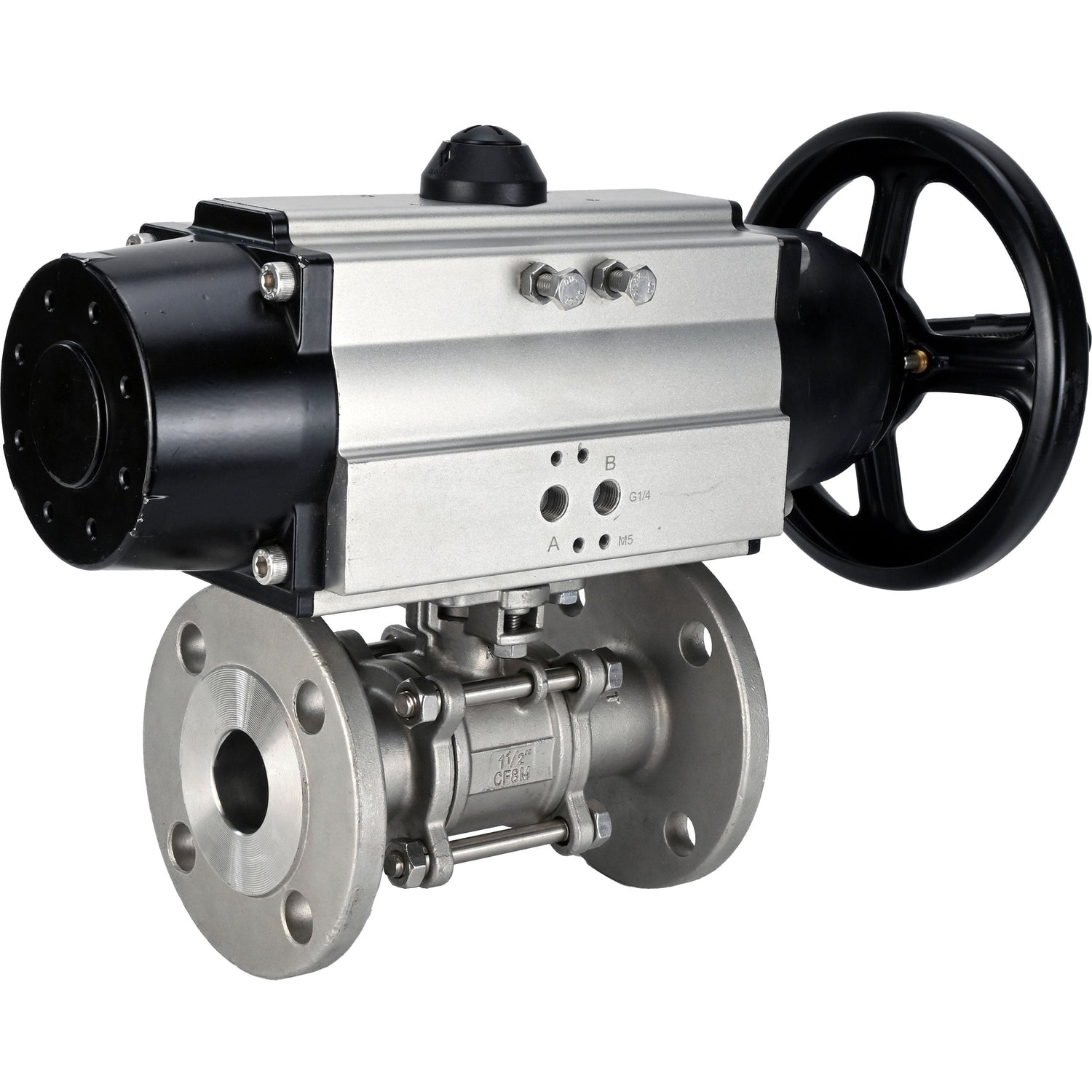

Pneumatic actuator Elephant pneumatic double-acting rotary actuator PA-DA-105-1 with hand wheel is designed for automation of industrial valve control process, as well as for determining the position of the valve shut-off body.
Technical parameters of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar three-piece full bore flanged, body - stainless steel SS304, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1:
|
Parameter |
Value |
|
Nominal pressure PN, bar |
25 |
|
Working medium temperature, °C |
From -20 to 180 |
|
Type of valve device |
Two-way |
|
Application |
Water supply, Heat supply, Pneumatic systems |
|
Working medium |
Water, steam, oil products, liquid media, neutral media, gaseous media |
|
Connection to pipeline |
Flanged |
|
Type of passage section |
Full bore |
|
Control type |
With pneumatic actuator |
|
Connection |
Flanged |
|
Control |
Double-acting pneumatic actuator |
|
Presence of limit switches |
No |
|
Presence of pneumatic distributor |
No |
|
Presence of electro-pneumatic positioner |
No |
|
Warranty, years |
1 |
|
Country of manufacture |
China |
Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar three-piece full bore flanged, body - stainless steel SS304, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1:
| Model | ØD, mm | ØD1, mm | ØD2, mm | L, mm | A, mm | E, mm |
| DN65 | 184 | 145 | 122 | 290 | 495 | 200 |
| DN80 | 200 | 160 | 138 | 310 | 495 | 200 |
Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H DN65-80 16 bar three-piece full bore flanged, body - stainless steel SS304, seal - PTFE, with pneumatic actuator Elephant PA-DA-105-1:
|
№ |
Part name |
Material |
Quantity |
|
1 |
Body |
Steel SS304 / SS316 |
1 |
|
2 |
Ball |
Steel S304 / S316 |
1 |
|
3 |
Bolt |
Steel S201 / S304 |
4~6 |
|
4 |
Nut |
Steel S201 / S304 |
6~12 |
|
5 |
Seal |
PTFE |
1 |
|
6 |
Stem |
Steel SS304 / SS316 |
1 |
|
7 |
Gland |
Steel S201 / S304 |
1 |
|
8 |
Cover |
Steel WCB/CF8/CF8M |
2 |
|
9 |
Seat rings |
PTFE |
2 |
|
10 |
Thrust washer |
PTFE |
1 |
Technical parameters of pneumatic actuator PA-DA-105-1:
| Type of pneumatic actuator | double-acting |
| Control pressure, bar | 2 ÷ 8 |
| Operating temperature, °C | -20 to +80 |
| Visual position indicator | open / closed |
| Manual control | handwheel |
| Swivel angle, ° | 90 ± 5 |
| Top connection standard | NAMUR |
| Air connection standard | NAMUR |
| Air supply connection thread | G 1/4ʺ |
| ISO flange type | F07/F10 |
| Stem square, mm | 22x22 |
| Weight, kg | 9 |
| Average life, cycles closed/open | 300 000 |
Pneumatic actuator PA-DA-105-1
Dimensions and dimensions of the pneumatic actuator PA-DA-105-1:
| A, mm | 495 |
| A1, mm | 461.5 |
| B, mm | 133 |
| C, mm | 109.5 |
| D, mm | 153 |
| E, mm | 57.5 |
| F, mm | 64 |
| G, mm | 26 |
| H, mm | 80 |
| I, mm | 30 |
| N, mm | 22 |
| W, mm | 200 |
| J, mm | 102 |
| K, mm | 70 |
| L, mm | M10x16 |
| M, mm | M8x13 |
| O, mm | 4 |
| P, mm | 4 |
| S, mm | M6 |
| T, mm | 24 |
| U, mm | 32 |
Sketch of dimensions and dimensions of pneumatic actuator PA-DA-105-1
PA-DA-105-1 air actuator parts and materials table:
| № | Part name | Material |
| 1 | Indicator screw | ABS (plastic) |
| 2 | Position indicator | ABS (plastic) |
| 3 | Spring clip | Stainless steel 304 |
| 4 | Washer | Stainless steel 304 |
| 5 | External washer | Engineering plastic |
| 6 | Adjustment screw | Stainless steel 304 |
| 7 | Nut | Stainless steel 304 |
| 8 | Washer | Stainless steel 304 |
| 9 | Body | Extruded aluminum alloy |
| 10 | Piston | Die cast aluminum alloy |
| 11 | Piston O-ring | NBR |
| 12 | Bearing group | Engineering plastic |
| 13 | End cap O-ring | NBR |
| 14 | End cap | Die cast aluminum alloy coated with polyester paint |
| 15 | Fixing screw | Stainless steel 304 |
| 16 | Internal washer | Engineering plastic |
| 17 | Sealing ring | NBR |
| 18 | Bearing | Engineering plastic |
| 19 | Retainer | Alloy steel |
| 20 | Gear | Alloy steel |
| 21 | Bearing | Engineering plastic |
| 22 | Sealing ring | NBR |
Parts and material sketch of the PA-DA-105-1 pneumatic actuator
