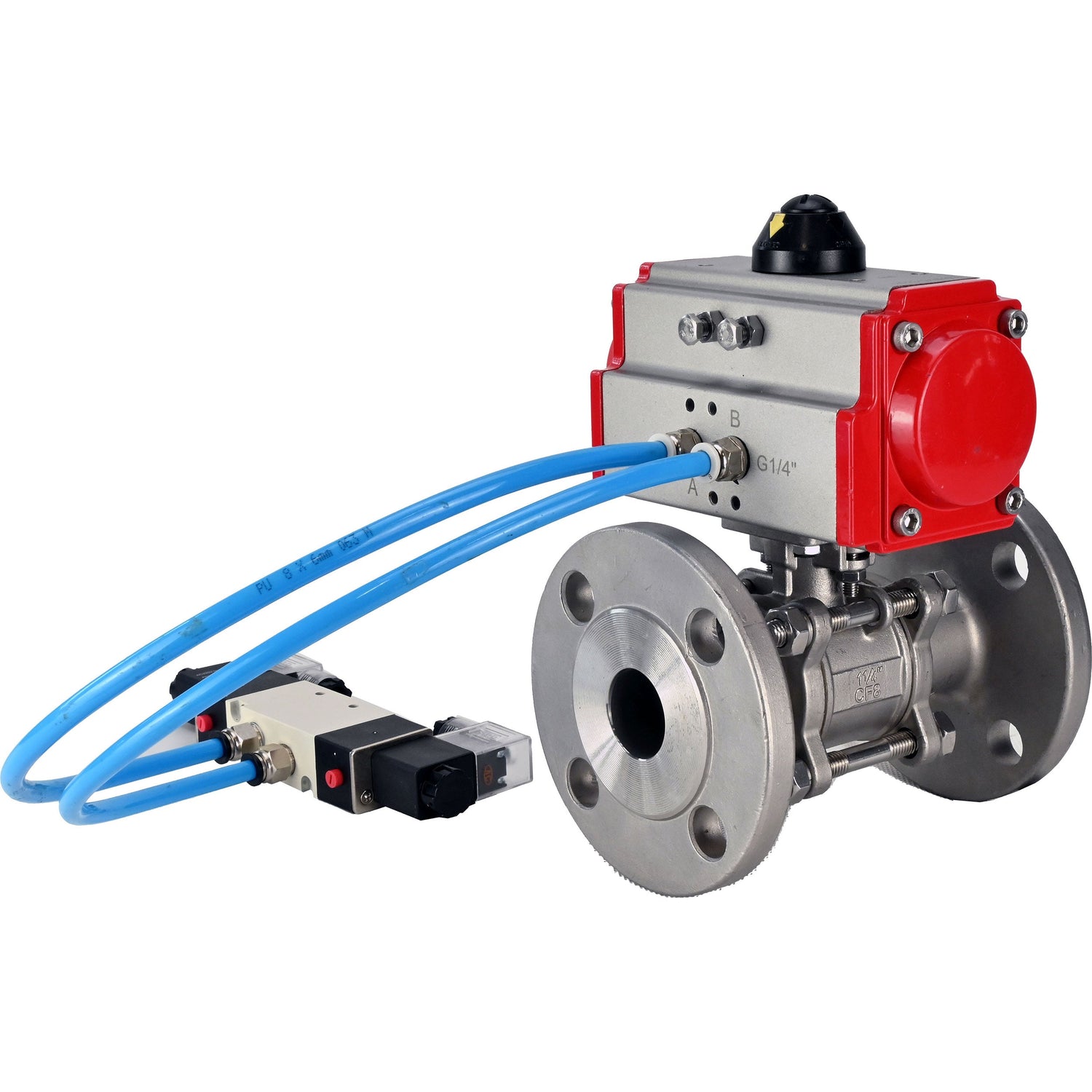

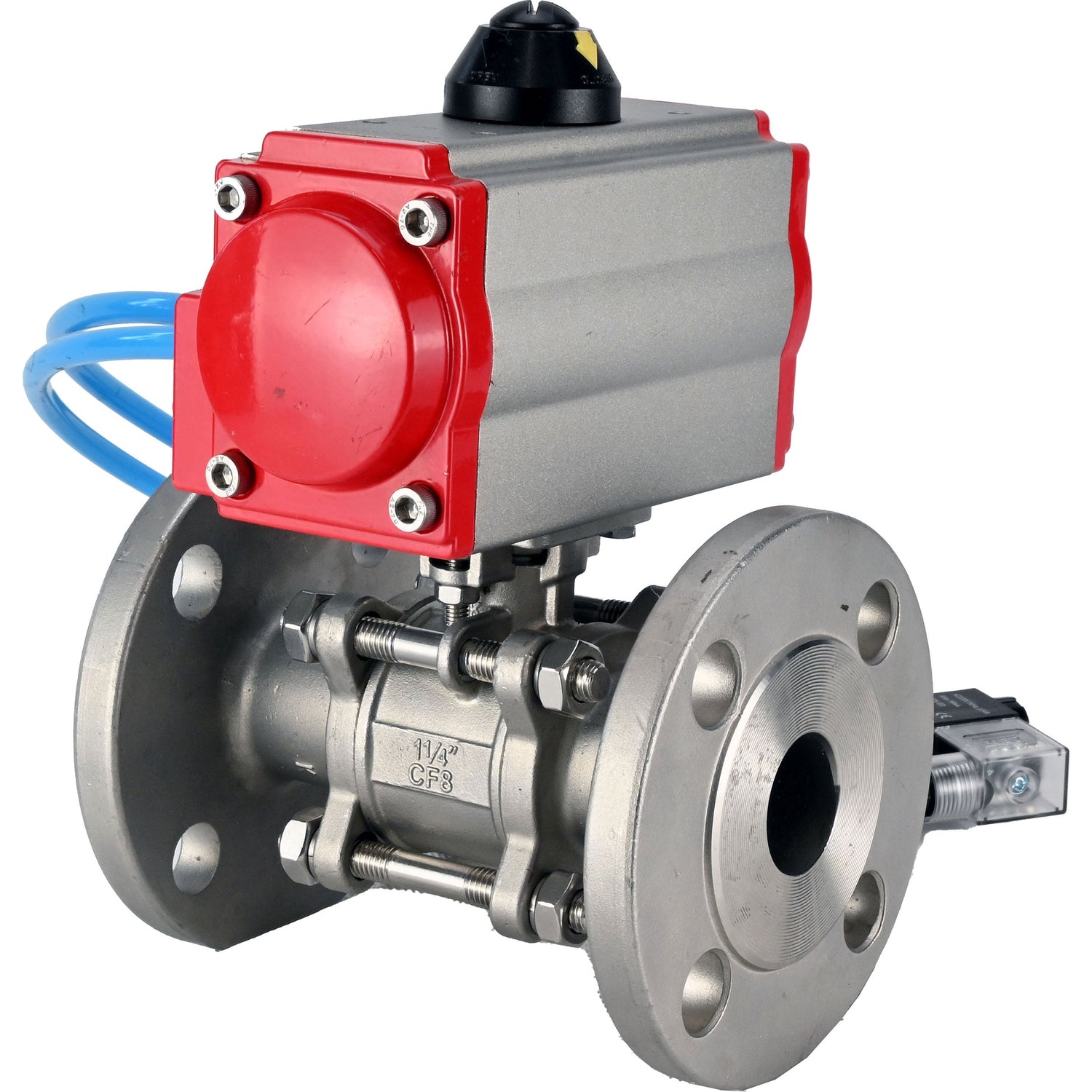

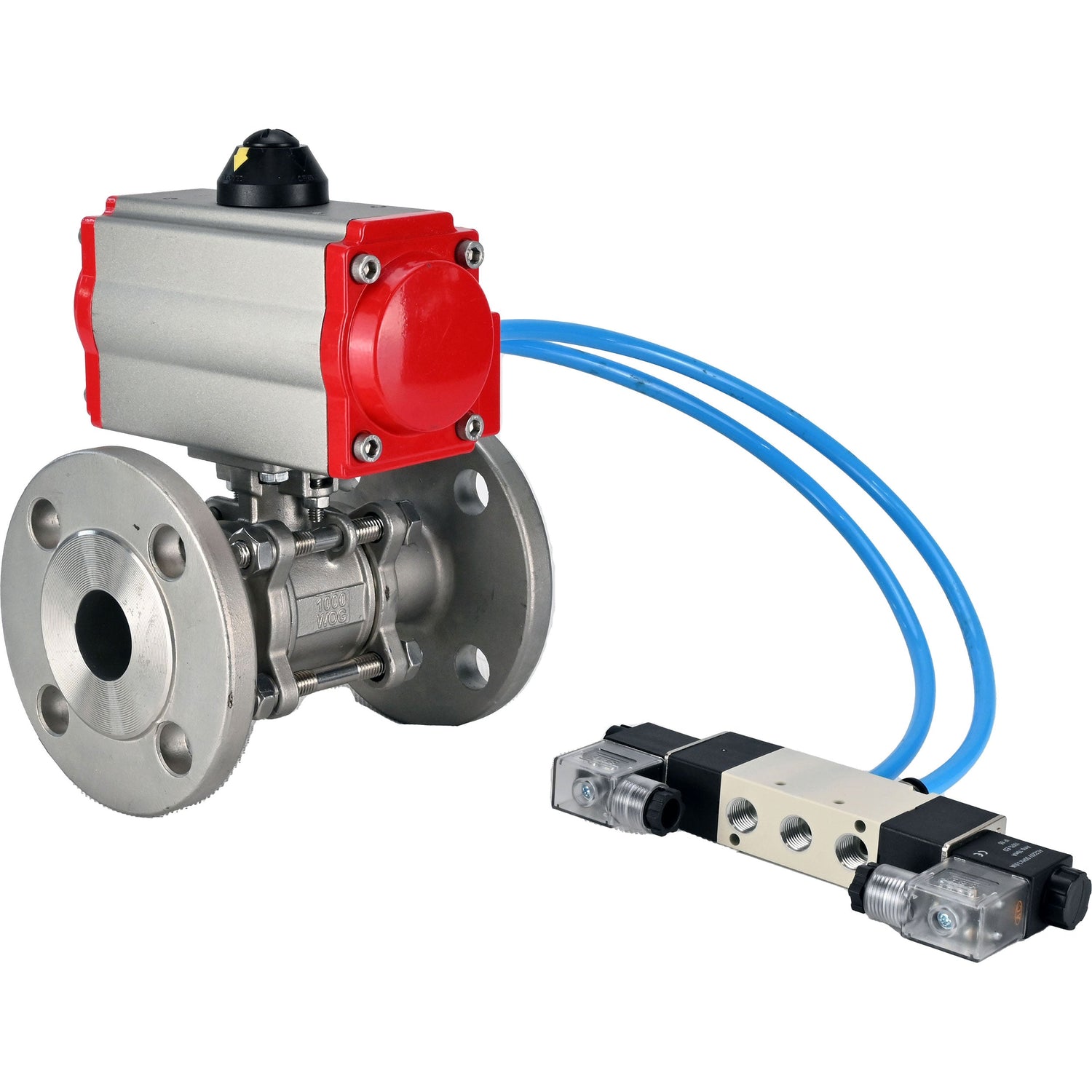

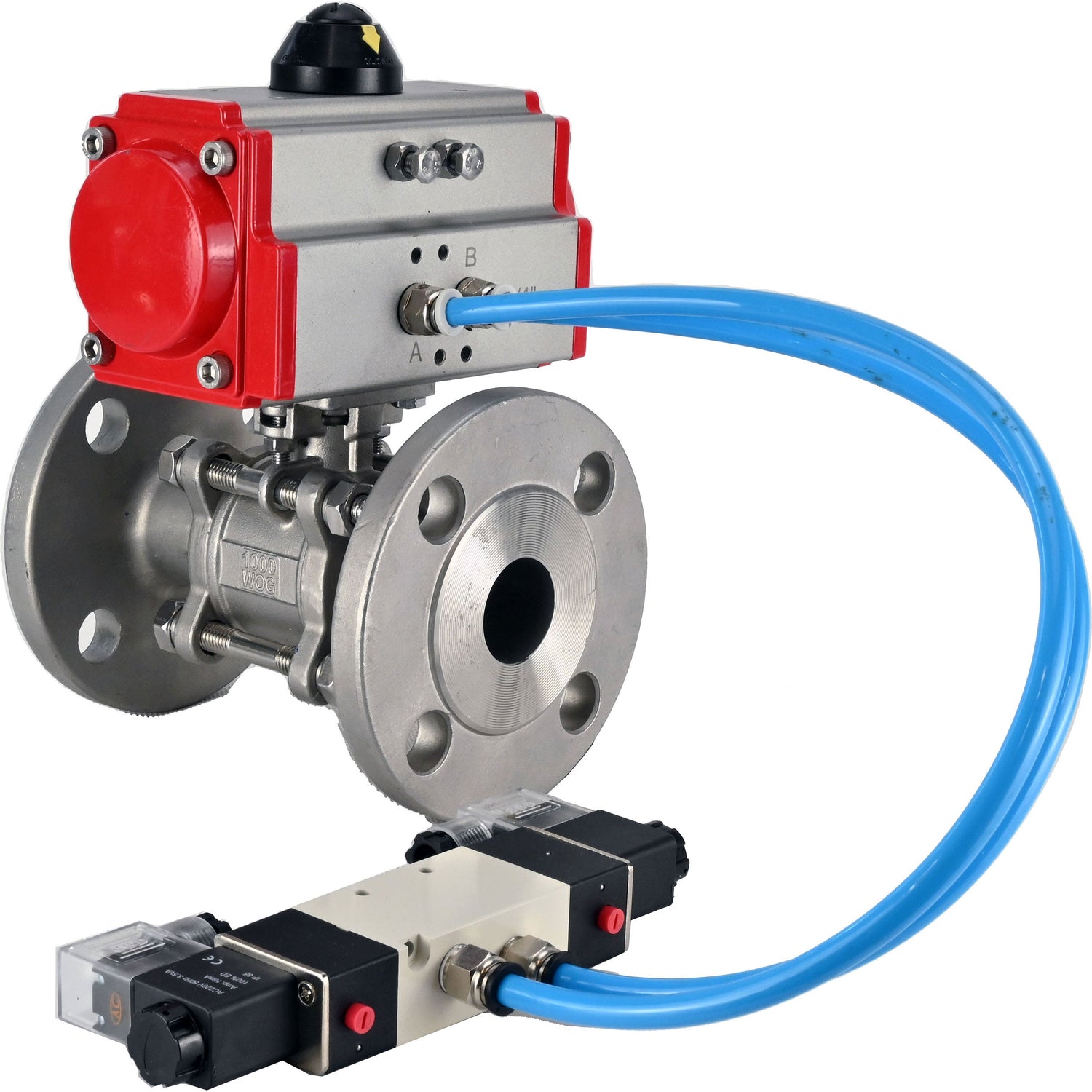

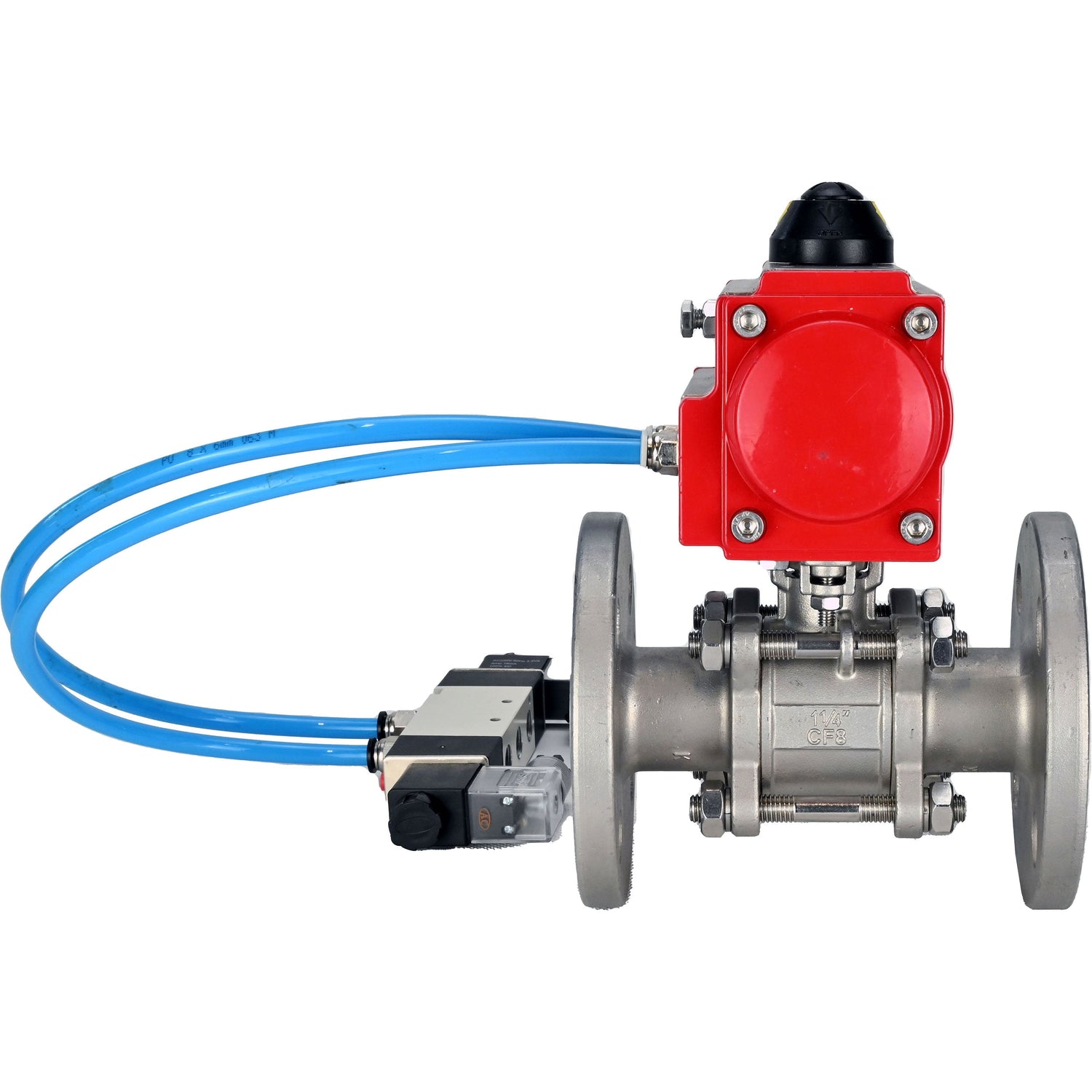

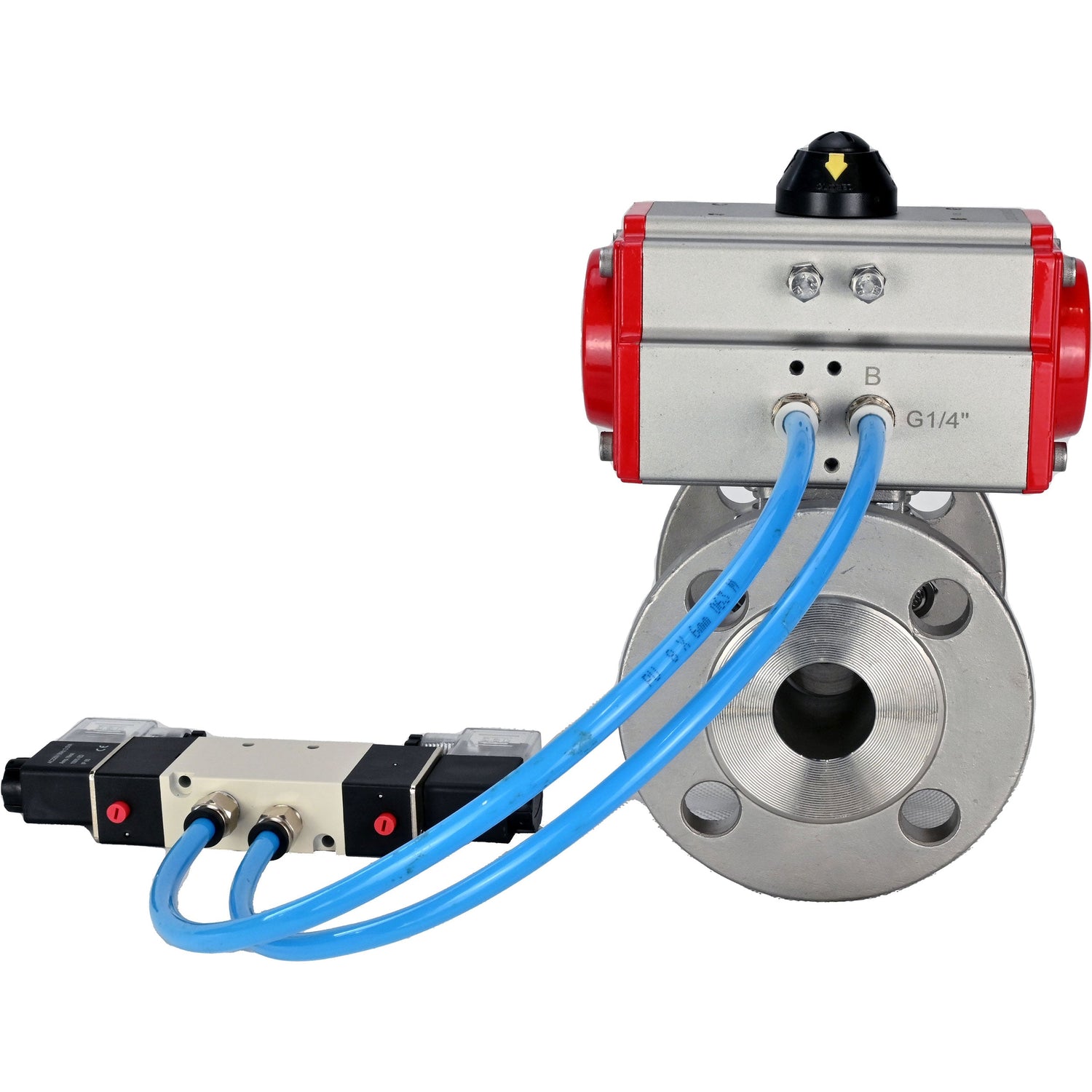

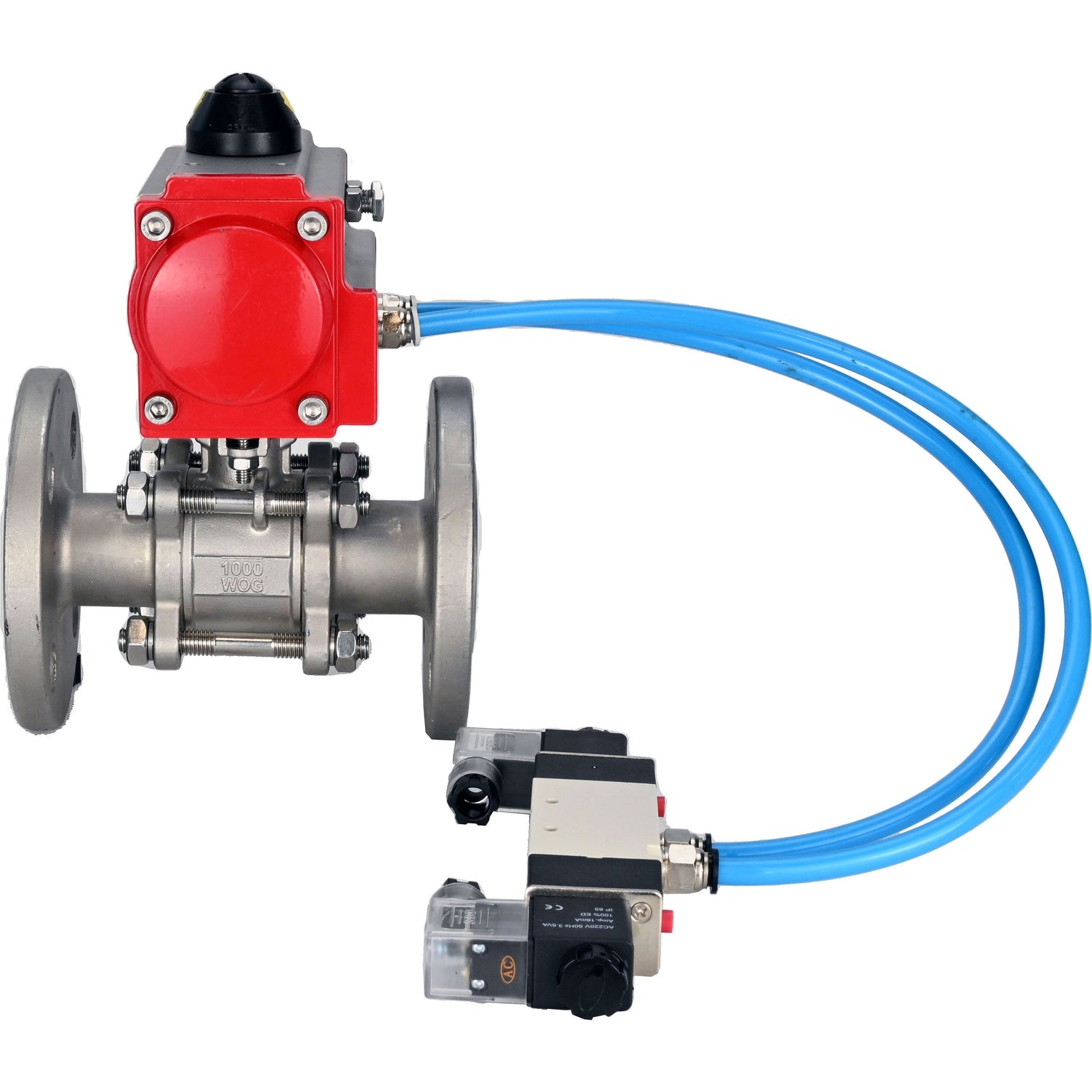

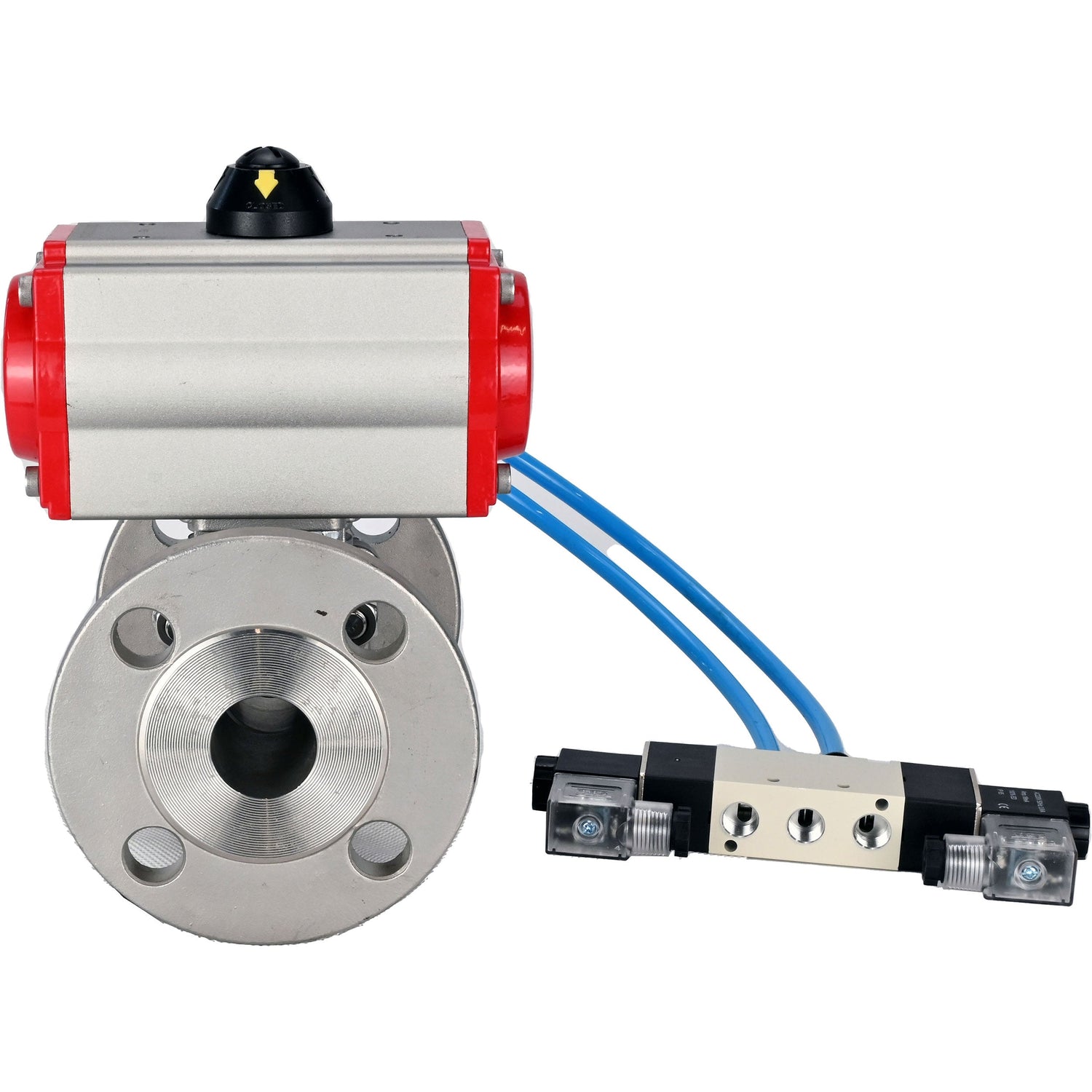

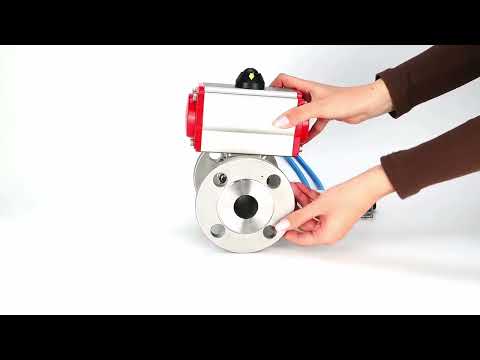

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-10 220V

€1.008,38
Tax included Shipping calculated at checkout.

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with pneumatic actuator PA-SA with return springs, with pneumatic distributor 4V320-10 220V - DN100 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The ball valve is used as a shut-off valve in heating, water supply, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.

Elephant pneumatic double-acting rotary actuators PA-DAXXX and pneumatic rotary actuators with return spring PA-SA-XXX are designed for automation of industrial valve control with maximum torque up to 2128 Nm.





Technical parameters Ball valves BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Parameter Value
Operating Medium Temperature, °C -20 to 180
Application Water supply, heating, pneumatic systems
Working Medium Water, steam, petroleum products, liquid media, neutral media, gaseous media
Pipeline Connection Flanged
Water-drawing No
Passage Type Full bore
Ball Valve Tightness Class A
Control Type With pneumatic actuator
Connection Flanged
Actuation Pneumatic actuator with return springs
Presence of Limit Switches Yes
Presence of Pneumatic Distributor Yes
Warranty, years 1
Country of Manufacture China





Dimensions and dimensions Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

Size D L B1 E ØD ØD1 ØG f Т
15 15 130 174 89 95 65 45 2 16
20 20 150 174 89 105 75 58 2 18
25 25 160 216 109 115 85 68 2 18
32 32 180 216 109 140 100 78 2 18
40 40 200 279 134 150 110 88 3 18
50 50 230 279 134 165 125 102 3 20
65 65 290 308 157 184 145 122 3 20
80 80 310 405 174 200 160 138 3 20
100 100 350 465 199 220 180 158 3 20

Sketch Ball Valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE





Parts and materials table Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE

№ Part Name Material Quantity
1 Body Stainless steel SS304 / SS316 1
2 Ball Valve Stainless steel S304 / S316 1
3 Bolt Stainless steel S201 / S304 4~6
4 Nut Stainless steel S201 / S304 6~12
5 Seal PTFE 1
6 Stem Stainless steel SS304 / SS316 1
7 Gland Stainless steel S201 / S304 1
8 Cover Steel WCB/CF8/CF8M 2
9 Seat Rings PTFE 2
10 Thrust Washer PTFE 1

Sketch Ball Valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, PTFE





Technical parameters of pneumatic actuator Elephant

Parameter Value
Design With return springs
Operating Pressure, bar 6
Working Medium Filtered compressed air or non-aggressive gases, oils
Manual Override No





Dimensions and dimensions of pneumatic actuator Elephant

Here's the table based on the provided data:

Model SA-065 SA-083 SA-105 SA-130 SA-140 SA-160
G, mm 15 15 25 25 30 30
M, mm 80 80 80 80 130 130
N, mm 30 30 30 30 30 30
Ф0, mm 34 34 41 62 62 62
P, mm 20 20 20 30 30 30
B1, mm 174 216 279 308 405 465
C, mm 36 46 55 67.5 76 87.5
E, mm 89 109 134 157 174 199
J 4-M6x10 4-M6x10 4-M8x12 4-M8x12 4-M10x16 4-M10x16
K 4-М8х12 4-М8х12 4-М10х16 4-М10х16 4-М12х20 4-М12x20
F, mm 26 26 26 36 36 38
A1, mm 125 152 189 210 268 310
D, mm 46 55 64 70 77 87.5
H F05 F05 F07 F10 F10 F10
I F07 F07 F10 F12 F12 F12
L 14x14 17x17 22x22 22x22 27x27 27x27

Sketch of dimensions and dimensions of pneumatic actuator Elephant





Parts and materials table for pneumatic actuator Elephant

№ Part Name Quantity Material Coating
1 Housing 1 Extruded aluminum Hard anodized
2 Side plugs 2 Cast aluminum
3 Gear 1 Stainless steel Nickel-plated
4 Piston 2 Steel/Aluminum Oxidized / Galvanized
5 Plugs 8 Stainless steel
6 Piston ring 2 NBR
7 Springs 0-12 Spring steel Epoxy coating
8 Piston bearing 2 Engineering plastic
9 Piston ring 2 NBR
10 Plug 2 NBR
11 Thrust ring 2 Engineering plastic
12 Ring 1 Engineering plastic
13 Washer 1 Stainless steel
14 Spring clamp 2 Stainless steel
15 Indicator 1 Plastic
16 Indicator housing 1 Plastic
17 Bearing 1 Engineering plastic
18 Cam 1 Steel Oxidized / Galvanized
19 Bearing 1 NBR
20 Bearing 1 Engineering plastic
21 Bearing 1 Engineering plastic
22 O-ring 2 NBR
23 O-ring 2 NBR
24 Bearing 2 Stainless steel
25 Adjustment nut 2 Stainless steel
26 Adjustment screw 2 Stainless steel
27 Bushing 2 Aluminum
Sketch of parts and materials of pneumatic actuator Elephant




Technical parameters of pneumatic valve Elephant 4V320-10 220V

Name Value
Type of pneumatic distributor Spool type
Model of pneumatic distributor 4V320-10 220V
Operating pressure, bar 1.5 ÷ 1.8
Supply voltage, V 220 V
Switching frequency, cycle/sec 5



Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    water, steam, oil products, liquid media, neutral media, gaseous media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    no
  • Torque
    235 Nm
  • Limit switches
    no
  • Type of pneumatic actuator
    spring loaded
