Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full – Valve Elephant
1 17
Elephant  |  SKU: D160-47172

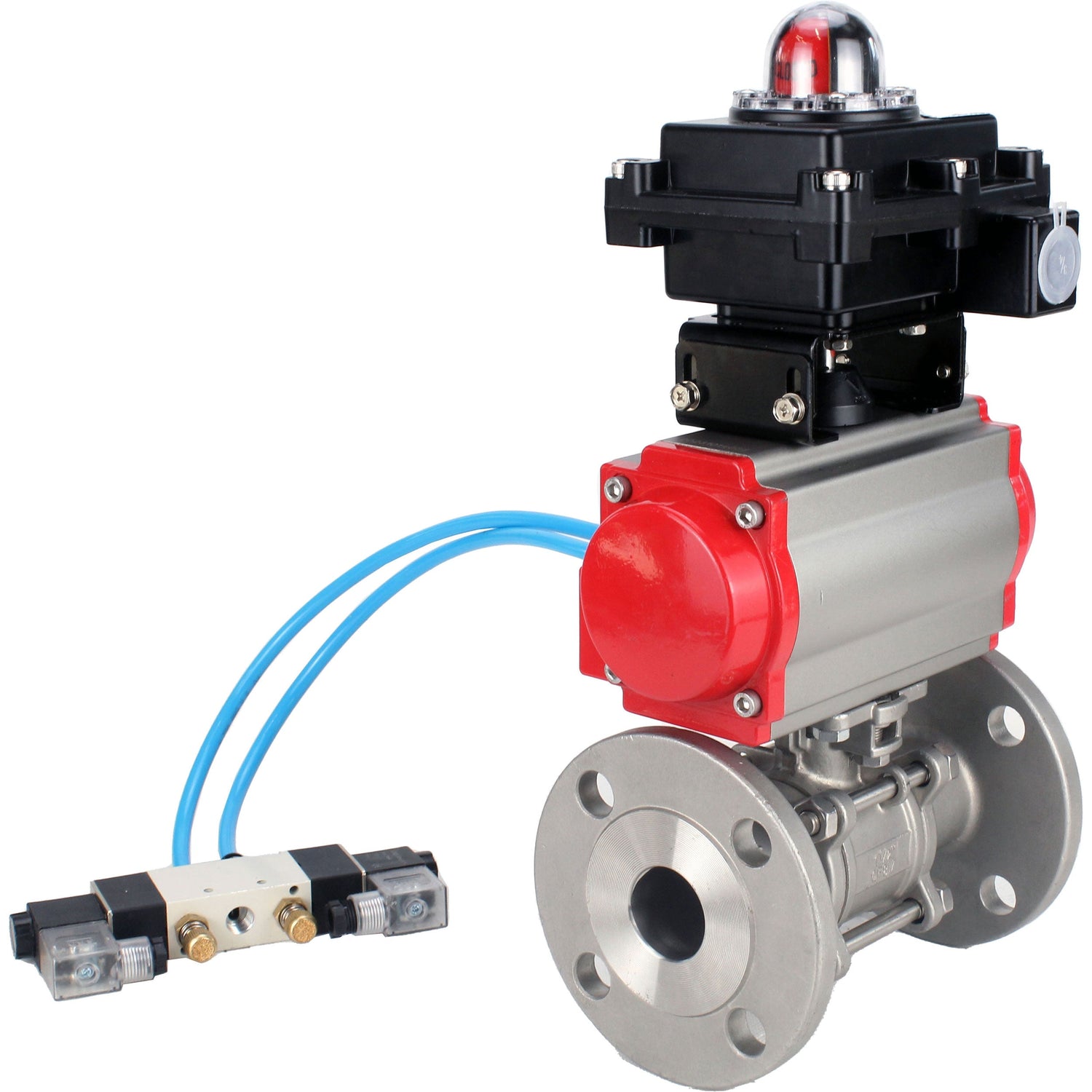

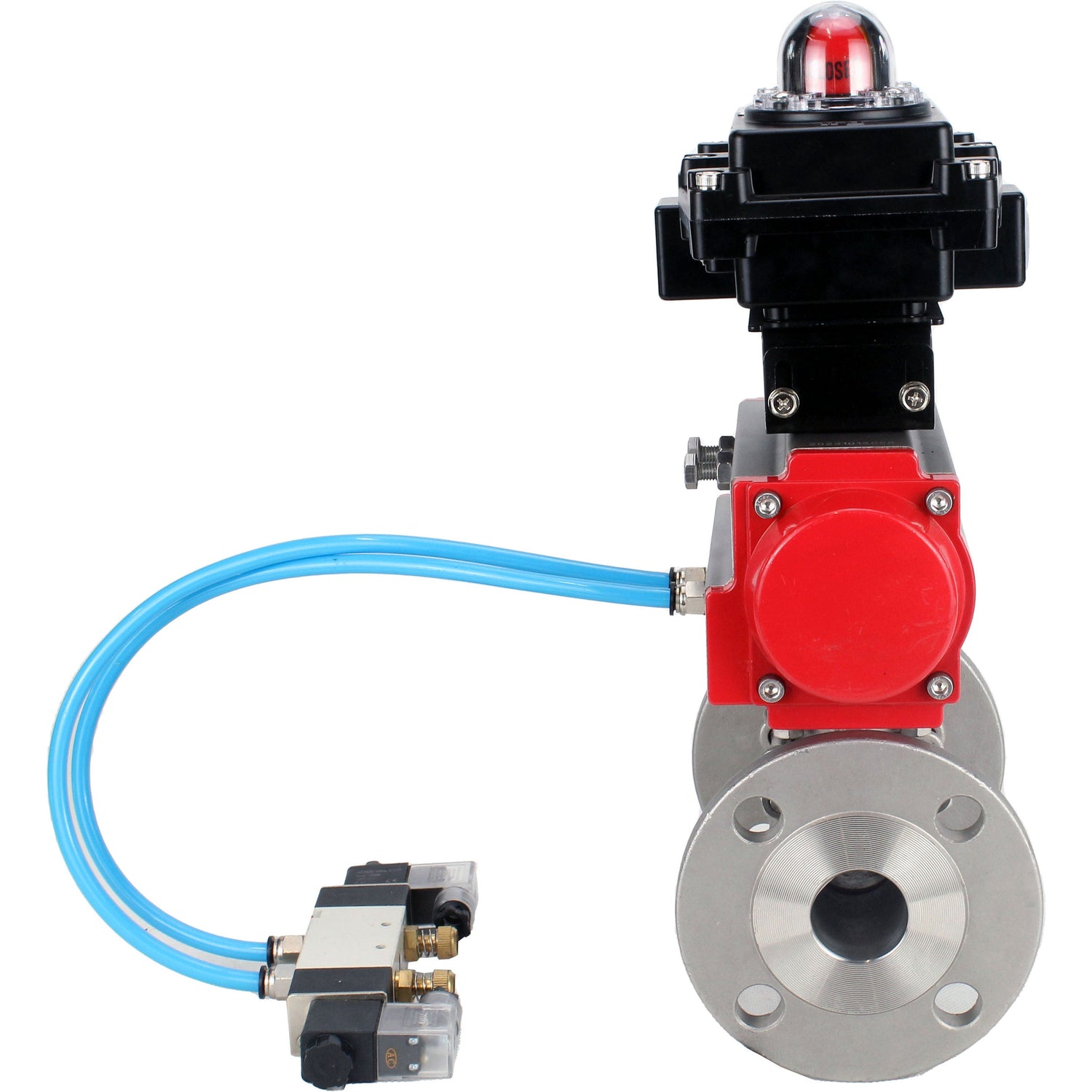

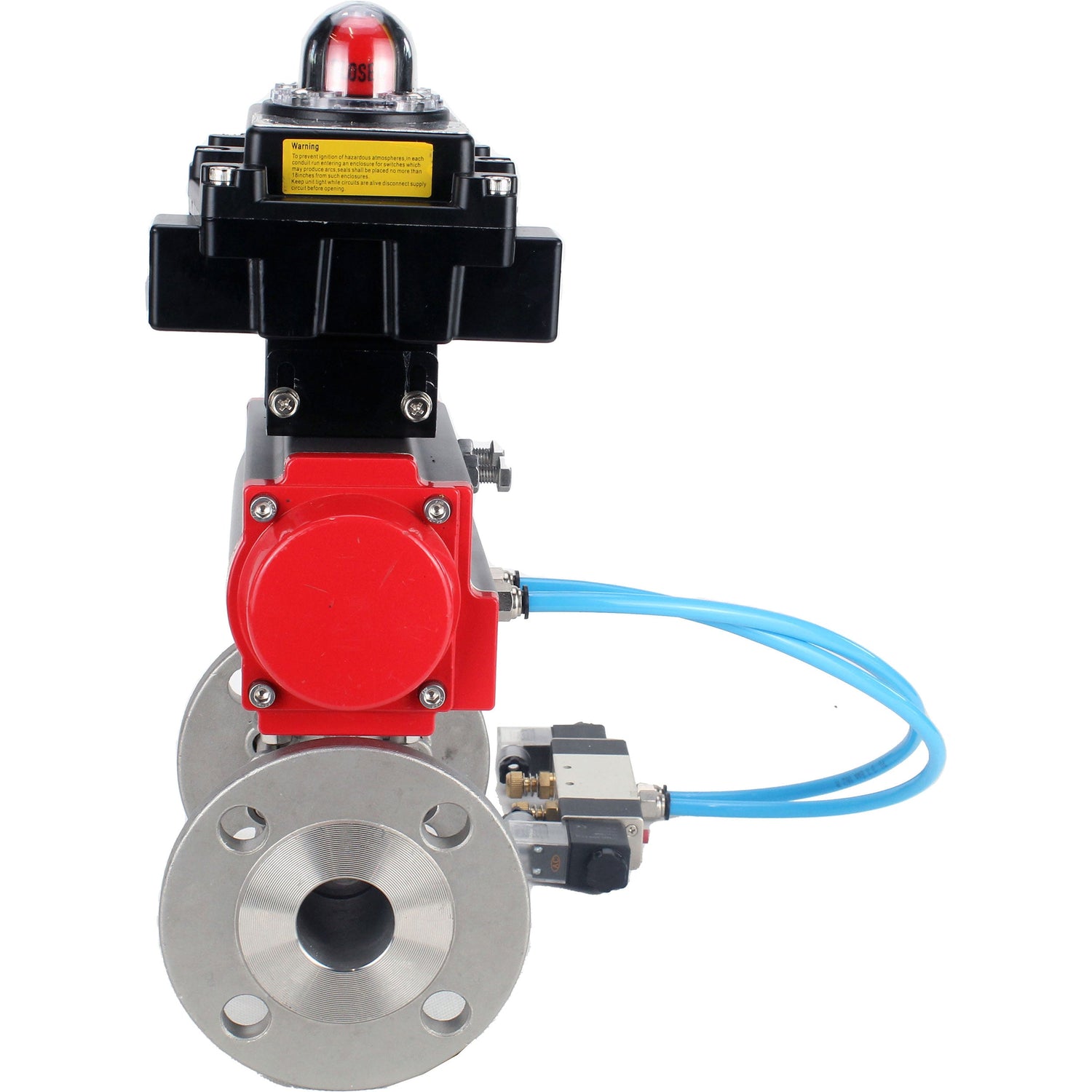

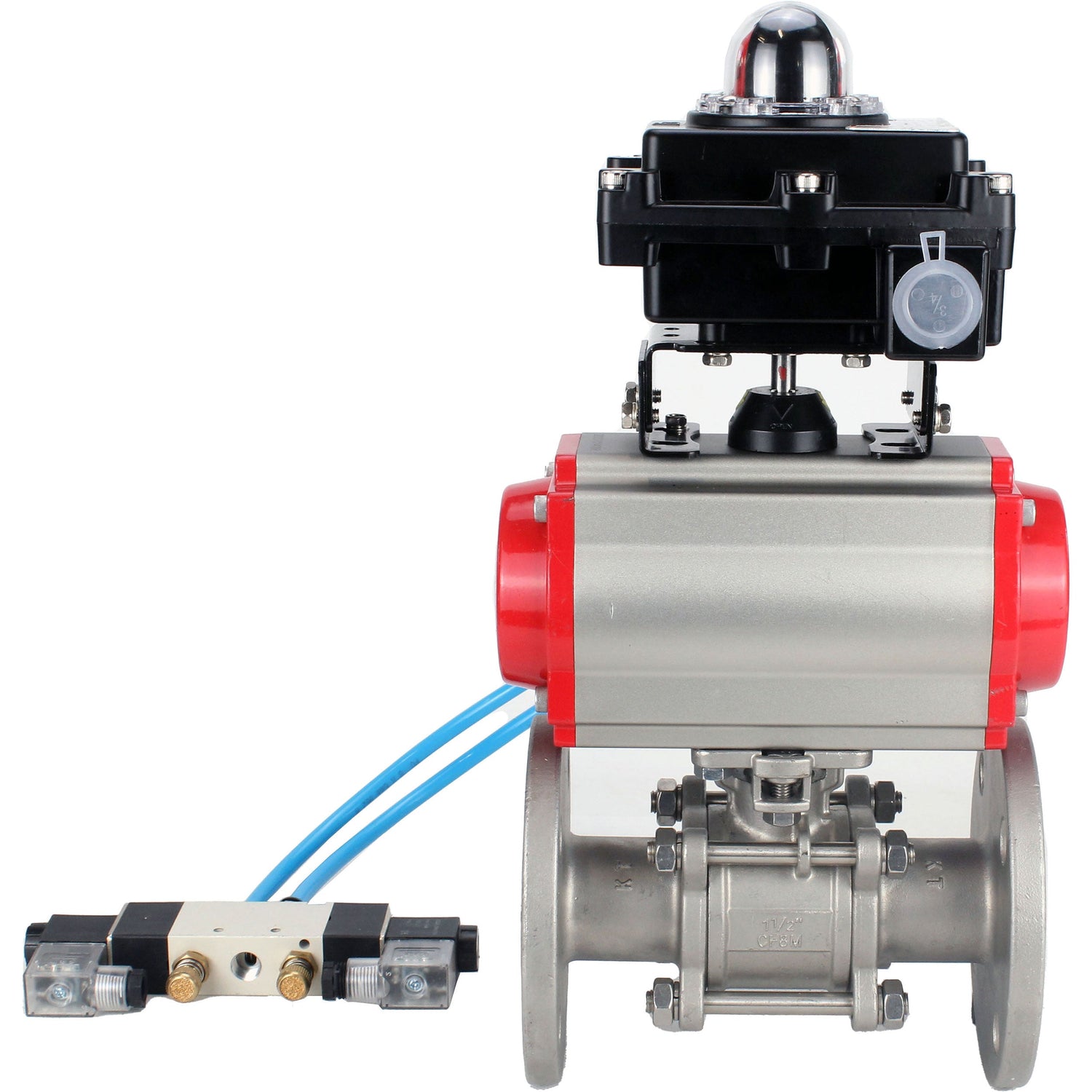

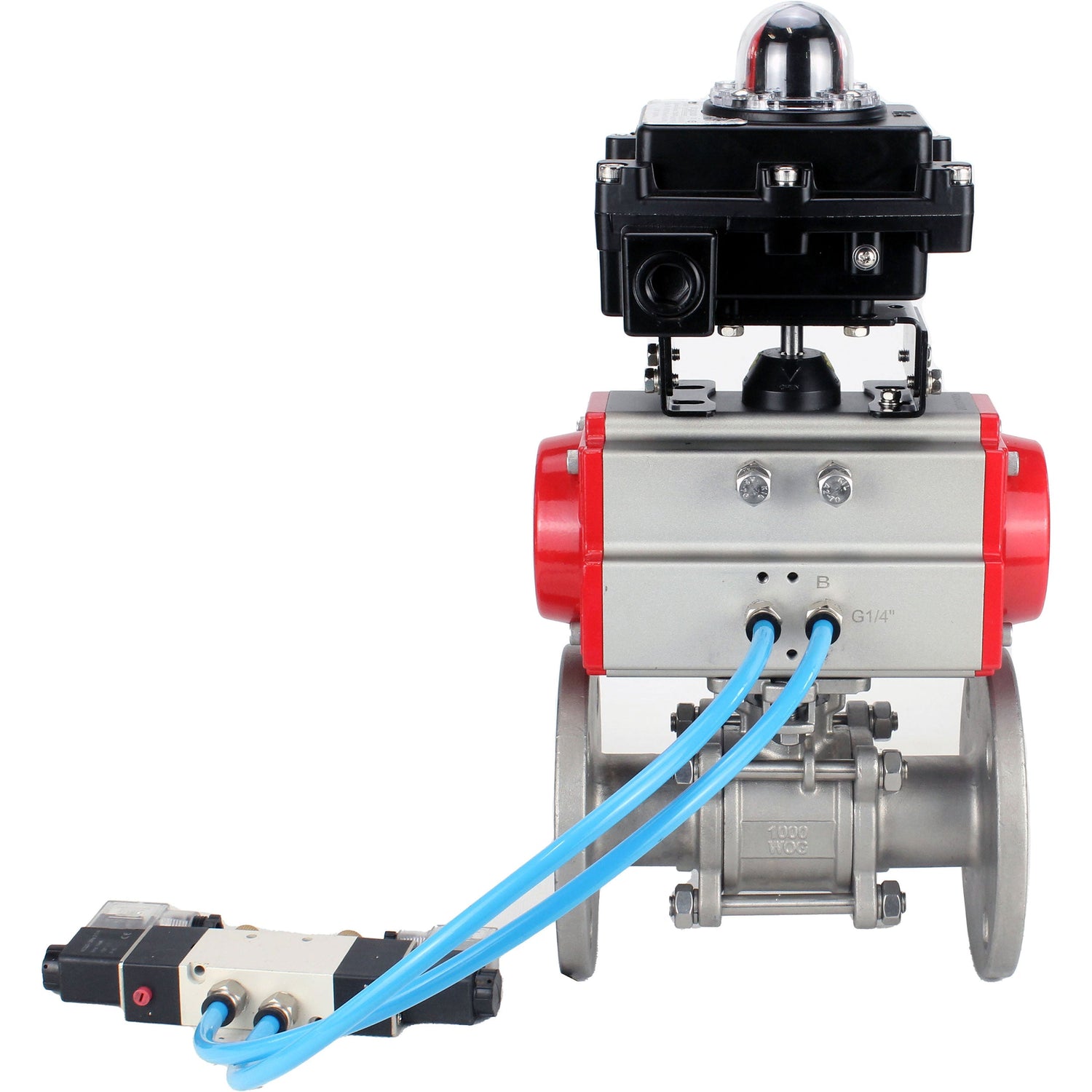

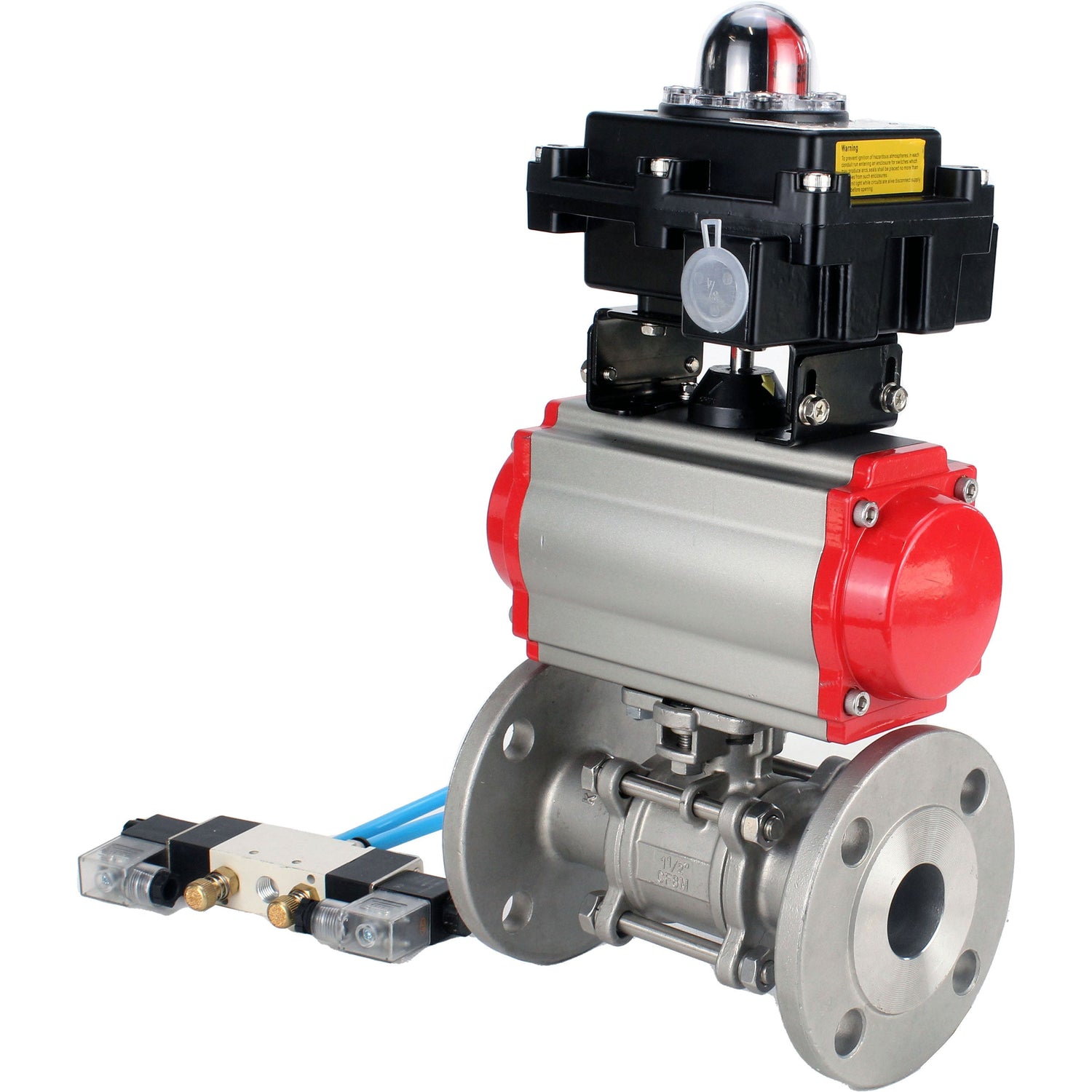

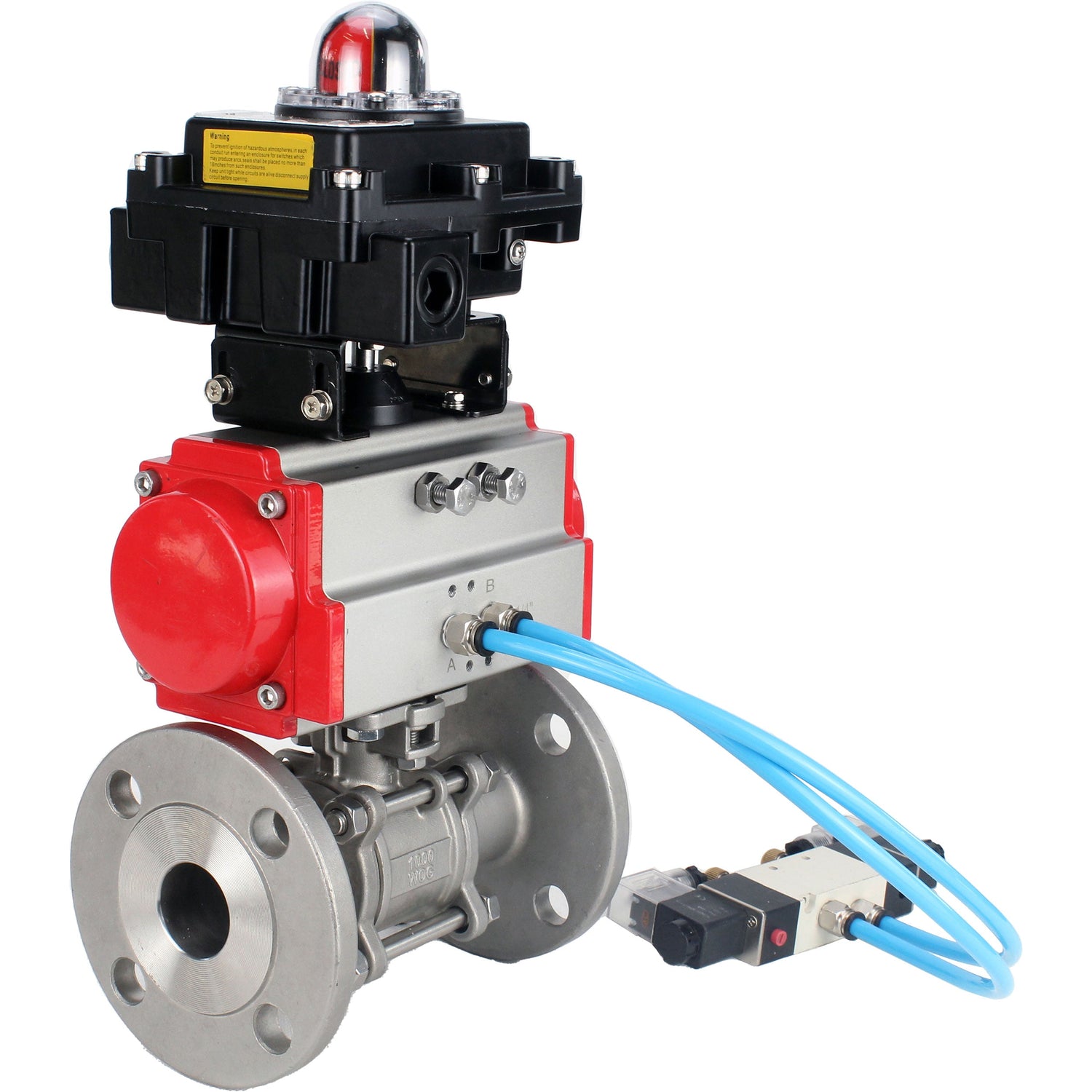

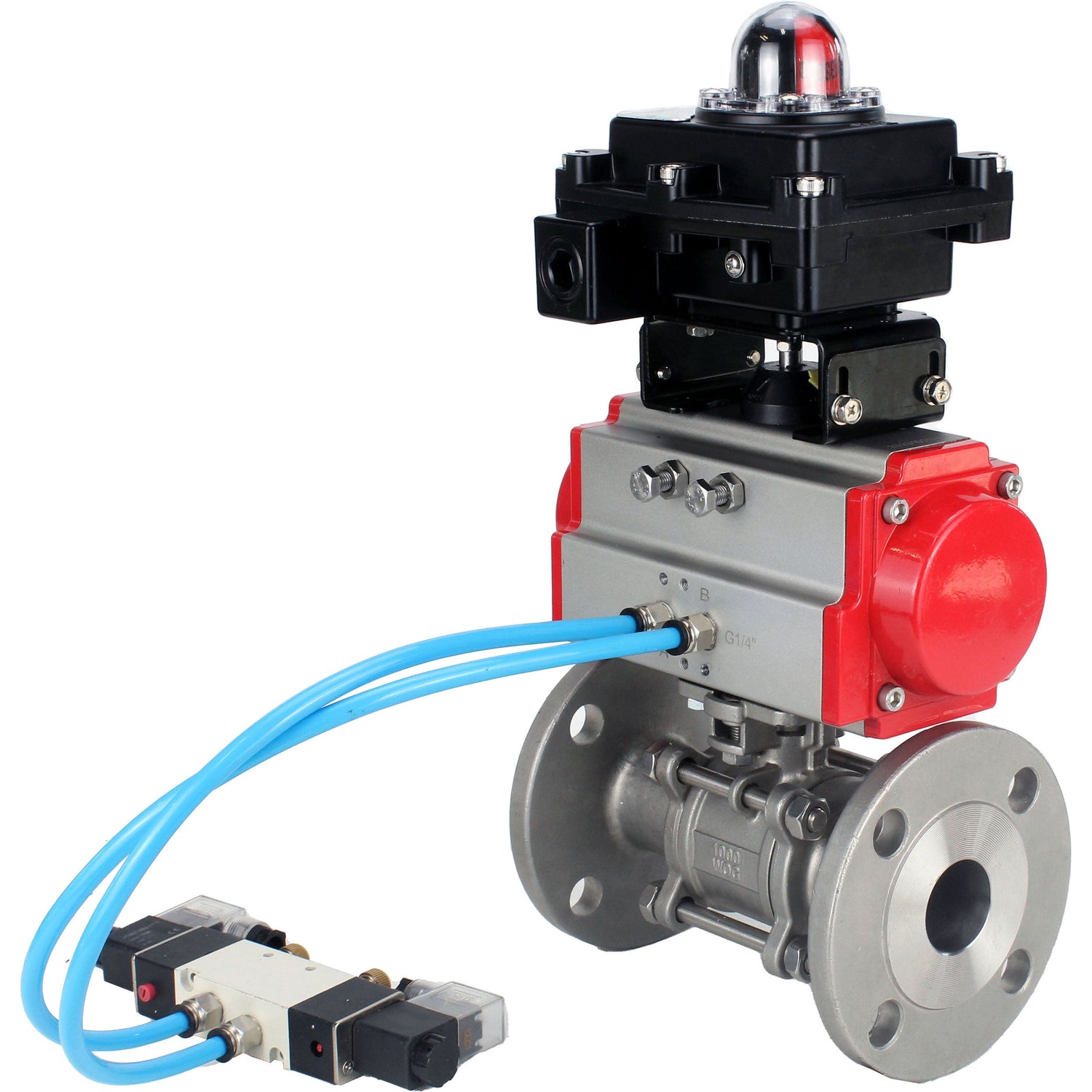

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with LSU APL-410N EX

€314,96
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valves are used as shut-off valves in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to valve materials.
Pneumatic actuators Elephant pneumatic double-acting rotary actuators PA-DA and pneumatic rotary actuators with return spring PA-SA are designed for automation of industrial valve control process with maximum torque up to 2128 Nm.
Pneumatic valves are used to change the direction, start, stop the compressed air flow in the pneumatic system depending on the external control action.
Limit switch unit is designed for visual and electrical signaling of the end positions of the shut-off body of pipeline valves.







Technical parameters of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-410N EX:

Parameter

Value

Working medium temperature, °C

From -20 to 180

Application

Water supply, heat supply, Pneumatic systems

Working medium

Water, steam, oil products, liquid media, neutral media, gaseous media

Connection to pipeline

Flanged

Type of passage section

Full-bore

Type of control

With pneumatic actuator

Connection

Flanged

Control

Double-acting pneumatic actuator

Presence of limit switches

Yes

Presence of pneumatic distributor

Yes

Warranty, years

1

Country of manufacture

China


Dimensions and sizes of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-410N EX:

DN d, mm D, mm D1, mm D2, mm W, mm f, mm L±1.5, mm T, mm H, mm Z-øM pcs-mm
15 15 95 65 46 17 2 130 131 71 4-ø14
20 20 105 75 58 18 2 150 131 74 4-ø14
25 25 115 85 68 18 2 160 167 97 4-ø14
32 32 140 100 78 19 2 180 167 110 4-ø18
40 40 150 110 88 19 2 200 193 117 4-ø18
50 50 165 125 102 19 3 230 193 125,5 4-ø18
65 65 185 145 122 22 3 290 242 135,5 8-ø18
80 80 200 160 140 24 3 310 272 157 8-ø18
100 100 234 190 161 24 3 350 295 181 8-ø22
100* 100 220 180 158 20 3 350 330 169 8-ø18


Table of parts and materials of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H 16 bar, three-piece full bore flanged, stainless steel SS304, seal - PTFE, with double-acting PA-DA pneumatic actuator, with pneumatic distributor 4V320-08 220V, with limit switch unit APL-410N EX:

№

Part name

Material

Quantity

1

Body

Steel SS304 / SS316

1

2

Ball

Steel S304 / S316

1

3

Bolt

Steel S201 / S304

4~6

4

Nut

Steel S201 / S304

6~12

5

Seal

PTFE

1

6

Stem

Steel SS304 / SS316

1

7

Gland

Steel S201 / S304

1

8

Cover

Steel WCB/CF8/CF8M

2

9

Seat rings

PTFE

2

10

Thrust washer

PTFE

1




Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical parameters of pneumatic valve Elephant

Name

Value

Type of pneumatic valve

Spool valve

Working pressure, bar

1.5 ÷ 8

Supply voltage, V

220 V

Full power, Va

4.5

Control

Two-way electromagnetic

Response frequency, cycle/sec

5




Dimensions and sizes of pneumatic valve Elephant:

Pneumatic valve model 4V320-08
A, mm 71.9
B, mm 45
C, mm 94.4
D, mm 27
E, mm 69
F, mm 40
I, mm 24
K, mm 40
L, mm 188.8
M, mm 69.4
N, mm 50
O, mm 82.4
P, mm 24
S, mm 20
T, mm 6.5
U, mm 2.4
V, mm 4
H, mm 82.4





Technical parameters of limit switch unit Elephant

Name Value
Maximum limit switch voltage, V 250
Degree of protection of the housing, IP 67
Operating medium temperature, °C from -40 to +80
Service life, years 10




Dimensions and sizes of the limit switch unit Elephant:

Model D, mm D1, mm H, mm L, mm B, mm M, mm
APL-410N EX 9.5 5 174 177 178 8



Passports and certificates

Data sheet for Elephant DA/SA double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    full bore
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatically actuated
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Type of seal
    PTFE
  • Voltage
    220V
  • Explosion-proof
    have
  • Torque
    235 Nm
  • Limit switches
    have
  • Type of pneumatic actuator
    double action

Reviews (0)

Documentation
nullLimit switch ELEPHANT APL-410N EX explosion-proof
nullData sheet for limit switch unit Elephant APL-410N EX
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
