Elephant  |  SKU: D160-56695

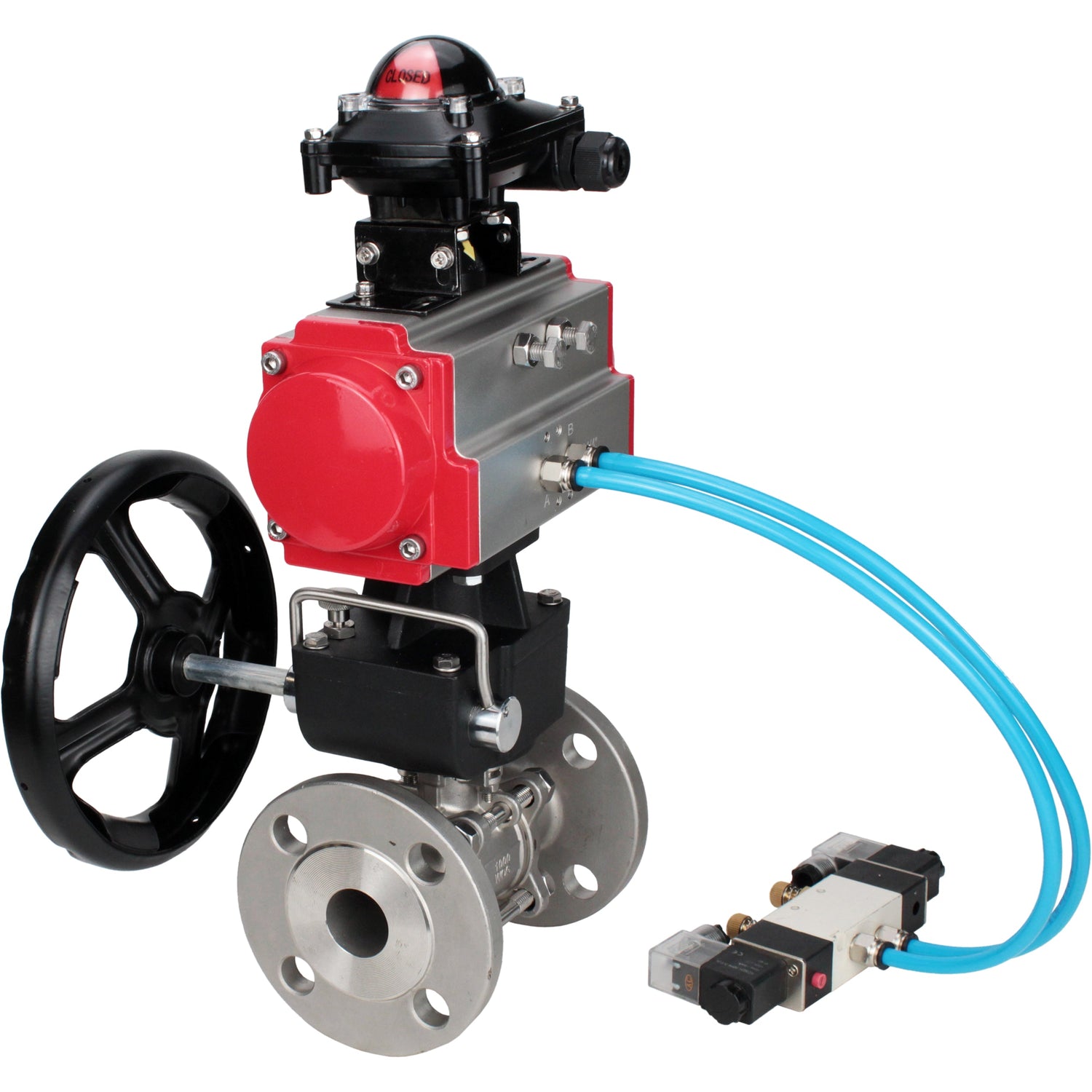

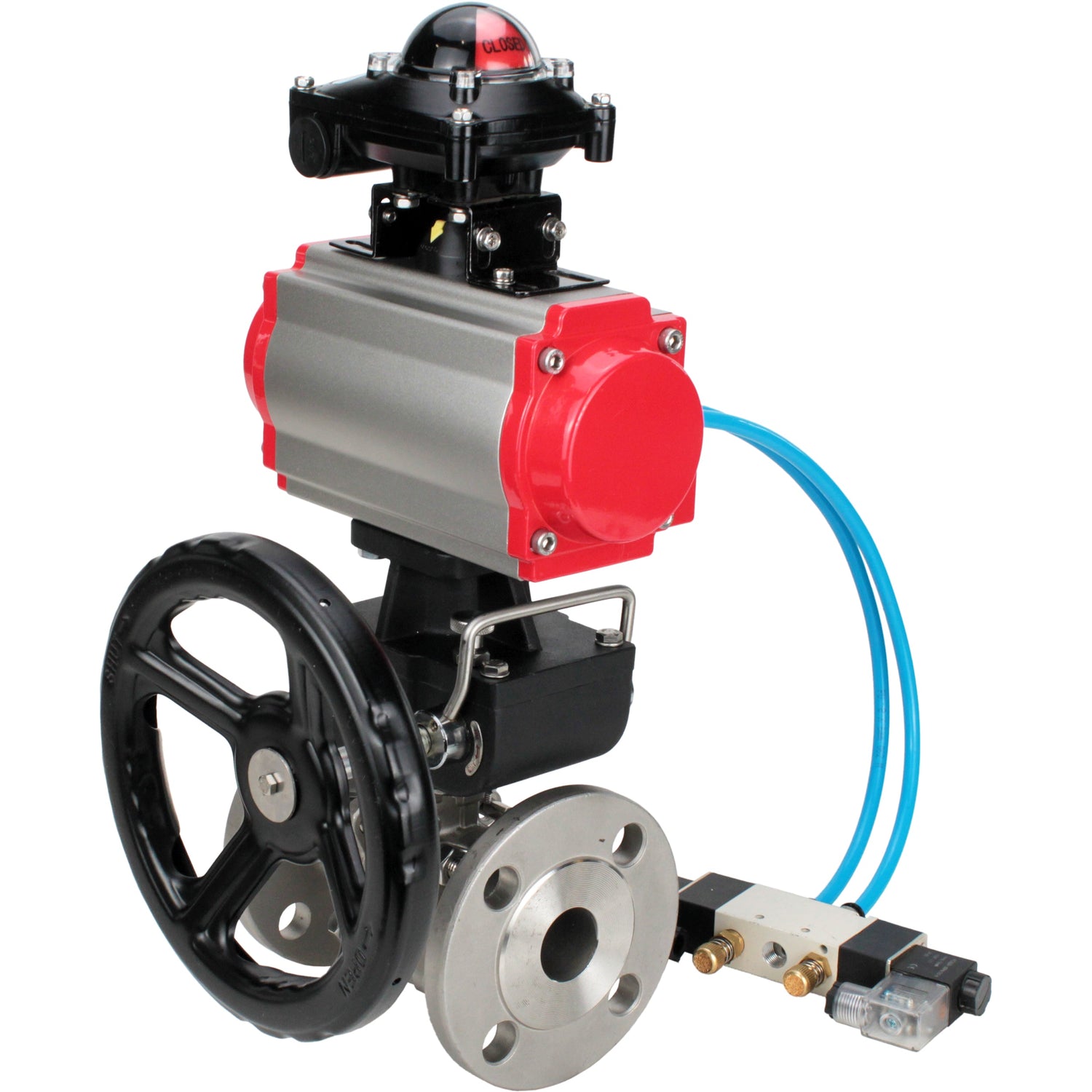

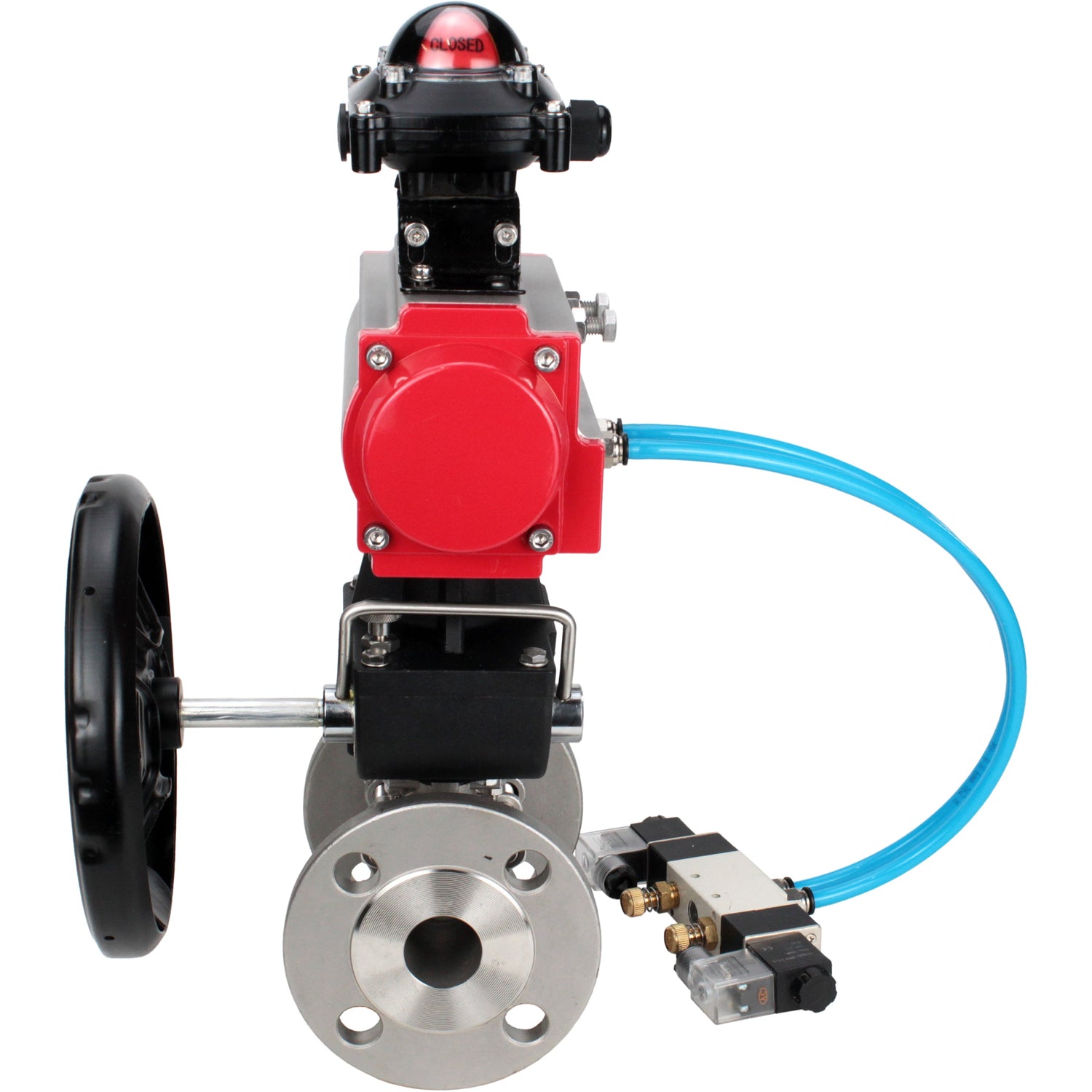

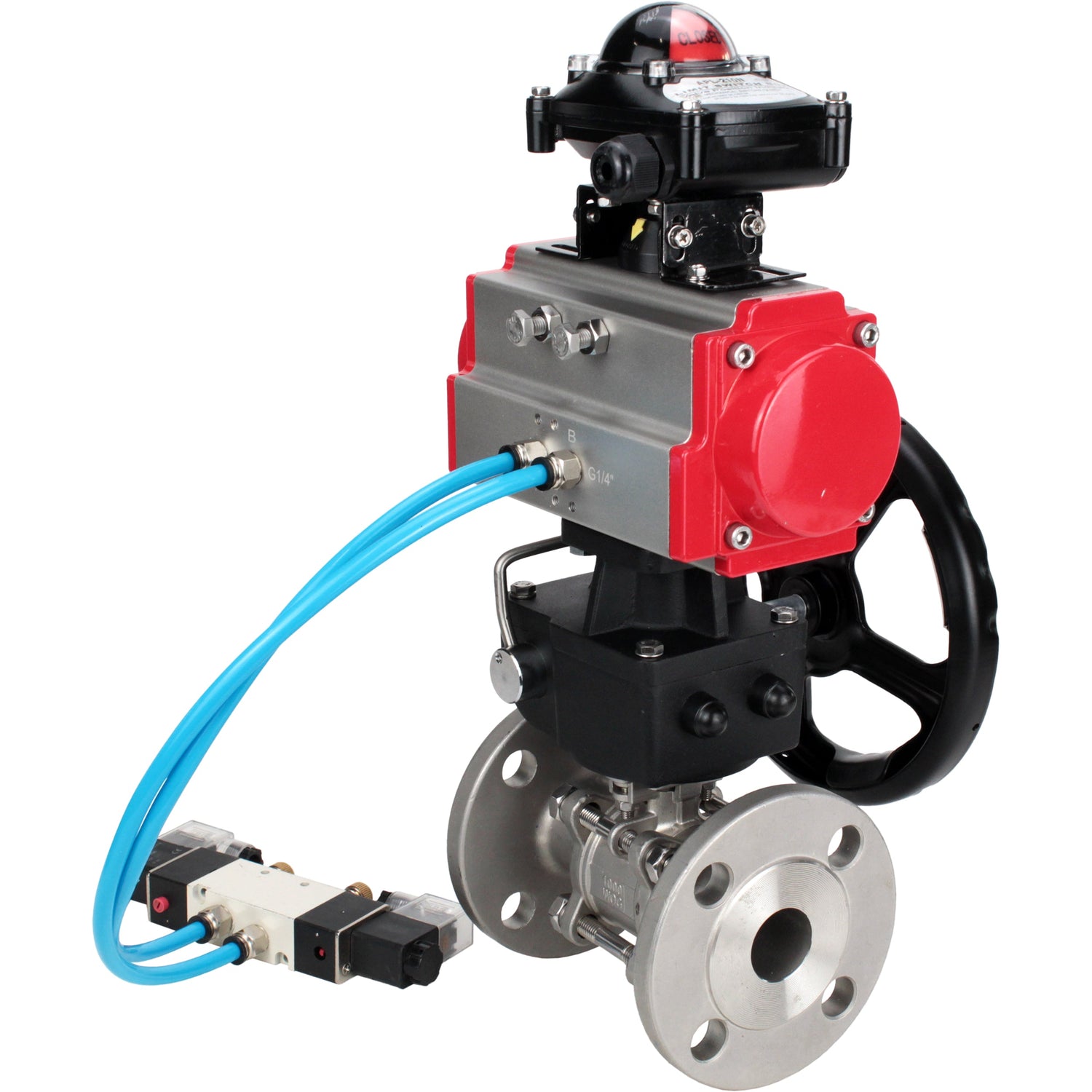

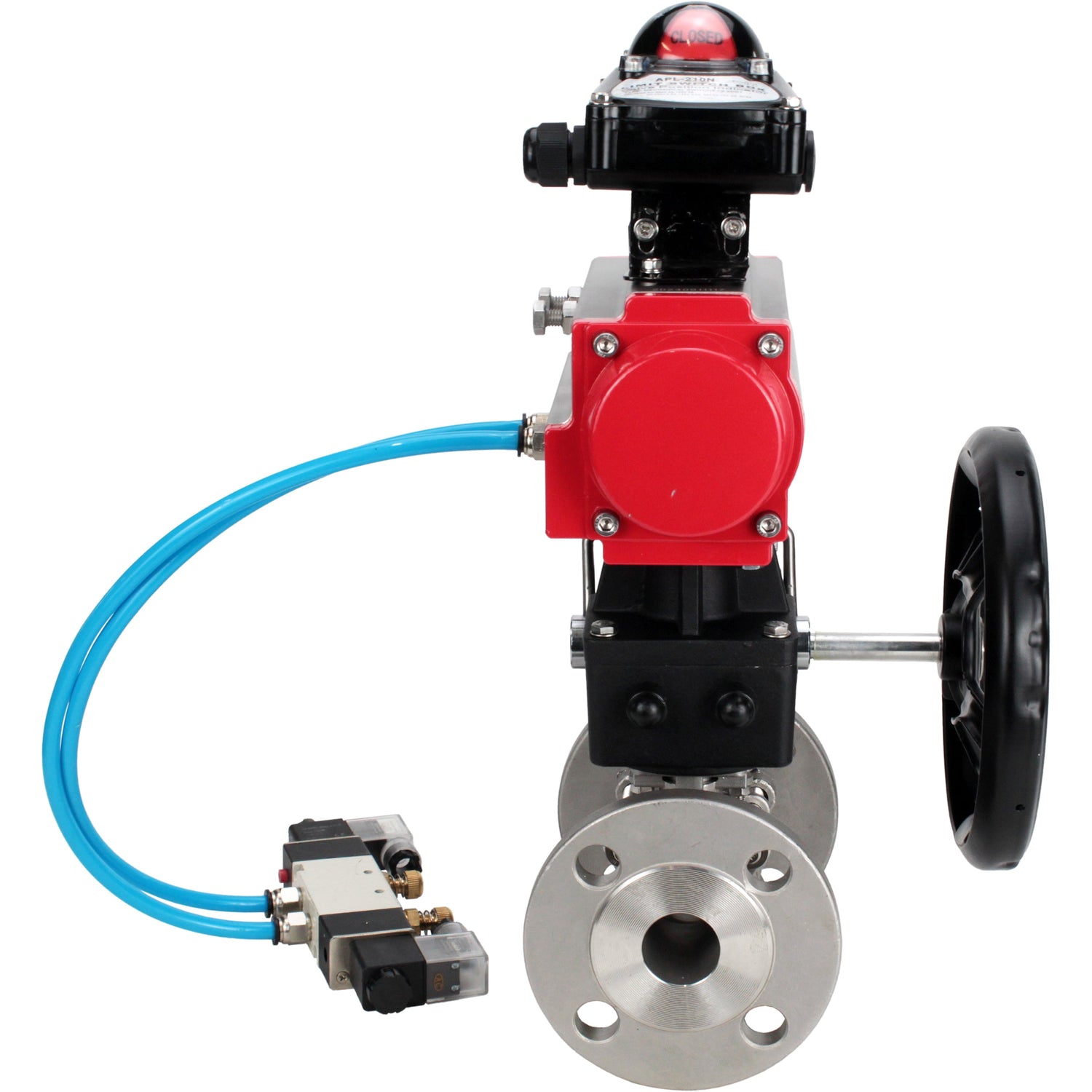

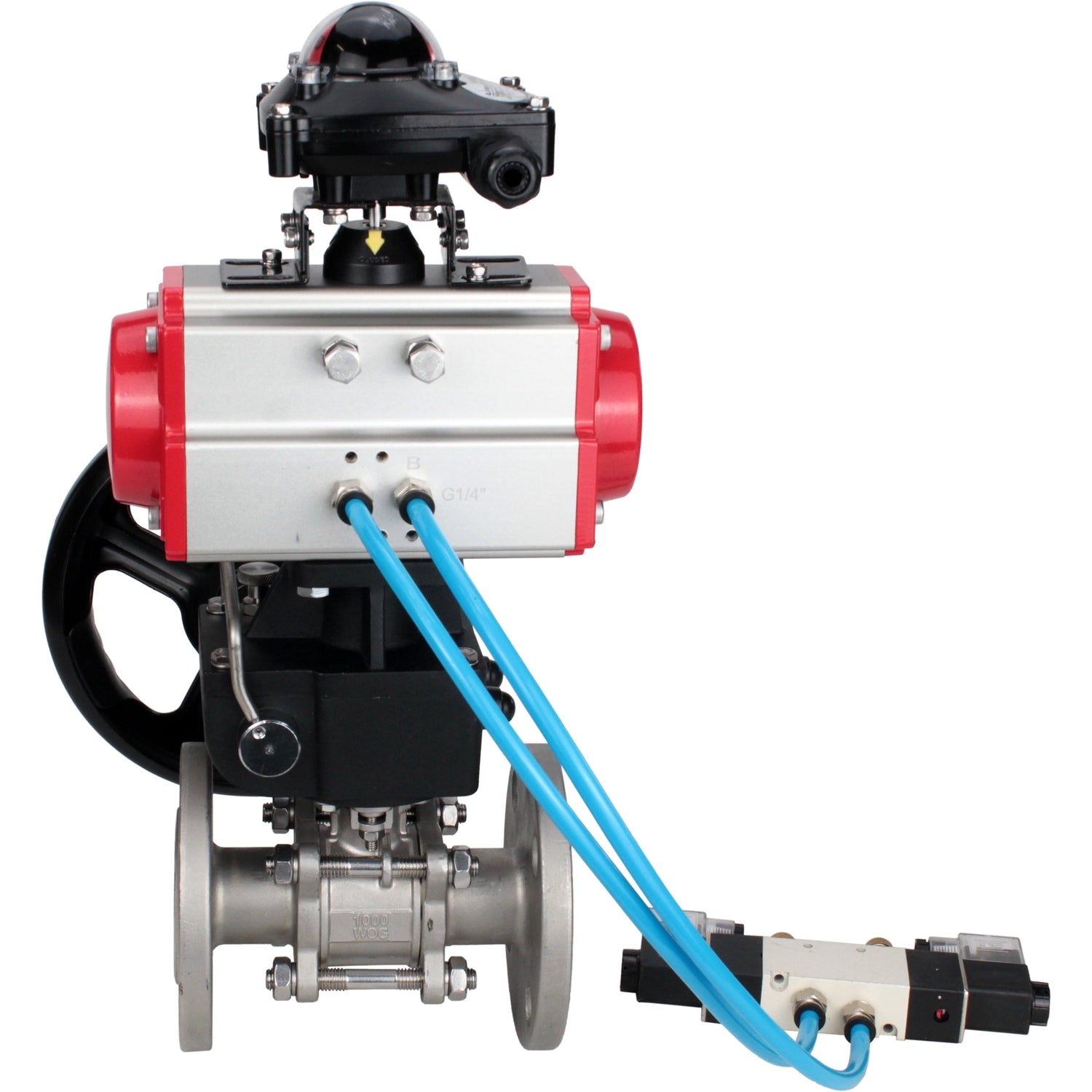

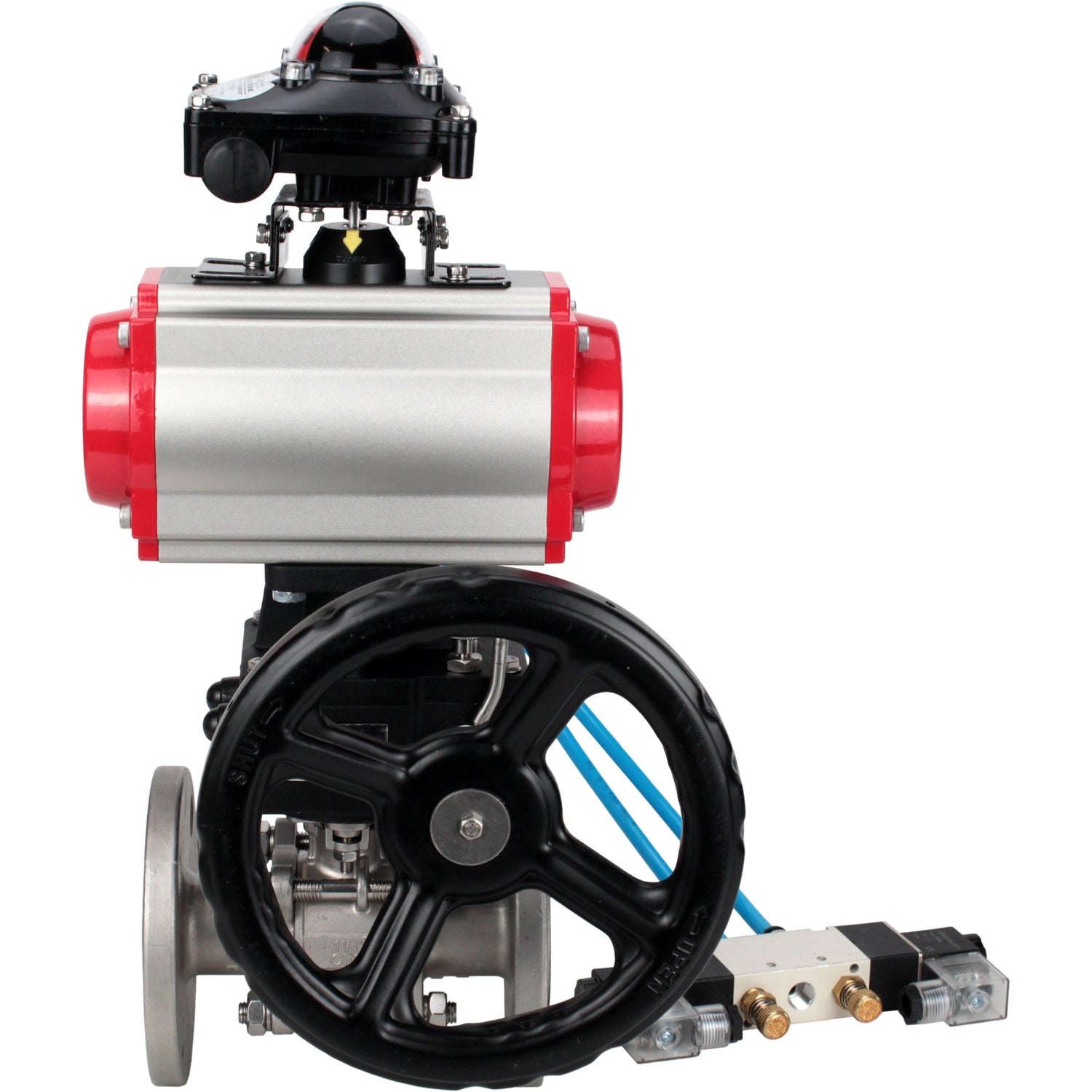

Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H, body material - Stainless steel AISI 304, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA, 4V320-10 220V, LSU APL-210N, handwheel MON

€508,61
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valve Elephant BV3131P(3pc)-FP-F-ISO-H is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of BV3131P(3pc)-FP-F-ISO-H series valves is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.

Double-acting pneumatic actuator Elephant PA-DA is designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic valve Elephant 4V320-10 220V is used to change direction, start, stop compressed air flows in pneumatic system depending on external control action.

The Elephant APL-210N limit switch box is an electrical device designed for opening and closing of the working circuit and for visualisation of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalise extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-coloured visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labelled CLOSED is visible; if it is open, only the yellow part labelled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the colour difference between open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of fault detection.

The Elephant MON manual doubleturn actuator with worm gear and HDM reduction gearbox enables manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.




Technical parameters of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual doubler MON:

Name Meaning
Working environment temperature, °C from -20 to 180
Type of crane device two-way
Application water supply, heat supply, pneumatic systems
Working environment water, steam, petroleum products, liquid media, neutral media, gaseous media
Connection to the pipeline flanged
Water intake No
Type of flow section full bore
Control type With pneumatic drive
Joining flanged
Control double acting pneumatic actuator
Availability of limit switches There is
Availability of pneumatic distributor There is





Sketch of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual override MON





Dimensions and dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-210N, manual doubler MON:

DN d, mm D, mm D1, mm D2, mm W, mm f, mm L±1.5, mm T, mm H, mm Z-øM pcs-mm
15 15 95 65 46 17 2 130 131 71 4-ø14
20 20 105 75 58 18 2 150 131 74 4-ø14
25 25 115 85 68 18 2 160 167 97 4-ø14
32 32 140 100 78 19 2 180 167 110 4-ø18
40 40 150 110 88 19 2 200 193 117 4-ø18
50 50 165 125 102 19 3 230 193 125,5 4-ø18
65 65 185 145 122 22 3 290 242 135,5 8-ø18
80 80 200 160 140 24 3 310 272 157 8-ø18
100 100 234 190 161 24 3 350 295 181 8-ø22
100* 100 220 180 158 20 3 350 330 169 8-ø18



Detail and material sketch of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H





Table of parts and materials for ball valves Elephant BV3131P(3pc)-FP-F-ISO-H:

Item No. Detail Material Quantity
1 Frame steel SS304 / SS316 1
2 Ball valve steel S304 / S316 1
3 Bolt steel S201 / S304 4~6
4 screw steel S201 / S304 6~12
5 Sealing PTFE 1
6 Stock steel SS304 / SS316 1
7 Seal steel S201 / S304 1
8 Lid steel WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 Thrust washer PTFE 1





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Pneumatic valve Elephant 4V320-10 220V




Technical parameters of pneumatic valve Elephant 4V320-10 220V

Name Meaning
Type of pneumatic distributor spool valve
Model of pneumatic distributor 4V320-10 220V
Working pressure, bar 1.5 ÷ 8
Supply voltage, V 220 V
Response frequency, cycles/sec 5





Limit switch unit Elephantu APL-210N



Technical parameters of limit switch unit Elephant APL-210N

Name Meaning
Limit switch block model APL-210N
Ambient temperature, °C from -20 to 180
Service life, years 10





Table of parts and materials of limit switch unit Elephant APL-210N:

No. Name Material
1 Frame cast aluminum
2 Indicator cap polyester plastic
3 3D indicator ABC plastic
4 Cam polyester plastic
5 Spring stainless steel
6 Screws stainless steel
7 Sealing rings NBR
8 Sleeve bronze
9 Ground terminal stainless steel
10 Shaft stainless steel





Wiring diagram for Elephant APL-210N limit switch unit





Sketch of the Elephant MON handwheel.





Technical parameters of Elephant MON handwheels:

Name Meaning
Degree of protection, IP 67
Connection type ISO 5211





Sketch of parts and materials for the Elephant MON handwheel.





Parts and materials table for the Elephant MON handwheel:

No. Name Material
1 Rod for mounting a pneumatic actuator Steel 45
2 Sealing ring EPDM
3 Locking spring Spring steel
4 Top end cap Aluminum alloy
5 Screw Steel 304
6 Fixing bracket (main rod) Steel 304
7 Frame Aluminum alloy
8 Sealing ring EPDM
9 Reducer Cast iron VCh50
10 Transition coupling Cast iron VCh40
11 Gearbox rod Cast iron VCh40

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Steam, Oil Products, Liquid Media, Neutral Media, Gaseous Media
  • Applications
    Water Supply, Heating, Pneumatic Systems
  • Nominal pressure
    40 bar
  • Type of seal
    PTFE / PTFE / Teflon
  • Coating type
    uncoated
  • Locking material
    Stainless steel SS304
  • Explosion-proof
    No
  • Manual override
    Handwheel
  • Limit switches
    Yes
  • Type of pneumatic actuator
    double action
  • Angle of rotation
    90°

Reviews (0)

Documentation
nullLimit switch unit ELEPHANT APL-210N
nullPneumatic valve ELEPHANT 4V320-8 or 10 AC220V
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100
nullPneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
