Elephant  |  SKU: D040-08784

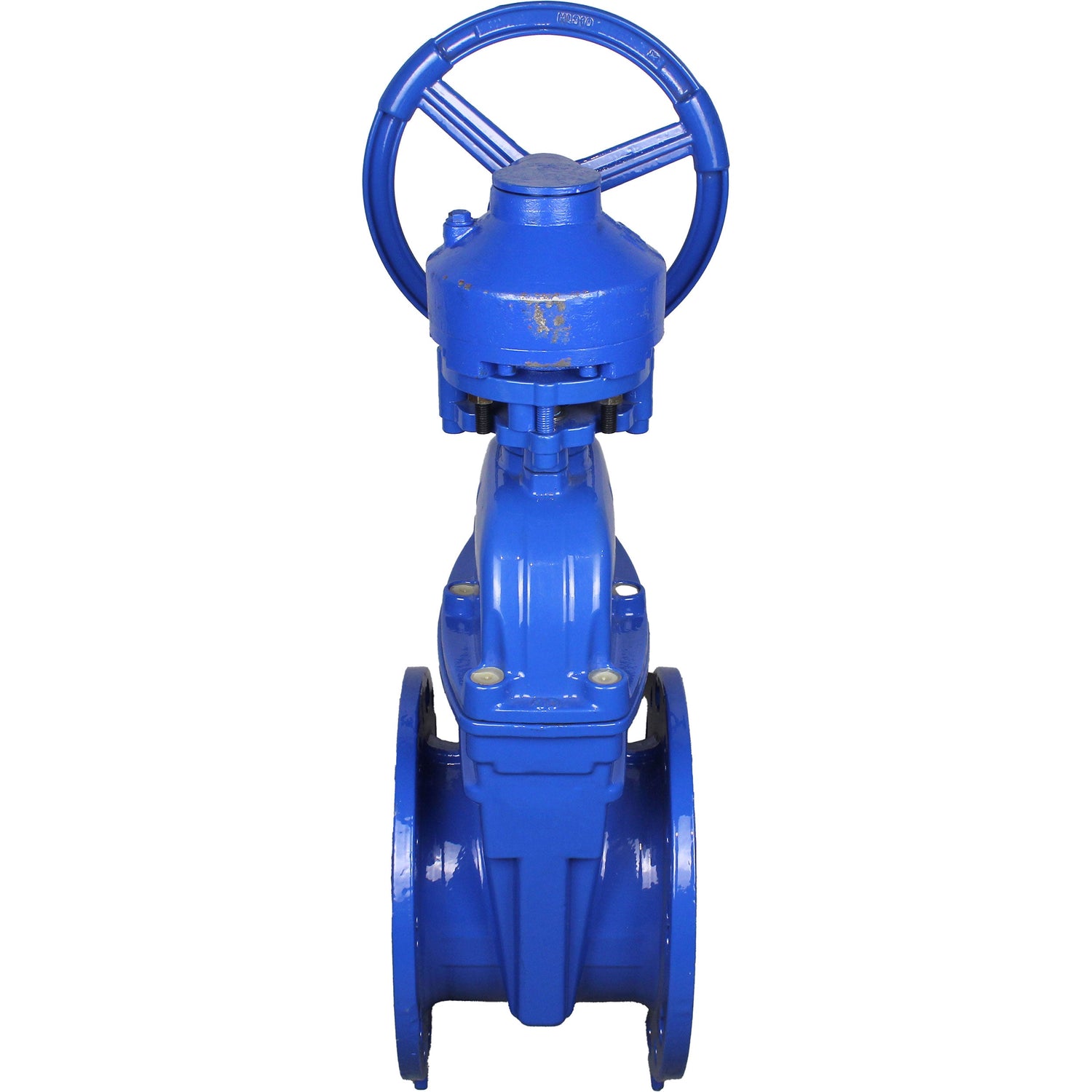

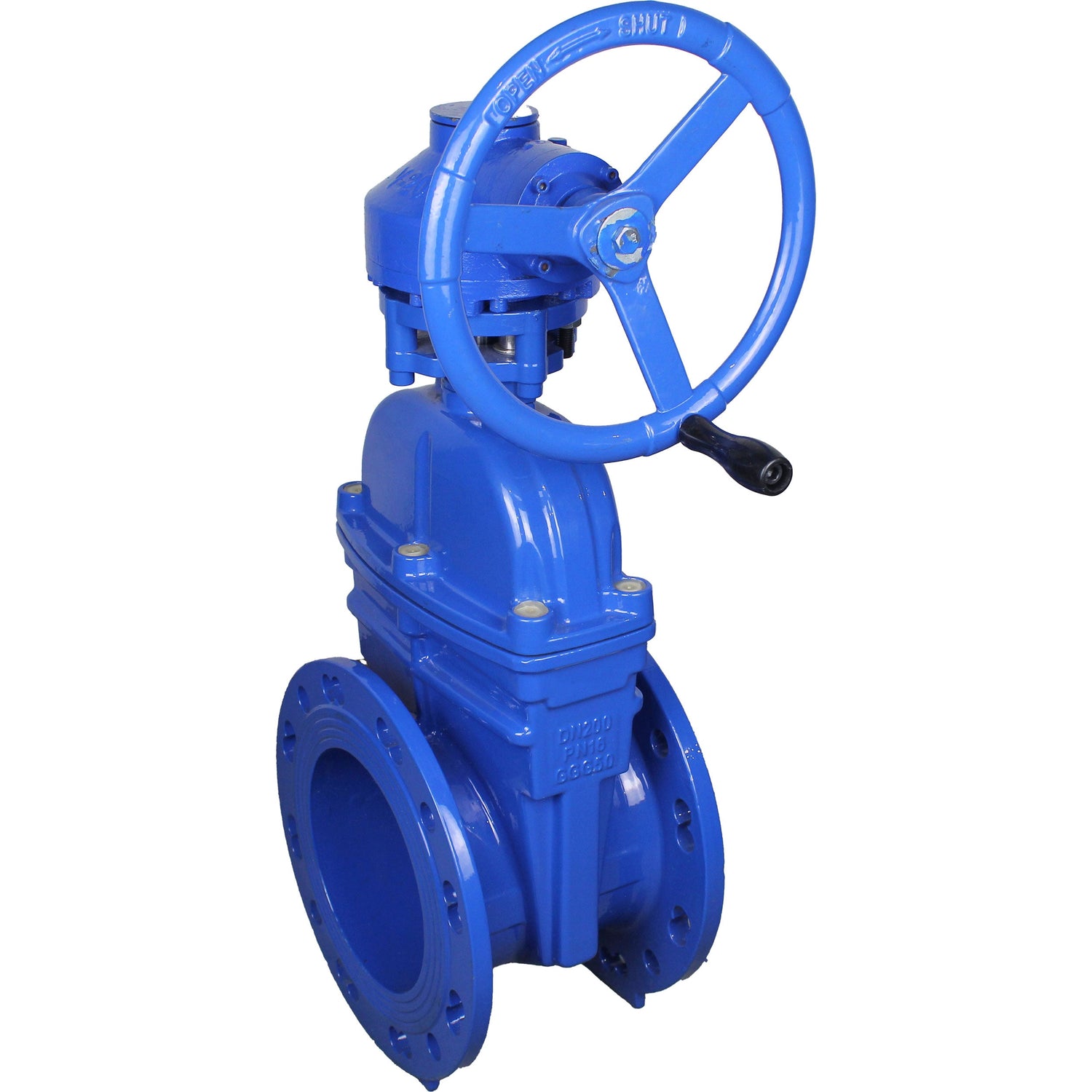

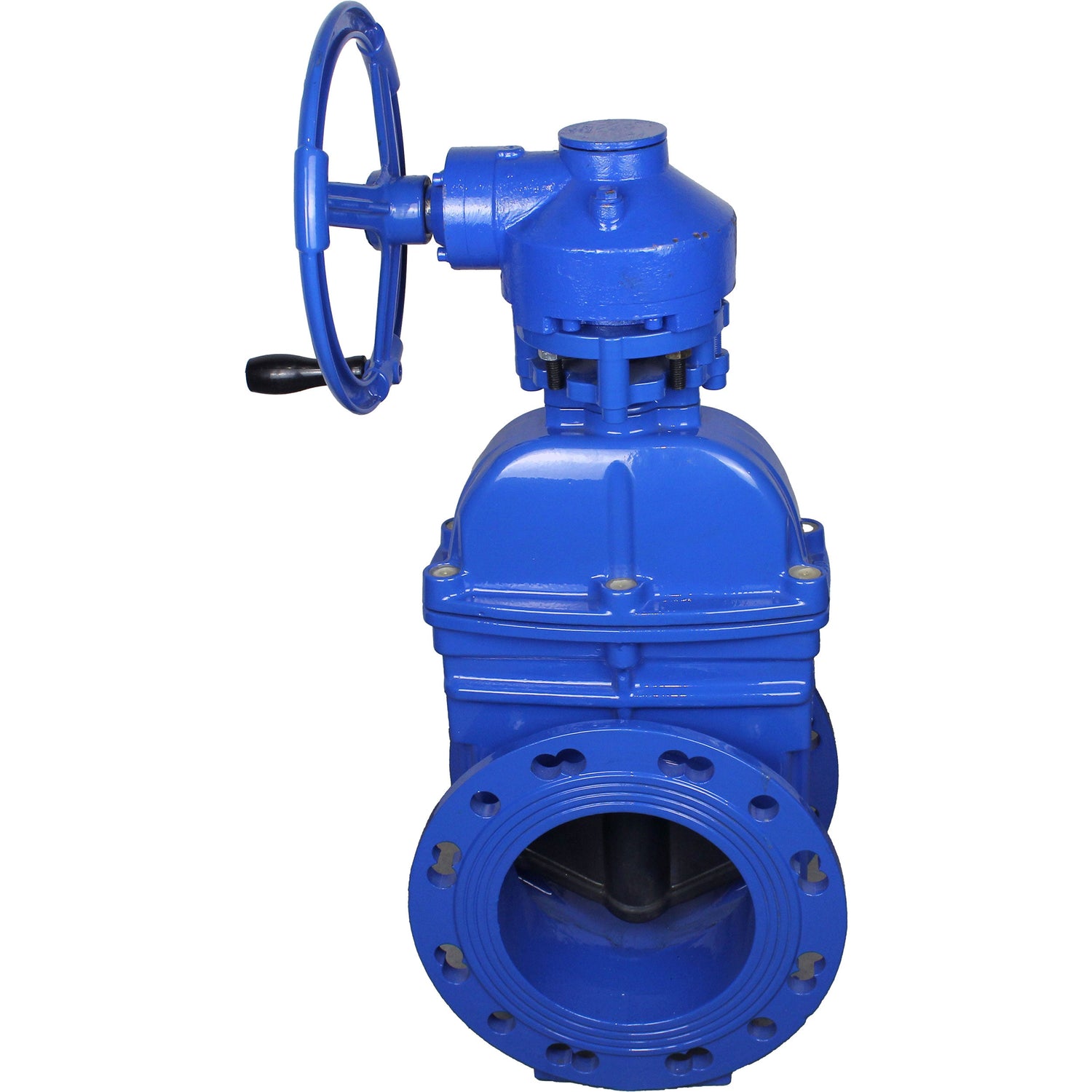

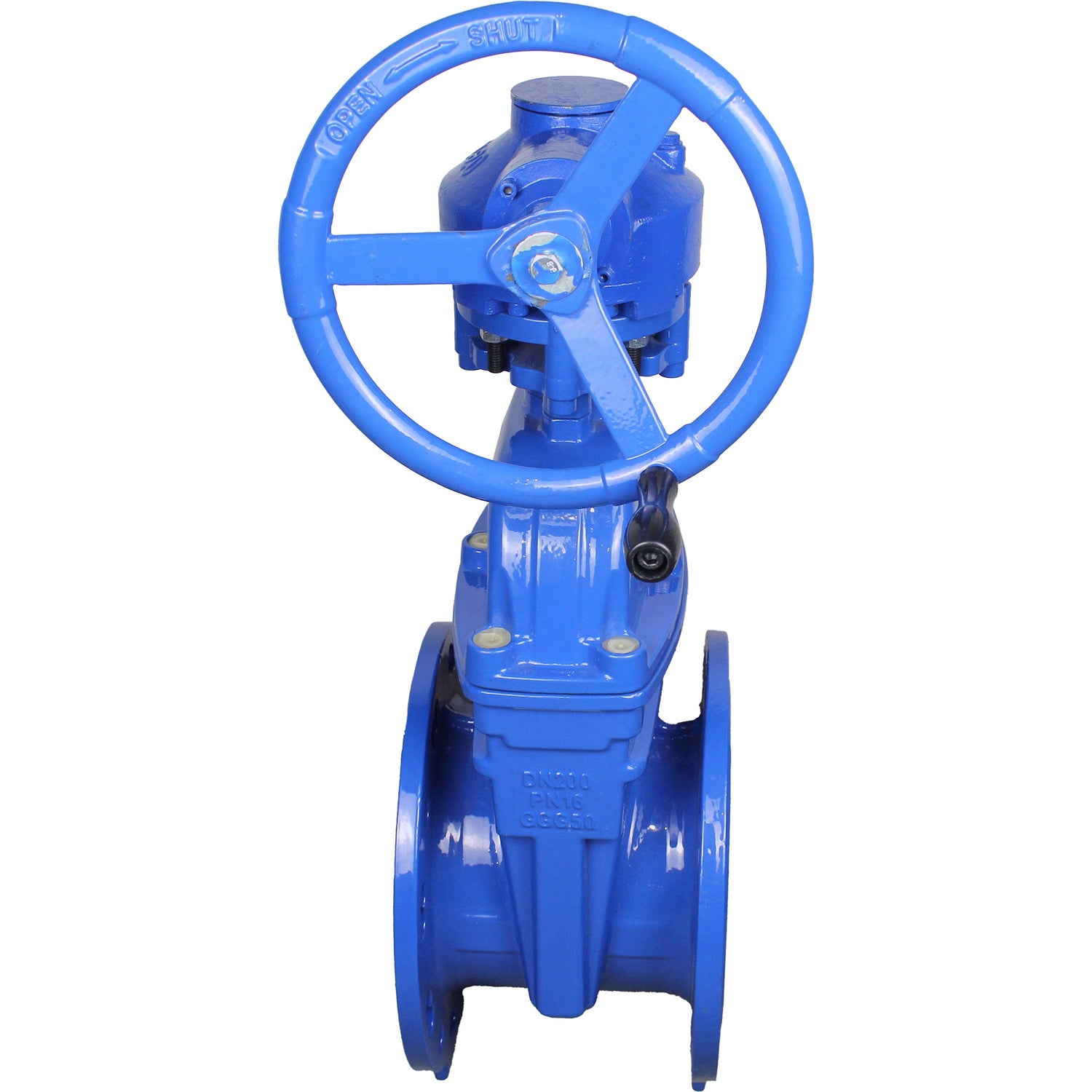

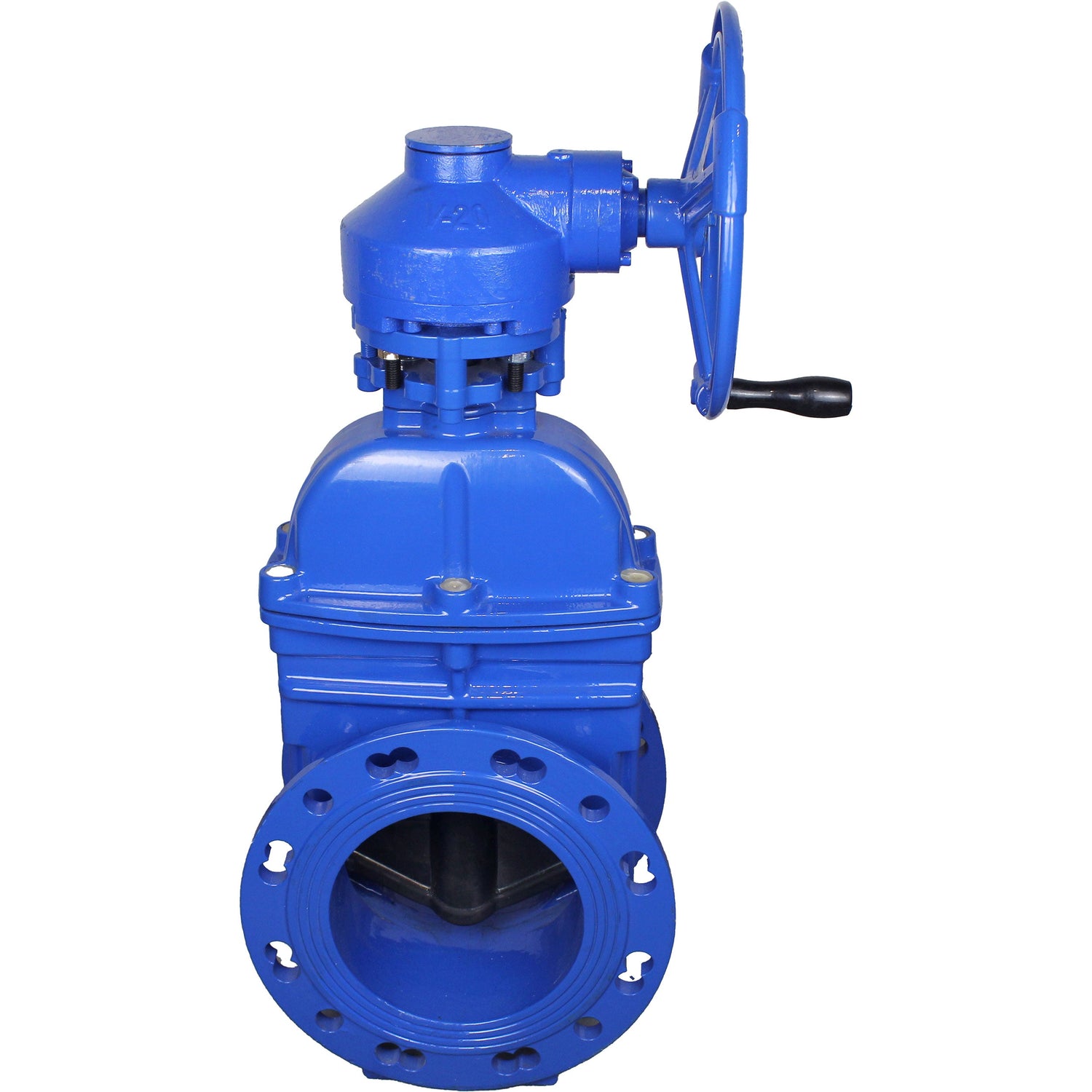

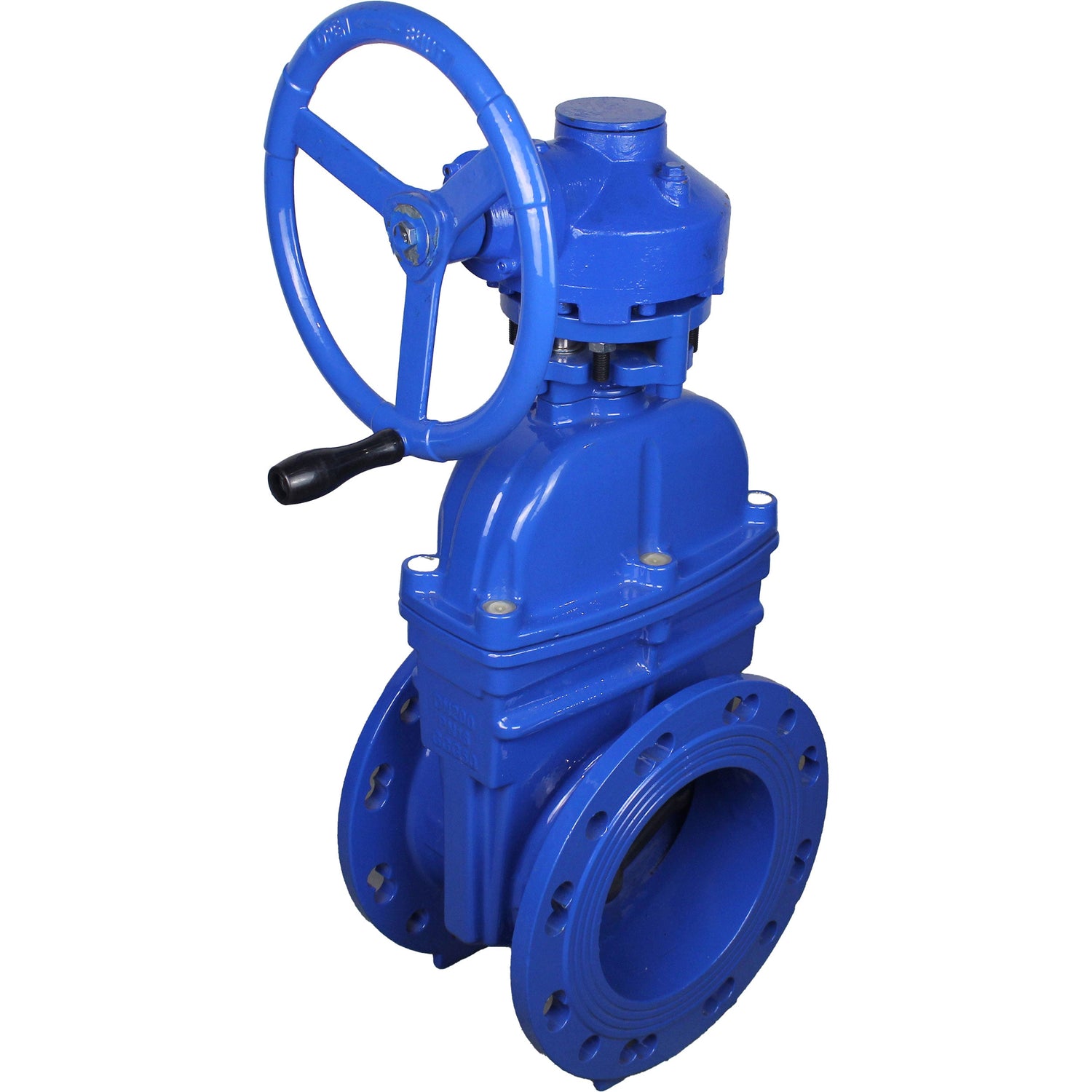

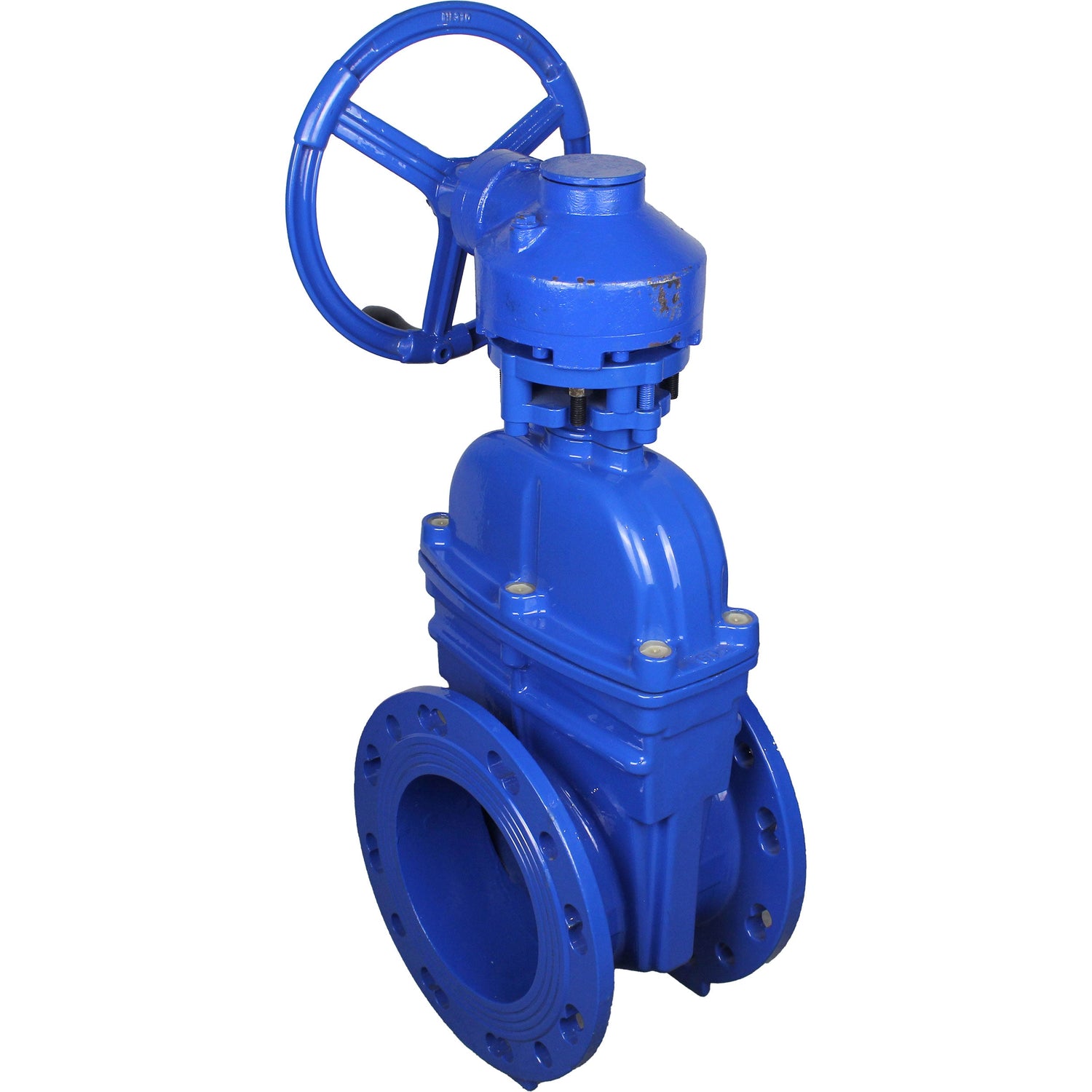

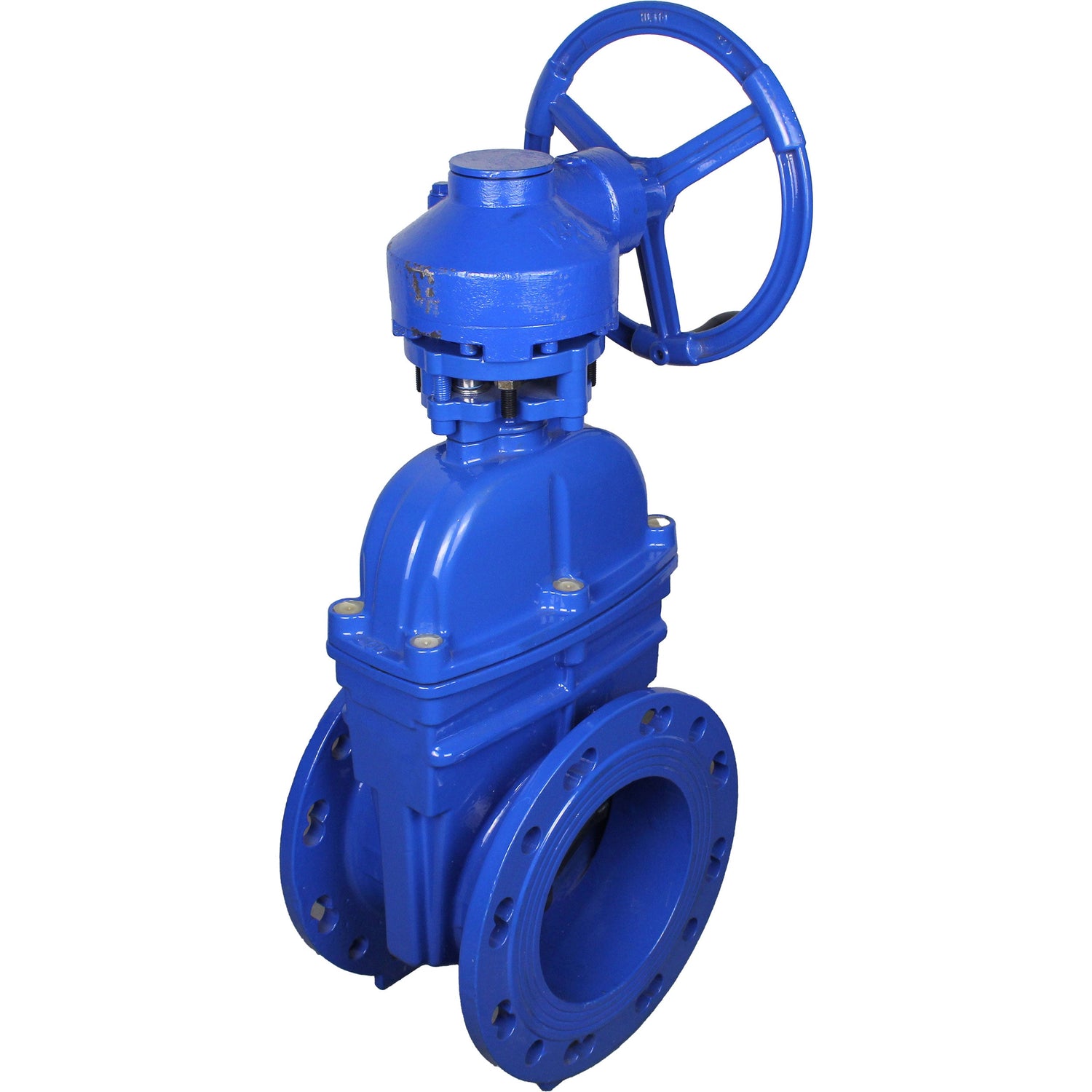

Wedge valves Elephant GVWN1414E-2W-F flanged wedge valves, wedge - rubber coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with gearbox RMN1-360Z-T2,35-ISO

€803,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The Elephant wedge gate valve is designed for installation on pipelines as a shut-off device in water supply systems and chemical industry.
Electric multi-turn actuator Elephant is designed to automate the process of controlling industrial valves, as well as to determine the position of the valve shut-off device.
The Elephant wedge gate valve is designed for installation on the pipeline as a shut-off device in water supply systems and chemical industry.
Reducer Elephant is designed to increase torque for manual operation of shut-off and control valves with non-retractable spindle, as well as to create a force to ensure the required tightness in the gate valve.






Technical parameters of wedge valves Elephant GVWN1414E-2W-F flanged wedge valves, wedge - rubber coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with gearbox RMN1-360Z-T2,35-ISO

Nominal diameter DN, mm

50–250

Operating pressure PN, bar

10, 16

Working medium temperature t, °C

From 0 to 80

Working medium

Water, lightly contaminated liquids with up to 5% suspended particles

Flow direction

Two-way

Type of control

For electric actuator

Connection to pipeline

Flanged

Body material

Cast iron GGG50

Closing element material (wedge)

Cast iron GGG50 (with EPDM rubber lining)

Areas of application

Heating and water supply systems; industrial pipelines

Service life, years

10


Dimensions of wedge valves Elephant GVWN1414E-2W-F flanged wedge valves, wedge - rubber coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with gearbox RMN1-360Z-T2,35-ISO

DN L, mm D, mm D1, mm B, mm L1, mm H, mm M, mm
50 150 165 125 150 40 80 310
65 170 185 145 150 40 80 310
80 180 200 160 150 40 80 310
100 190 220 180 150 40 80 310
125 200 250 210 150 40 80 310
150 210 285 240 150 40 80 310
200 230 340 295 150 40 80 310
250 250 405 350 150 40 80 310




Table of parts and materials of wedge valves Elephant GVWN1414E-2W-F flanged wedge valves, wedge - rubber coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with gearbox RMN1-360Z-T2,35-ISO

№

Part name

Material

1

Body

Cast iron GGG50

2

Wedge

Cast iron GGG50 + EPDM

3

Stem nut

Brass

4

Stem

Stainless steel SS420

5

Cover

Cast iron GGG50

6

Ring

Brass



Technical parameters of gearboxes RMN1-360Z-T2,35-ISO

Type of reducer

Conical

Type of drive

Manual (handwheel)

Ambient temperature, °C

0 ÷ 40

Protection rating

IP65

Maximum torque on output shaft, Nm

360

Gear ratio

2.35:1

Maximum stem size, mm

22×22

Type of ISO flange

F12

Weight, kg

12.8

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    80 °C
  • Connection type
    Flanged
  • Control type
    Geared
  • Operating environment
    Water, Industrial Water
  • Applications
    Water Supply, Heating, Industry
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Cast iron + EPDM

Reviews (0)

Documentation
nullManual bevel gearbox ELEPHANT RMN1-360Z-T2 35-ISO for gate valves GVWN1414E-2W-F

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D040-08784DN10016 bar €803,00 Out of stock
    D040-08785DN12516 bar €868,00 Out of stock
    D040-08786DN15016 bar €903,00 Out of stock
    D040-08787DN20016 bar €1.069,00 Out of stock
    D040-08788DN25016 bar €1.289,00 Out of stock
    D040-08781DN5016 bar €734,00 Out of stock
    D040-08782DN6516 bar €755,00 Out of stock
    D040-08783DN8016 bar €773,00 Out of stock
