Elephant  |  SKU: D040-09153

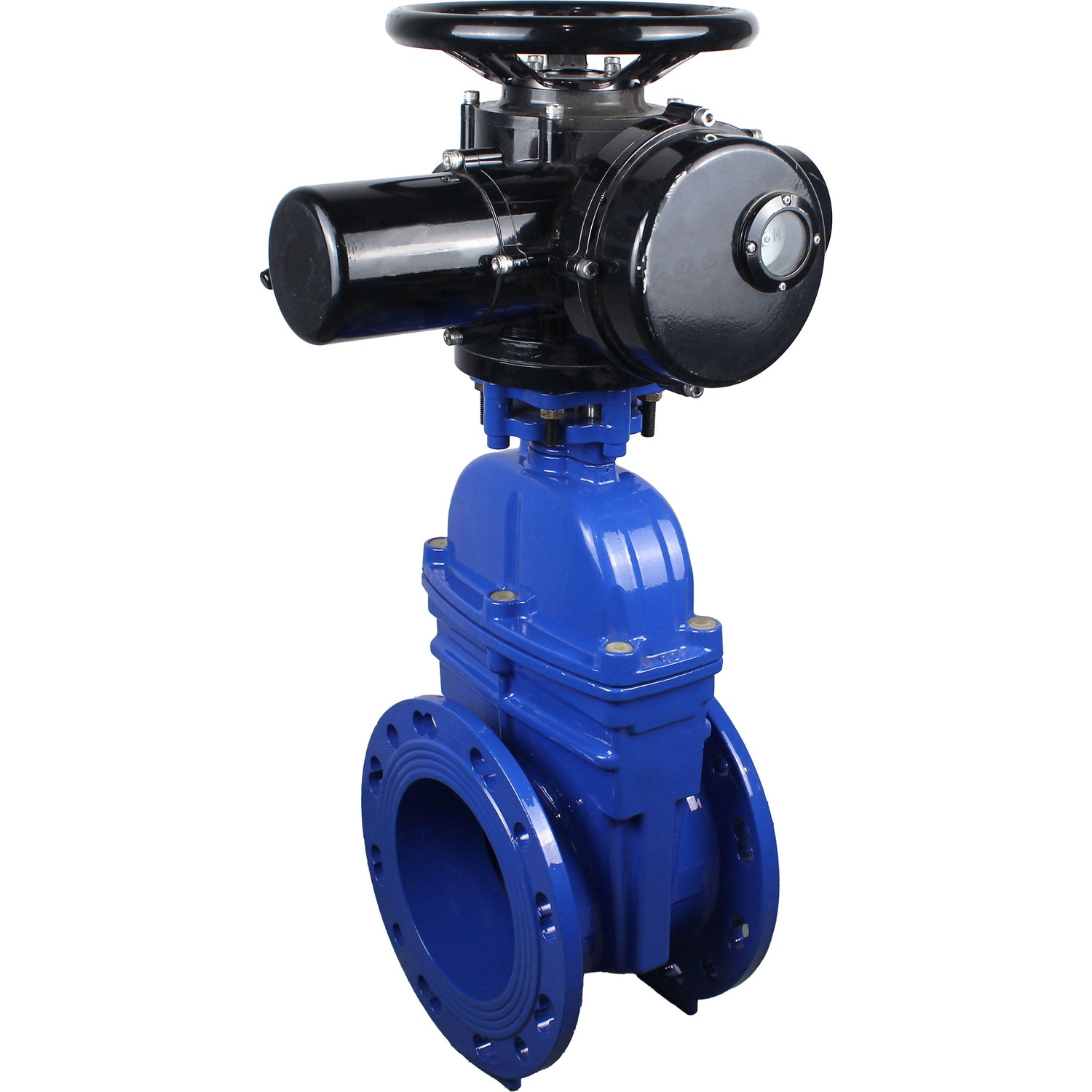

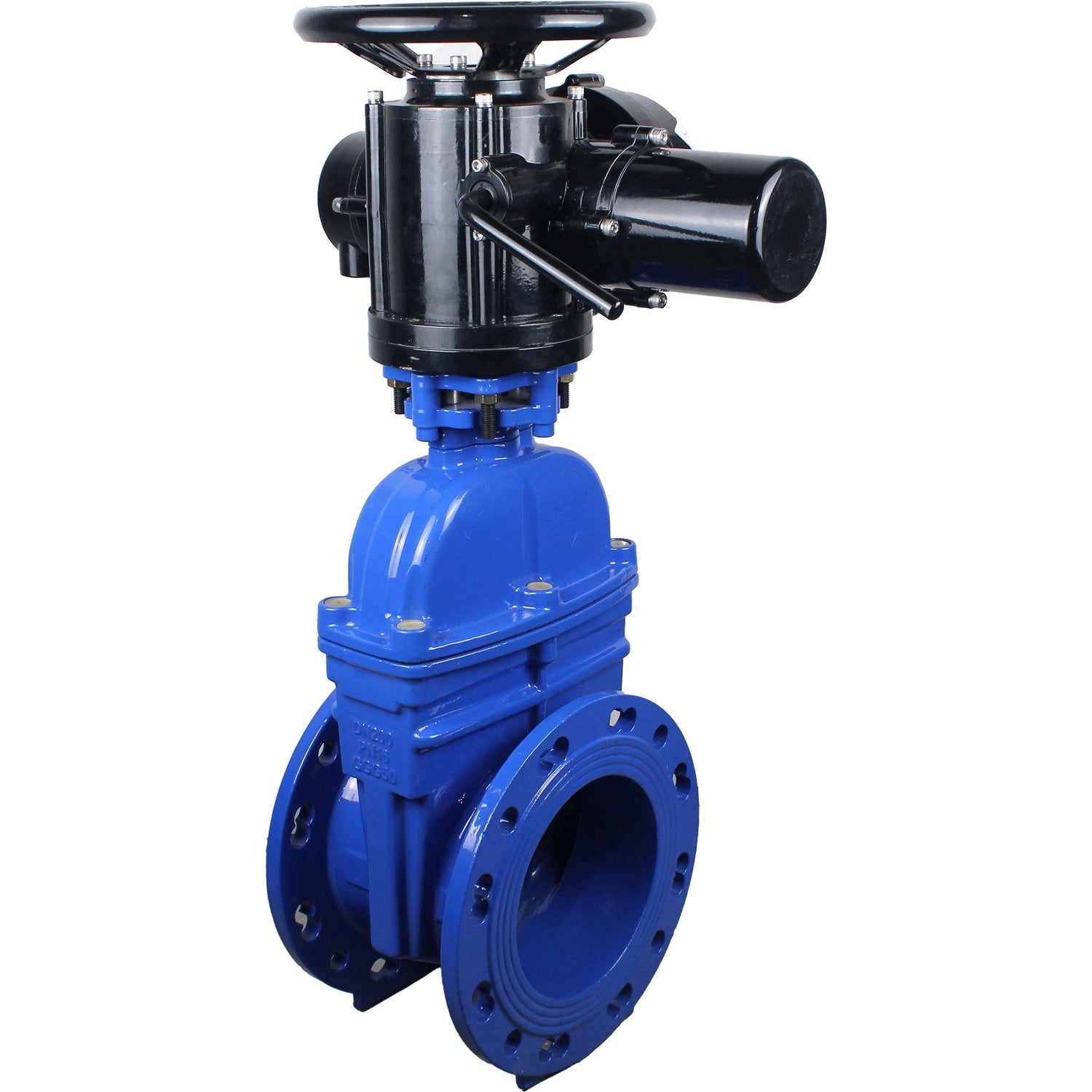

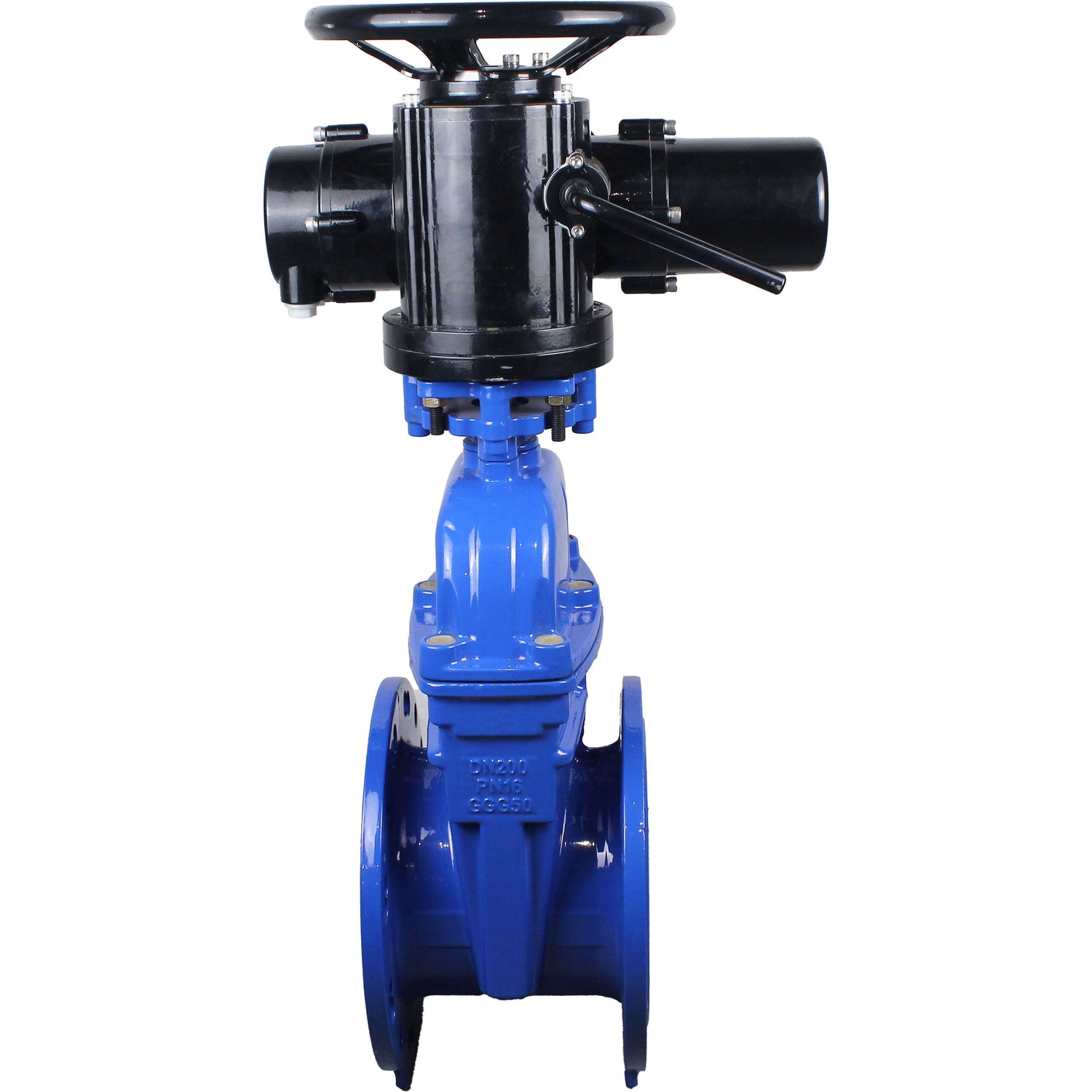

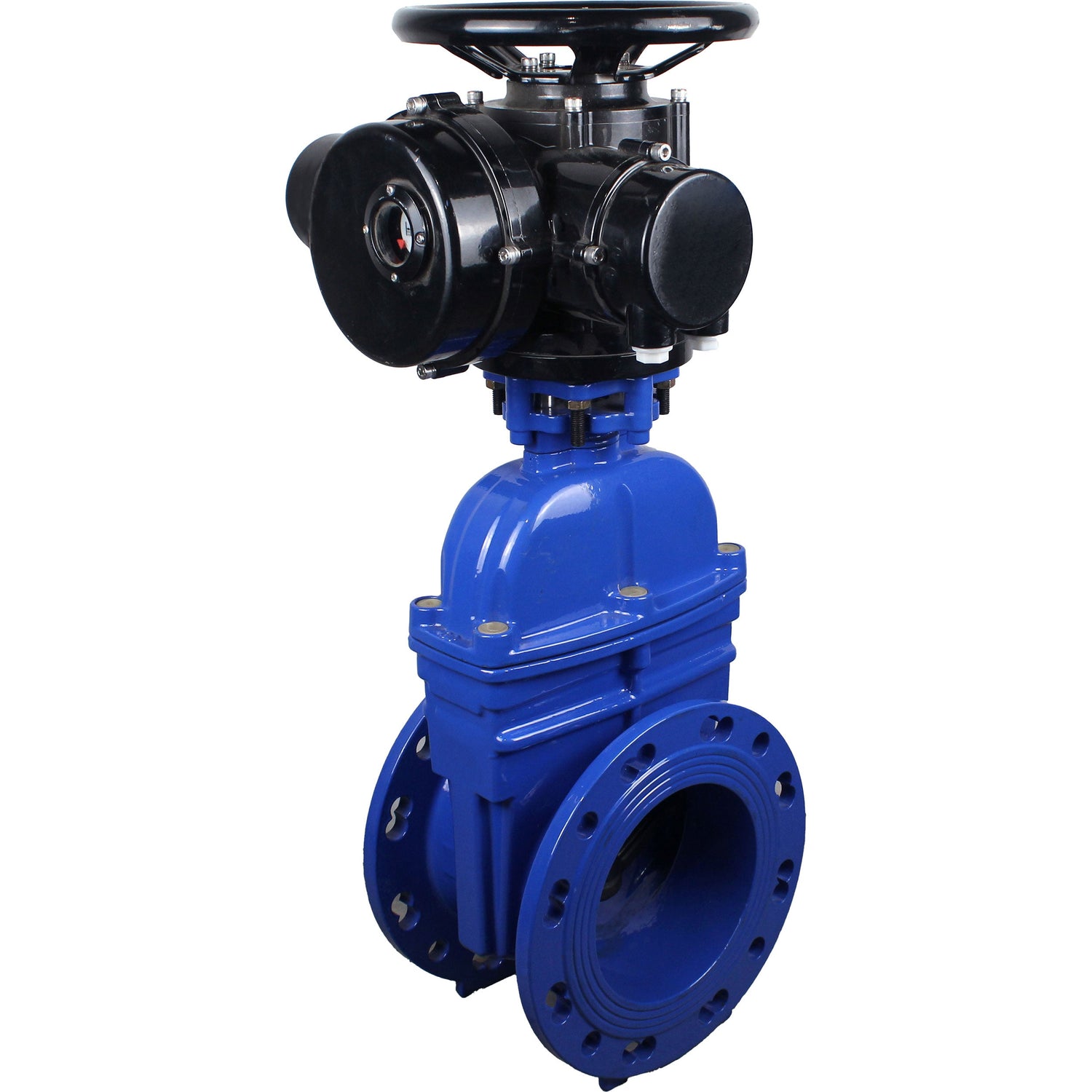

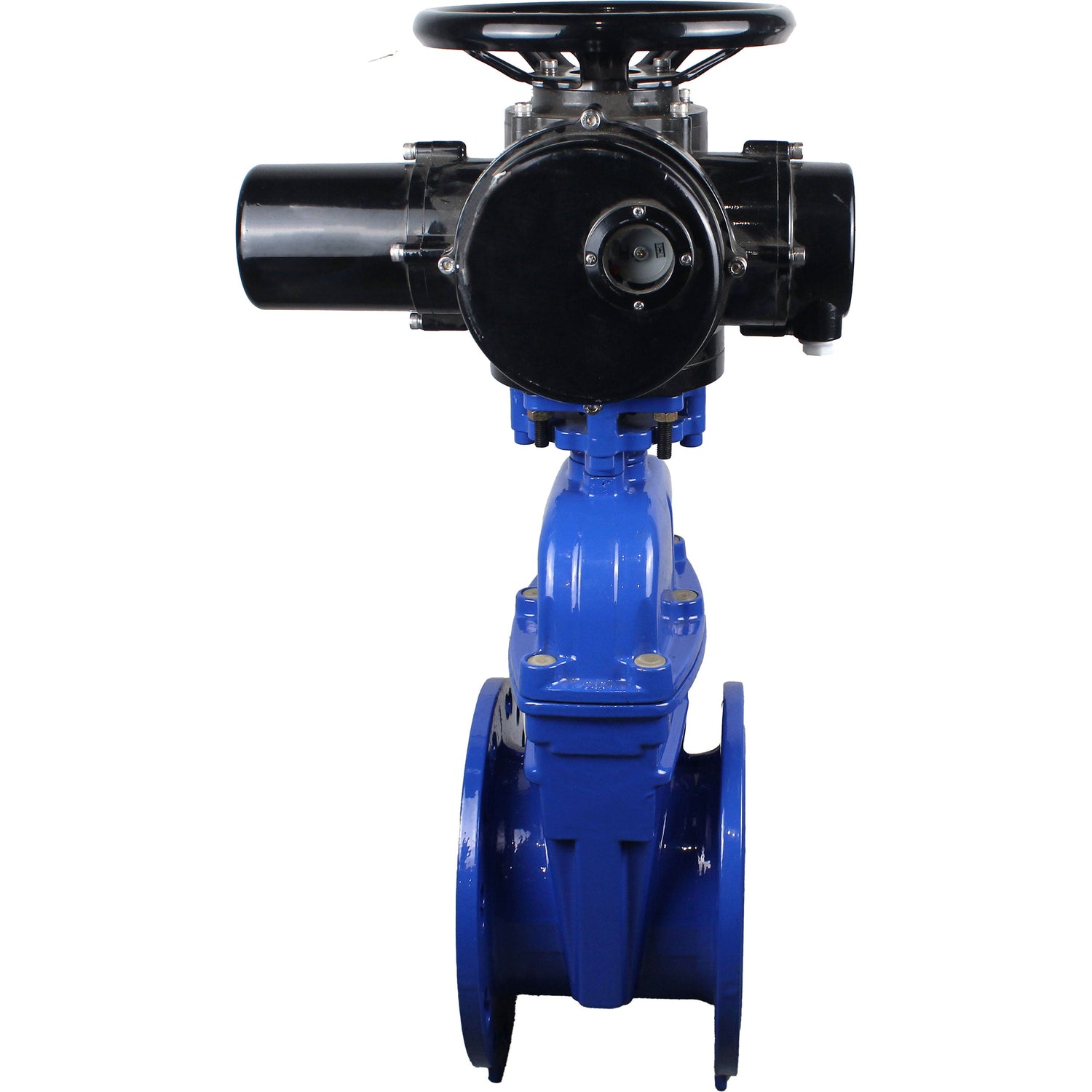

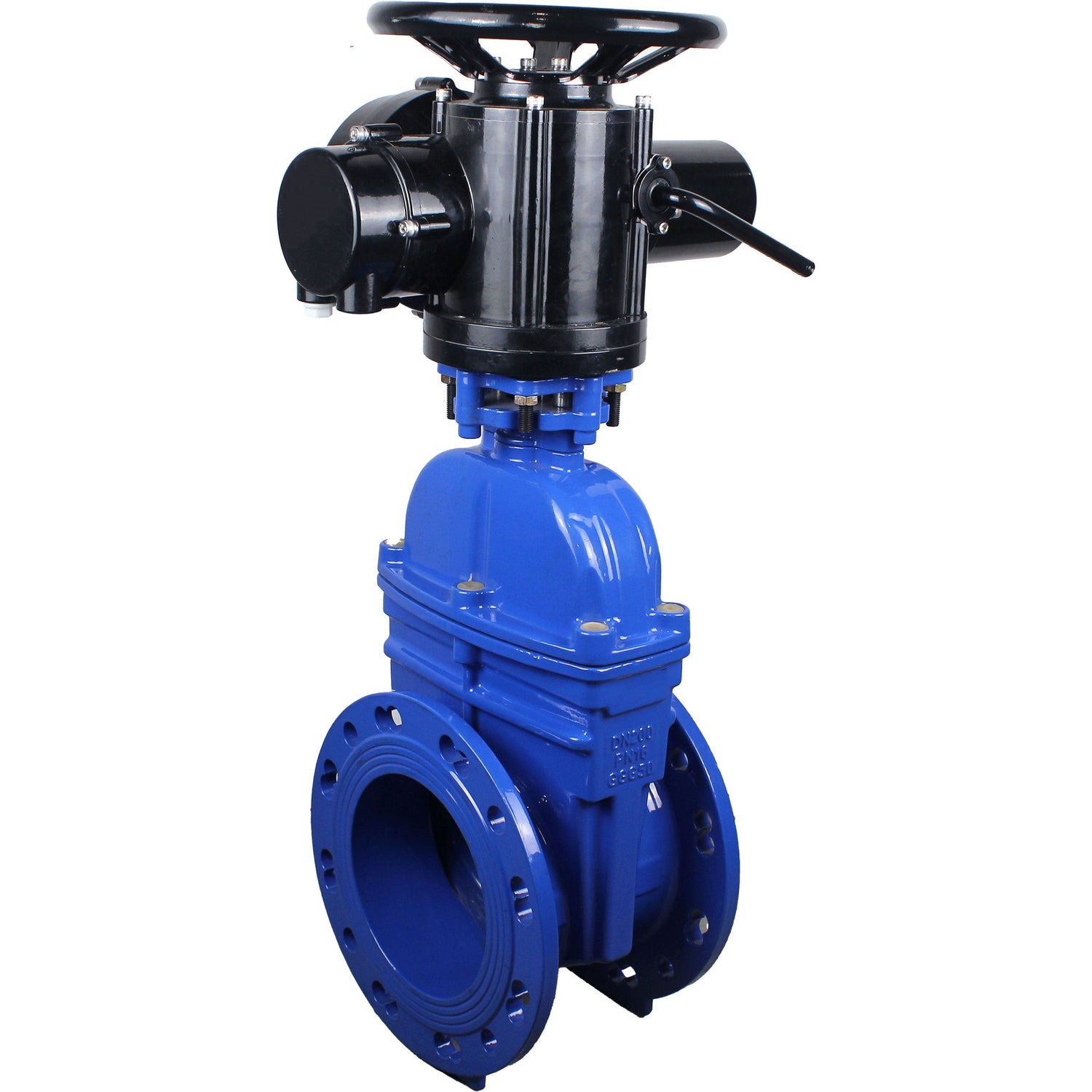

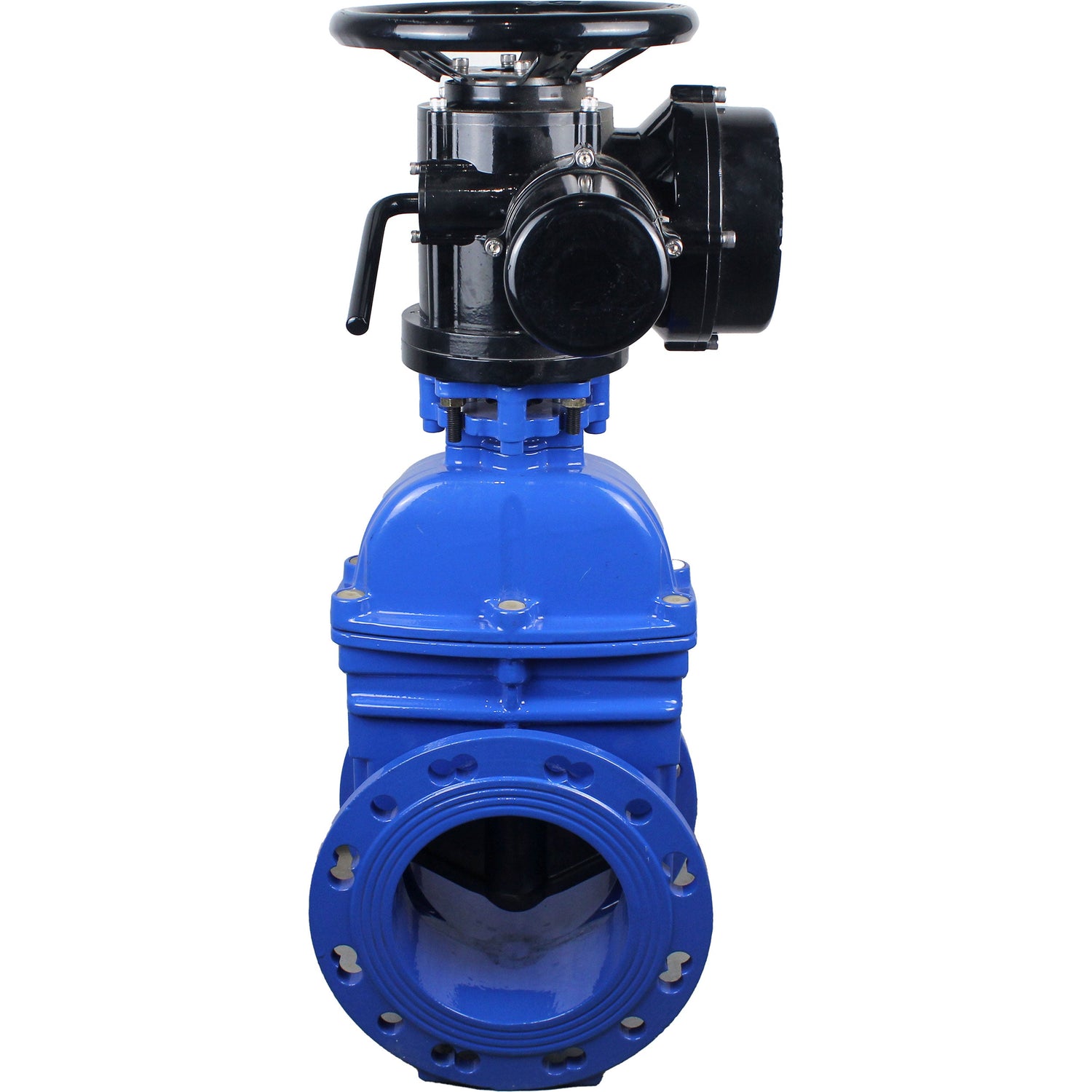

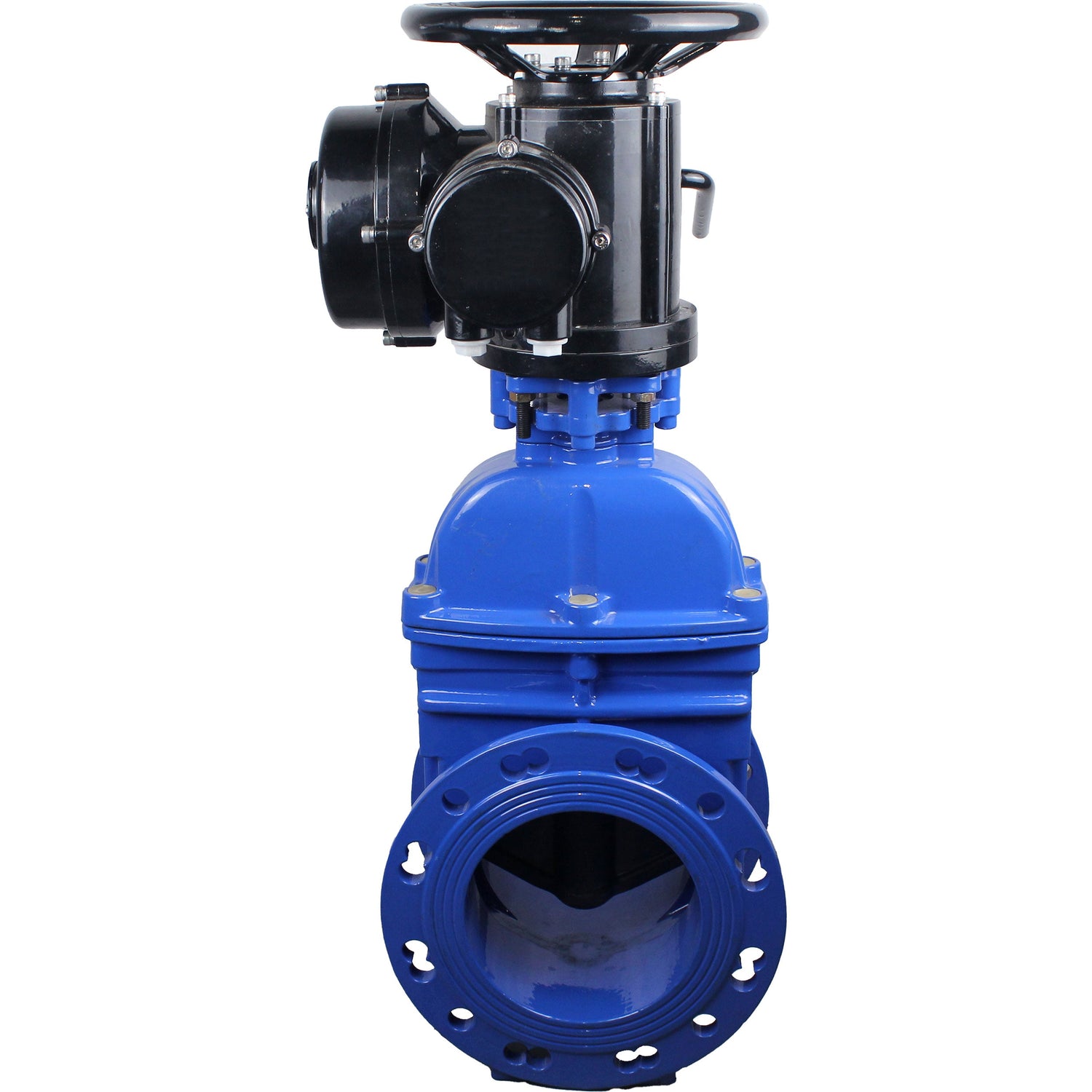

Wedge valves Elephant GVWN1414E-2W-F flanged, wedge - rubber-coated, spindle - non-retractable, body - cast iron, seal - EPDM, with OST flange with multi-turn electric drive MT-N-EM-O2-380VAC-U1 five-jaw

€1.188,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The Elephant wedge gate valve is designed for installation on pipelines as a shut-off device in water supply systems and chemical industry.
Electric multi-turn actuator Elephant is designed to automate the process of controlling industrial valves, as well as to determine the position of the valve shut-off body.






Technical parameters of wedge valves Elephant GVWN1414E-2W-F flanged, wedge - rubber-coated, spindle - non-retractable, body - cast iron, seal - EPDM, with OST flange with multi-turn electric drive MT-N-EM-O2-380VAC-U1 five-jaw

Nominal diameter DN, mm

50–250

Operating pressure PN, bar

10, 16

Working medium temperature t, °C

From 0 to 80

Working medium

Water, lightly contaminated liquids with up to 5% suspended particles

Flow direction

Two-way

Type of control

For electric actuator

Connection to pipeline

Flanged

Body material

Cast iron GGG50

Closing element material (wedge)

Cast iron GGG50 (with EPDM rubber lining)

Areas of application

Heating and water supply systems; industrial pipelines

Service life, years

10


Dimensions of wedge valves Elephant GVWN1414E-2W-F flanged, wedge - rubber-coated, spindle - non-retractable, body - cast iron, seal - EPDM, with OST flange with multi-turn electric drive MT-N-EM-O2-380VAC-U1 five-jaw

DN L, mm D, mm D1, mm H, mm L1, mm
50 150 165 125 258 411
65 170 185 145 258 411
80 180 200 160 258 411
100 190 220 180 258 411
125 200 250 210 258 411
150 210 285 240 258 411
200 230 340 295 290 470
250 250 405 350 290 470




Table of parts and materials of wedge valves Elephant GVWN1414E-2W-F flanged, wedge - rubber-coated, spindle - non-retractable, body - cast iron, seal - EPDM, with OST flange with multi-turn electric drive MT-N-EM-O2-380VAC-U1 five-jaw

№

Part name

Material

1

Body

Cast iron GGG50

2

Wedge

Cast iron GGG50 + EPDM

3

Stem nut

Brass

4

Stem

Stainless steel SS420

5

Cover

Cast iron GGG50

6

Ring

Brass



Technical parameters of electric actuators MT-N-EM-O2-380VAC five cam actuators

Type of electric actuator

Multi-turn

Type of motor

Asynchronous

Cable gland

Waterproof G1/2

Housing protection class

IP67

Winding insulation class

F

Ambient temperature, °C

From -30 to +70

Ambient humidity

≤95% (at 25°C)

Explosion-proof protection

No

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    80 °C
  • Connection type
    Flanged
  • Operating environment
    Water, Industrial Water
  • Applications
    Water Supply, Heating, Industry
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Cast iron + EPDM

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D040-09153DN10016 bar €1.188,00 Out of stock
    D040-09154DN12516 bar €1.445,00 Out of stock
    D040-09155DN15016 bar €1.480,00 Out of stock
    D040-09156DN20016 bar €1.712,00 Out of stock
    D040-09157DN25016 bar €1.932,00 Out of stock
    D040-09150DN5016 bar €1.119,00 Out of stock
    D040-09151DN6516 bar €1.140,00 Out of stock
    D040-09152DN8016 bar €1.158,00 Out of stock
