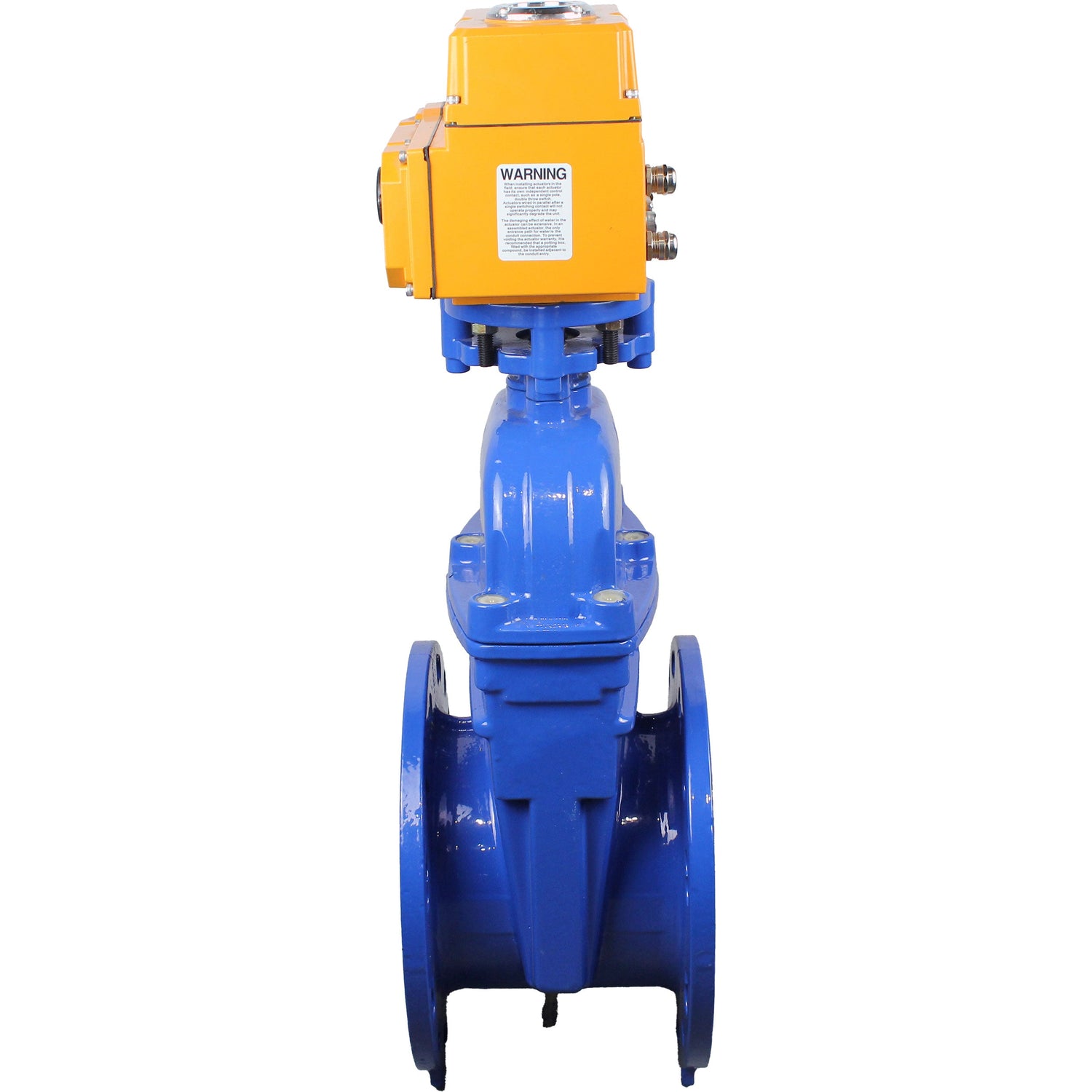

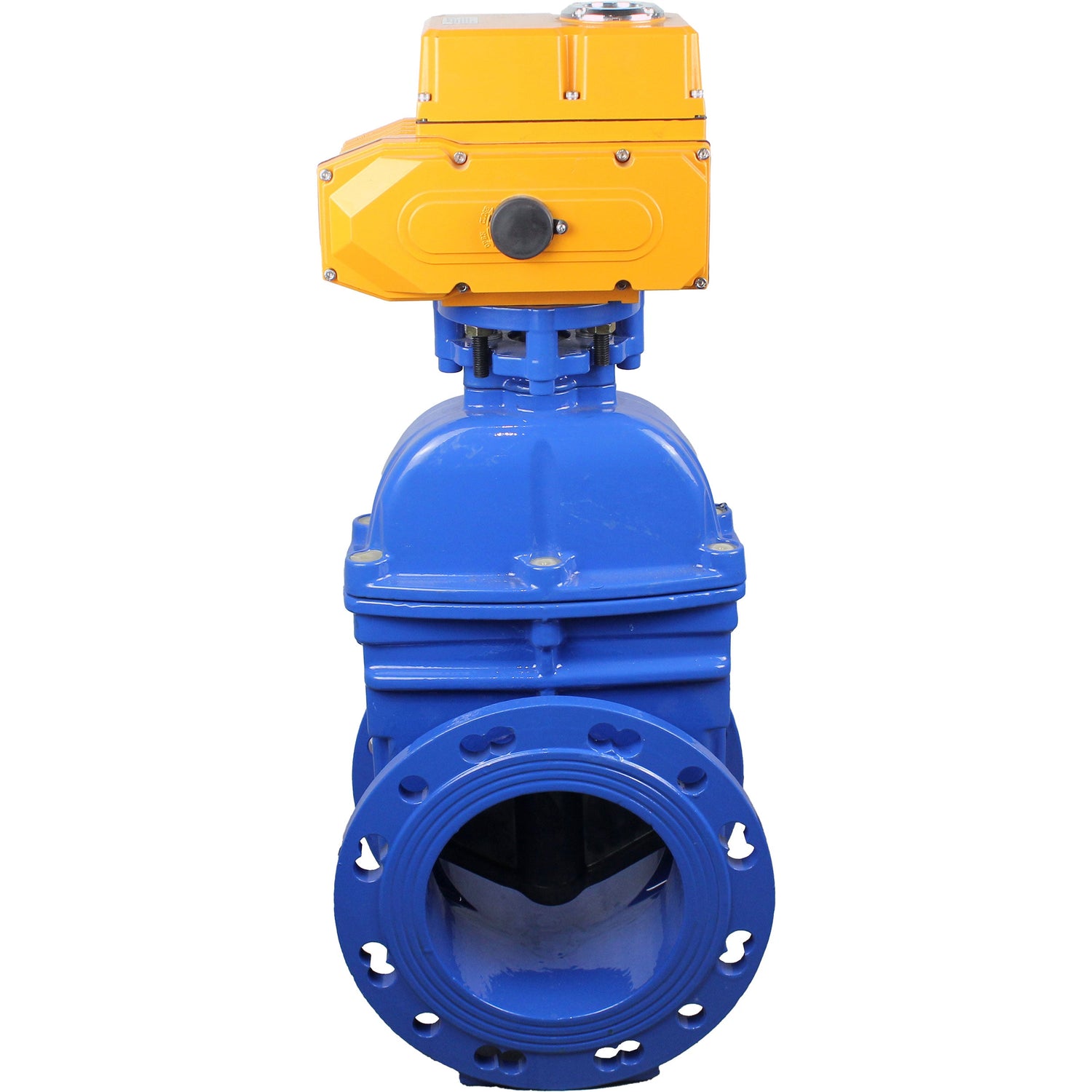

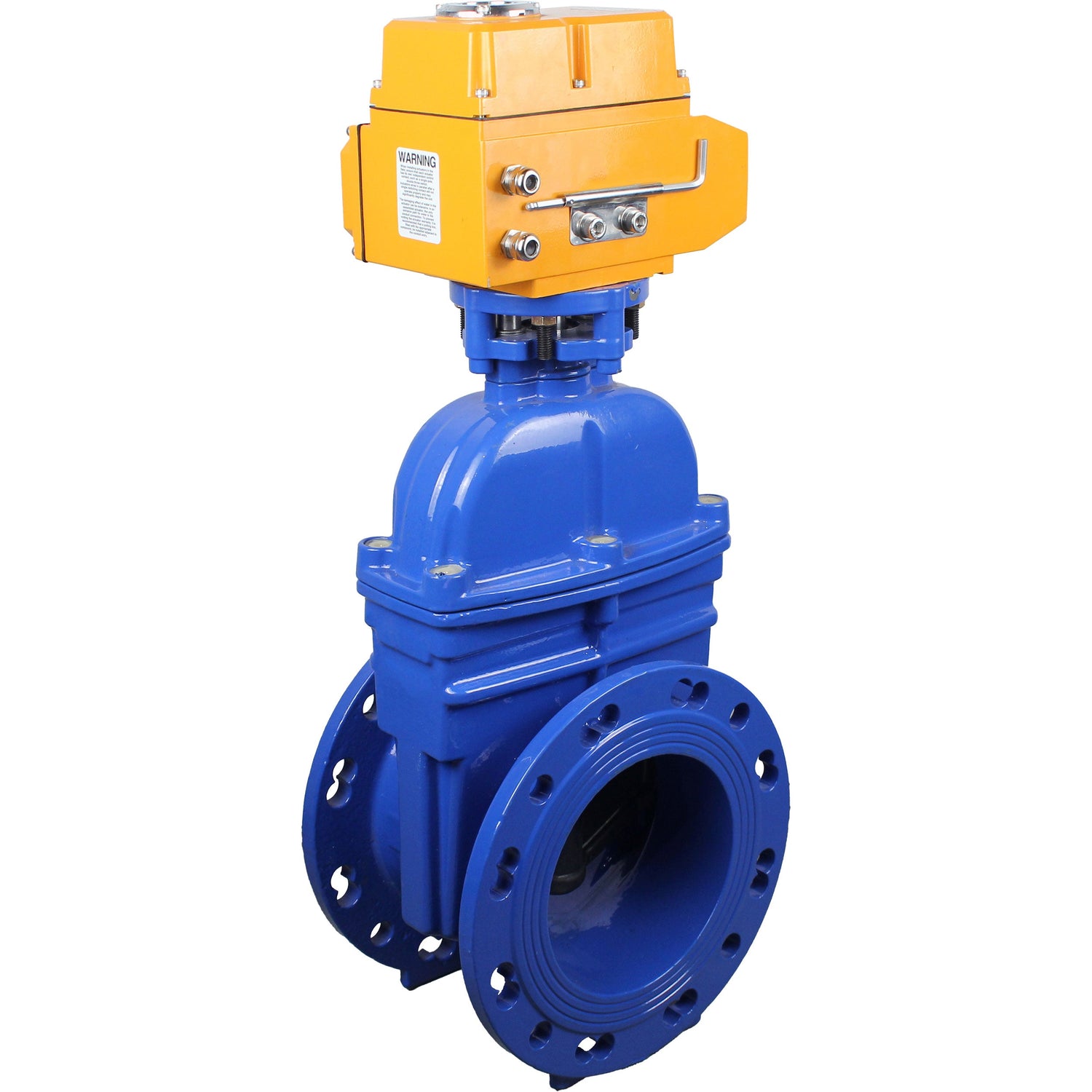

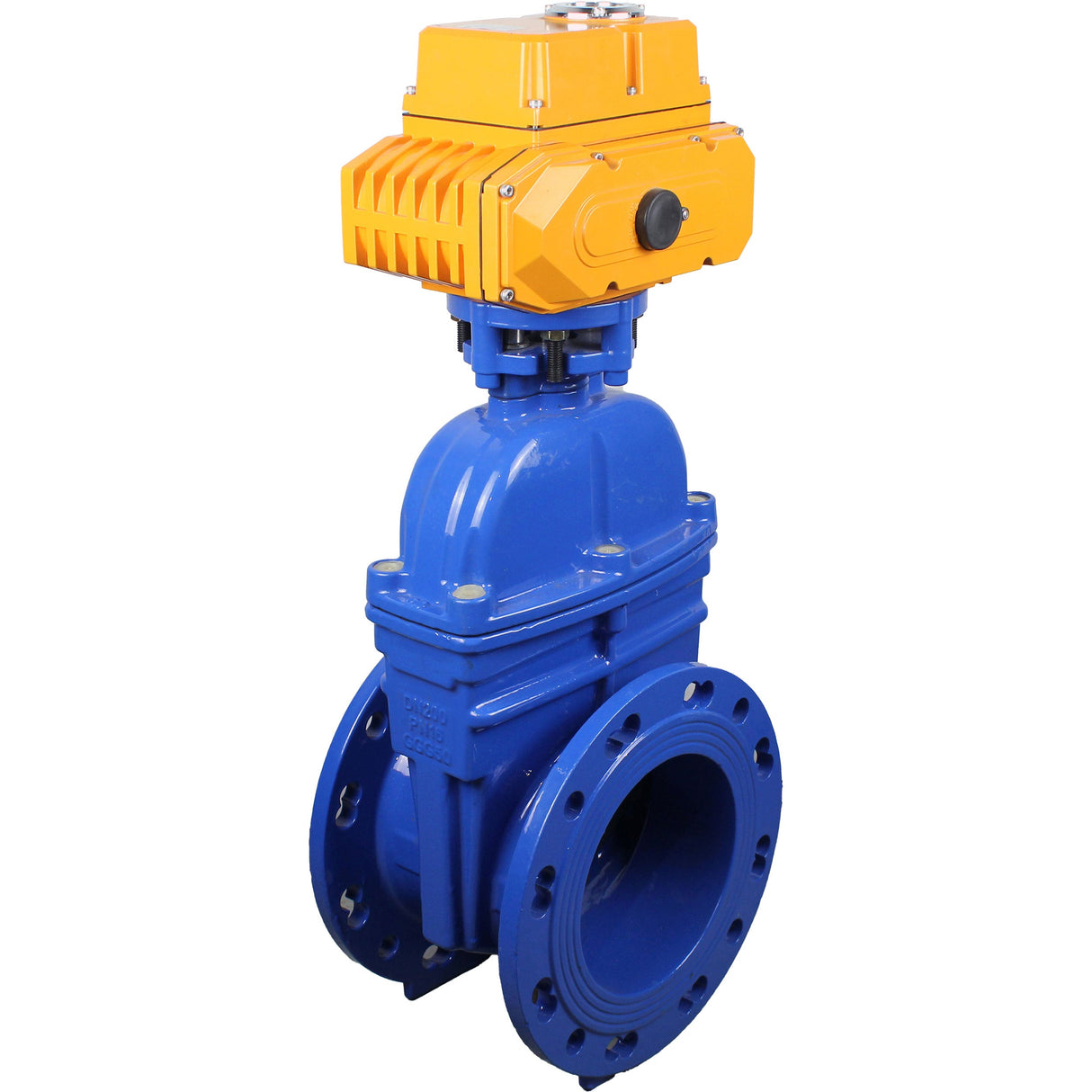

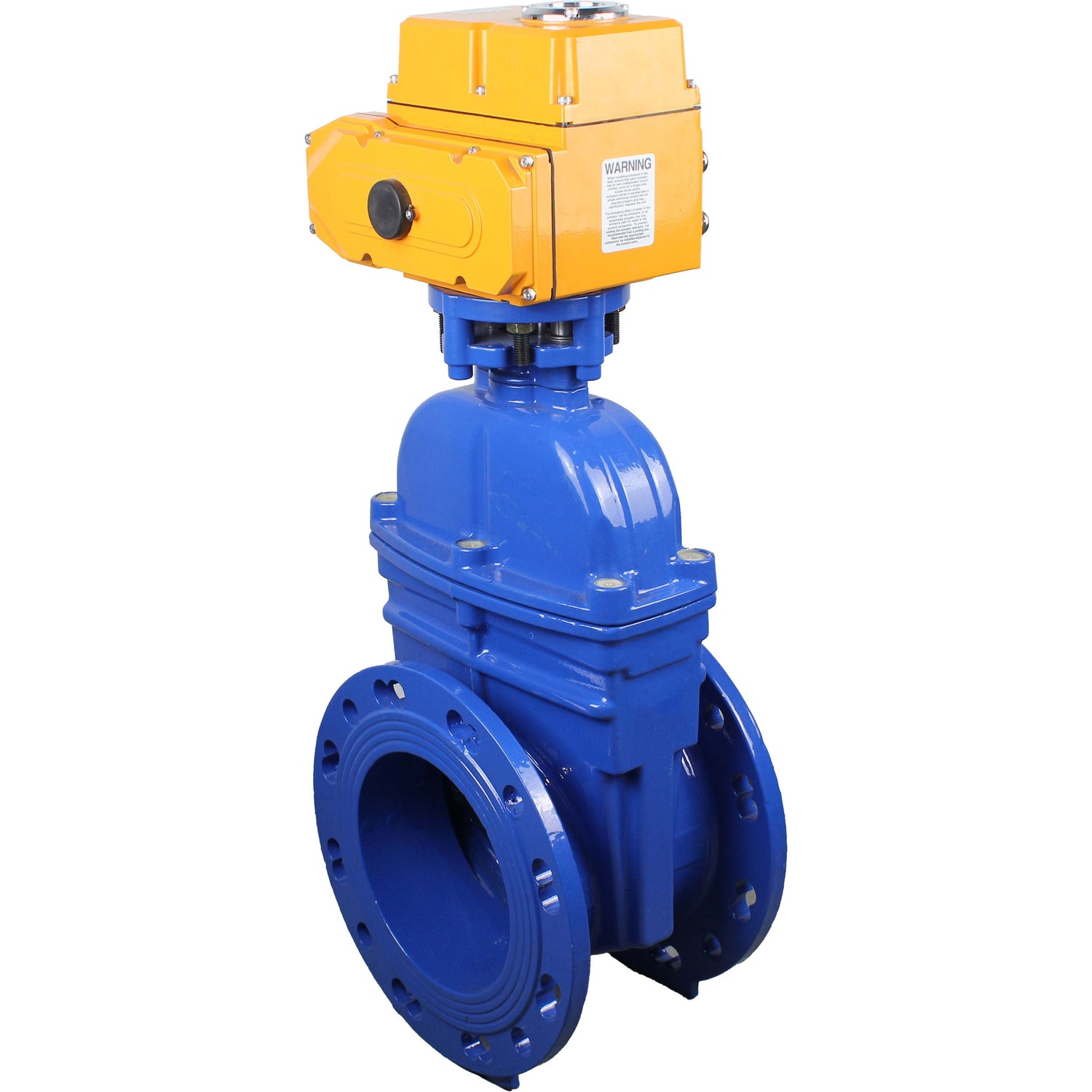

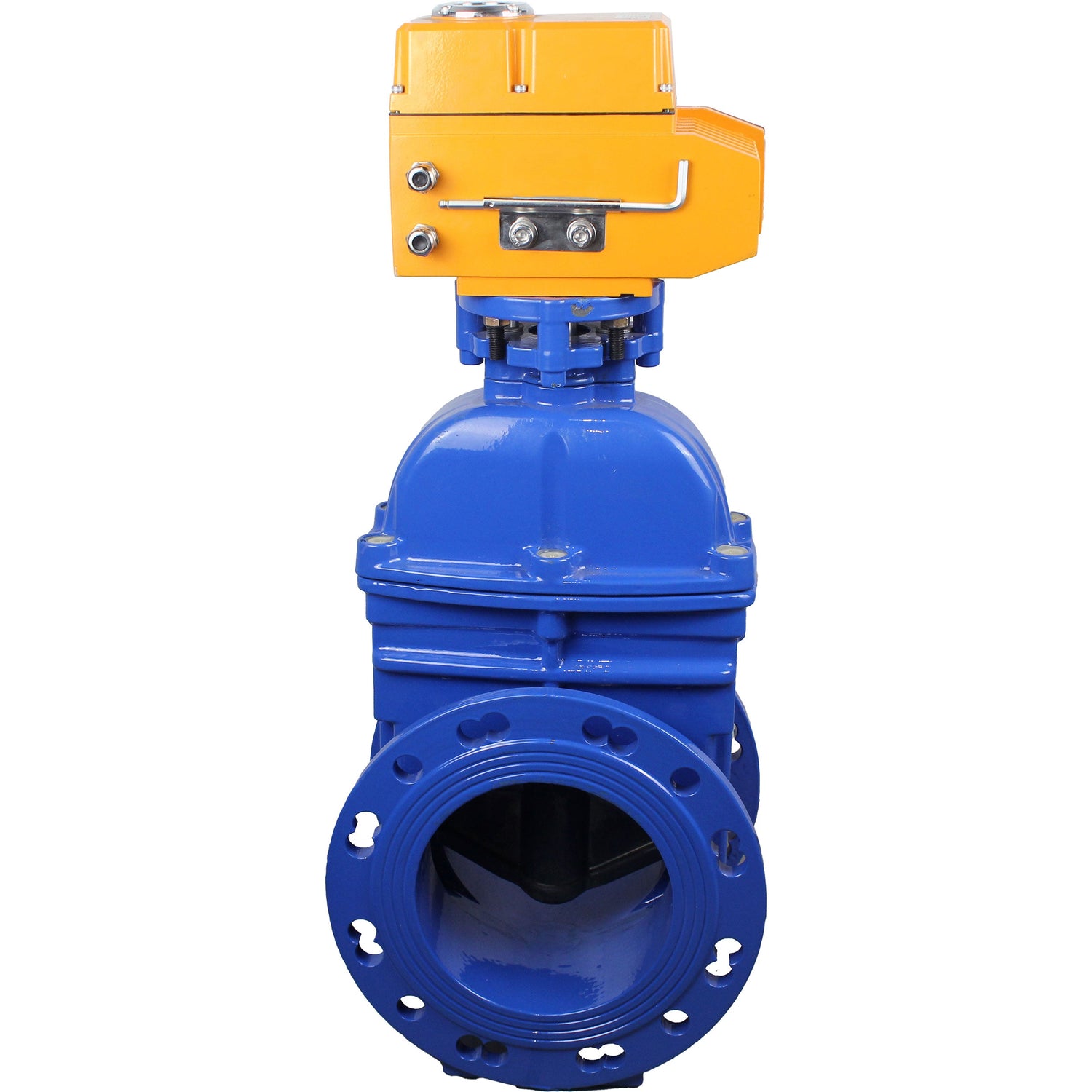

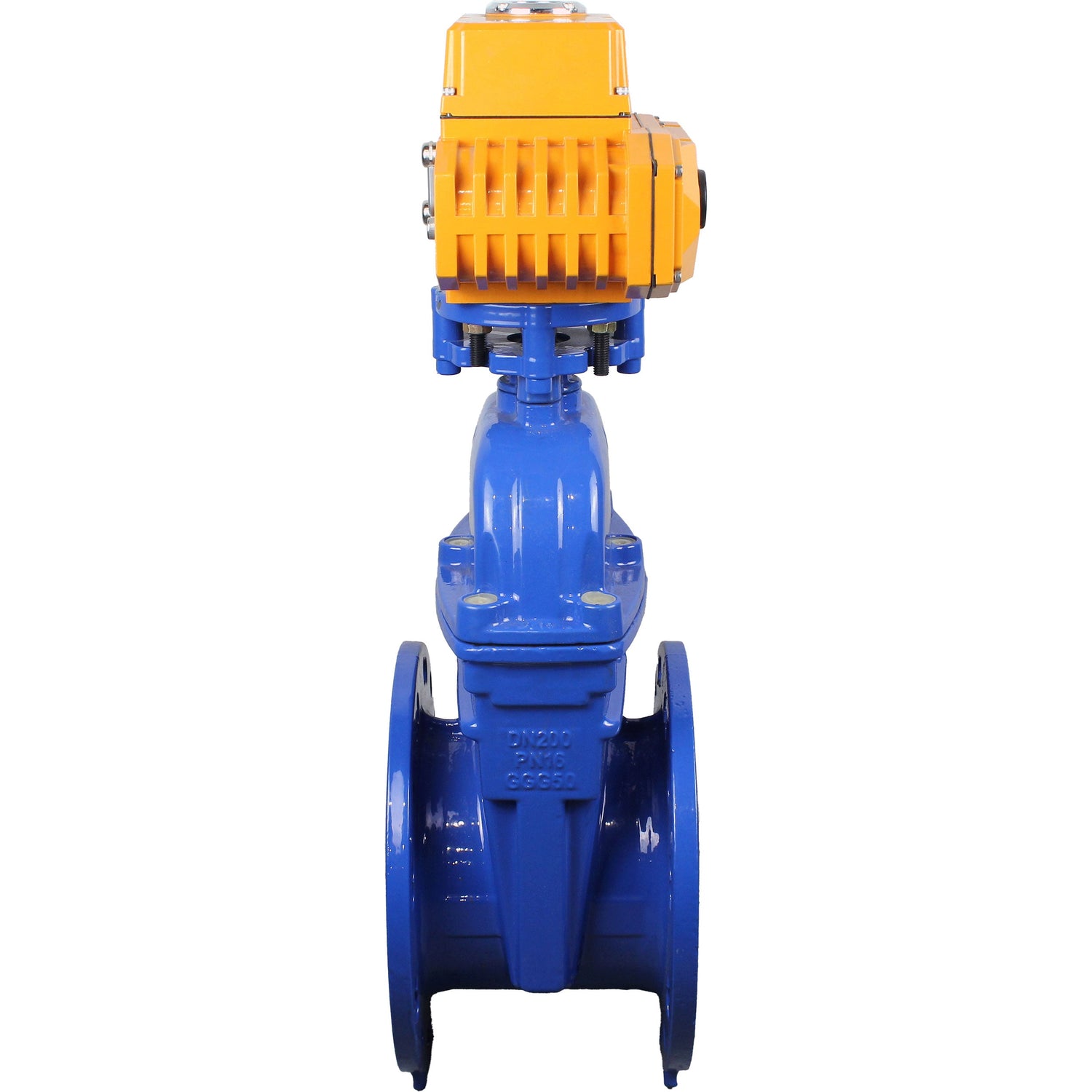

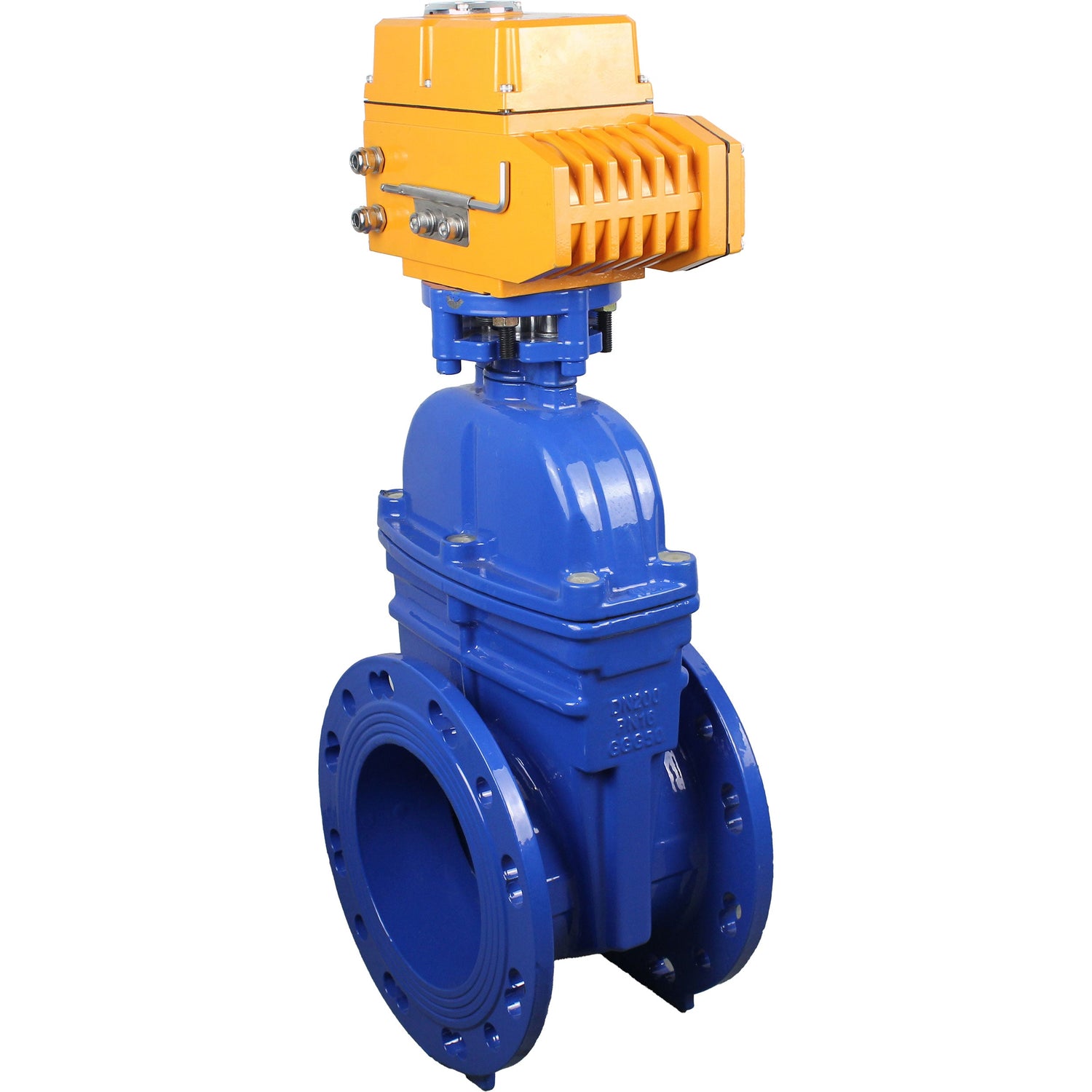

Wedge valves Elephant GVWN1414E-2W-F flanged wedge gate valves, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with multi-turn electric drive MT-N-Z-O1-220VAC-U1

€1.071,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The Elephant wedge gate valve is designed for installation on pipelines as a shut-off device in water supply systems and chemical industry.
Electric multi-turn actuator Elephant is designed to automate the process of controlling industrial valves, as well as to determine the position of the valve shut-off body.






Technical parameters of wedge valves Elephant GVWN1414E-2W-F flanged wedge gate valves, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with multi-turn electric drive MT-N-Z-O1-220VAC-U1

Nominal diameter DN, mm

50–250

Operating pressure PN, bar

10, 16

Working medium temperature t, °C

From 0 to 80

Working medium

Water, lightly contaminated liquids with up to 5% suspended particles

Flow direction

Two-way

Type of control

For electric actuator

Connection to pipeline

Flanged

Body material

Cast iron GGG50

Closing element material (wedge)

Cast iron GGG50 (with EPDM rubber lining)

Areas of application

Heating and water supply systems; industrial pipelines

Service life, years

10


Dimensions of wedge valves Elephant GVWN1414E-2W-F flanged wedge gate valves, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with multi-turn electric drive MT-N-Z-O1-220VAC-U1

DN L, mm D, mm D1, mm O, mm c, mm E, mm G, mm
50 150 165 125 40 114 151 117
65 170 185 145 40 114 151 117
80 180 200 160 40 114 151 117
100 190 220 180 40 114 151 117
125 200 250 210 40 114 151 117
150 210 285 240 40 114 151 117




Table of parts and materials of wedge valves Elephant GVWN1414E-2W-F flanged wedge gate valves, wedge - rubber-coated, spindle - non-rising, body - cast iron, seal - EPDM, with ISO flange with multi-turn electric drive MT-N-Z-O1-220VAC-U1

№

Part name

Material

1

Body

Cast iron GGG50

2

Wedge

Cast iron GGG50 + EPDM

3

Stem nut

Brass

4

Stem

Stainless steel SS420

5

Cover

Cast iron GGG50

6

Ring

Brass



Technical parameters of electric actuators MT-N-Z-O1-220VAC-U1

Housing protection rating

IP67

Maximum number of actuator revolutions

50

Ambient temperature, °C

-28 … +60

Internal thermal protection activation temperature, °C

110

Availability of doubler

Hexagon

Mounting angle

Arbitrary (any angle)

Body material

Aluminum alloy

Type of ISO flange

F10/F12

Speed, rpm

5

Weight, kg

10

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    80 °C
  • Connection type
    Flanged
  • Control type
    Electrically driven
  • Operating environment
    Water, Industrial Water
  • Applications
    Water Supply, Heating, Industry
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Disc material
    Cast iron + EPDM
