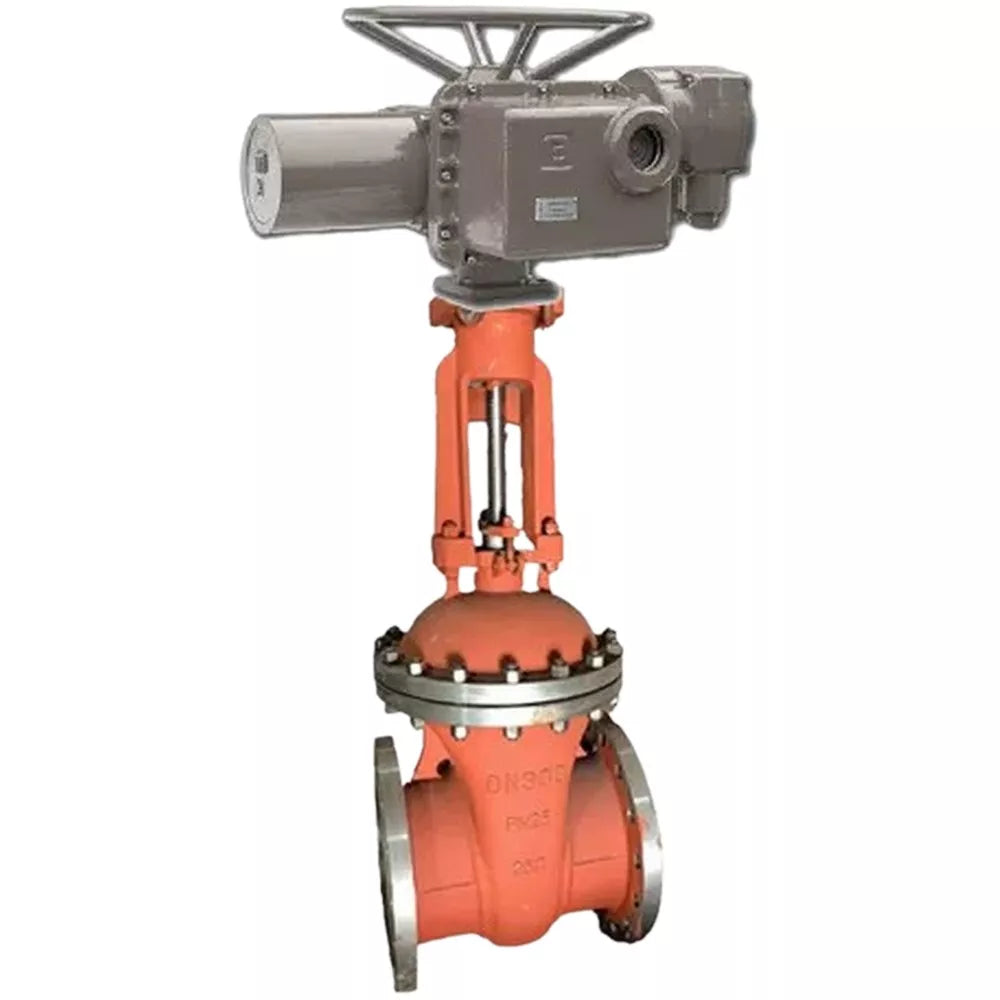

Wedge gate valves Elephant GVWR2134M-2W-F-OST flanged body - steel 25L, seal - metal, with OST flanges round stem, control - electric drive Elephant MT-N-EM-O2-220-U1
Wedge gate valves Elephant GVWR2134M-2W-F-OST flanged body - steel 25L, seal - metal, with OST flanges round stem, control - electric drive Elephant MT-N-EM-O2-220-U1 - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The wedge gate valve is designed for installation as a shut-off device on pipelines for transportation of water, steam, oils, in relation to which the materials used in the gate valve are corrosion-resistant.
The multi-turn actuator is designed for automation of industrial valve control process and for determining the position of the valve shut-off body.
Dimensions and dimensions of wedge gate valves Elephant GVWR2134M-2W-F-OST flanged body - steel 25L, seal - metal
| Size | Dn, mm | L, mm | L1, mm | D, mm | D1, mm | D2, mm |
| 50 | 50 | 180 | 411 | 160 | 125 | 100 |
| 80 | 80 | 210 | 411 | 195 | 160 | 135 |
| 100 | 100 | 230 | 411 | 215 | 180 | 155 |
| 150 | 150 | 280 | 470 | 280 | 240 | 210 |
| 200 | 200 | 330 | 470 | 335 | 295 | 265 |
| 250 | 250 | 450 | 470 | 405 | 355 | 320 |
| 300 | 300 | 500 | 564 | 460 | 410 | 375 |
Sketch of dimensions and dimensions of wedge gate valves Elephant
Table of parts and materials of wedge gate valves Elephant GVWR2134M-2W-F-OST flanged body - steel 25L, seal - metal
| № | Part | Material |
|---|---|---|
| 1 | Stem nut | Brass |
| 2 | Seal | Graphite |
| 3 | Bolt/Nut | Steel St35 |
| 4 | Stem | Steel 2Cr13 |
| 5 | Seat | Steel WCB+D507 |
| 6 | Wedge | Steel WCB+D507MO |
| 7 | Body | Steel 25L |
Sketch of parts and materials of wedge gate valves Elephant GVWR2134M-2W-F-OST flanged body - steel 25L, seal - metal
Technical parameters of the actuator Elephant
| Parameter | Value |
|---|---|
| Power Supply Voltage | 220V |
| Ambient Temperature, °C | from -30 to +70 |
| Actuator Type | Multi-turn |
| Motor Type | Asynchronous |
| Output Shaft Rotation Speed, rpm | 18/24 |
| Manual Drive Gear Ratio | 1:1 |
| Cable Entry | Waterproof G1/2 |
| Enclosure Protection Class, IP | 67 |
| Automatic Shutdown in "Open", "Close" positions and jamming cases | Yes |
| Winding Insulation Type | F |
| Ambient Humidity, % | ≤95 (at 25°C) |
| Explosion-Proof Enclosure | No |
Dimensions and dimensions of the actuator Elephant
| Drive model | MT-N-010EM-O2-220-U1 | MT-N-015EM-O2-220-U1 | MT-N-020EM-O2-220-U1 | MT-N-030EM-O2-220-U1 | MT-N-045EM-O2-220-U1 |
| W, mm | 334 | 334 | 365 | 365 | 433 |
| H, mm | 258 | 258 | 290 | 290 | 337 |
| L, mm | 411 | 411 | 470 | 470 | 564 |
| DxD, mm | 100х100 | 100х100 | 122х122 | 122х122 | 200х200 |
| D1, mm | 104 | 104 | 135 | 135 | 220 |
| D2, mm | 70 | 70 | 108 | 108 | 155 |
| d1, mm | 32 | 32 | 45 | 45 | 70 |
| d2, mm | 44 | 44 | 57 | 57 | 84 |
| f, mm | 8 | 8 | 15 | 15 | 22 |
| h, mm | 5 | 5 | 8 | 8 | 11 |
| h1, mm | 3 | 3 | 7 | 7 | 11 |
| h2, mm | 18 | 18 | 22 | 22 | 28 |
Sketch of dimensions and dimensions of actuator Elephant
Schematic diagram of the actuator Elephant
| № | Part Name |
|---|---|
| 1 | Electric Motor |
| 2 | Motor-Reducer |
| 3 | Worm Gearbox |
| 4 | Worm |
| 5 | Handle |
| 6 | Torque Mechanism |
| 7 | Set of Belleville Springs |
| 8 | Opening Indicator |
| 9 | Moving Mechanism |
| 10 | Output Shaft |
| 11 | Worm Gearbox |
| 12 | Bevel Gear |
Sketch of the schematic diagram of the electric actuator Elephant
