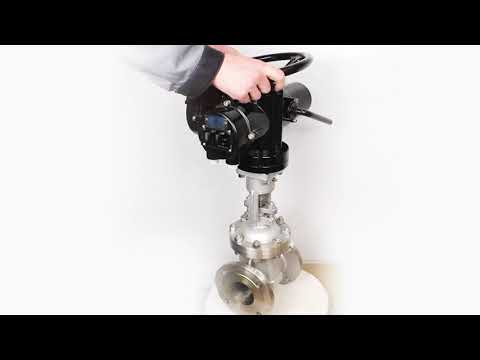

Wedge gate valves Elephant GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL, seal - metal, with OST flanges round stem with OST flanges round stem control - electric drive Elephant MT-N-EM-O2-380 -U1
Wedge gate valves Elephant GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL, seal - metal, with OST flanges round stem with OST flanges round stem control - electric drive Elephant MT-N-EM-O2-380 -U1 - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The wedge gate valve is designed for installation as a shut-off device on pipelines for transportation of water, steam, oils, in relation to which the materials used in the gate valve are corrosion-resistant.
The multi-turn actuator is designed for automation of industrial valve control process and for determining the position of the valve shut-off body.
Dimensions and dimensions of wedge gate valves Elephant GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL
| Size | L, mm | L1, mm | D, mm | D1, mm | D2, mm |
| 50 | 250 | 411 | 160 | 125 | 100 |
| 80 | 280 | 411 | 195 | 160 | 135 |
| 100 | 300 | 470 | 230 | 190 | 160 |
| 150 | 350 | 470 | 300 | 250 | 218 |
| 200 | 400 | 470 | 260 | 310 | 278 |
| 250 | 450 | 470 | 425 | 370 | 332 |
| 300 | 500 | 564 | 485 | 430 | 390 |
Sketch of dimensions and dimensions of wedge gate valves Elephant GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL, seal - metal
Table of parts and materials of wedge gate valves Elephant GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL, seal - metal
| № | Name | Material |
| 1 | Spindle nut | brass |
| 2 | Sealing | graphite |
| 3 | Bolt/nut | steel St35 |
| 4 | Stem | steel 2cr13 |
| 5 | Saddle | steel WCB+D507 |
| 6 | Wedge | steel WCB+D507MO |
| 7 | Case | 12Cr18Ni9TL steel |
Sketch of parts and materials of wedge gate valves Elephant GVWR2434M-2W-F flanged, body - stainless steel 12X18H9TL, seal - metal
Technical parameters of the actuator Elephant
| Name | Significance |
| Power supply voltage | 380 V |
| Ambient temperature, °C | -30 to +70 |
| Type of actuator | multiturn |
| Engine type | asynchronous |
| Output shaft speed, rpm | 18/24 |
| Manual drive gear ratio | 1:1 |
| Cable entry | waterproof G1/2 |
| Enclosure protection class, IP | 67 |
| Automatic shut-off in open, closed and jammed positions | have |
| Winding insulation type | F |
| Ambient humidity, % | ≤95 (at 25°C) |
| Explosion protection of the enclosure | no |
Dimensions and dimensions of the actuator Elephant
| Model | MT-N-010EM-O2-380-U1 | MT-N-015EM-O2-380-U1 | MT-N-020EM-O2-380-U1 | MT-N-030EM-O2-380-U1 | MT-N-045EM-O2-380-U1 | MT-N-060EM-O2-380-U1 |
| W, mm | 334 | 334 | 365 | 365 | 433 | 433 |
| H, mm | 258 | 258 | 290 | 290 | 337 | 337 |
| L, mm | 411 | 411 | 470 | 470 | 564 | 564 |
| DxD, mm | 100х100 | 100х100 | 122х122 | 122х122 | 200х200 | 200х200 |
| D1, mm | 104 | 104 | 135 | 135 | 220 | 220 |
| D2, mm | 70 | 70 | 108 | 108 | 155 | 155 |
| d1, mm | 32 | 32 | 45 | 45 | 70 | 70 |
| d2, mm | 44 | 44 | 57 | 57 | 84 | 84 |
| f, mm | 8 | 8 | 15 | 15 | 22 | 22 |
| h, mm | 5 | 5 | 8 | 8 | 11 | 11 |
| h1, mm | 3 | 3 | 7 | 7 | 11 | 11 |
| h2, mm | 18 | 18 | 22 | 22 | 28 | 28 |
Sketch of dimensions and dimensions of actuator Elephant
Schematic diagram of the electric actuator Elephant
| № | Name |
| 1 | Electric motor |
| 2 | Gearmotor |
| 3 | Worm gearbox |
| 4 | Worm |
| 5 | Handle |
| 6 | Torque mechanism |
| 7 | Set of disc springs |
| 8 | Opening indicator |
| 9 | Handling mechanism |
| 10 | Output shaft |
| 11 | Worm gearbox |
| 12 | Bevel gear |
Sketch of the schematic diagram of the electric actuator Elephant
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
