Elephant  |  SKU: D040-07577

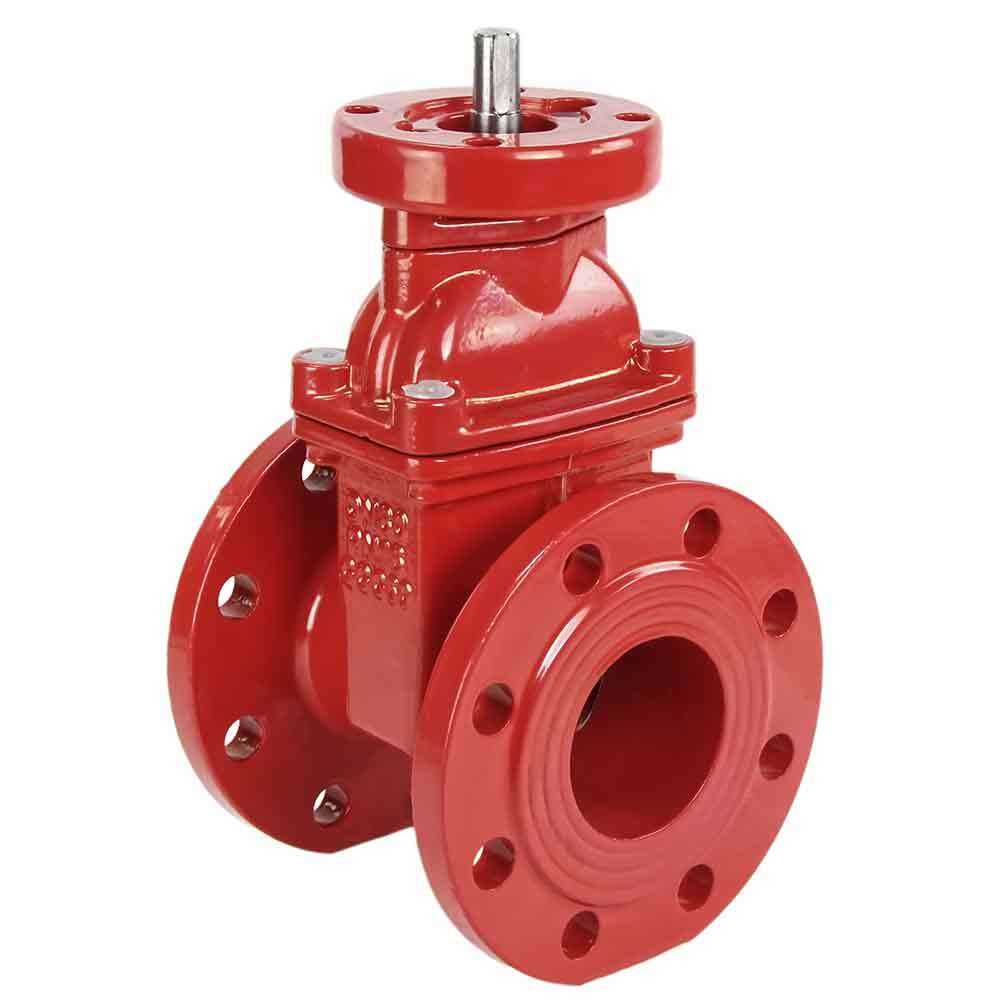

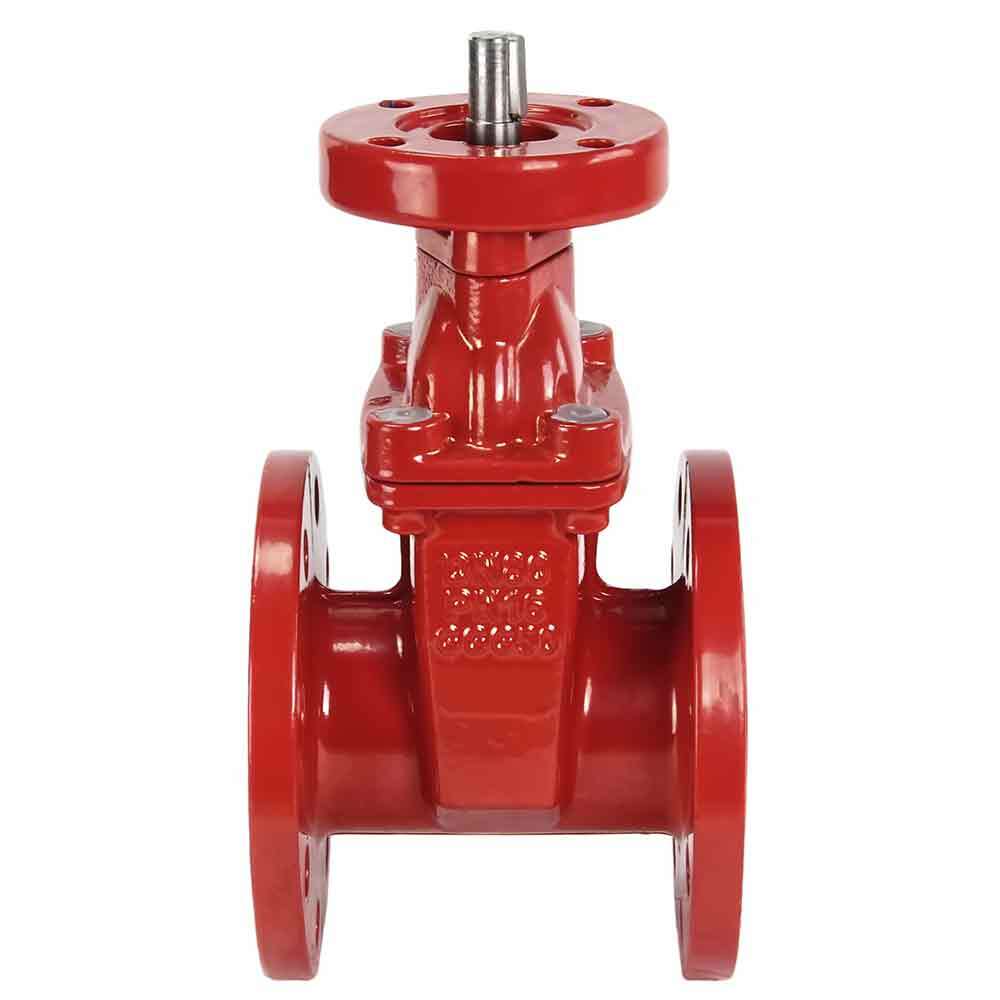

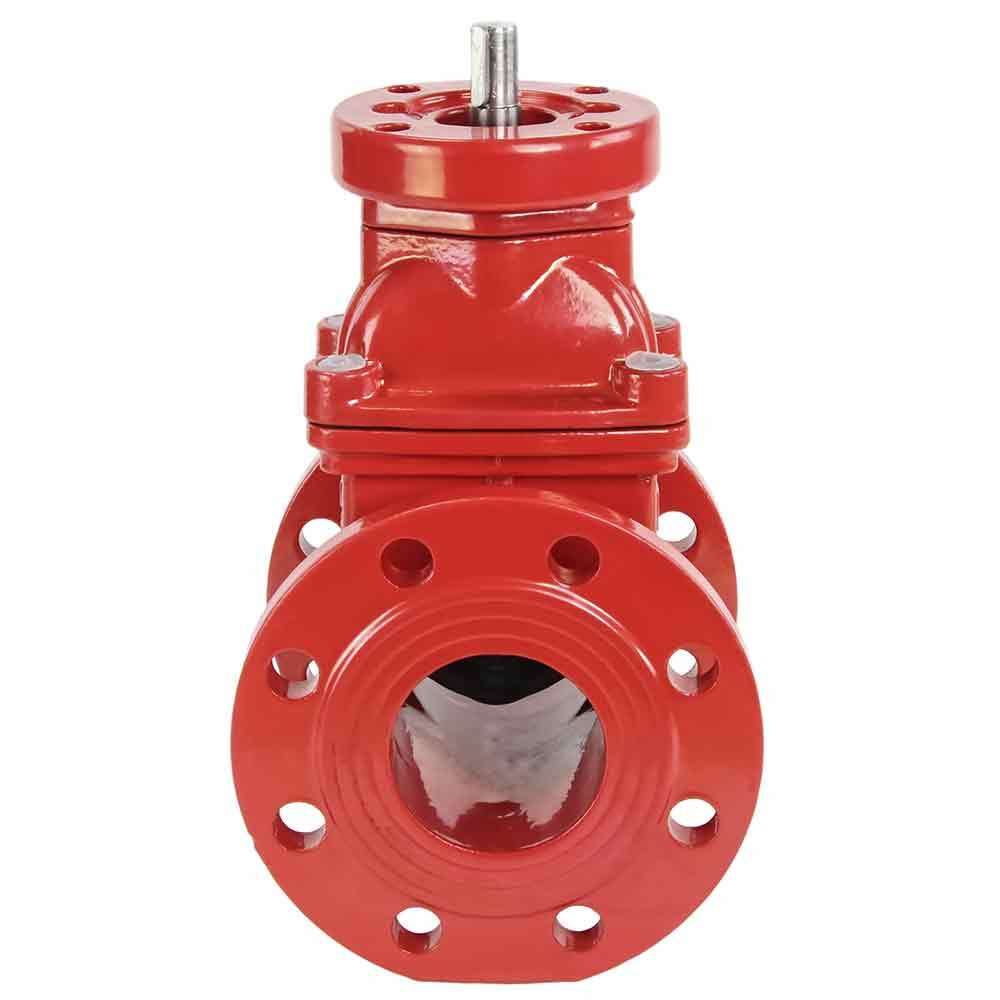

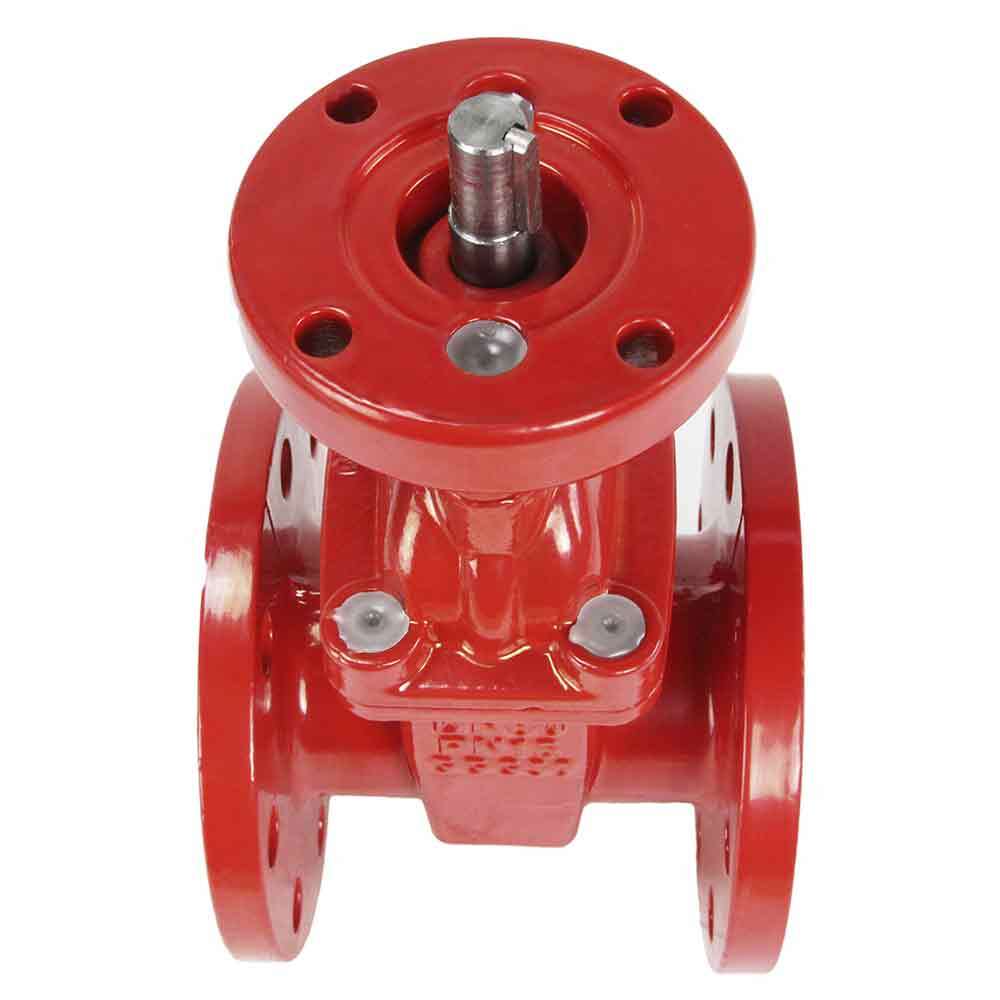

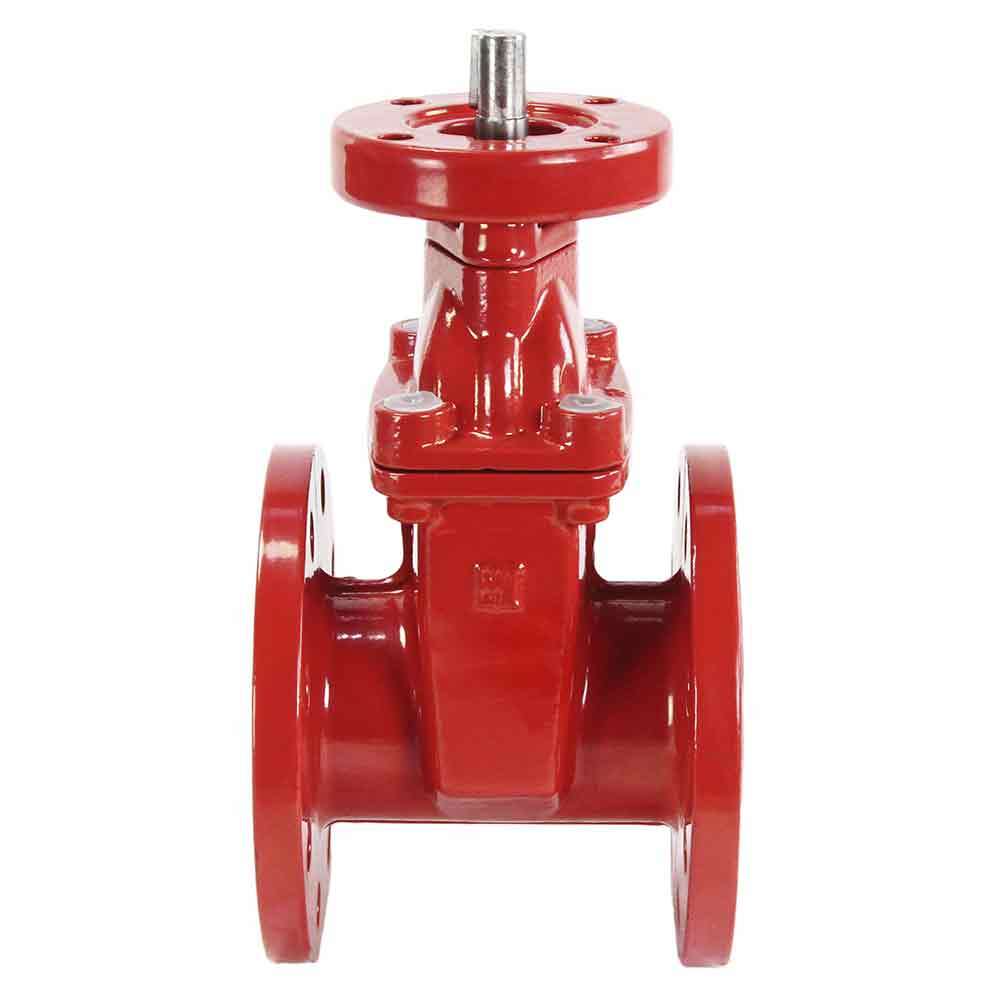

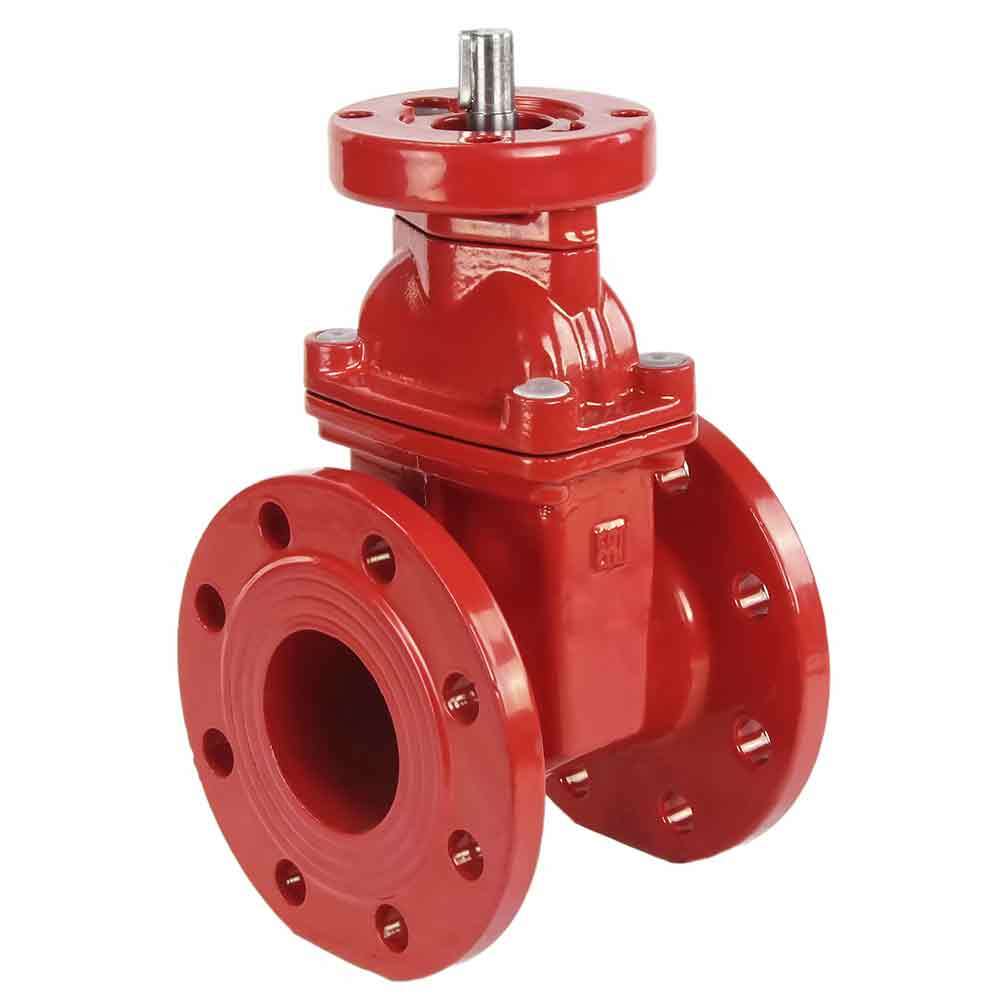

Wedge gate valve Elephant, body material - cast iron GGG50, wedge material - cast iron + EPDM, seal - EPDM, stem only

€1.290,51
Tax included Shipping calculated at checkout.

Wedge gate valve Elephant, body material - cast iron GGG50, wedge material - cast iron + EPDM, seal - EPDM, stem only - DN300 / 10 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A wedge gate valve is a type of valve that is widely used in many industries - its main purpose is to start or stop a fluid flow rather than to regulate it. The design of the wedge gate valve is quite straightforward: it typically consists of a wedge, a bonnet which houses the moving parts, valve stem which is used to operate the valve, and two seats where the wedge seals off the flow.





Overall and installation dimensions of gate valve GVWN1414E-2W-F

DN L øD øC B n-d øW øG Øk N-d1 h H Weight
200 230 340 295 265 8-23 175 140 100 4-18 30 600 59
250 250 405 350 319 12-23 175 140 100 4-18 30 740 82
300 270 460 400 370 12-23 175 140 100 4-18 30 830 129

Sketch of gate valve GVWN1414E-2W-F





Design and materials of Elephant gate valve GVWN1414E-2W-F

№ Name Material
1 Body cast iron GGG50
2 Wedge cast iron GGG50 + EPDM
3 Rod nut brass
4 Rod carbon steel or stainless steel SS 420/2Cr13
5 Gasket EPDM
6 Cover cast iron GGG50
7 Ring carbon steel
8 Sealing ring EPDM
9 Bolts carbon steel
10 ISO flange cast iron GGG50
11 Seal cast iron GGG50
12 Sealing ring EPDM
13 Bolts carbon steel

Sketch of gate valve GVWN1414E-2W-F

Specifications
  • Country of origin
    China
  • Body material
    Сast iron GGG50
  • Stopper Material
    Cast iron + EPDM
  • Maximum allowable temperature
    120 °C
  • Connection type
    Flanged
  • Control type
    Stem only
  • Operating environment
    Water
  • Gate valve type
    Wedge Gate Valve
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Coating type
    Epoxy powder
