Water Butterfly valves Elephant WBV3131S-2W-W-H, body material - stain – Valve Elephant
Elephant  |  SKU: D050-65628

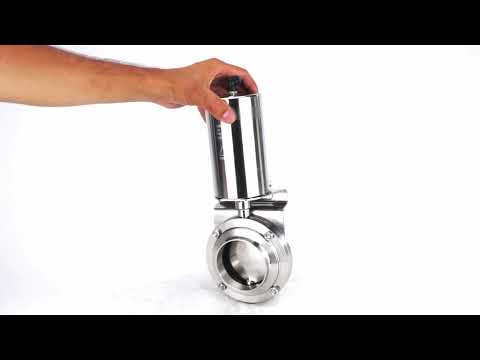

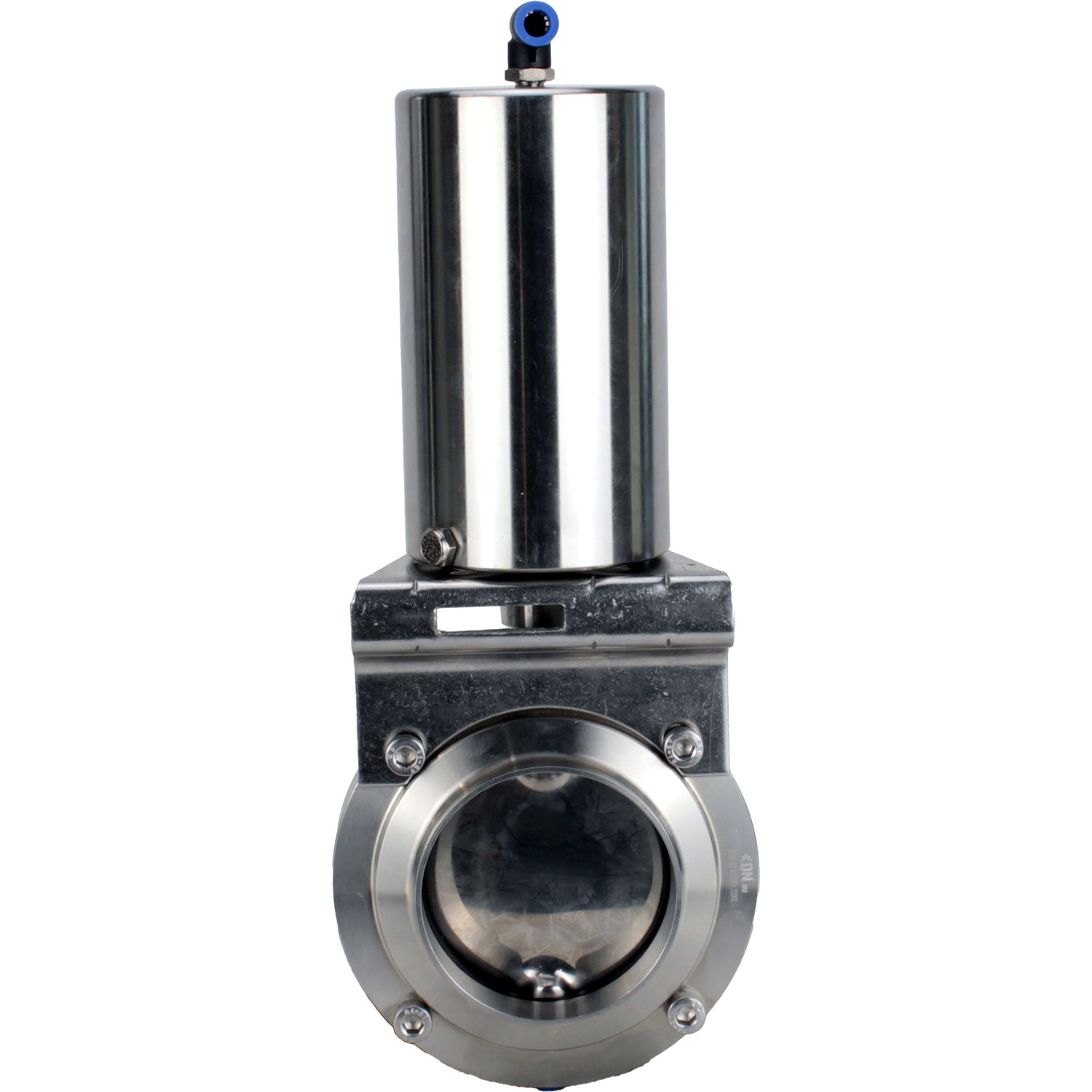

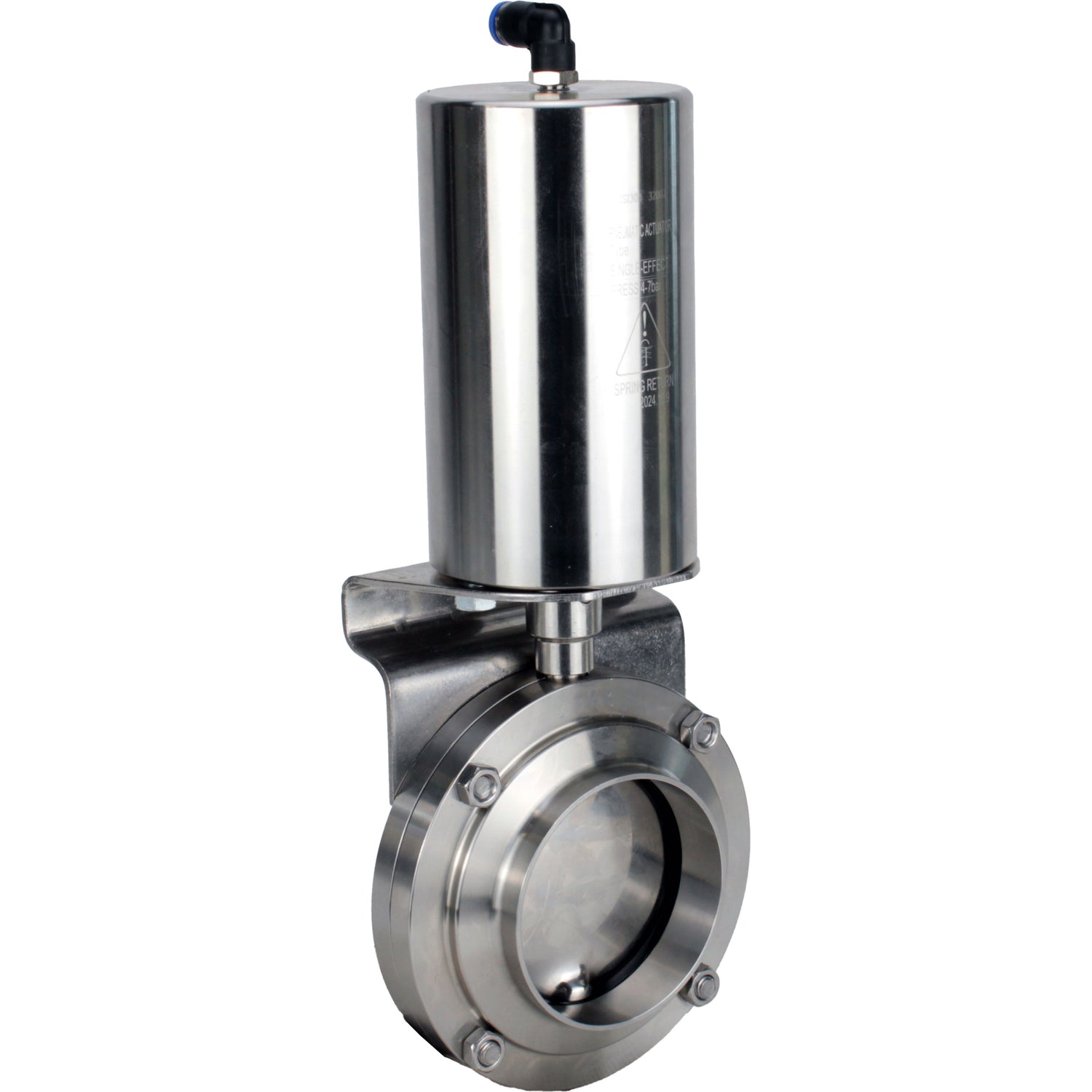

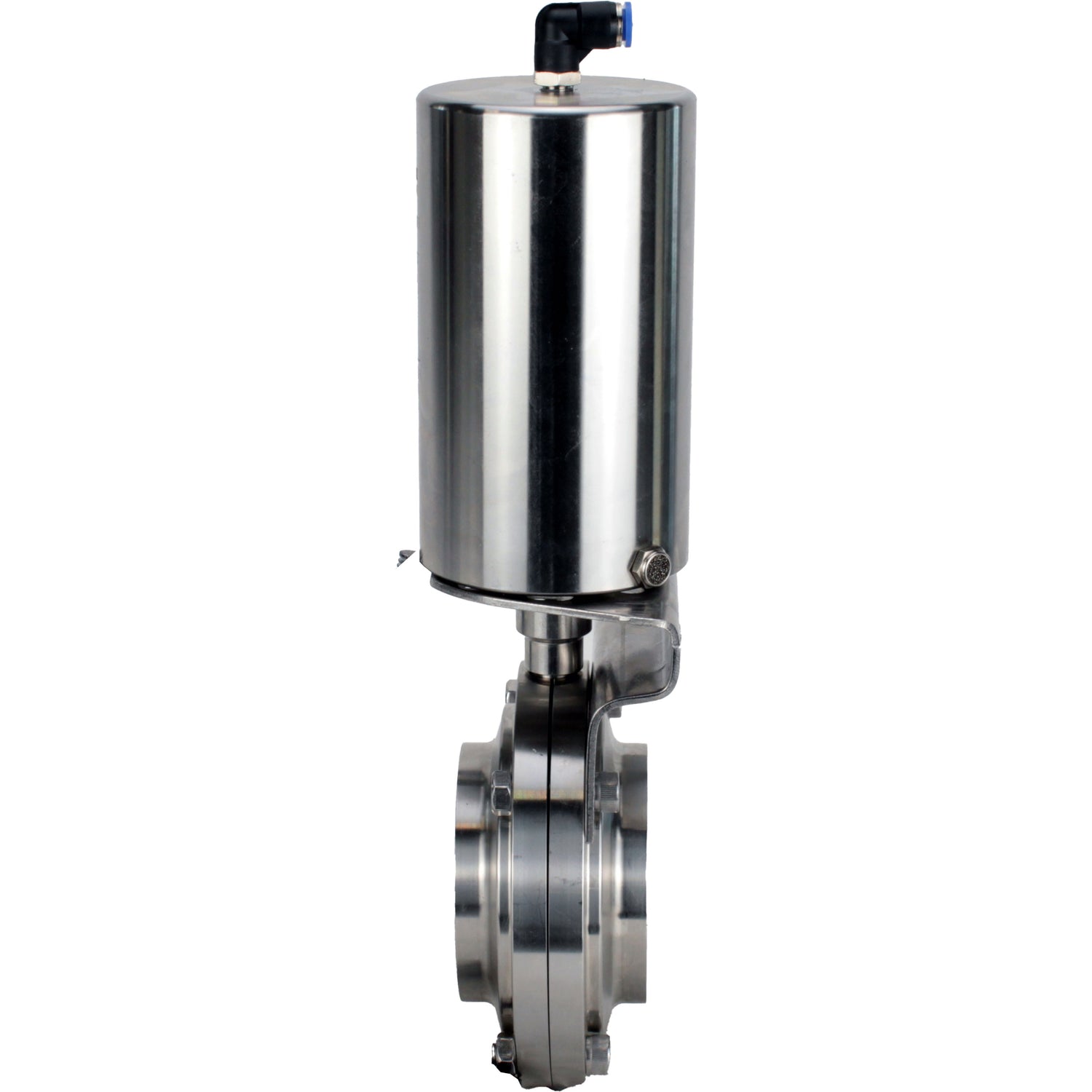

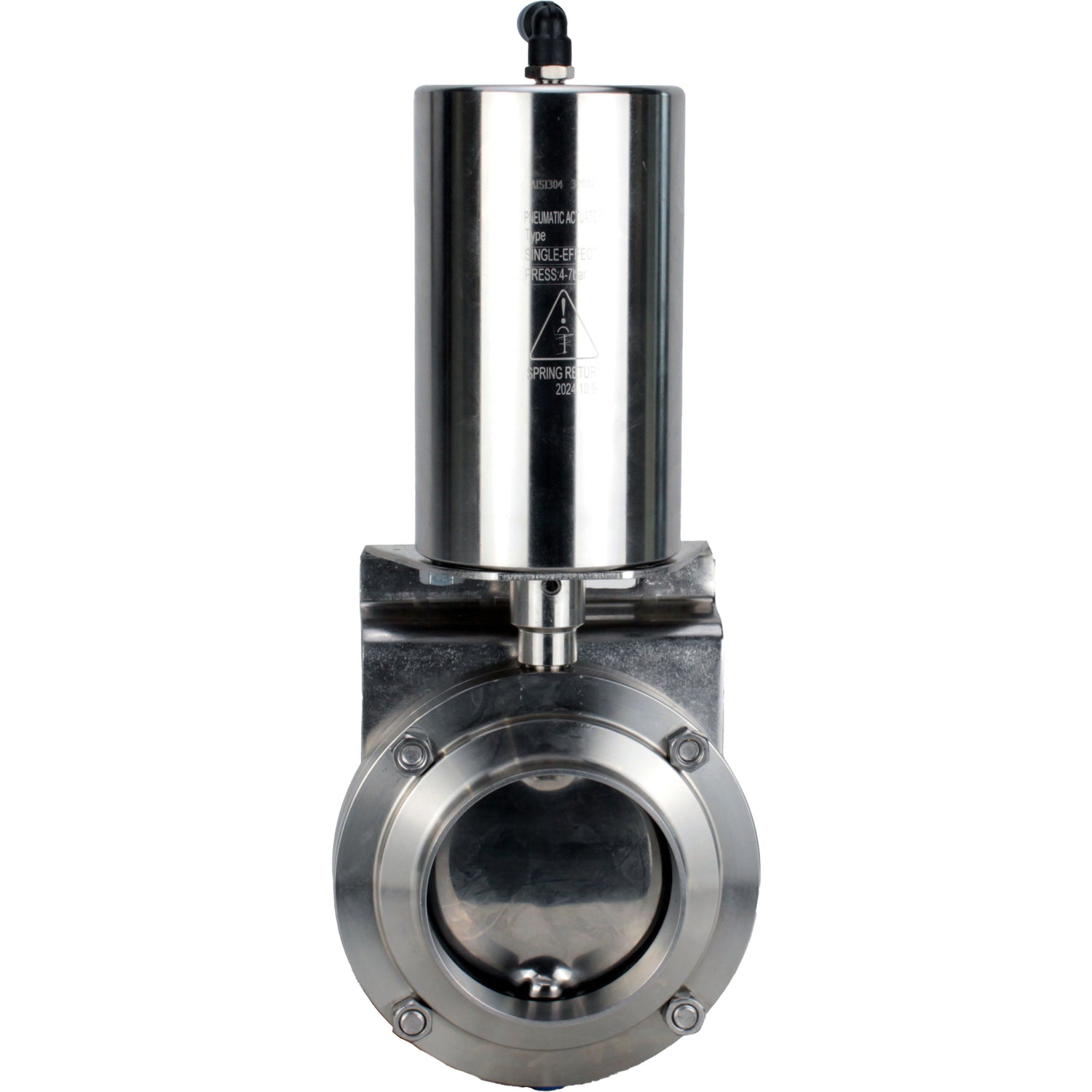

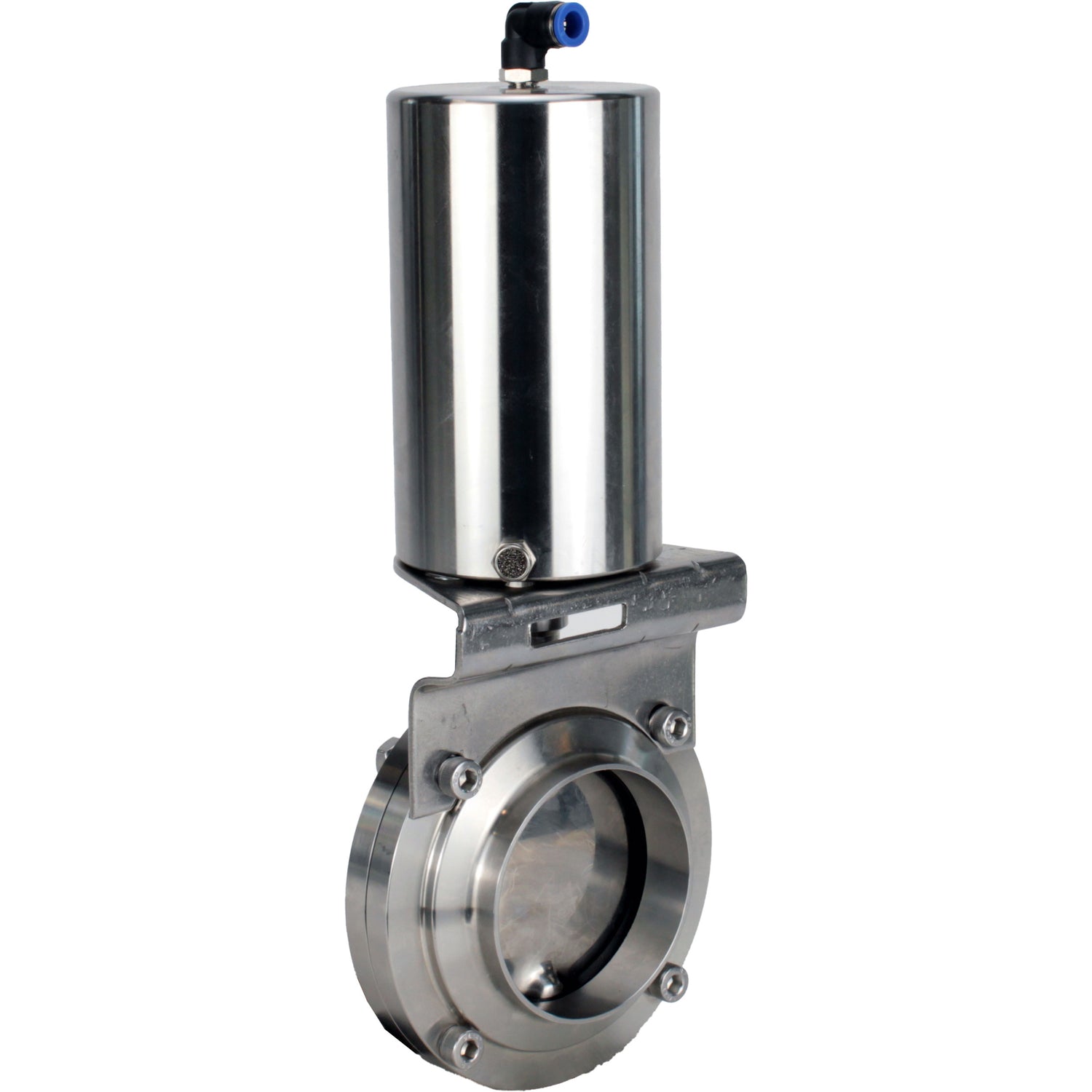

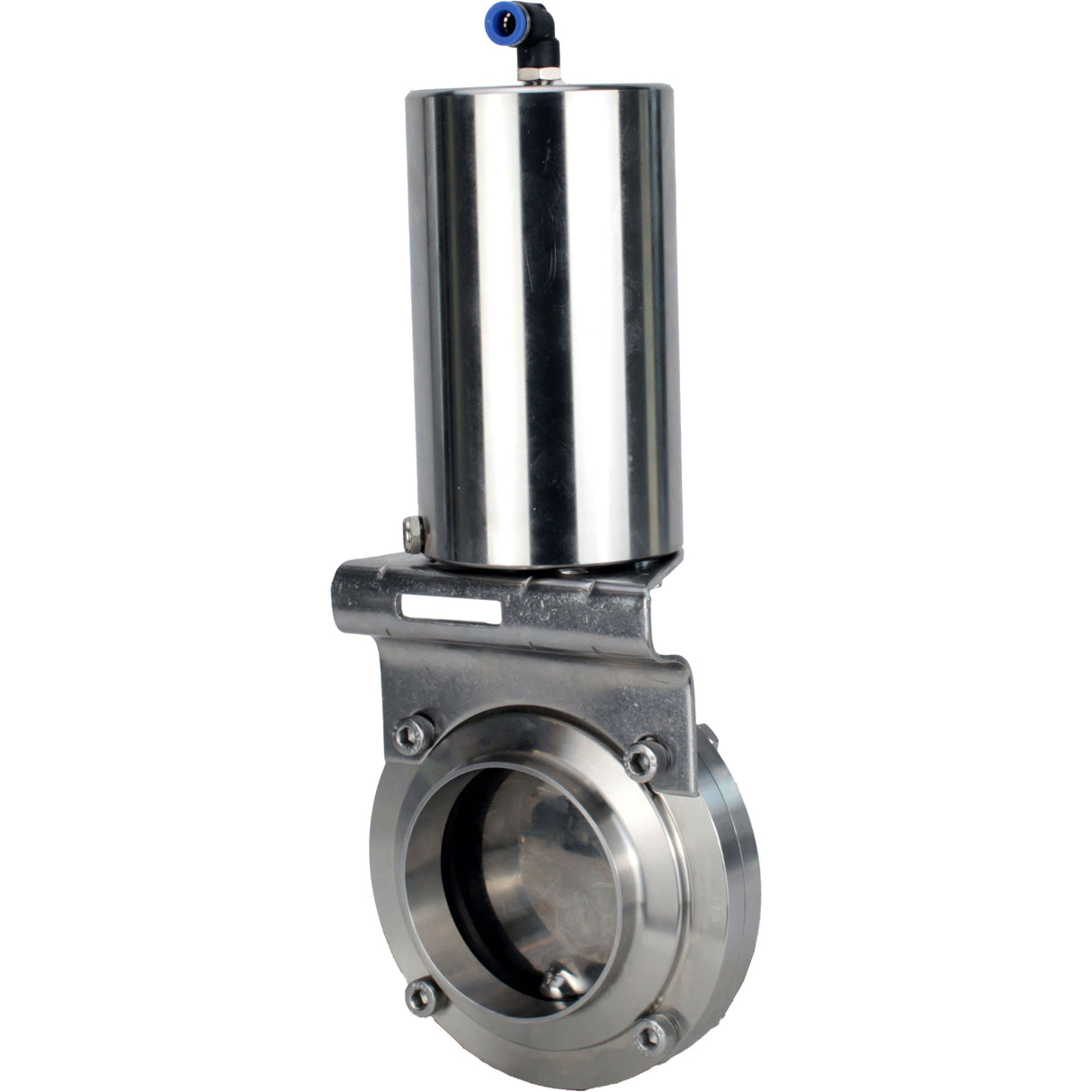

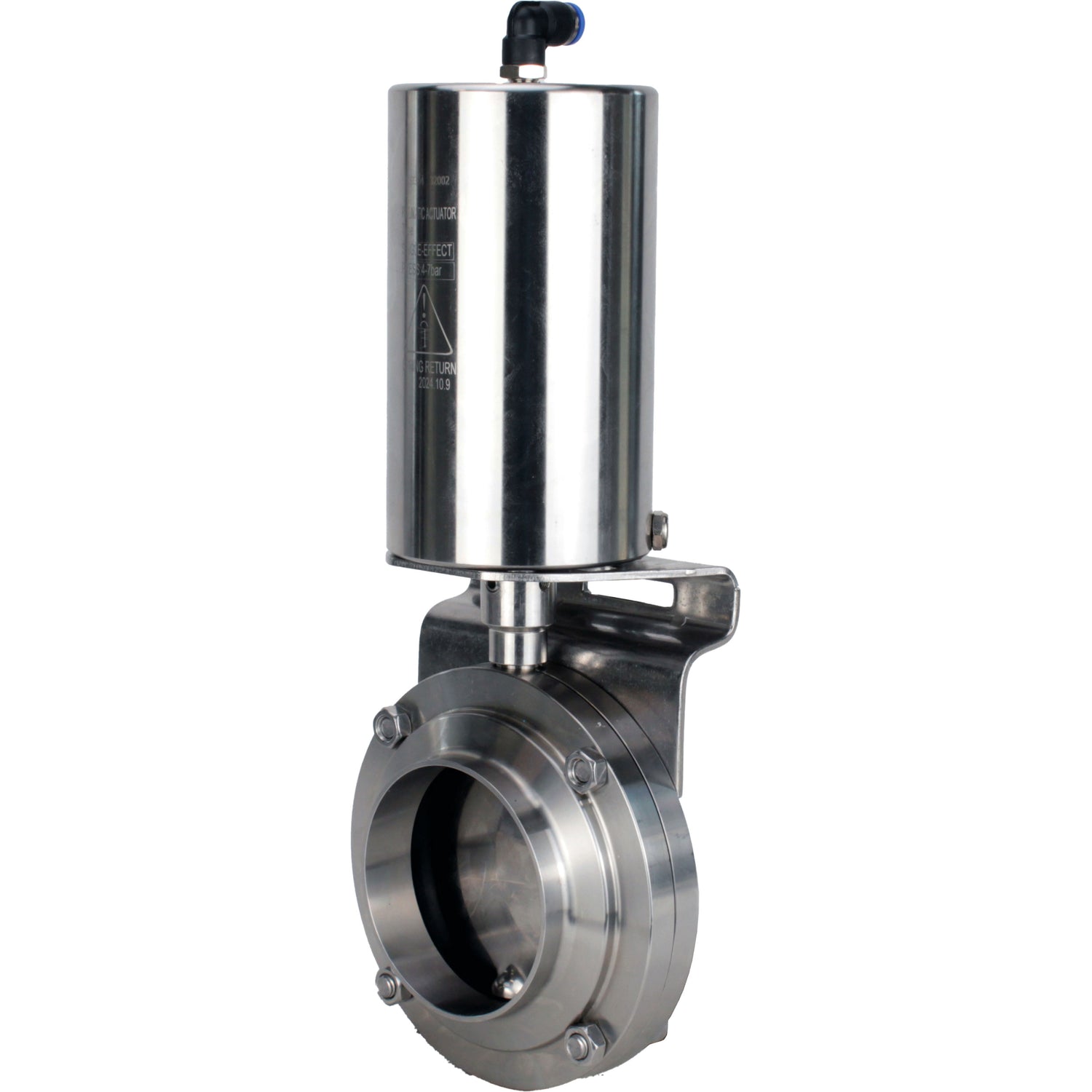

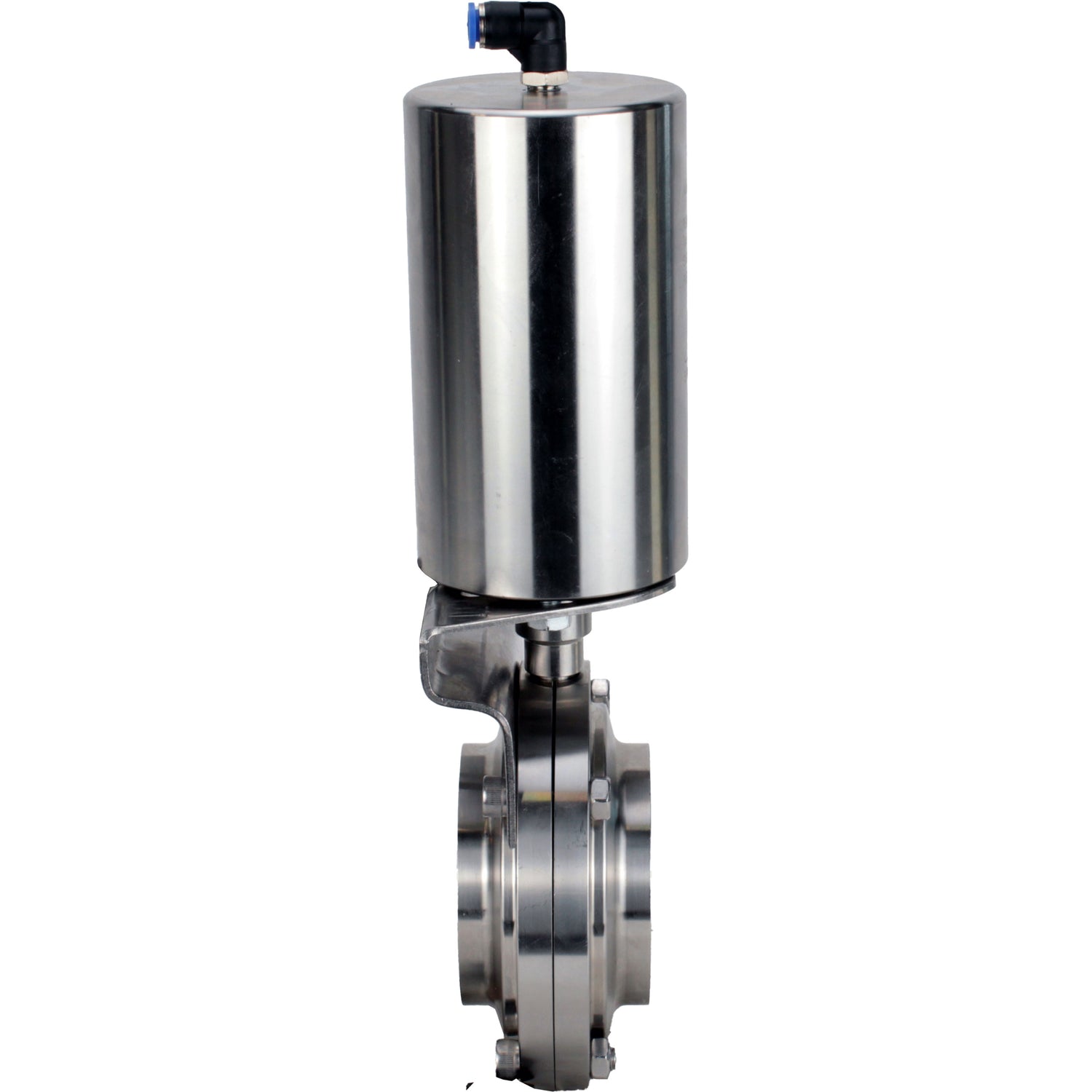

Water Butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA-85

€162,36
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
Pneumatic actuator with return springs PA-SA-85 is designed for automation of the control process of quarter-turn pipeline valves. The principle of operation of the pneumatic actuator with return springs is based on the movement of the built-in piston due to compressed air, which enters the system from the compressor line prepared. During operation, the cylinder piston performs translational-rotational movement. Air is supplied only on one side of the piston, and the piston is returned by the action of a return spring. In such cylinders, the return spring reduces the forward force developed by the cylinder under the action of compressed air, and the force at return to the initial position is determined by the stiffness and degree of compression of the spring.







Technical characteristics of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA-85:

Characteristic

Value

Type of valve

Rotary disc

Diameter

15–100 mm

Nominal pressure

10 bar

Working medium temperature

From -50 to +180°C

Application

Food industry

Type of connection

Under weld

Type of control

Pneumatic actuator

Tightness class

A

Warranty

12 months



Technical characteristics of pneumatic actuators with return springs Elephant PA-SA-85 for food valves:

Characteristic Value
Type of pneumatic actuator Single-acting
Actuator torque 26 Nm
Control pressure 4 ÷ 7 bar
Control medium Compressed air
Closing / opening time at 6 bar 2 / 2 sec
Average life 500 000 closing/opening cycles
Air supply G1/8"
Ambient air temperature From -20 to +60 °C
Average service life 10 years





Overall and installation sizes of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA-85:

Diameter D, mm t, mm D1, mm A, mm H, mm J, mm K, mm
DN15 18 1.5 78 50 86 126 8x8
DN20 23 1.5 78 50 86 126 8x8
DN25 29 1.5 78 50 86 126 8x8
DN32 35 1.5 86 50 90 126 8x8
DN40 41 1.5 90 50 92 126 8x8
DN50 53 1.5 106 52 104 133 10x10
DN65 70 2.0 124 56 113 144 10x10
DN80 85 2.0 139 60 123.5 160 10x10
DN100 104 2.0 159 64 133.5 160 10x10





Dimensions and mounting sizes of pneumatic actuators with return springs Elephant PA-SA-85 for food valves:

Model C, mm D, mm
PA-SA-85 147 85





Materials of water butterfly valves Elephant WBV3131S-2W-W-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-SA-85:

№

Part name

Material

1

Body

Stainless steel 304

2

Swivel unit

Stainless steel 304

3

Disc

Stainless steel 304

4

Seat seal

Silicon

5

Nut

Steel A2~70

6

Bolt

Steel A2~70

7

Plug

Plastic ABS





Construction of pneumatic actuators with return springs Elephant PA-SA-85 for food valves:

№

Part name

Material

1

Air inlet fitting

n/a

2

Retaining ring

Stainless steel 304

3

Upper cover

Stainless steel 304

4

Sealing ring

NBR

5

Sealing ring

NBR

6

Piston

Aluminum alloy 4A11 (high silicon content - 4.5% to 6%)

7

Needle bearing

n/a

8

Spring

Spring steel 65Mn

9

Spring

Spring steel 65Mn

10

Needle bearing

n/a

11

Needle bearing

n/a

12

Transfer ring

Stainless steel 304

13

Sealing ring

NBR

14

Needle bearing

n/a

15

Body

Stainless steel 304

16

Muffler

Brass H62



Specifications
  • Country of origin
    China
  • Body material
    stainless steel AISI 304
  • Maximum allowable temperature
    180 °C
  • Connection type
    for welding
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Steam, Neutral Media
  • Applications
    Food Industry
  • Type of seal
    Silicon
  • Disc material
    stainless steel AISI 304
  • Manual override
    No
  • Limit switches
    No
  • Type of pneumatic actuator
    unilateral action

Reviews (0)

Documentation
nullButterfly valve Elephant WBV3131x-2W-W-H
nullPneumatic actuator with return springs ELEPHANT PA-SA-85 for food gates WBV3131x-2W-W-T-C-H

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-65628DN1510 bar €162,36 Sold out
    D050-65629DN2010 bar €162,89 Sold out
    D050-65630DN2510 bar €163,07 Sold out
    D050-65631DN3210 bar €163,41 Sold out
    D050-65632DN4010 bar €165,50 Sold out
    D050-65633DN5010 bar €179,12 Sold out
    D050-65634DN6510 bar €192,75 Sold out
    D050-65635DN8010 bar €209,79 Sold out
    D050-65636DN10010 bar €228,55 Sold out
