Water Butterfly Valve Elephant WCB-316L-VITON body material - Carbon s
1 15
Elephant  |  SKU: D050-32559

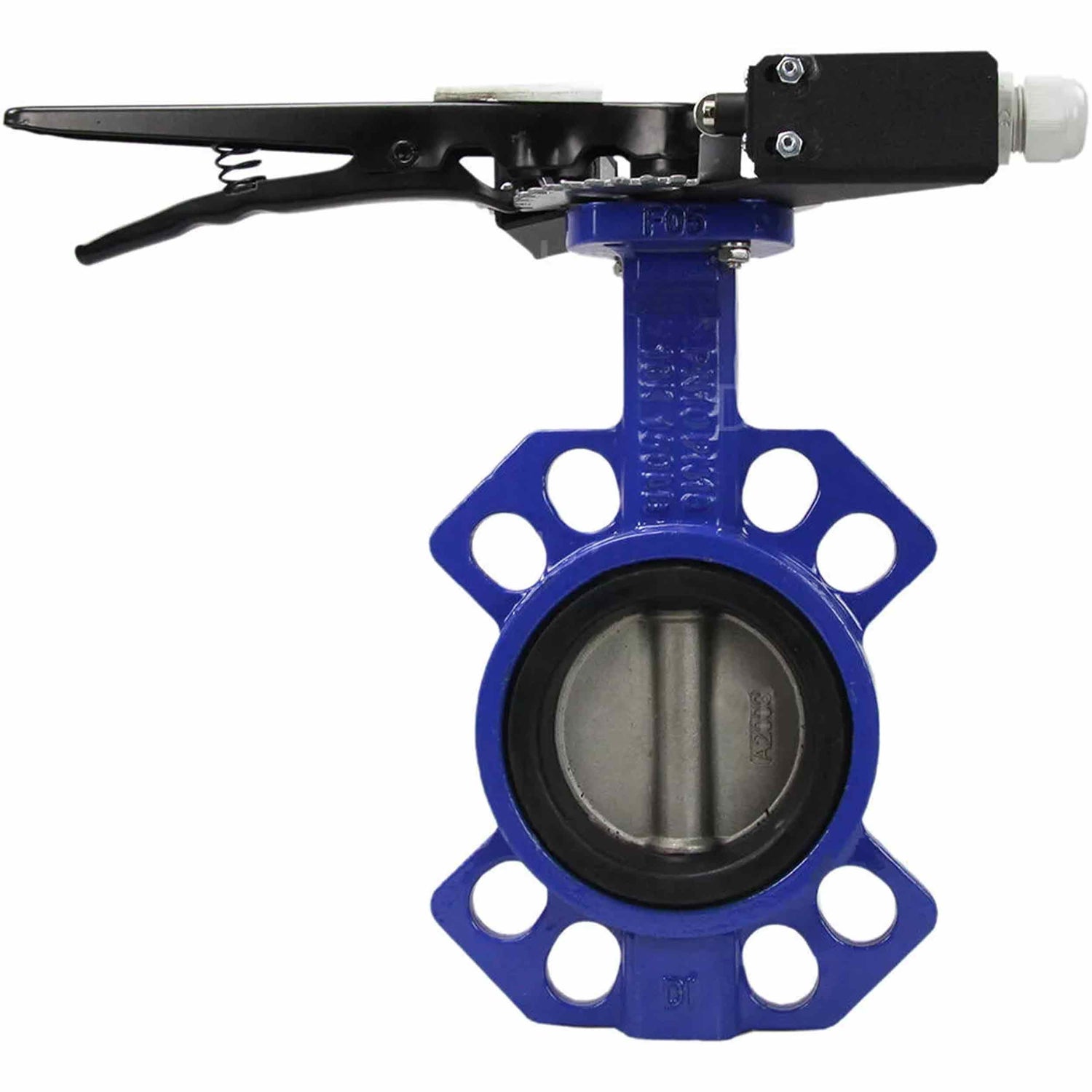

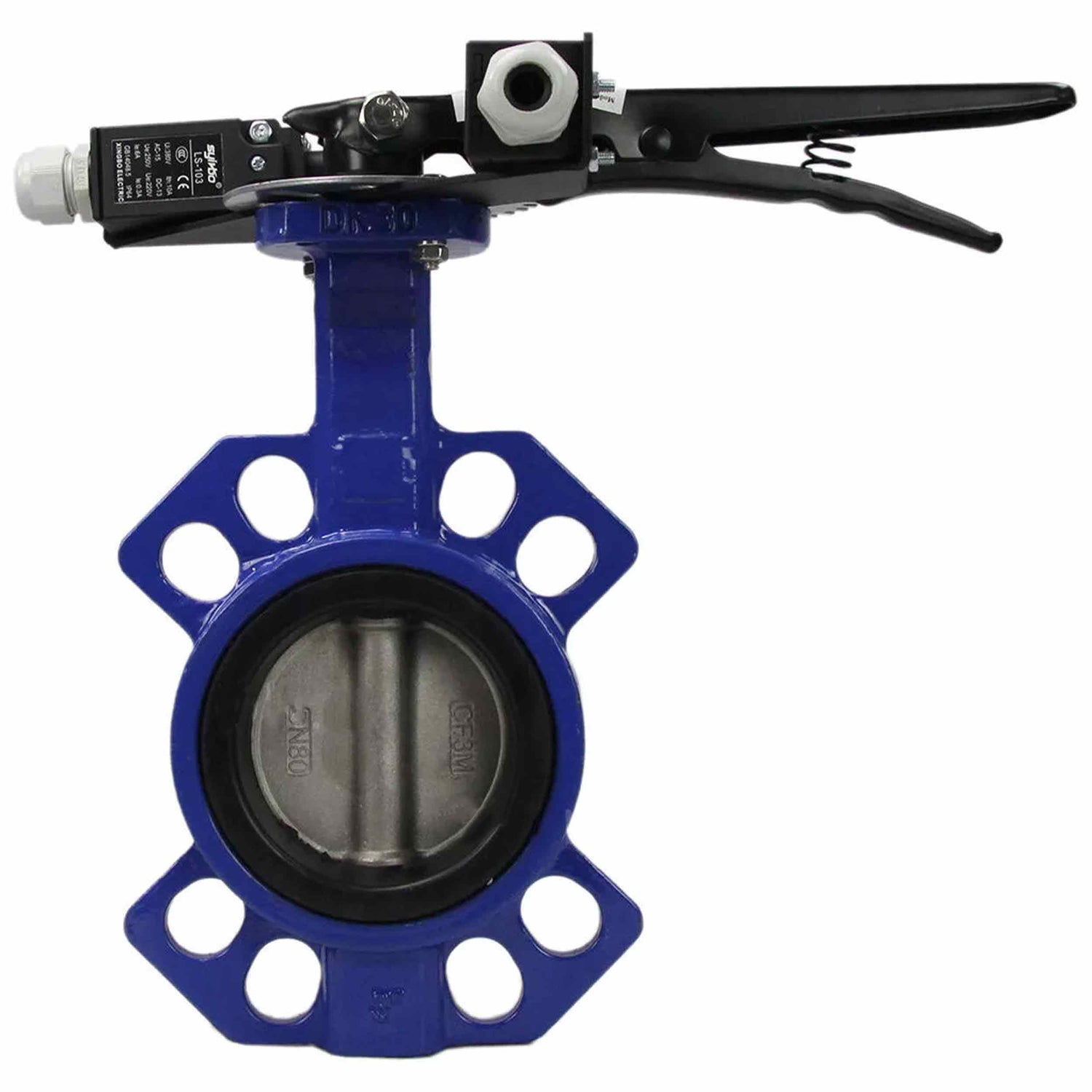

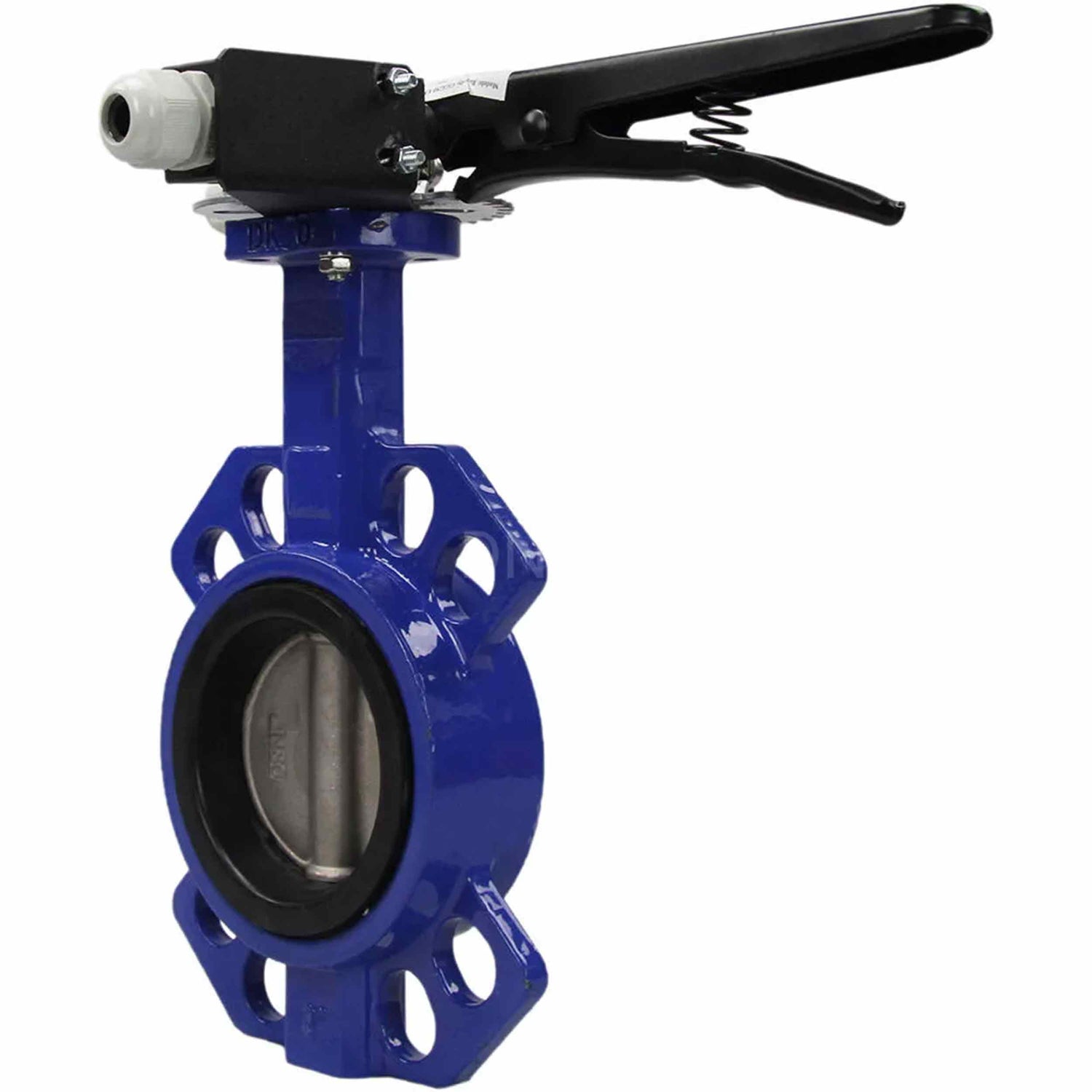

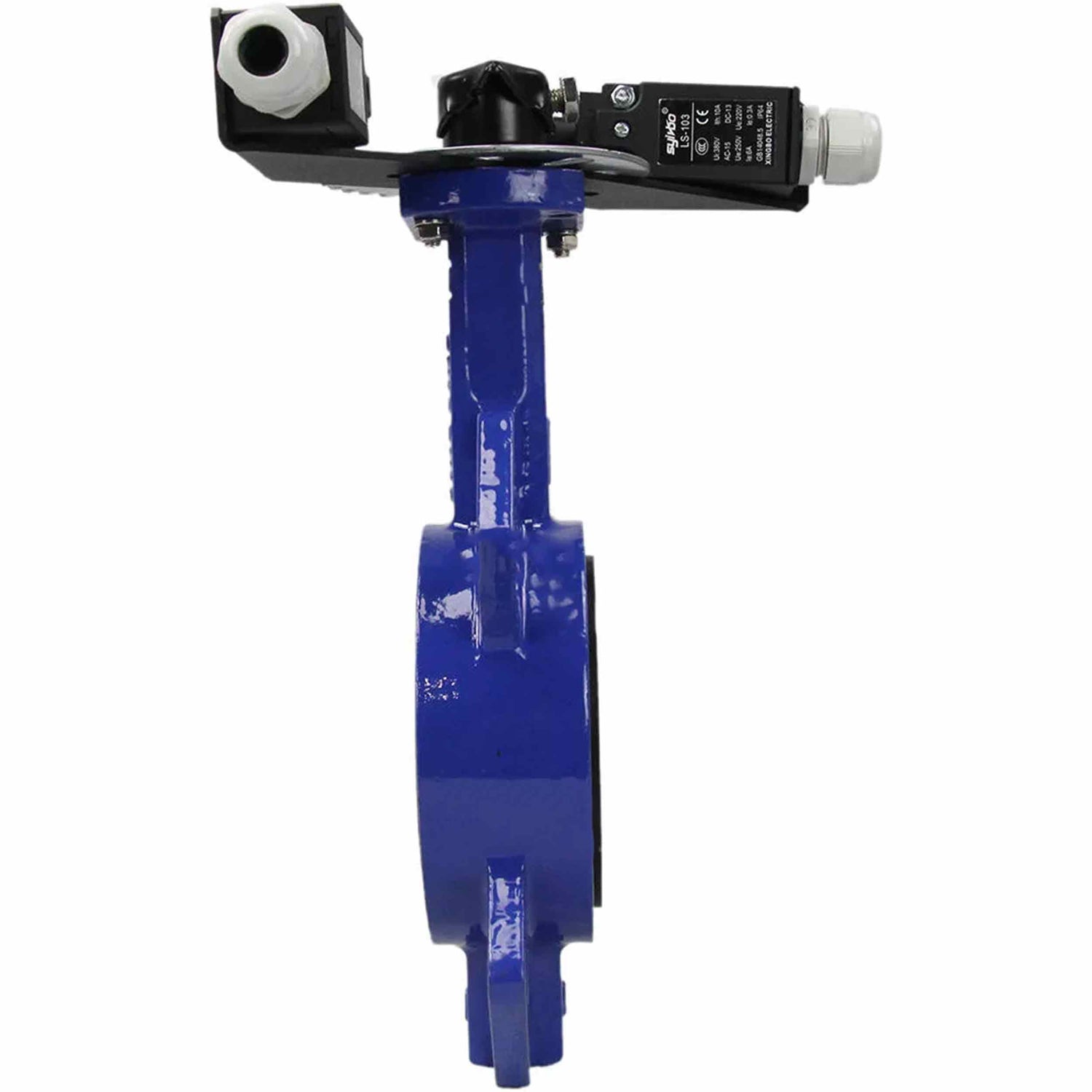

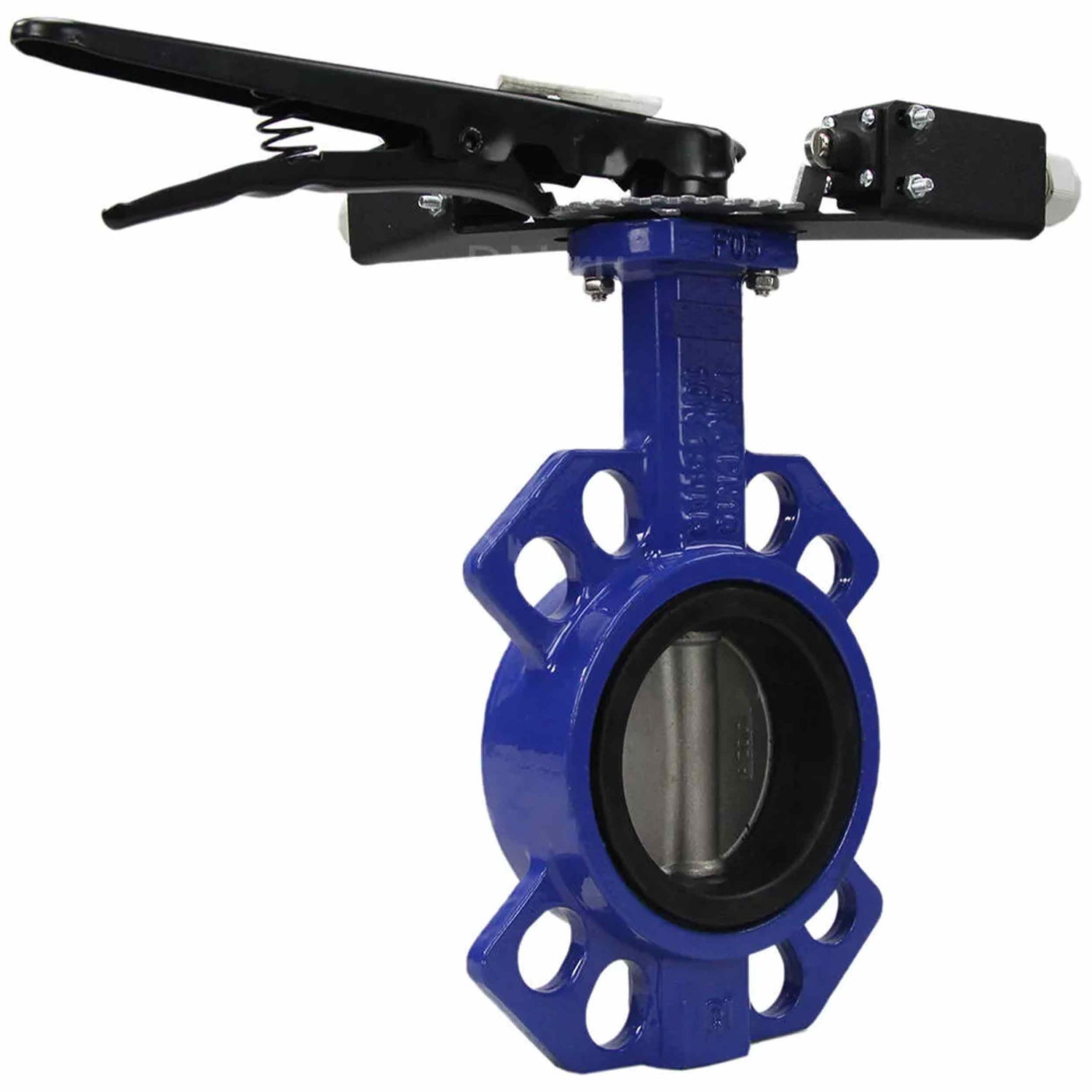

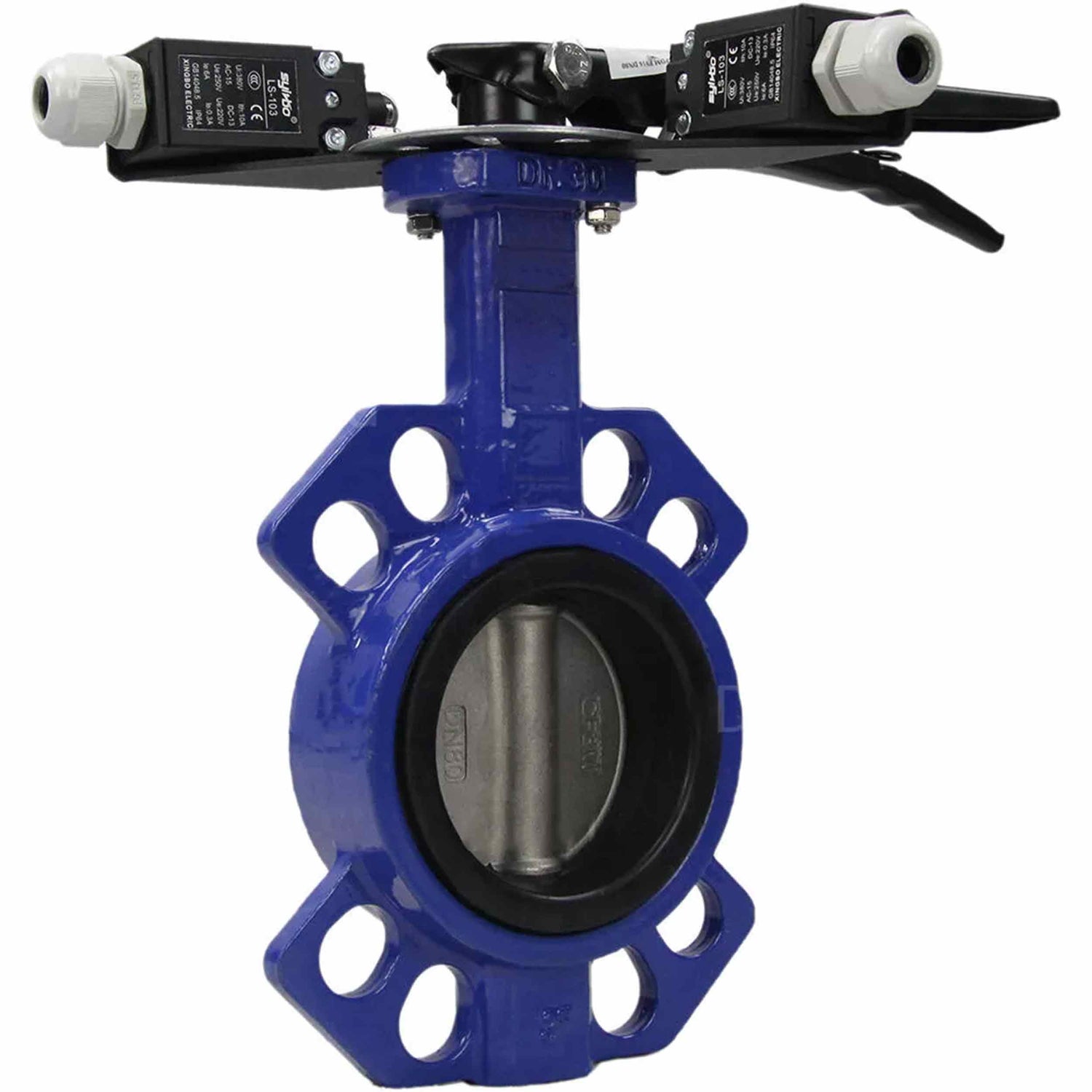

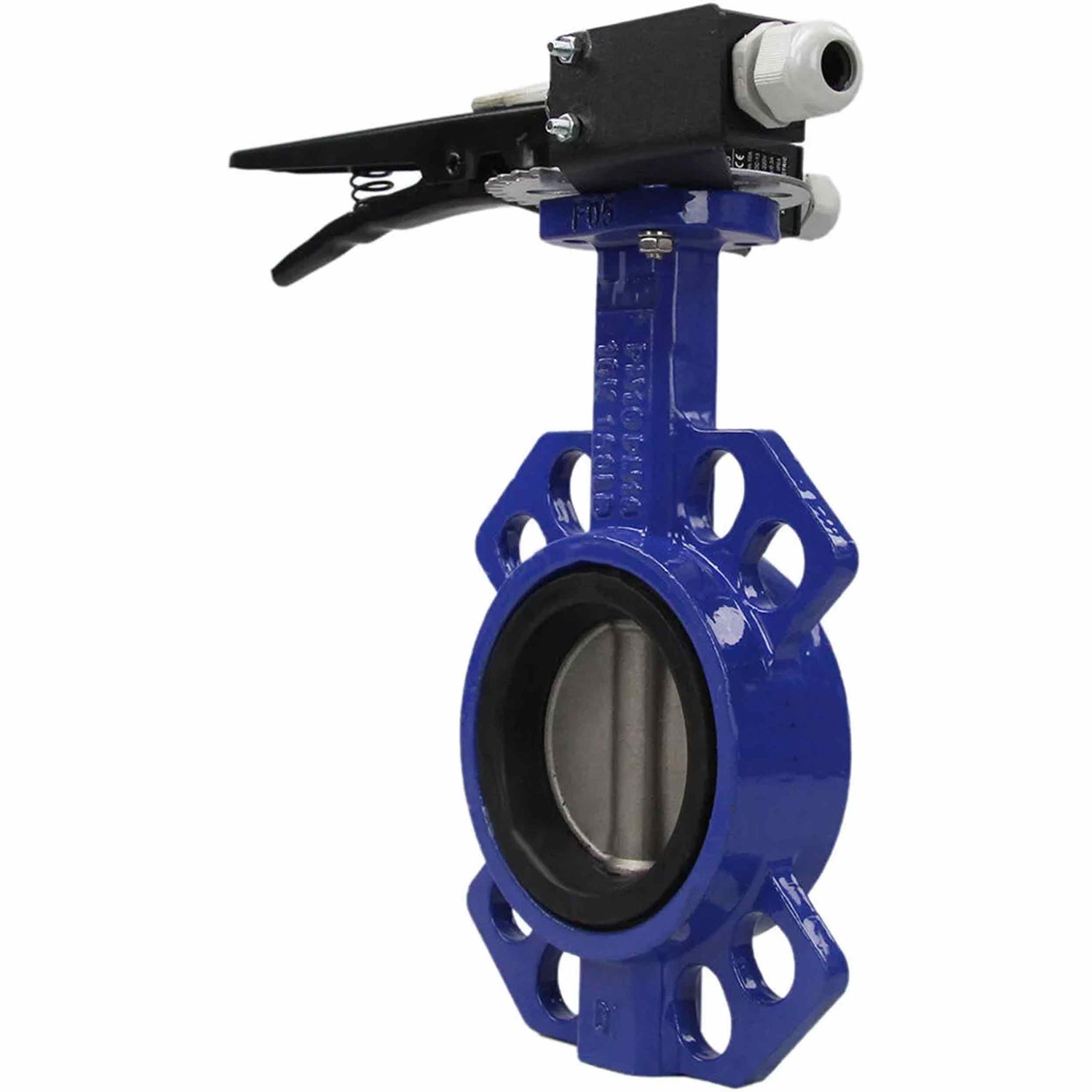

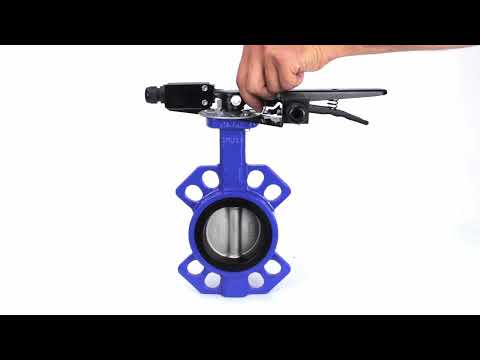

Water Butterfly Valve Elephant WCB-316L-VITON body material - Carbon steel WCB, disk material - Stainless steel aisi 316l, seal - Viton with handle, two limit switches LS-103 250V and a bracket for mounting limit switches

€140,34
Tax included Shipping calculated at checkout.

Water Butterfly Valve Elephant WCB-316L-VITON body material - Carbon steel WCB, disk material - Stainless steel aisi 316l, seal - Viton with handle, two limit switches LS-103 250V and a bracket for mounting limit switches - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Butterfly valve Elephant is designed for use as shut-off or regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.
Butterfly valves should be installed only between collar flanges.





General parameters of water butterfly valve Elephant WCB-316L-VITON body material - Carbon steel WCB, disk material - Stainless steel aisi 316l, seal - Viton with handle, two limit switches LS-103 250V and a bracket for mounting limit switches:

Size range DN, mm

 50-150

Nominal pressure PN, bar

16

Flow direction

Two-way

Ambient temperature t, °C

From -20 to +200

Connection to pipeline

Interflange


Technical characteristics of water butterfly valve Elephant WCB-316L-VITON body material - Carbon steel WCB, disk material - Stainless steel aisi 316l, seal - Viton with handle, two limit switches LS-103 250V and a bracket for mounting limit switches:

DN Torque, Nm ISO 5211 Weight, kg
50 50 F05 2
65 50 F05 2.3
80 50 F05 2.6
100 50 F07 4.1
125 80 F07 5.2
150 100 F07 6.6




Dimensions of water butterfly valve Elephant WCB-316L-VITON body material - Carbon steel WCB, disk material - Stainless steel aisi 316l, seal - Viton with handle, two limit switches LS-103 250V and a bracket for mounting limit switches:

DN H1, mm H2, mm H3, mm Dm, mm Dk, mm L, mm ØC, mm
DN50 66 126 25 73 90 43 125
DN65 74 137 25 85 103 46 145
DN80 91 146 25 100 116 46 160
DN100 105 166 25 131 151 52 180
DN125 121 182 25 155 174 56 210
DN150 134 198 25 184 205 56 240
DN200 169 223 35 234 255 60 295
DN250 200 270 35 288 315 68 355
DN300 240 299 35 340 375 78 410



Materials of water butterfly valve Elephant WCB-316L-VITON body material - Carbon steel WCB, disk material - Stainless steel aisi 316l, seal - Viton with handle, two limit switches LS-103 250V and a bracket for mounting limit switches:

№ Name Material
1 Body WCB steel or AISI 316L stainless steel
2 Cuff VITON
3 Disc AISI 316L stainless steel
4 Stem SS 416/2Cr13 stainless steel
5 Pin AISI 316L stainless steel
6 Bushing EPDM
7 Sealing ring EPDM
8 Fixing plate Carbon steel
9 Handle with lock Carbon steel

Specifications
  • Country of origin
    China
  • Body material
    Carbon steel
  • Maximum allowable temperature
    200 °C
  • Connection type
    Compact flanged
  • Control type
    Handle
  • Operating environment
    Mineral And Vegetable Oils, Animal Fats, Greases And Fuels, Hot Air
  • Nominal pressure
    16 bar
  • Type of seal
    VITON
  • Disc material
    Stainless steel AISI 316L/1.4404
  • Explosion-proof
    No
  • Torque
    59 Nm
  • Pneumatic actuator
    No
  • Manual override
    Yes
  • Limit switches
    Yes

Reviews (0)

Documentation
nullEnd sensor ELEPHANT LS-103 250V 6A for rotary disk gates

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D050-32559DN5016 bar €140,34 0 In stock
    D050-32561DN8016 bar €166,02 Sold out
    D050-32556DN10016 bar €230,66 Sold out
    D050-32557DN12516 bar €292,87 Sold out
    D050-32558DN15016 bar €339,64 Sold out
    D050-32560DN6516 bar €152,04 Sold out
