Elephant | SKU: D050-02359

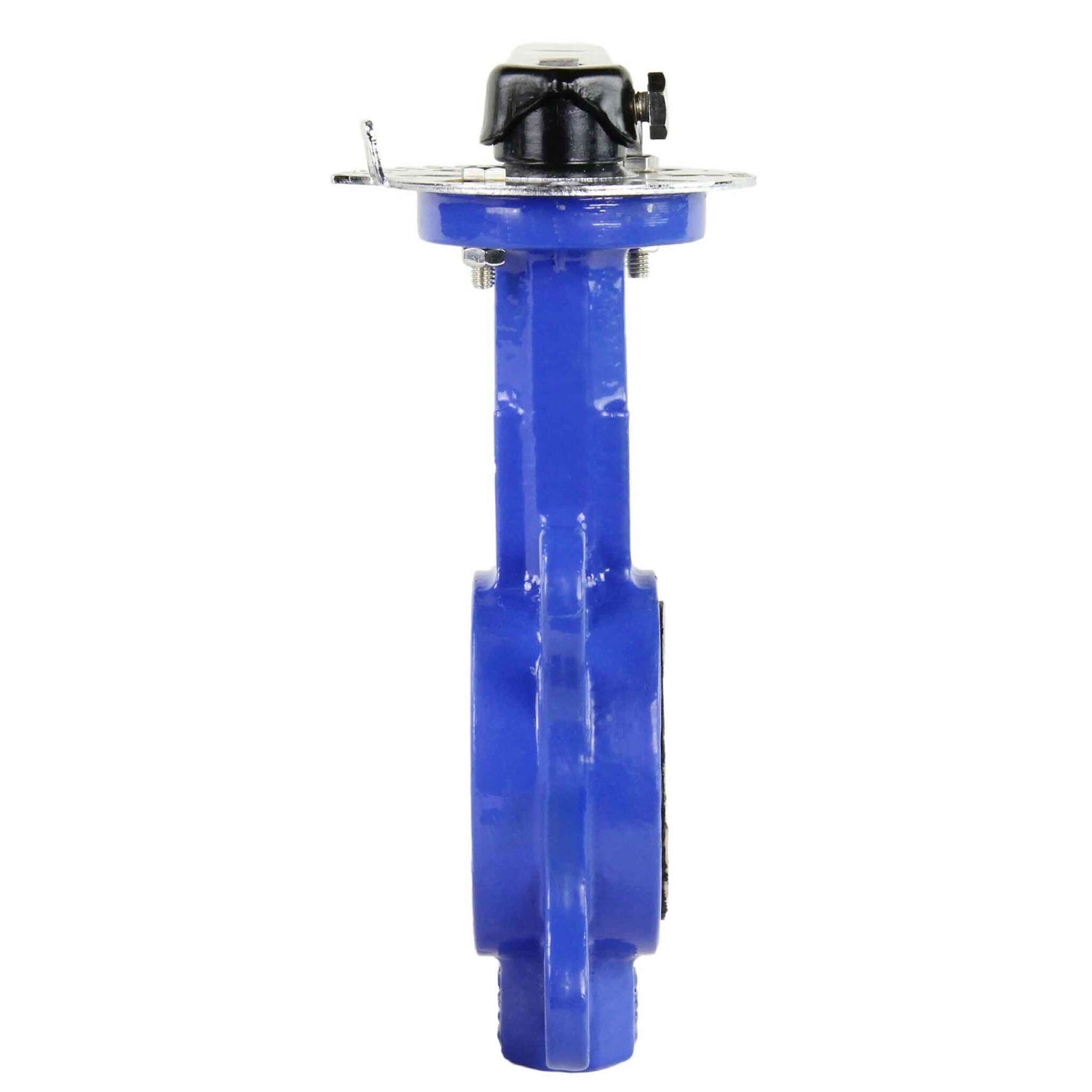

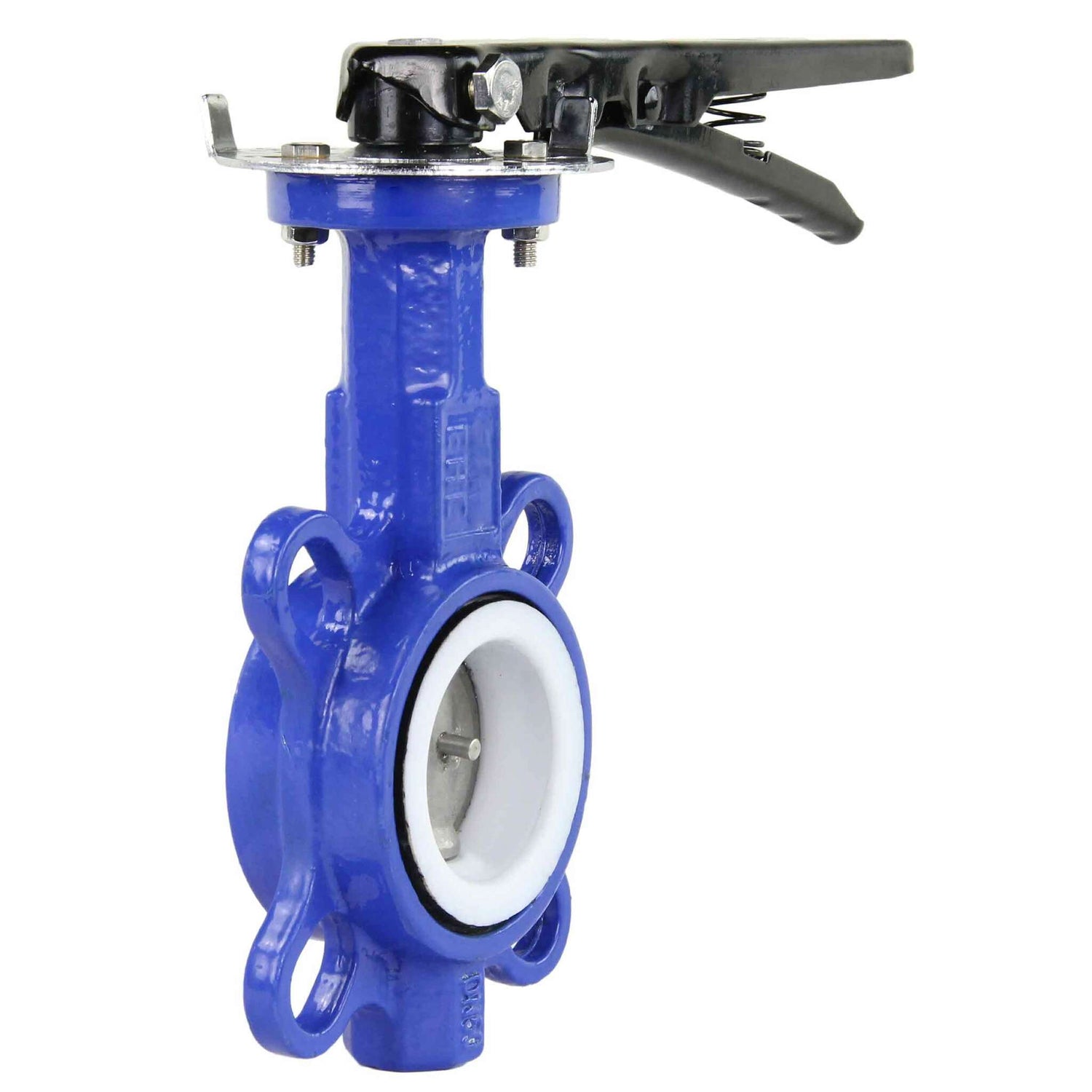

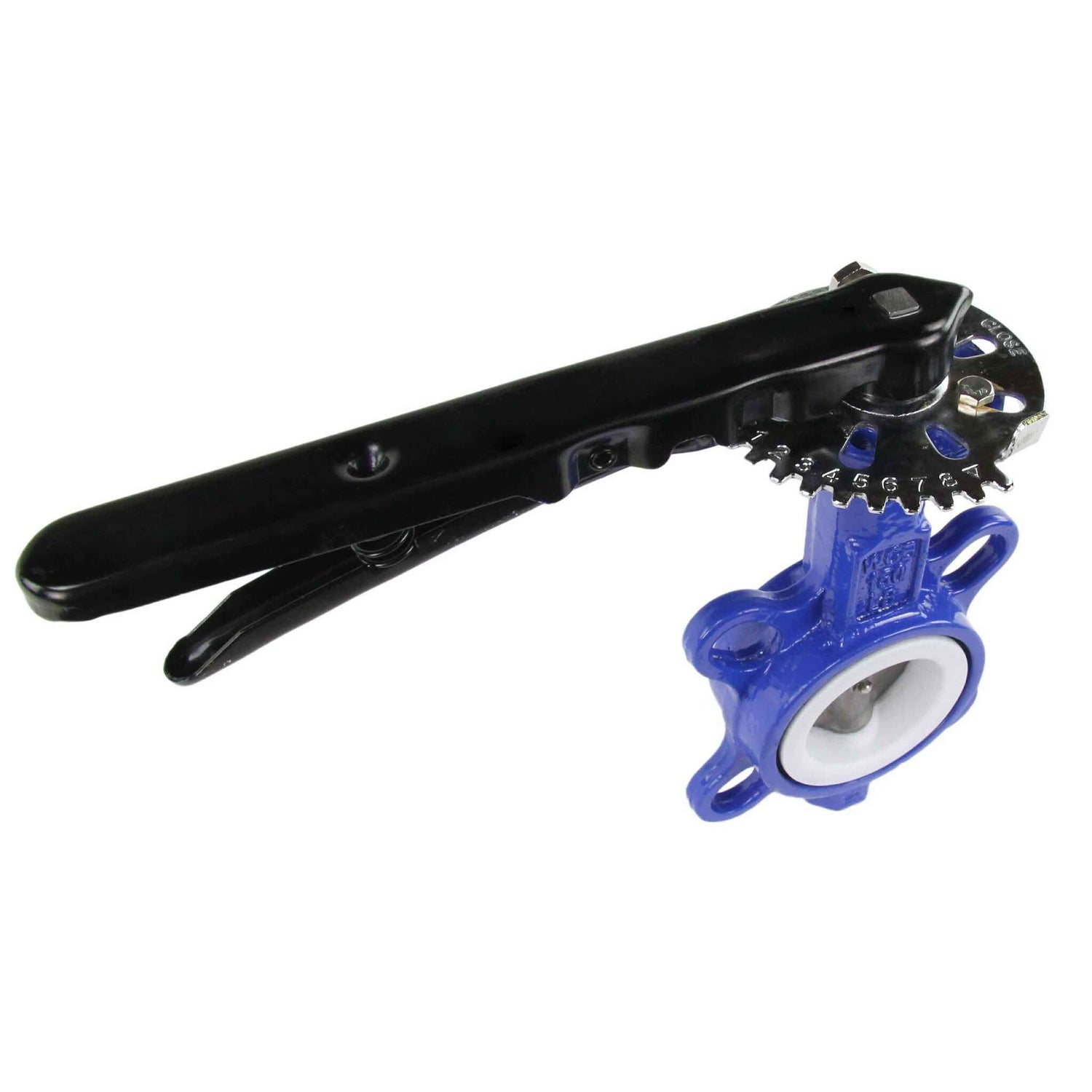

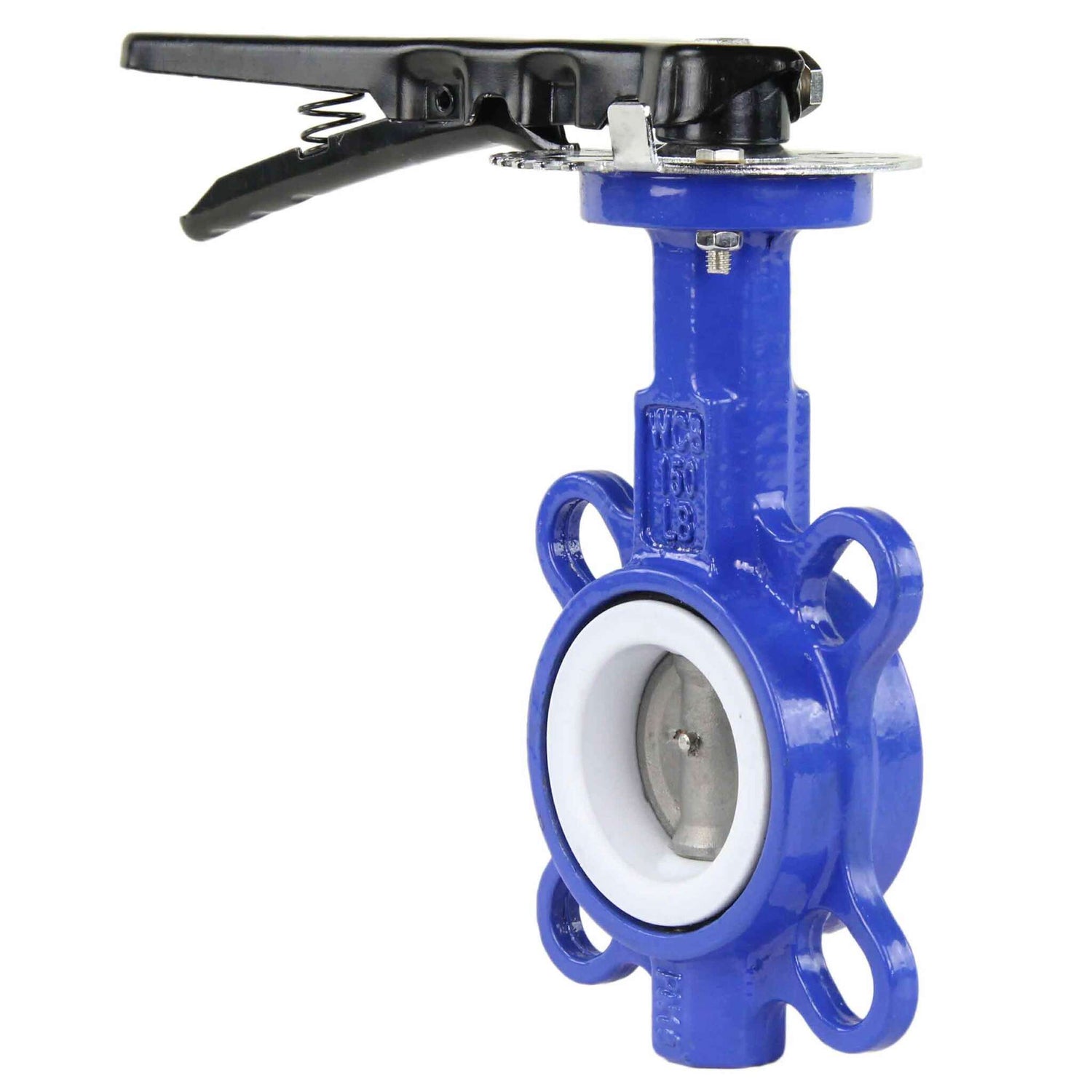

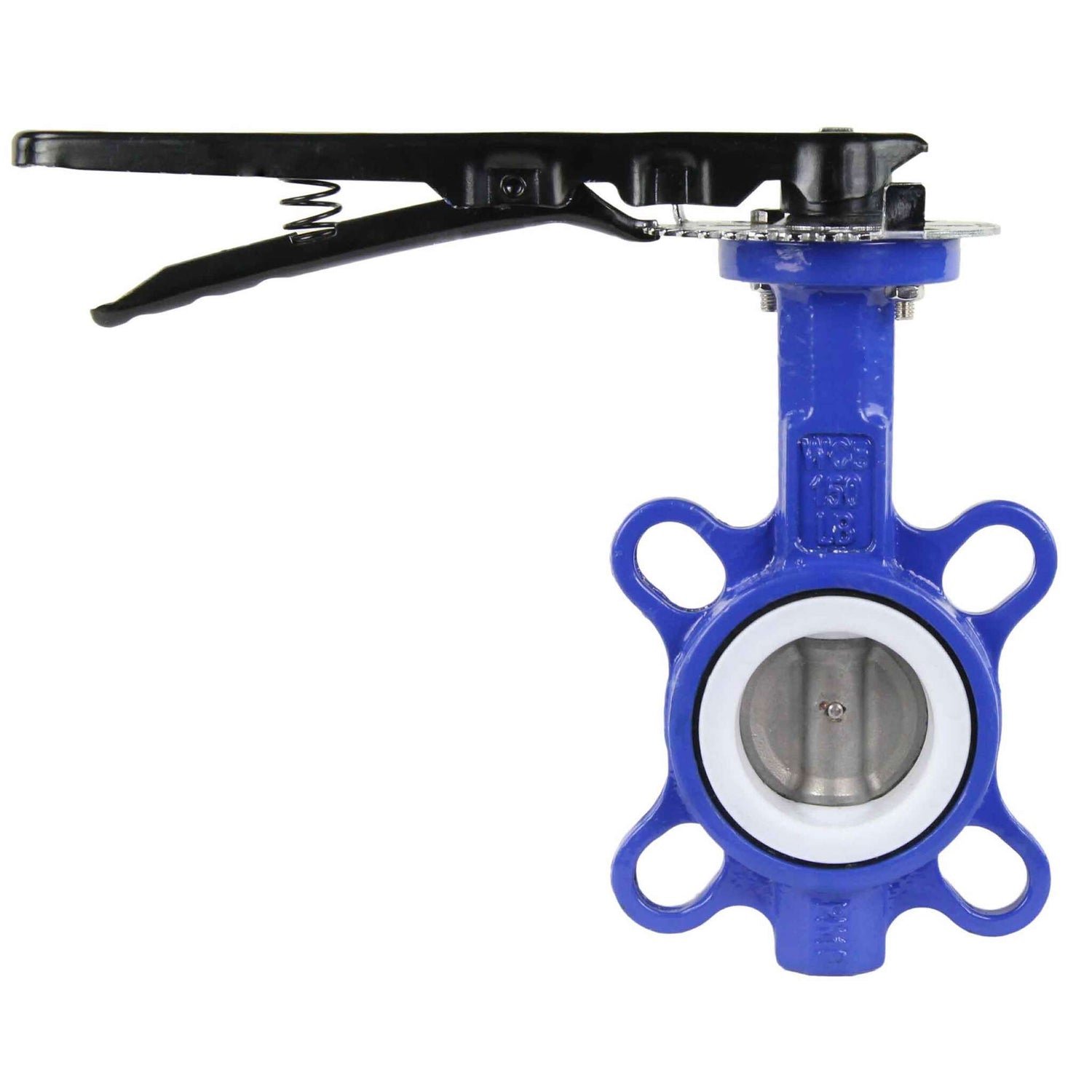

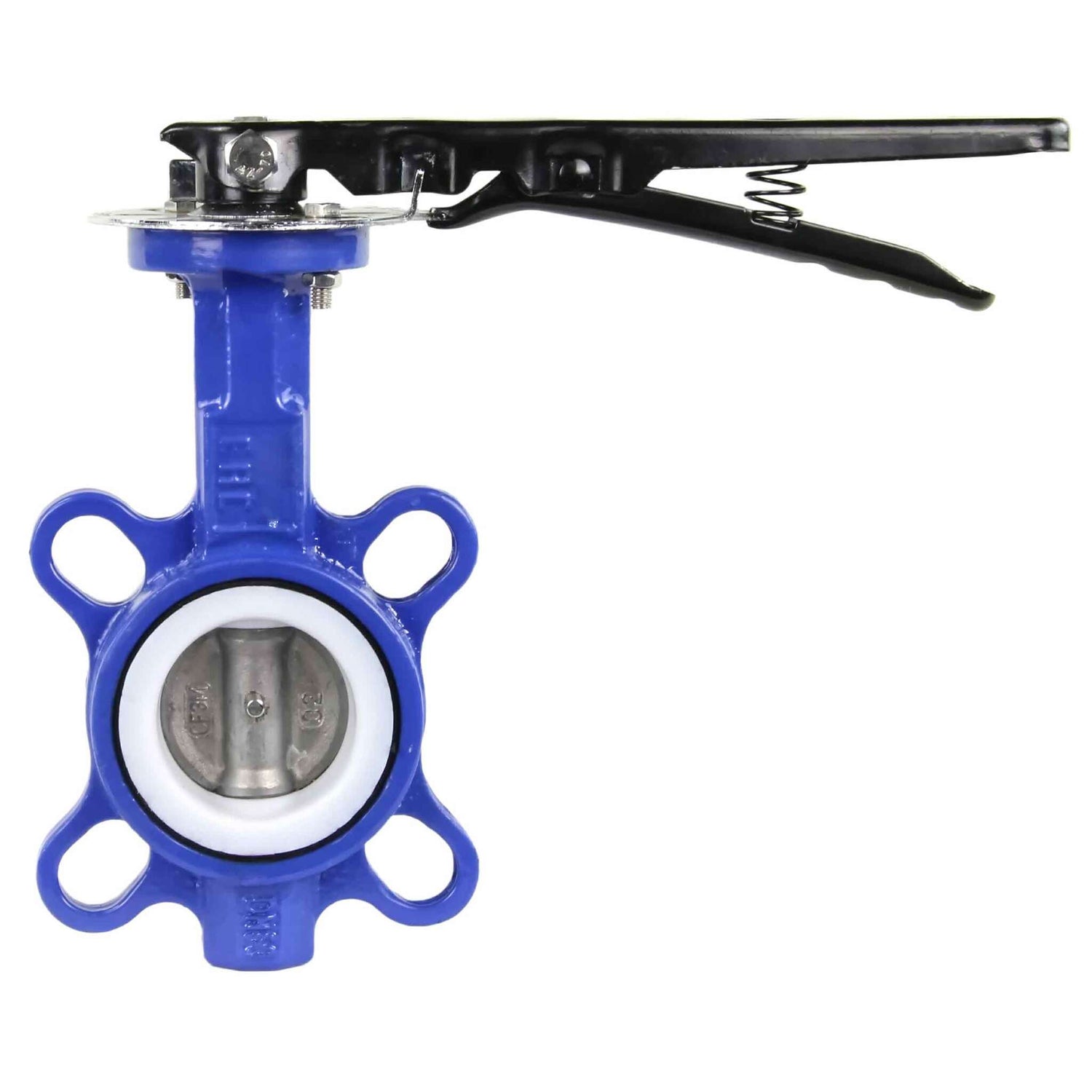

Water Butterfly Valve Elephant WCB-316L-PTFE 232PSI, body material - stainless steel WCB, disk material - stainless steel 316L, seal - PTFE, handwheel operated

€15,00

Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A water butterfly valve is a type of valve used to control the flow of water or other fluids through a pipeline. It gets its name from the butterfly-shaped disc inside the valve that rotates to open or close the flow. When the valve is fully open, the disc is positioned parallel to the flow direction, allowing unobstructed passage of water. When the valve is closed, the disc is turned perpendicular to the flow, effectively blocking the flow of water.

Overall and installation dimensions of the gate valve Elephant WCB-316L-PTFE 232PSI, body material - stainless steel WCB, disk material - stainless steel 316L, seal - PTFE, handwheel operated

Shutter sketch Elephant WCB-316L-PTFE 232PSI, body material - stainless steel WCB, disk material - stainless steel 316L, seal - PTFE, handwheel operated

DN	40	50	65	80	100	125	150	200	250	300
H1	56	76	89	95	114	127	140	177	203	242
H2	110	162	175	181	200	213	225	260	292	337
H3	27	32	32	32	32	32	32	36	36	36
DM	71	73	85	100	131	155	184	234	288	340
Dk	88	90	103	116	151	174	205	255	315	375
L	33	45	48	49	55	58	59	64	70	80
S	9	9	9	9	11	14	14	17	22	22
ØK	50	50	50	50	50	70	70	102	102	125
ØC	110	125	145	160	180	210	240	295	355	410
n - Ød	4 - Ø18	4 - Ø18	4 - Ø18	8 - Ø18	4 - Ø18	4 - Ø18	4 - Ø23	4 - Ø23	4 - Ø27	4 - Ø27
Stem	9x9	9x9	9x9	9x9	11x11	14x14	14x14	17x17	22x22	22x22
ISO 5211	F05	F05	F05	F05	F05	F07	F07	F10	F10	F12
Weight, kg	2	2	2.3	2.6	4.1	5.2	6.6	11.5	17.3	27.8

Materials of bolt parts Elephant WCB-316L-PTFE 232PSI, body material - stainless steel WCB, disk material - stainless steel 316L, seal - PTFE, handwheel operated

№	Part name	Material
1	Body	Stainless steel AISI316L (03X17H14M3) or carbon steel WCB
2	cuff	PTFE
3, 4, 5	Disk, Rod, Pin	Steel AISI316L (03Х17Н14М3)
6	bushing	PTFE
7	O-ring	NBR nitrile
8, 9	Plate, Handle	Carbon steel

Specifications

Country of origin

China
Body material

Stainless steel WCB
Maximum allowable temperature

180 °C
Connection type

Compact flanged
Control type

Handle
Nominal pressure

16 bar
Type of seal

PTFE
Disc material

Stainless steel AISI 316L/1.4404
