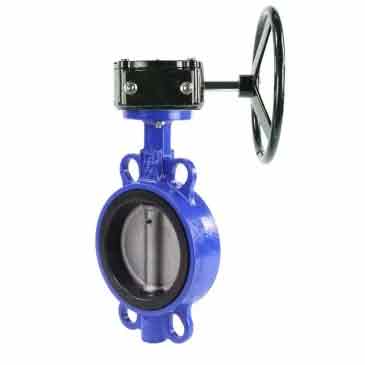

Water Butterfly Valve Elephant WCB-316L-NBR body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - NBR with gear Elephant HAM
Water Butterfly Valve Elephant WCB-316L-NBR body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - NBR with gear Elephant HAM - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Butterfly valves Elephant are used as shut-off and regulating valves for flow control in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper industries.
Dimensions and dimensions of water butterfly valves Elephant WCB-316L-NBR body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - NBR with gear Elephant HAM:
| DN | H1, mm | H2, mm | Dm, mm | Dk, mm | L, mm | ØC, mm |
| DN40/50 | 66 | 126 | 73 | 90 | 43 | 125 |
| DN50 | 66 | 126 | 73 | 90 | 43 | 125 |
| DN65 | 74 | 137 | 85 | 103 | 46 | 145 |
| DN80 | 91 | 146 | 100 | 116 | 46 | 160 |
| DN100 | 105 | 166 | 131 | 151 | 52 | 180 |
| DN125 | 121 | 182 | 155 | 174 | 56 | 210 |
| DN150 | 134 | 198 | 184 | 205 | 56 | 240 |
| DN200 | 169 | 223 | 234 | 255 | 60 | 295 |
| DN250 | 200 | 270 | 288 | 315 | 68 | 355 |
| DN300 | 240 | 299 | 340 | 375 | 78 | 410 |
Sketch Butterfly valves Elephant WCB-316L-NBR body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - NBR with gear Elephant HAM
Materials of water butterfly valves Elephant WCB-316L-NBR body material - Carbon steel WCB, disk material - Stainless steel AISI 316L, seal - NBR with gear Elephant HAM:
| № | Name | Material |
| 1 | Housing | WCB steel or AISI 316L stainless steel |
| 2 | Cuff | EPDM, PTFE, NBR |
| 3 | Disc | AISI 316L stainless steel |
| 4 | Rod | SS 416/2Cr13 stainless steel |
| 5 | Pin | AISI 316L stainless steel |
| 6 | Bushing | EPDM |
| 7 | Sealing ring | EPDM |
| 8 | Fixing plate | carbon steel |
| 9 | Handle with lock | carbon steel |
Sketch of specification water Butterfly Valve Elephant
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Nominal pressure
-
Type of seal
-
Disc material
-
Explosion-proof
-
Thermal protection
-
Torque
-
Electropneumatic positioner
-
Pneumatic actuator
-
Manual override
-
Limit switches
